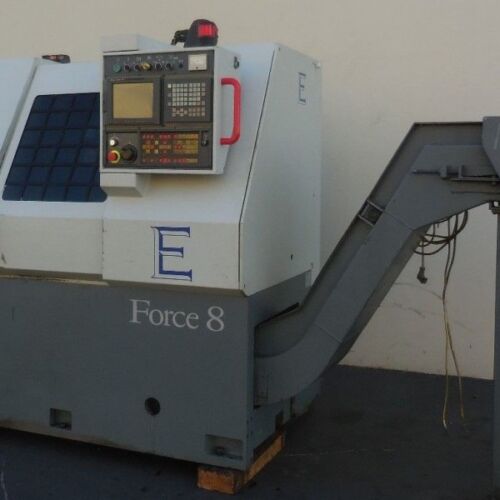

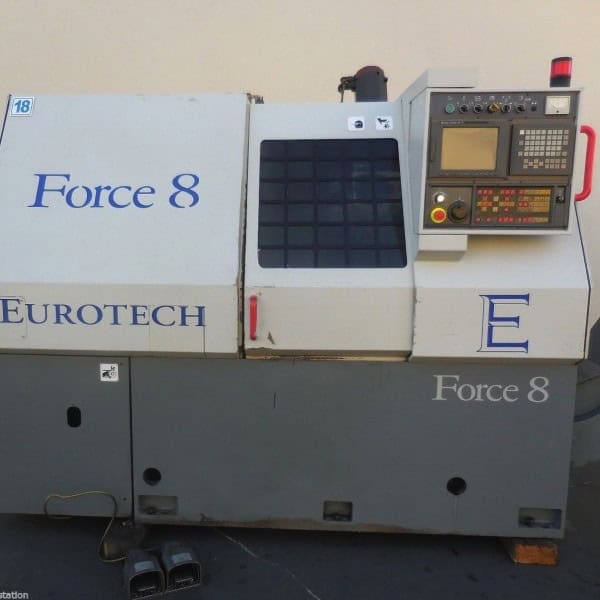

Eurotech S50 ZPS CNC Turning | |
---|---|
Make | ZPS EuroTech |
Model No. | S50 Force 8 |
YOM | 2001 |

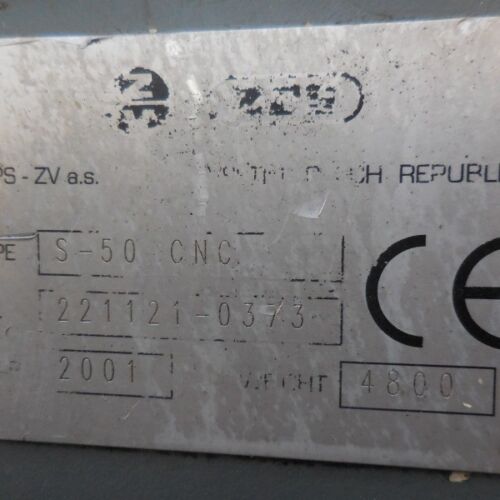

Serial # | 221121-0373 |
Condition | Very Good |
Country of Origin: | Czech Republic |
- Eurotech S50 ZPS Features:
- Box Way Design

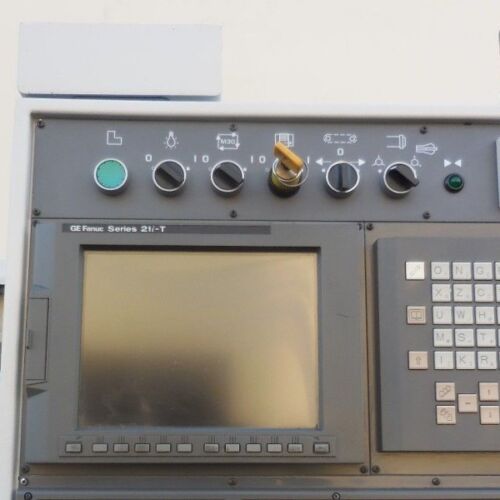

- Fanuc 21iT CNC Control

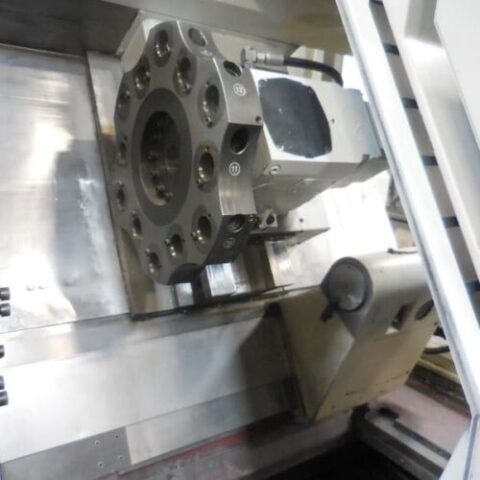

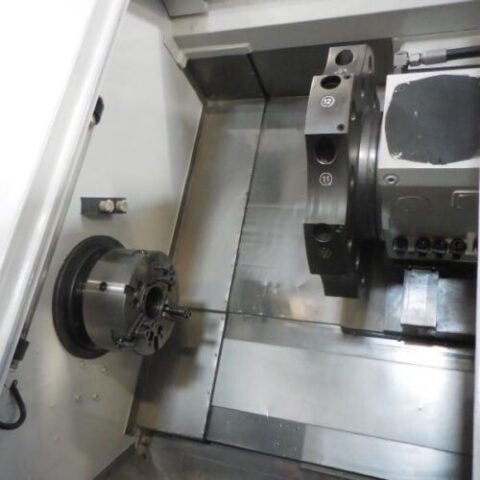

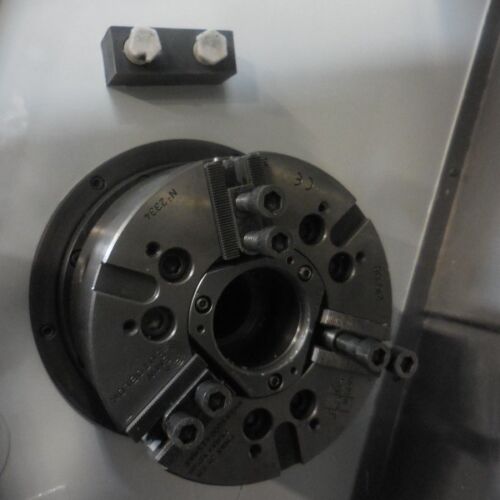

- 8″ 3-Jaw Big Bore Hydraulic Chuck12 Position Turret
- Hydraulic Tailstock
- Chip ConveyorPC Card Slot
- High Pressure Coolant System.
- Foot Operated Control for Chuck.Coolant Tank.
- Eurotech S50 ZPS Specifications:
- Turning Diameter: 10.62″
- Maximum Swing over Bed: 21.25″
- Distance between Centers: 24″
- Turning Length: 21.06″
- X-Axis Travel: 6.88″
- Z-Axis Travel: 21.45″
- X & Z Axis Rapid Feed: 20/20 m/min
- Spindle:
- Spindle Bore: 2.48″
- A2-6 Spindle
- Spindle Speeds: 75-4000 RPM
- Spindle Power: 7.5/11 kW
- Spindle Max Torsional Moment: 286.5/420 Nm
- TailStock:
- Quill Diameter: 4″
- Quill Stroke: 4″
- Quill Taper: 4MT
- Quill Thrust Force: 2.5/9 kN
- General:
- Power Source: AC 200/220 V, Three Phase, 50/60 Hz
- Weight : 10,000 lbs Approx.
- Overall Dimensions: 156″ x 70″ x 84″ tall (with Chip Conveyor)
- Overall Dimensions: 96″ x 70″ x 84″ tall (without Chip Conveyor)
- Location: Chino, CA 91710 – Worldwide Shipping.
Eurotech S50 ZPS Comes as shown in pictures.
