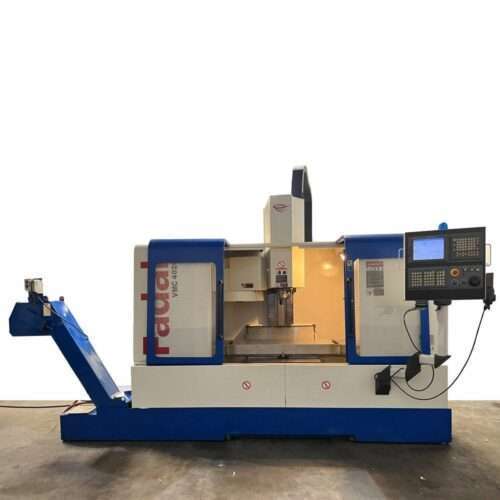

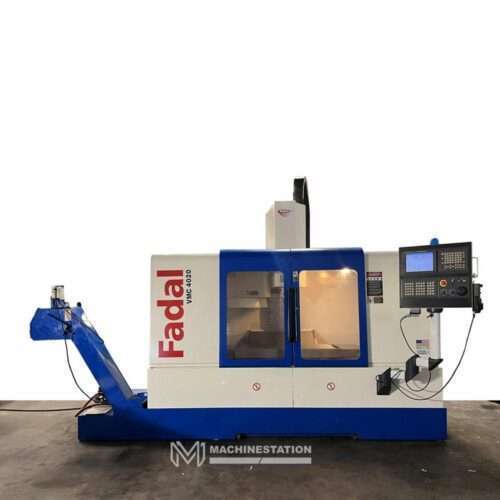

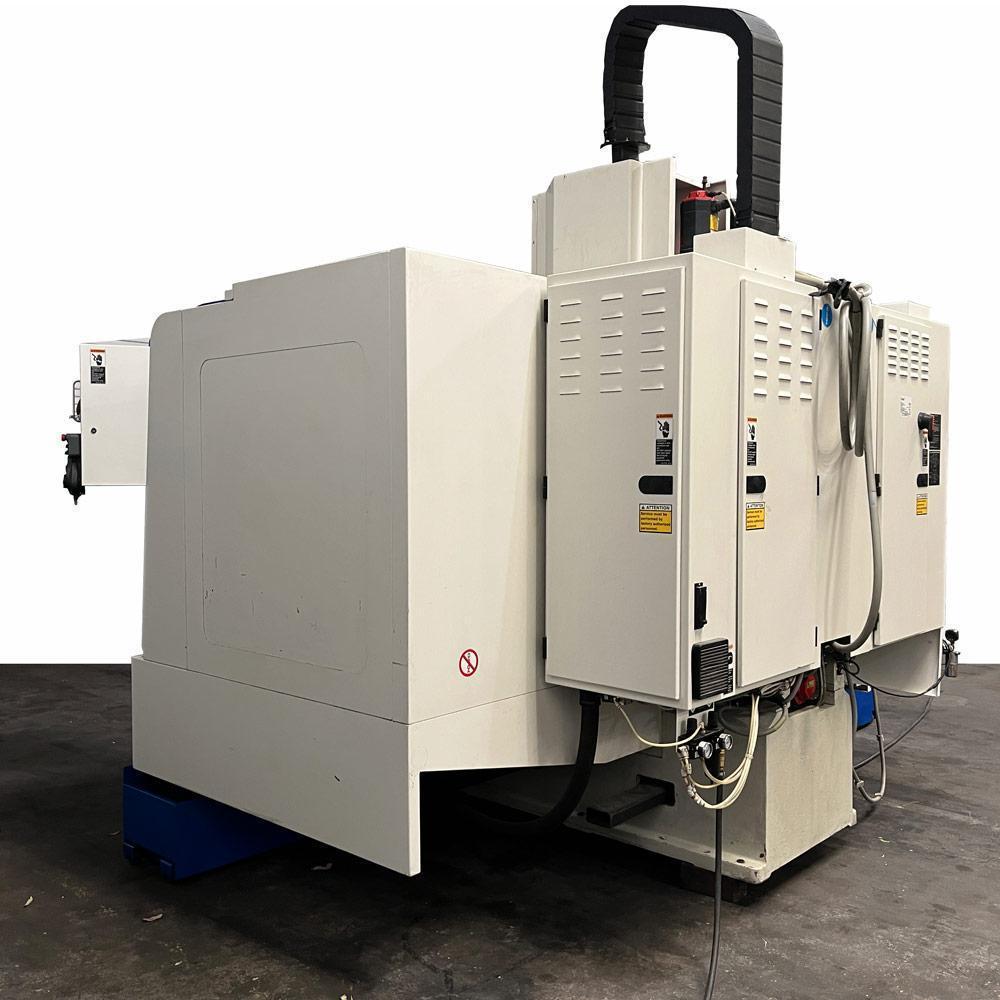

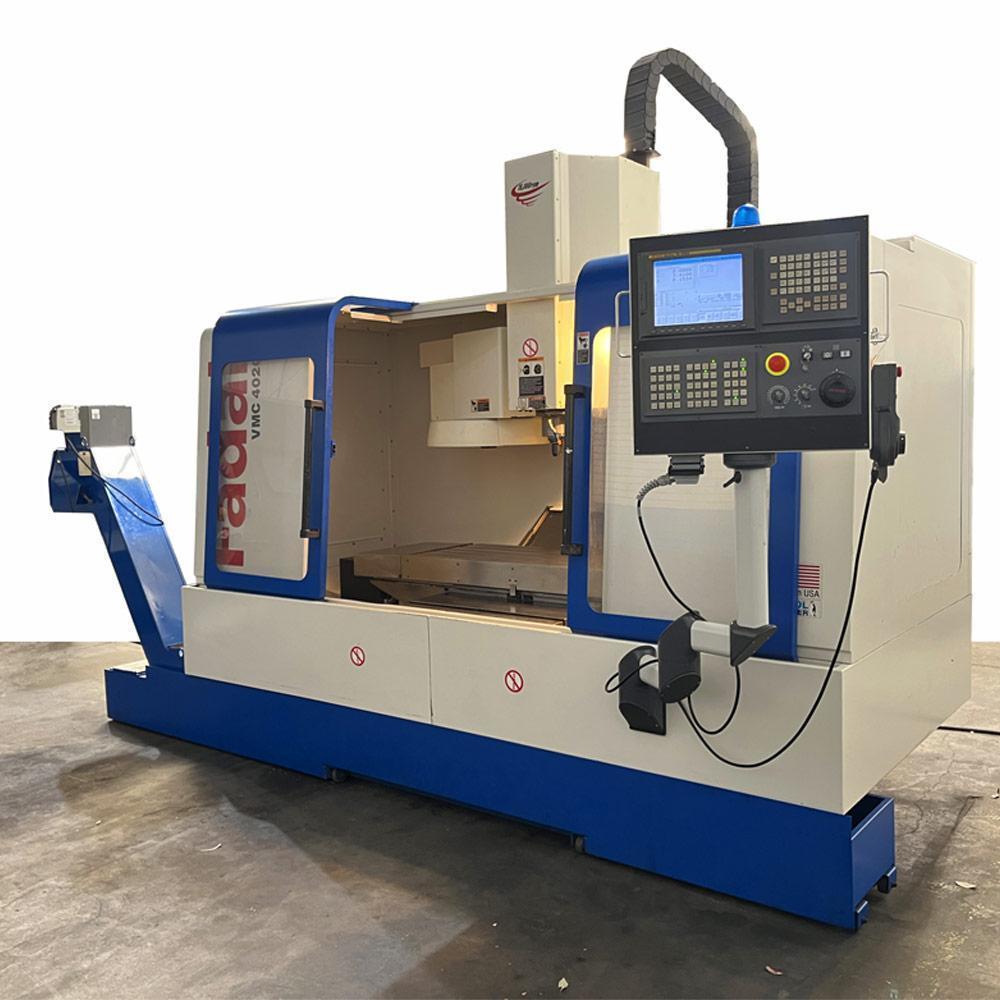

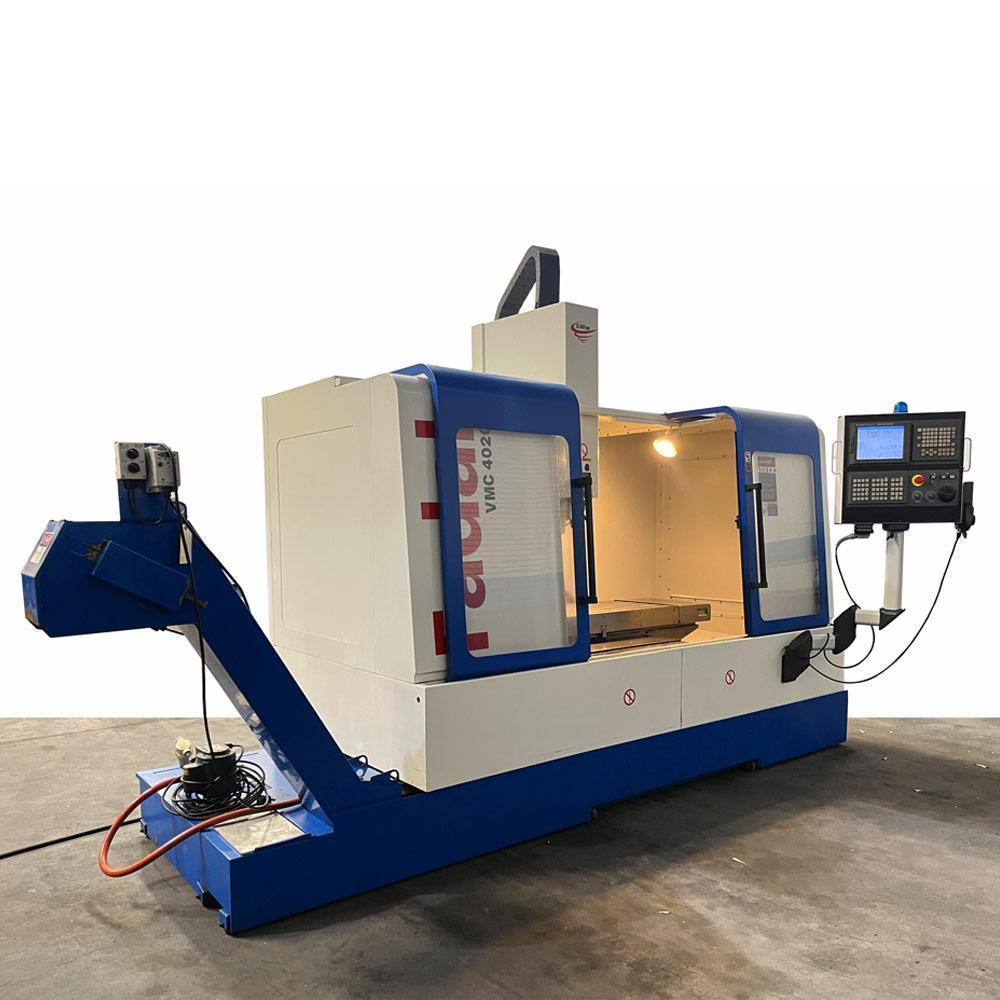

Fadal 4020 HT Vertical Machining Center

Out of stock

SKU:	2407
Make/Model:	FADAL 4020 HT
Year:	2006
Video:	[fusion_button link=”https://www.youtube.com/watch?v=nFDt5wkeHt8&list=PLHgexFVgHVgz_mfJ2cjQWmepzGUFwhccC&index=14?rel=0″ title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 2407

Description

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	FADAL
Model:	4020 HT
Year:	2006
Condition:	Used – Good

Fadal 4020HT Features:
Box Way construction

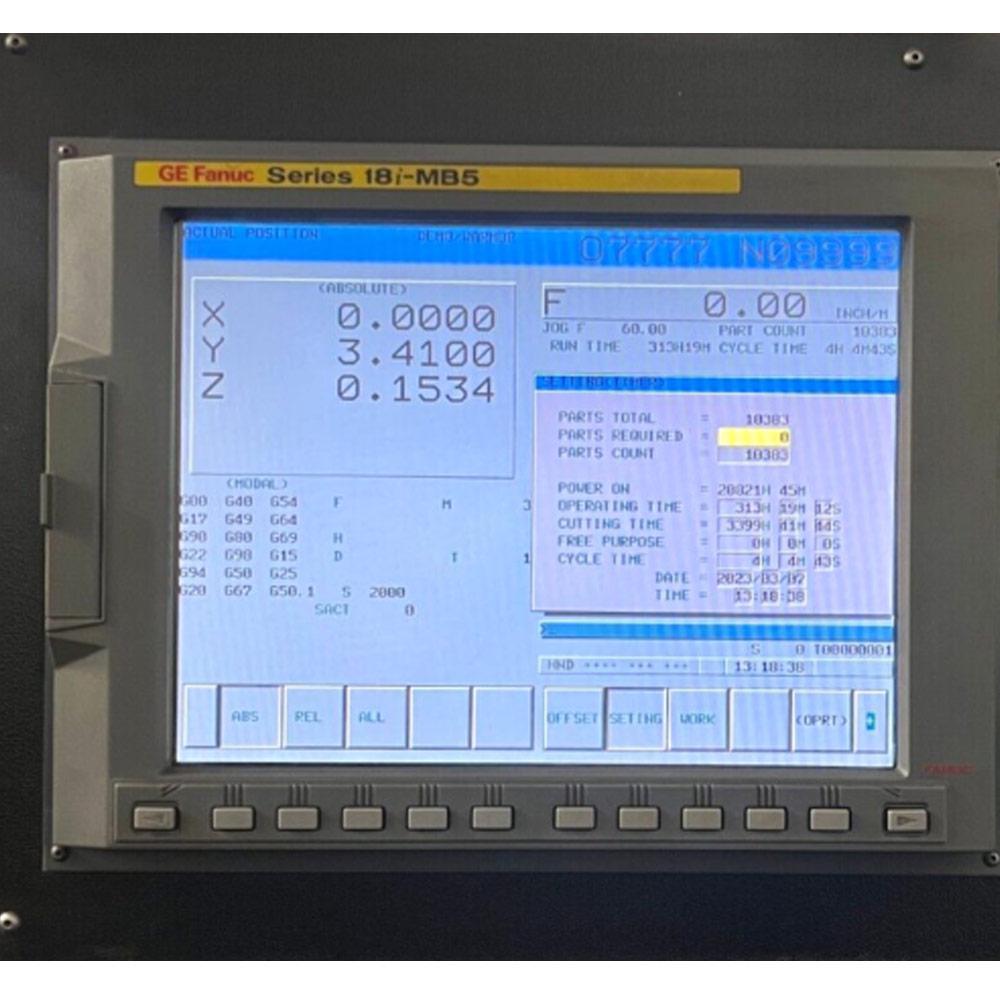

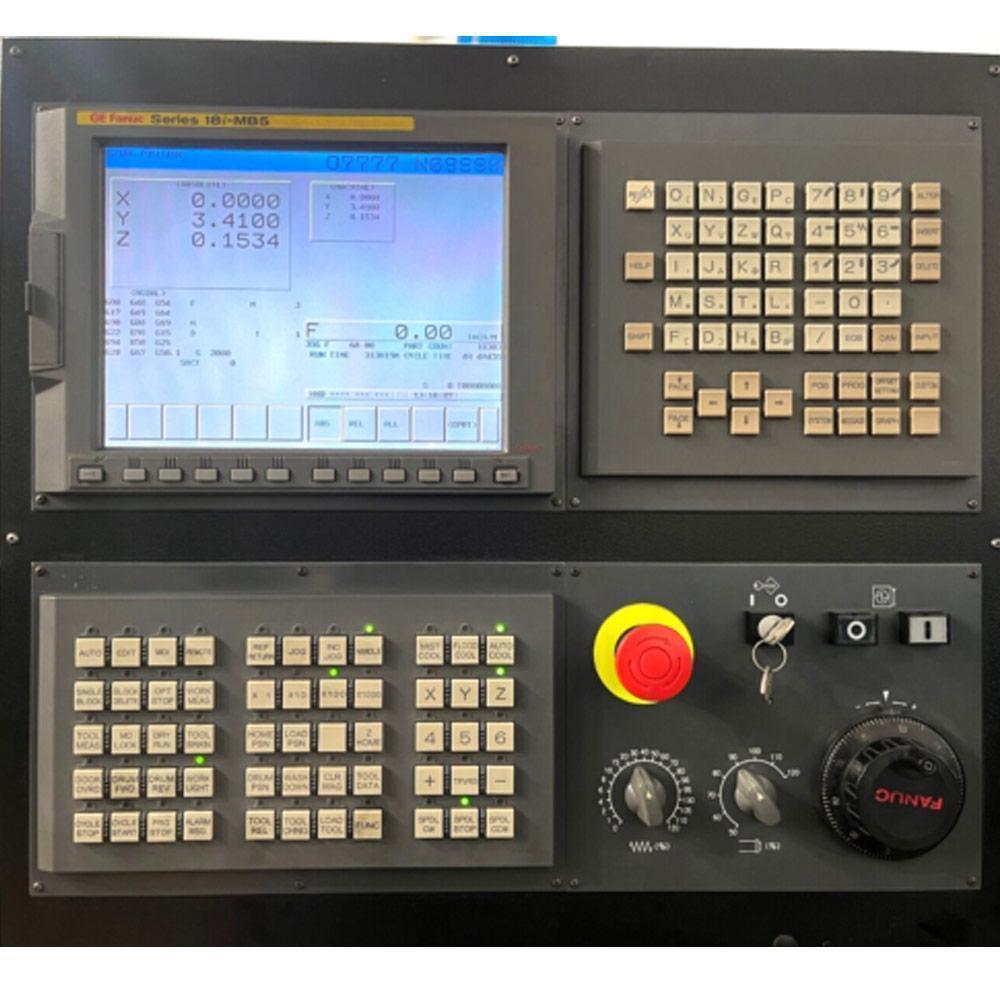

Fanuc 18i-MB5 series CNC Control

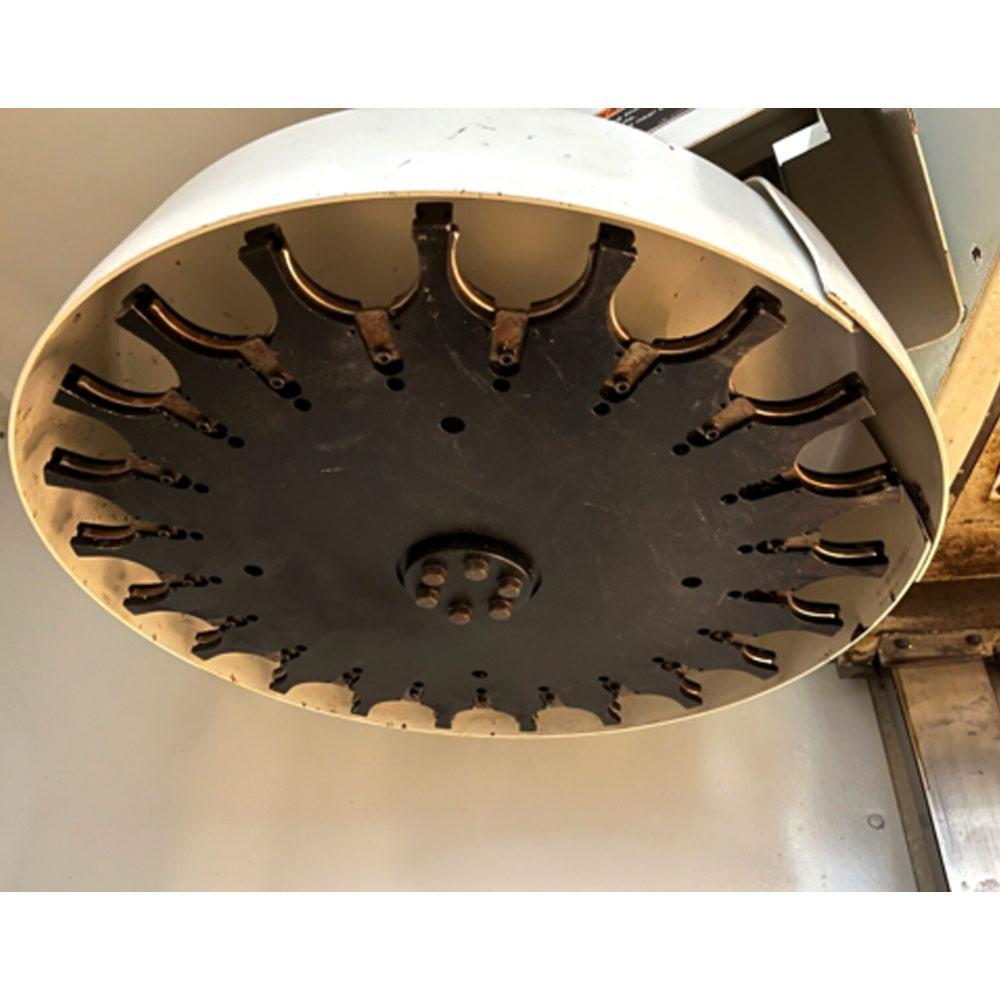

20 Station Umbrella Type tool changer
15000 RPM High Precision Spindle
PCMCIA Card Slot
RS-232 Port

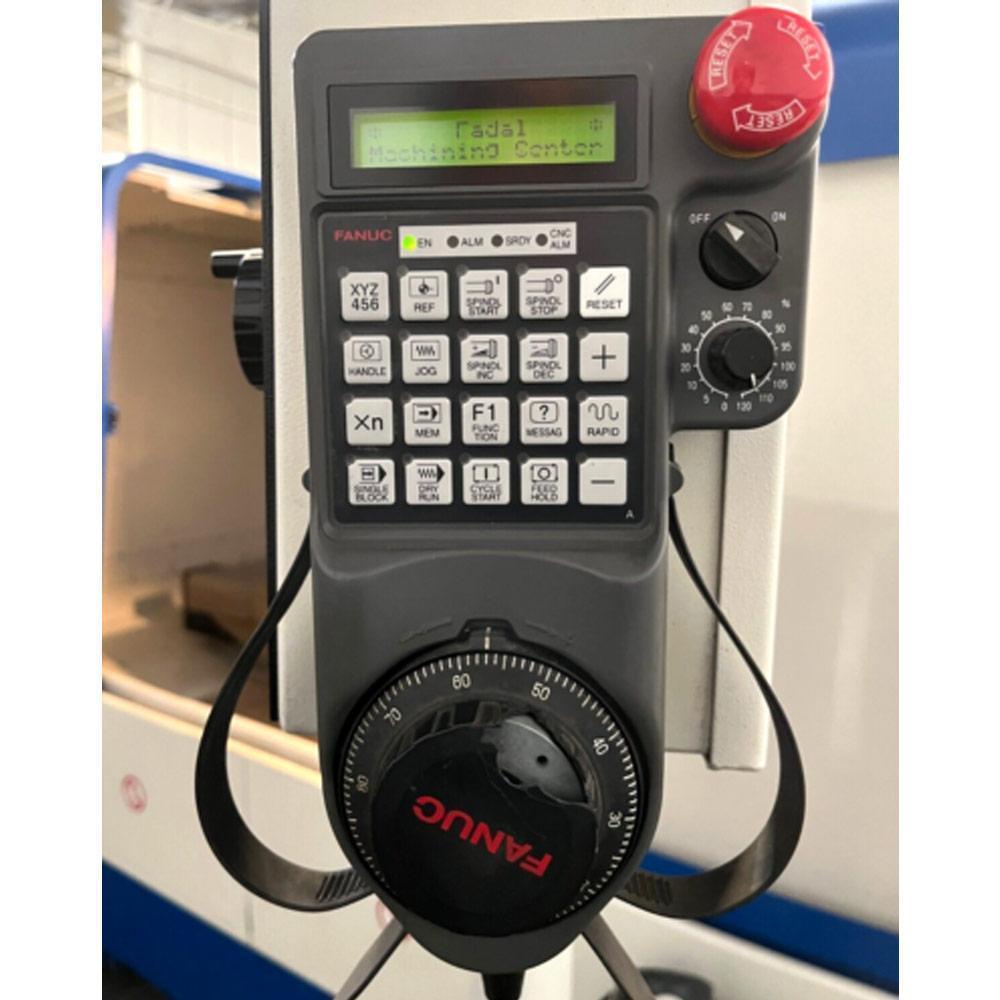

MPG Handwheel Control
Rigid Tapping
Telescopic way covers
Flood Coolant System
Coolant Tank

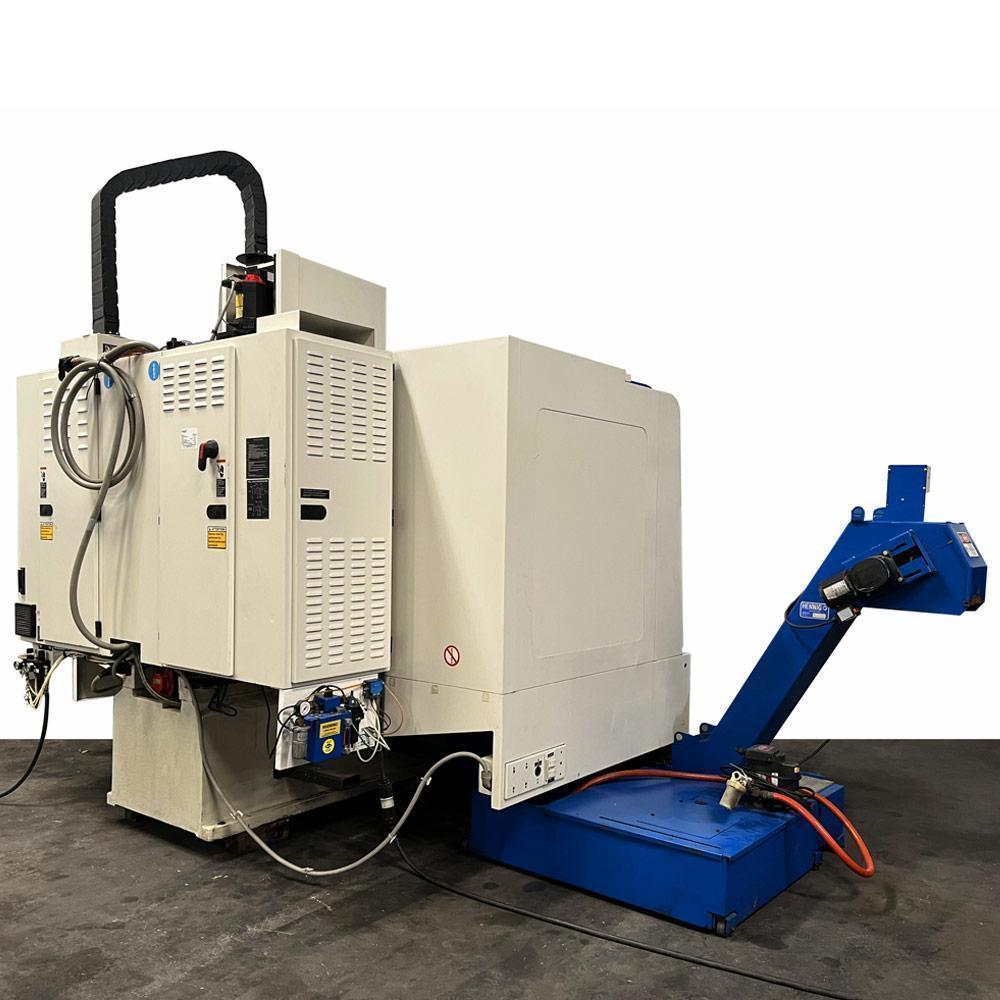

Chip Conveyor

Fadal 4020HT Specifications:
Travels:
X-Axis: 40″
Y-Axis: 20″
Z-Axis: 20″
Spindle Nose to Table (Min.- Max.): 4.5″ – 24.5″

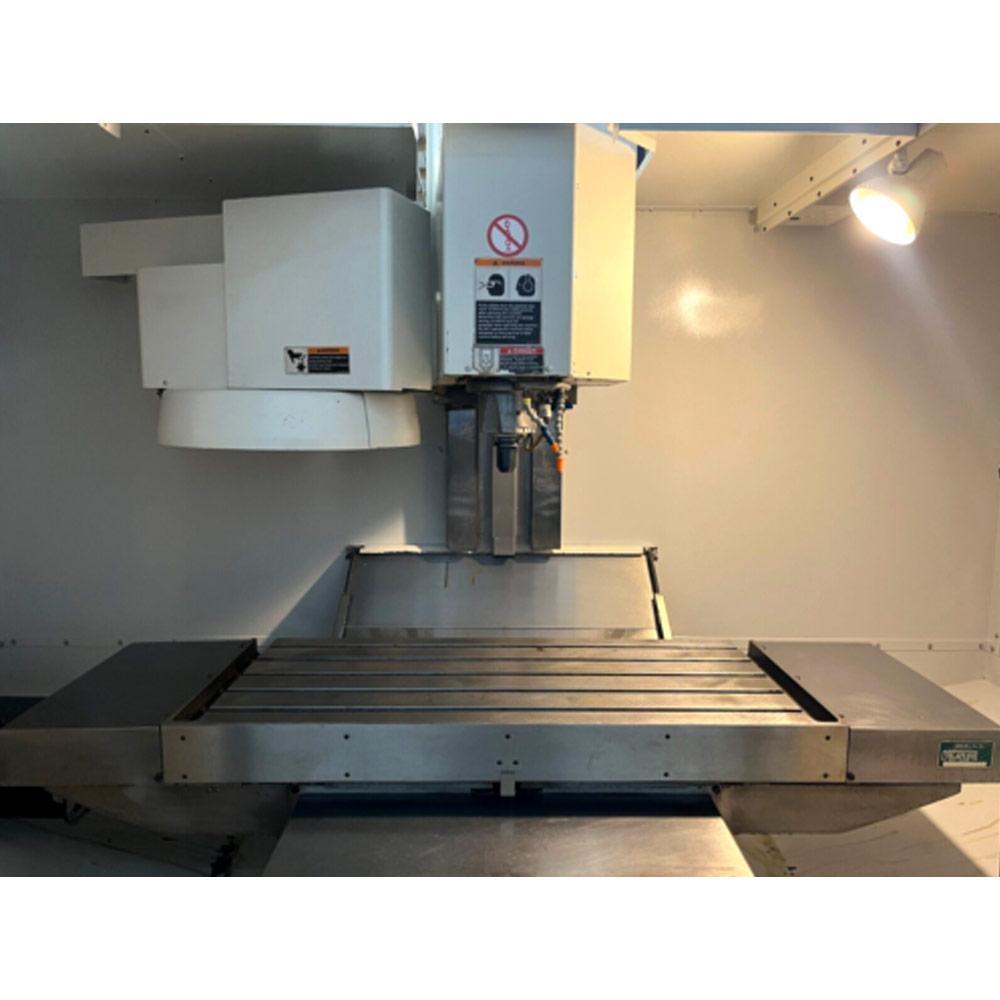

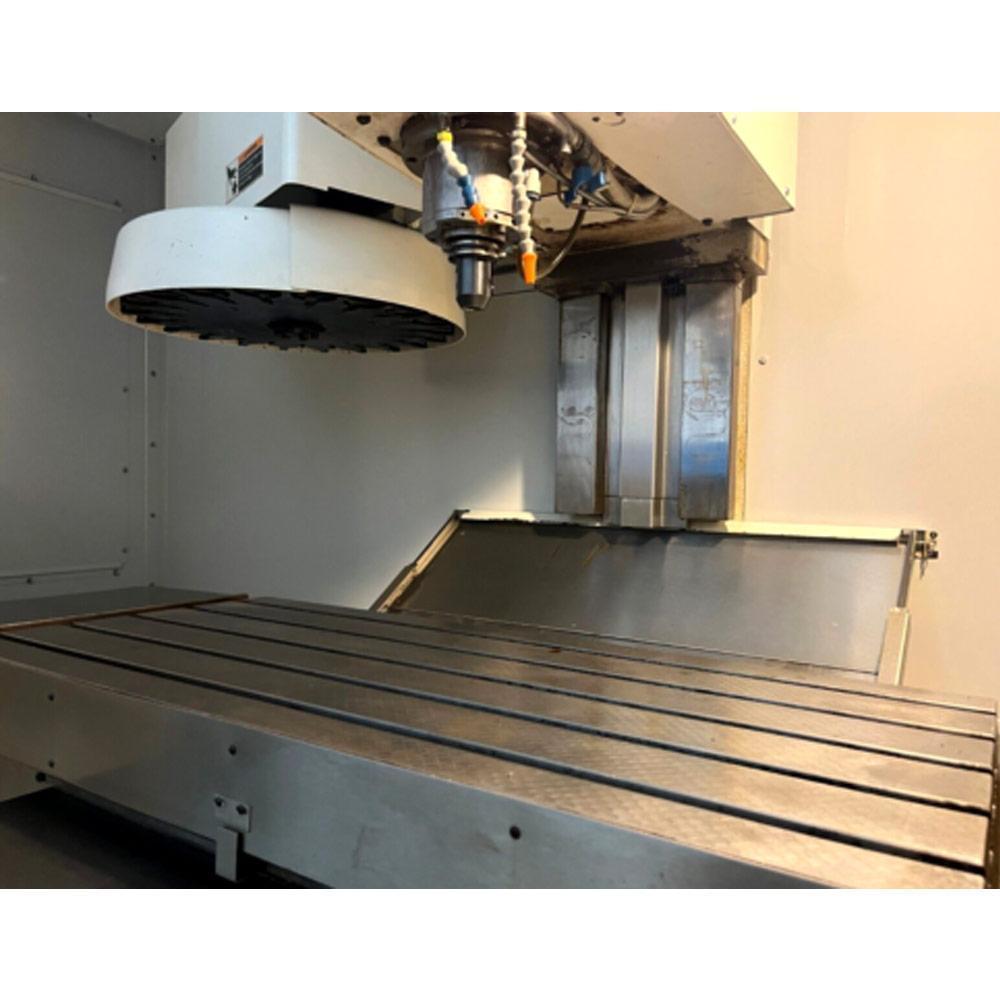

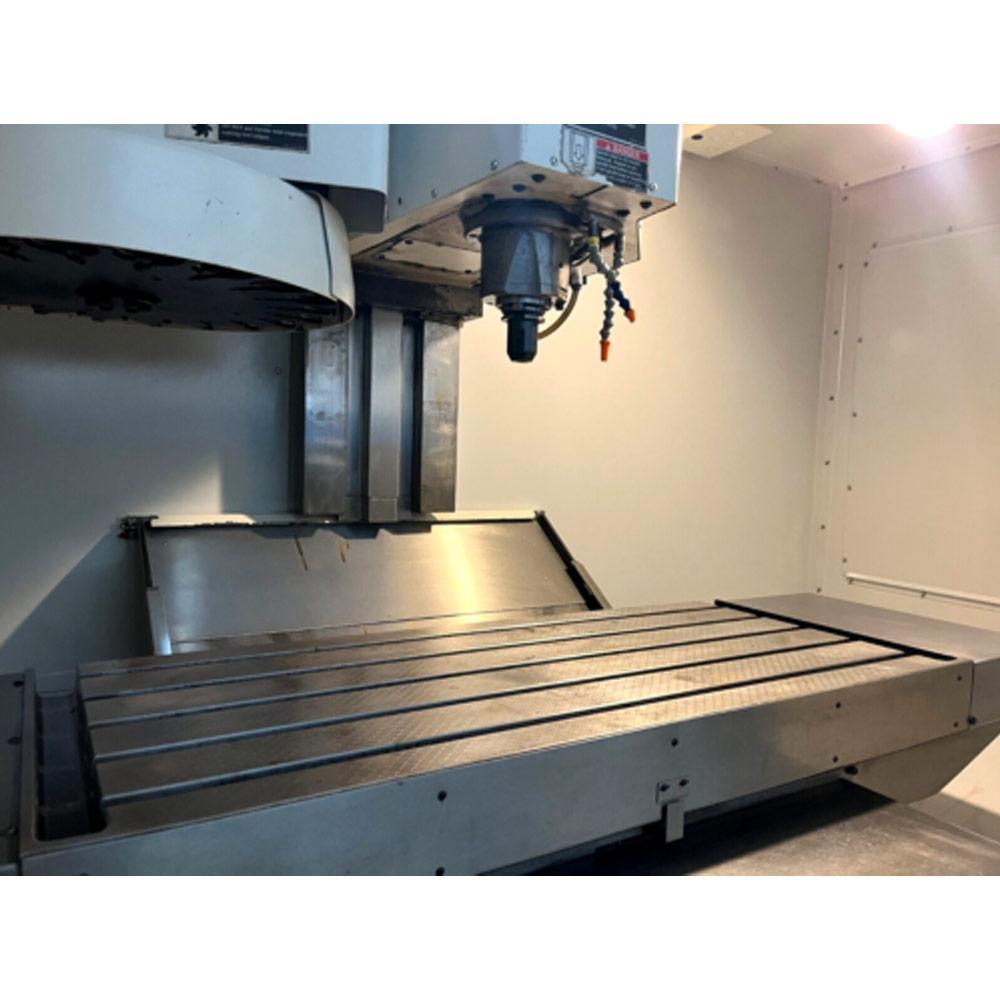

Table:
Length: 48″
Width: 20″
Max Weight on Table: 3000 lbs

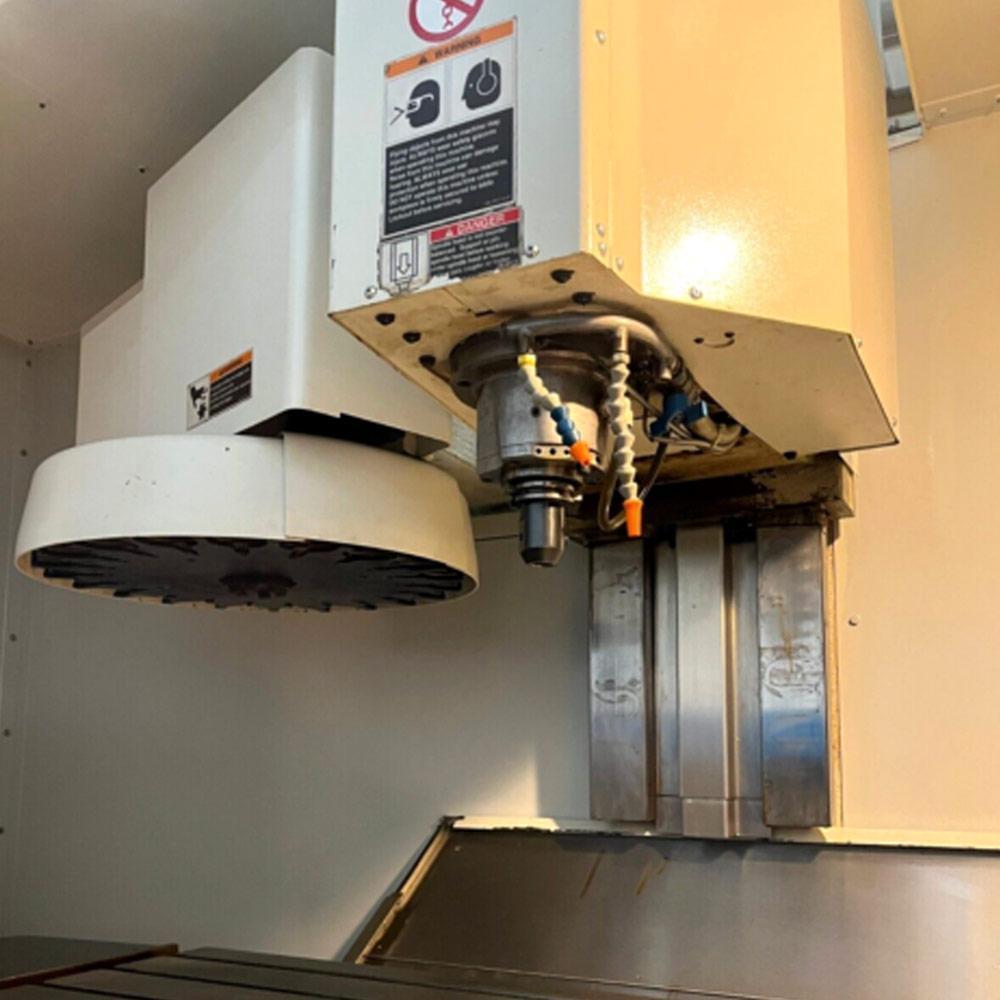

Spindle:
Taper Size: 40
Speed Range: 15000 RPM
Spindle Power: 20 HP

Automatic Tool Changer:
40 Taper
Capacity: 20 Station Umbrella Type
Tool Weight: 15 lbs
Max Tool Length: 15″
Max Tool Dia.: 4.33″

Feed rates:
Rapid Traverse rates: 900 IPM
Cutting Feedrate: 400 IPM

General:
Air Required: 80 psi 4 scfm

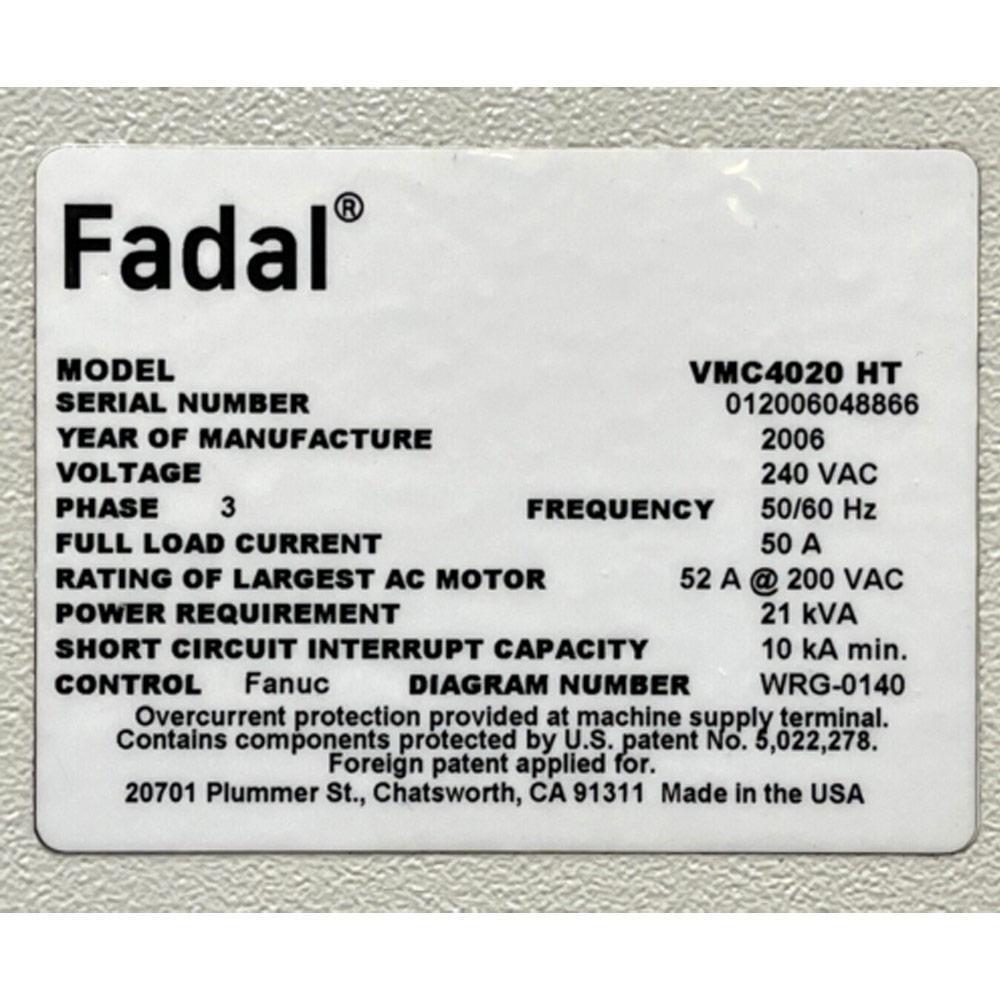

Power: 220v / 3-Phase 21 Kva
Overall Dimensions: 122″ x 100″ x 100″ High
Weight: 12500 lbs
