All specifications are approximations and are subject to verification.
-
FADAL 4020 Features:

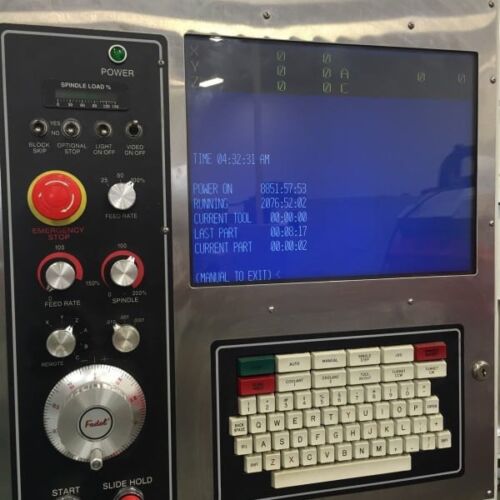

- Fadal CNC88 HS Control

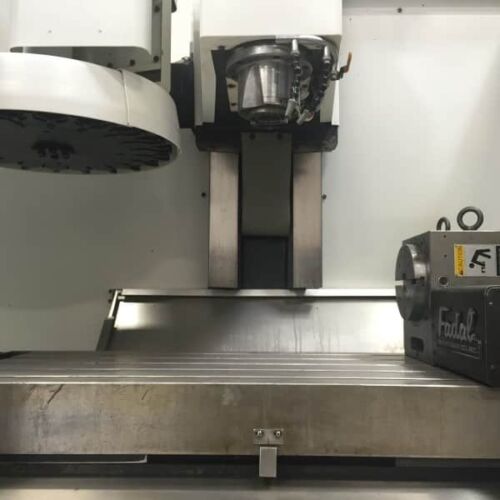

- Fadal 4th Axis Rotary Table
- 21 Tools Changer
- Box way Design
- High Torque Spindle
- High Speed CPU
- USB Port
- 2-Speed Gear Box
- Extended Memory
- All Books, manuals and Documents.
-
FADAL 4020 Specifications:
- Travels:
- X-Axis: 40″
- Y-Axis: 20″
- Z-Axis: 20″
- Spindle Nose to Table (Min.- Max.): 4″-24″”
-
Table:
- Length: 48″
- Width: 20″
- Max Weight on Table: 3300 lbs
-
Spindle:
- Taper Size: CAT 40
- Speed Range: 60 – 10,000 RPM
- Spindle Power: 15 HP
-
Feed rates:
- Rapid X & Y: 900 inch/P.M
- Rapid Z: 900 inch/P.M
- Cutting Feedrate: 400″ inch/ P.M
-
Automatic Tool Changer:
- CAT 40 Taper
- Capacity: 21
- Max Tool Weight: 15 lbs
- Max Tool Length: 13.78″
- Max Tool Dia.: 6″
- Tool Change Time: 3 seconds
-
General:
- Air Required: 80 psi, 15 scfm

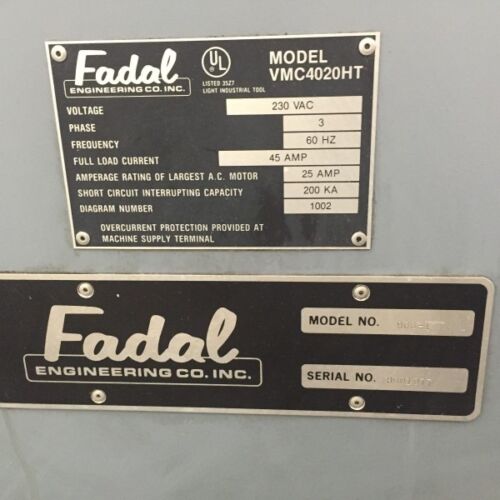

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 122″ x 100″ x 100″ High
- Weight: 12,500 lbs
