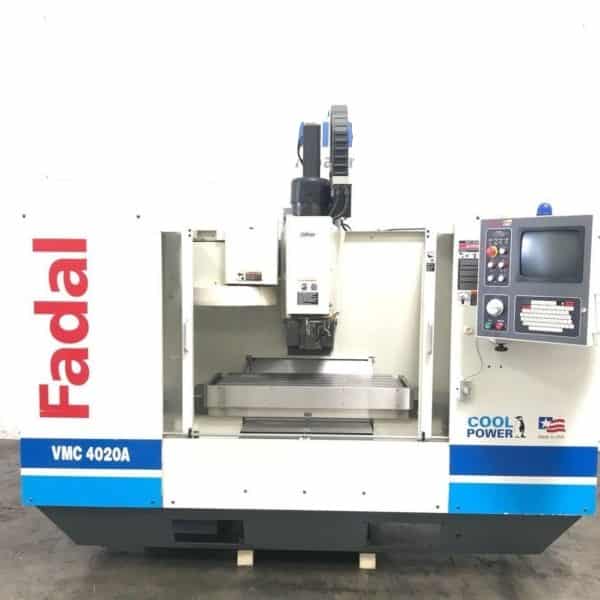

Fadal 4020A HT Vertical Machining Center

On our Floor now, fully powered / tested & is in Good working condition.”

Share

Description

FADAL 4020A HT VERTICAL MACHINING CENTER
Make FADAL
Model No. 4020AHT
Year of Manufacture:  2001
Condition Very Good

“On our Floor now, fully powered / tested & is in Good working condition.”

  • FADAL 4020A HT Features:
  • 22.5HP High Torque Spindle Motor
  • 7500 RPM High Precision Spindle
  • 21 Station Automatic tool changer
  • Floppy Drive
  • Rigid Tapping
  • Brushless type servo drive motors on all axis
  • Programmable coolant
  • Telescopic way covers
  • Flood Coolant system
  • FADAL 4020A HT Specifications:
  • Travels:
  • X-Axis: 40″
  • Y-Axis: 20″
  • Z-Axis: 20″
  • Rapid Traverse Rates: 900 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 4″ – 24″
  • Table:
  • Length: 48″
  • Width: 20″
  • Number of Std T-Slots: 5
  • T-Slot Width: 5/8″
  • Max Weight on Table: 3500 lbs
  • Spindle:
  • Taper Size: CAT 40
  • Speed Range: 0 – 7500 RPM
  • Spindle Power: 20 HP
  • Max Torque: 230ft-lb @ 500RPM
  • Automatic Tool Changer:
  • Capacity: 21
  • Max Tool Weight: 15 lbs
  • Max Tool Dia: 6″
  • Max Tool Length: 15″
  • Tool Changing Time: 4.2 Seconds
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 480v / 1 kva / 3-Phase
  • Overall Dimensions: 122″ x 100″ x 100″ High
  • Weight: 12500 lbs

FADAL 4020A HT Comes as shown in pictures.
