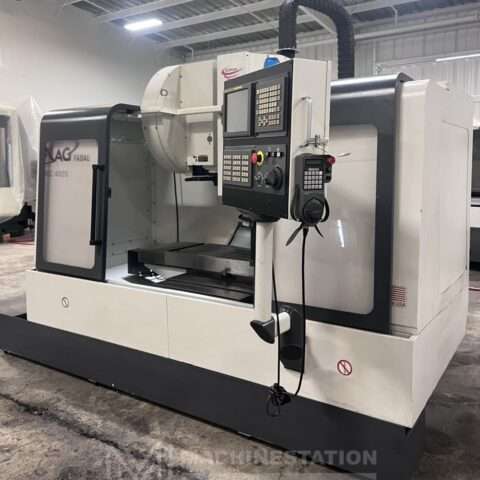

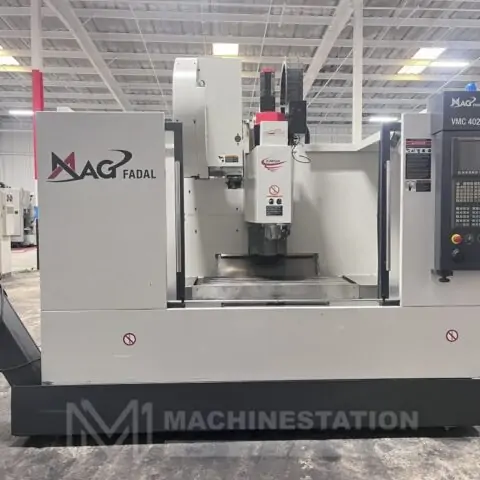

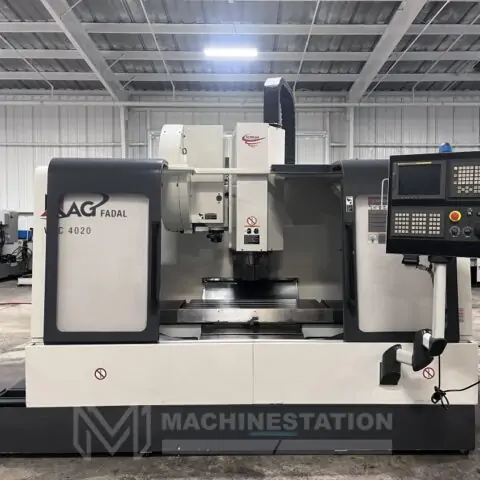

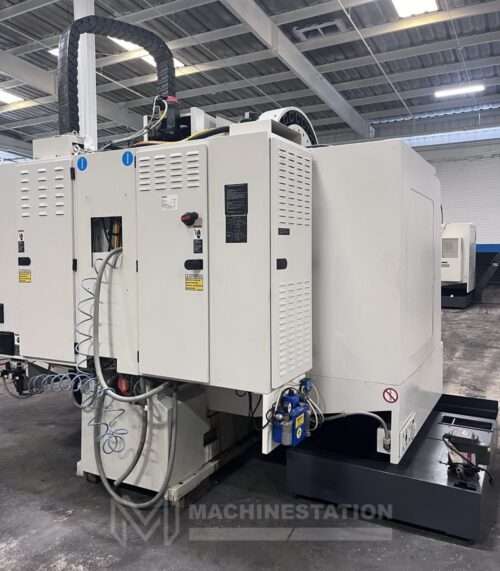

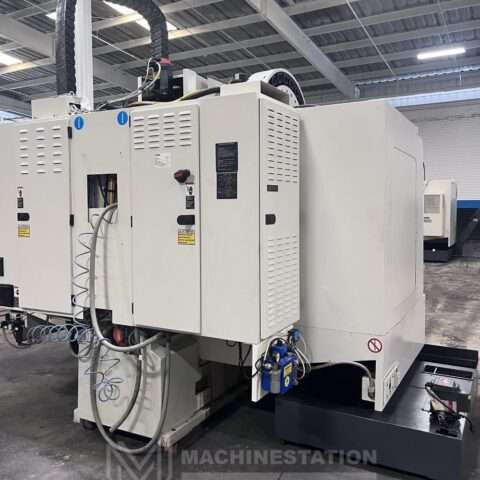

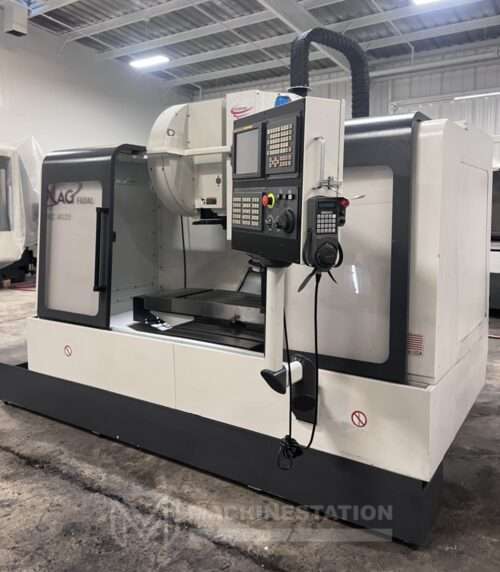

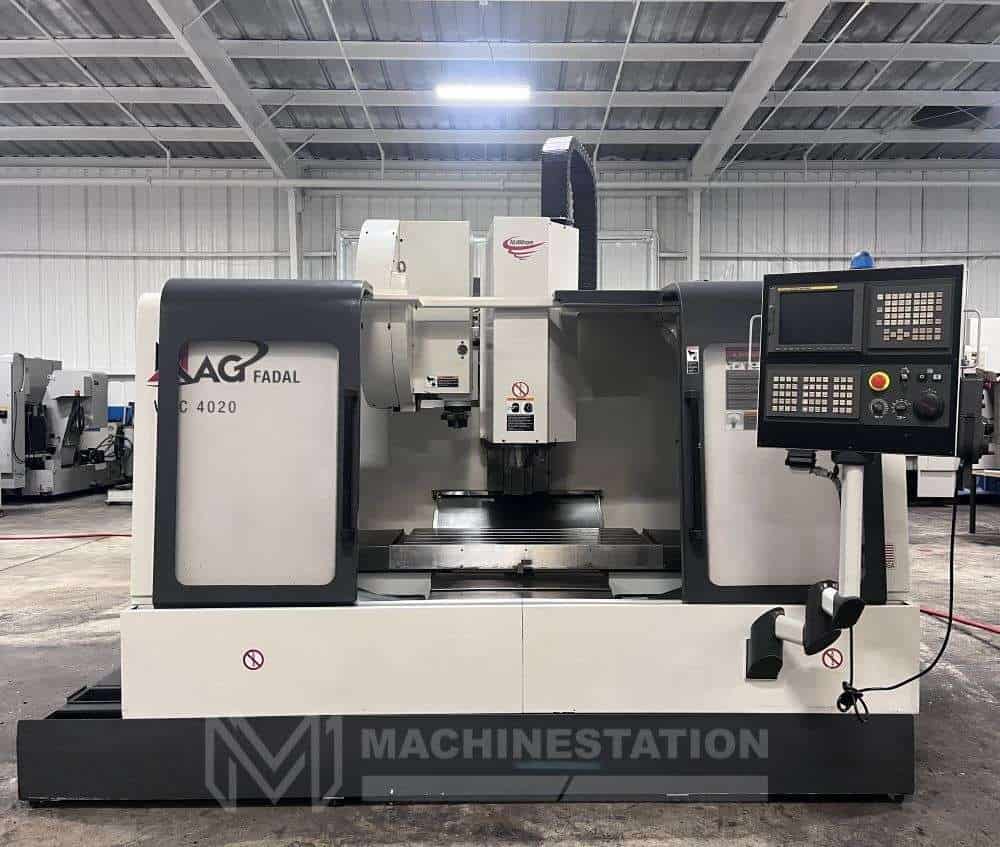

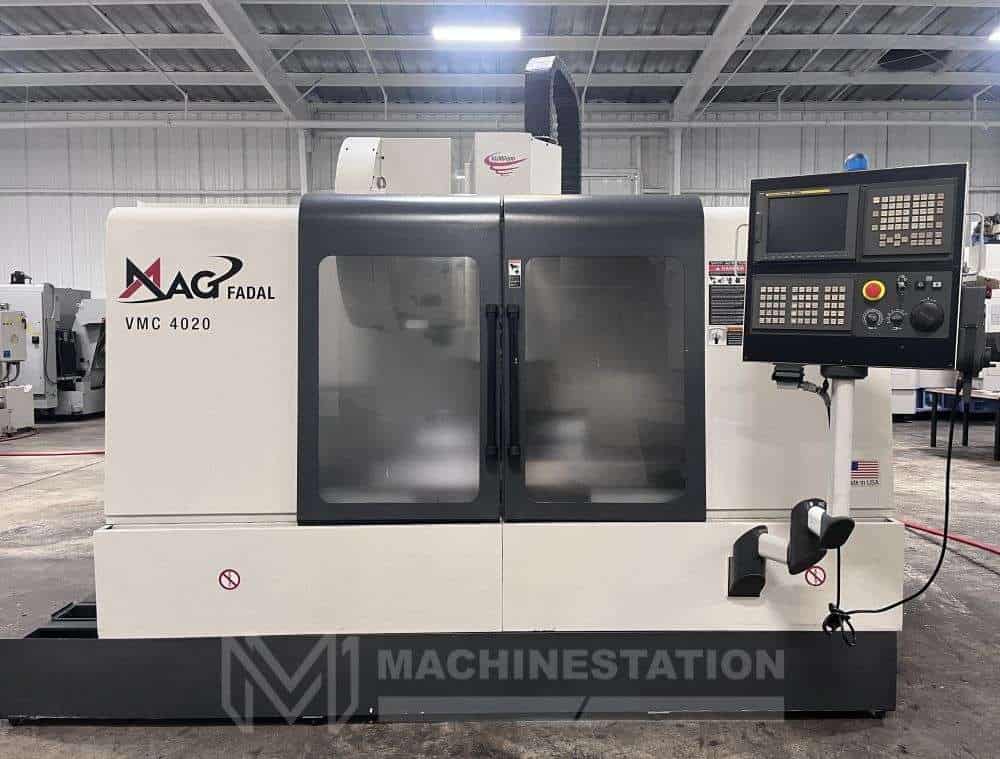

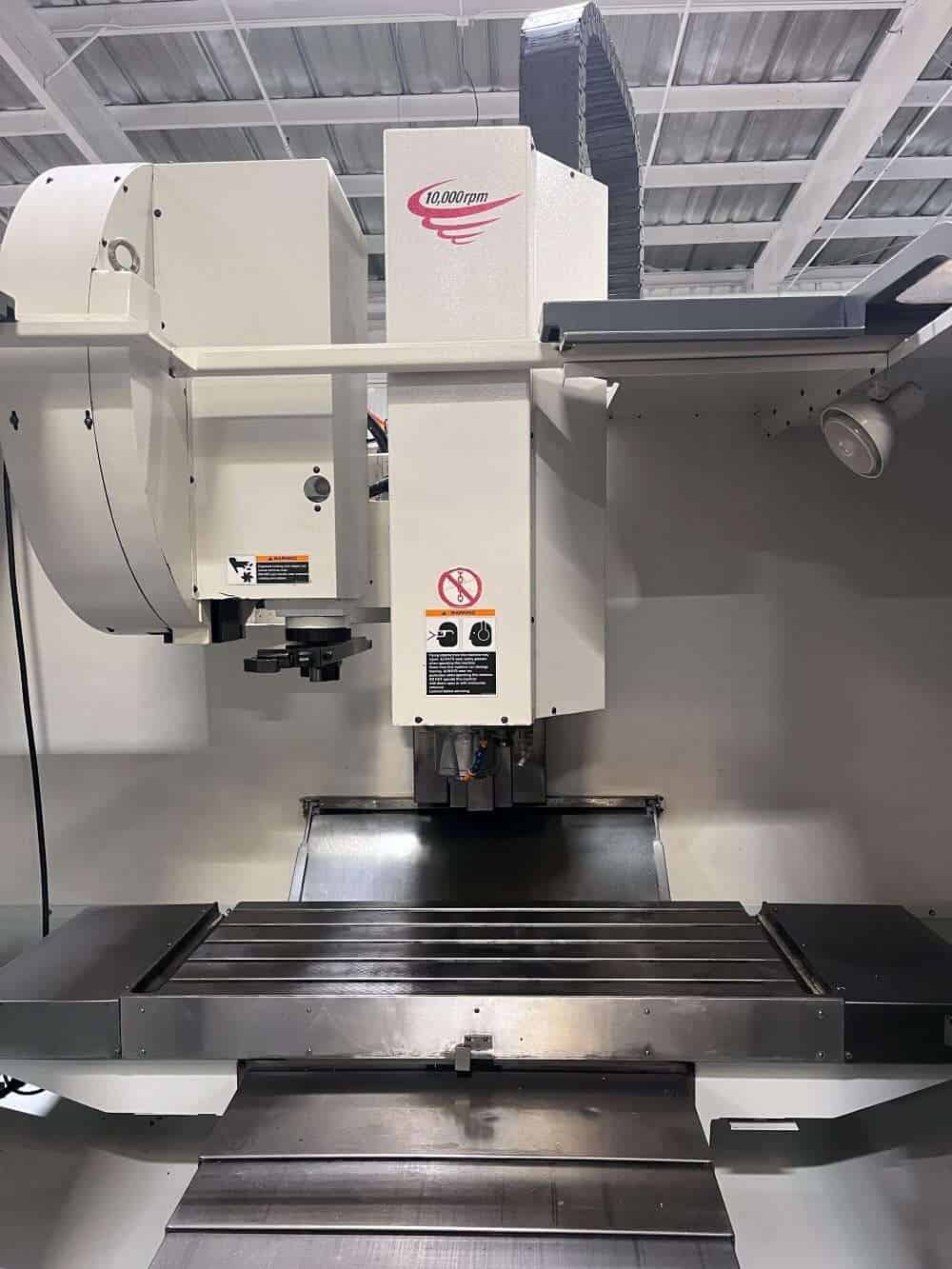

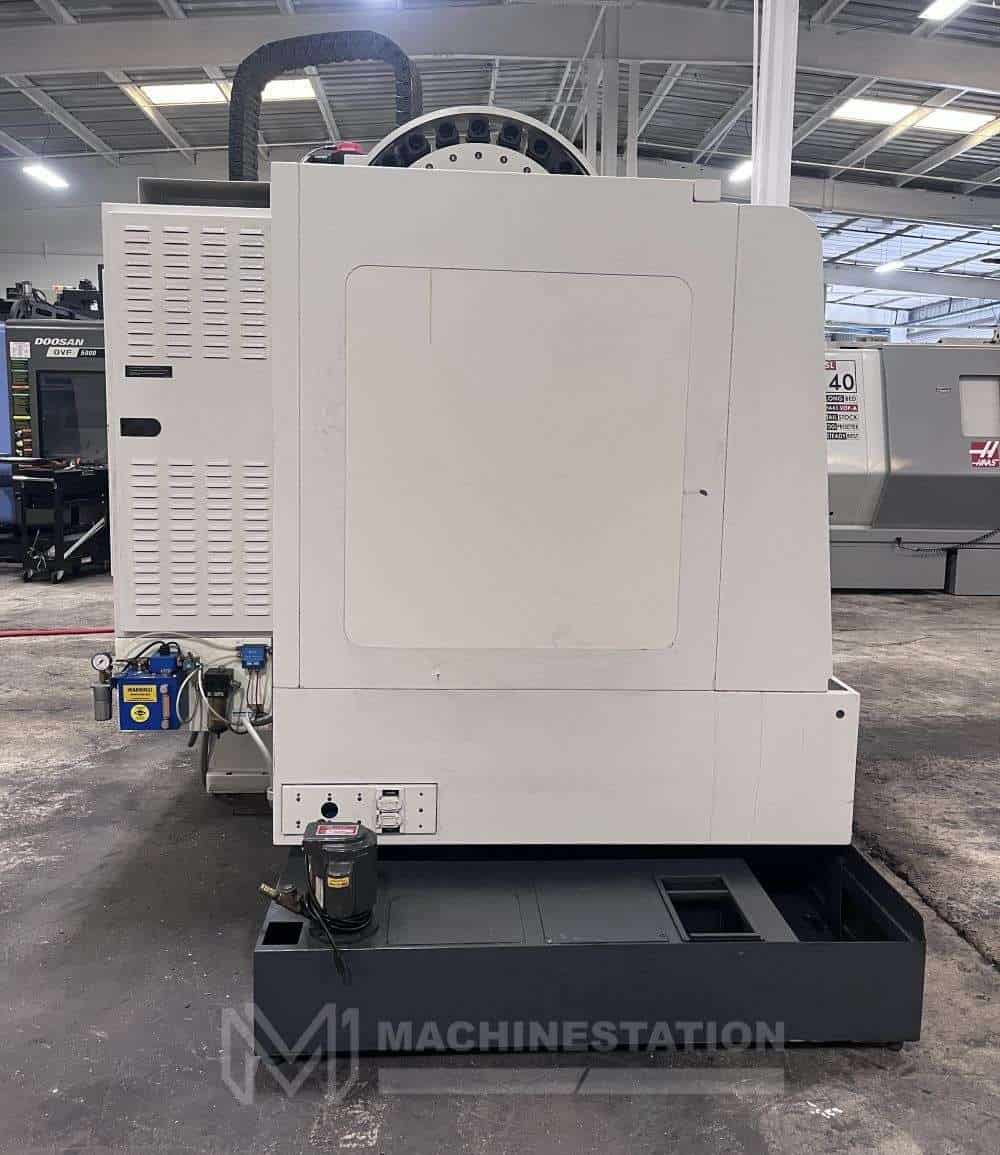

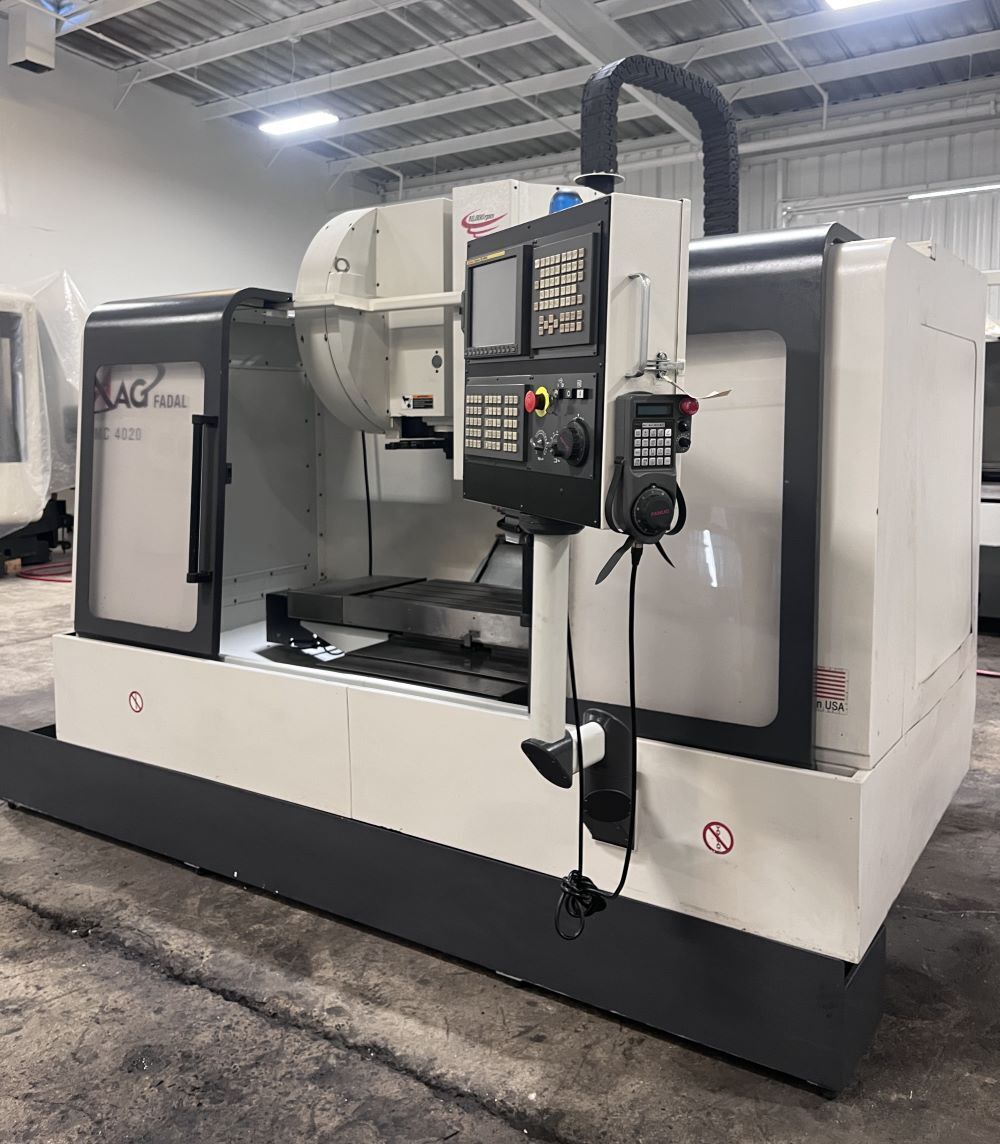

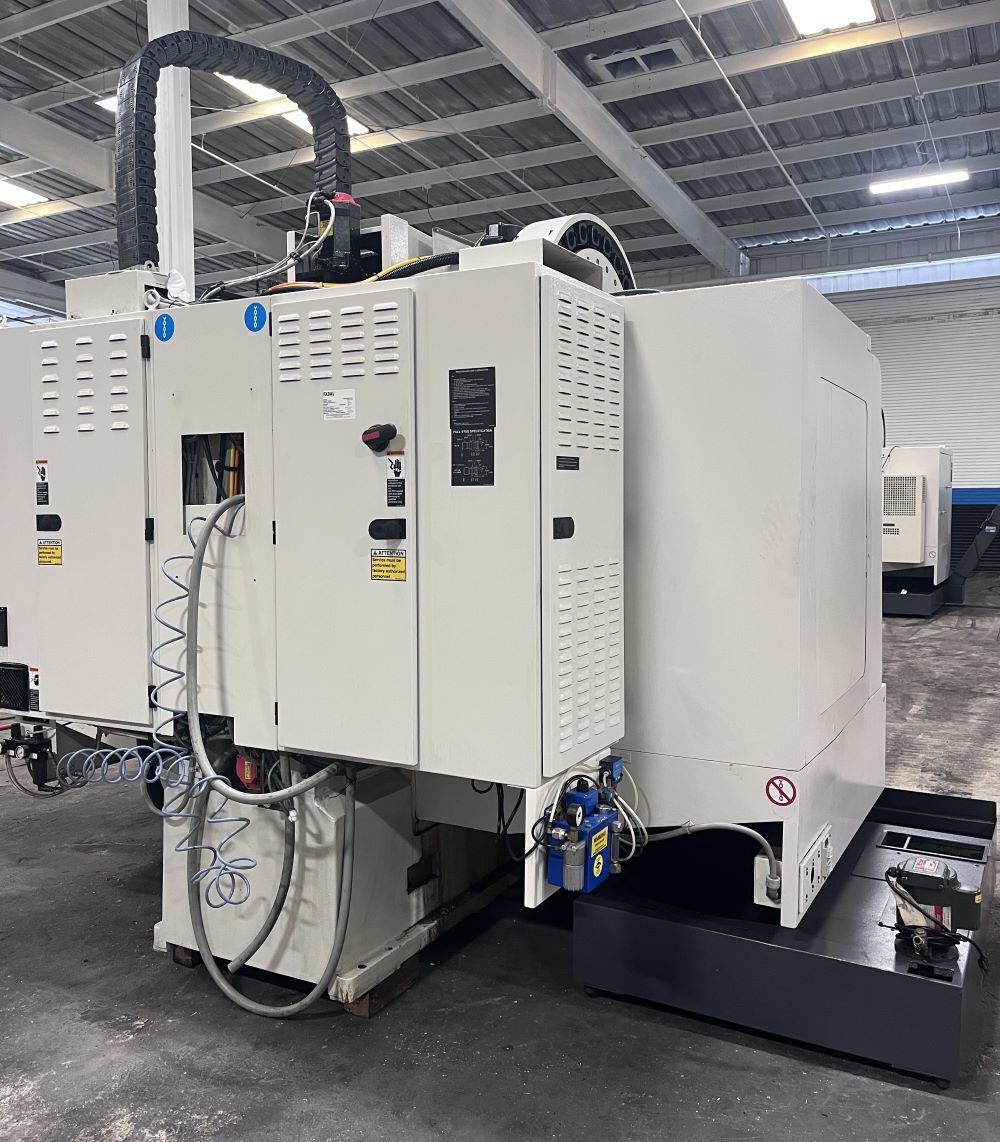

Fadal 4020D-3HT CNC Vertical Machining Center

$456 per month

1 in stock
Location: Lake Elsinore, CA
SKU: 112592
Make/Model: FADAL 4020D-3HT

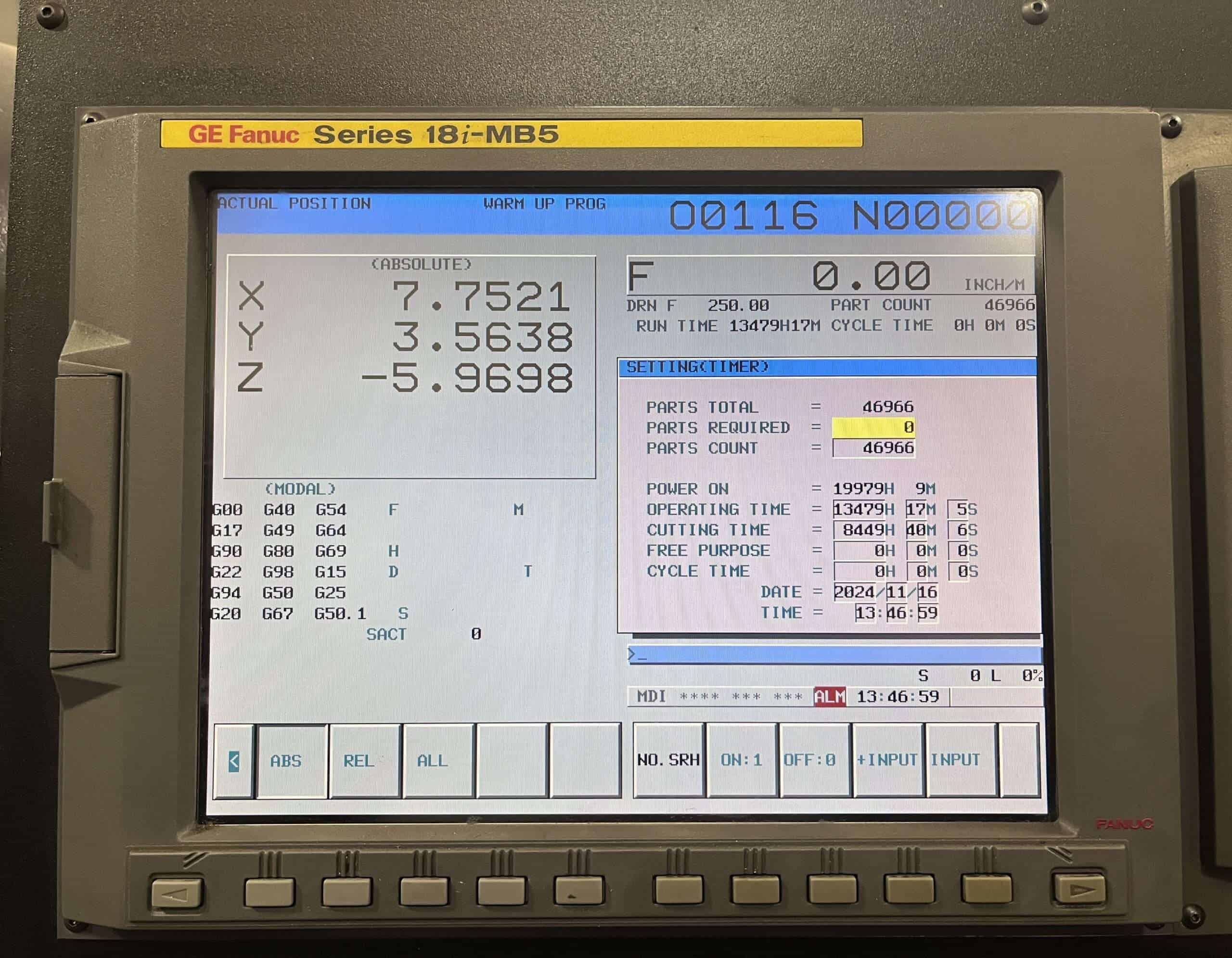

Cutting Time: 8,449 Hours
Video: On Request
SKU: 112592

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

SKU: 112592
Make: Fadal
Model: 4020D-3HT
Year: 2008
Condition: Used – Good



Features:
Box Way construction

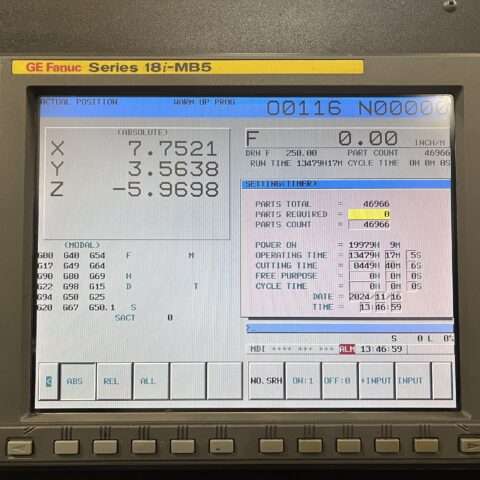

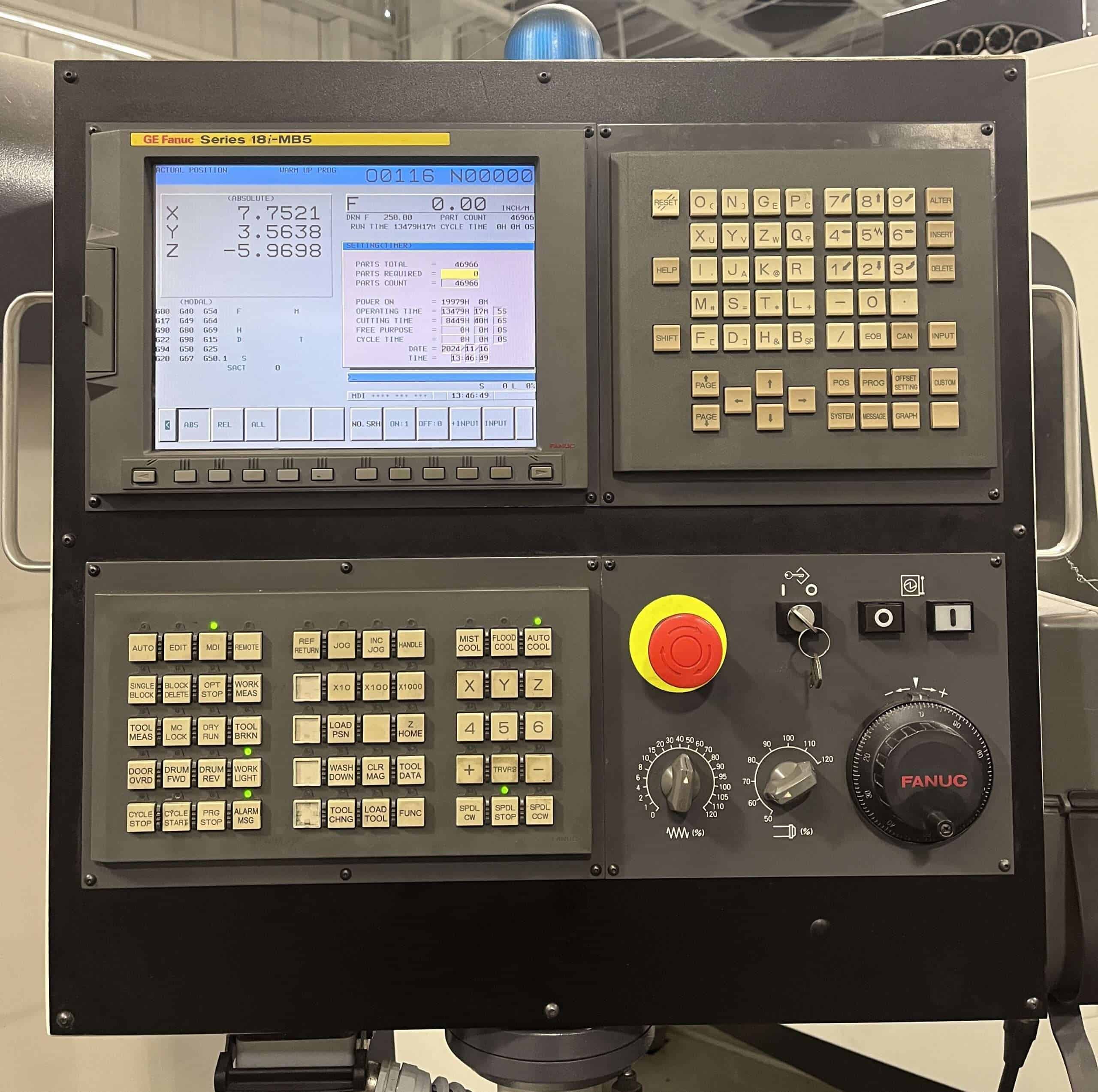

Fanuc 18iMB5 series CNC Control
24 Station Automatic tool changer
10,000 RPM High Torque Spindle
PCMCIA Card Slot

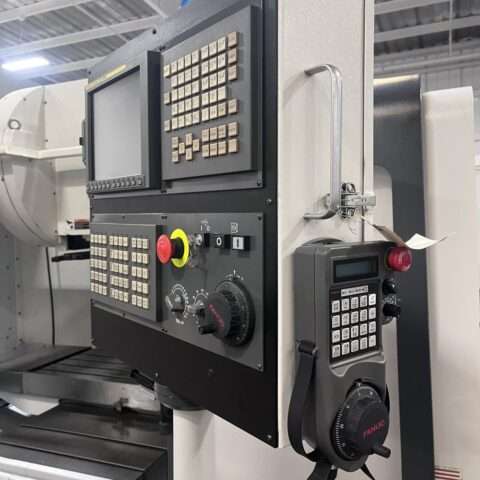

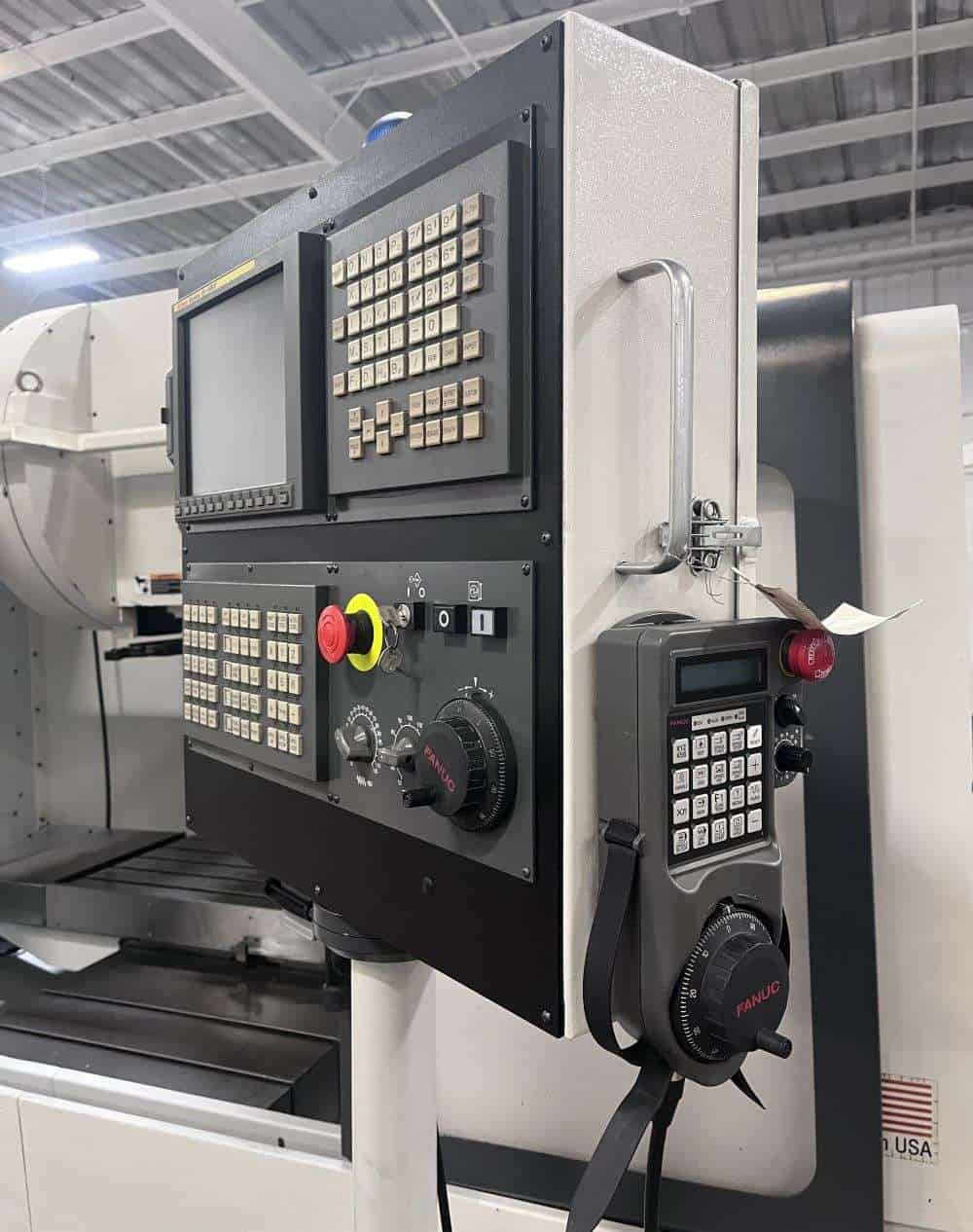

MPG Handwheel Control
Rigid Tapping
Telescopic way covers
Coolant System



Travels:
X-Axis: 40″
Y-Axis: 20″
Z-Axis: 20″
Spindle Nose to Table (Min.- Max.): 4.5″ – 24.5″
Rapid Traverse rates: 900 IPM
Cutting Feedrate: 400 IPM

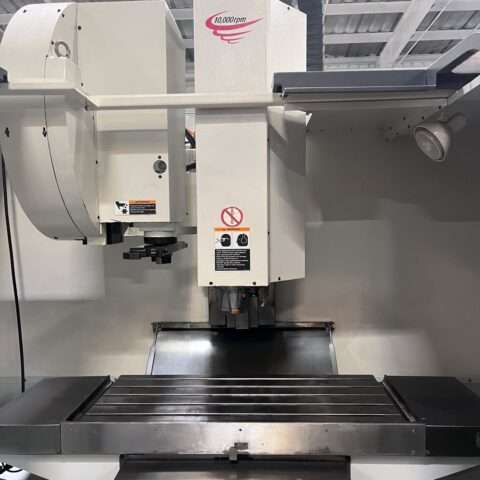

Spindle:
Taper Size: CAT-40
Speed Range: 10,000 RPM
Spindle Power: 15 HP

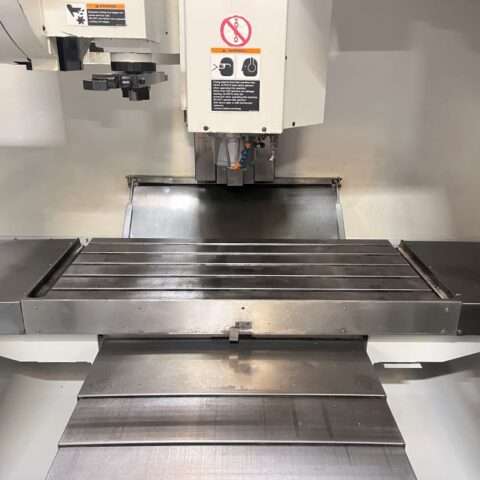

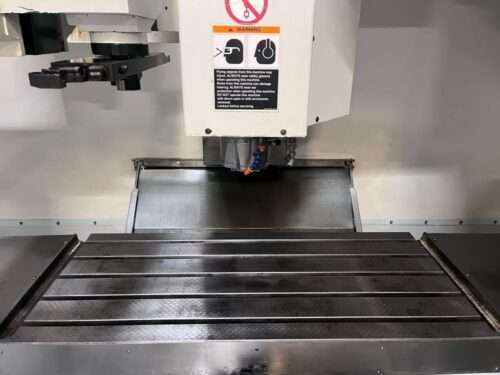

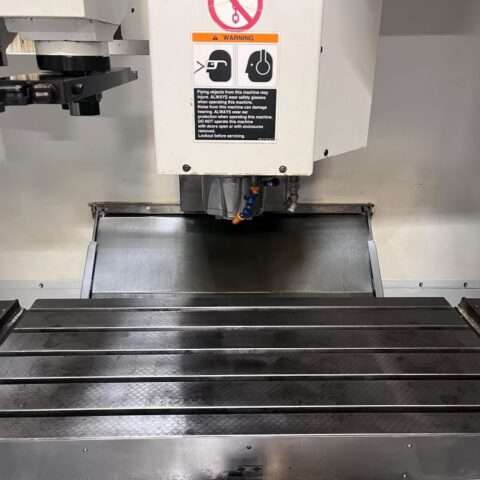

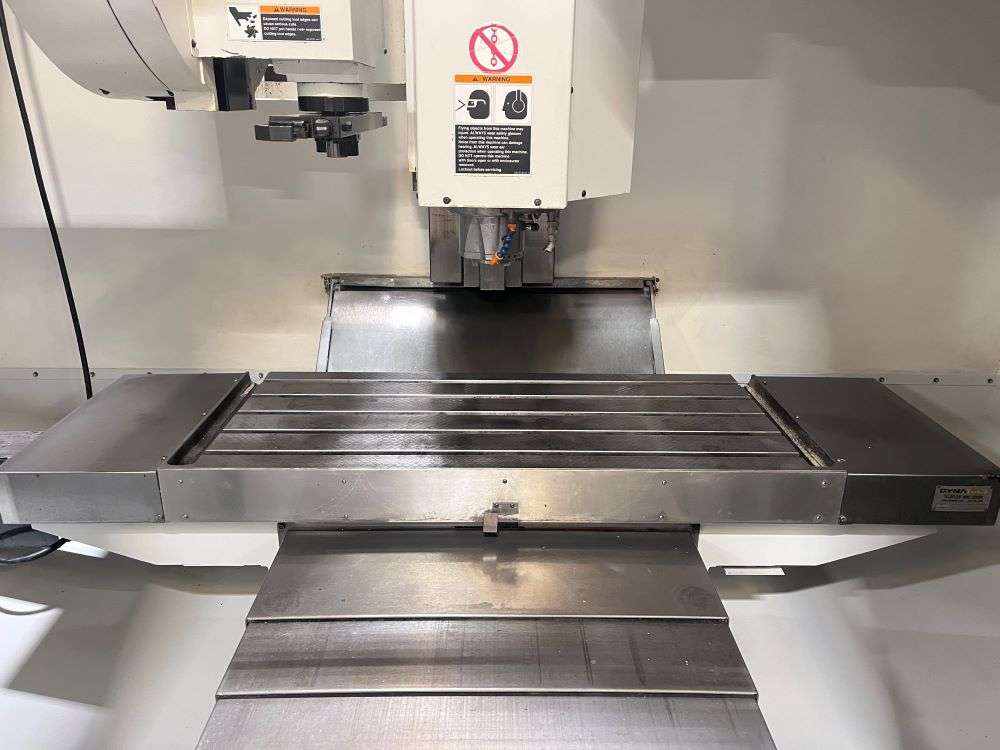

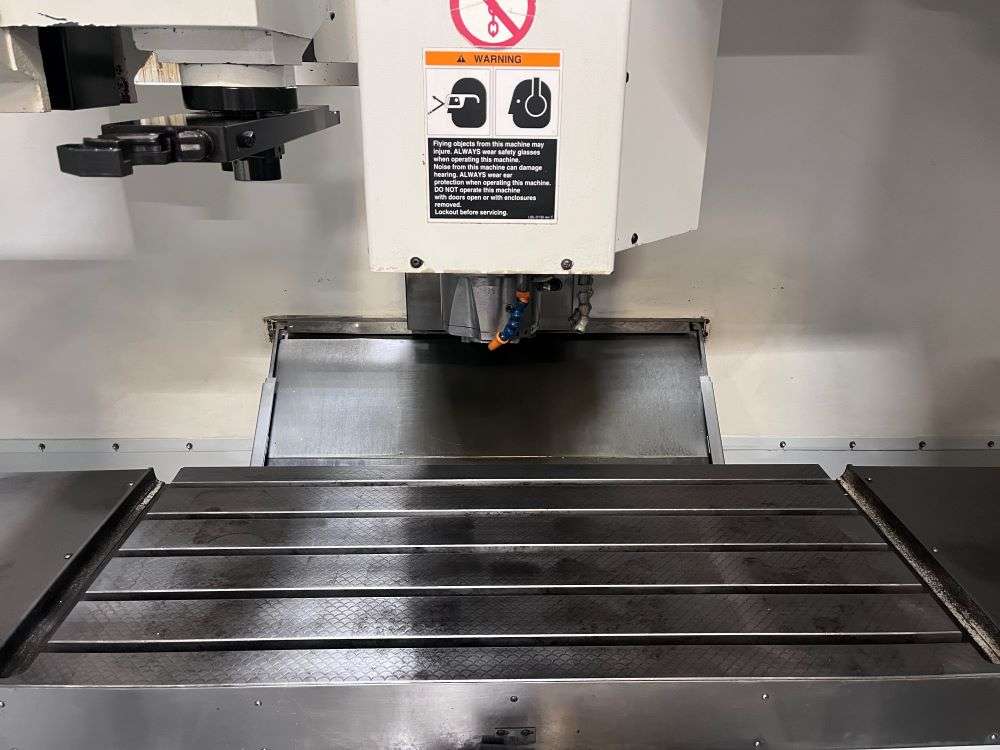

Table :
Length: 48″
Width: 20″
Max Weight on Table: 3000 lbs

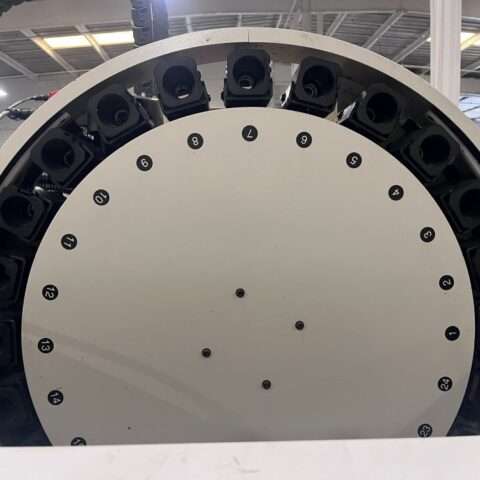

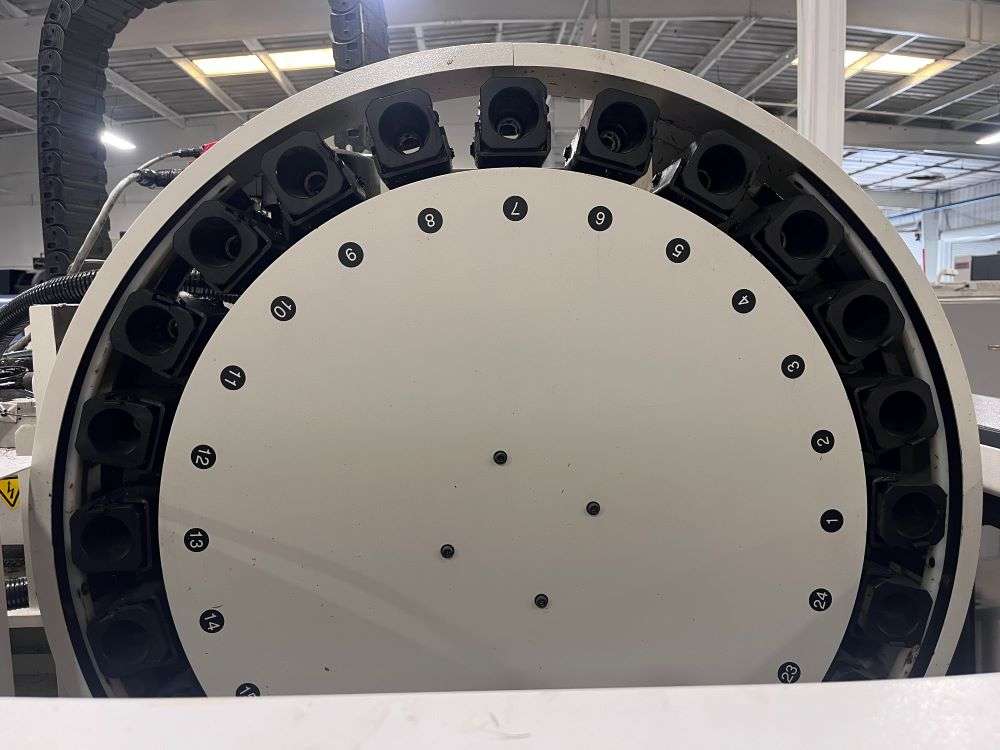

Automatic Tool Changer:
cat-40 Taper
Capacity: 24 Station Side Mounted
Tool Weight: 15 lbs
Max Tool Length: 15″
Max Tool Dia.: 4.33″



General:
Air Required: 80 psi, 4 scfm

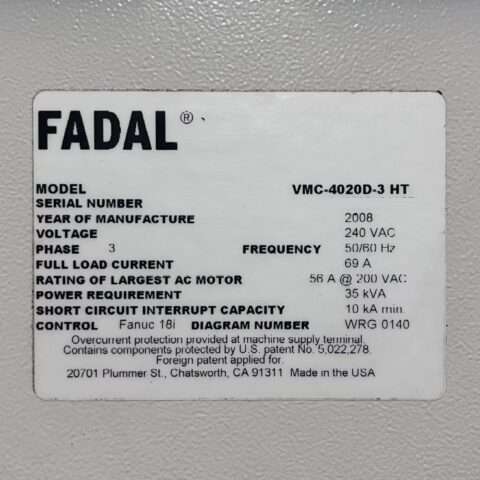

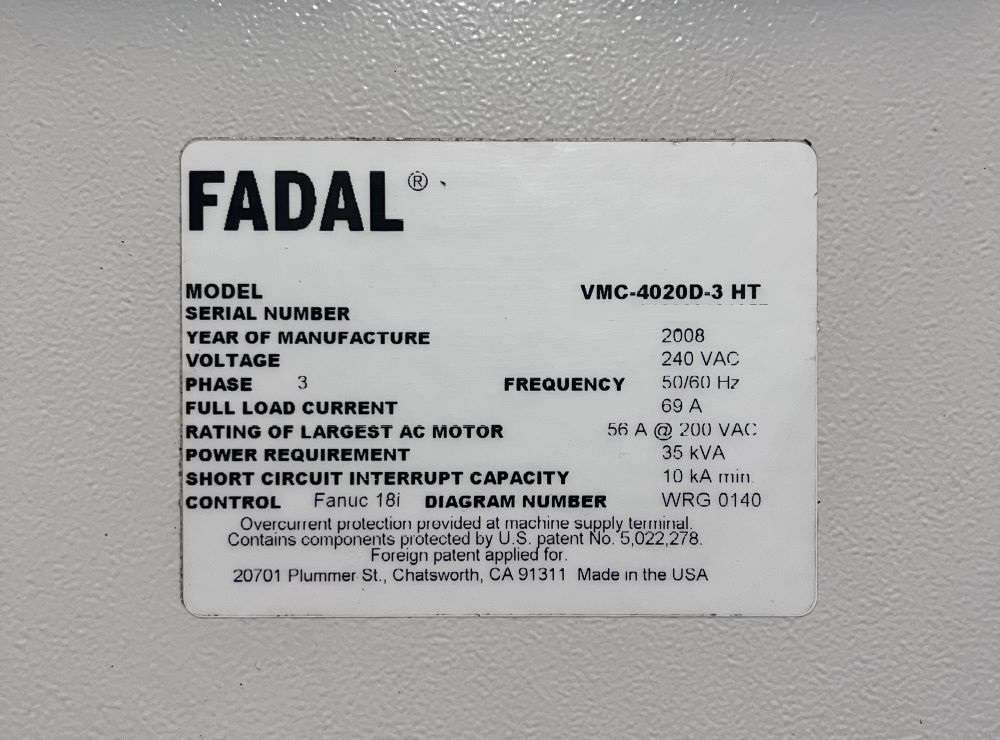

Power: 220v / 3-Phase, 35 Kva
Overall Dimensions: 122″ x 100″ x 100″ High
Weight: 12,500 lbs
  • Finance Application

    Payment shown is based on Financing Terms. Please ask the Sales Manager for more details.
