All specifications are approximations and are subject to verification.

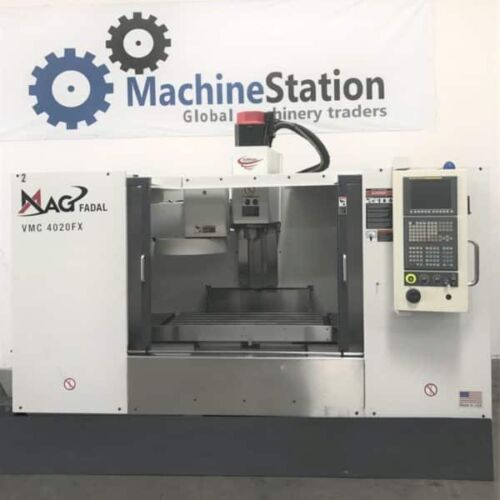

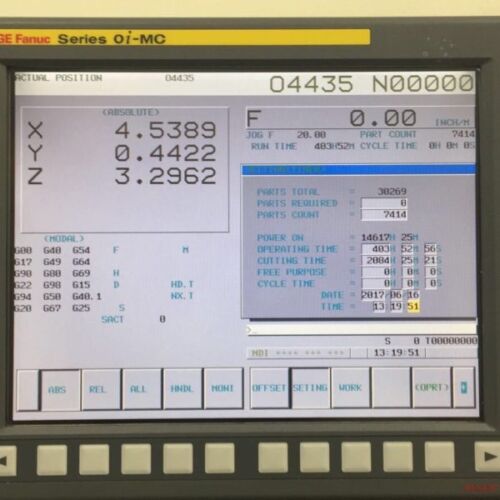

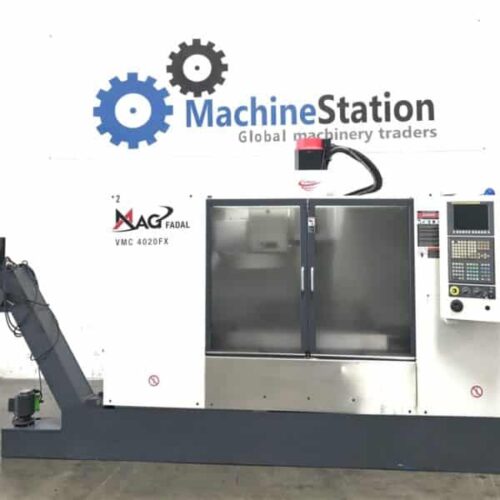

“This One Owner Machine was cutting Aluminium only. Equipped with 10,000rpm, Original Paint Machine with Chip Conveyor. 2084 Cutting Hours Only. On our Floor now, fully powered / tested & is in Great working condition.”
-
PCMCIA Card Slot
- RS 232 Port
- Rigid Tapping
- Box Way Construction
- Advanced Tool Management
- Power Failure Detection Module
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
- Brush-type servo drive motors on all axis
- 20 + 1 automatic tool changer
- Telescopic way covers
- Chip Conveyor
- Flood Coolant system
-
FADAL 4020FX Specifications:
- Travels:
- X-Axis: 40″
- Y-Axis: 20″
- Z-Axis: 20″
- Rapid Traverse Rates: 1000 Inch Per Minute
- Cutting Feed Rates: 800 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 24″
-

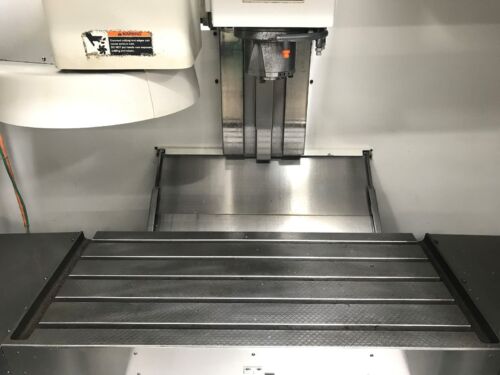

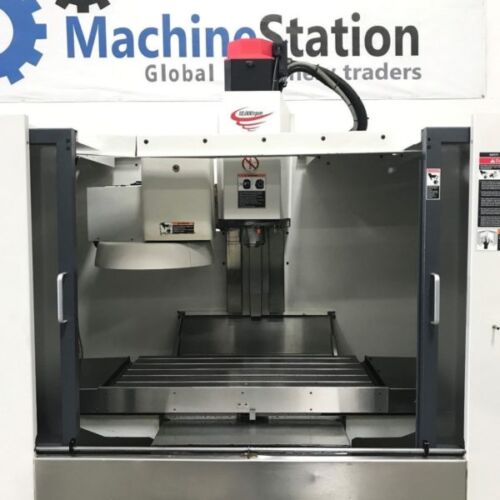

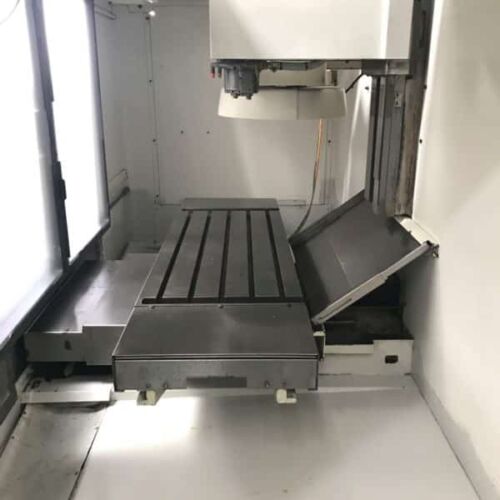

Table:
- Length: 48″
- Width: 20″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 3300 lbs
-
Spindle:
- Taper Size: 40
- Speed Range: 0 – 10,000 RPM
- Spindle Power: 22/15 HP
- Max Torque: 90ft-lb @ 2000RPM
-
Automatic Tool Changer:
- Capacity: 21
- Max Tool Weight: 15 lbs
- Max Tool Dia: 6″
- Max Tool Length: 13″
- Tool Changing Time: 3 Seconds
-
General:
- Air Required: 100 psi, 4 scfm

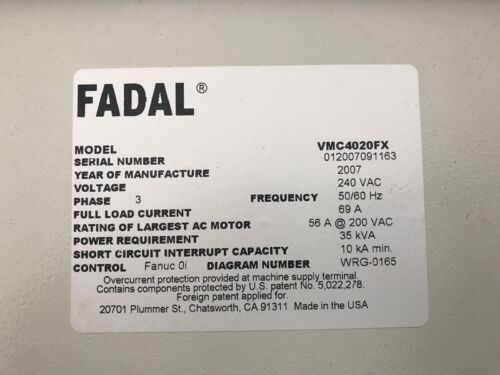

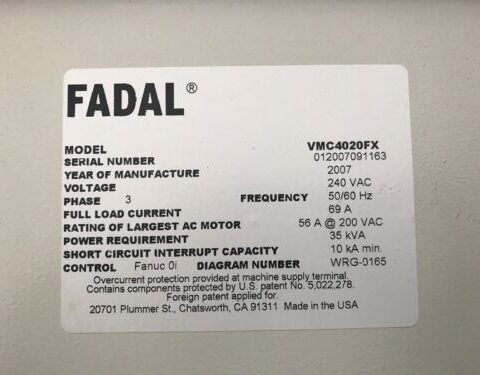

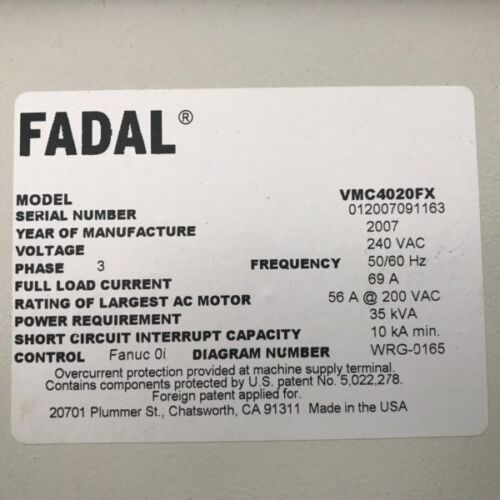

- Power: 240v / 35 KVA / 3-Phase
- Overall Dimensions: 120″ x 96″ x 99″ High
- Overall Dimensions: 150″ x 96″ x 100″ High with Chip C0nveyor
- Weight: 12000 lbs
