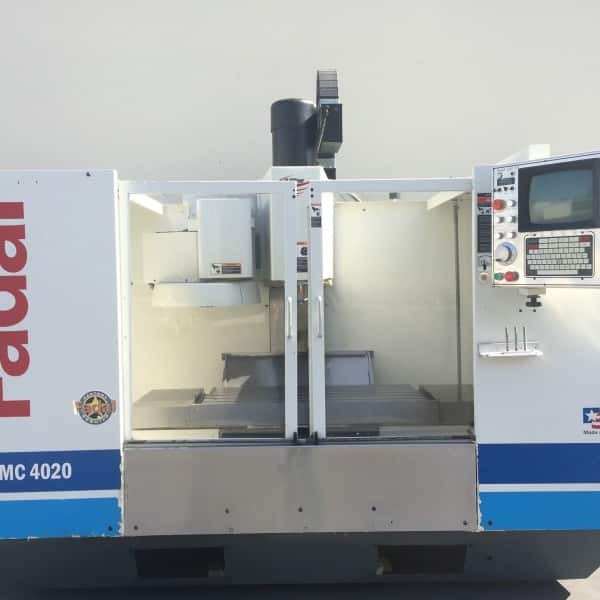

Fadal 4020HT CNC Vertical Machining Center

Out of stock
SKU: 1259
Make/Model: Fadal 4020HT
Video: [fusion_button link=”https://www.youtube.com/watch?v=7AUIy29Jxyk” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1259
FADAL 4020HT VMC
Make Fadal
Model No. 4020HT

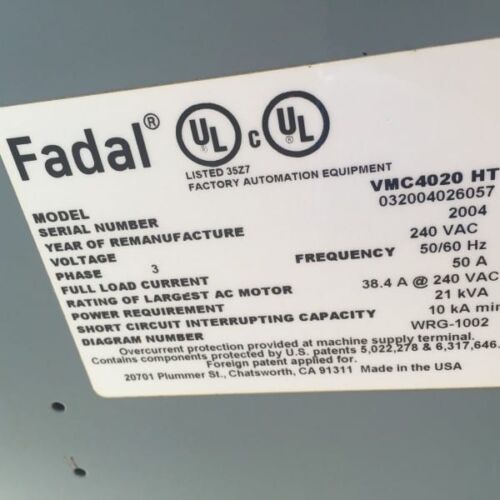

Year of Re-Manufacture: 2004
Serial # 032004026075
Condition Very Good
  • FADAL 4020HT Features:
  • Fadal CNC88 HS Control
  • 21 Tools Changer
  • High Torque Spindle
  • Rigid Tapping
  • High Speed CPU
  • Graphics
  • 2-Speed Gear Box
  • Full Enclosure
  • 24+1 Tool Automatic Tool Changer
  • Coolant Filtration System
  • Floppy Drive
  • Extended Memory
  • RS-232 Port
  • Comes with All Original Manuals
  • FADAL 4020HT Specifications:
  • Travels:
  • X-Axis: 40″
  • Y-Axis: 20″
  • Z-Axis: 20″
  • Rapid Traverse Rates: 900 Inch Per Minute
  • Cutting Feed Rates: 400 IPM
  • Spindle Nose to Table (Min.- Max.): 4″ – 24″

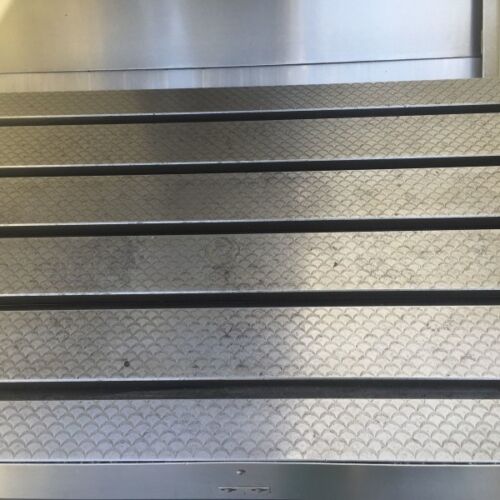

  • Table:
  • Length: 48″
  • Width: 20″
  • Max Weight on Table: 3600 lbs
  • Spindle:
  • Taper Size: CAT 40
  • Speed Range: 75 – 10,000 RPM
  • Spindle Power: 15 HP

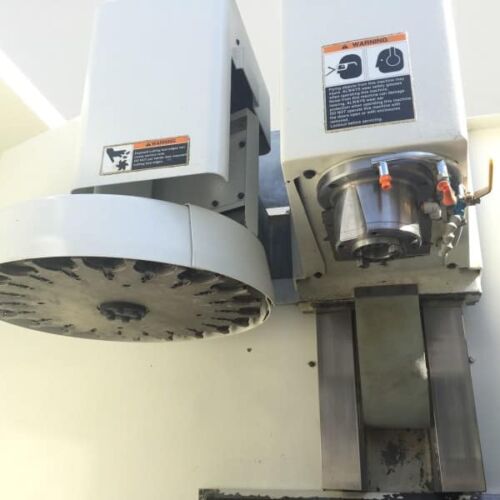

  • Automatic Tool Changer:
  • Capacity: 21
  • Max Tool Weight: 15 lbs
  • Max Tool Length: 15″
  • General:
  • Air Required: 80 psi, 15 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 122 x 100″ x 100 High
  • Weight: 12500 lbs
