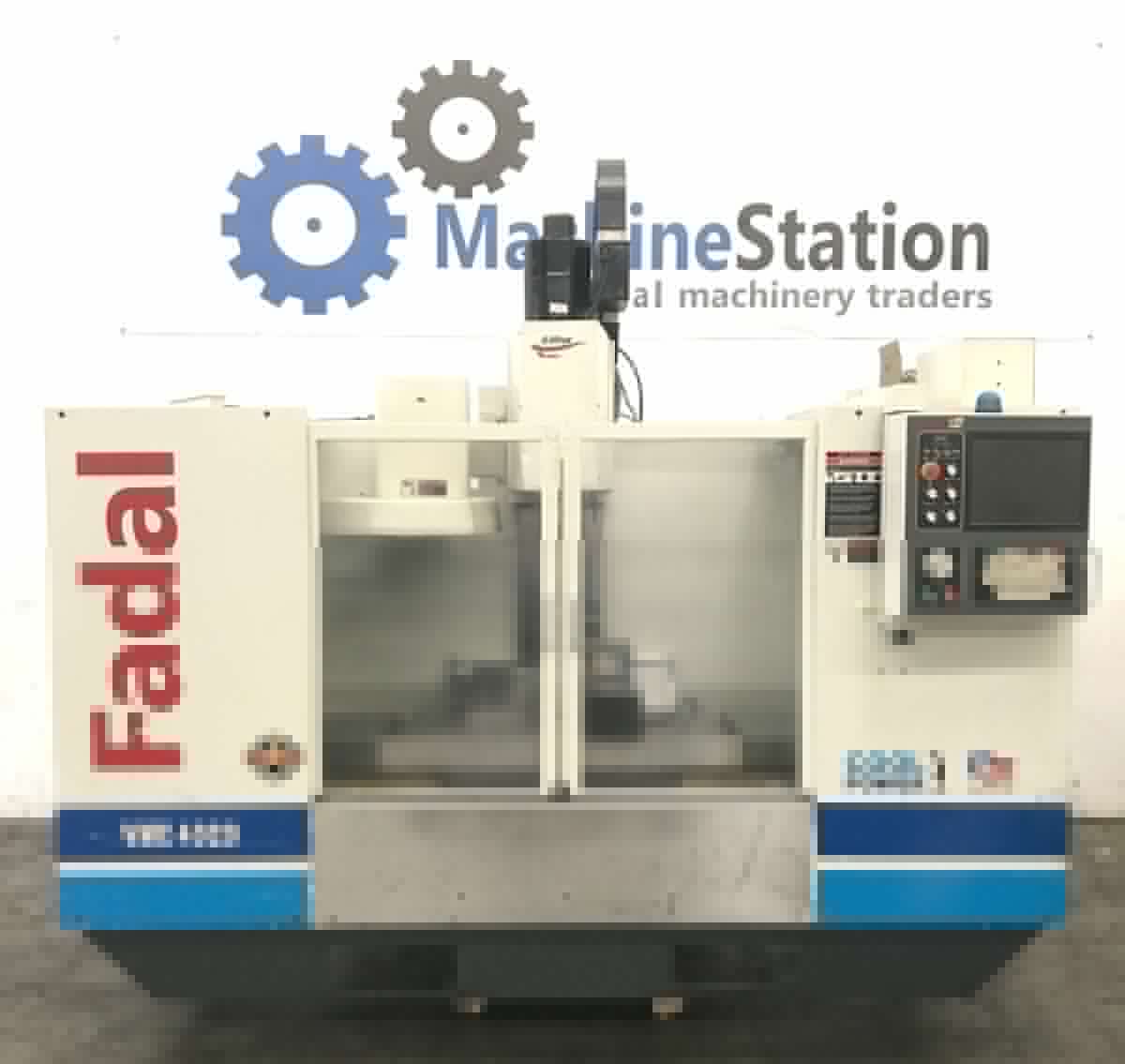

Fadal 4020HT Vertical Machining Center

Out of stock

β€œOn our Floor now, fully powered / tested & is in Great working condition. Equipped with Rotary Table with Tailstock and chuck, Thru Spindle Coolant 10,000 RPM Spindle ,upgraded 30 tool changer. Running time 4282 hours. Spindle Warranty 6 Months.”

SKU: 1526
Make/Model: FADAL 4020HT
Video: [fusion_button link=”https://www.youtube.com/watch?v=IDC18qH31tA” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1526
FADAL 4020HTΒ VERTICAL MACHINING CENTERΒ CNC MILL
Make FADAL
Model No. 4020HT
Year of Manufacture: 2005

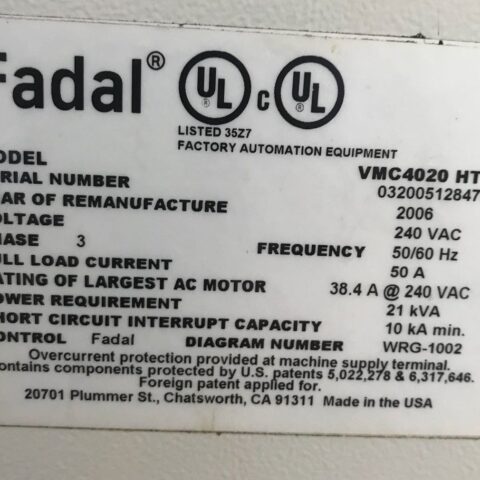

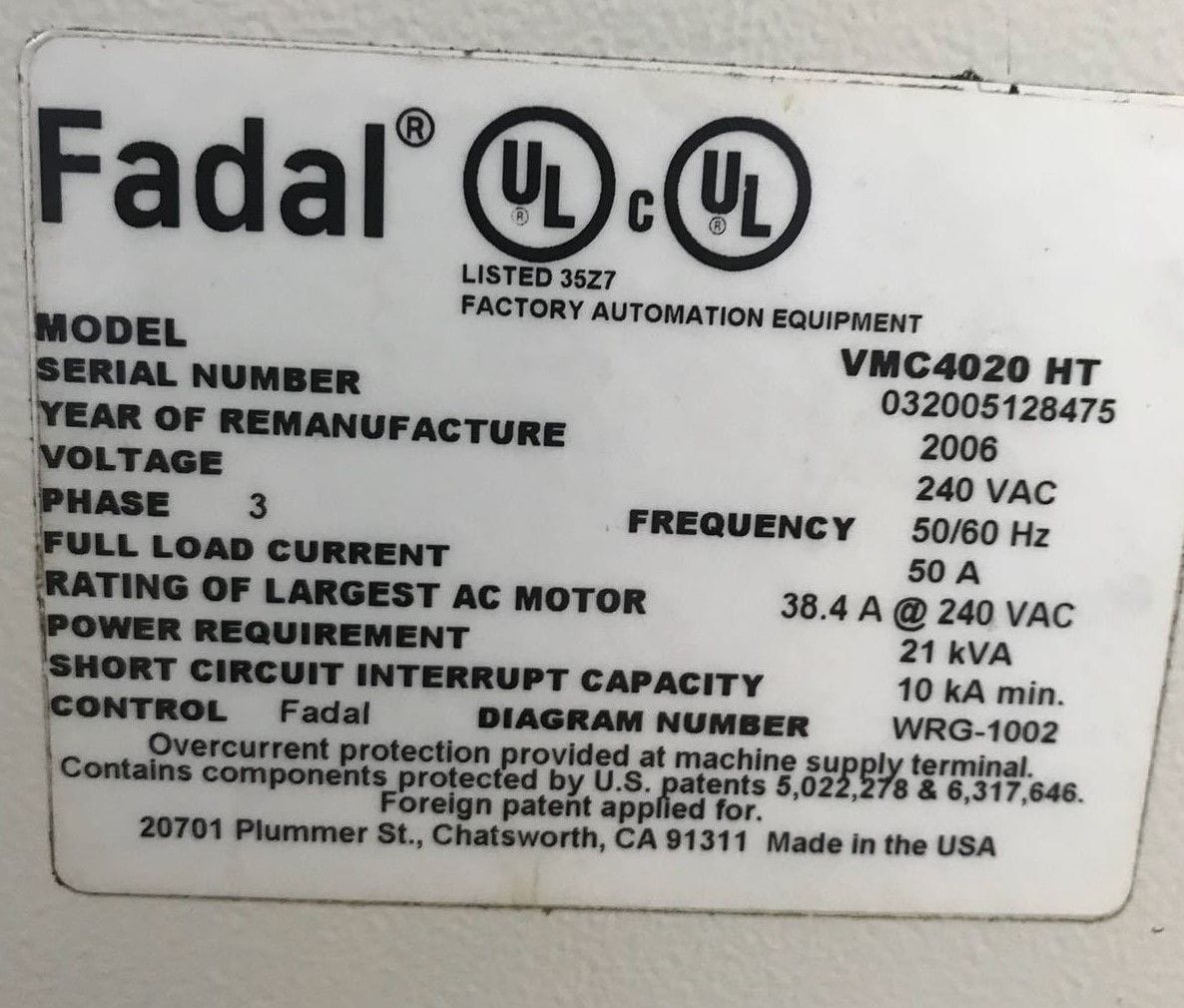

Serial # 032005128475
Condition Very Good

β€œOn our Floor now, fully powered / tested & is in Great working condition. Equipped with Rotary Table with Tailstock and chuck, Thru Spindle Coolant 10,000 RPM Spindle ,upgraded 30 tool changer. Running time 4282 hours. Spindle Warranty 6 Months.”

  • Fadal 4020HT Features:
  • 20HP High Torque Spindle Motor
  • 10,000 RPMΒ High PrecisionΒ Spindle
  • Thru Spindle Coolant

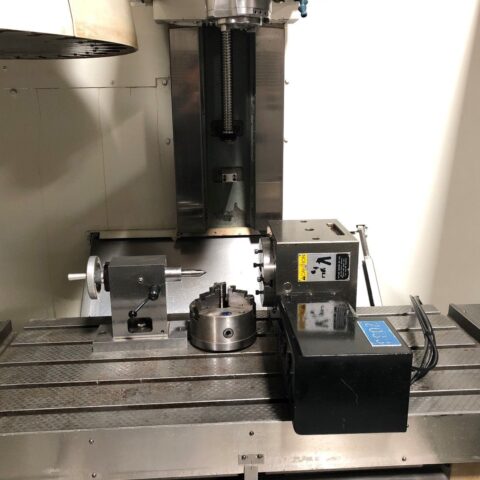

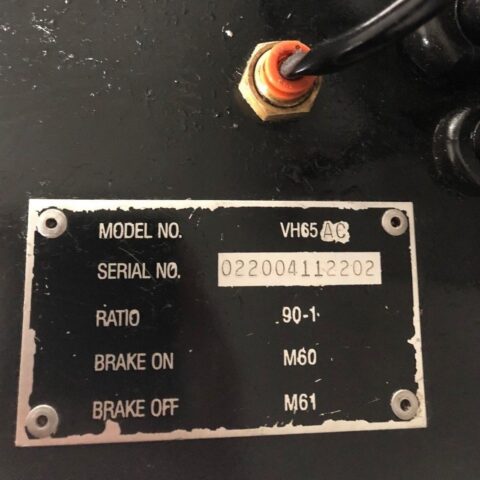

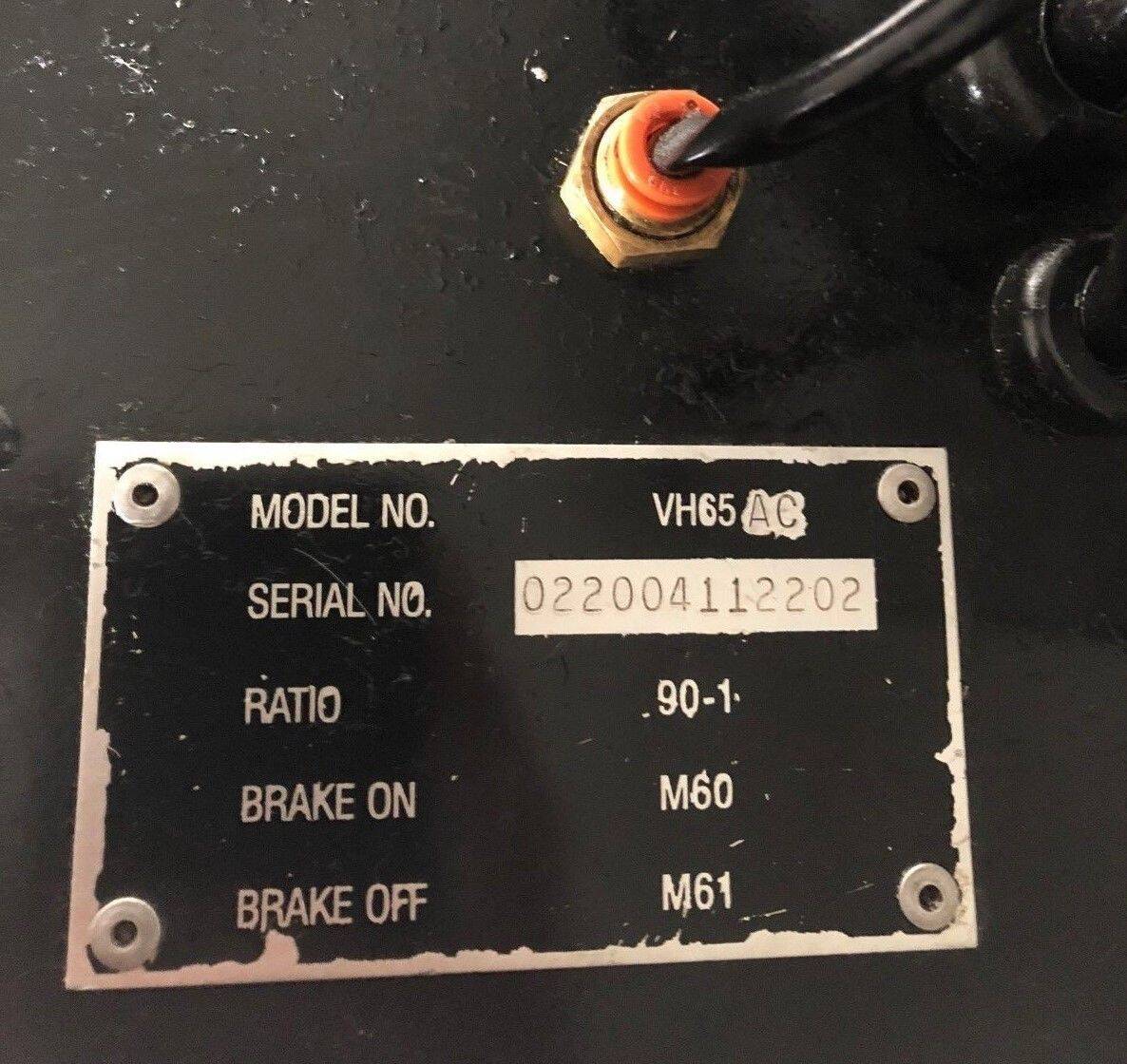

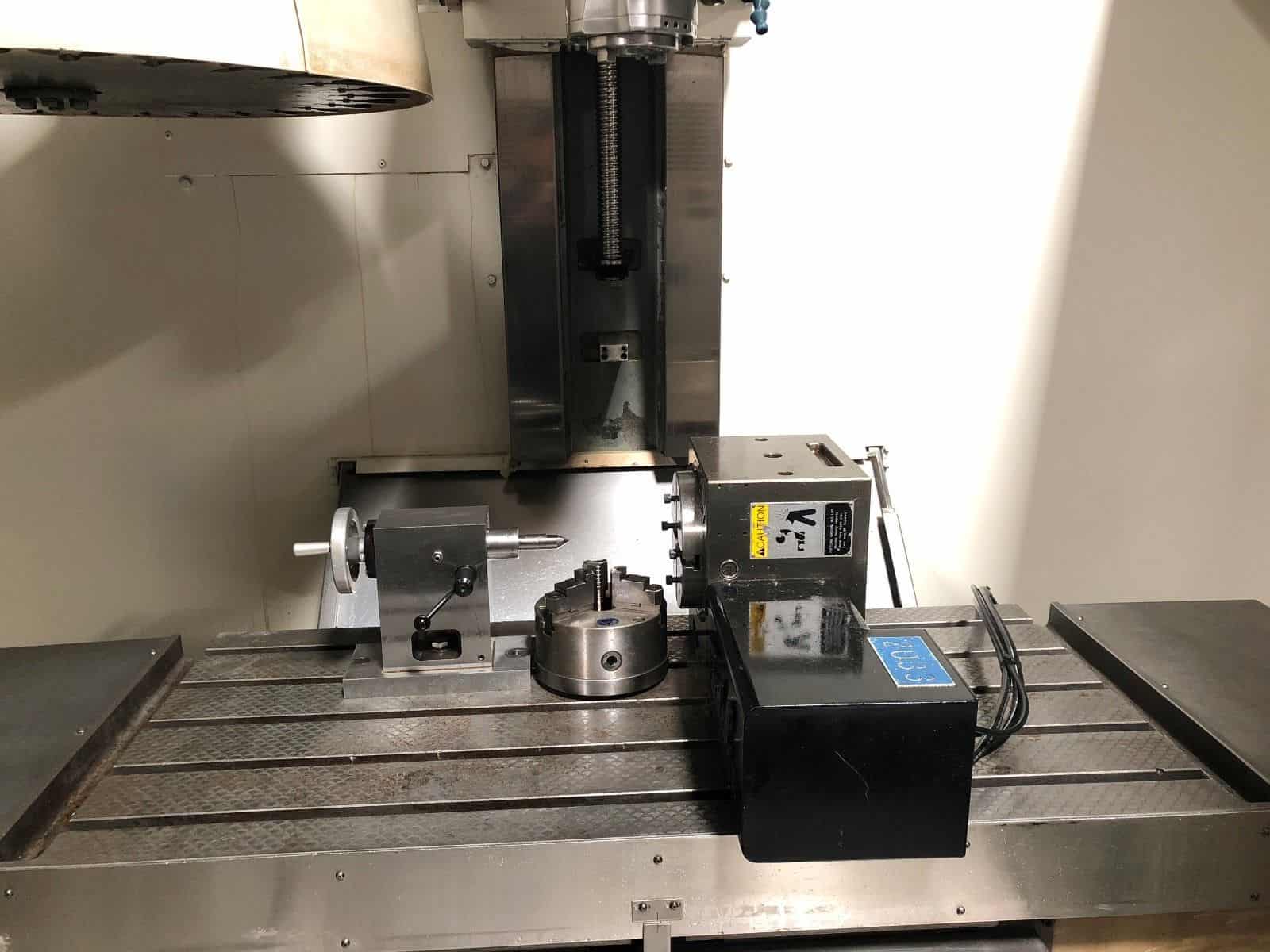

  • 4th AxisΒ Rotary Table with Tailstock Installed

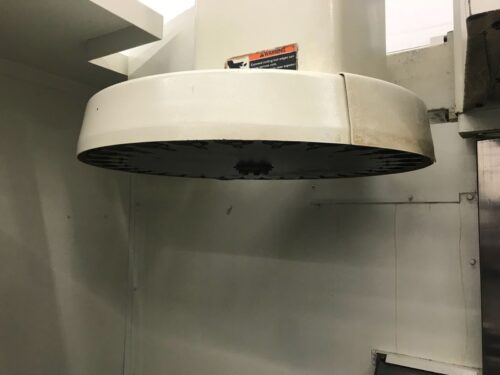

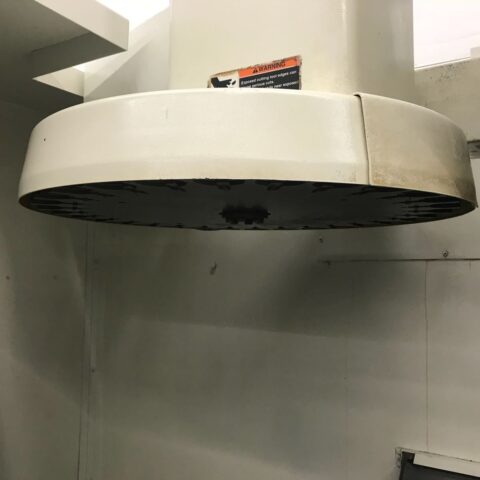

  • 21Β Station Automatic tool changer
  • FloppyΒ Drive
  • Rigid Tapping
  • UserΒ DefinableΒ Macros,Β Spindle Orientation andΒ CoordinateΒ RotationalΒ Scaling
  • Brushless typeΒ servoΒ driveΒ motorsΒ onΒ allΒ axis
  • ProgrammableΒ coolant
  • TelescopicΒ wayΒ covers
  • ChipΒ auger
  • FloodΒ CoolantΒ system
  • Running time 4282 hours
  • Fadal 4020HT Specifications:
  • Travels:
  • X-Axis: 40β€³
  • Y-Axis: 20β€³
  • Z-Axis: 20β€³
  • Rapid Traverse Rates:Β 900 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 4β€³ – 24β€³
  • Table:
  • Length: 48β€³
  • Width: 20β€³
  • Number of Std T-Slots: 5
  • T-Slot Width: 5/8β€³
  • Max Weight on Table:Β 3500 lbs
  • Spindle:
  • Taper Size:Β CAT 40
  • Speed Range: 0 – 10,000 RPM
  • Spindle Power:Β 20 HP
  • Max Torque: 230ft-lb @ 500RPM
  • Automatic Tool Changer:
  • Capacity:Β 30 + 1
  • Max Tool Weight: 15 lbs
  • Max Tool Dia: 6β€³
  • Max Tool Length: 15β€³
  • Tool Changing Time:Β 4.2 Seconds
  • General:
  • Air Required:Β 100 psi,Β 4 scfm
  • Power: 480v /Β 1 kvaΒ / 3-Phase
  • Overall Dimensions: 122β€³Β x 100β€³ x 100β€³ High
  • Weight: 12500 lbs

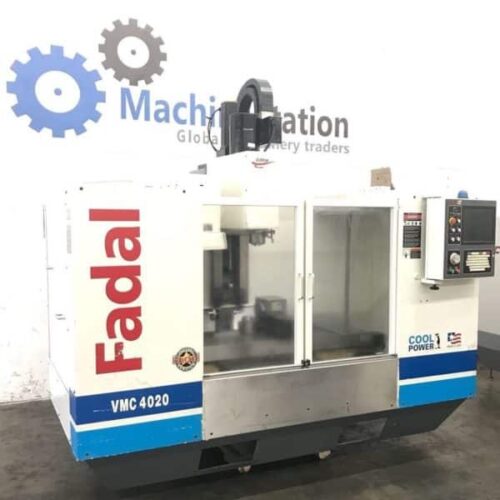

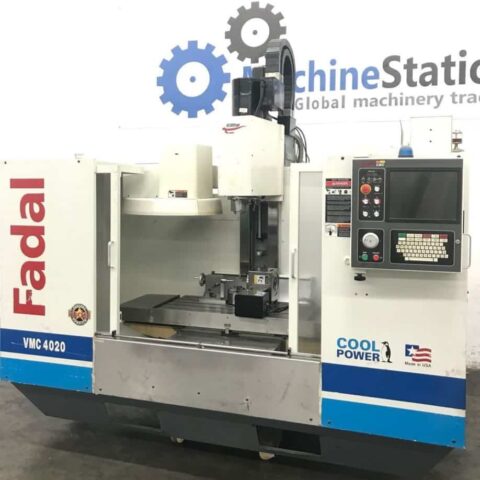

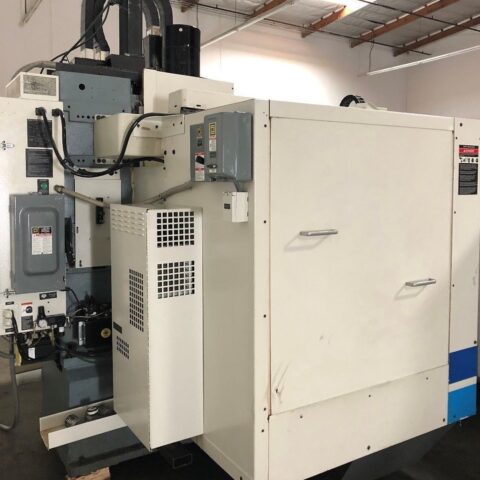

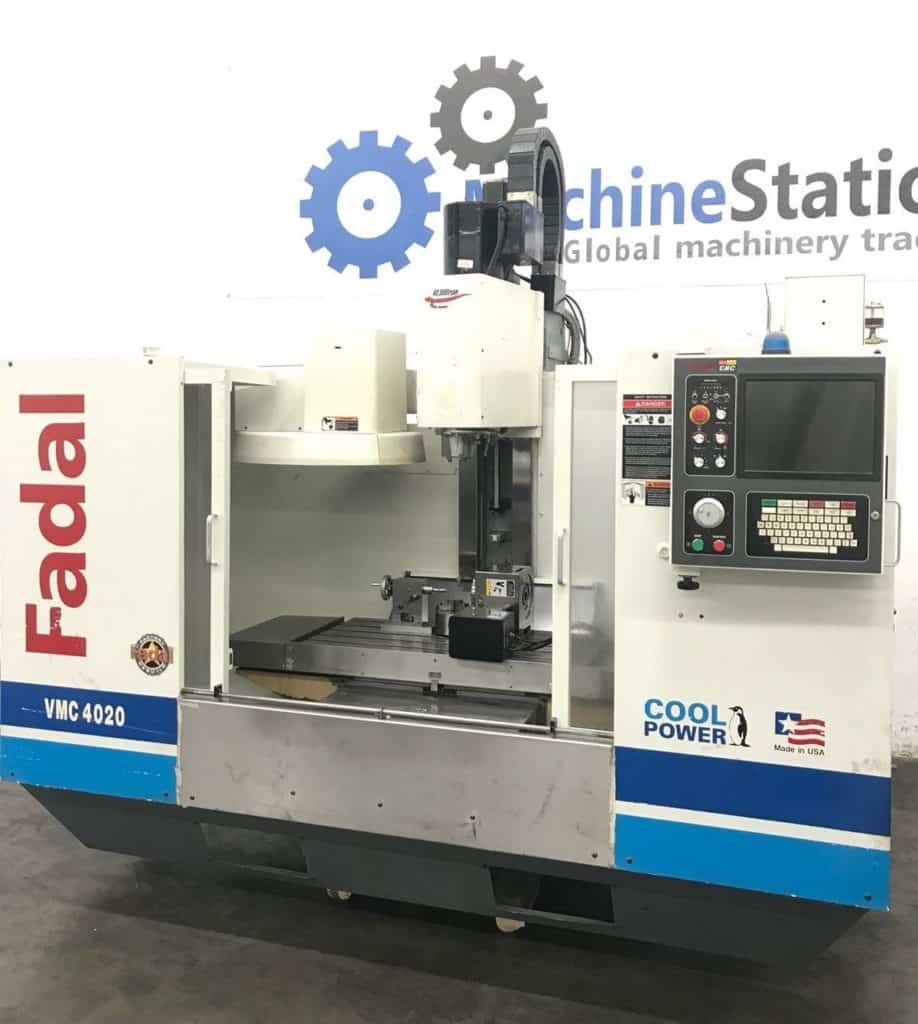

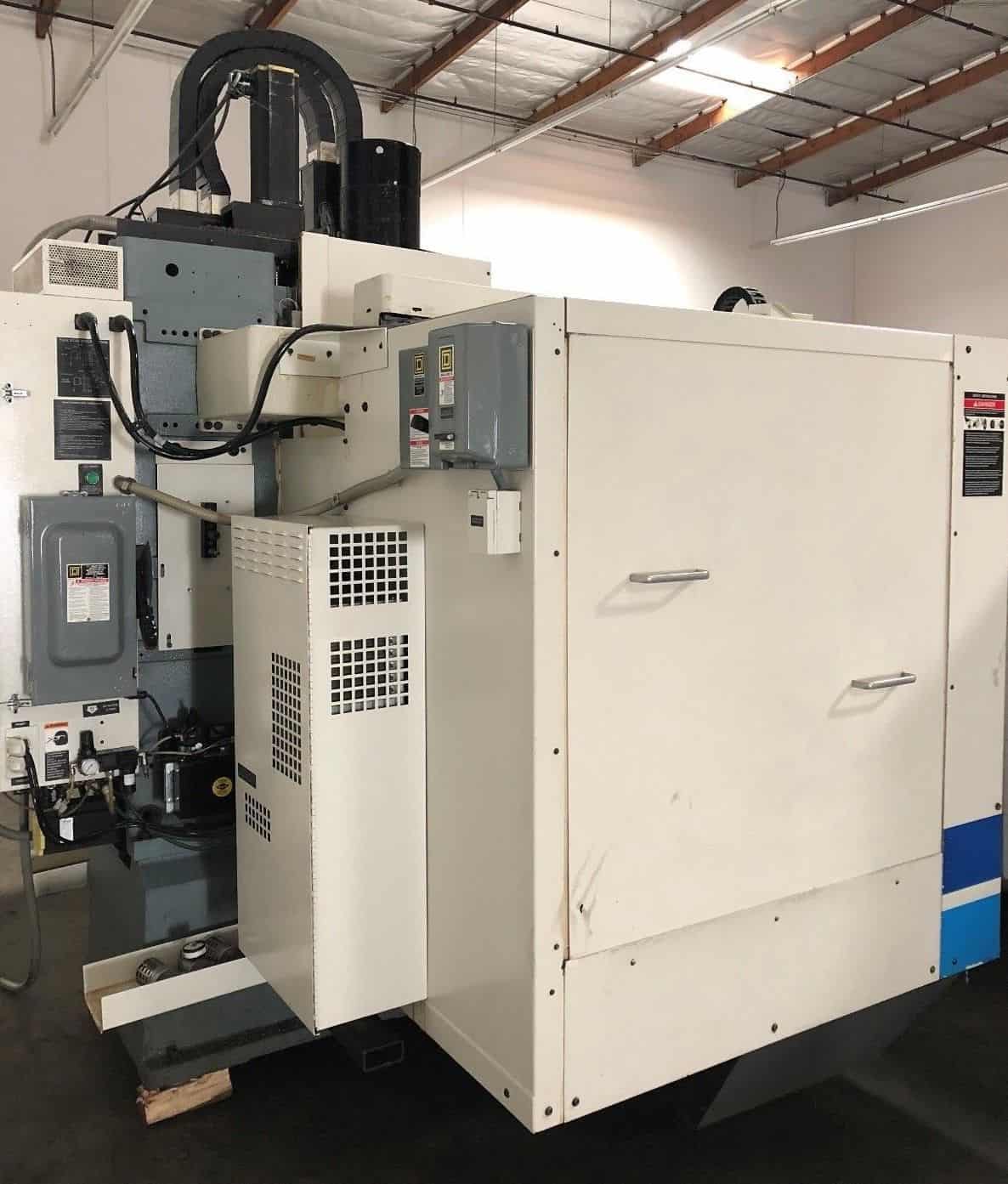

Fadal 4020HT Comes as shown in pictures..
