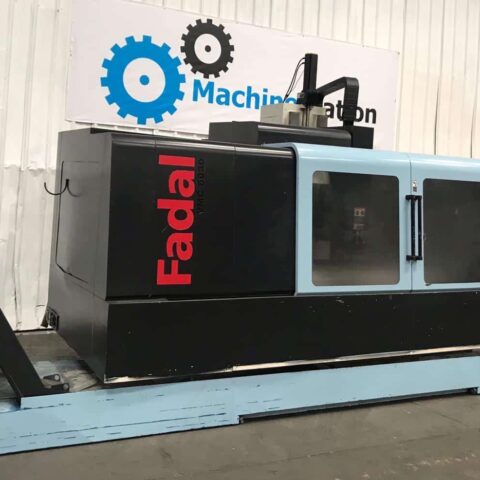

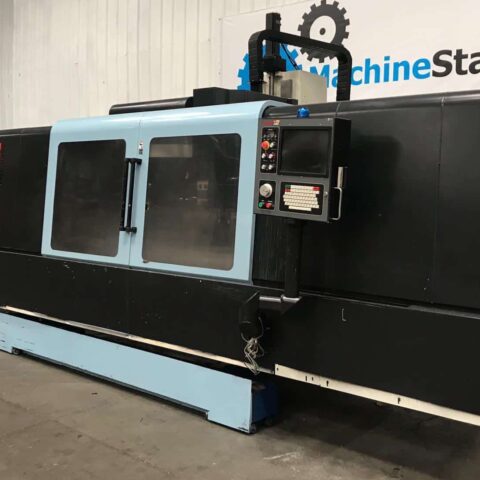

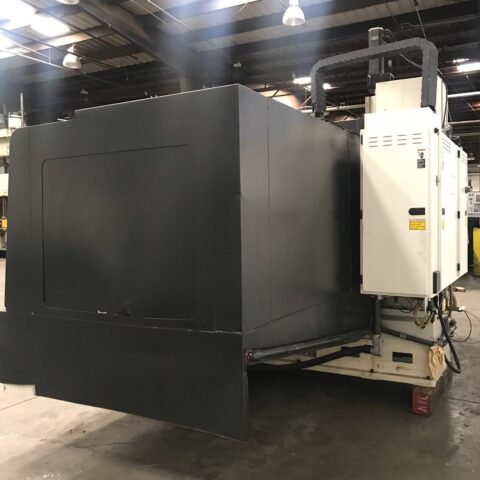

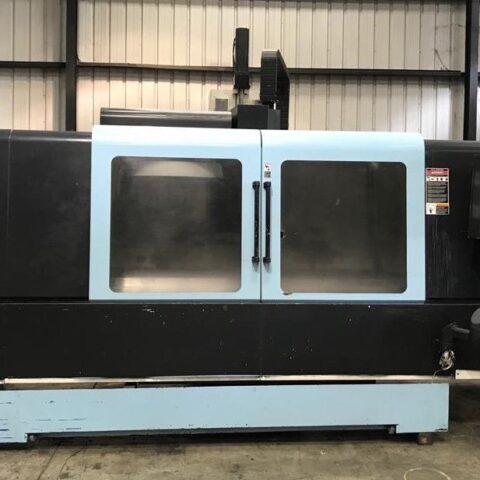

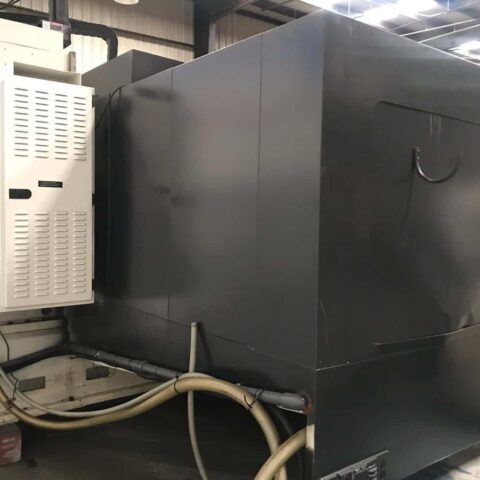

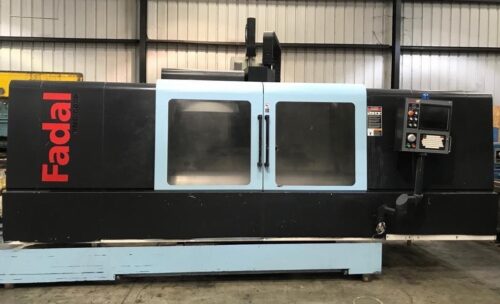

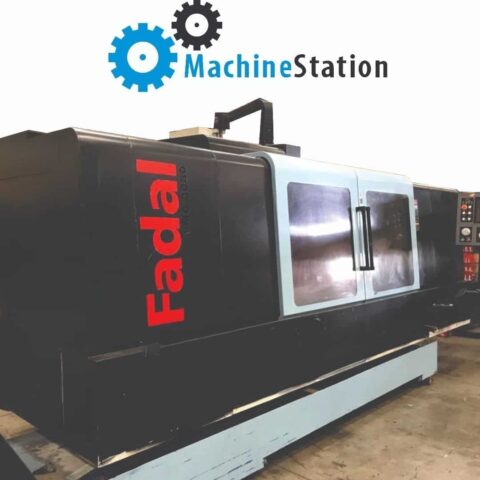

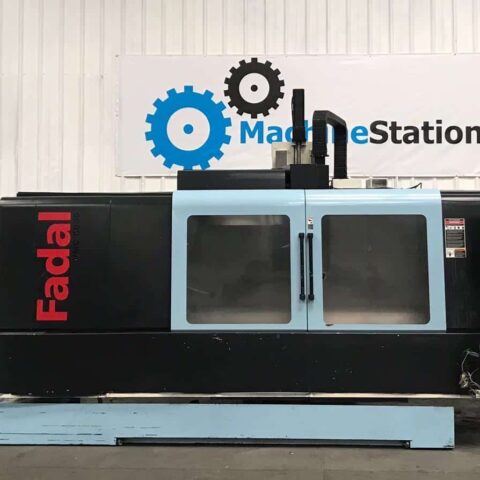

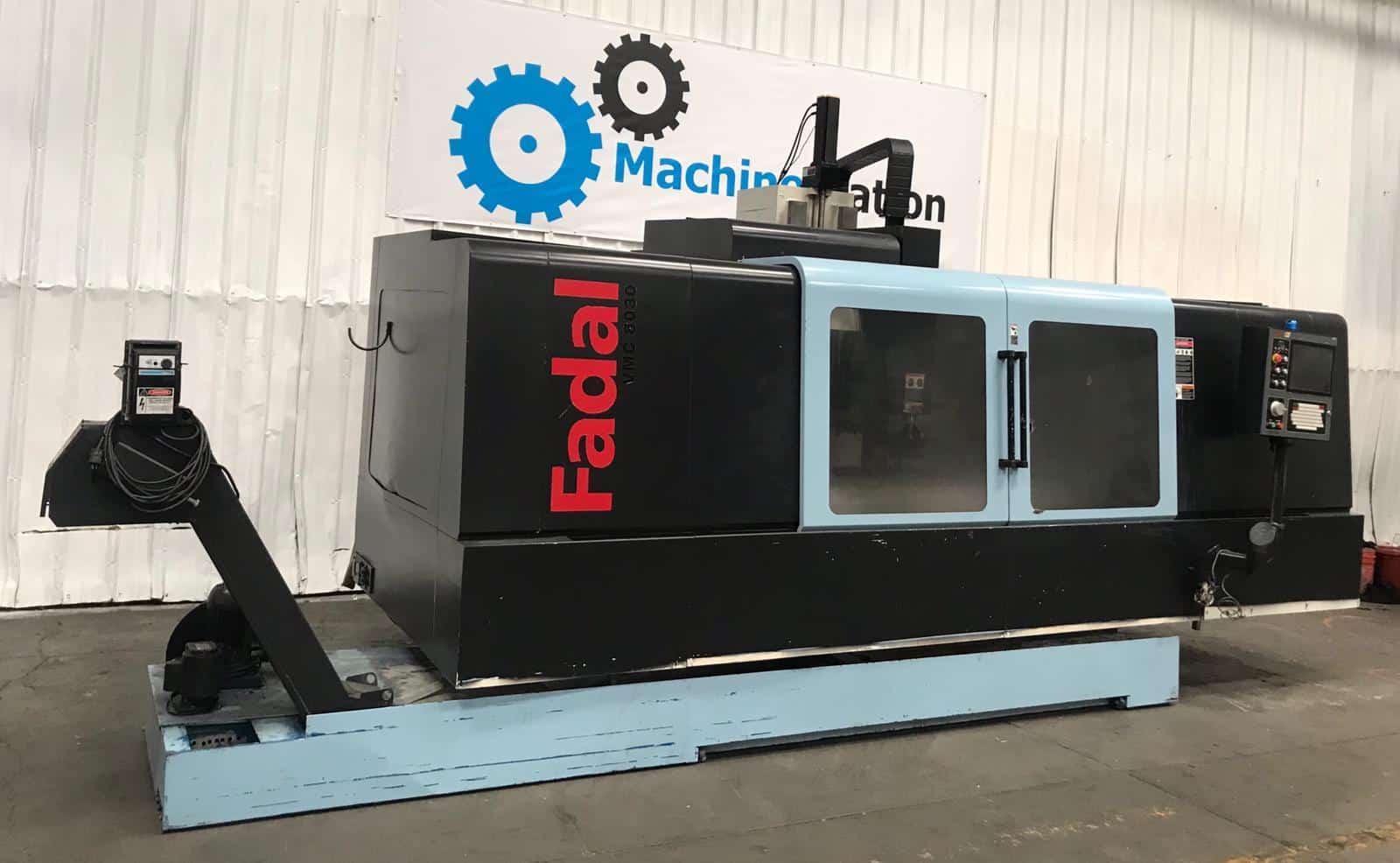

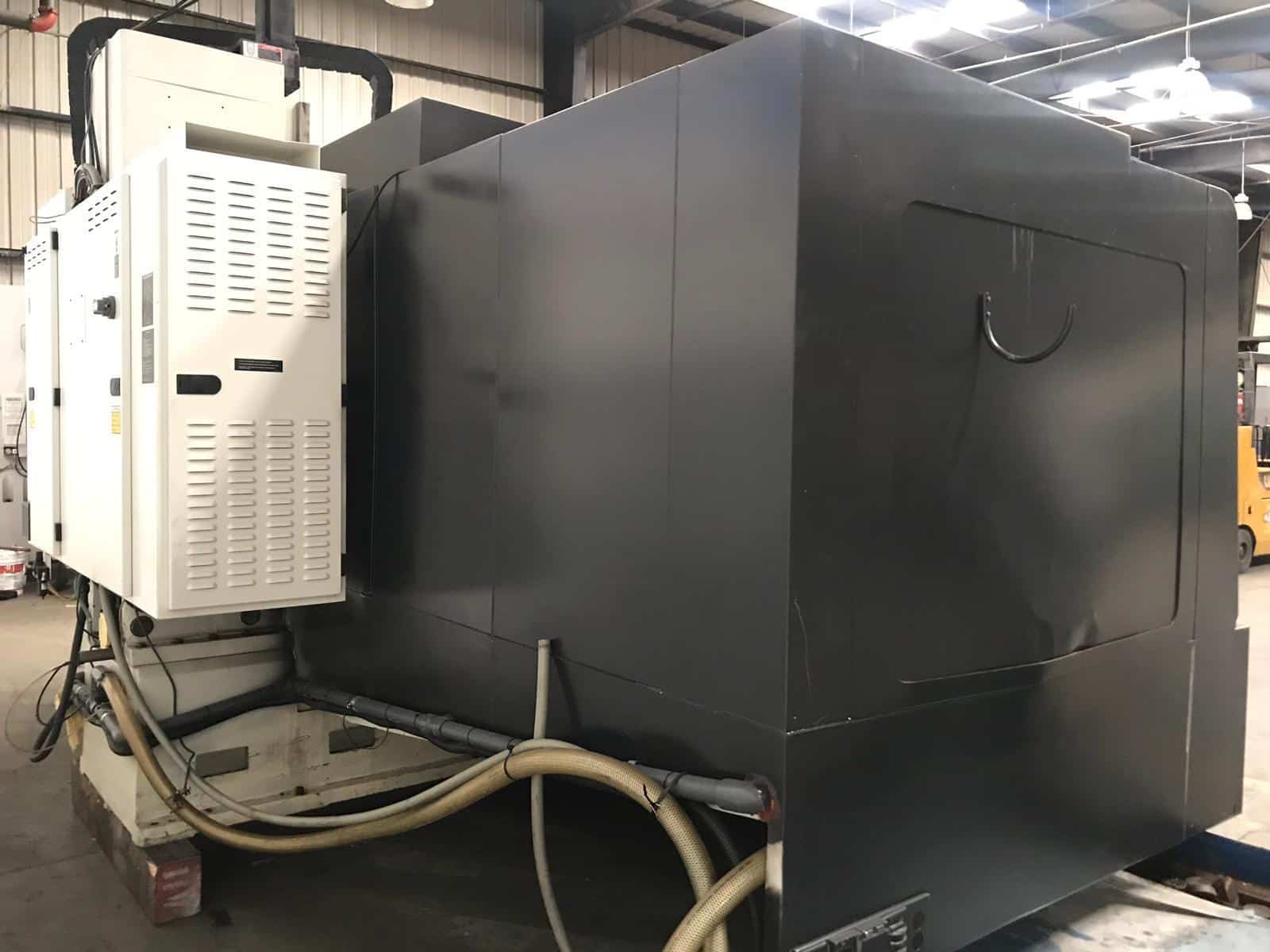

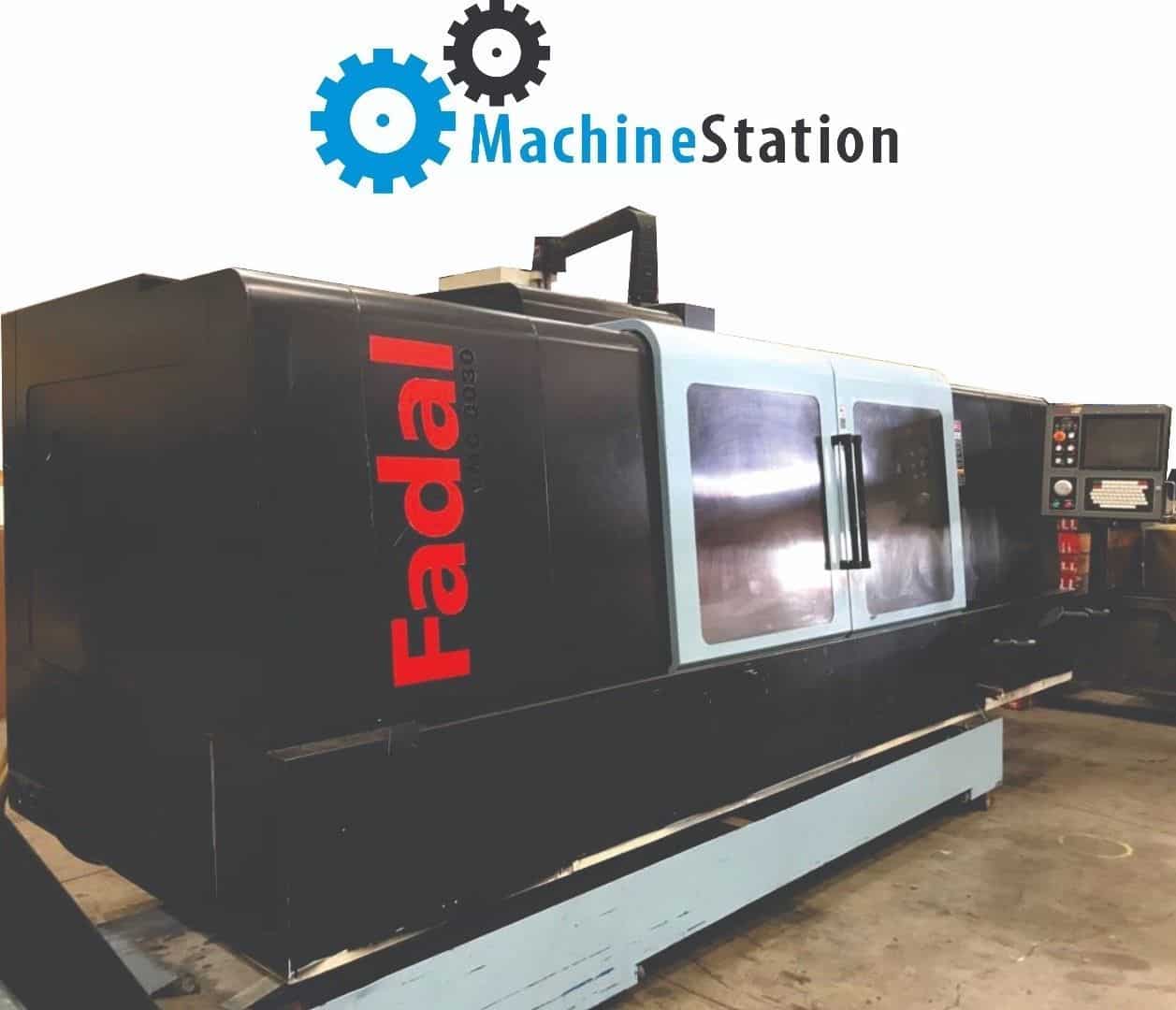

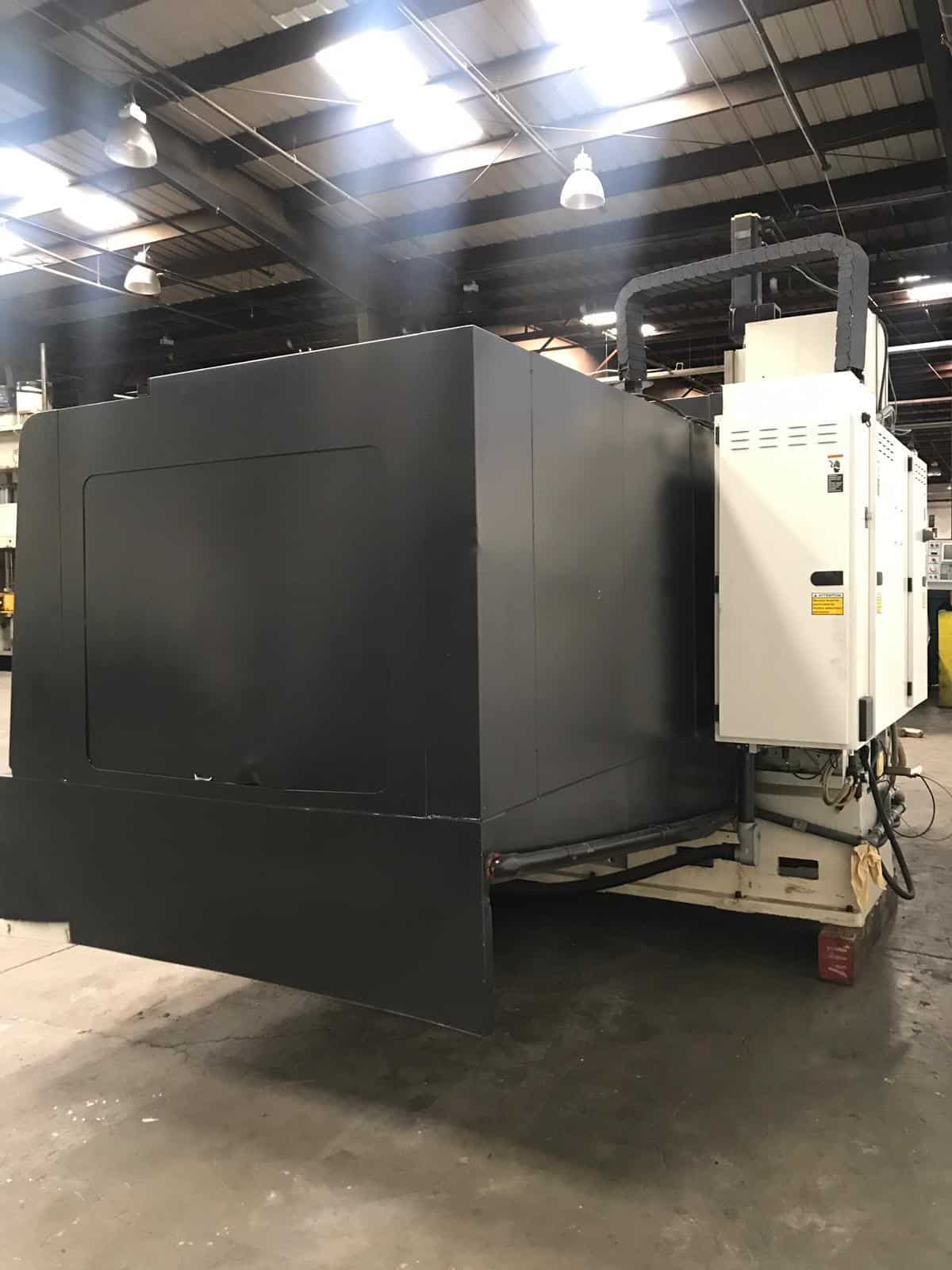

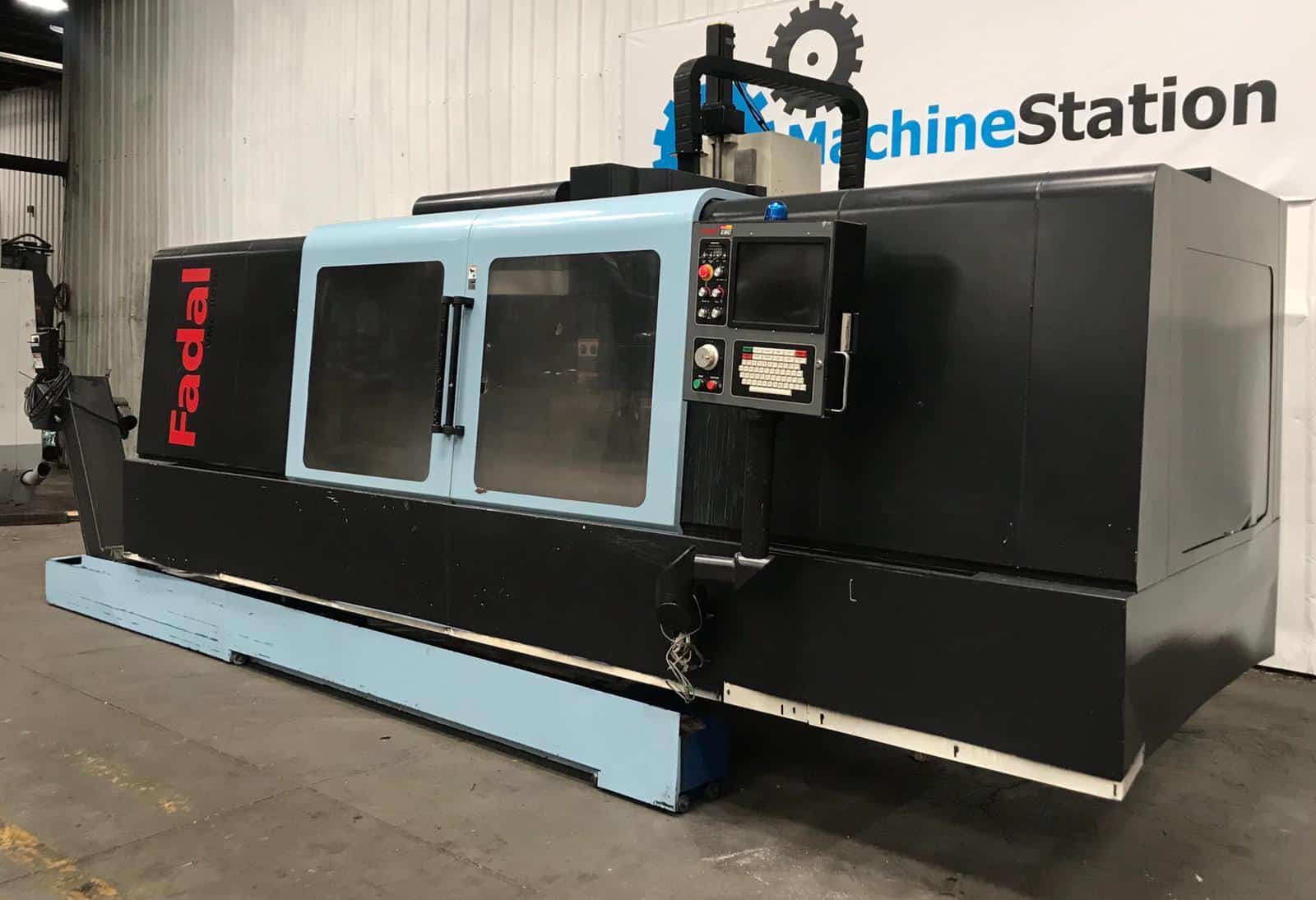

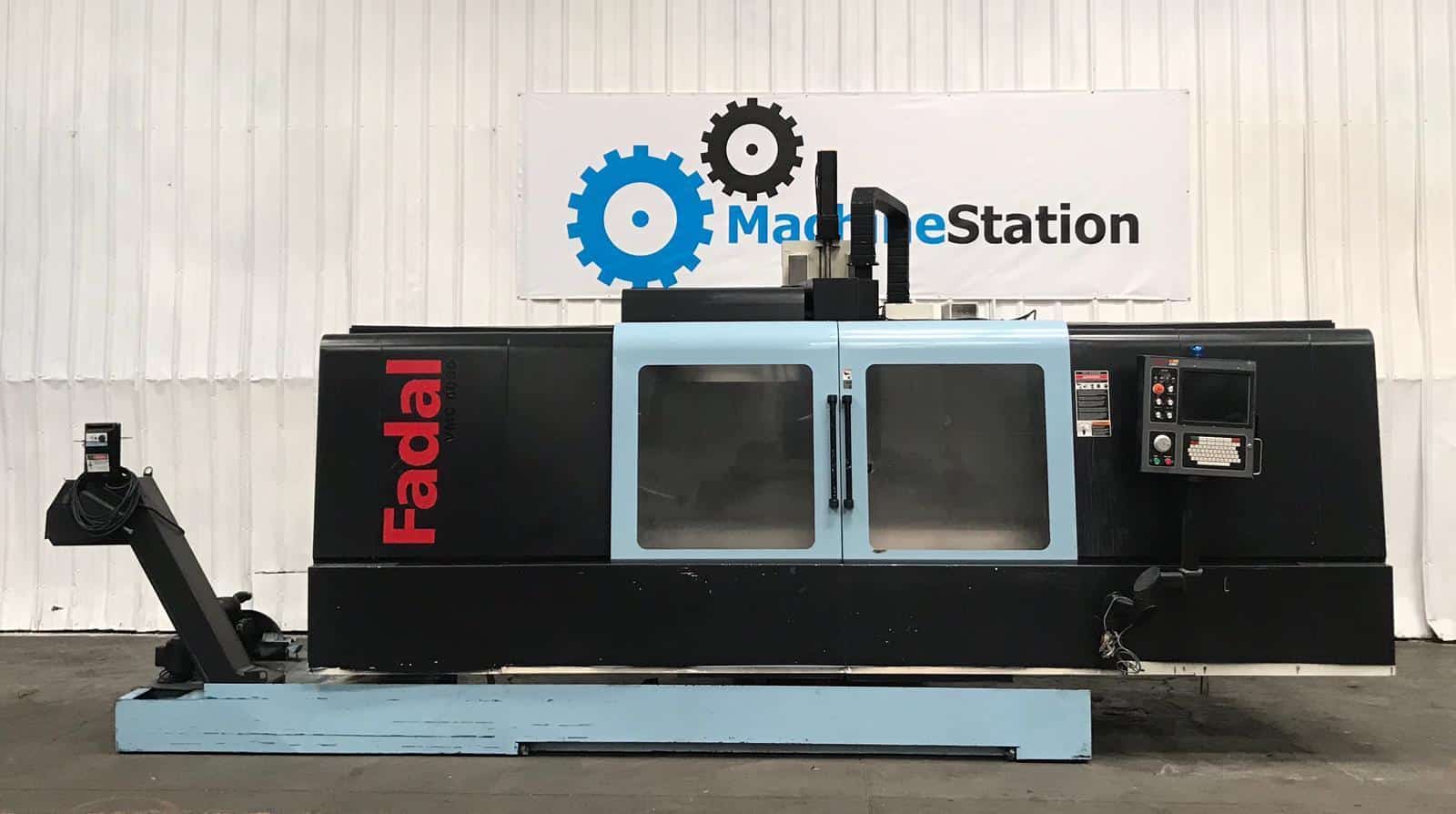

Fadal 8030HT Vertical Machining Center
Out of stock
- Fadal 8030HT Features:
- 20HP High Torque Spindle Motor
- 10,000 RPM High Precision Spindle

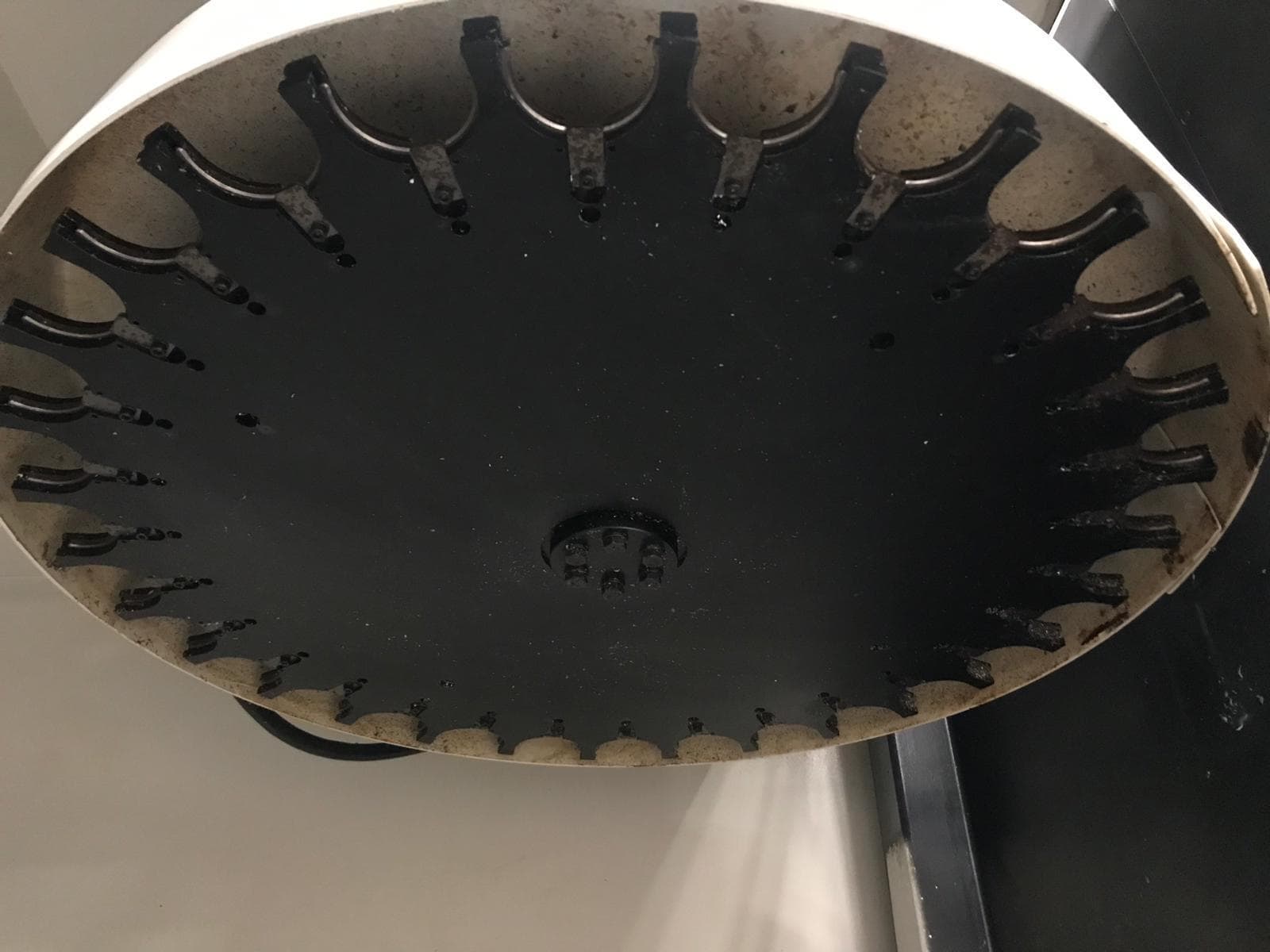

- 30 Station Automatic tool changer

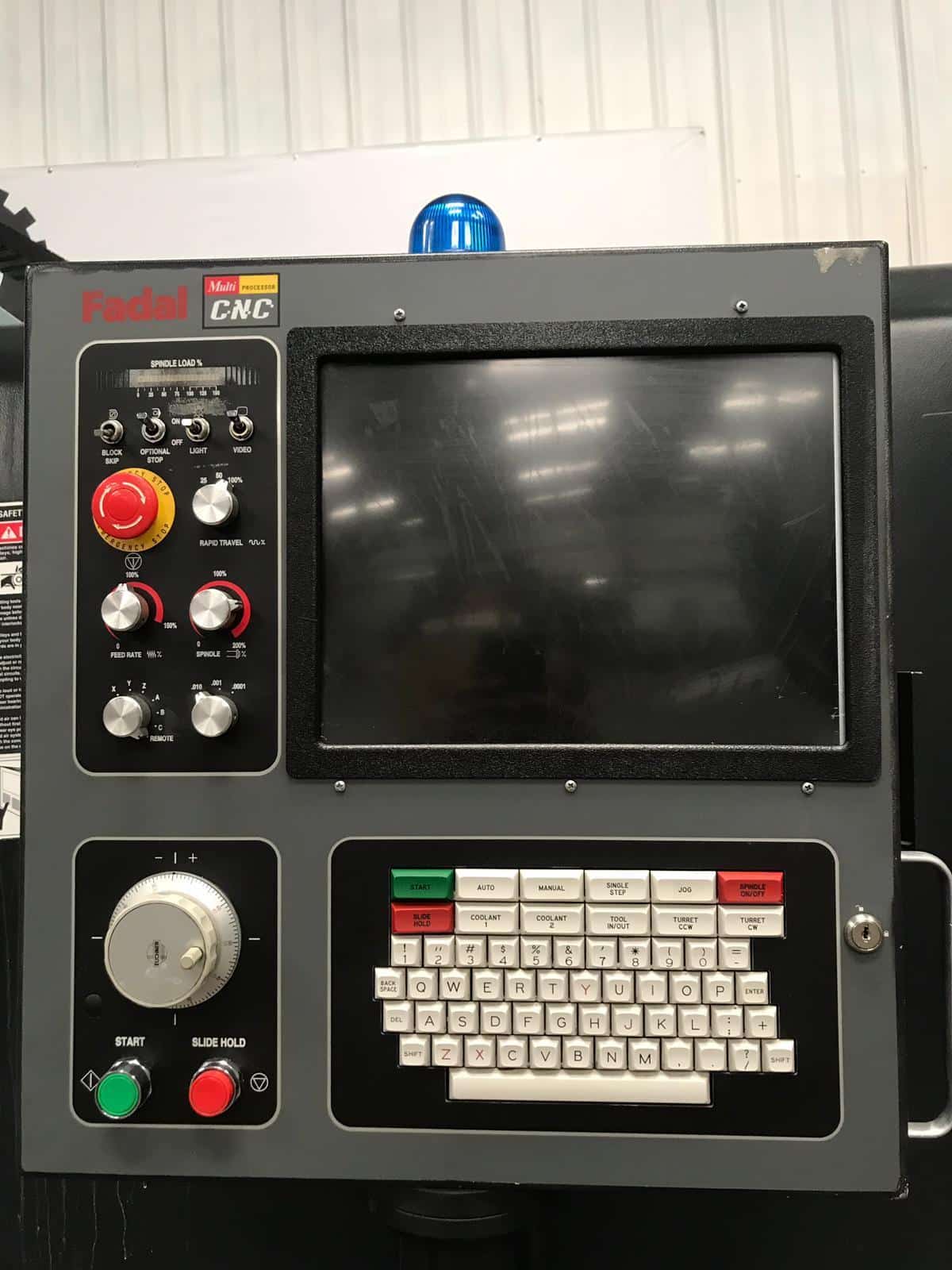

- Remote Jog Handle
- Floppy Drive
- Rigid Tapping
- Advanced Tool Management
- Power Failure Detection Module
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
- Brushless type servo drive motors on all axis
- Programmable coolant
- Telescopic way covers
- Chip auger
- Chip Conveyor
- Fadal 8030HT Specifications:
- Travels:
- X-Axis: 80″
- Y-Axis: 30″
- Z-Axis: 30″
- Rapid Traverse Rates: 400 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 5.5″ – 35.5″

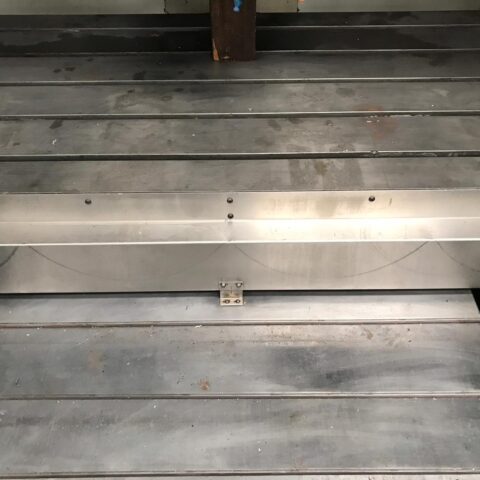

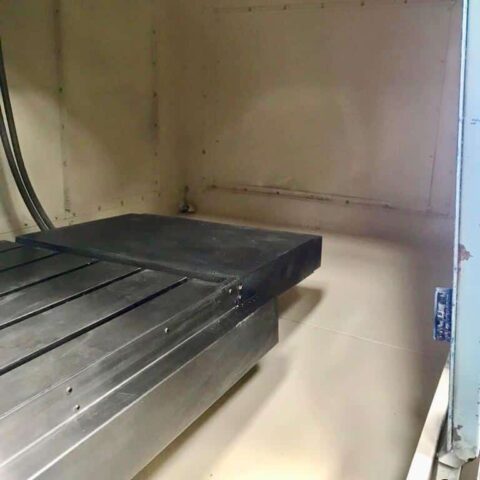

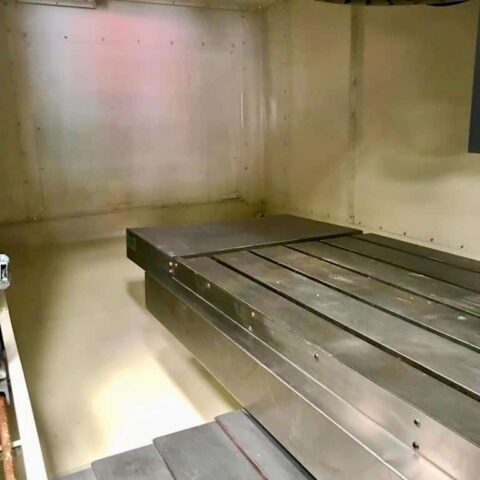

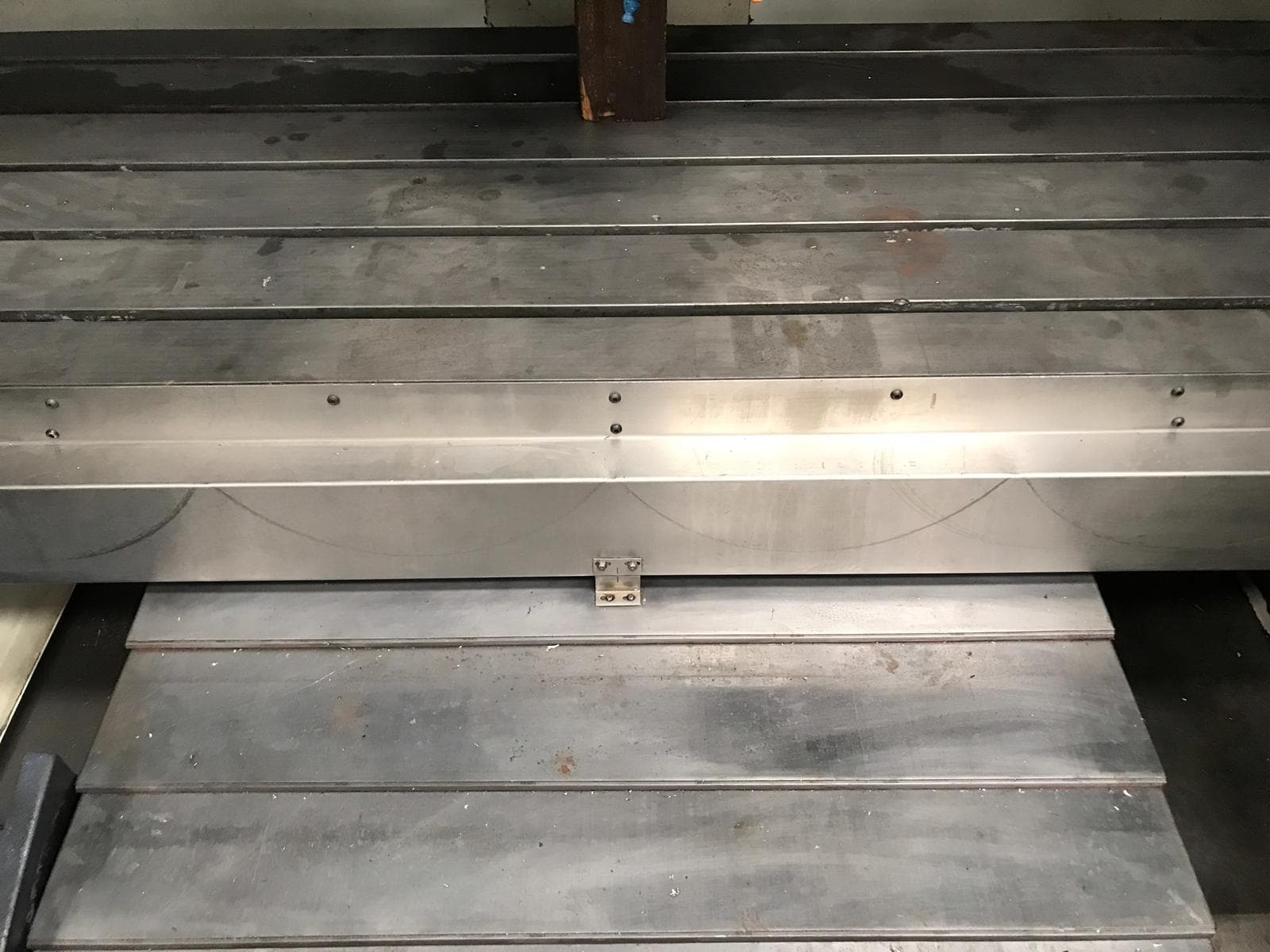

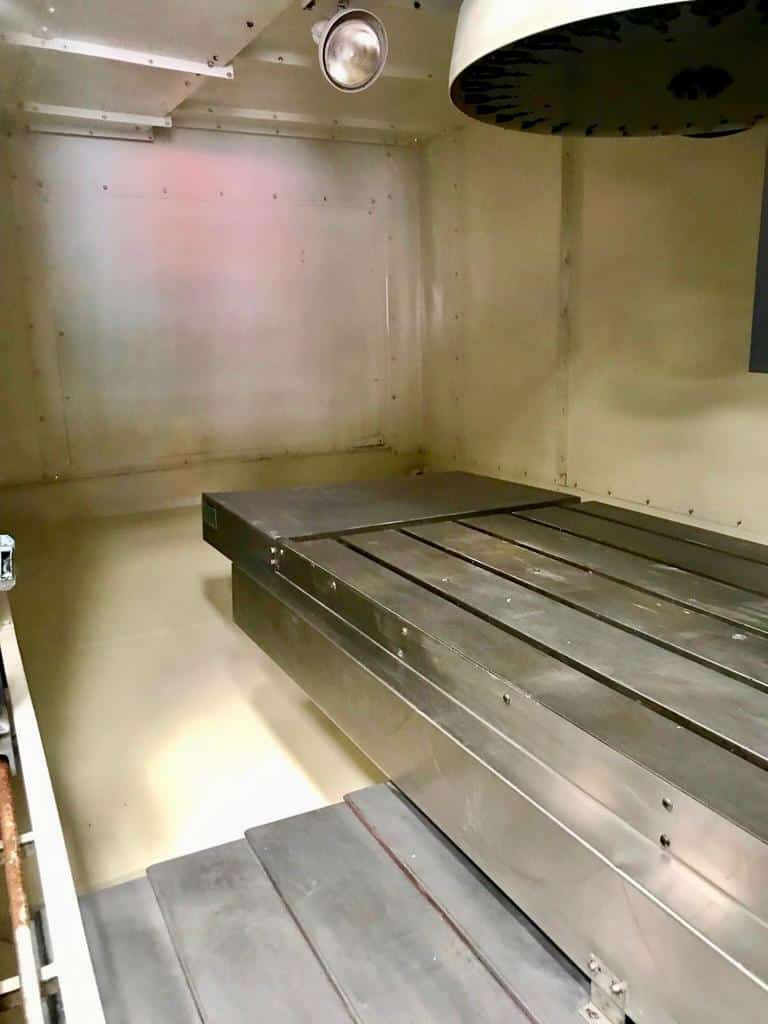

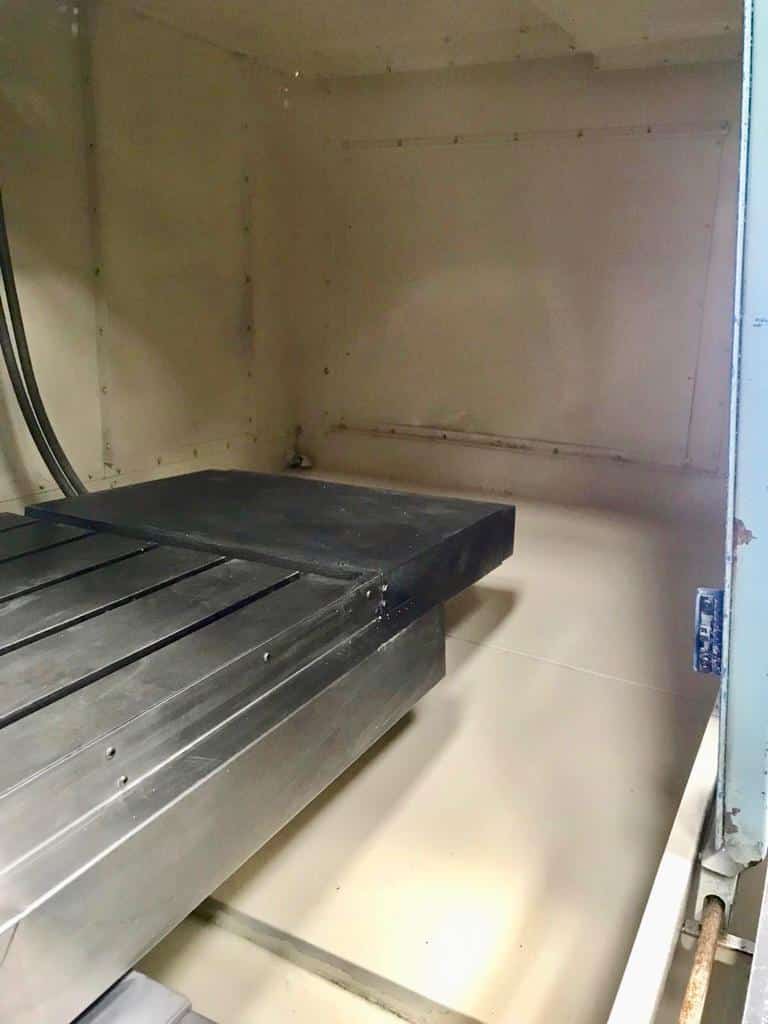

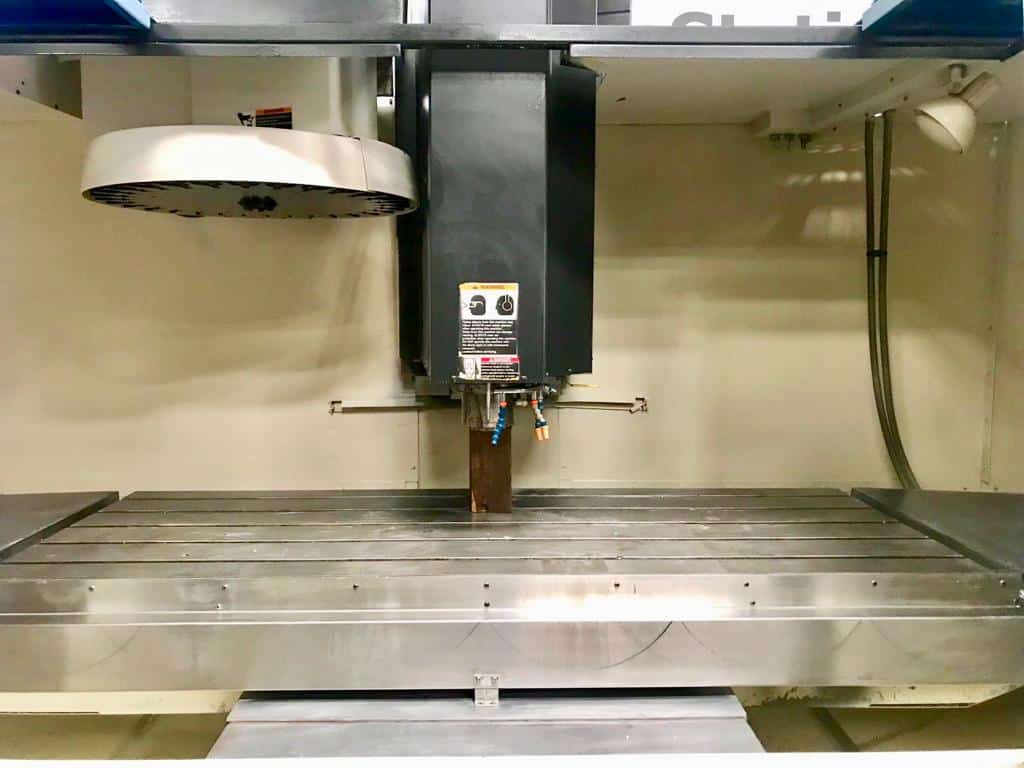

- Table:
- Length: 82.5″
- Width: 30″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 3750 lbs

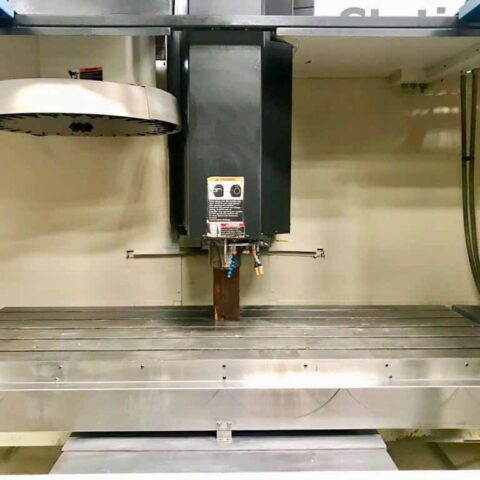

- Spindle:
- Taper Size: CAT- 40
- Speed Range: 0 – 10,000 RPM
- Spindle Power: 20 HP
- Max Torque: 230ft-lb @ 500RPM

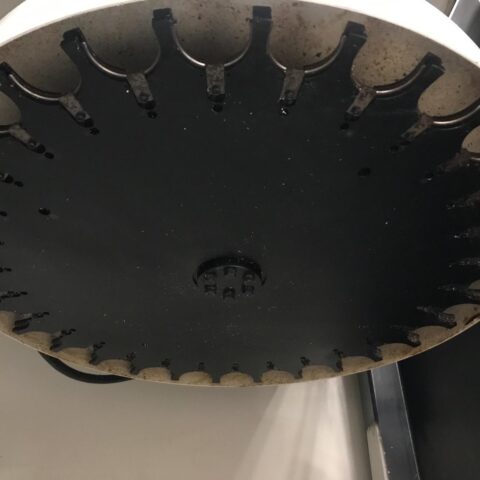

- Automatic Tool Changer:
- Capacity: 30 + 1
- Max Tool Weight: 15 lbs
- Max Tool Dia: 6″
- Max Tool Length: 15″
- Tool Changing Time: 4.2 Seconds
- General:
- Air Required: 100 psi, 4 scfm

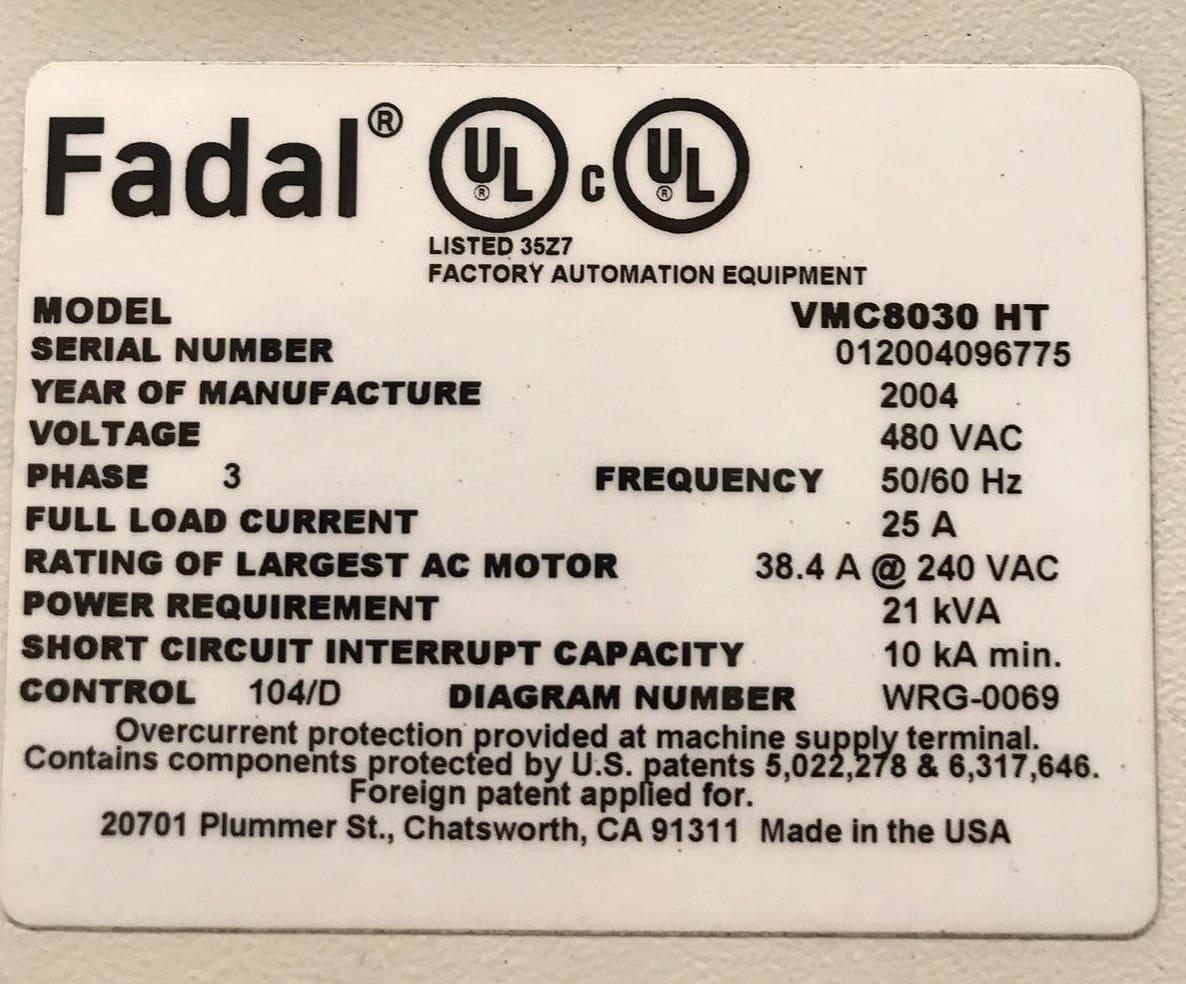

- Power: 480v / 66FLA / 3-Phase
- Overall Dimensions: 210″ x 102 x 120″ High
- Weight: 20,000 lbs
