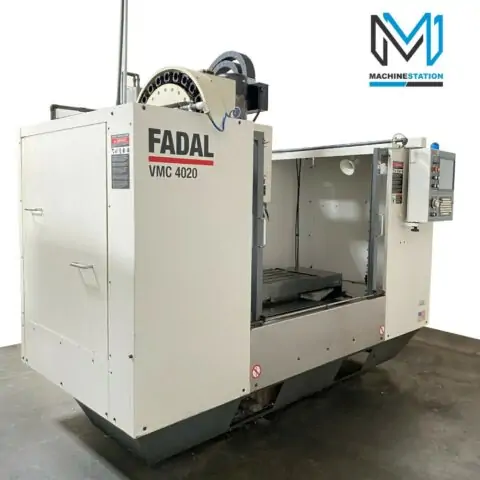

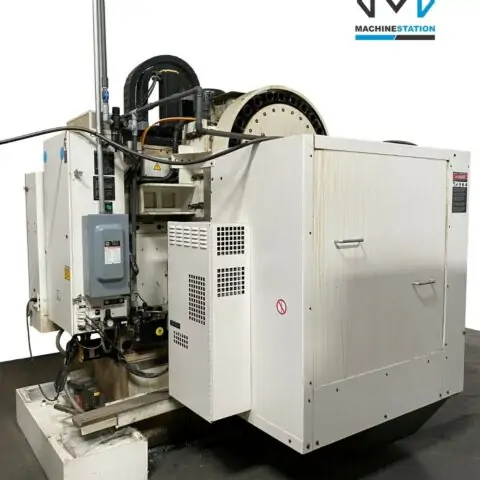

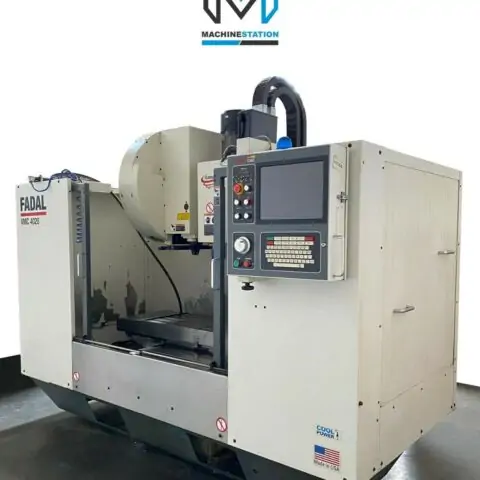

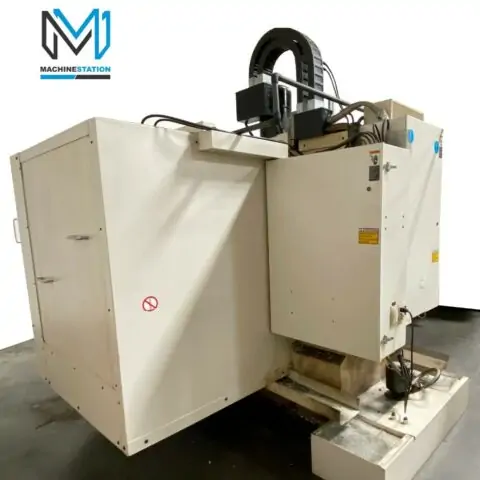

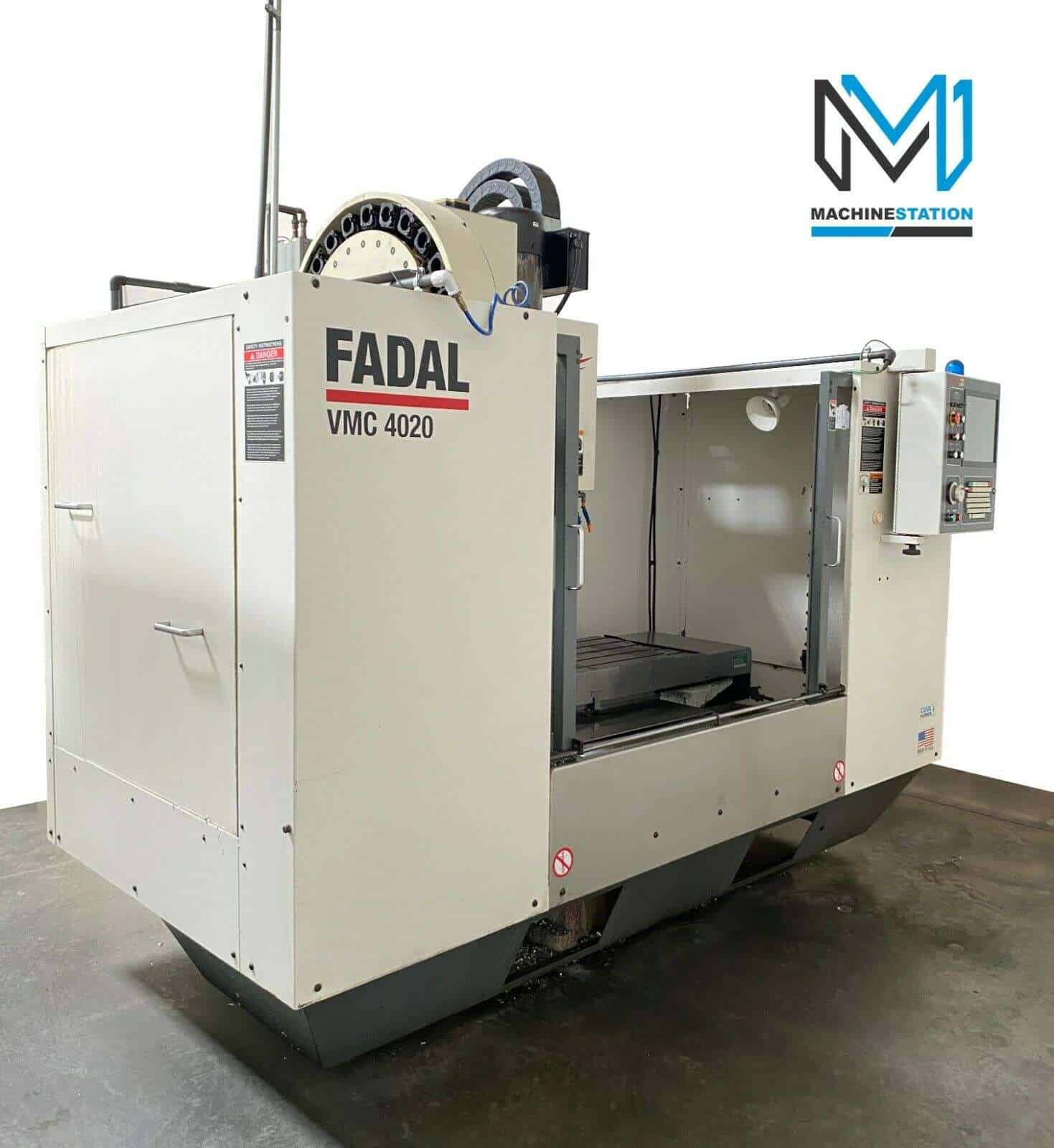

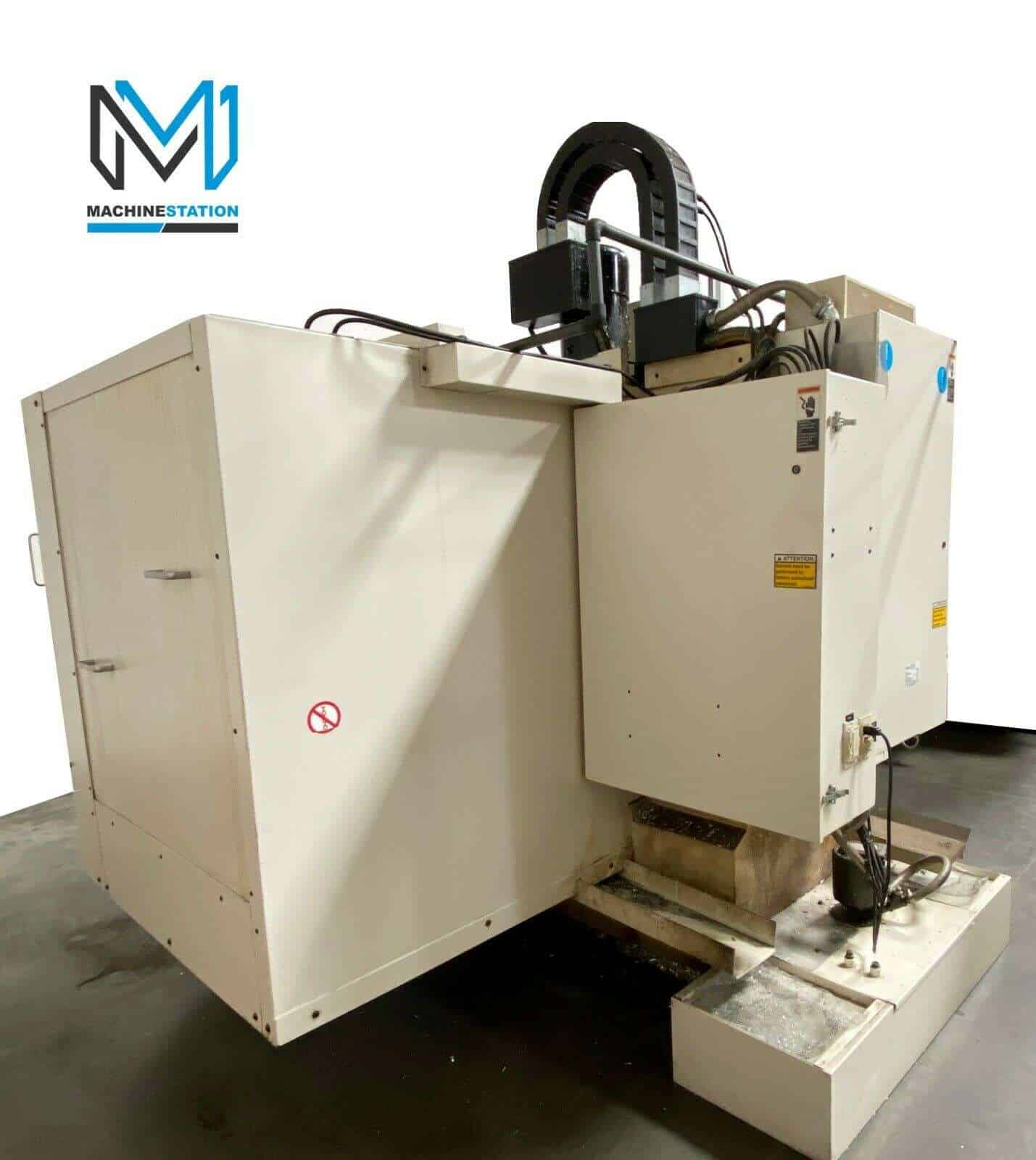

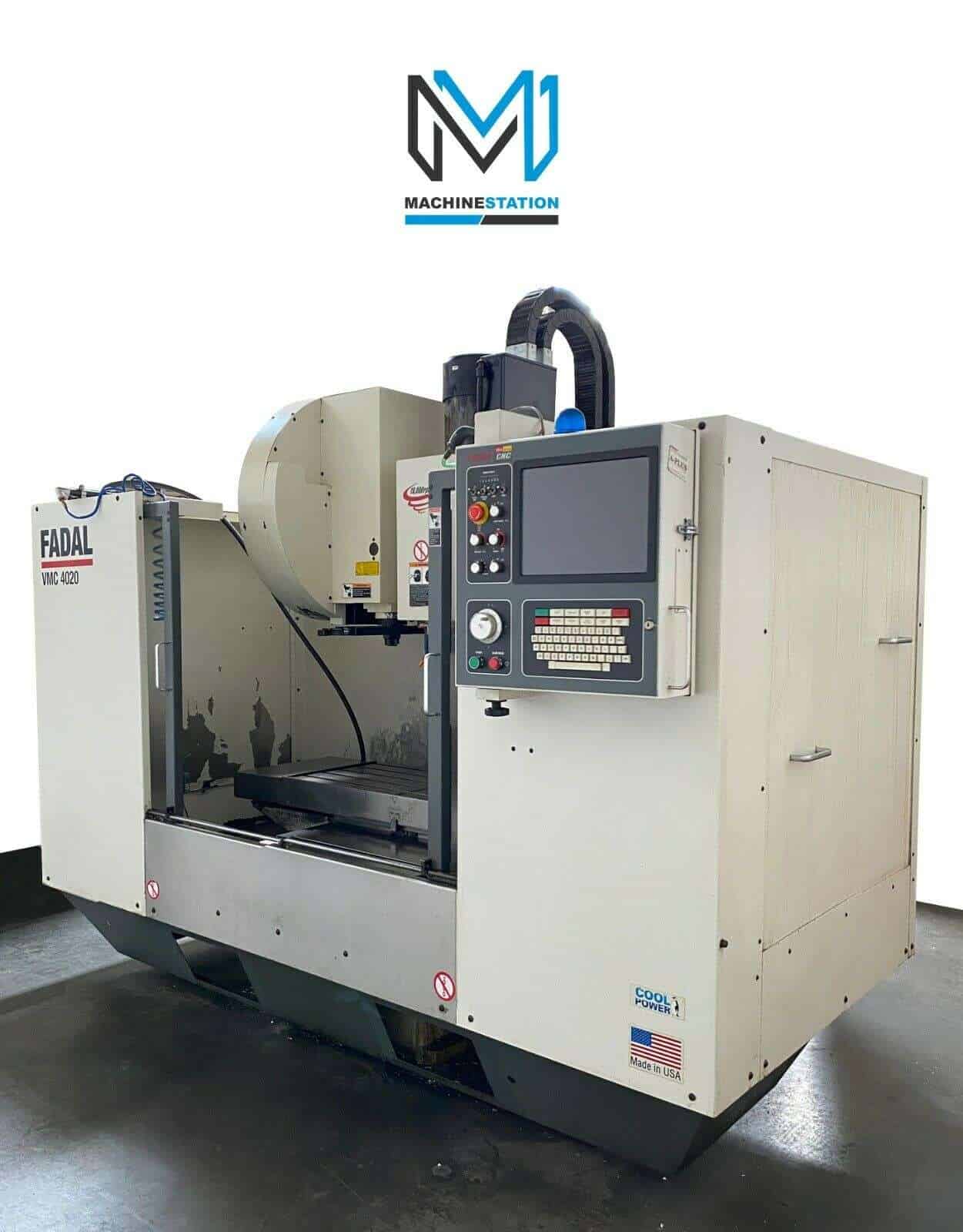

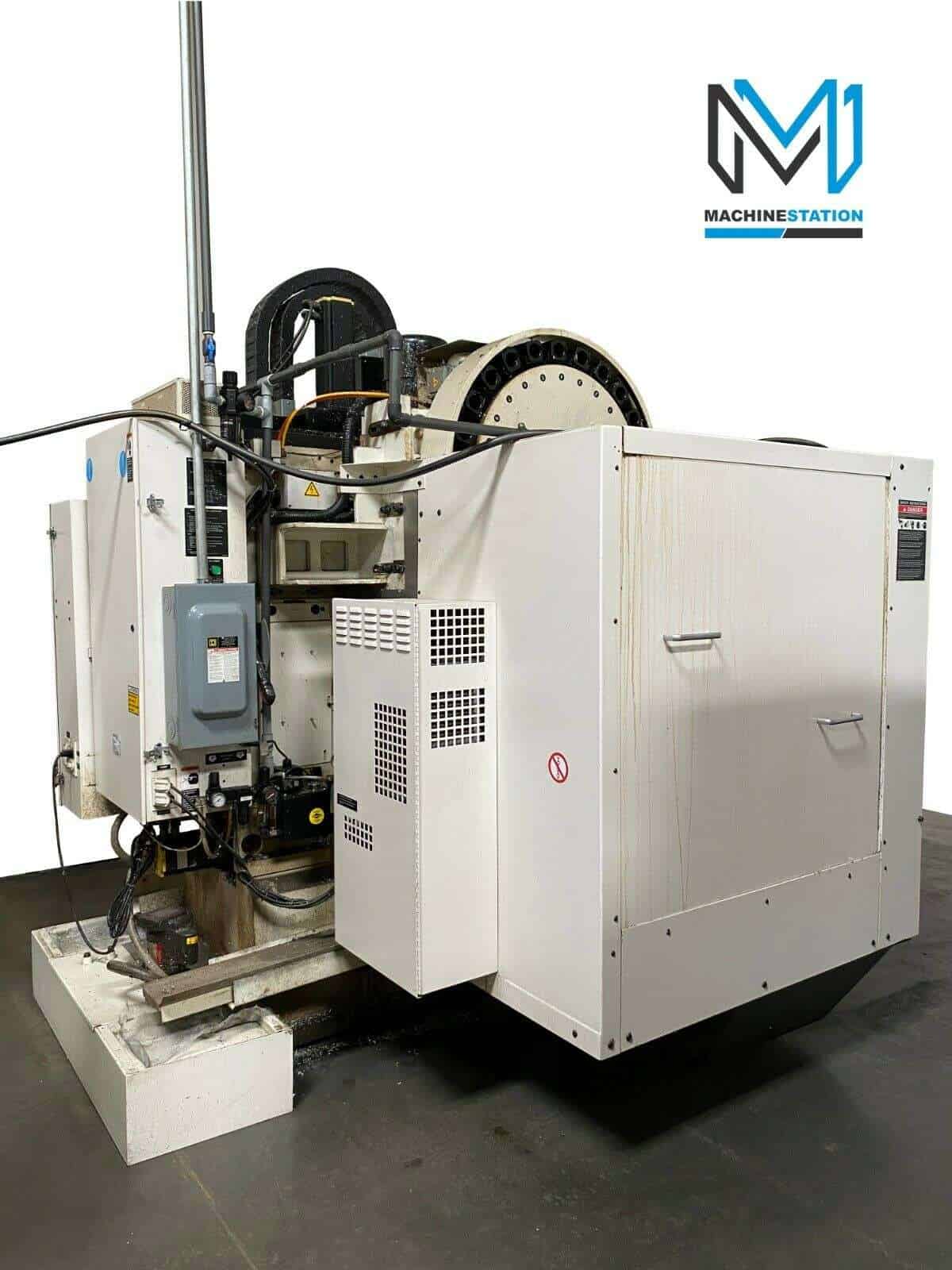

Fadal VMC 4020 CNC Vertical Machining Center 1
Fadal VMC 4020 CNC Vertical Machining Center 2

Fadal VMC 4020 CNC Vertical Machining Center

SKU 2148
Make FADAL
Model VMC 4020
Year 2007
Condition Used - Excellent
Out of stock
SKU: 2148
Make: FADAL
Model: VMC 4020
Year: 2007
Condition: Used – Excellent
SKU: 2148
Brand:

All specifications are approximations and are subject to verification.

  • Features:

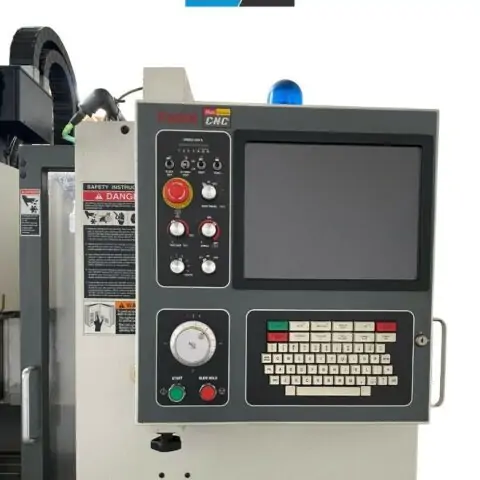

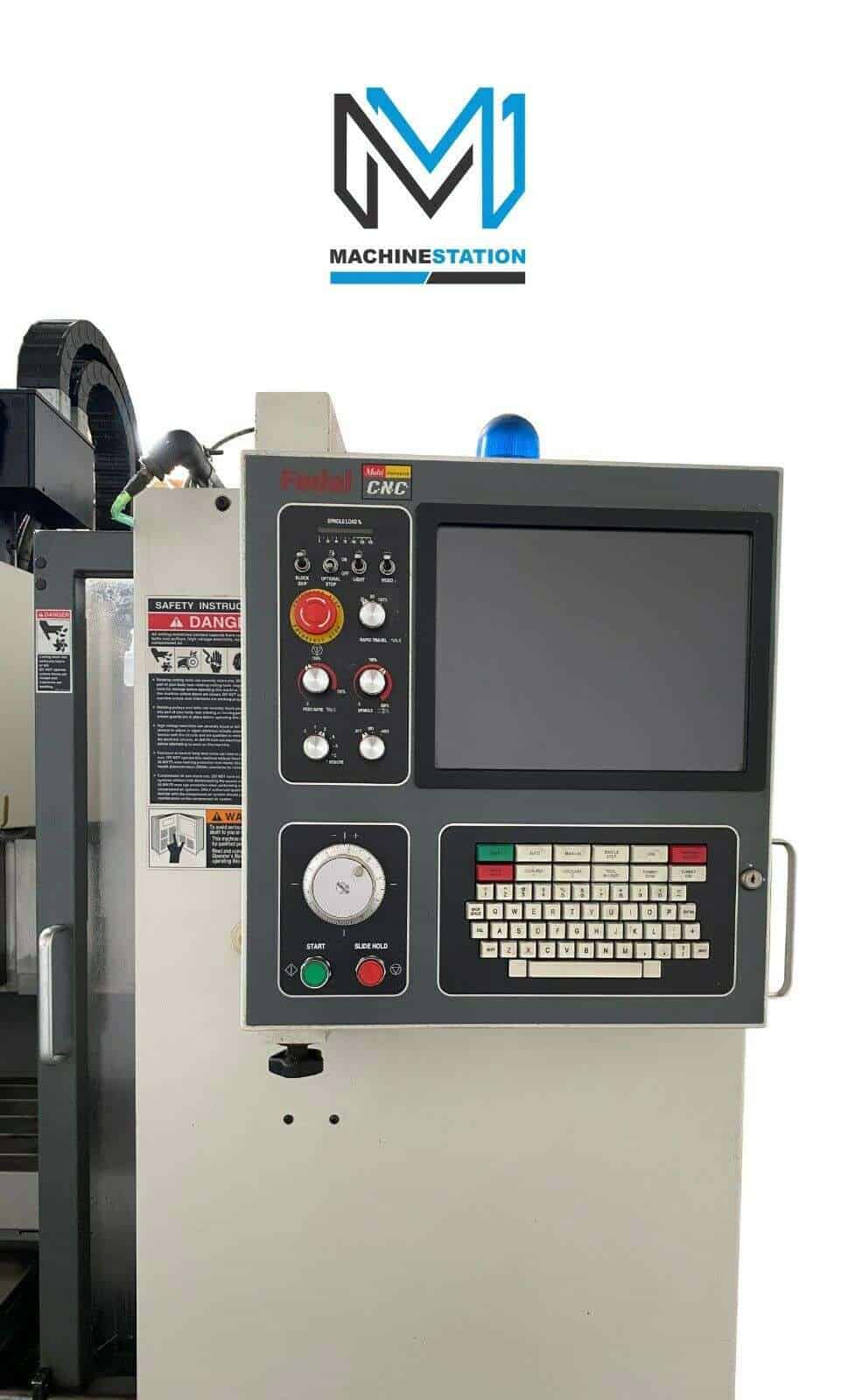

  • Fadal CNC 88HS Control
  • Color LCD Display
  • High Speed CPU
  • Box Way Construction

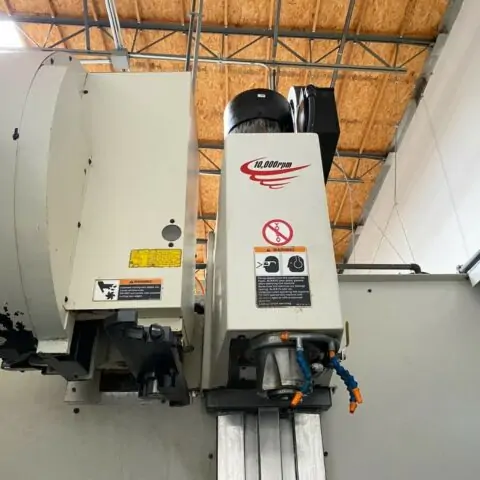

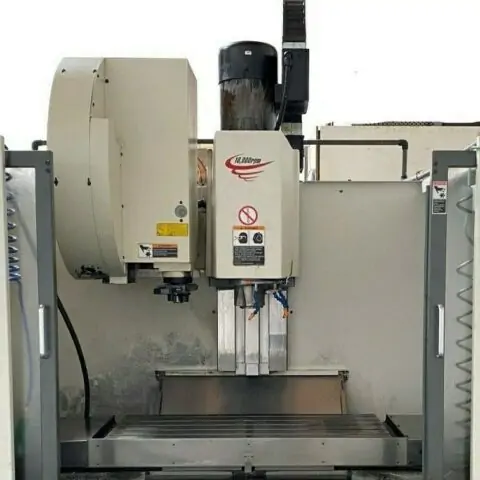

  • 10,000 RPM High Precision Spindle

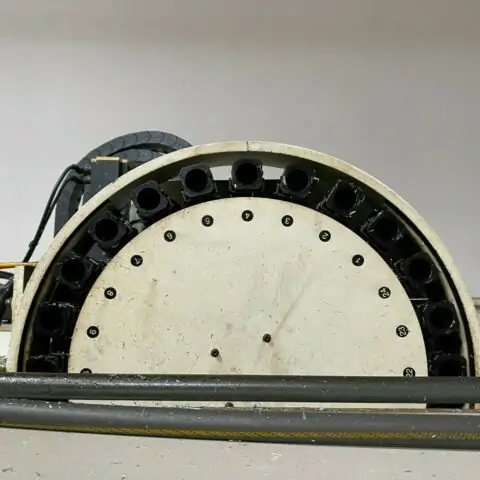

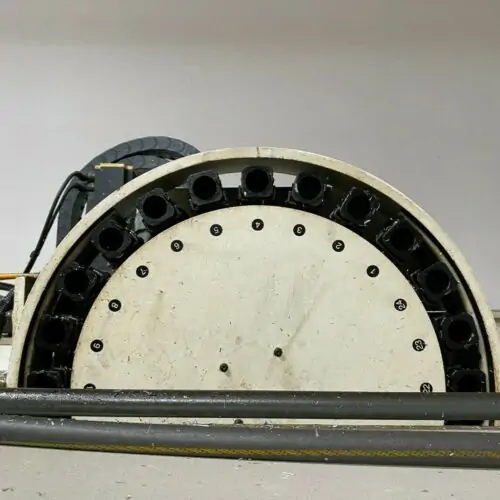

  • 24 Station Side Mount tool changer
  • 4MB Memory
  • Rigid Tapping
  • Spindle Orientation
  • Telescopic way covers
  • Oil Chiller Unit
  • Coolant tank and pumps
  • Specifications:

  • Travels:
  • X-Axis: 40.2″
  • Y-Axis: 20.6″
  • Z-Axis: 20.6″
  • Rapid Traverse Rates: 945 Inch Per Minute
  • Cutting Feed Rates: 788 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 4.5″ – 24.5″

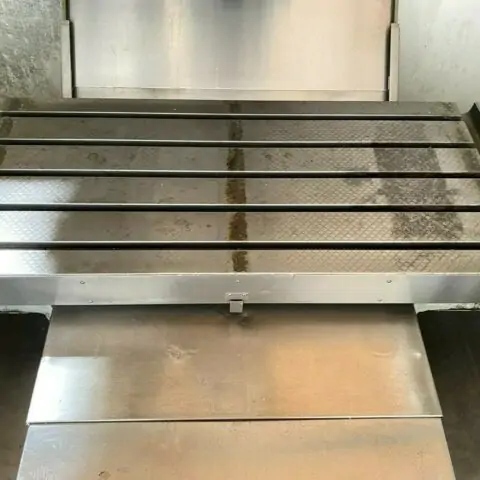

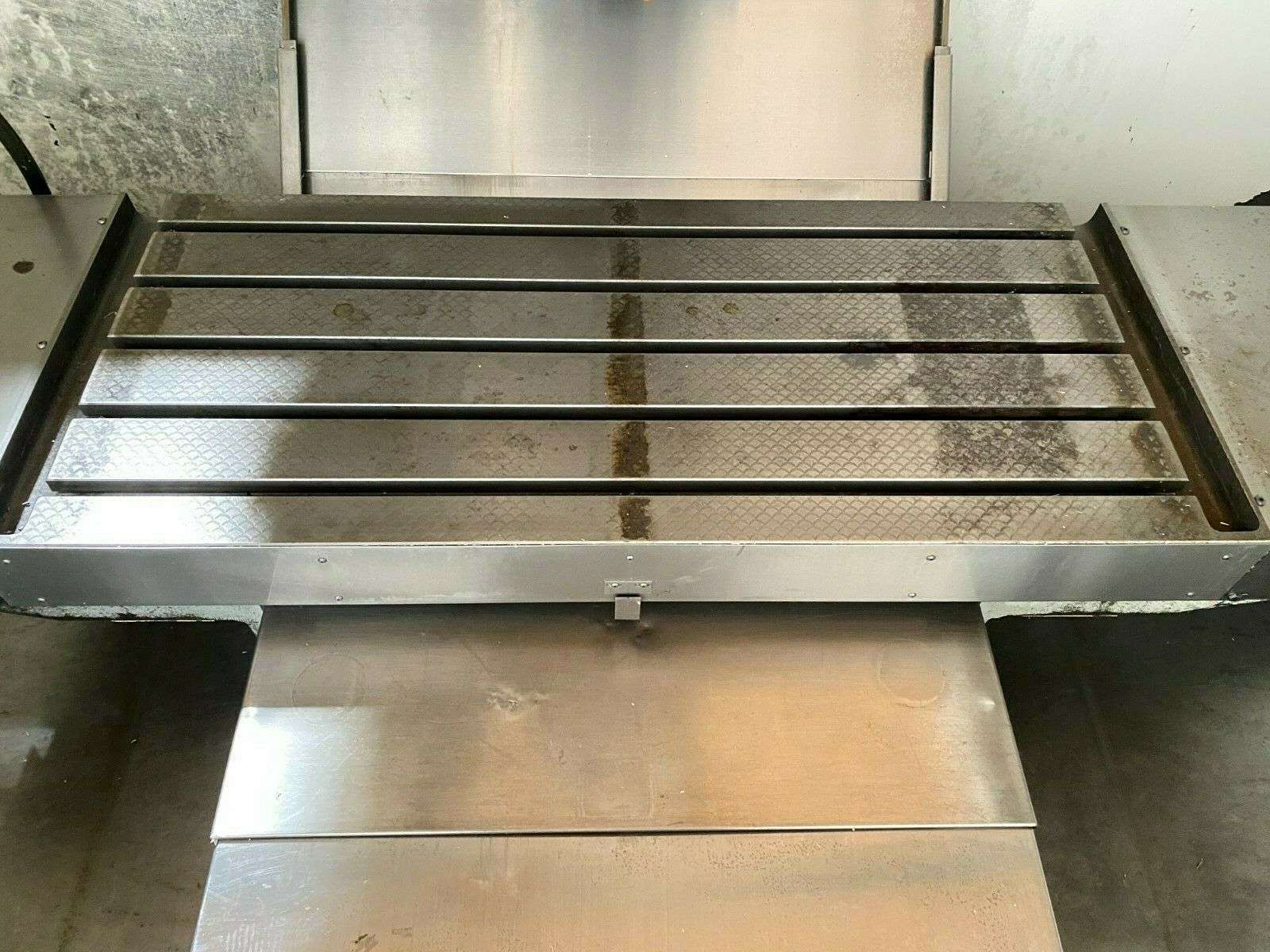

  • Table:

  • Length: 48.1″
  • Width: 20.6″
  • Number of Std T-Slots: 5
  • T-Slot Width: 5/8″
  • Max Weight on Table: 2200 lbs

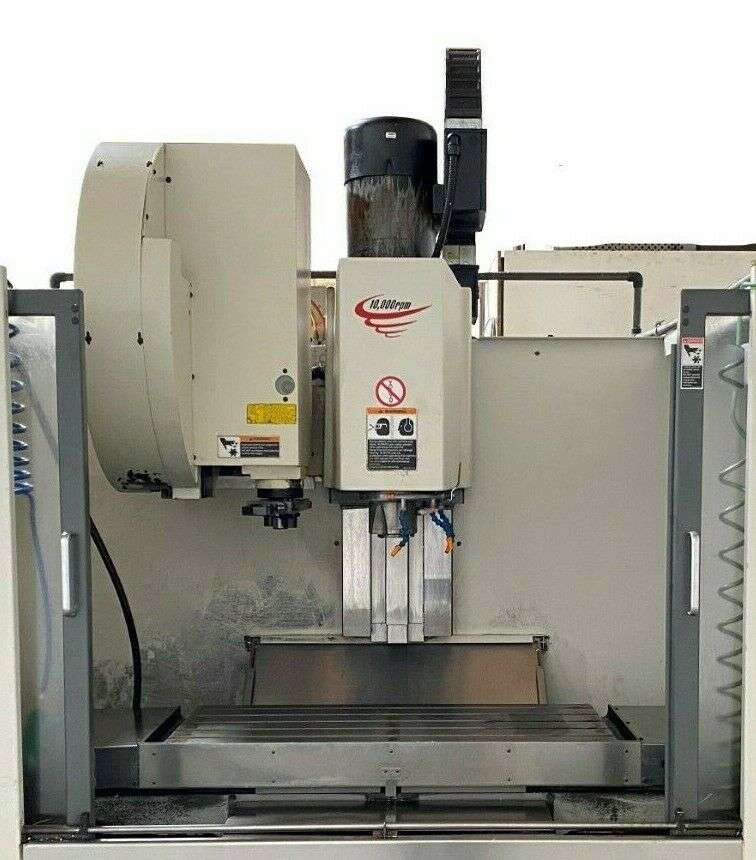

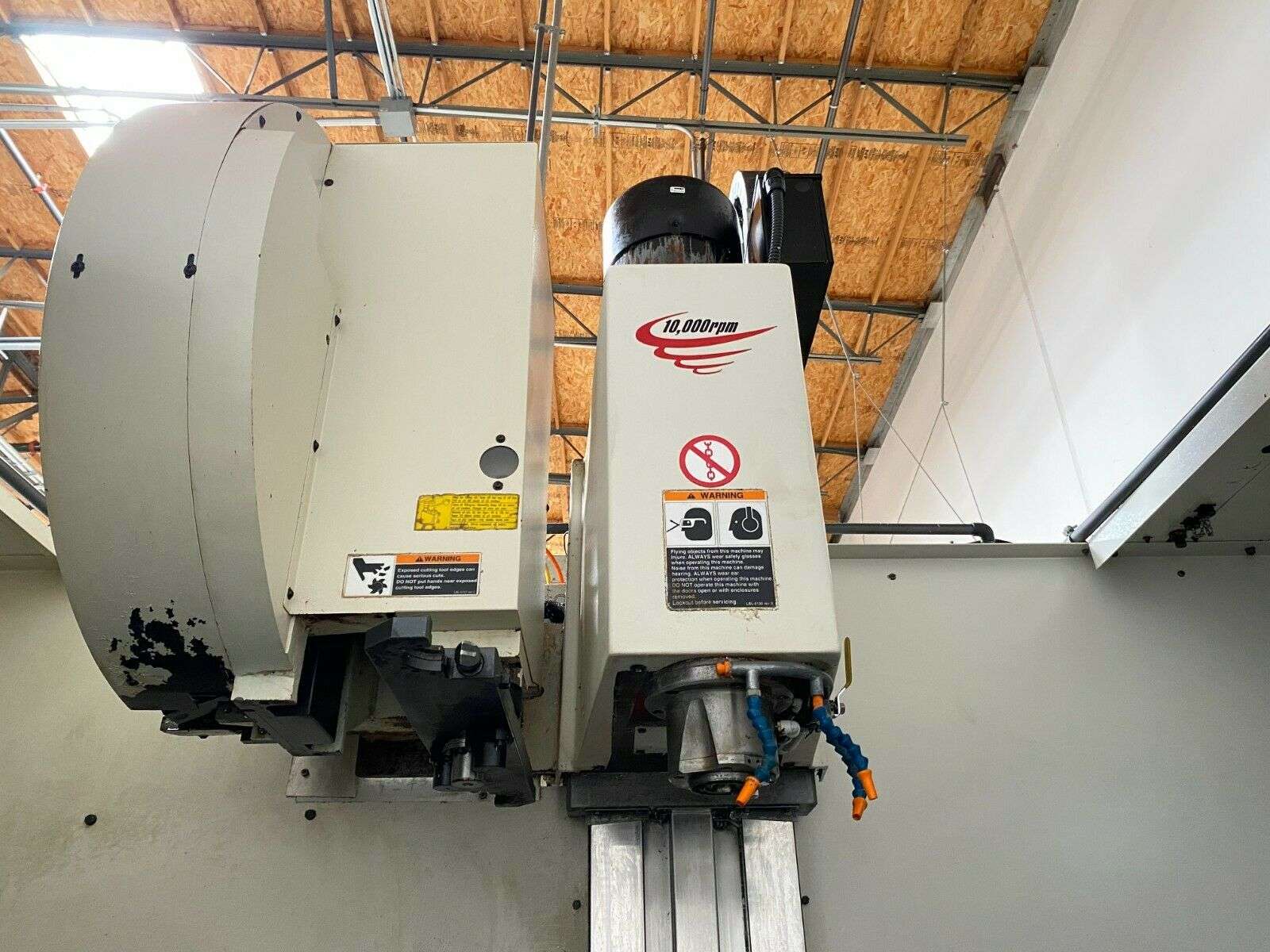

  • Spindle:

  • Taper Size: CAT-40
  • Speed Range: 10000 RPM
  • Spindle Power: 20 HP
  • Automatic Tool Changer:

  • Capacity: 24
  • Max Tool Weight: 18 lbs
  • Max Tool Dia: 4.8″
  • Max Tool Length: 11.8″
  • Tool Changing Time: 2.7 Seconds
  • General:

  • Air Required: 85 psi, 6 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 128″ x 98″ x 110″ High
  • Weight: 11000 lbs

No detailed specifications listed for this machine yet — call us for full specs.

MakeFadal
ModelVMC 4020
CategoriesCNC Vertical Machining Centers
Fadal VMC 4020 CNC Vertical Machining Center 1Fadal VMC 4020 CNC Vertical Machining Center 2

Payment Terms

Up to 3 buyers can reserve the same machine. If you're 2nd or 3rd in line, we'll tell you your place, and you'll get the next chance if the first buyer doesn't proceed.

Shipping & Logistics

We coordinate domestic and international shipping, including loading, containerization, and freight arrangements through trusted logistics partners.

Machine Inspection

Buyers can request a live video demonstration, machine inspection, or schedule an on-site visit before completing the purchase.

Export & Documentation

For international orders, we can assist with export documentation, commercial paperwork, and pre-shipment inspection requirements.

You Might Like

25664

FADAL VMC 4020

$175
Fadal VMC8030 VHT CNC Vertical Machining Center - 4th Axis Ready Mill 0Fadal VMC8030 VHT CNC Vertical Machining Center - 4th Axis Ready Mill 1
Sale
112754

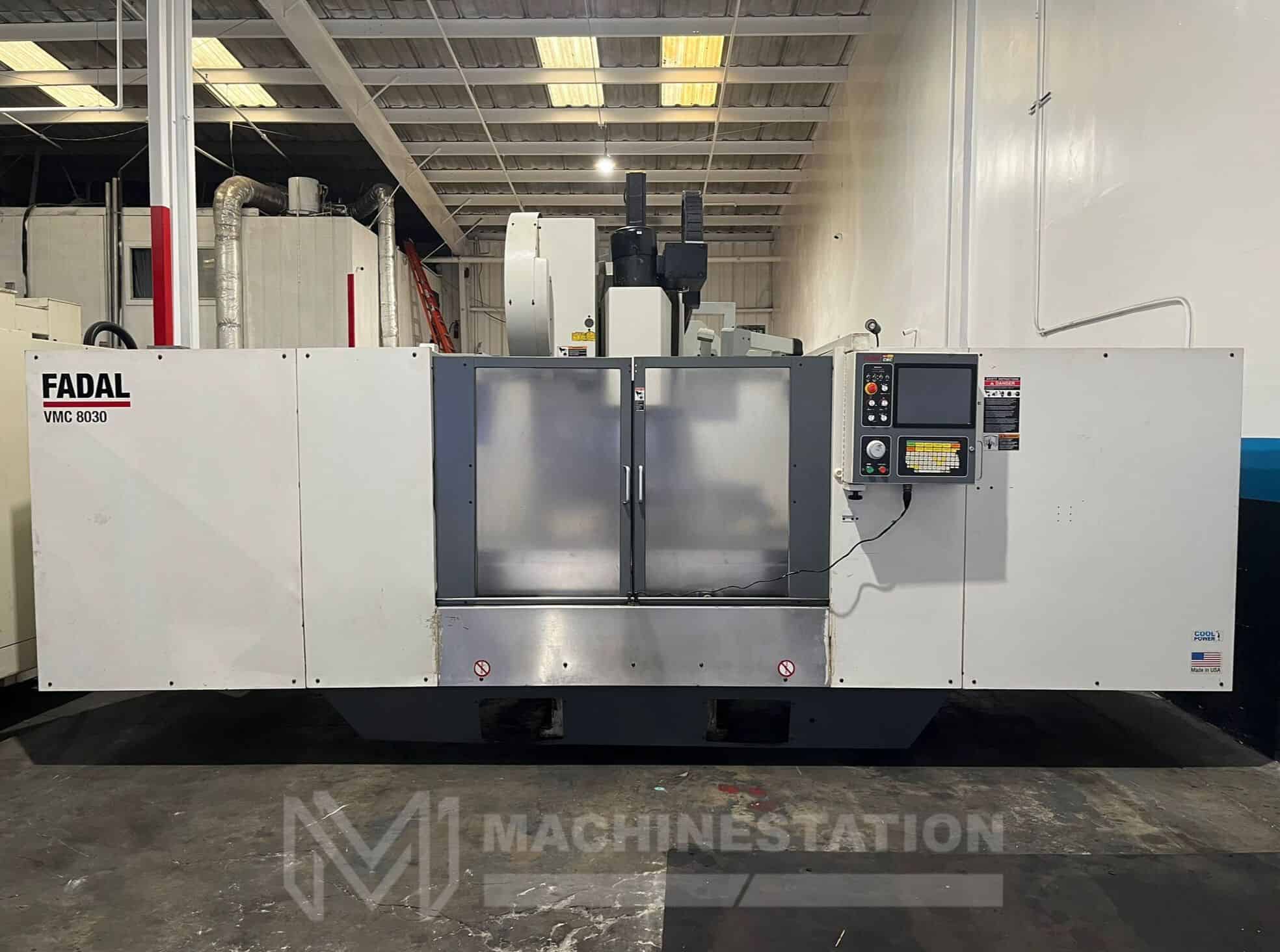

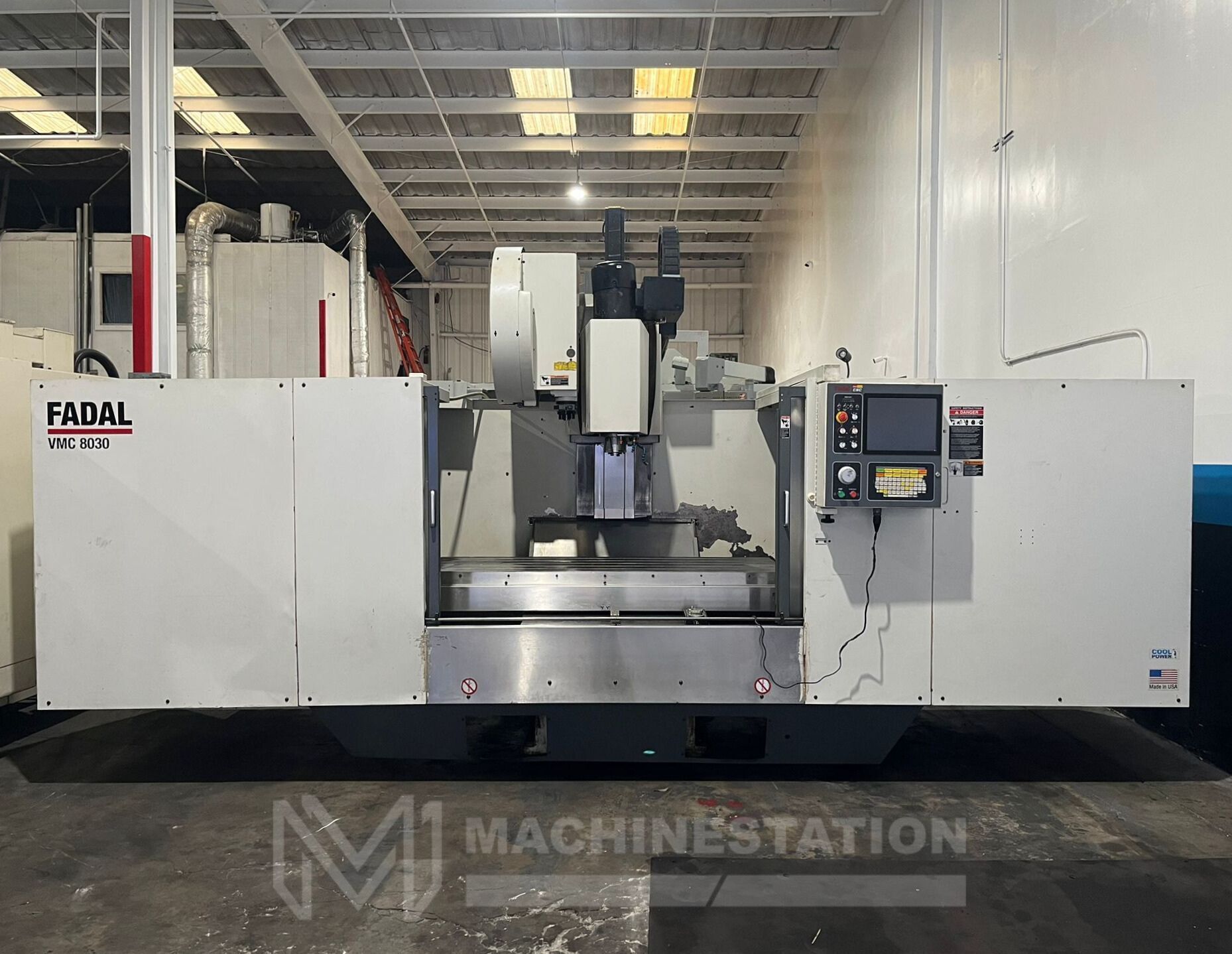

Fadal VMC8030 VHT CNC Vertical Machining Center - 4th Axis Ready Mill
