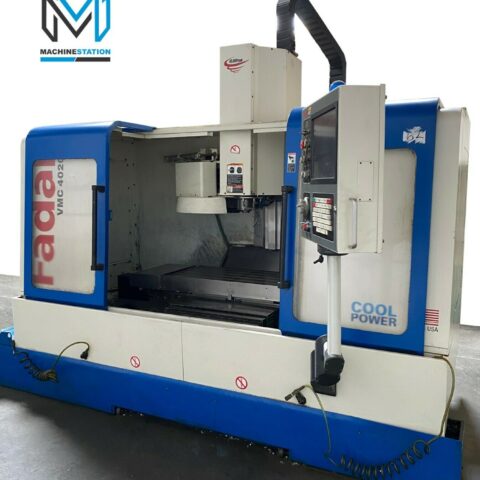

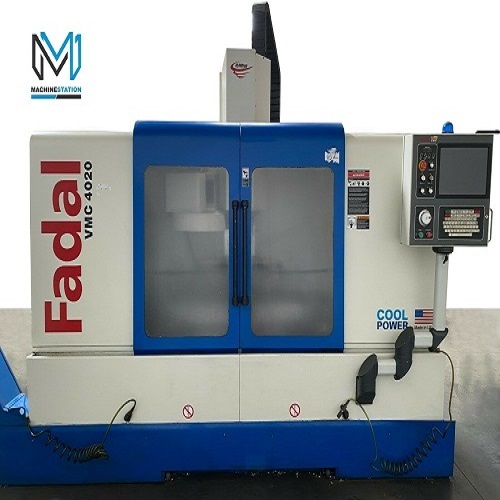

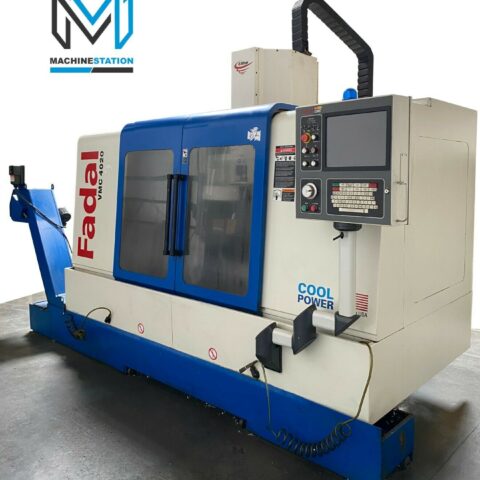

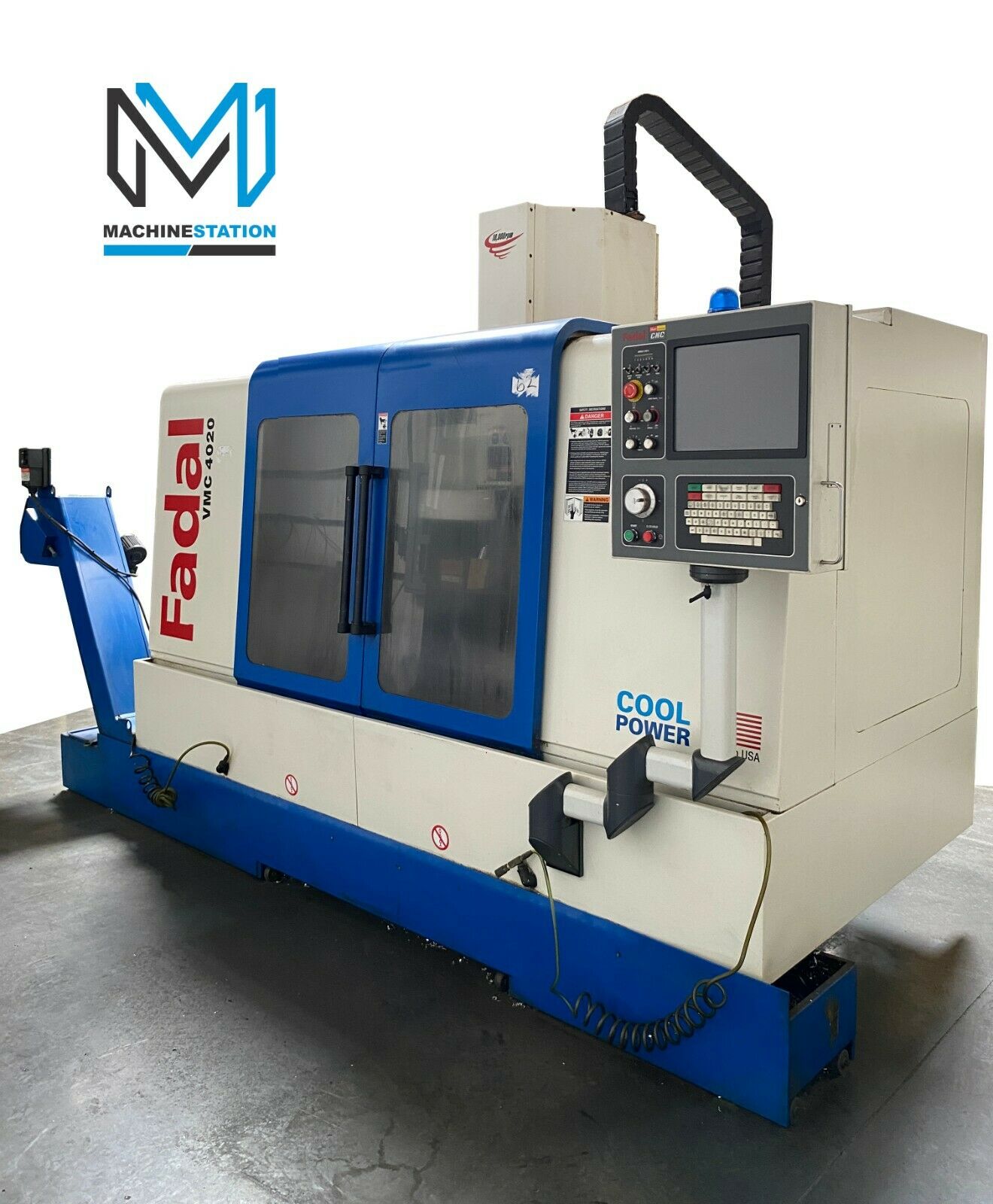

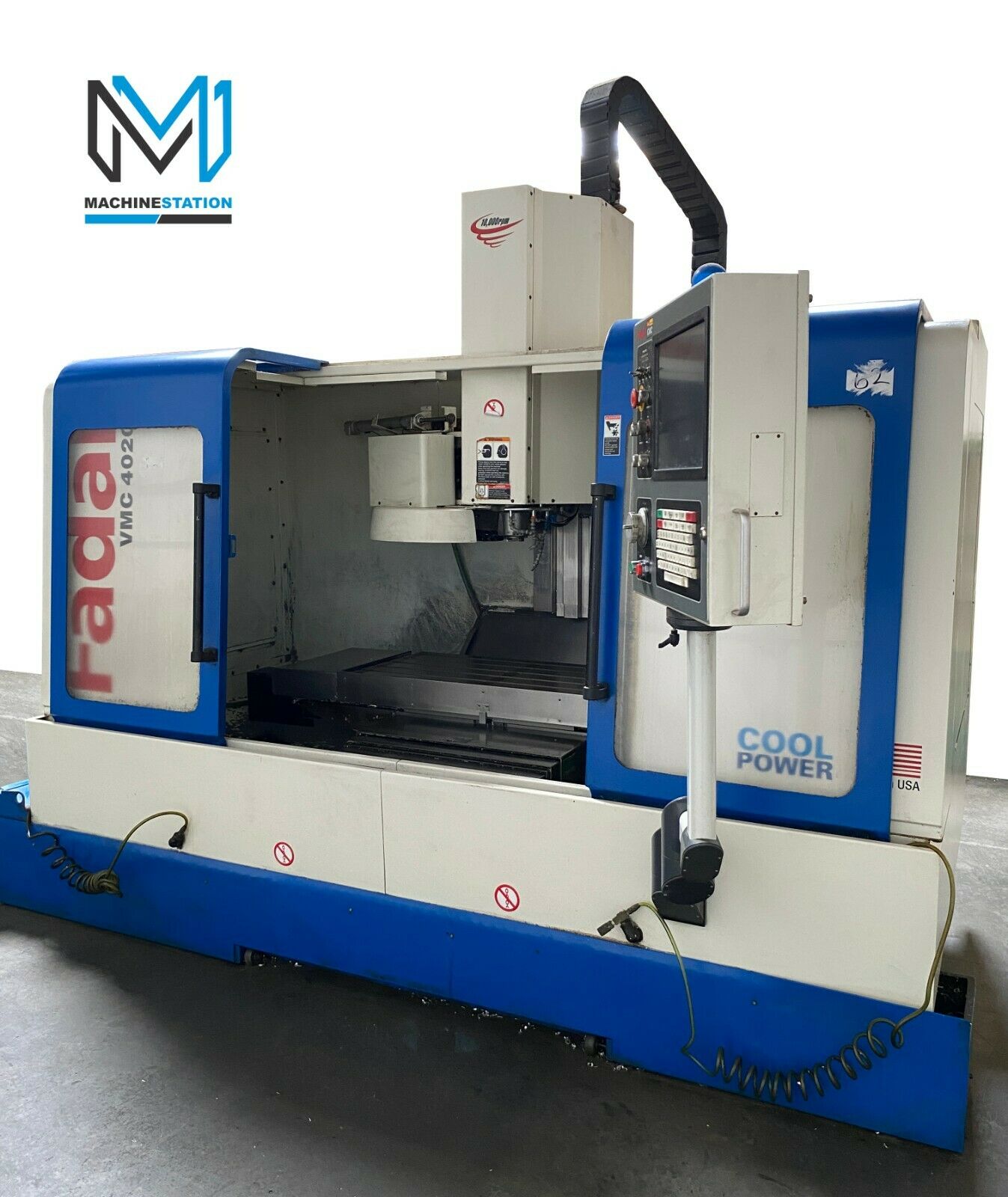

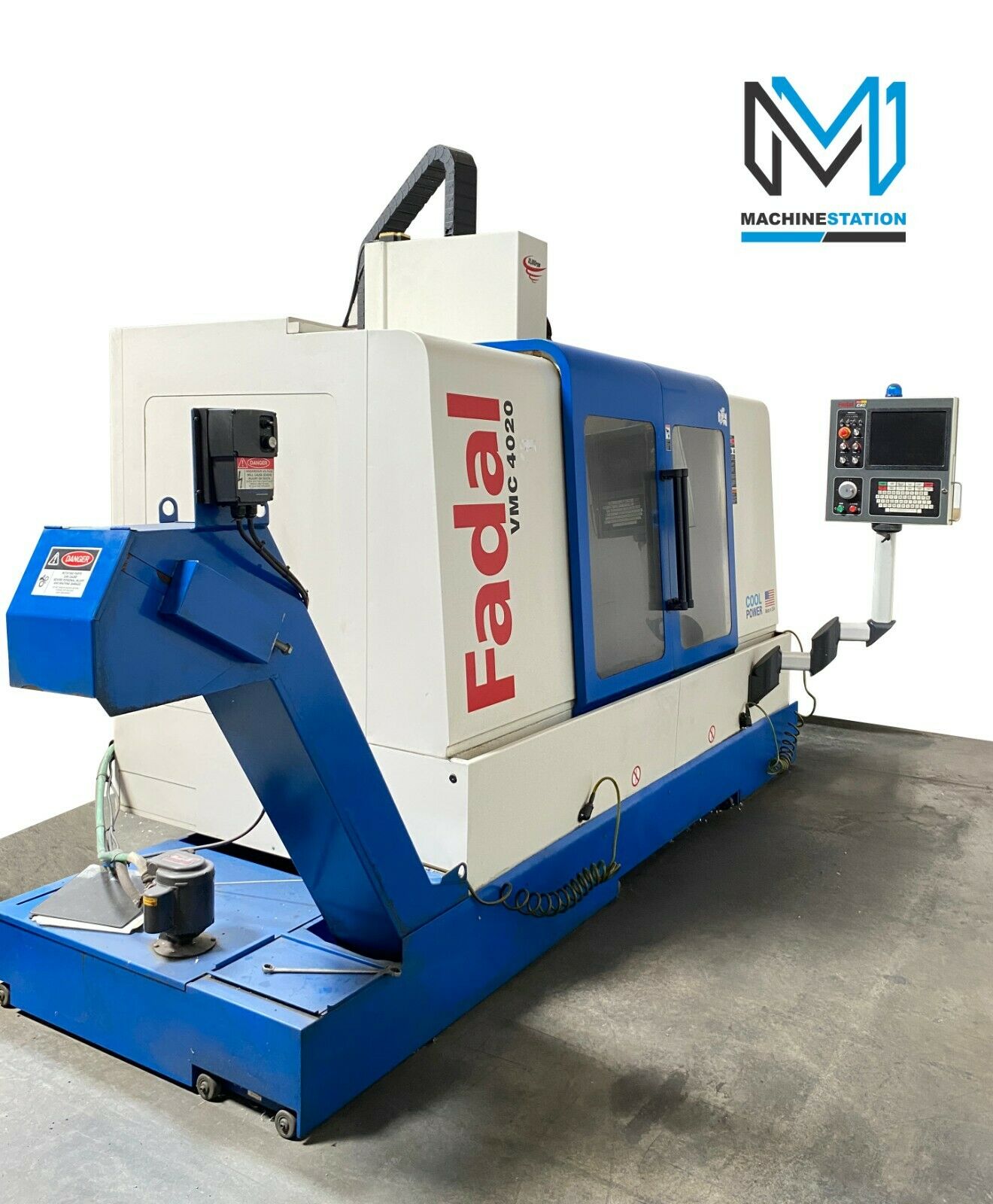

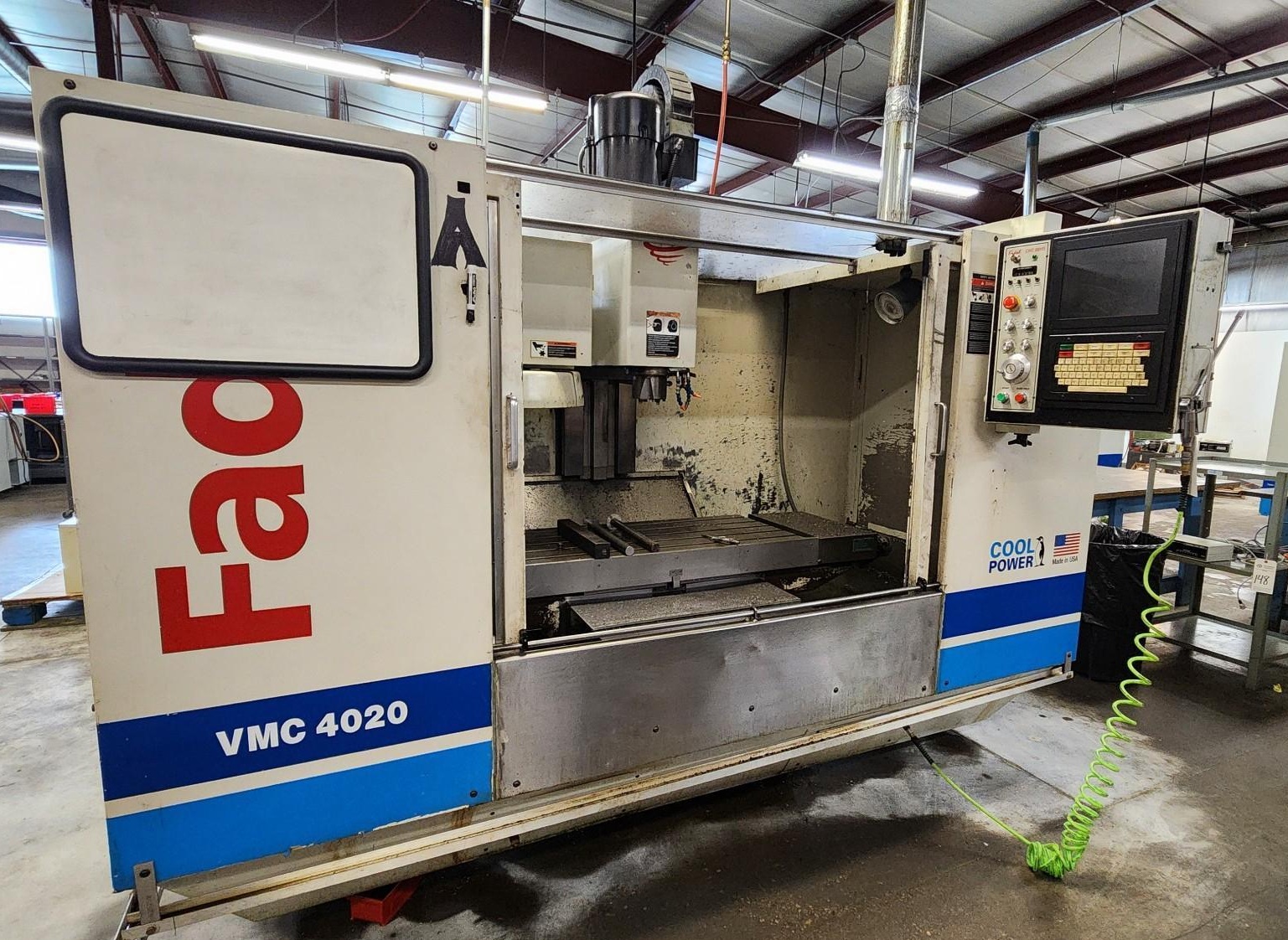

Fadal VMC 4020HT CNC Vertical Machining Center

Out of stock

SKU:	2149
Make/Model:	FADAL/VMC 4020HT
Video:	[fusion_button link=”https://www.youtube.com/watch?v=4tCMx49klSw” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 2149

Fadal VMC 4020HT CNCVertical Machining Center
SKU	2149
Make	FADAL
Model No.	VMC 4020HT

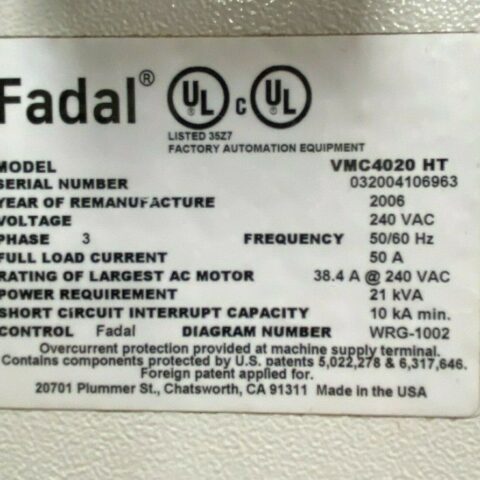

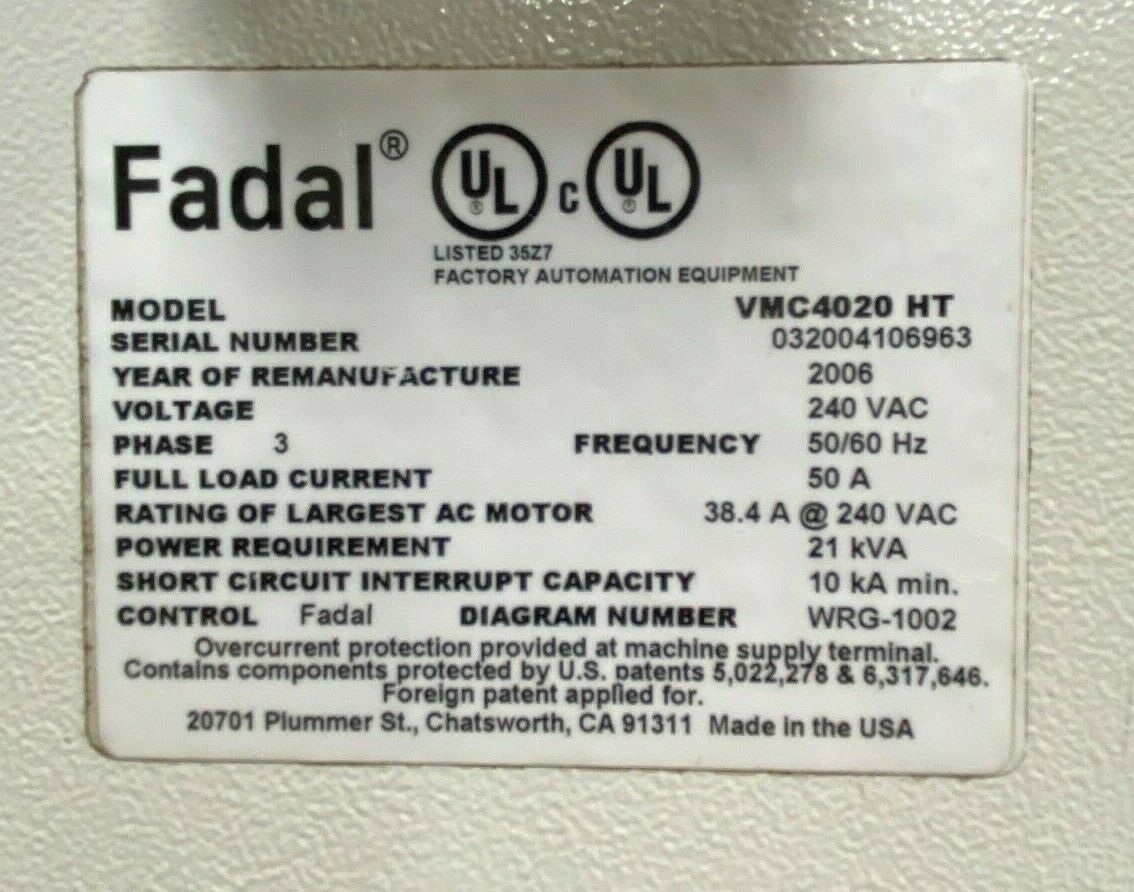

Serial #	032004106963
ReMan Year	2006
Condition	Excellent
Cutting Hours:

All specifications are approximations and are subject to verification.

Features:

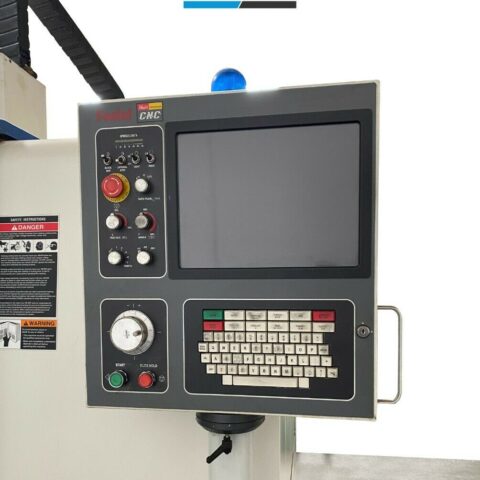

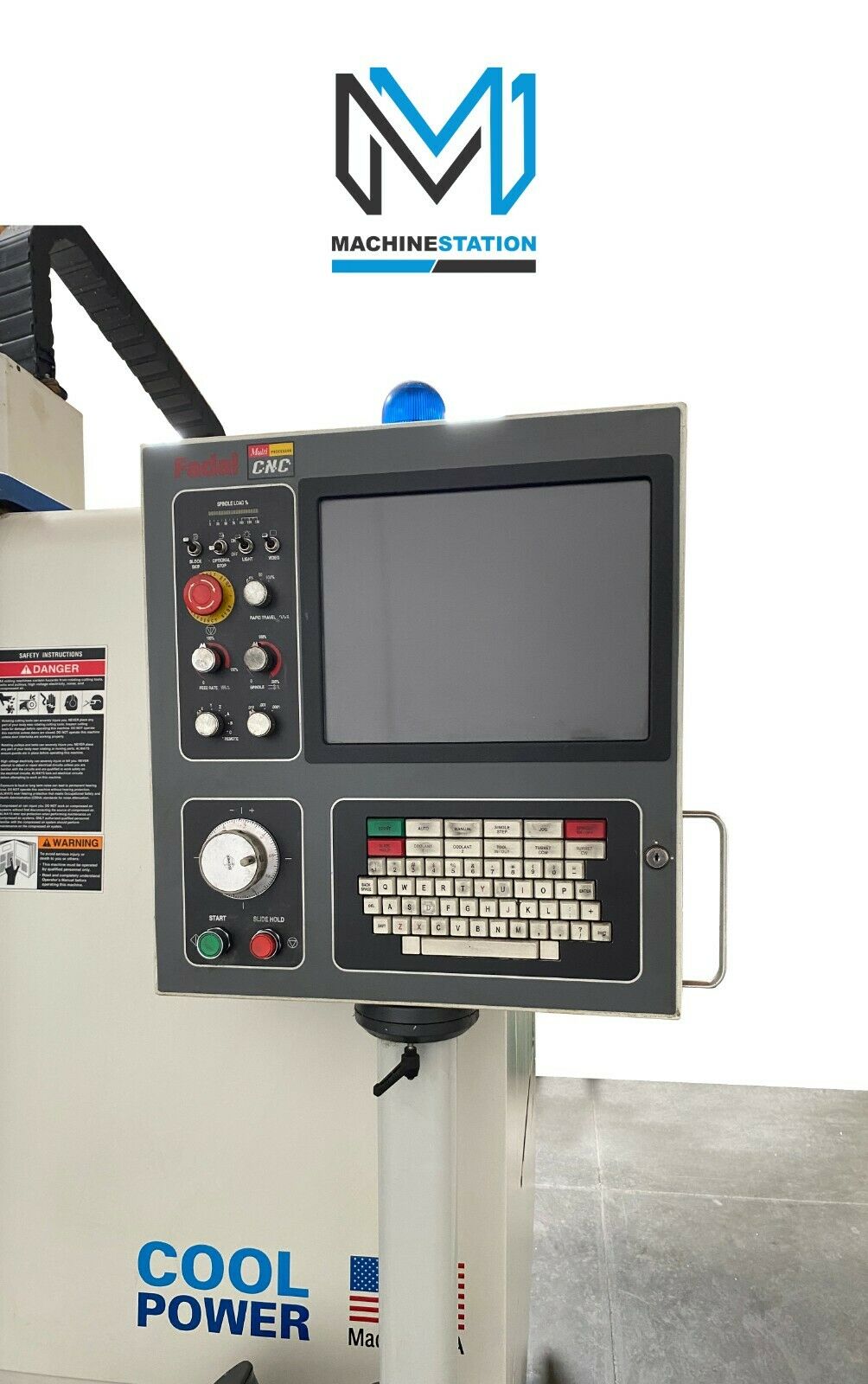

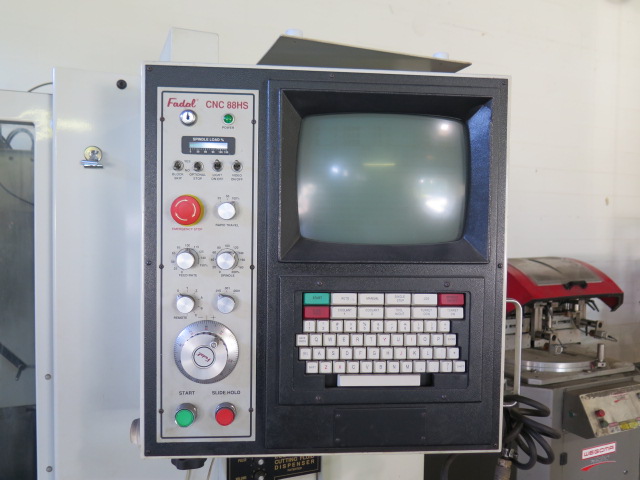

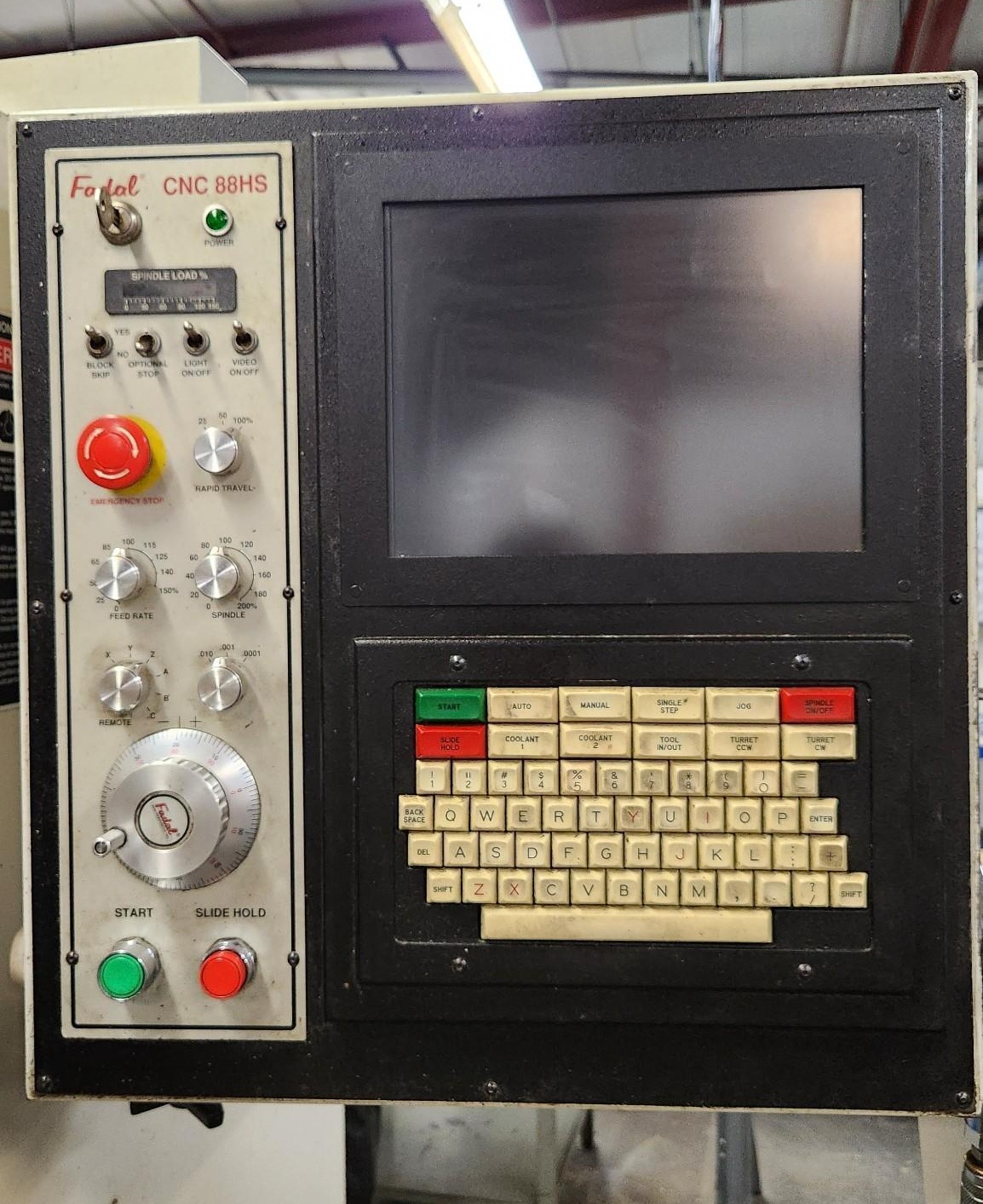

Fadal CNC 88HS Control
Color LCD Display
High Speed CPU
Box Way Construction

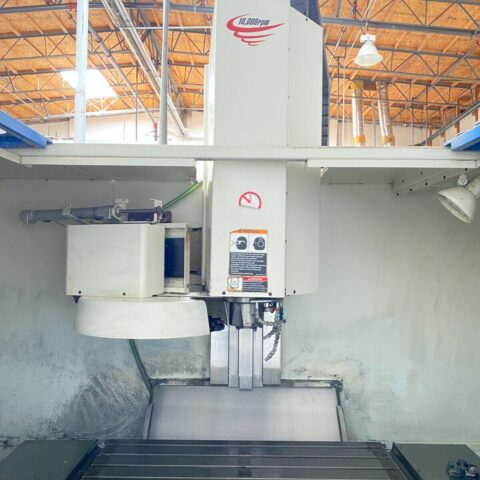

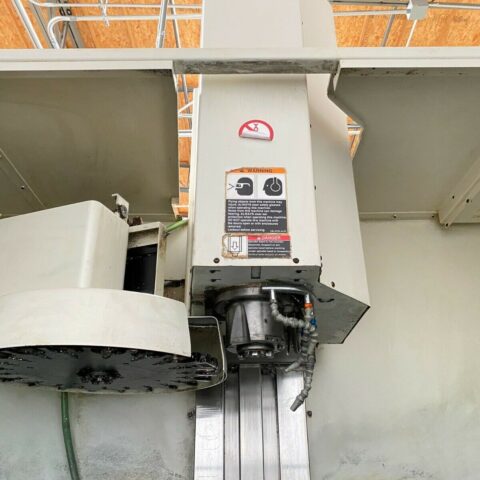

10,000 RPM High Precision Spindle

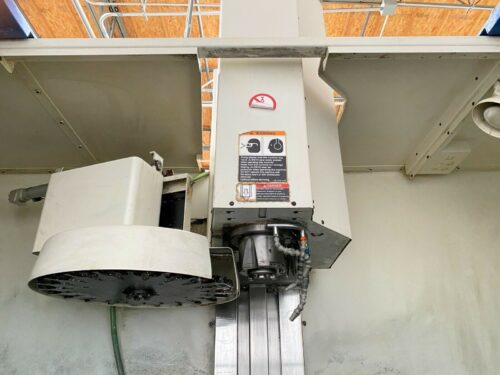

21 Station tool changer
4MB Memory
Rigid Tapping
Spindle Orientation
Telescopic way covers

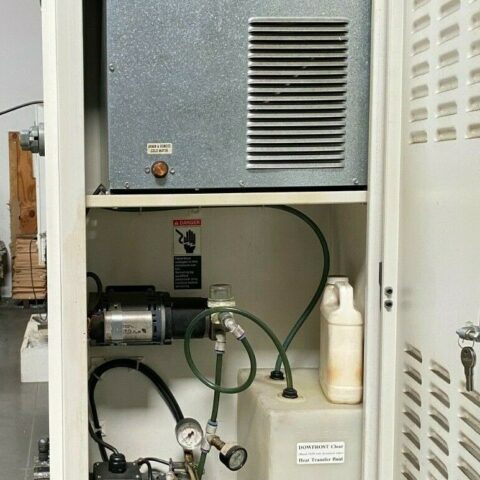

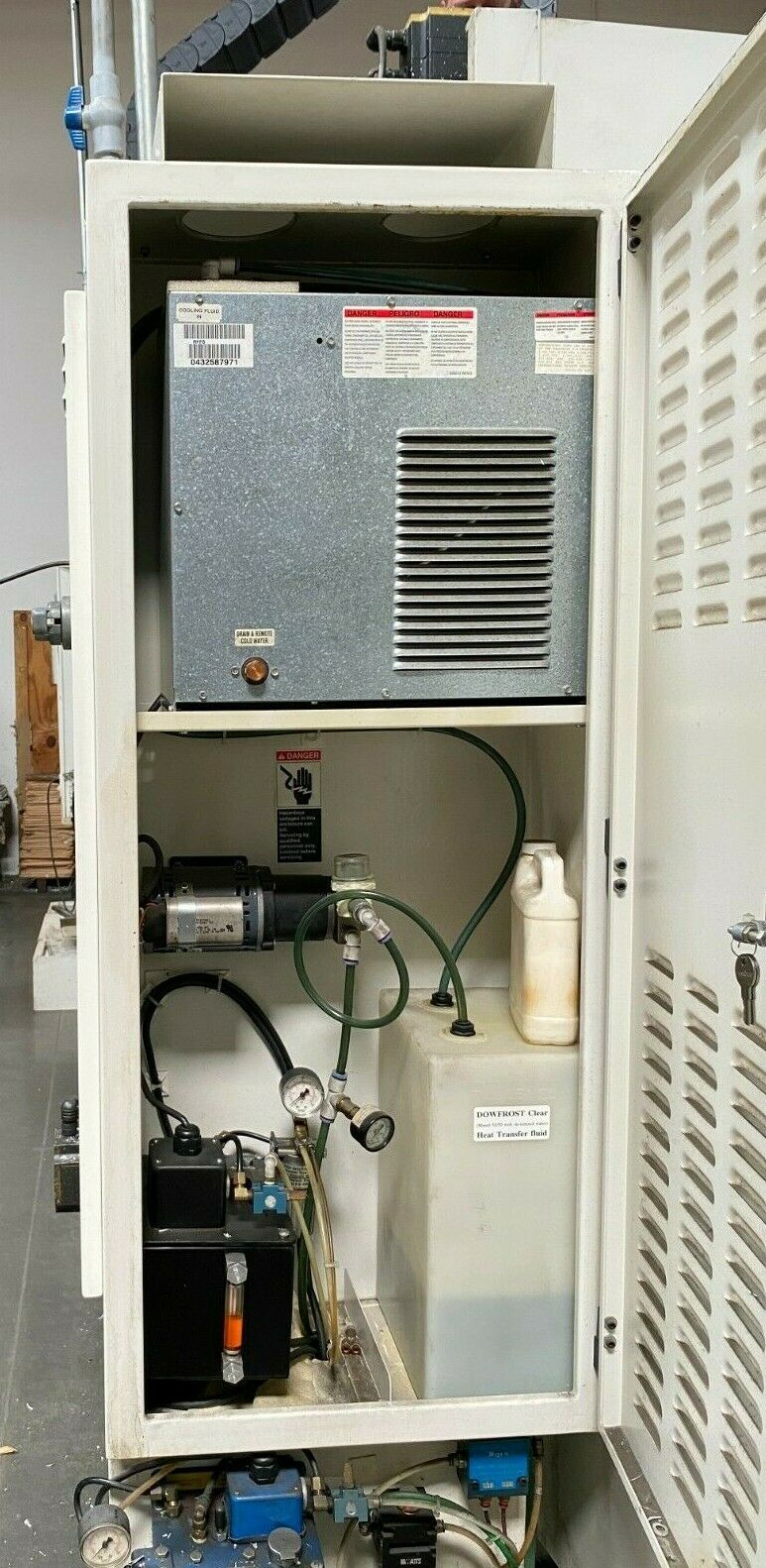

Oil Chiller Unit
Coolant tank and pumps

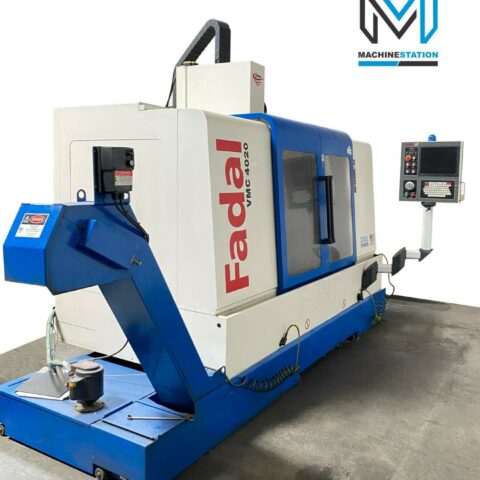

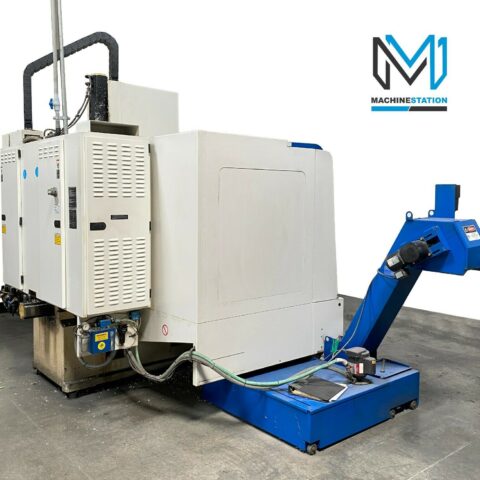

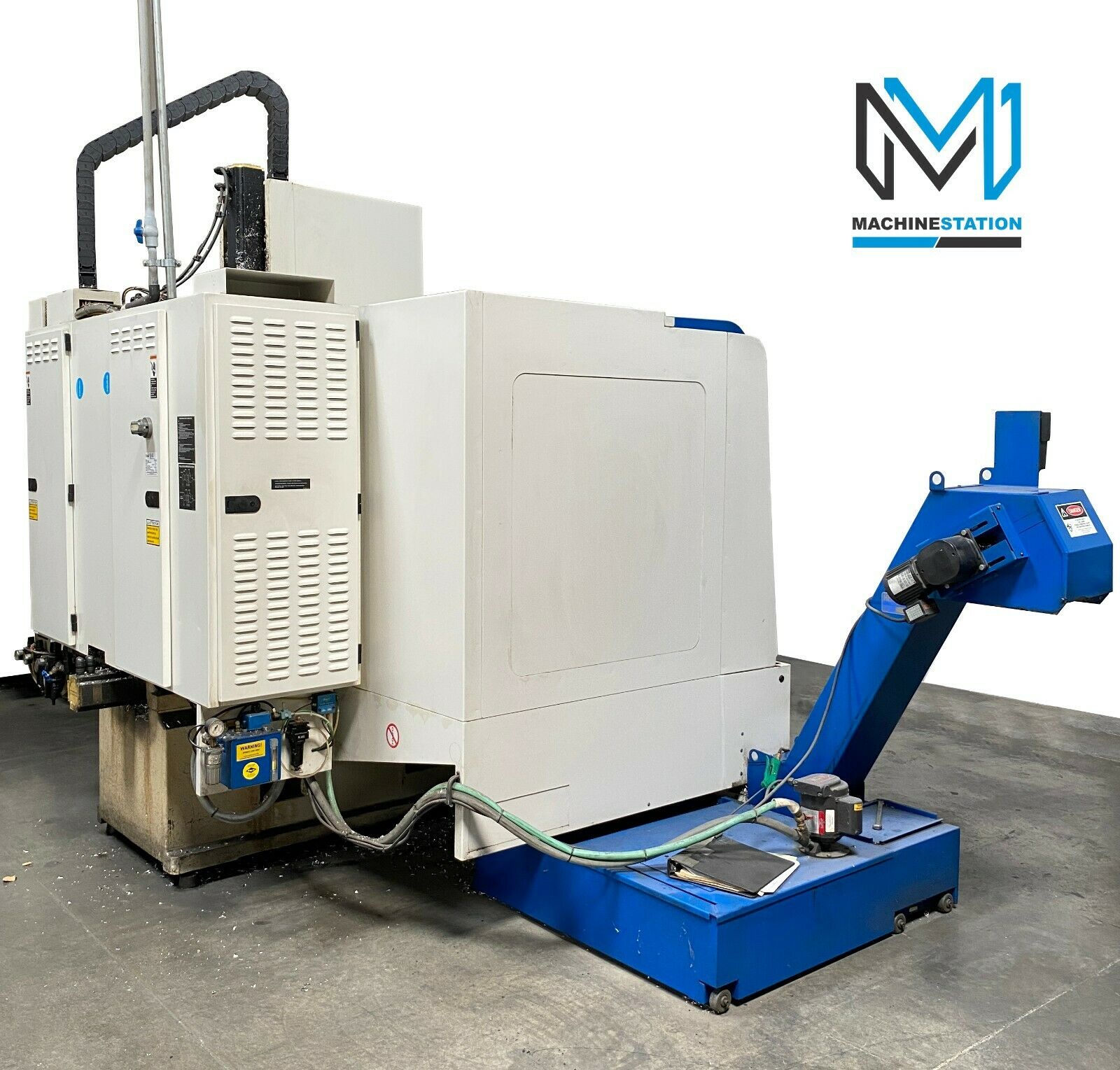

Chip Conveyor

Specifications:
Travel:
X-Axis: 40.2″
Y-Axis: 20.6″
Z-Axis: 20.6″
Rapid Traverse Rates: 945 Inch Per Minute
Cutting Feed Rates: 788 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4.5″ – 24.5″

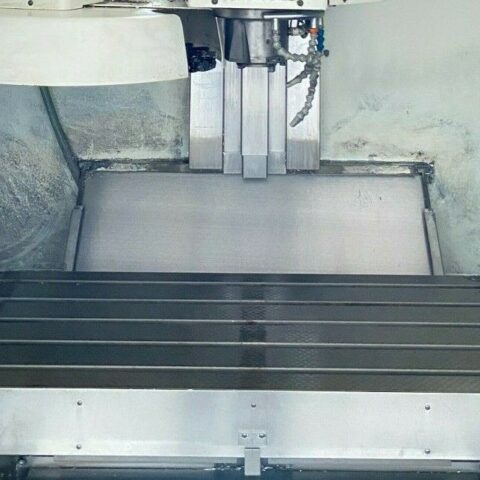

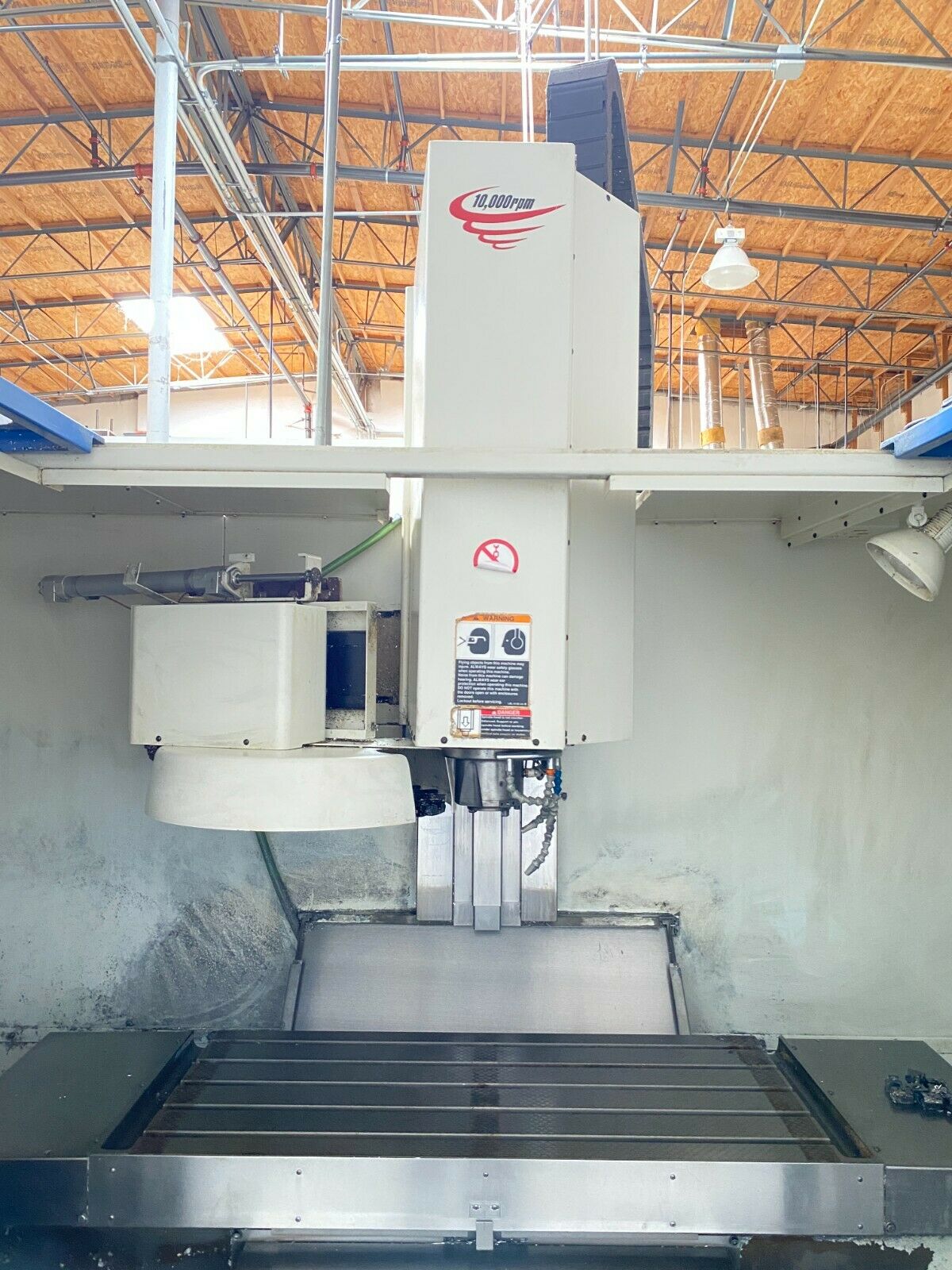

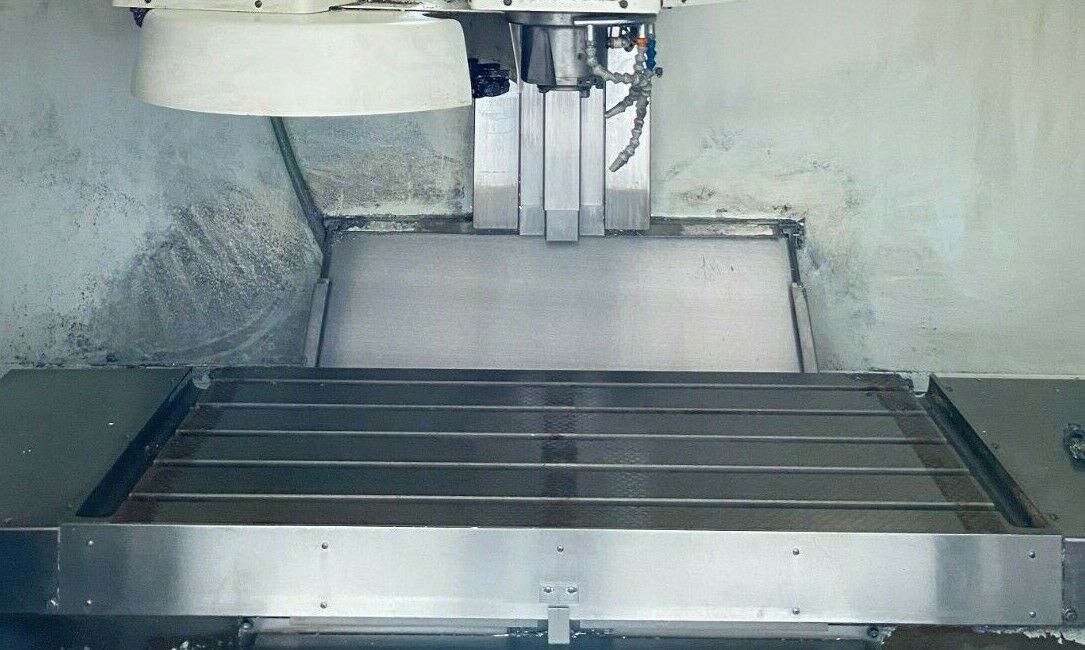

Table:
Length: 48.1″
Width: 20.6″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 2200 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 10000 RPM
Spindle Power: 15 HP

Automatic Tool Changer:
Capacity: 21
Max Tool Weight: 18 lbs
Max Tool Dia: 4.8″
Max Tool Length: 11.8″
Tool Changing Time: 2.7 Seconds

General:
Air Required: 85 psi, 6 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 128″ x 98″ x 110″ High
Weight: 11000 lbs
