“On our Floor now, fully powered / tested & is in Good working condition.”
FADAL VMC 6030 HT Vertical Machining Center
Out of stock
Description
| FADAL VMC 6030 HT VERTICAL MACHINING CENTER | |
|---|---|
| Make | FADAL |
| Model No. | 6030HT |
| Serial # | 9108484 |
All specifications are approximations and are subject to verification.
“On our Floor now, fully powered / tested & is in Good working condition.”
- FADAL VMC 6030 HT Features:
- 22.5HP High Torque Spindle Motor
- 10000 RPM High Precision Spindle
- 21 Station Automatic tool changer
- Programmable coolant
- Telescopic way covers
- Flood Coolant system
- FADAL VMC 6030 HT Specifications:
- Travels:
- X-Axis: 60″
- Y-Axis: 30″
- Z-Axis: 30″
- Table:
- Length: 62.5″
- Width: 30.0″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 3500 lbs
- Spindle:
- Taper Size: CAT 40
- Speed Range: 0 – 10000 RPM
- Spindle Power: 22.5 HP
- Max Torque: 230ft-lb @ 500RPM
- Automatic Tool Changer:
- Capacity: 21
- Max Tool Weight: 15 lbs
- Max Tool Dia: 6″
- Max Tool Length: 15″
- Tool Changing Time: 4.2 Seconds
- General:
- Air Required: 100 psi, 4 scfm

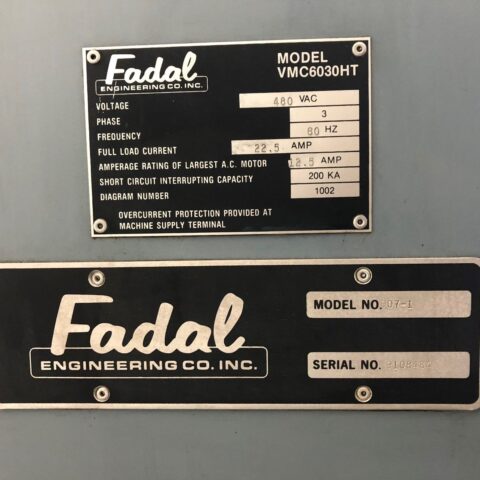

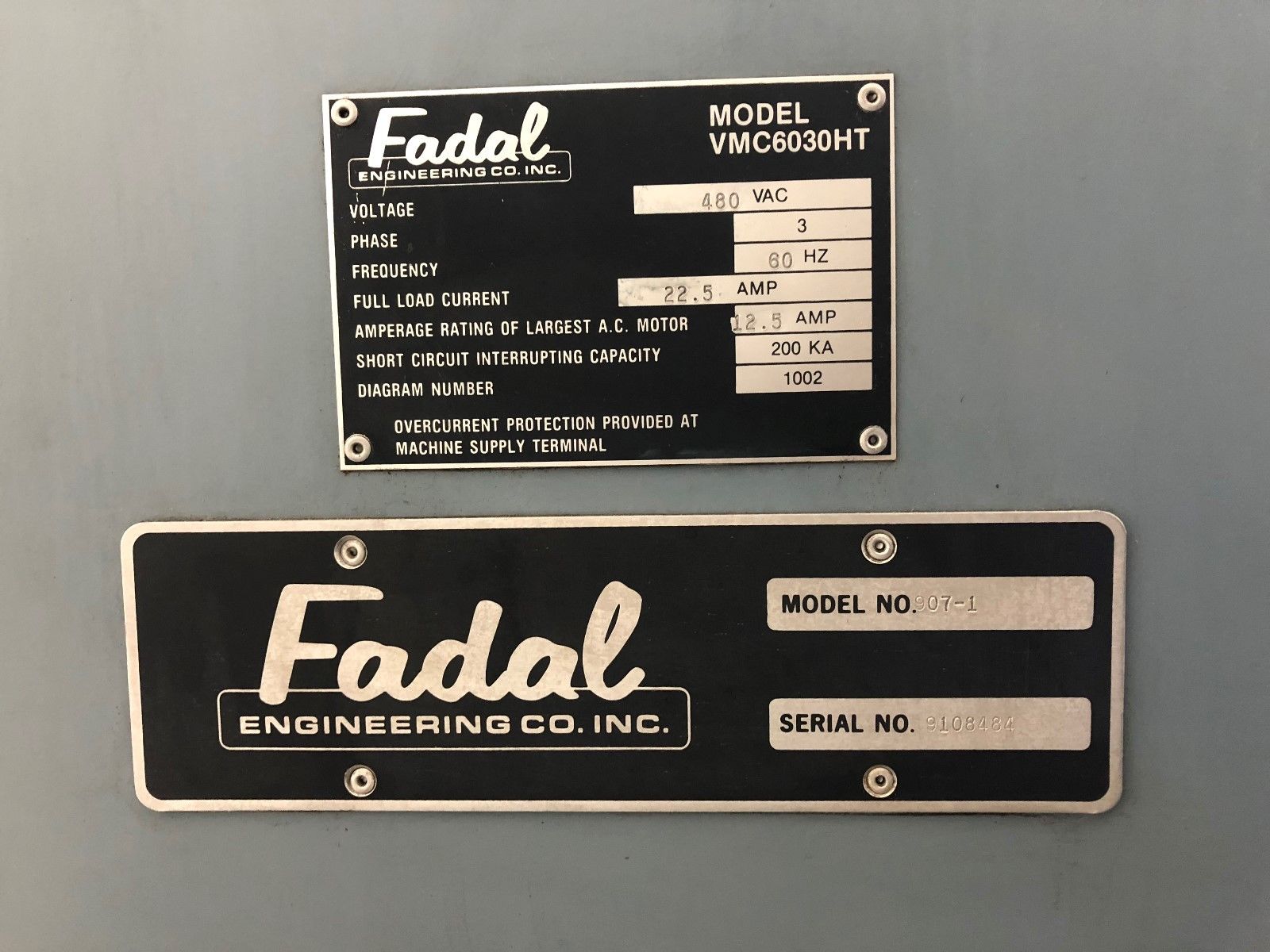

- Power: 480v / 1 kva / 3-Phase
- Overall Dimensions: 162″ x 104″ x 125″ High
- Weight: 17000 lbs

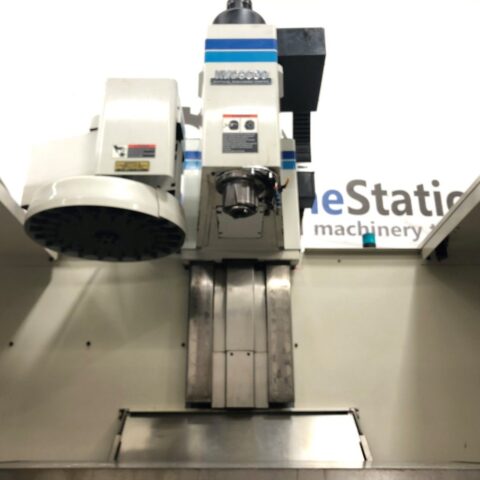

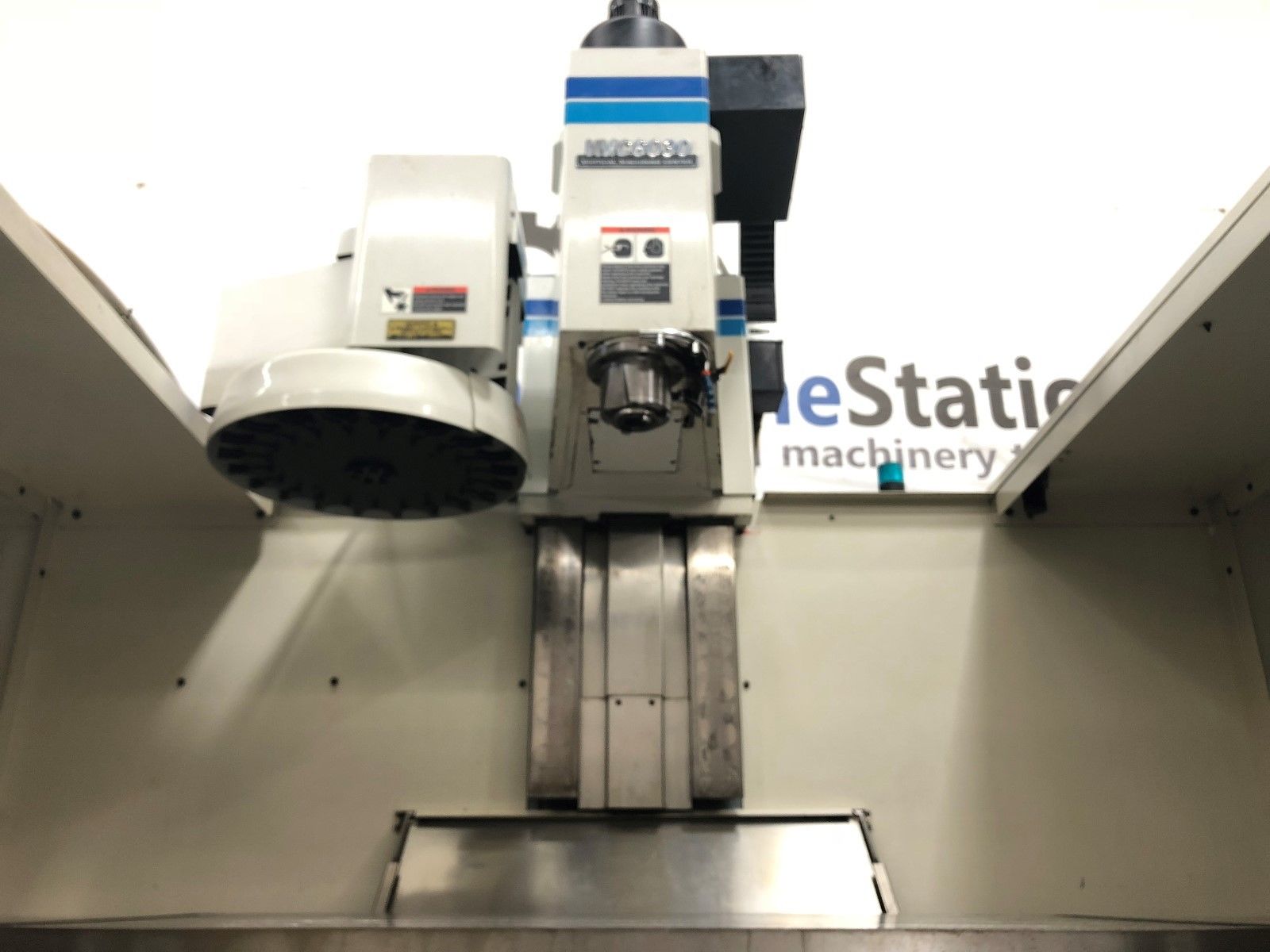

FADAL VMC 6030 HT Comes as shown in pictures.
