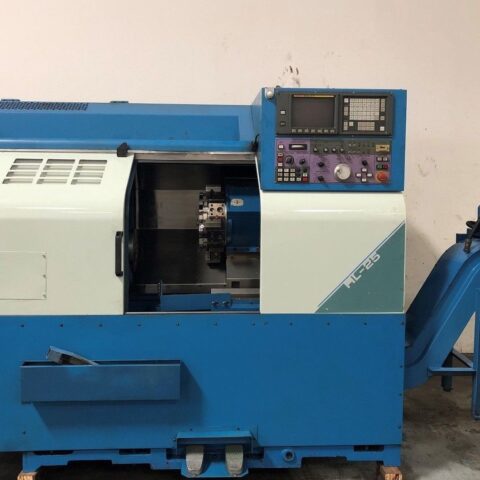

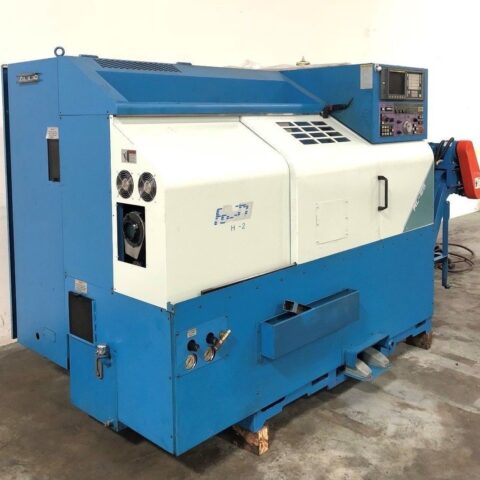

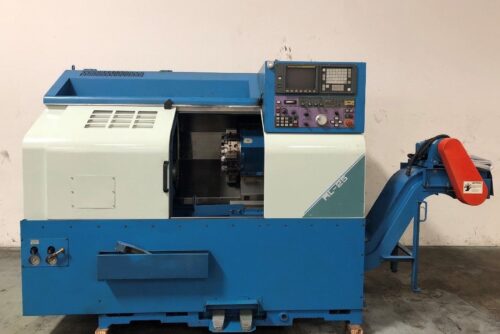

FEMCO HL-25 DURGA CNC TURNING CENTER | |
---|---|

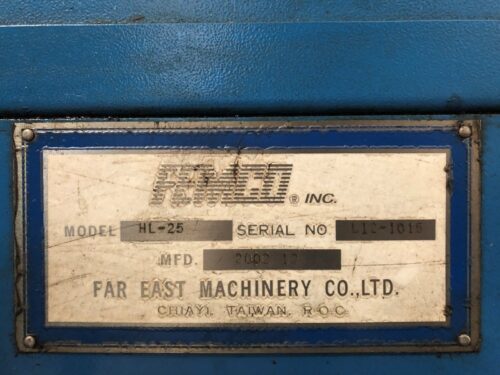

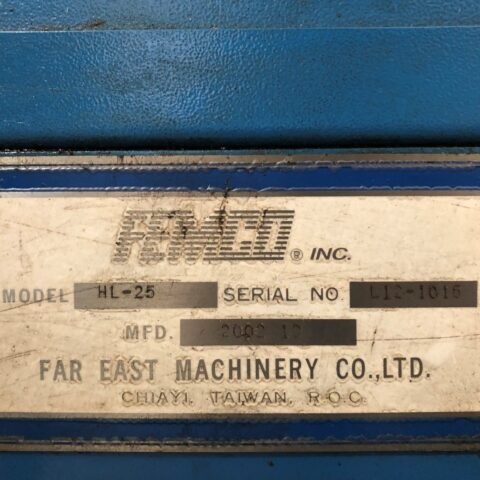

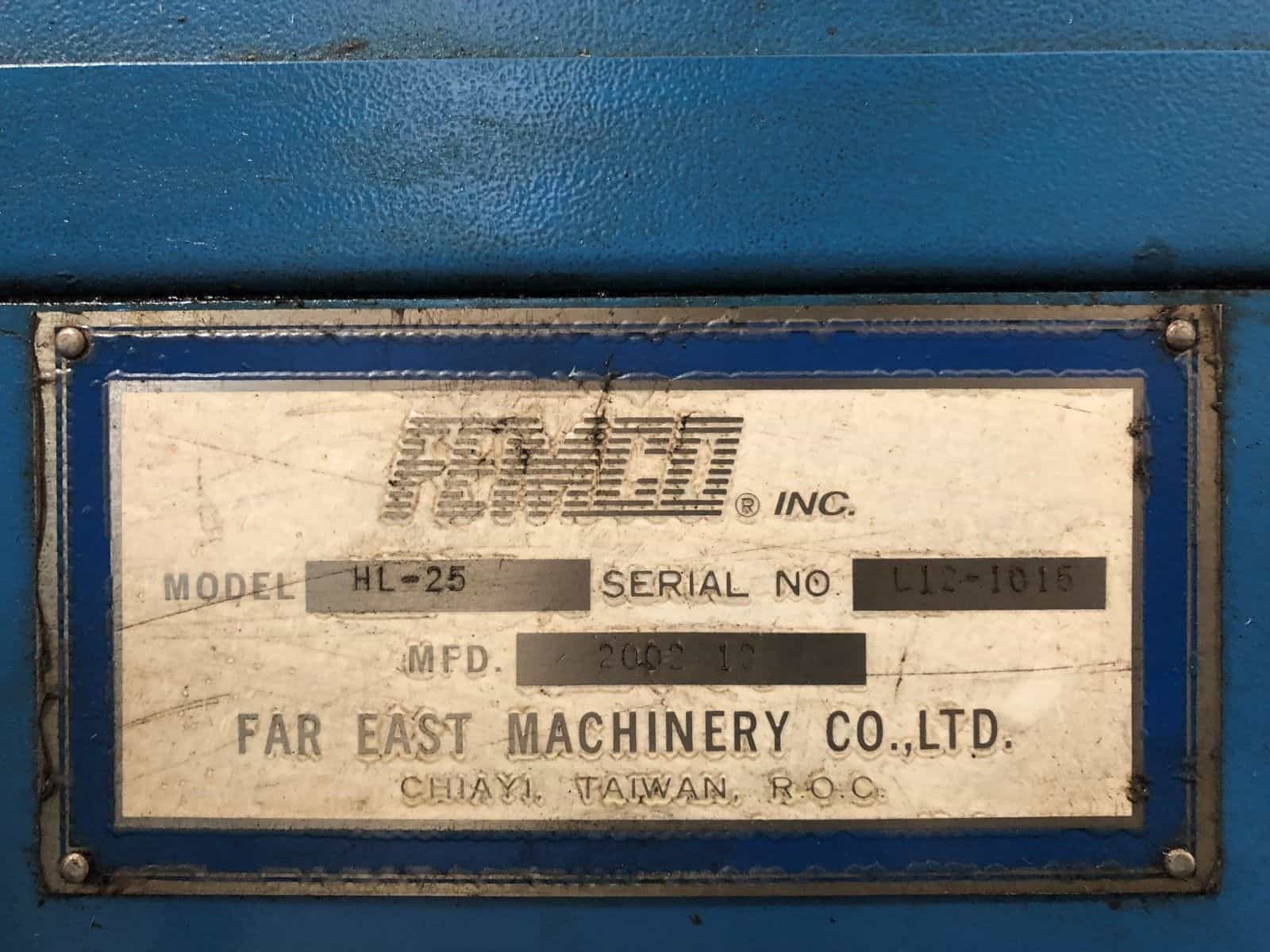

Make | Femco |
Model No. | HL-25 |
Year | 09/2002 |
Serial # | L12-1015 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
“This One Owner machine is in good running condition. Runtime 7674 hours only. It is equipped with 8″ Chuck, Tool Presetter, Tailstock. On Our Floor fully powered / tested & is in Great working condition.”
- FEMCO HL-25 Equipped With:

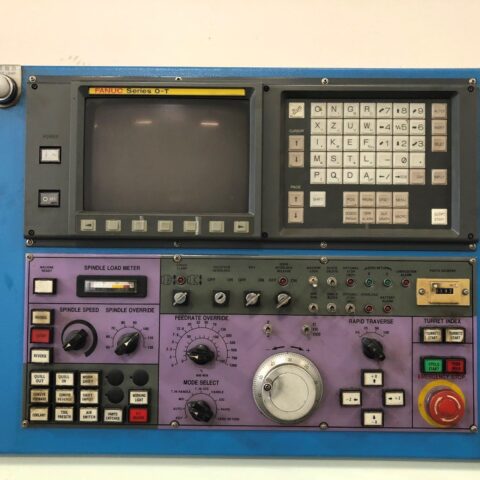

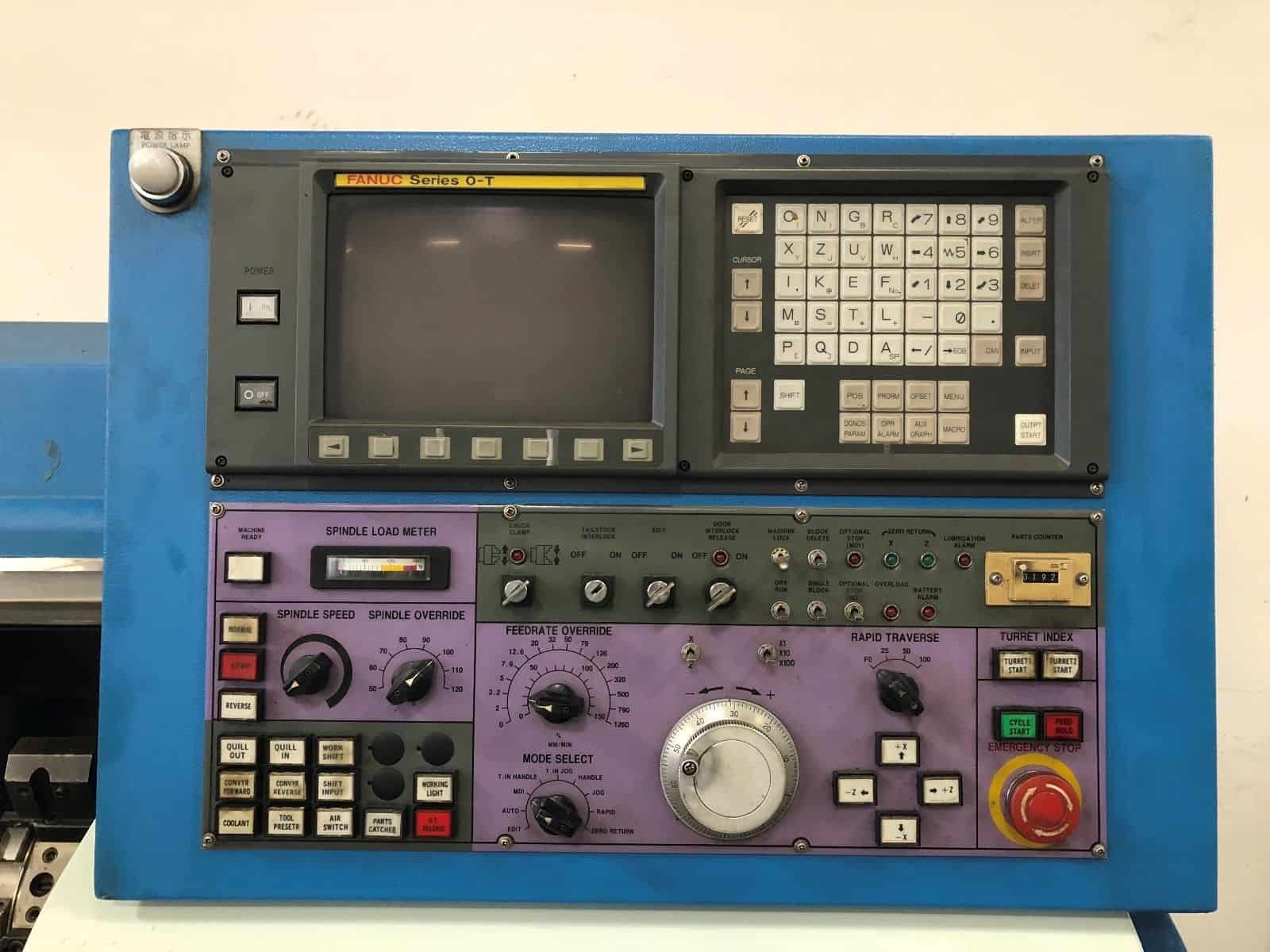

- Fanuc 0T CNC Control
- 8″ 3 Jaw Hydraulic Chuck
- A2-6 Spindle

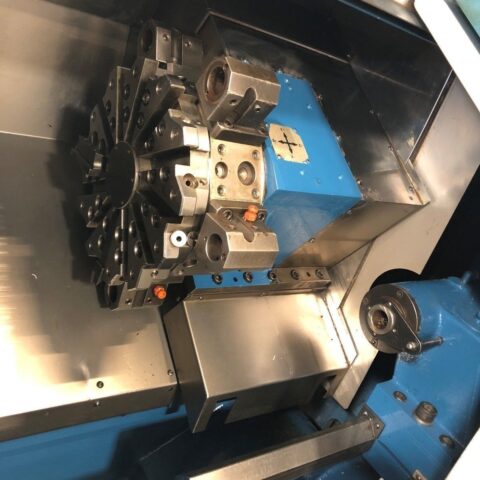

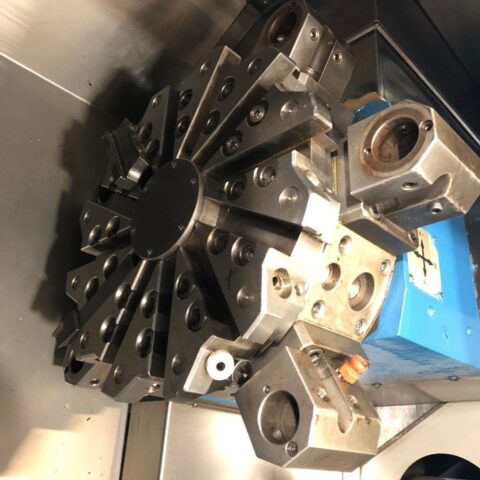

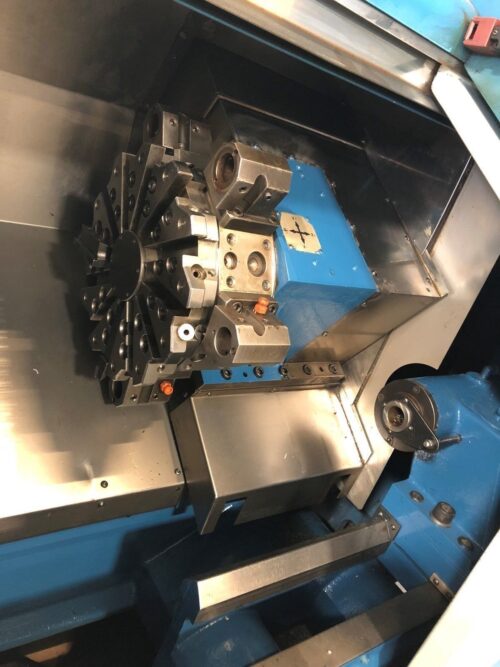

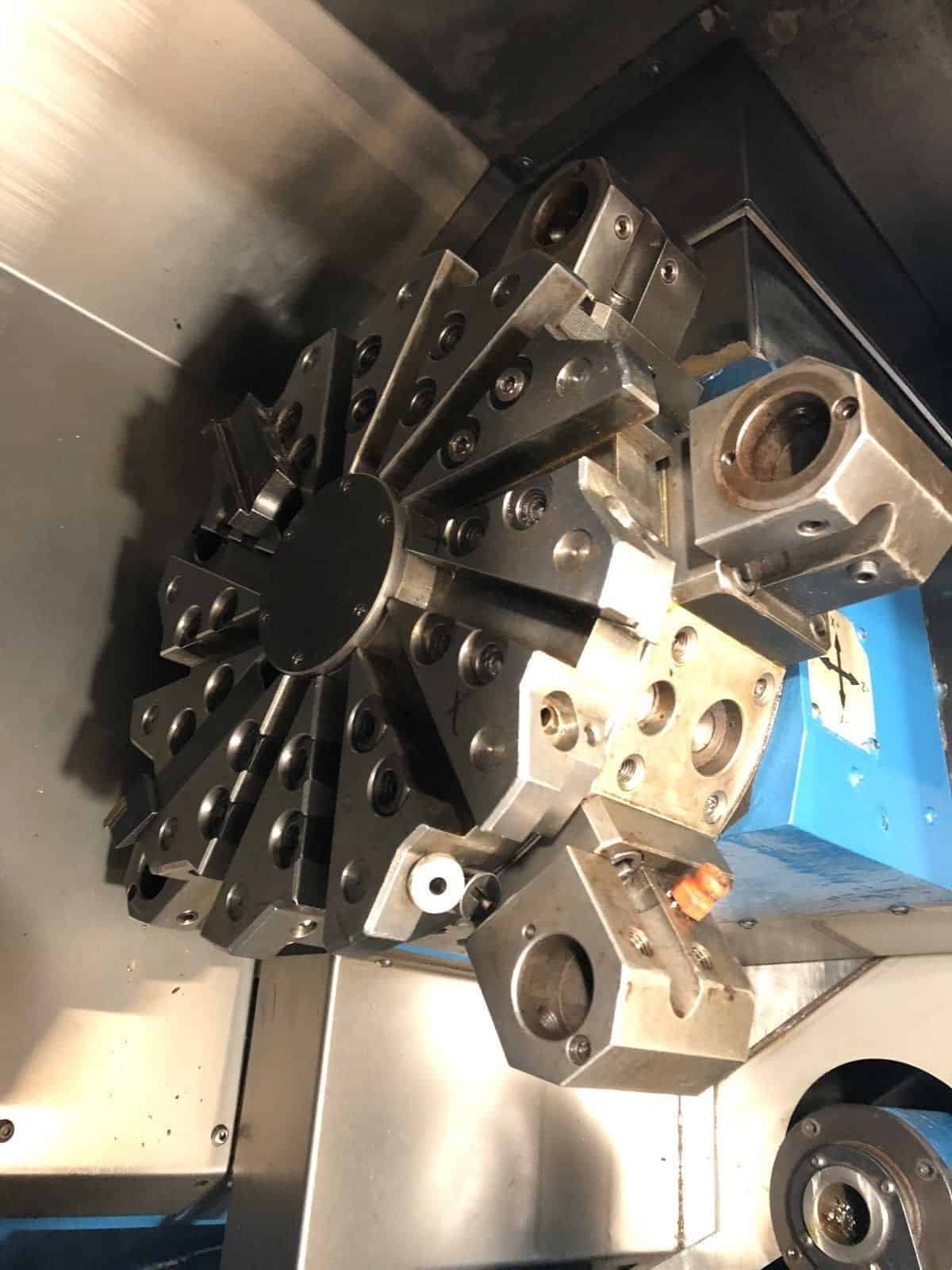

- 23 Station Double Disc Automatic Turret
- Tool Presetter
- Hydraulic Tailstock
- Coolant System
- RS-232 ports
- Foot Switch

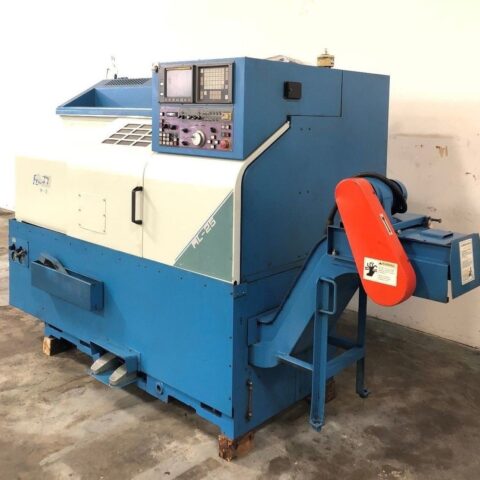

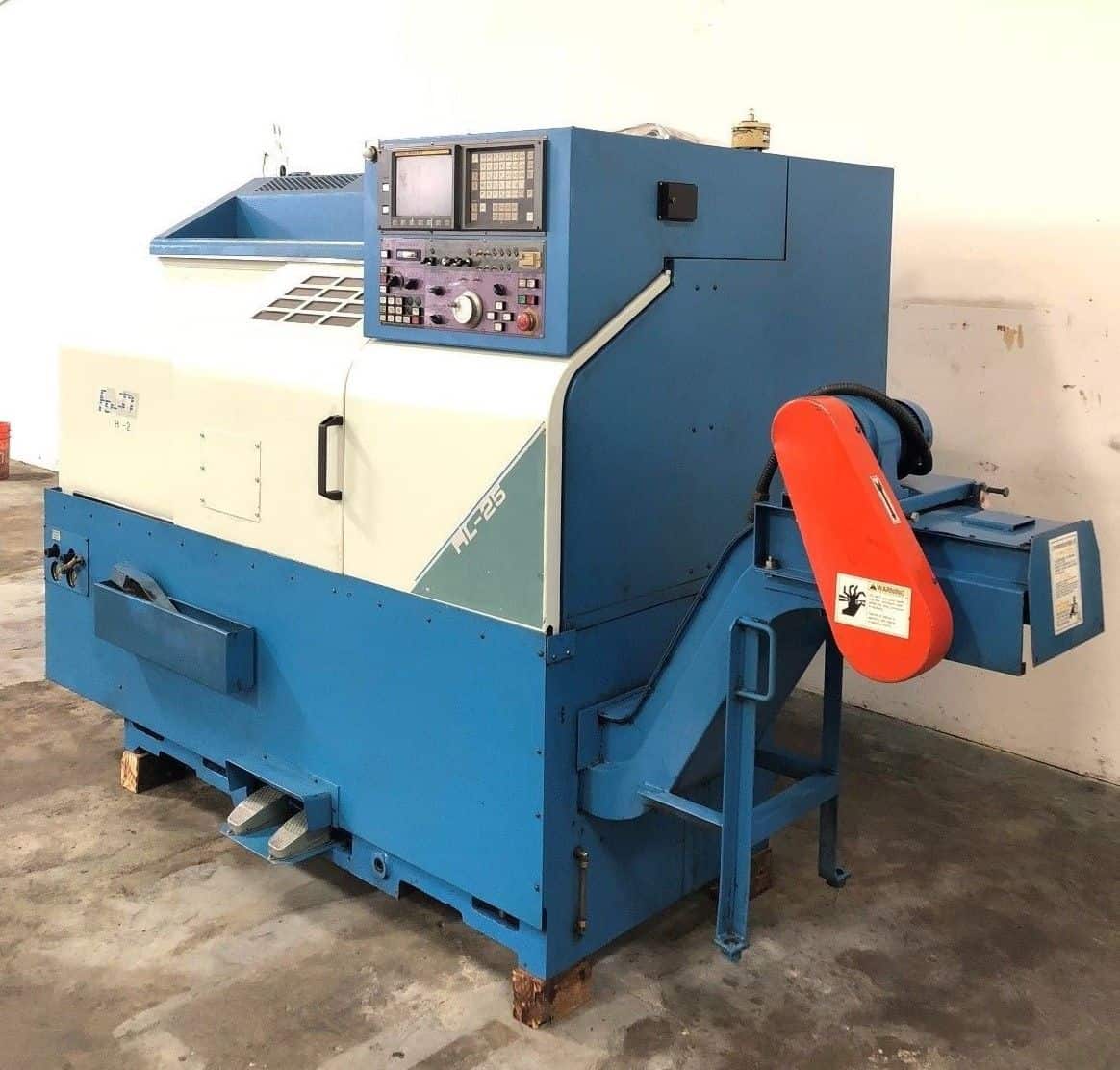

- Chip Conveyor
- General:
- Power: 21 kva, 220v / 3-Phase
- Overall Dimensions: 120″ x 60″ x 72″ High
- Weight: 7700 lbs
- FEMCO HL-25 Specifications:
- Capacity:
- Max Turning Diameter: 9.84″
- Max Turning Length: 23.62″
- Max Bar Capacity: 2.04″
- Swing Over Bed: 17.75″
- Distance Between Centers: 25.59″
- X Axis Travel: 5.0″
- Z Axis Travel: 23.62″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 970 IPM
- Spindle Nose: A2-6
- Spindle Bore: 2.43″
- Spindle Speed: 40 – 4800 RPM
- Spindle Motor: 20 HP
- Turret Capacity: 23 Stations
- Turret Index Time: 1 Second
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 3.1″
- Tailstock Quill Travel: 4.0″
- Tailstock Body Travel: 15.75″

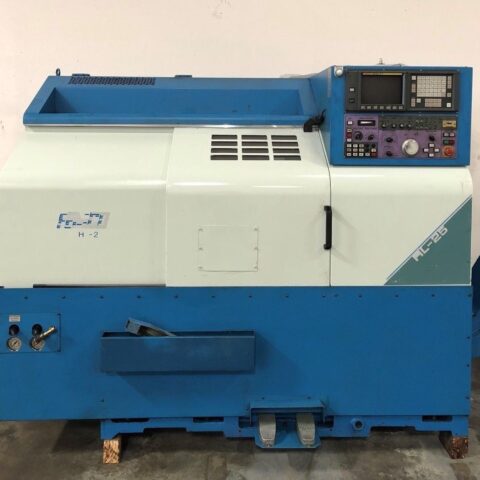

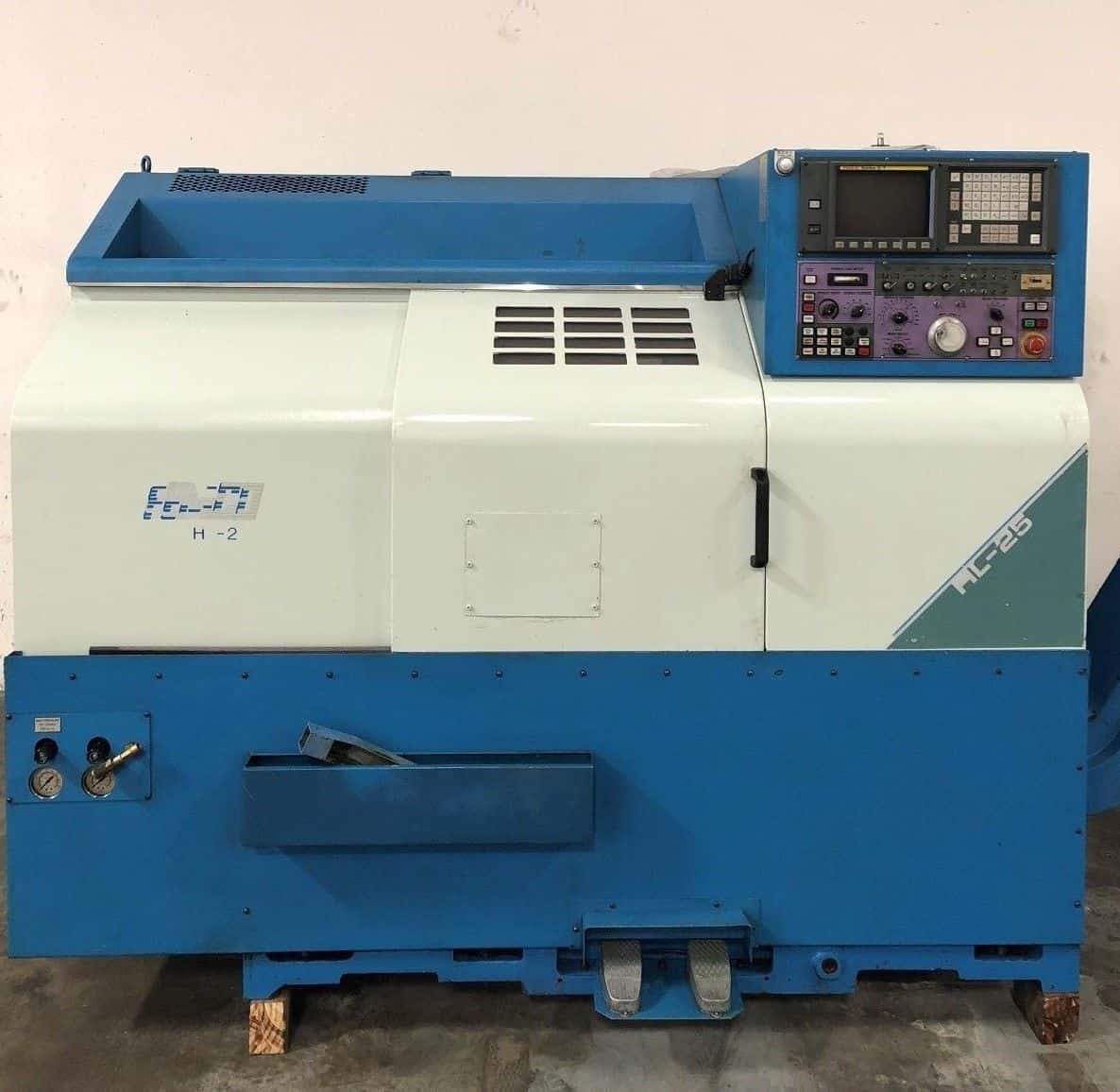

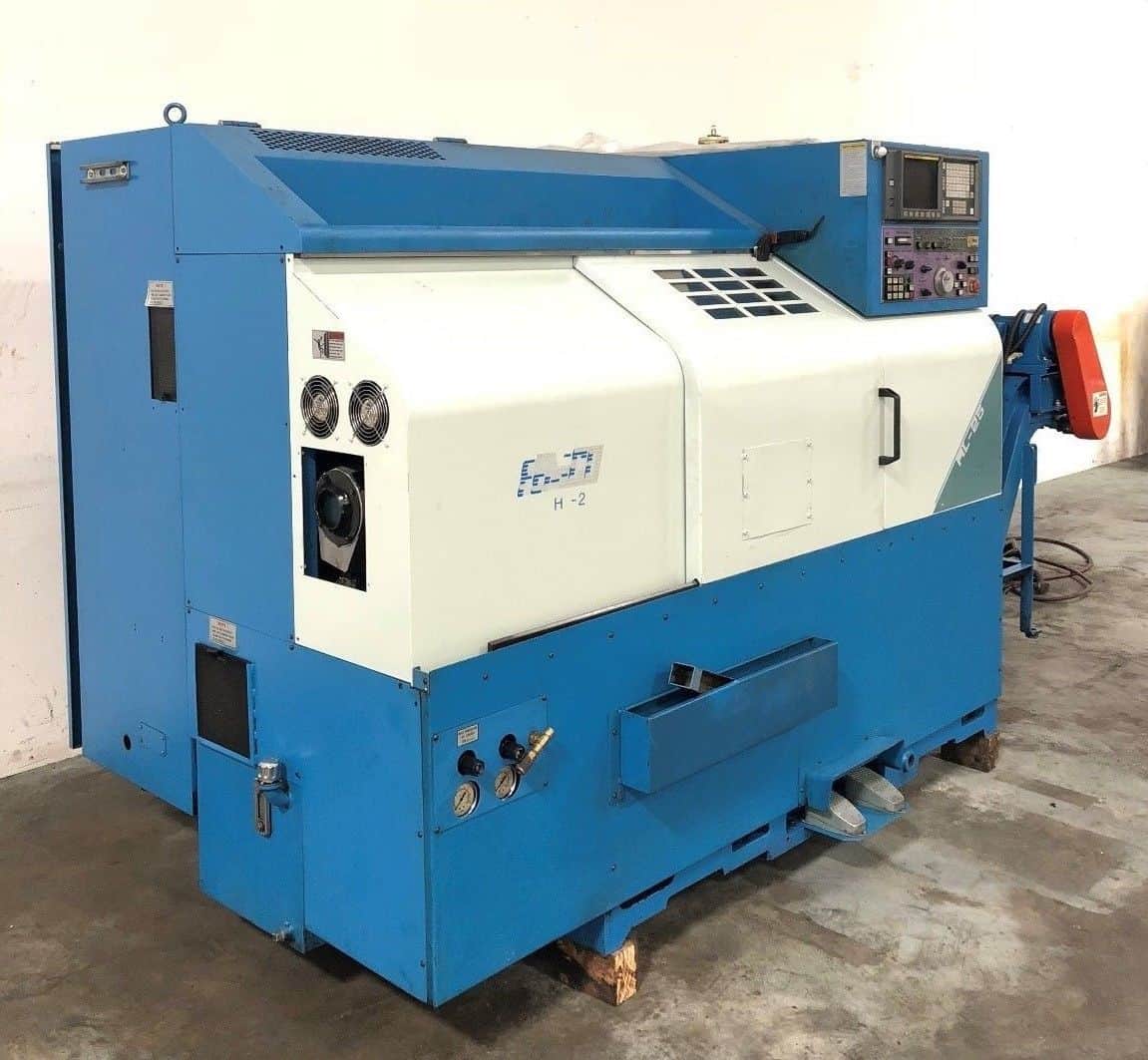

FEMCO HL-25 Comes as shown in pictures..
