Femco HL15N CNC Turning | |
---|---|

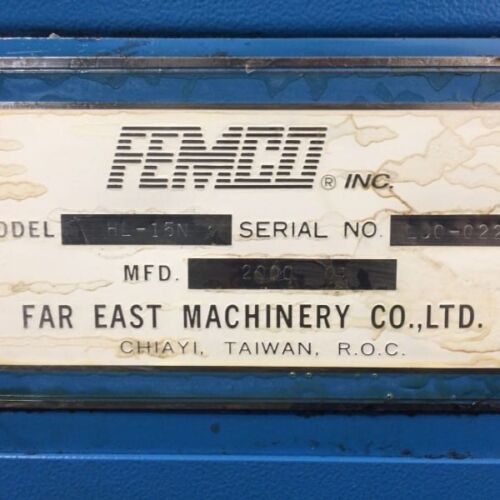

Make | Femco |
Model No. | HL-15N |
Year of Manufacture: | 2000 |
Serial # | LJ0-0228 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
- Femco HL 15N Features:

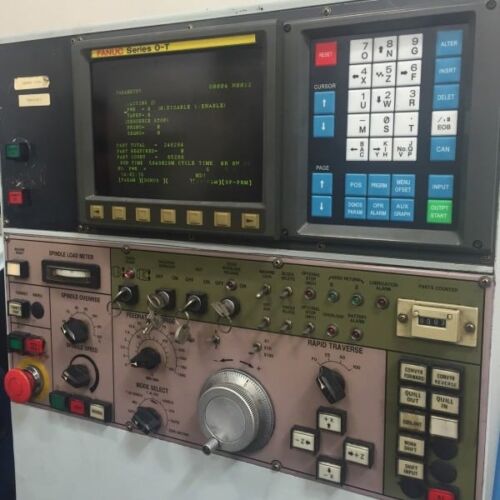

- Fanuc OT Control
- 3 Jaw Hydraulic Chuck
- 5C Collet Chuck
- Hydraulic Tailstock
- Chip Conveyor
- Barfeed Interface
- RS-232 port

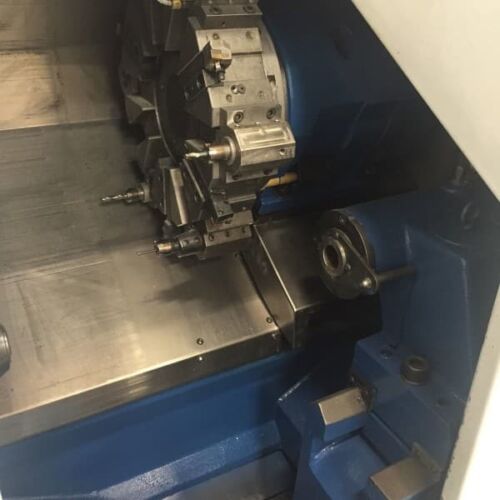

- 12 Station Automatic Thru Coolant Turret
- Overload protection on X, Z-axis traverse
- General:
- Power: 220v / 3-Phase
- Overall Dimensions: 120″ x 55″ x 70″ High
- Weight: 6500 lbs
- Femco HL15N Specifications:
- MAXIMUM TURNING DIAMETER 9.84″
- MAXIMUM TURNING LENGTH 11″
- SWING OVER CROSS SLIDE 8″
- X AXIS TRAVEL 5″
- Z AXIS TRAVEL 11″
- RAPID TRAVERSE RATE X AXIS 630 IPM
- RAPID TRAVERSE RATE Z AXIS 630 IPM
- SPINDLE NOSE A2-6
- SPINDLE BORE 2.04″
- SPINDLE SPEED: 4800 RPM
- SPINDLE MOTOR: 10 HP
- TURRET CAPACITY 12 STATIONS
- TAILSTOCK QUILL TAPER MT #3
- TAILSTOCK QUILL TRAVEL 4.0″
- TAILSTOCK QUILL THRUST 225 – 900 LB

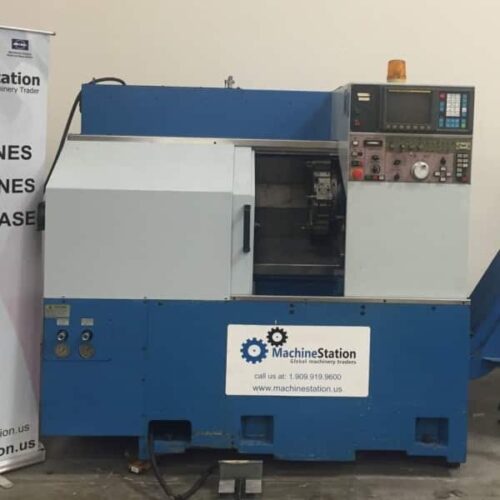

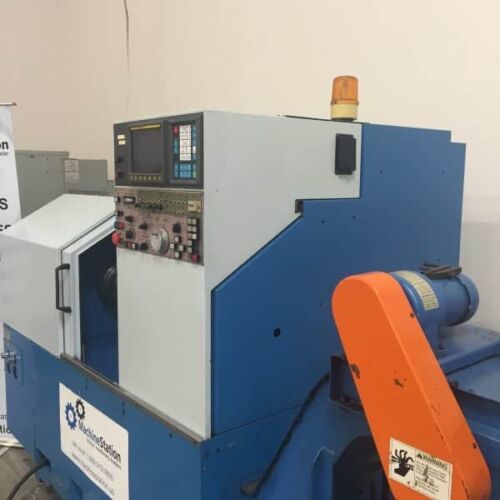

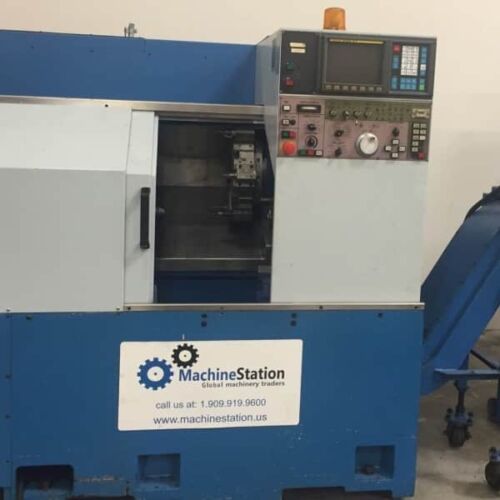

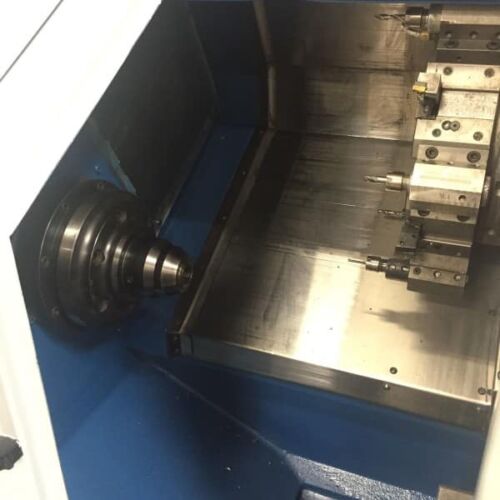

Femco HL15N Comes as shown in pictures.
