PENDING SALE
*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

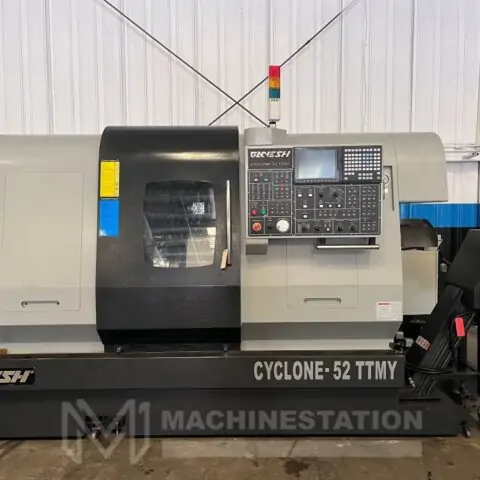

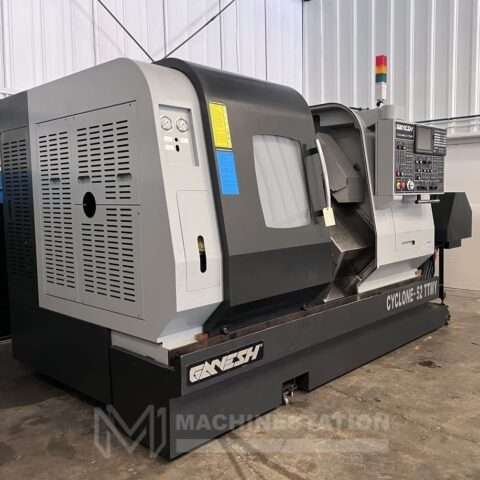

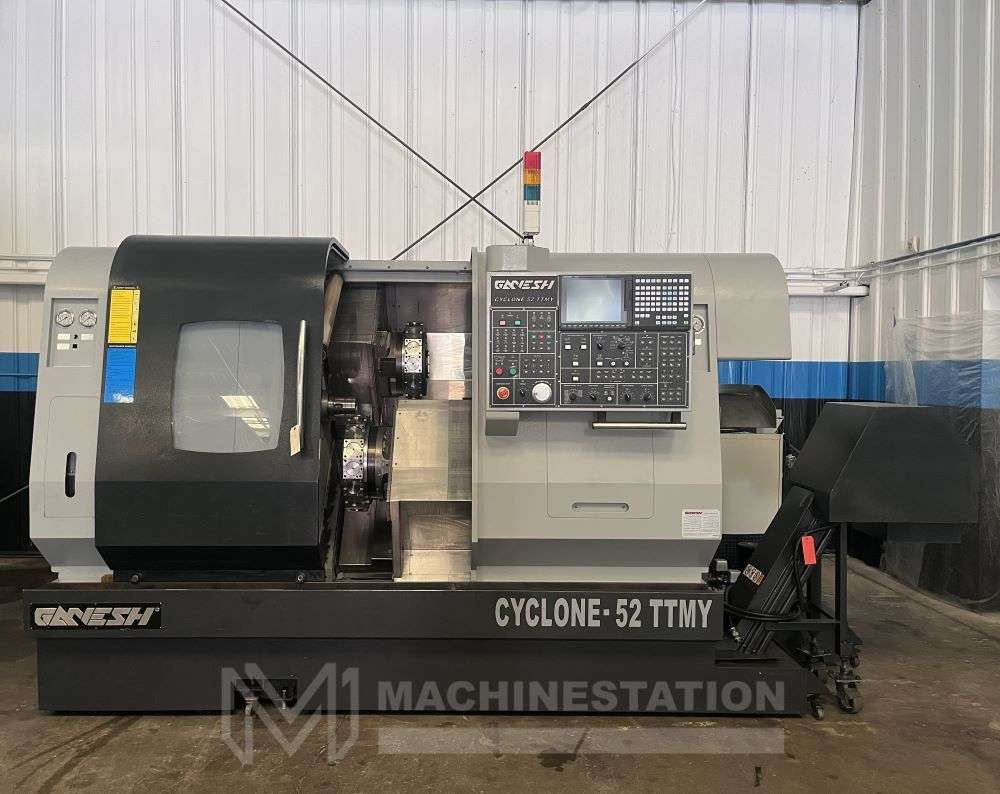

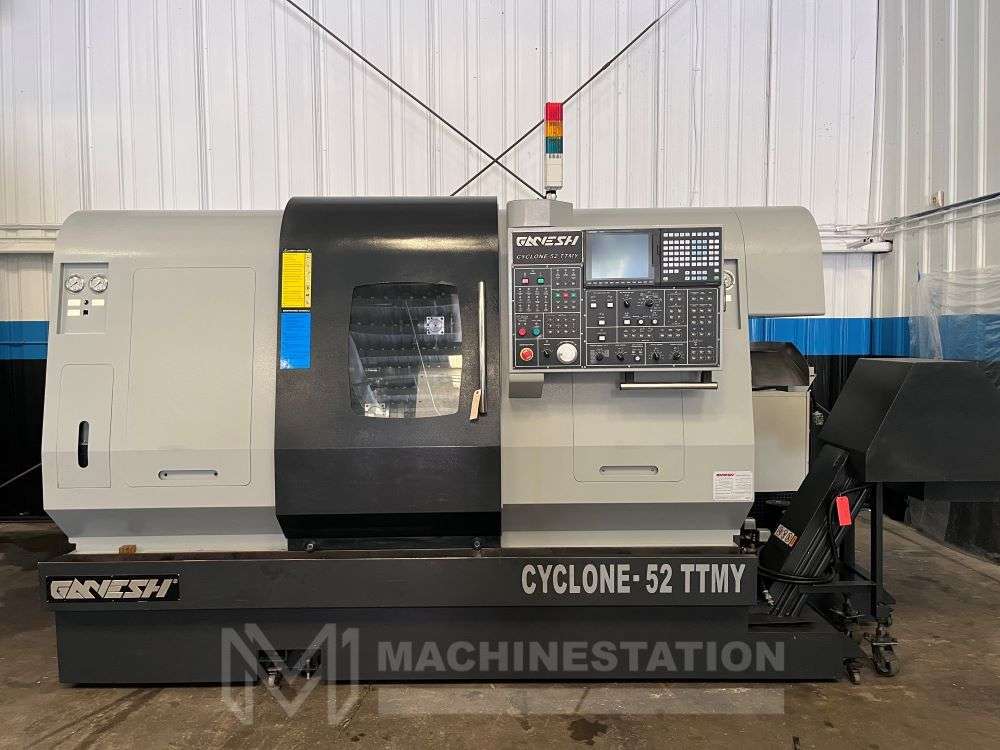

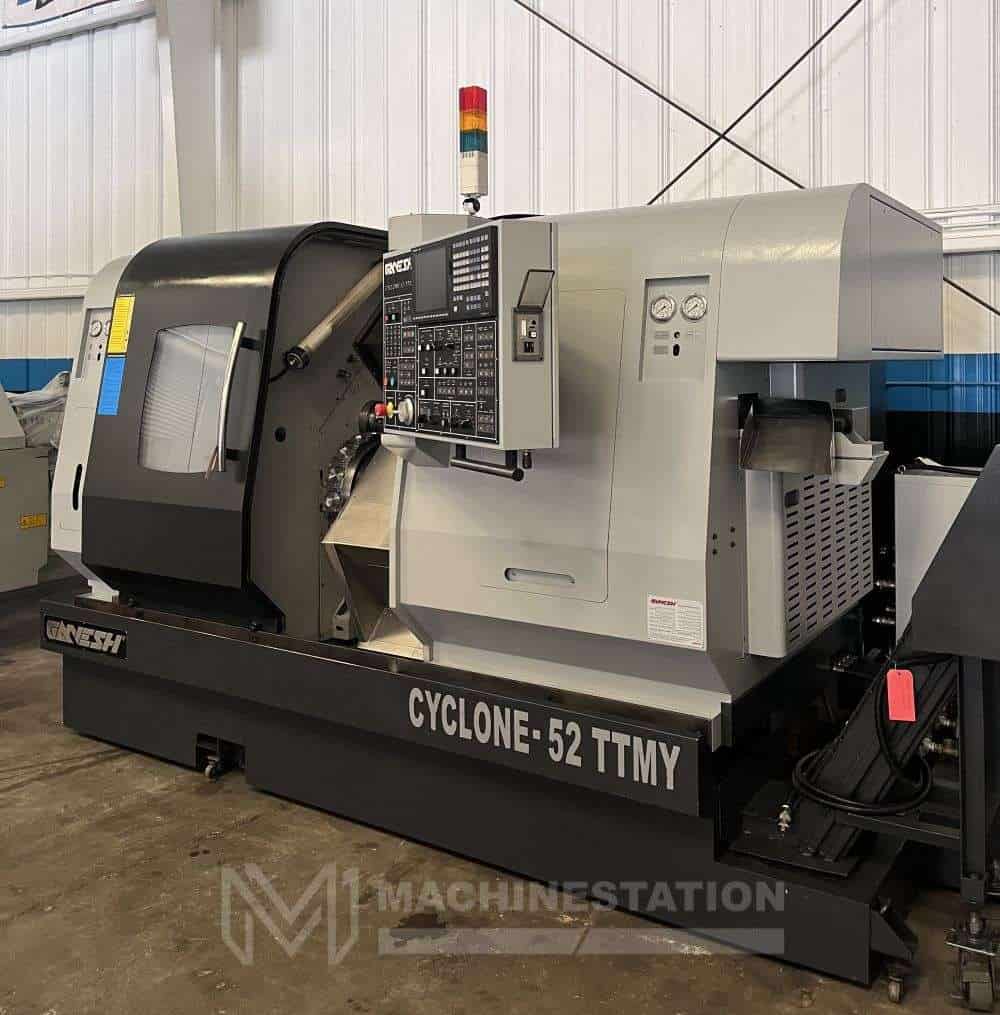

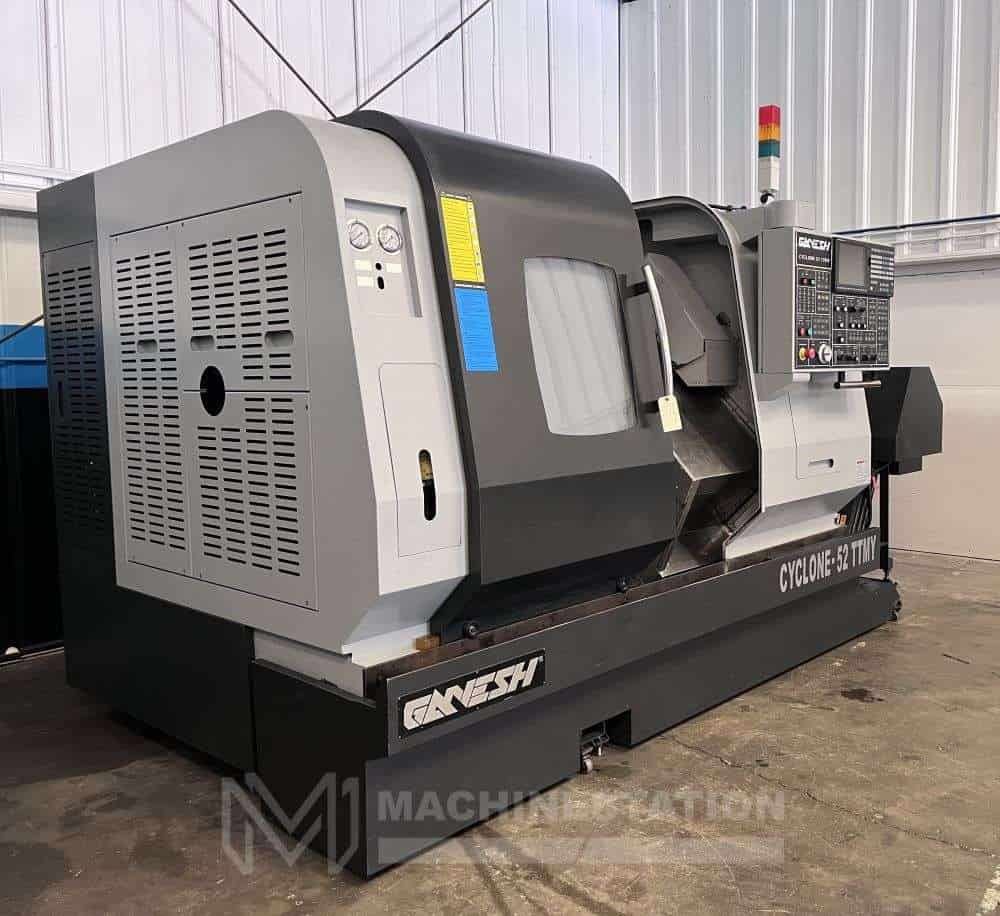

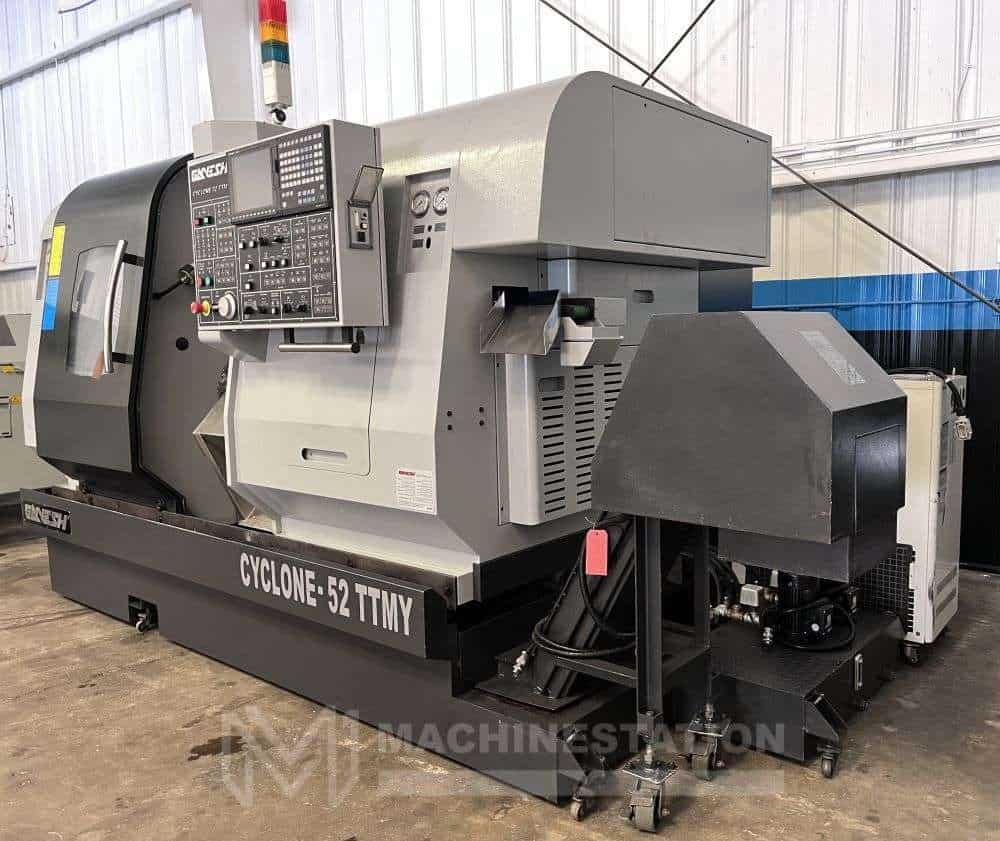

| Make: | Ganesh |
| Model: | Cyclone-52 TTMY |
| Year: | 2011 |
| Condition: | Used – Good |
| Equipped With: |
|---|

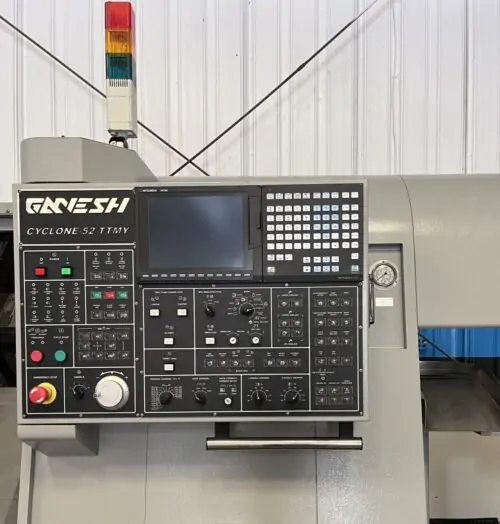

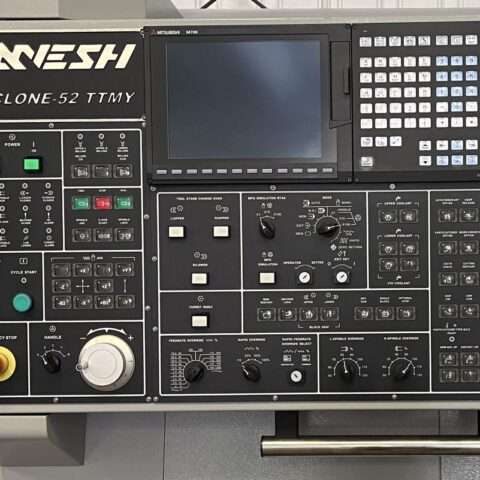

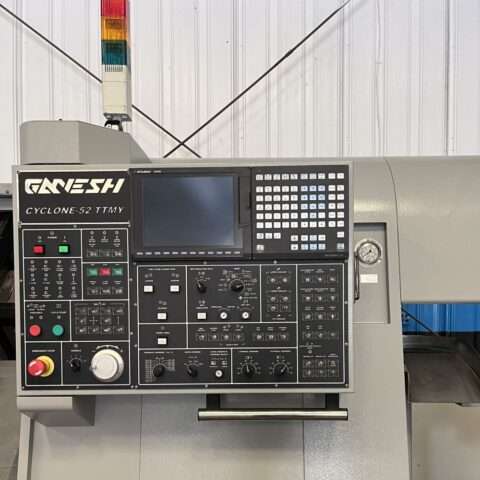

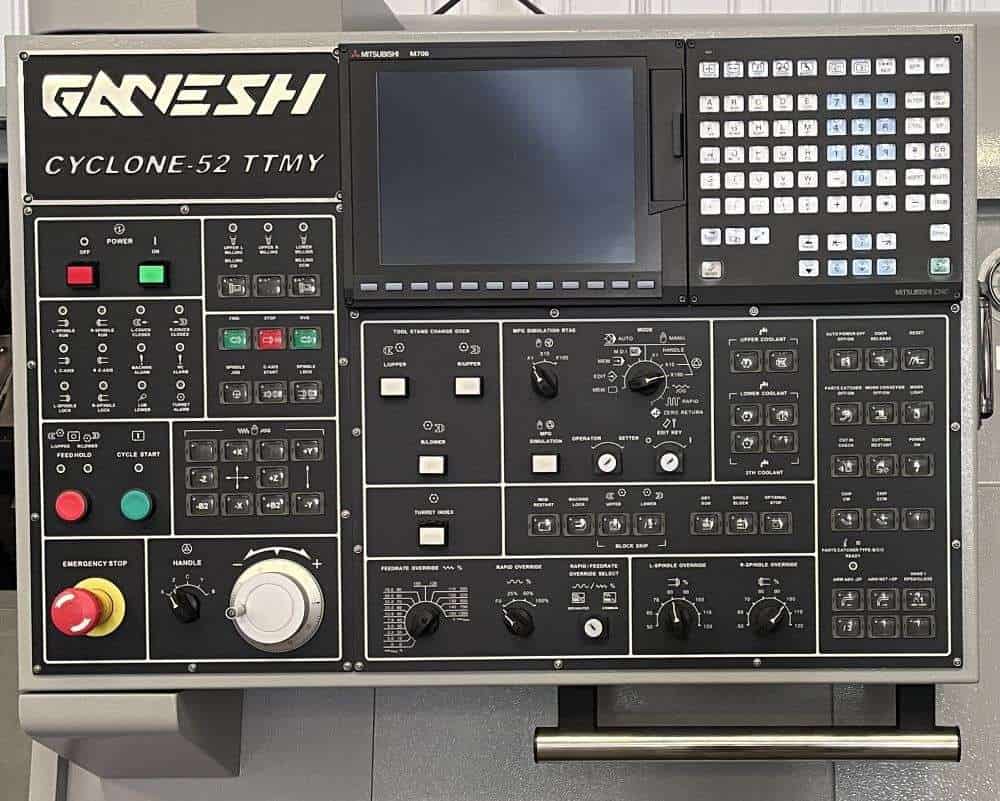

| Mitsubishi M700 Series CNC Control |

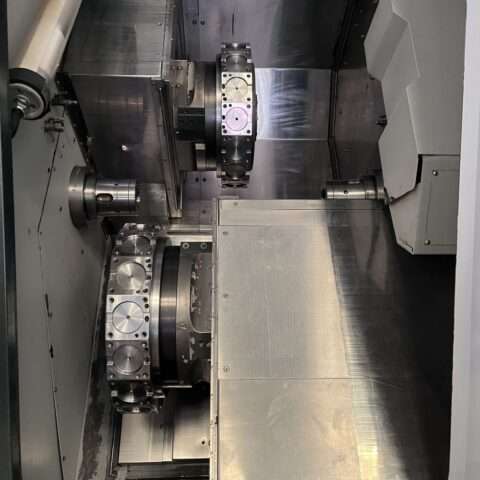

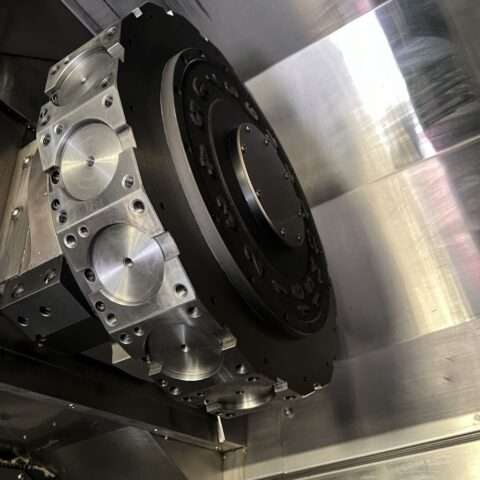

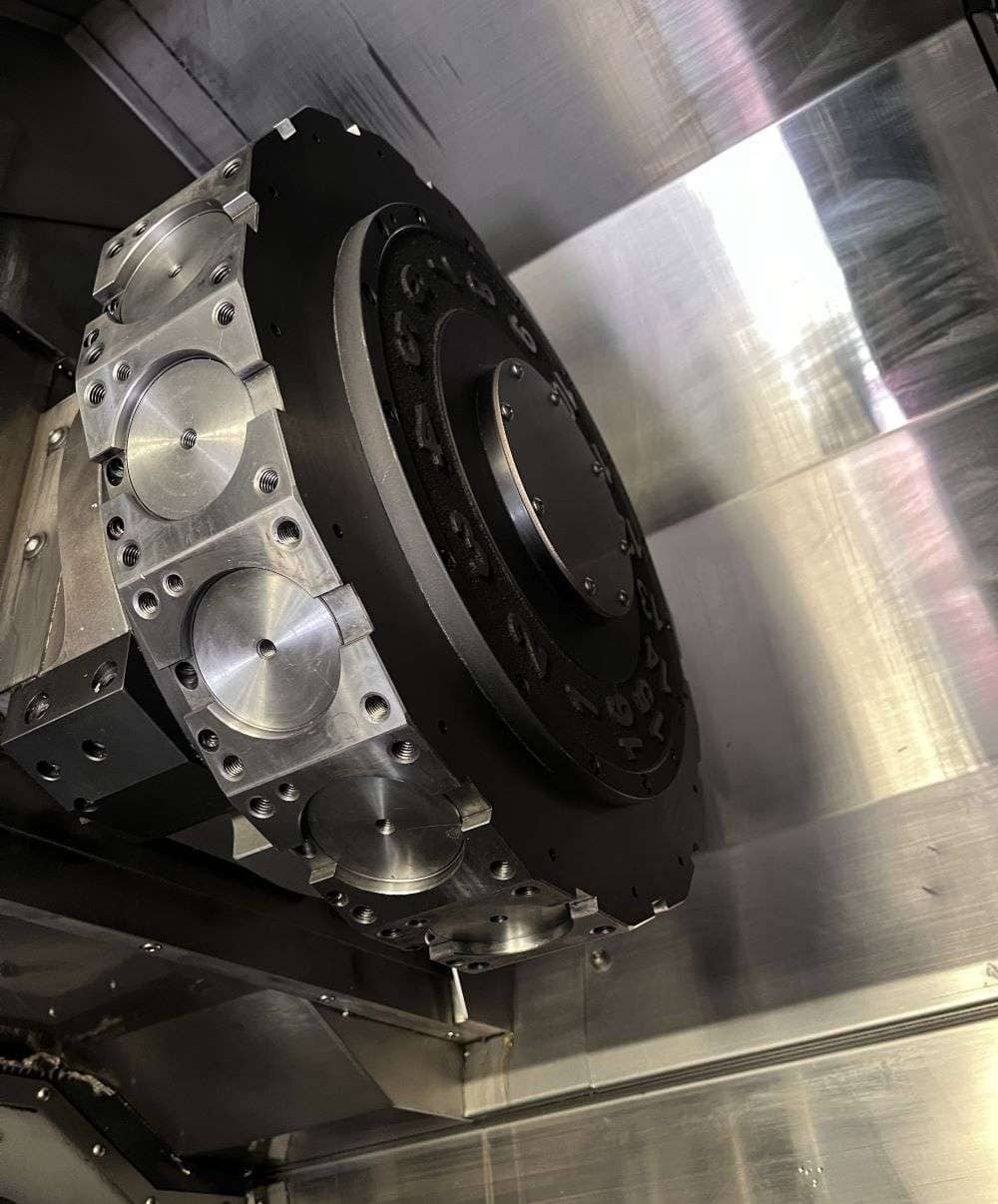

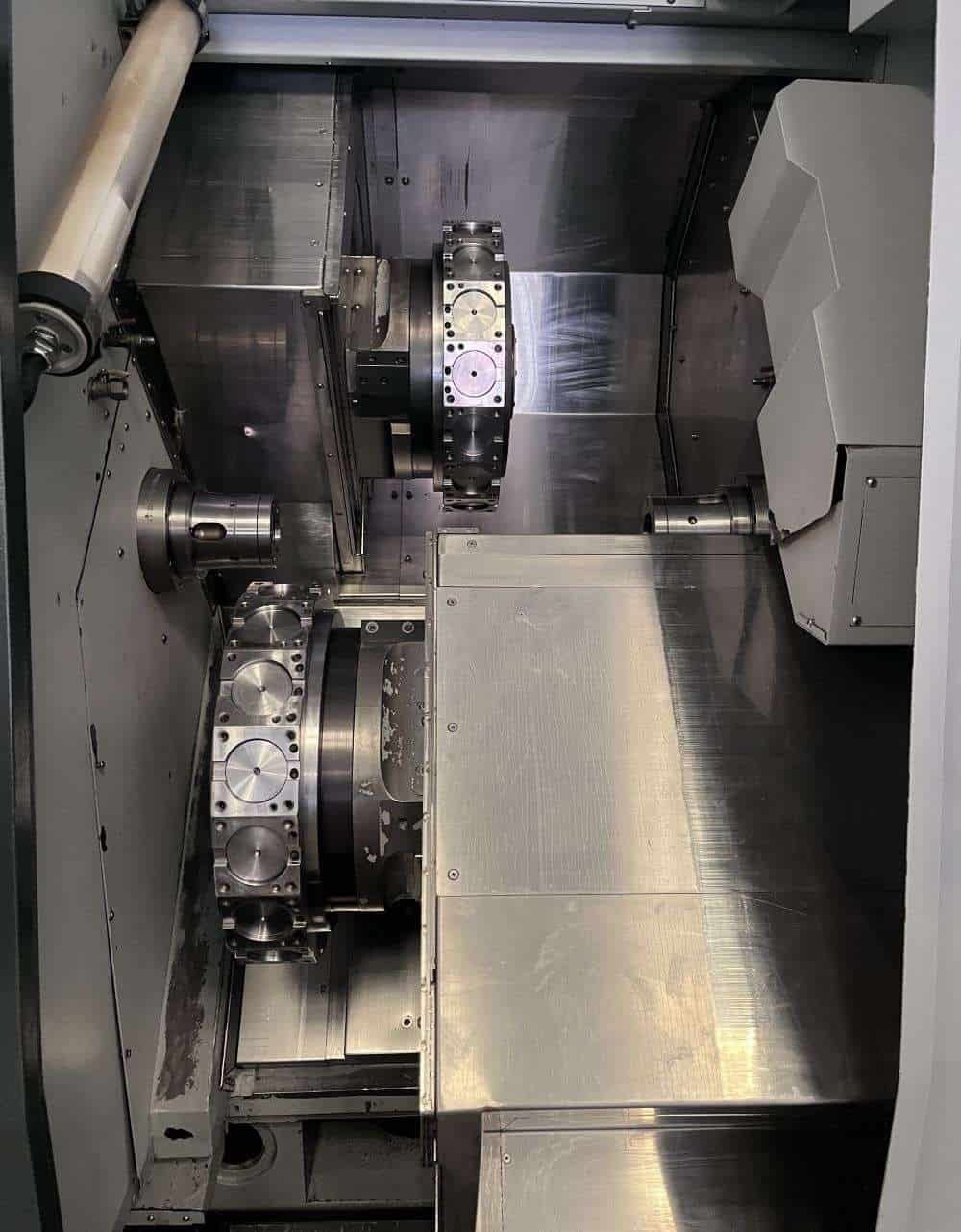

| Twin 16 Stations Live Tool Turrets |

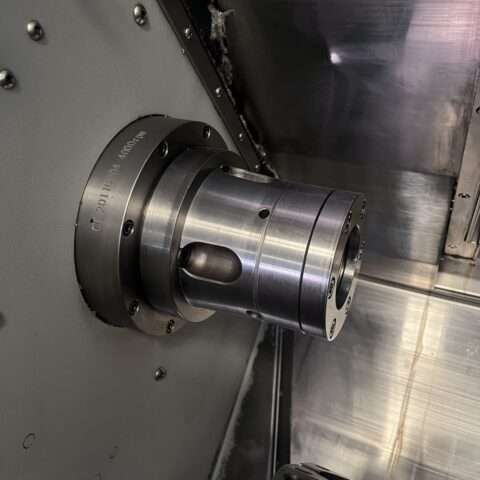

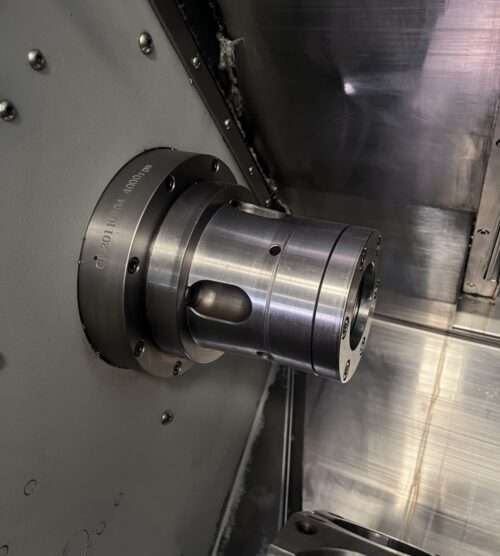

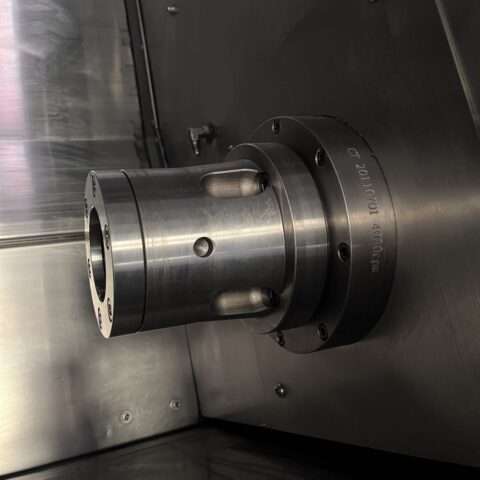

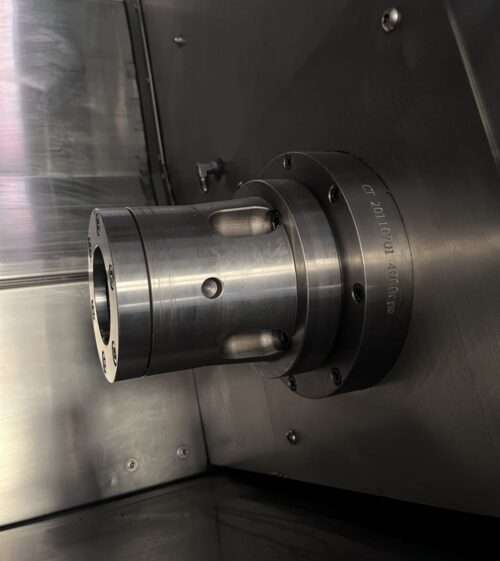

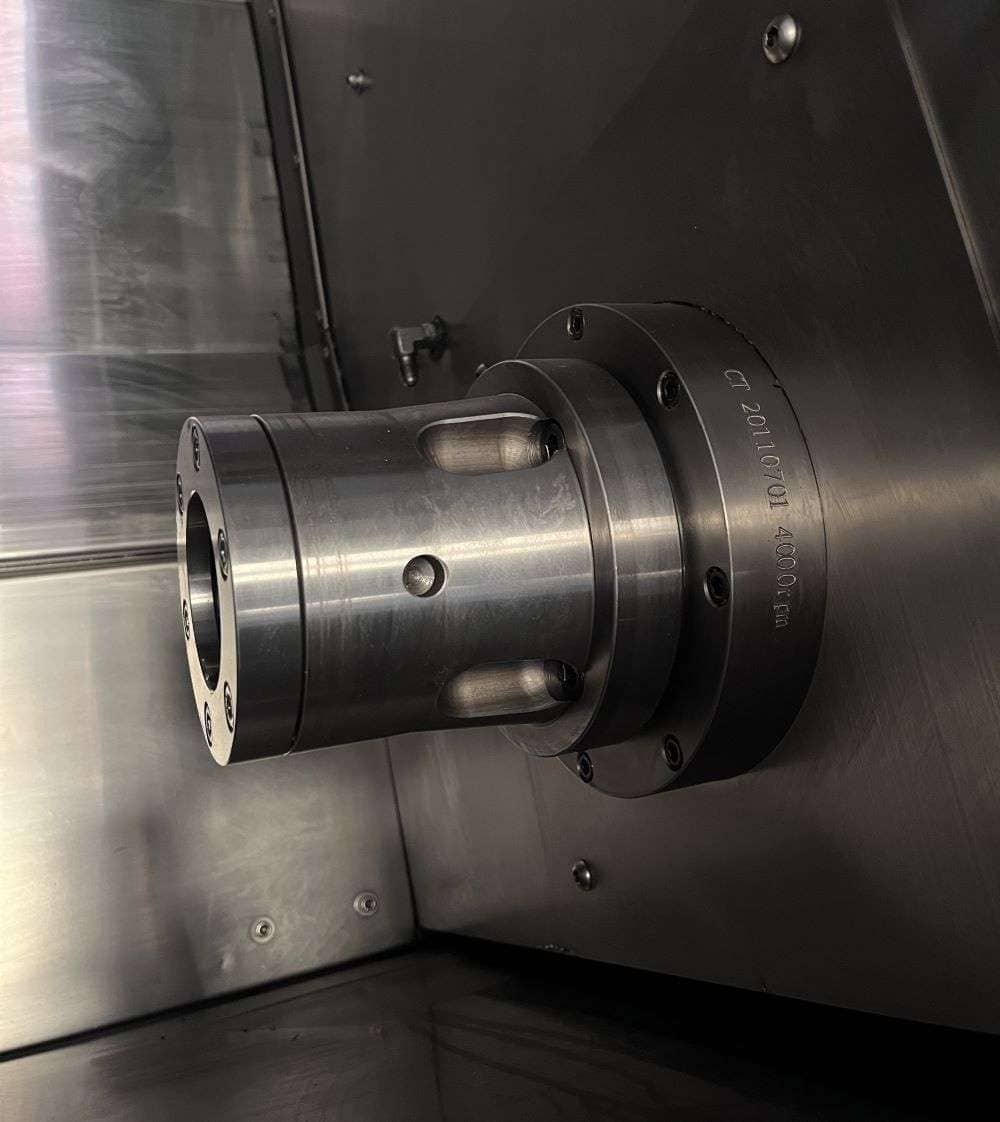

| Collet Chucks on both Spindles |
| Sub Spindle |
| Servo Controlled Full C-Axis on Both Spindles |
| Y Axis Capability on Upper Turret |
| Both Spindle Synchronization |

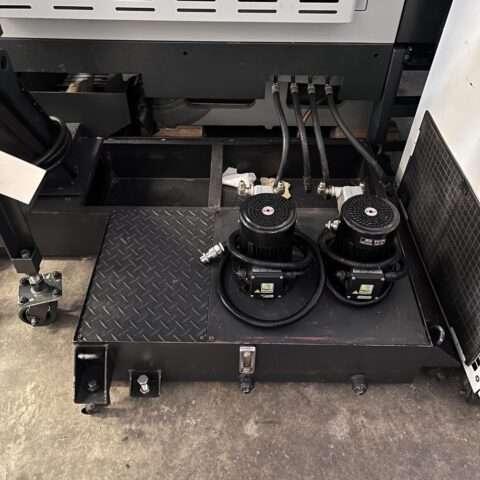

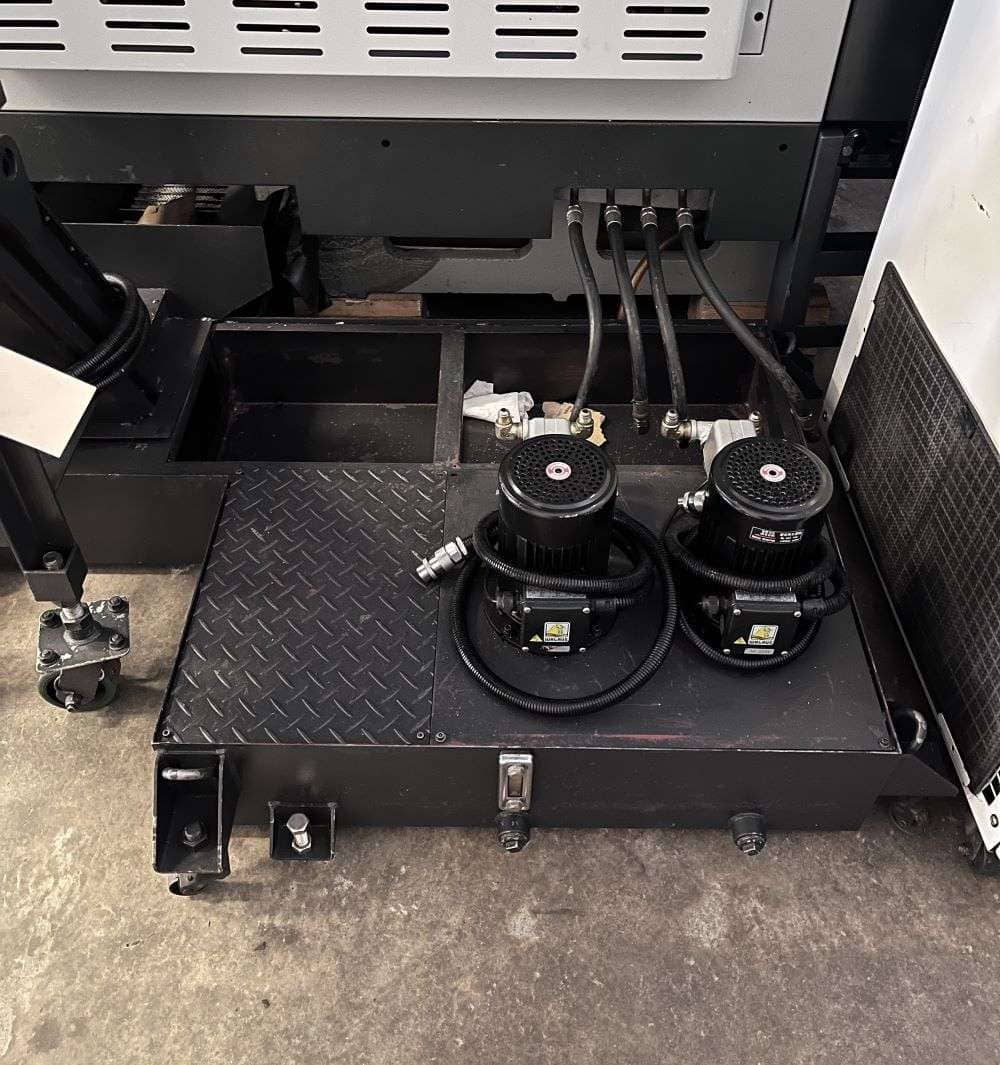

| Coolant System |

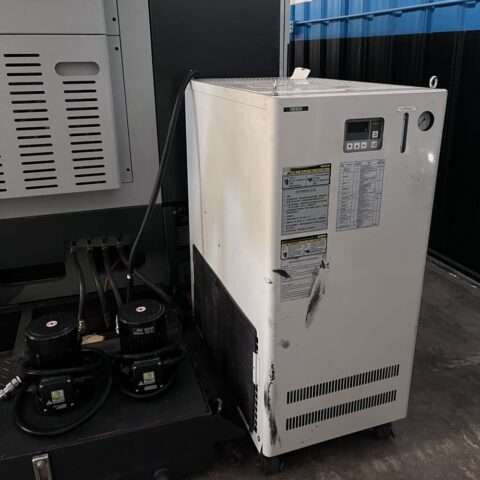

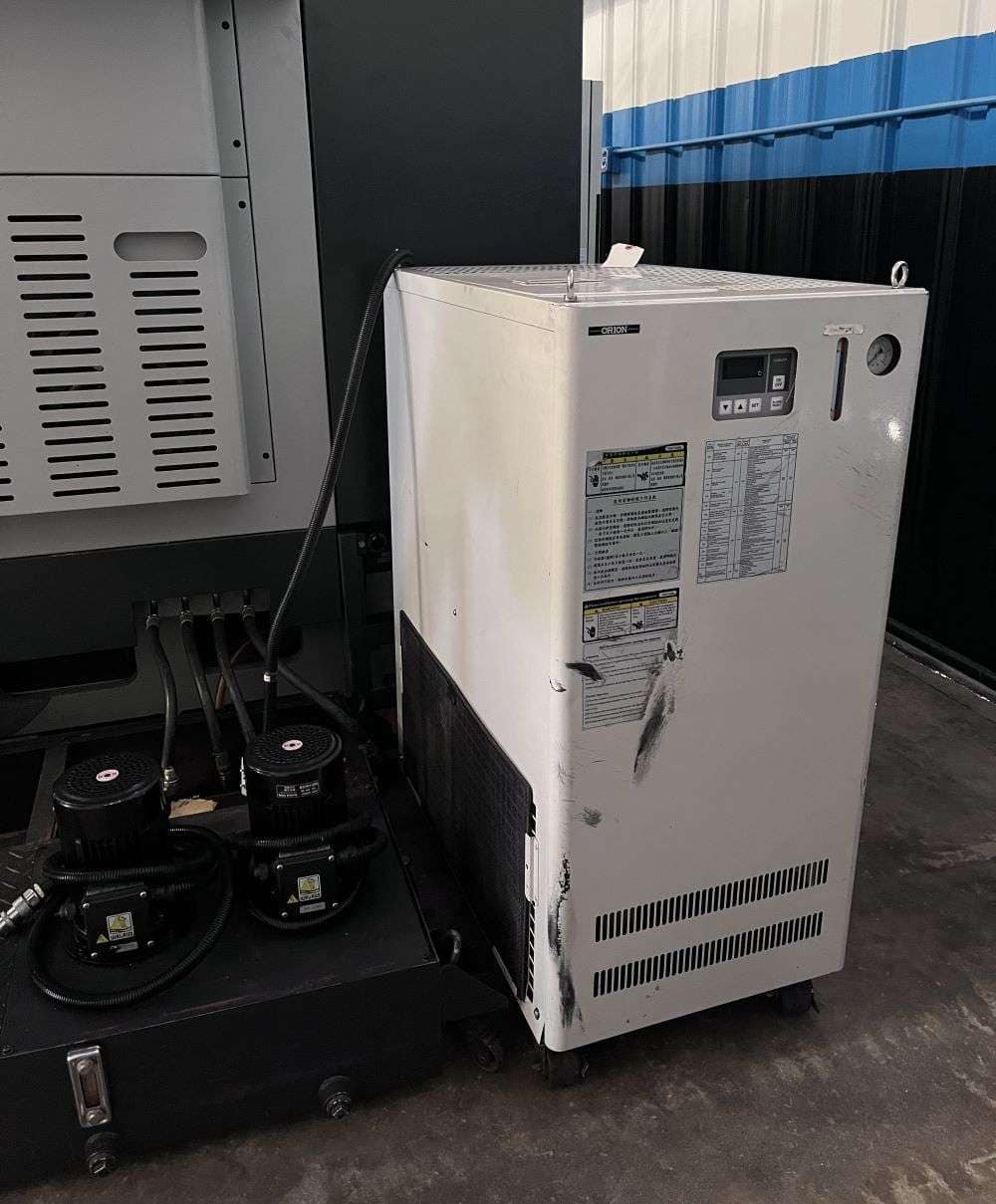

| Spindle Chiller |
| Chip Conveyor |
| (2) Live Tool Holders ( (1) Axial (1) Radial) |
| Capacity: |
|---|
| Max Turning Diameter : 7.48″ |
| Max Turning Length: 15.75″ |
| Max Bar Capacity : 2.0″ |
| Travels: |
|---|
| X1 Axis Travel Upper Turret: 5.94″ |
| X2 Axis Travel Lower Turret : 9.05″ |
| Y1 Axis Travel Upper Turret: -/+1.38″ |
| Z1 Axis Travel Upper : 17.32″ |
| Z2 Axis Travel Lower : 17.32″ |
| B Axis Travel: 25.59″ ( Sub Spindle ) |
| C Axis: 360° (0.001°) Both Spindle |
| Feedrate: |
|---|
| X1, X2 Axis: 630 IPM Rapid Traverse |
| Y1 Axis: 236 IPM Rapid Traverse |
| Z1, Z2 Axis: 1573 IPM Rapid Traverse |
| B Axis: 1573 IPM Rapid Traverse |
| Spindle: |
|---|
| Main Spindle Bore: 2.40″ |
| Sub Spindle Bore: 2.40″ |
| Main Spindle Nose: A2-5 |
| Sub Spindle Nose: A2-5 |
| Main Spindle Speed: 6000 RPM |
| Sub Spindle Speed: 6000 RPM |
| Main Spindle Power: 20 HP |
| Sub Spindle Power: 20 HP |
| Turret: |
|---|
| Upper Turret Capacity: 16 Stations |
| Lower Turret Capacity: 16 Stations |
| Live Milling Speed: 4000 RPM |
| Live Milling Motor: 7 HP |
| Tool Size: 1″ (For square tool and round tool) |
| Tool Holder Type : BMT 65 |
| Turret Index Time (Tool to Tool): 0.2 sec |
| General: |
|---|

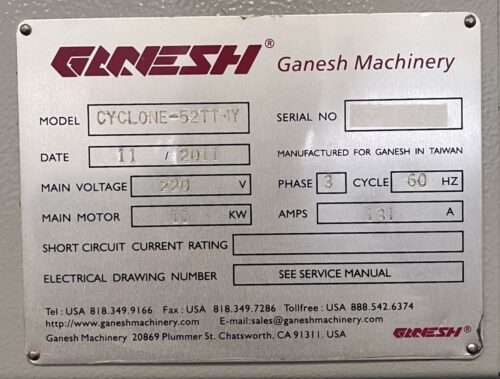

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 150″ x 105″ x 90″ High |
| Machine Weight: 22,500 lbs Approx. |
