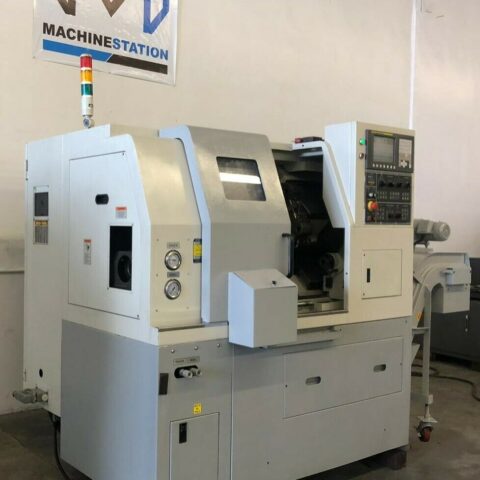

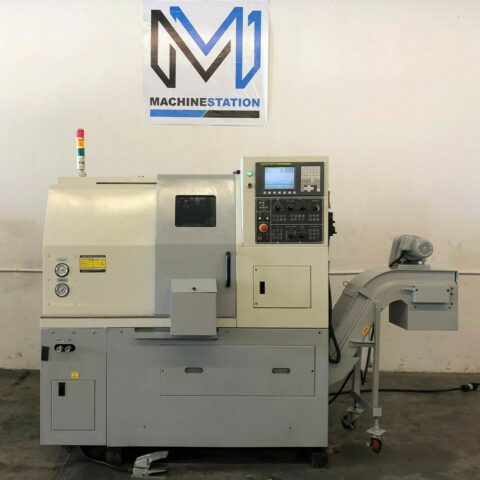

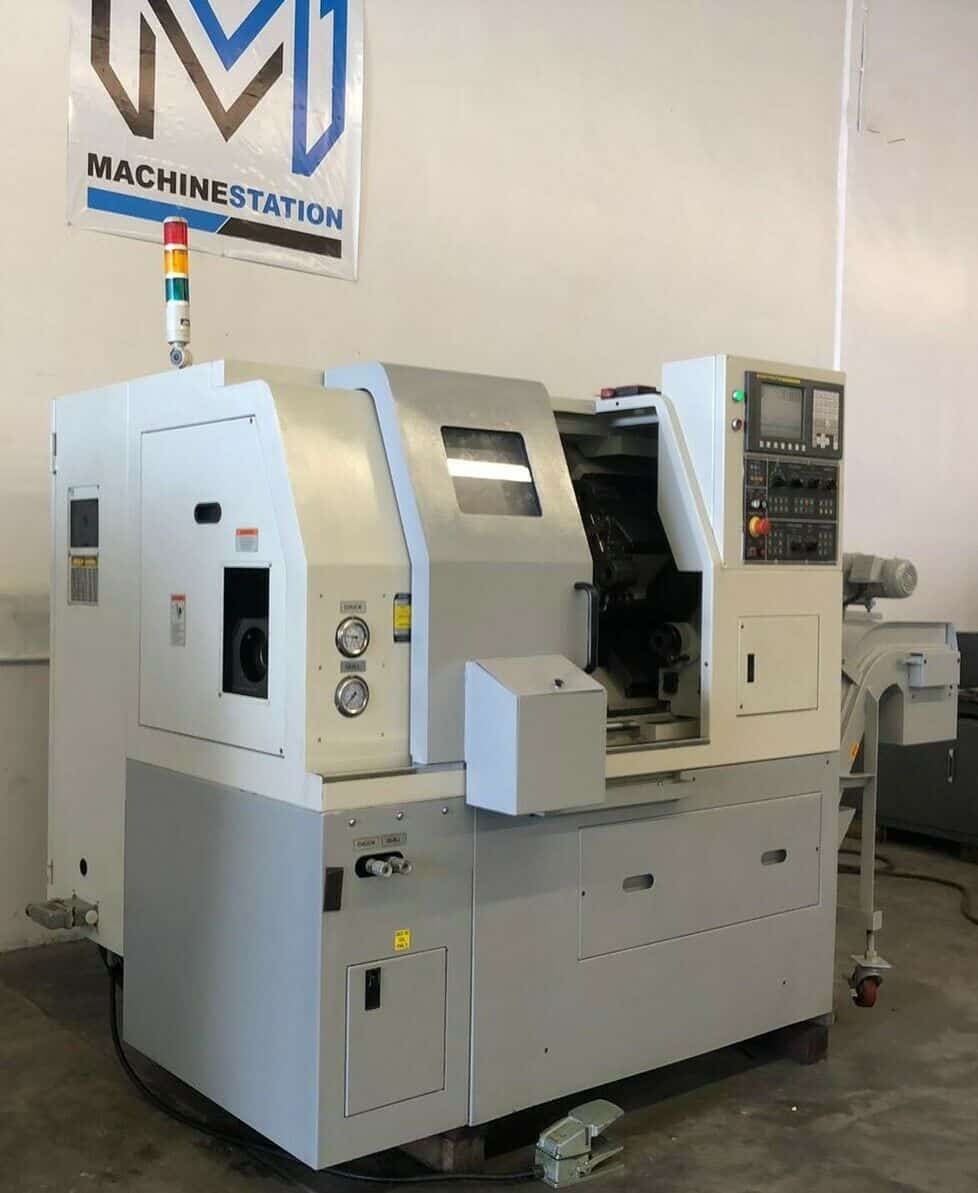

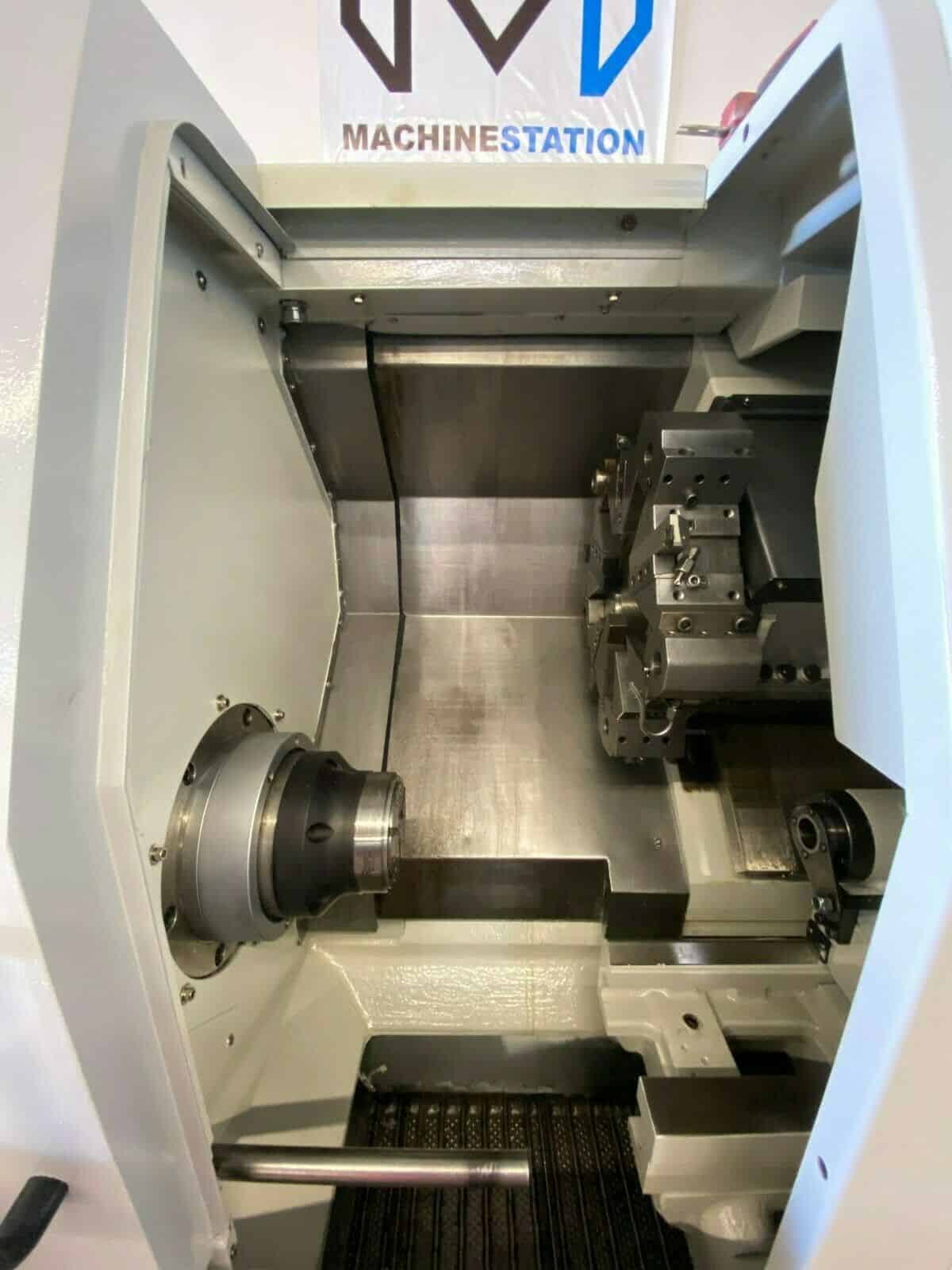

GANESH KSL-5210T CNC TURNING CENTER

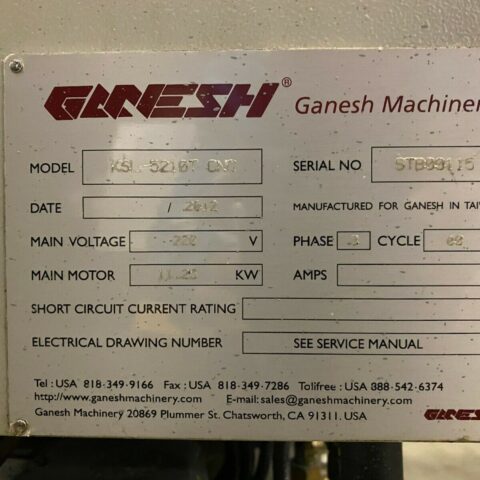

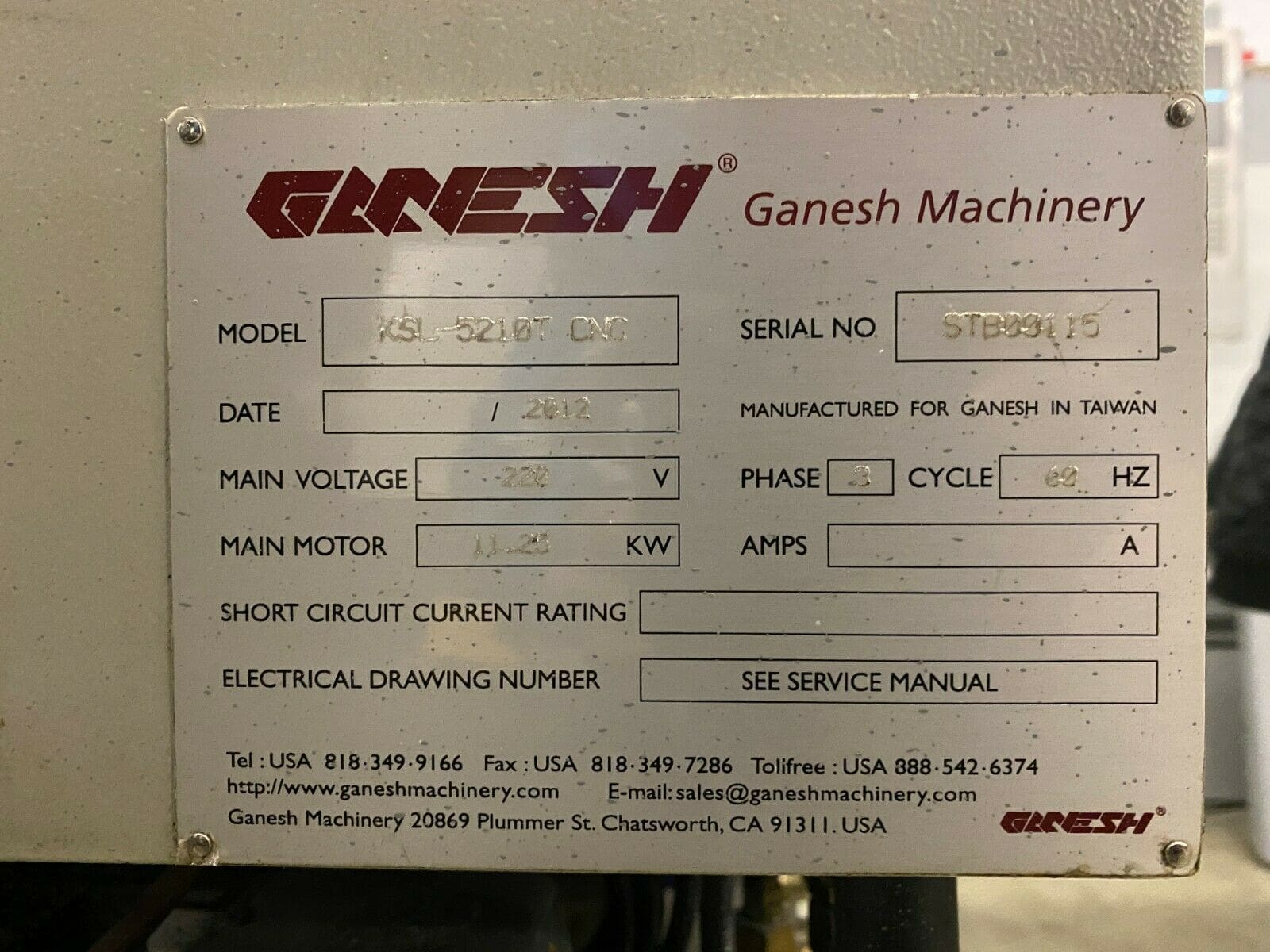

MakeGanesh
Model No.KSL-5210T
Year2012
Serial #00115
ConditionVery Good
  • GANESH KSL-5210T Equipped With:

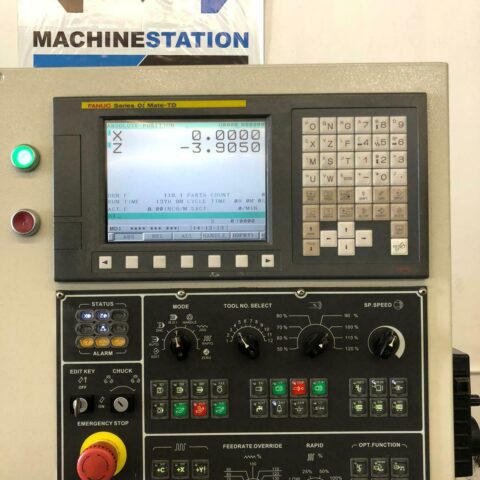

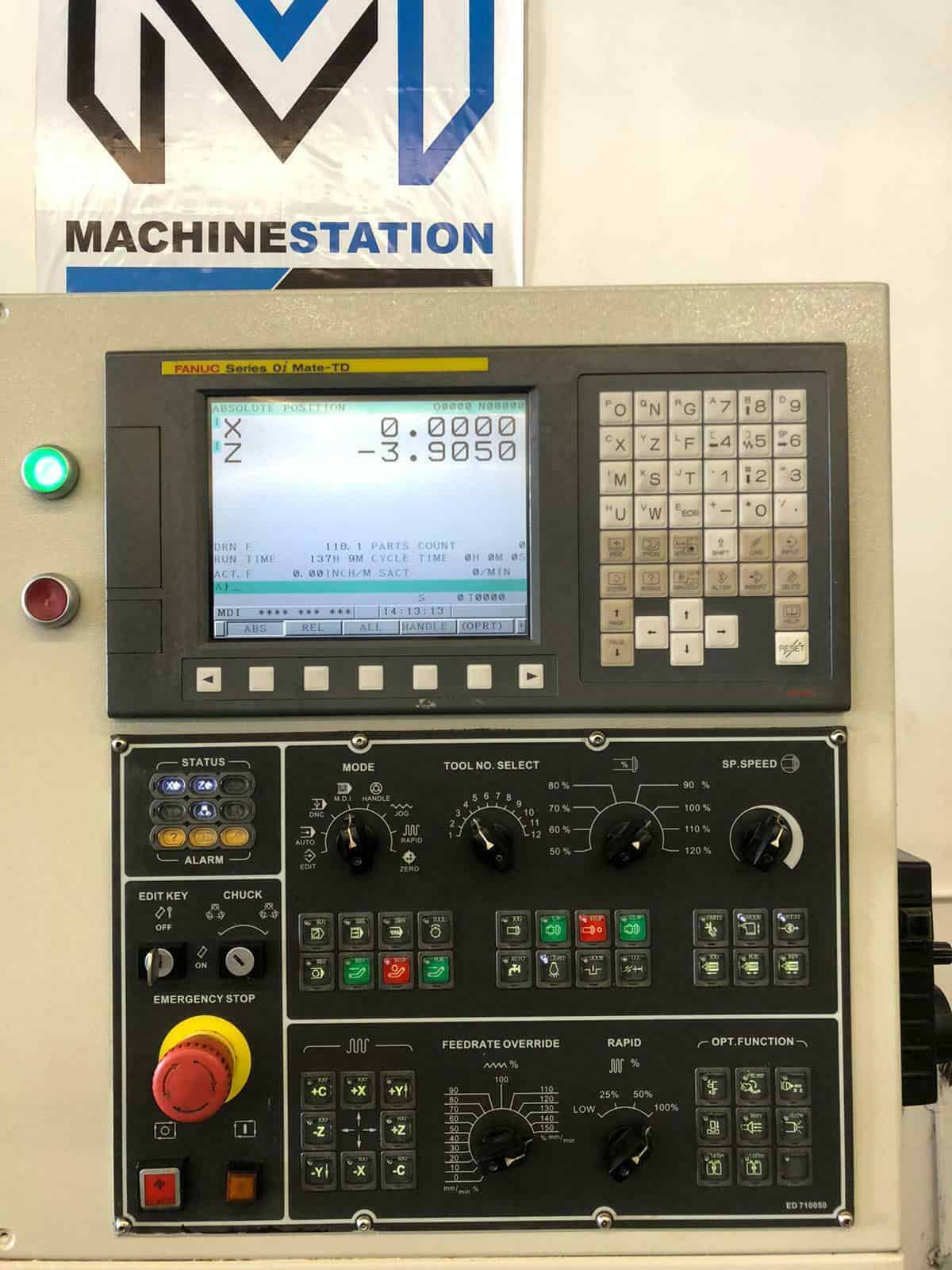

  • Fanuc 0i-TD series CNC Control

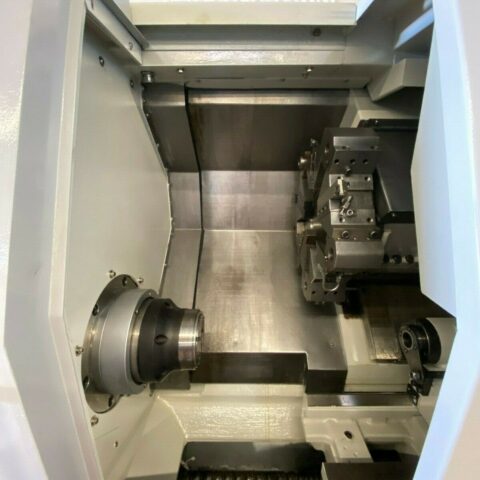

  • Box Way construction

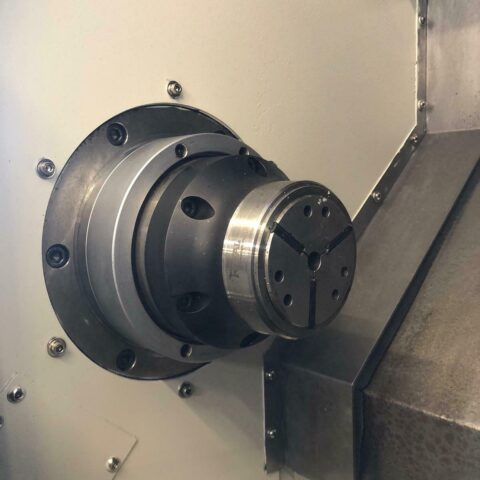

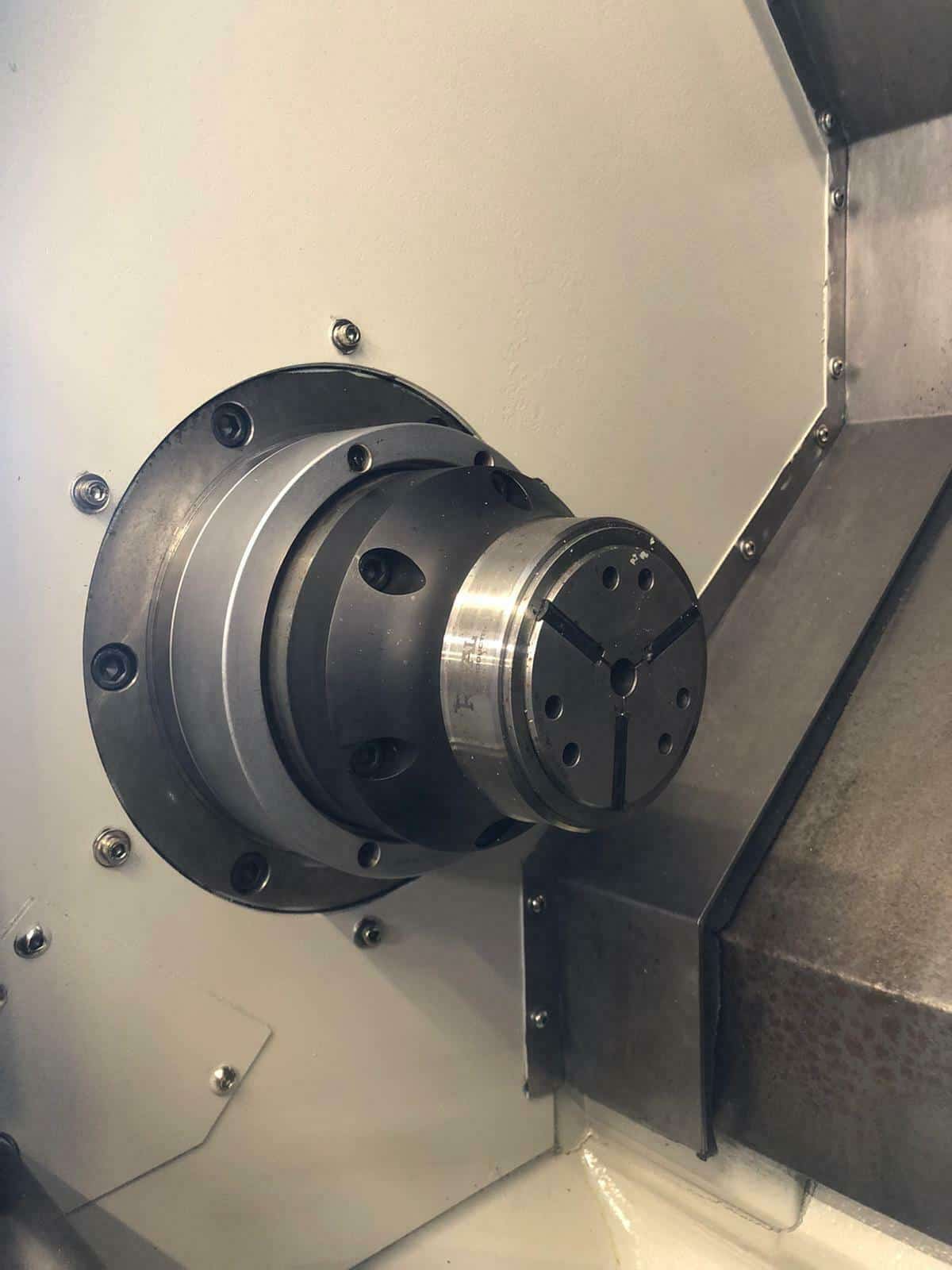

  • Royal Hydraulic Collet Chuck ( 8″ Capable )
  • A2-6 Spindle Nose
  • MPG Hand Controller
  • USB Drive
  • Hydraulic Tailstock and Quill
  • PCMCIA Card Slot
  • RS-232 & LAN connectivity
  • Coolant System
  • Barfeed Interface

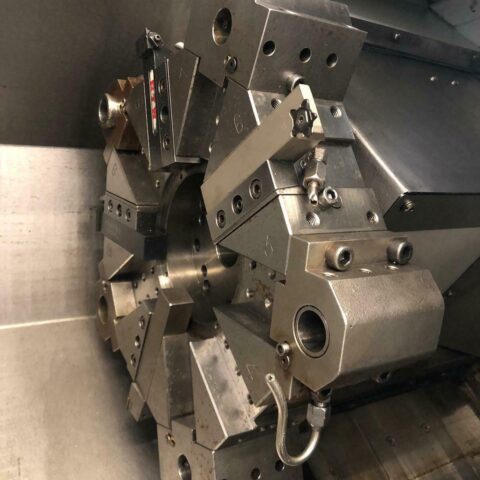

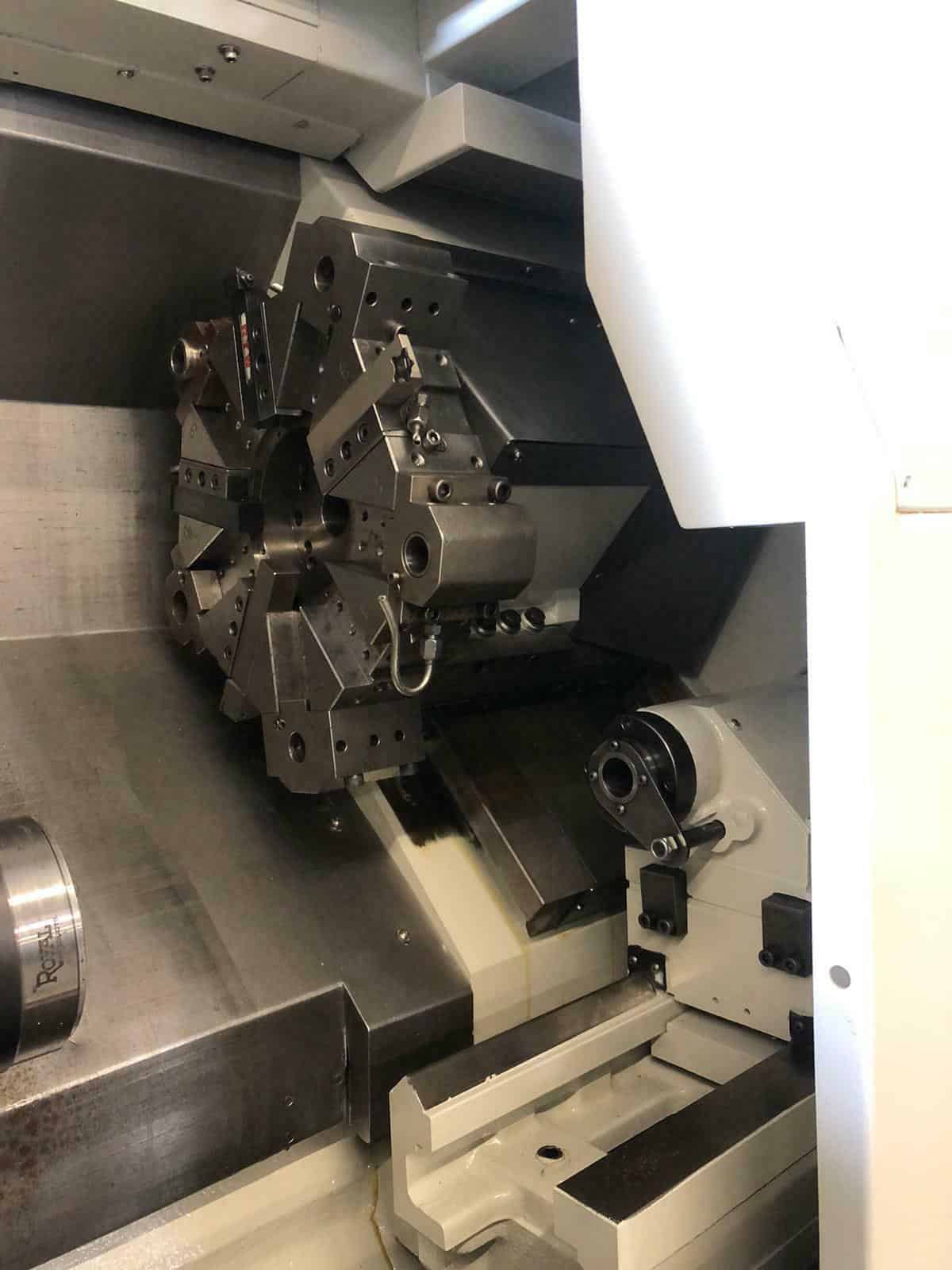

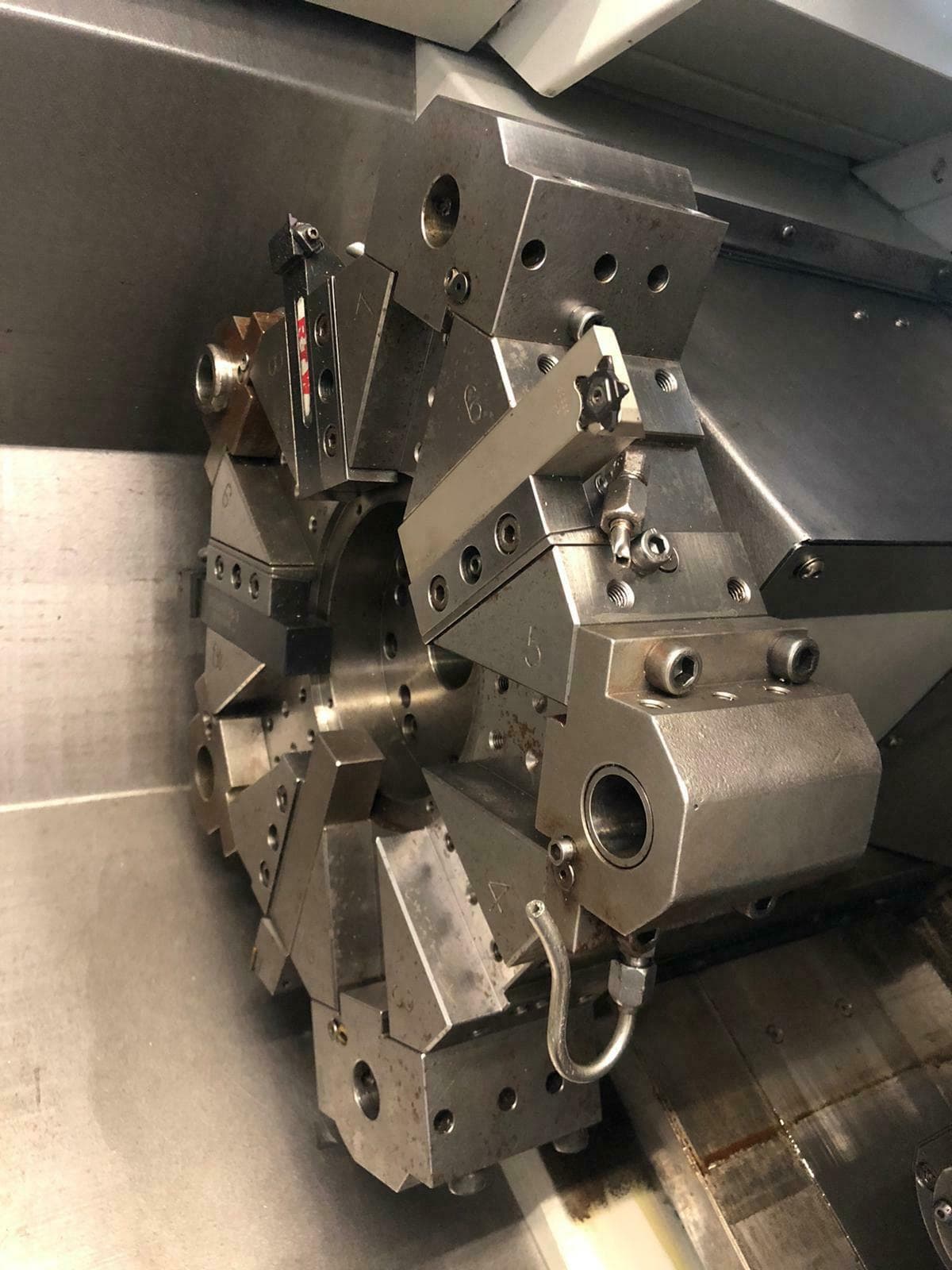

  • 10 Station Automatic Turret
  • Foot Switch

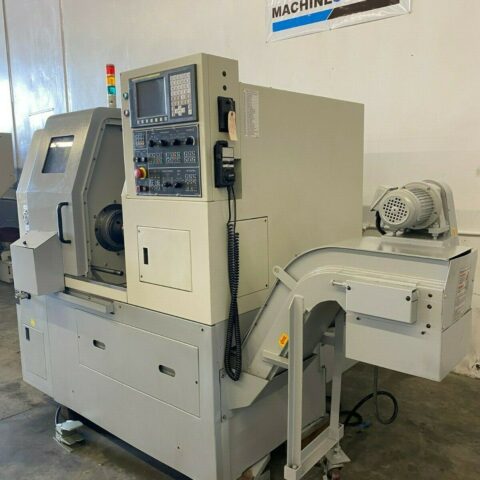

  • Chip Conveyor
  • Manuals
  • GANESH KSL-5210T Specifications:
  • Capacity:
  • Max Turning Diameter: 11.0″
  • Max Turning Length: 11.8″
  • Max Bar Capacity: 1.75″
  • Swing Over Bed: 18.0″
  • Distance Between Centers: 20.0”
  • Travel:
  • X Axis Travel: 6.3″
  • Z Axis Travel: 13.0″
  • Rapid Traverse X Axis: 787 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle:
  • Spindle Nose: A2-6
  • Spindle Bore: 2.0″
  • Spindle Speed: 35 – 4500 RPM
  • Spindle Motor: 15hp
  • Turret:
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.15 Second
  • Tailstock:
  • Tailstock Taper: MT-3
  • Tailstock  Quill Dia.: 2.97″
  • Tailstock Quill Travel: 3.15″
  • General:
  • Power: 35 kva, 220v / 3-Phase
  • Overall Dimensions: 160″ x 77″ x 80″ High with Chip Conveyor
  • Weight: 7600 lbs

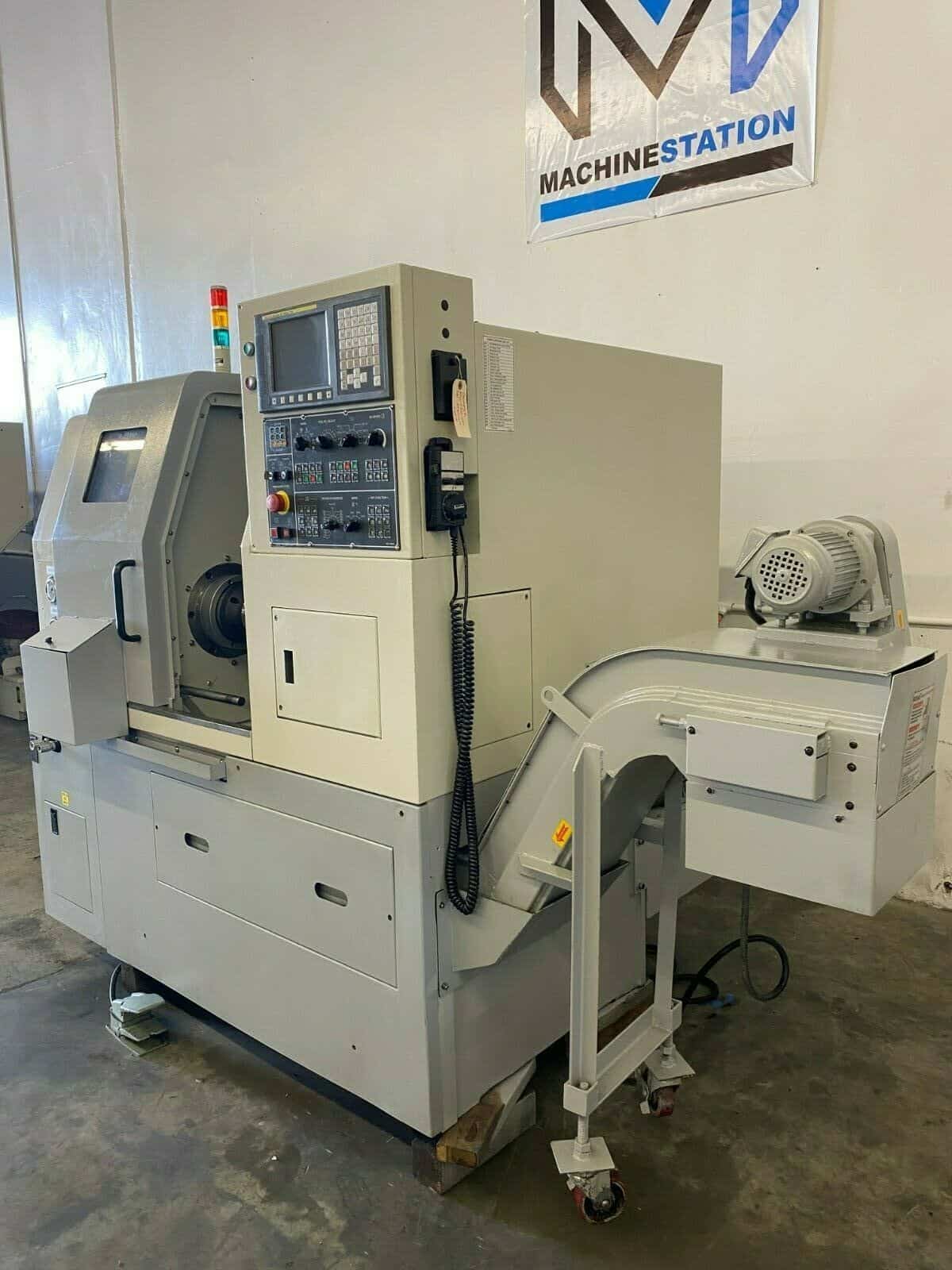

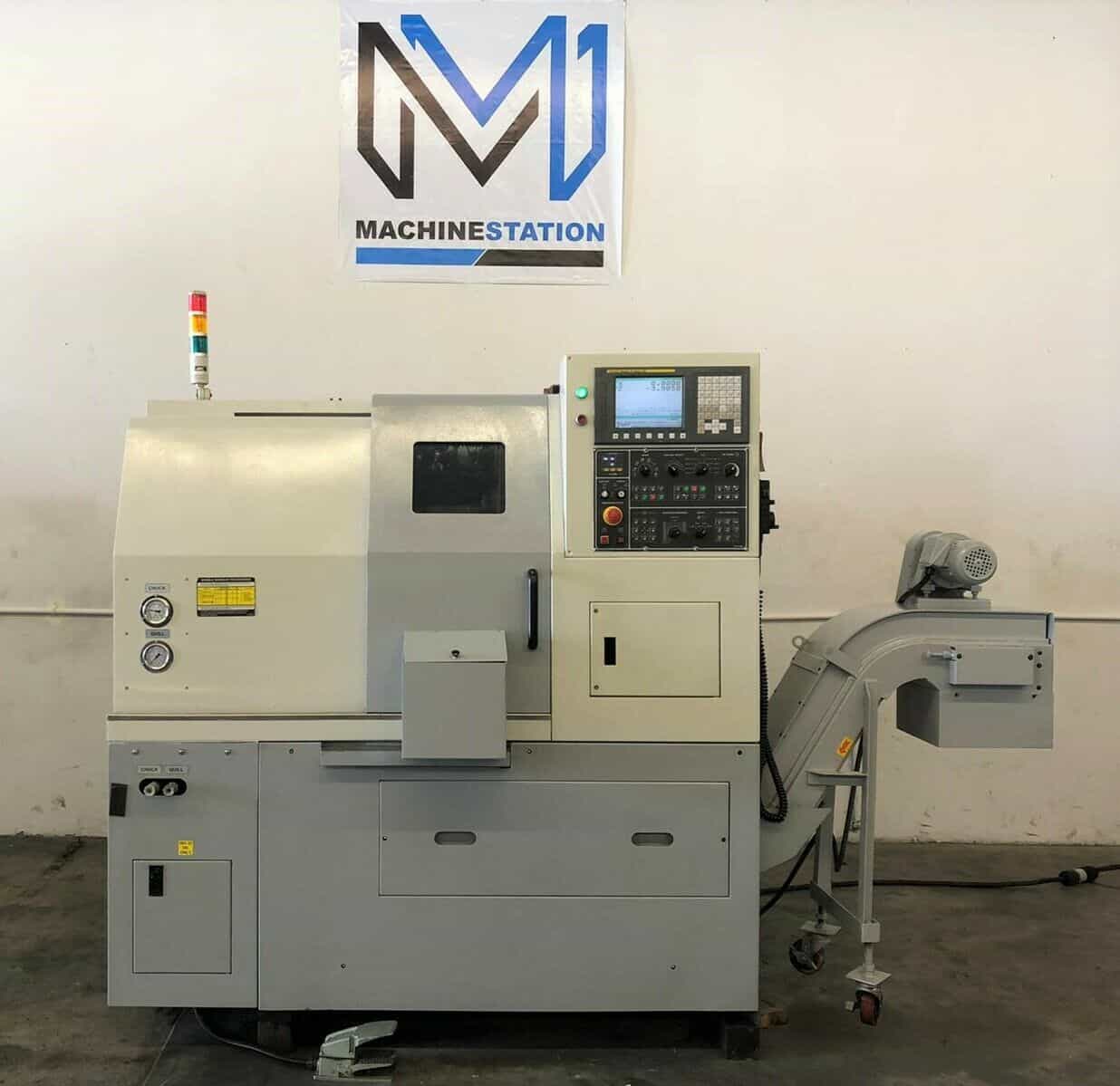

GANESH KSL-5210T Comes as shown in pictures..
