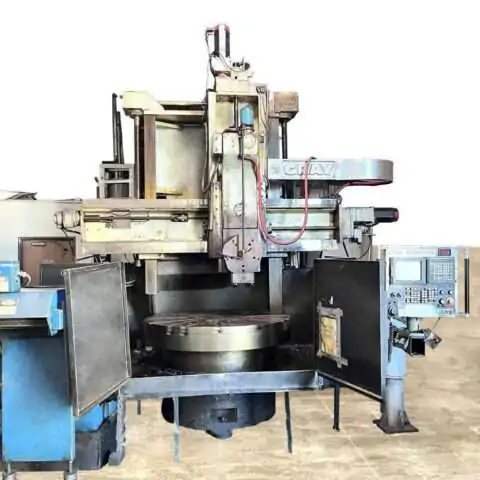

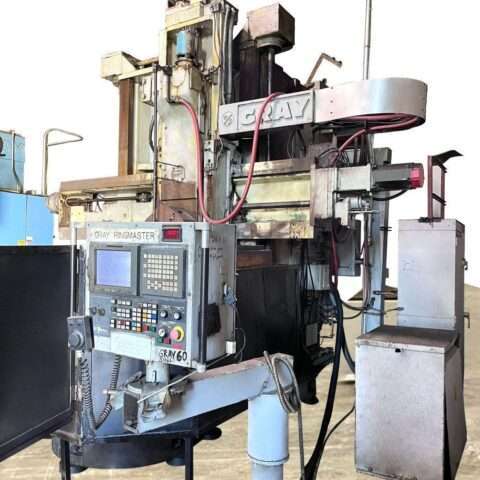

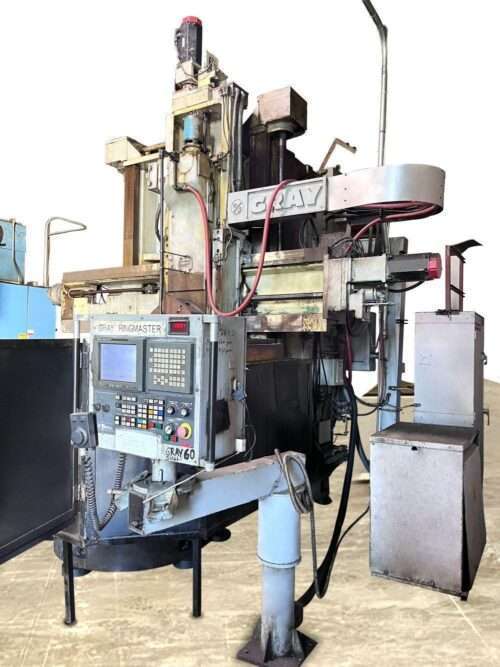

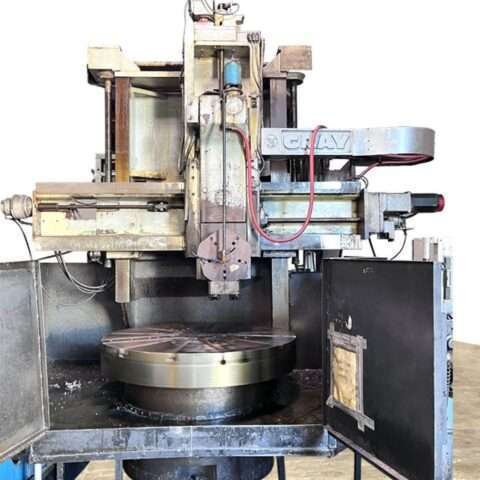

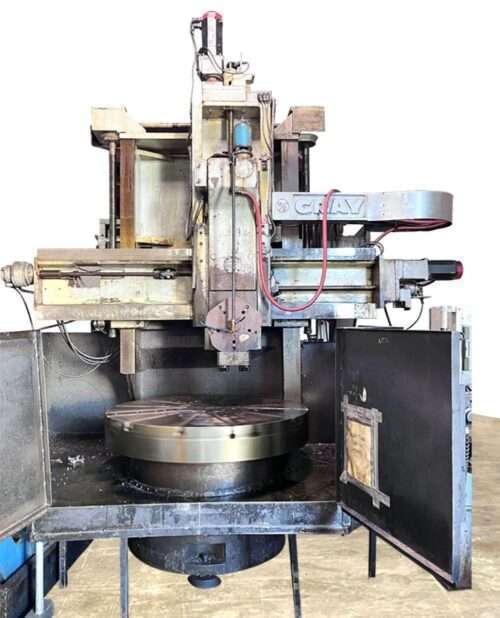

Gray Ringmaster 60″ CNC Vertical Boring Turning Center

$607 per month

1 in stock
Location: Lake Elsinore, CA
SKU: 112332
Make/Model: GRAY RINGMASTER 60″
Video:
SKU: 112332

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

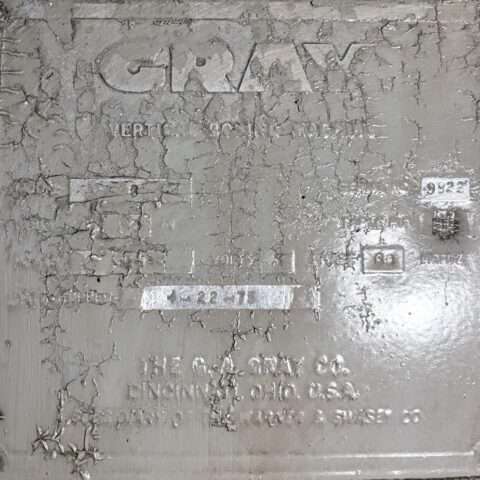

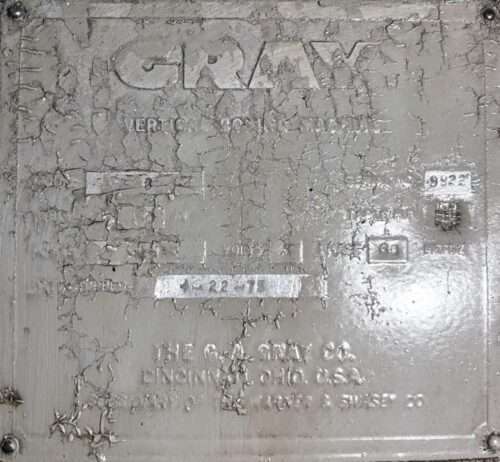

Make: GRAY
Model: RINGMASTER 60″
Year:
Condition: Used – Good



Equipped With:

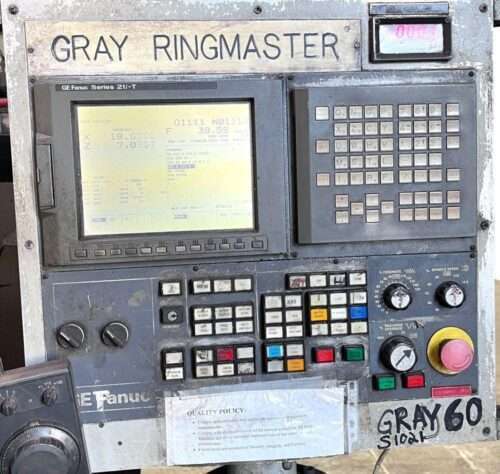

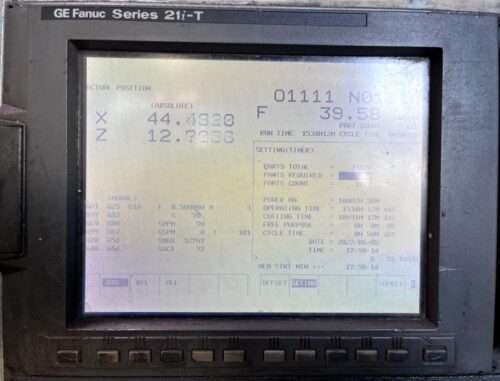

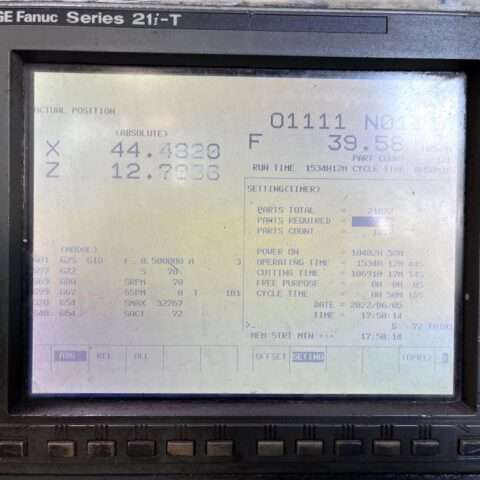

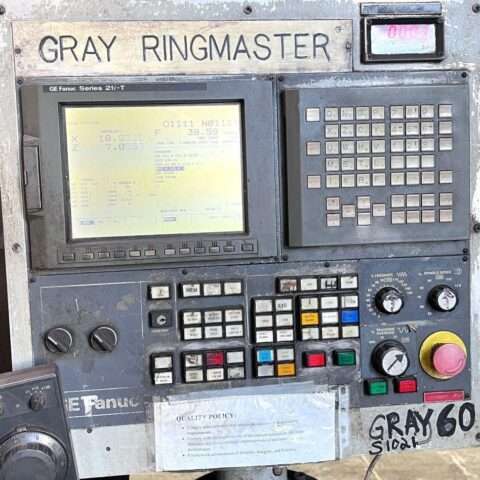

Fanuc 21i-T CNC Control

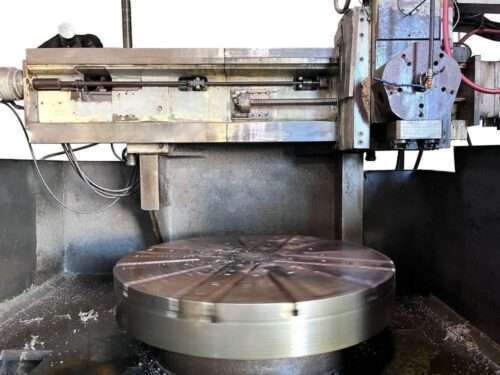

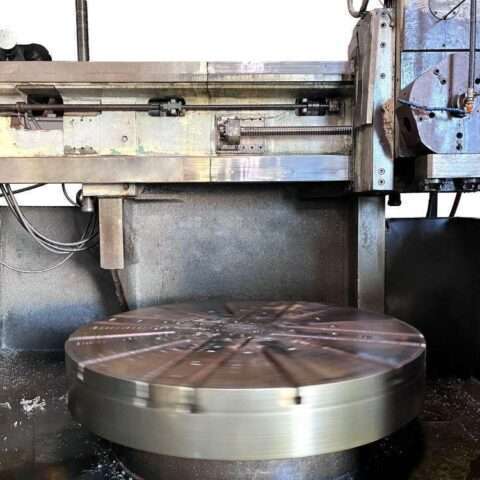

60″ 4-Jaw Chuck
5 Station Turret
75 HP Spindle Motor
Kennametal Tool Holding System KM-80 Tool Holders

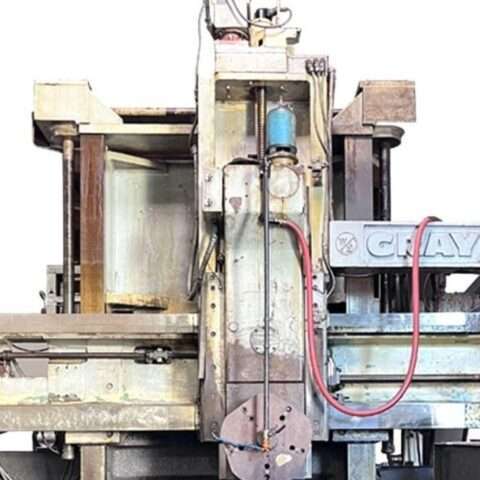

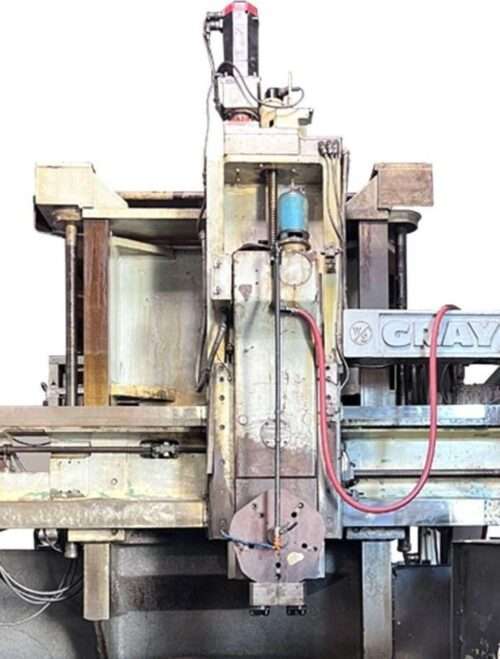

Vertical Ram
MPG Control
RS-232 Port
Coolant System
Chip Conveyor



Capacity:
Max Turning Diameter: 60″
Max Turning Height: 62″
Max Height Under Rail: 70″
Vertical Ram Travel: 36″
Vertical Turret Travel on Rail: 30″
Horizontal Turret Travel on Rail: 56″
Max Swing: 64″
Table Load Capacity: lbs
Table Speeds: 4 – 22 – 75 RPM



General:
Power Source: 220 V, Three Phase, 60 Hz
Dimensions: 154″ x 156″ x 162″ High
Weight : 40,000 lbs Approx.
Make

Model

RINGMASTER 60"

Categories

Vertical Machining Center
