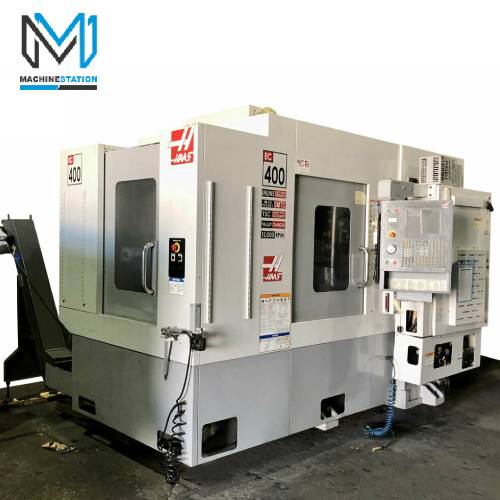

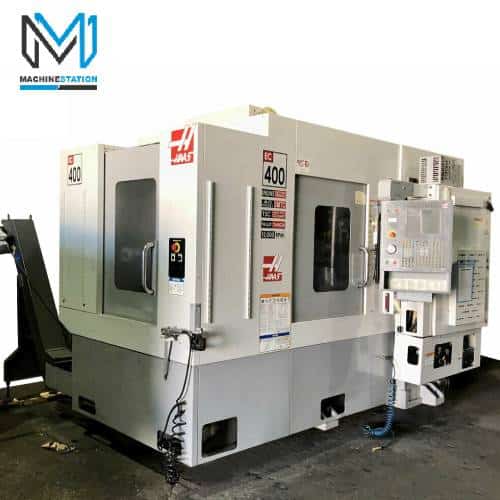

| SKU: | 2296 |
| Make: | Haas |
| Model: | EC-400-4AX |
| Serial: | 51696 |
| Equipped With: |
|---|
| 12000 RPM Inline Direct Drive Spindle |
| Through Spindle Coolant |
| VQCPS Probing System |
| 4th Axis Dual Pallet Changer |
| 40 Tools Side Mount Tool Changer |
| Expanded Program Memory |
| Remote Jog Handle |
| Rigid Tapping |
| High Speed Machining |
| Advanced Tool Management |
| Power Failure Detection Module |
| User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling |
| Brush-type servo drive motors on all axis |
| Programmable coolant |
| Telescopic way covers |
| Chip Conveyor |
| Tool Shelves |
| High Pressure Coolant system |
| Pallet: |
|---|
| Dual Pallet Changer |
| Pallet Size: 15.75″ X 15.75″ |
| Pallet Change Time: 8 Seconds |
| Weight on Table: 1000 lbs |
| Spindle: |
|---|
| Taper Size: CAT 40 |
| Speed Range: 0 – 12000 RPM |
| Spindle Power: 30 HP |
| Max Torque: 90ft-lb @ 2000RPM |
| Travels: |
|---|
| X-Axis: 20″ |
| Y-Axis: 20″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 1000 Inch Per Minute |
| Cutting Feed Rates: 710 Inch Per Minute |
| Automatic Tool Changer: |
|---|
| Capacity: 40 + 1 |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 6″ |
| Max Tool Length: 16″ |
| Tool Changing Time: 2.1 – 3.7 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Shipping Dimensions: 150″ x 102″ x 95″ High ( Machine ) |
| Chip Conveyor, Coolant Tanks, Coolant systems Dimensions extra |
| Weight: 20,000 lbs |
