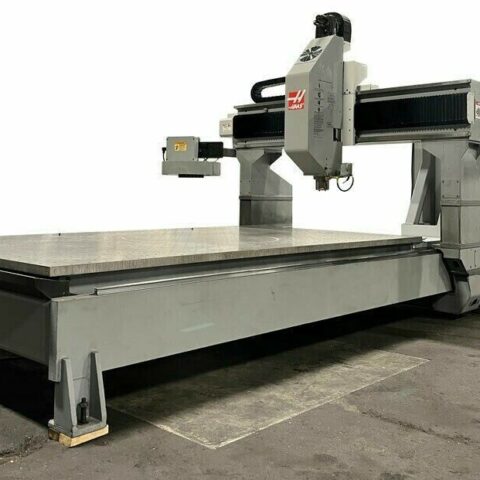

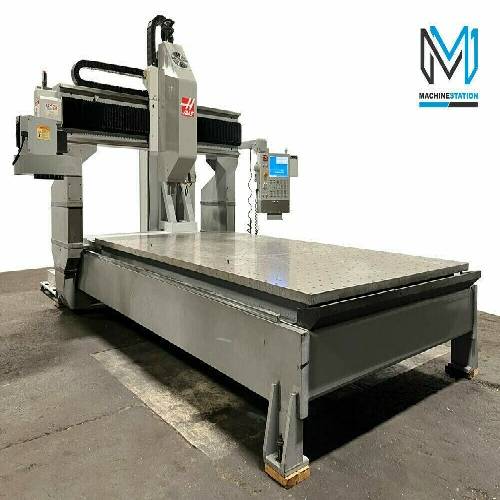

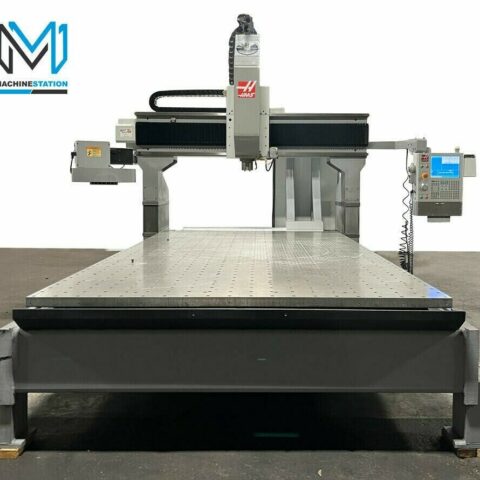

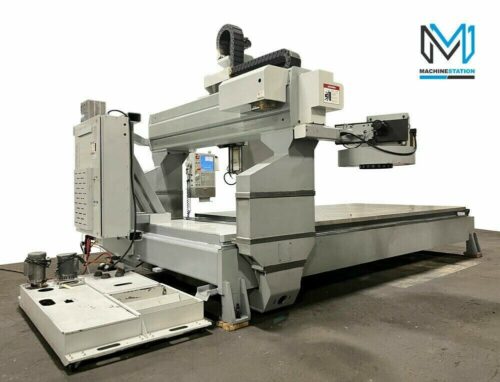

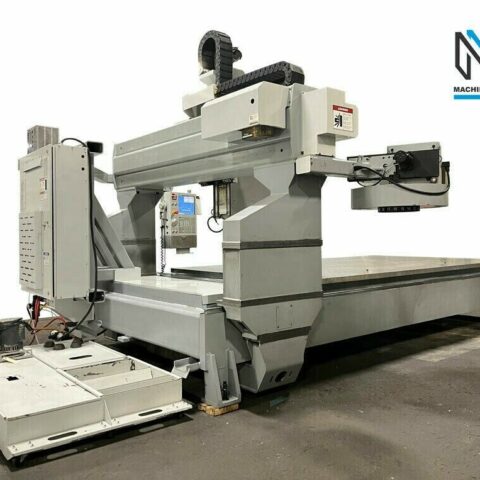

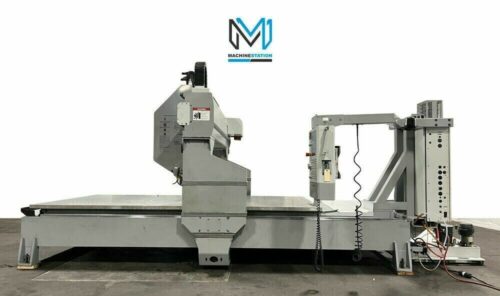

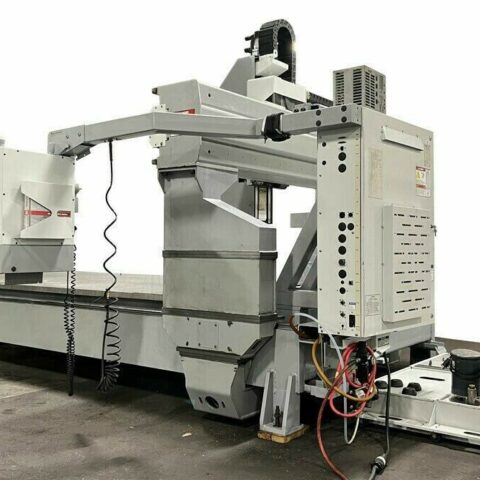

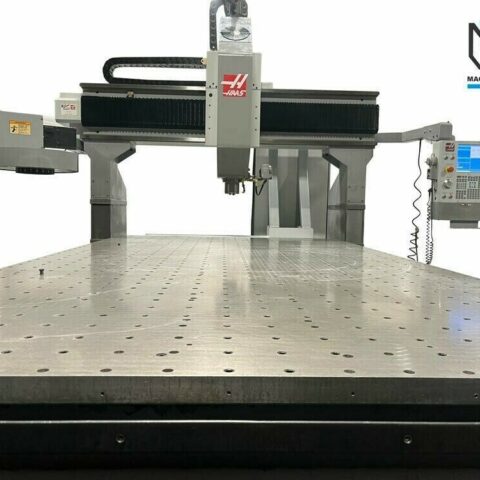

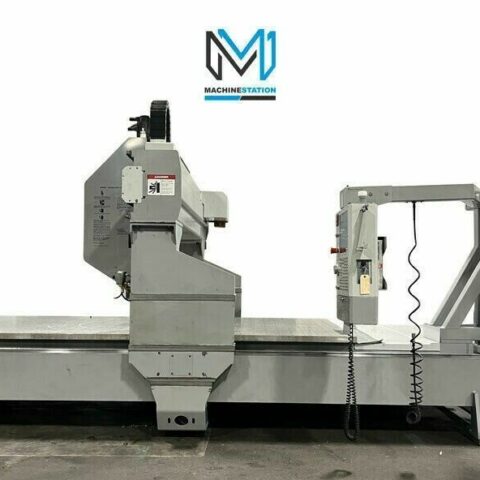

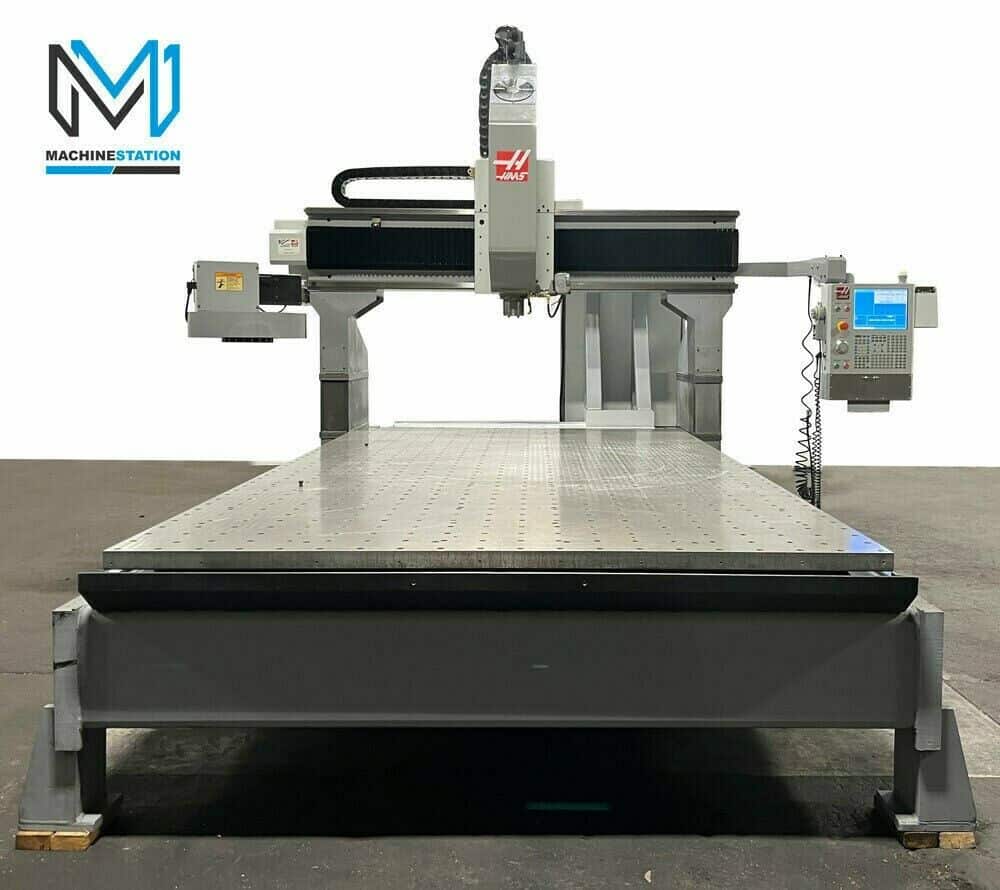

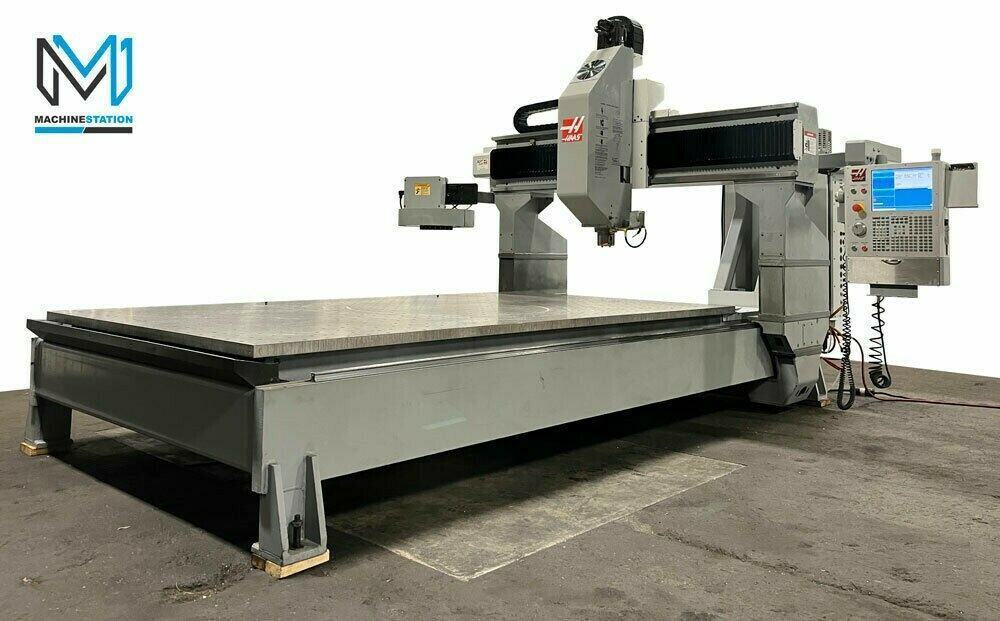

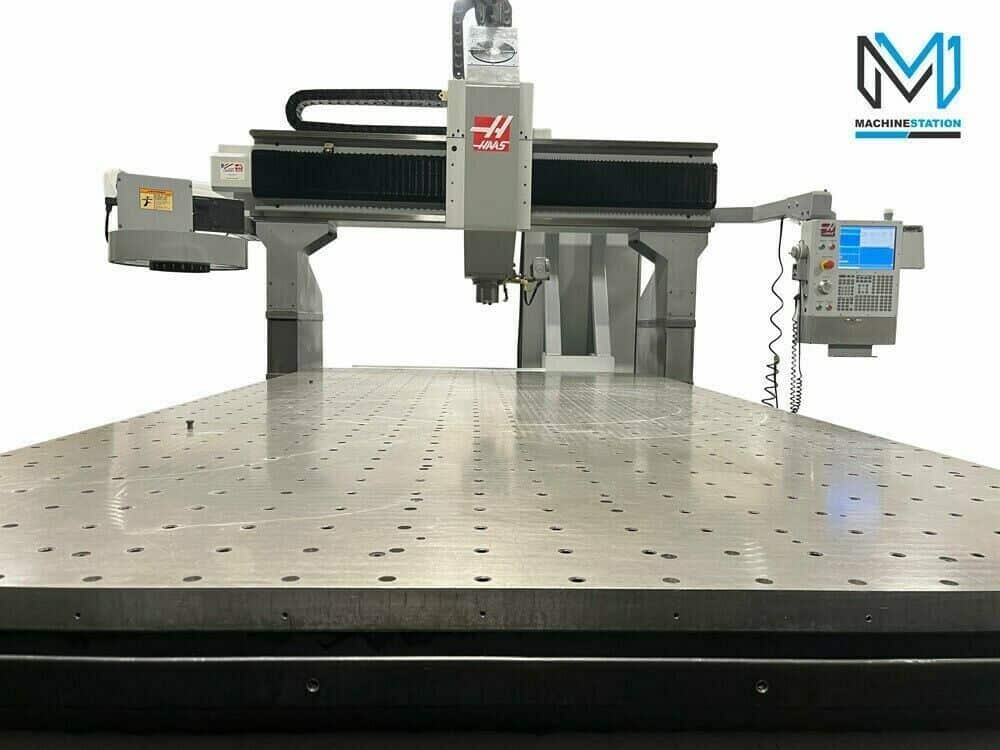

Haas GR-712 CNC Gantry Router Bridge Mill

$122,400.00

Specification
Share

Description

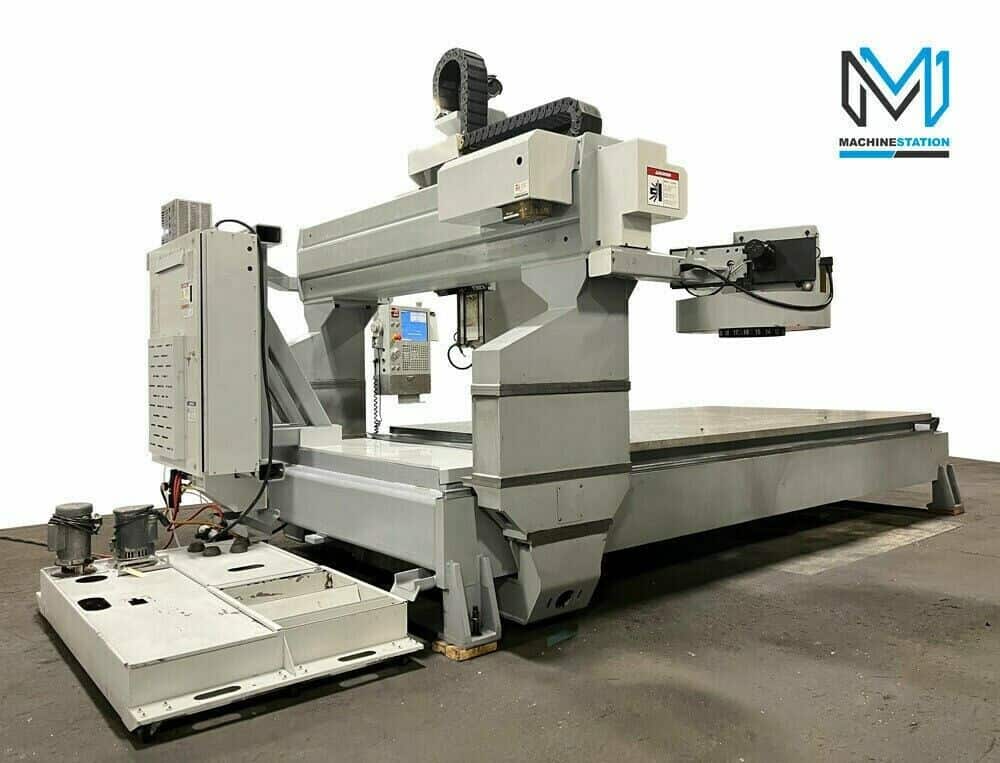

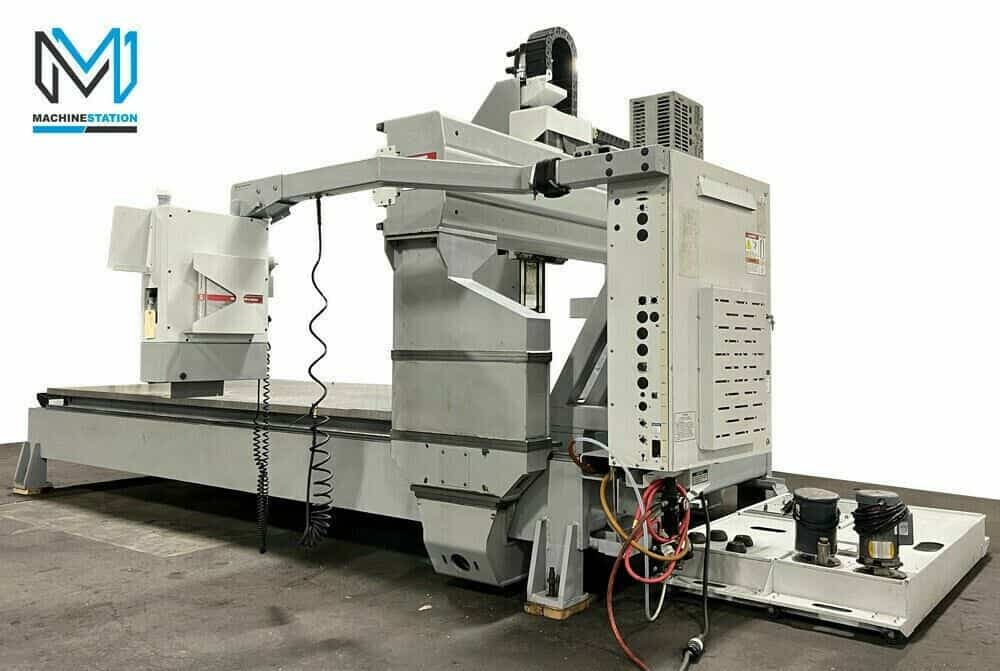

HAAS GR-712CNC GANTRY ROUTER BRIDGE MILL
SKU 2299
Make Haas
Model No. GR-712
Serial No.: 49947
Year 2007
Control Year 2019
Condition Very Good
Run Time 8394 Hours Only
Replacement Cost as Equipped: over $225,000.00
  • Features:

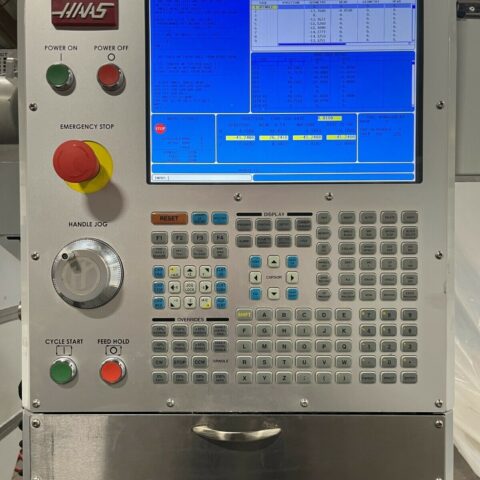

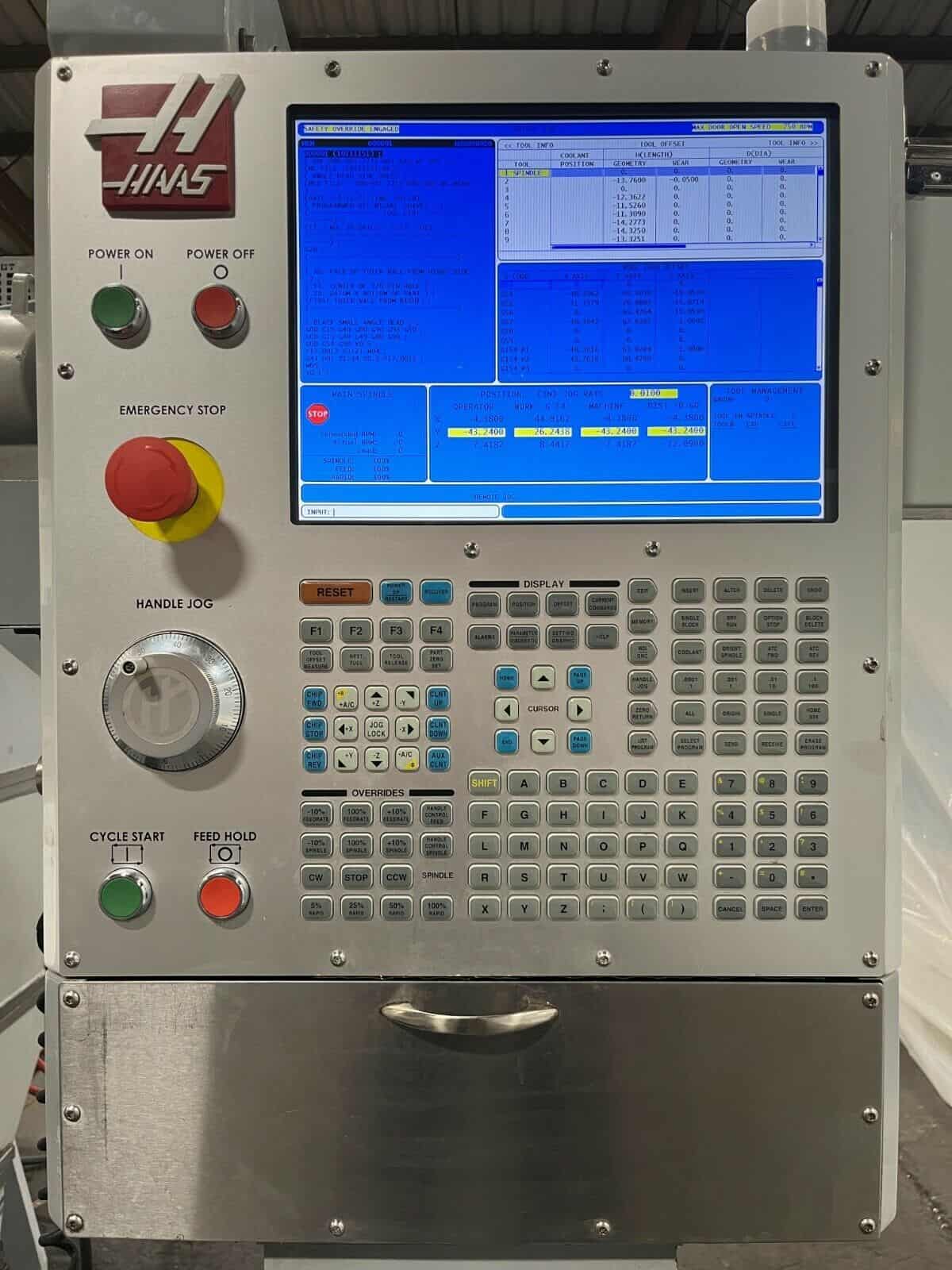

  • Haas CNC Control (upgraded in 2019)
  • High Speed Machining
  • 4th Axis Ready (Upgrade Value $2995)
  • 24″ Extended z axis (Upgrade Value $29,295)
  • 15000 RPM Spindle (Upgrade Value $10,800)
  • Rigid Tapping (Upgrade Value $1695)

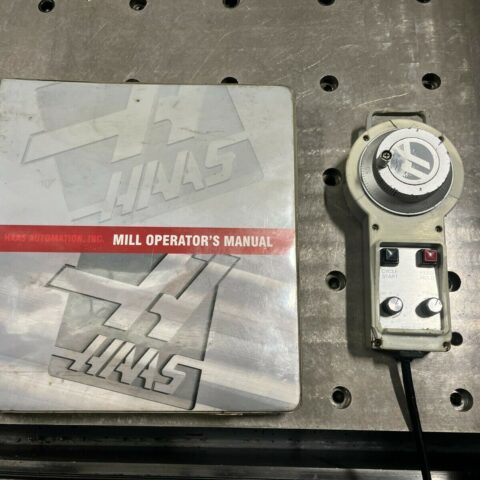

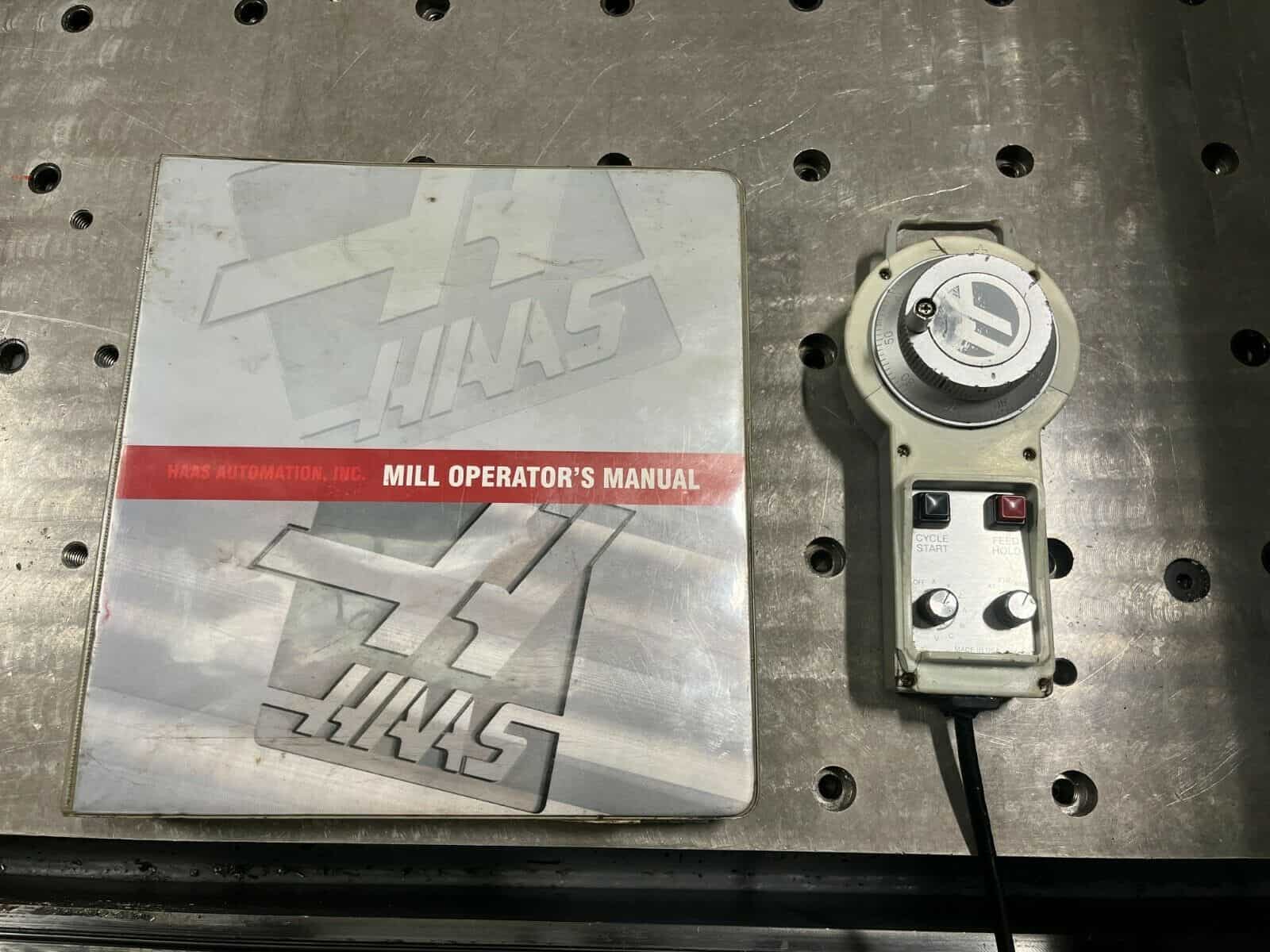

  • Remote Jog Handle
  • Advance Tool Management
  • Extended Memory (16 MB)

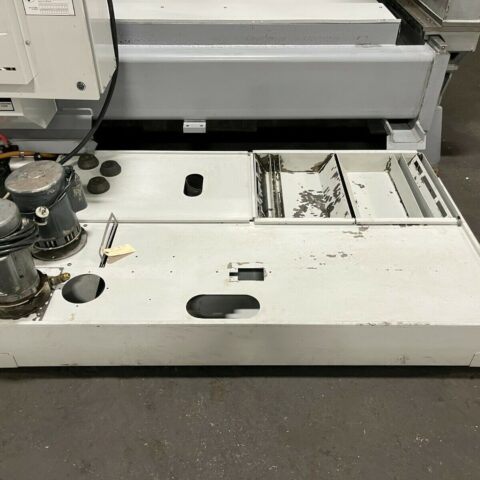

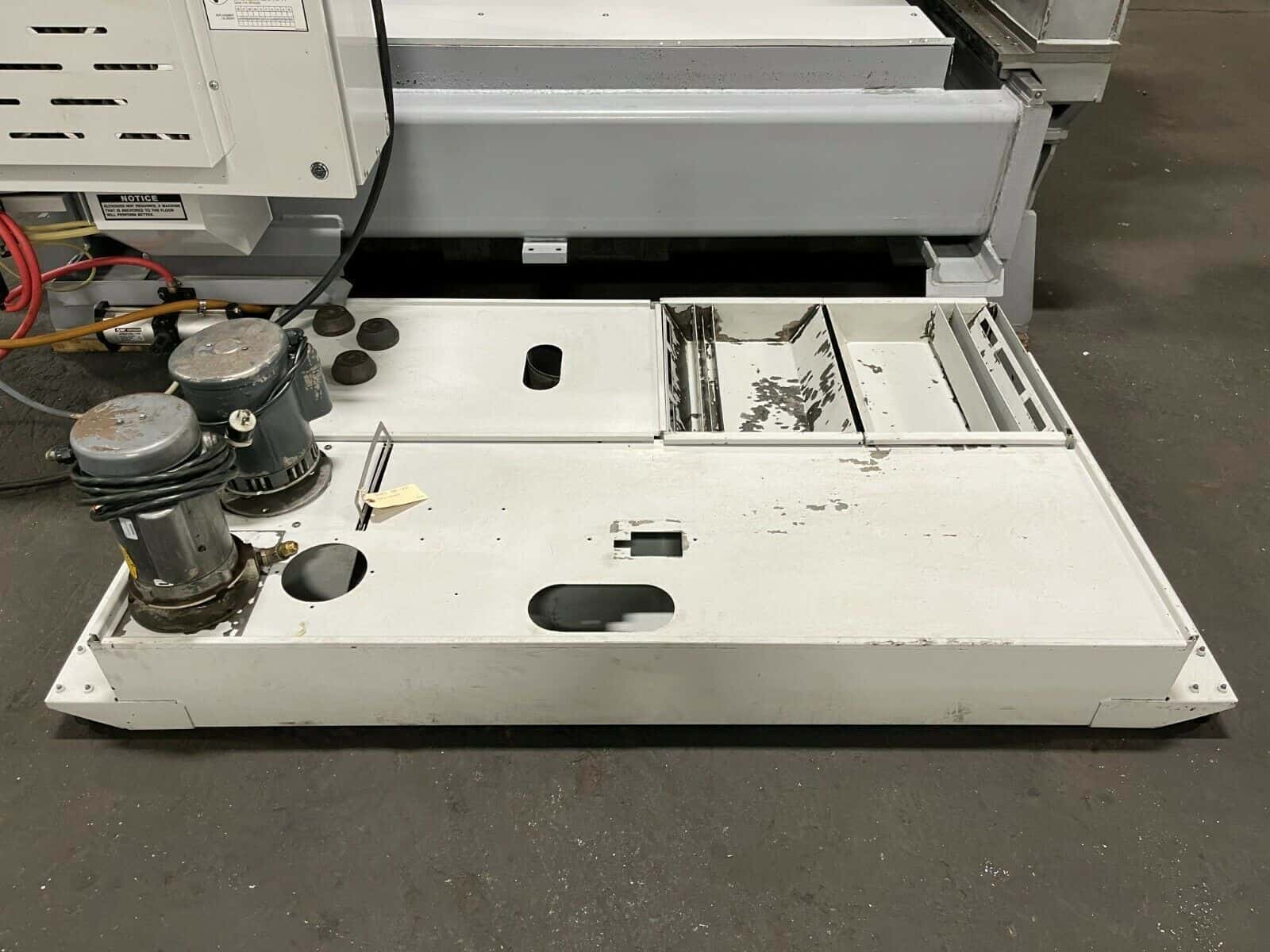

  • Coolant Tanks
  • Specifications:
  • Travels:
  • X-Axis: 145″
  • Y-Axis: 85″
  • Z-Axis: 35″
  • Spindle Nose to Table (Min.- Max.): 2.5″ – 33.5″
  • Table:
  • Length: 144″
  • Width: 72″
  • Between Column 86″
  • Max Weight on Table: 6000 lbs
  • Feed Rates:
  • Cutting Feed Rates: 800 Inch per Minute
  • Rapid Traverse Rates:
  • X Axis: 800 Inch Per Minute
  • Y Axis: 2100 Inch Per Minute
  • Z Axis: 1100 Inch Per Minute
  • Spindle:
  • Taper Size: 40
  • Speed Range: 15000 RPM
  • Spindle Power: 15 HP
  • Max Torque: 24ft-lb @ 1500 RPM

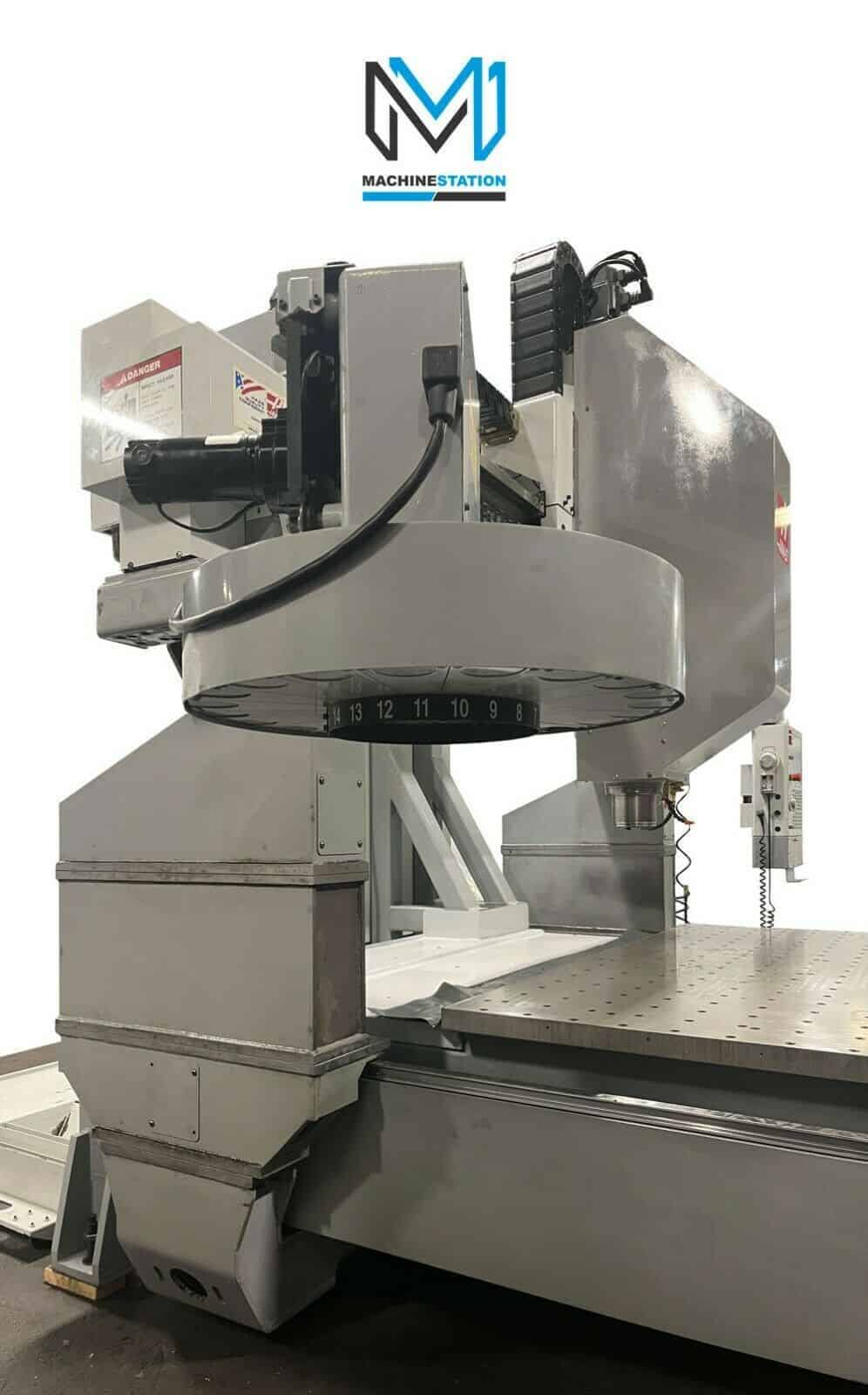

  • Automatic Tool Changer:
  • Capacity: 20
  • Max Tool Weight: 12 lbs
  • Max Tool Dia: 3.5″
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 226″ x 137″ x 116″ High
  • Weight: 24000 lbs
