Haas HL-6 CNC Long Bed Turning Center

Haas HL-6 CNC Long Bed Turning Center

Out of stock

This machine is in good running condition. It is equipped with 15″ Chuck, Tool Presetter, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition. Please feel free to ask For *VIDEO* and more Pictures.

SKU: 1599 Category:

Description

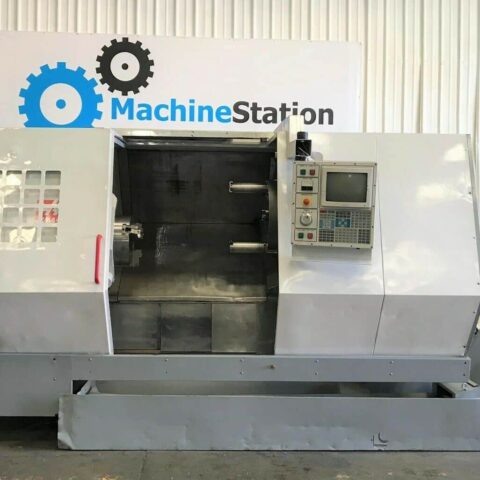

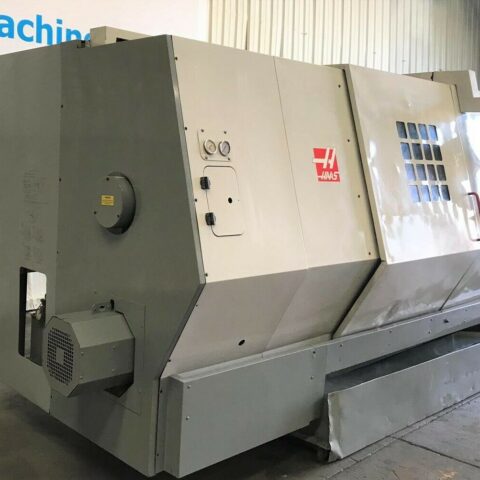

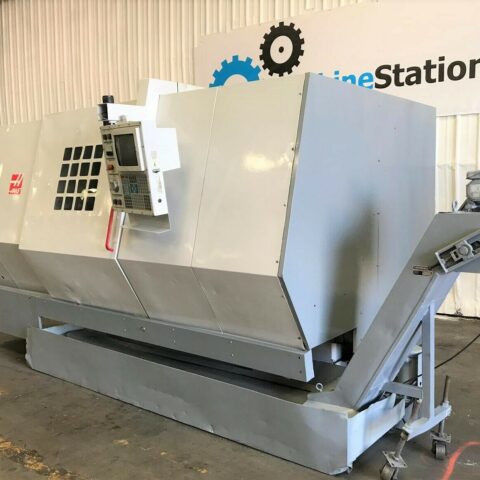

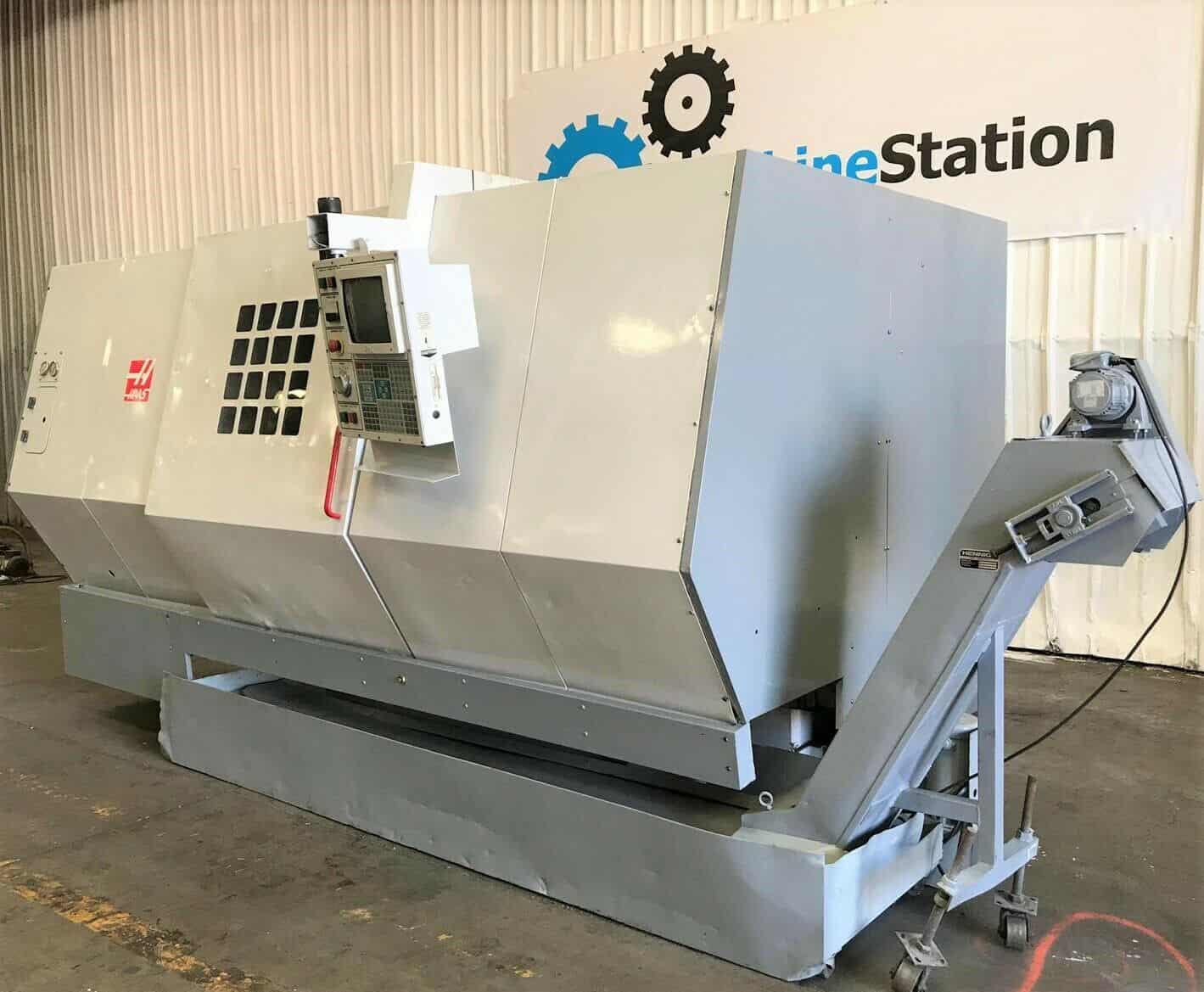

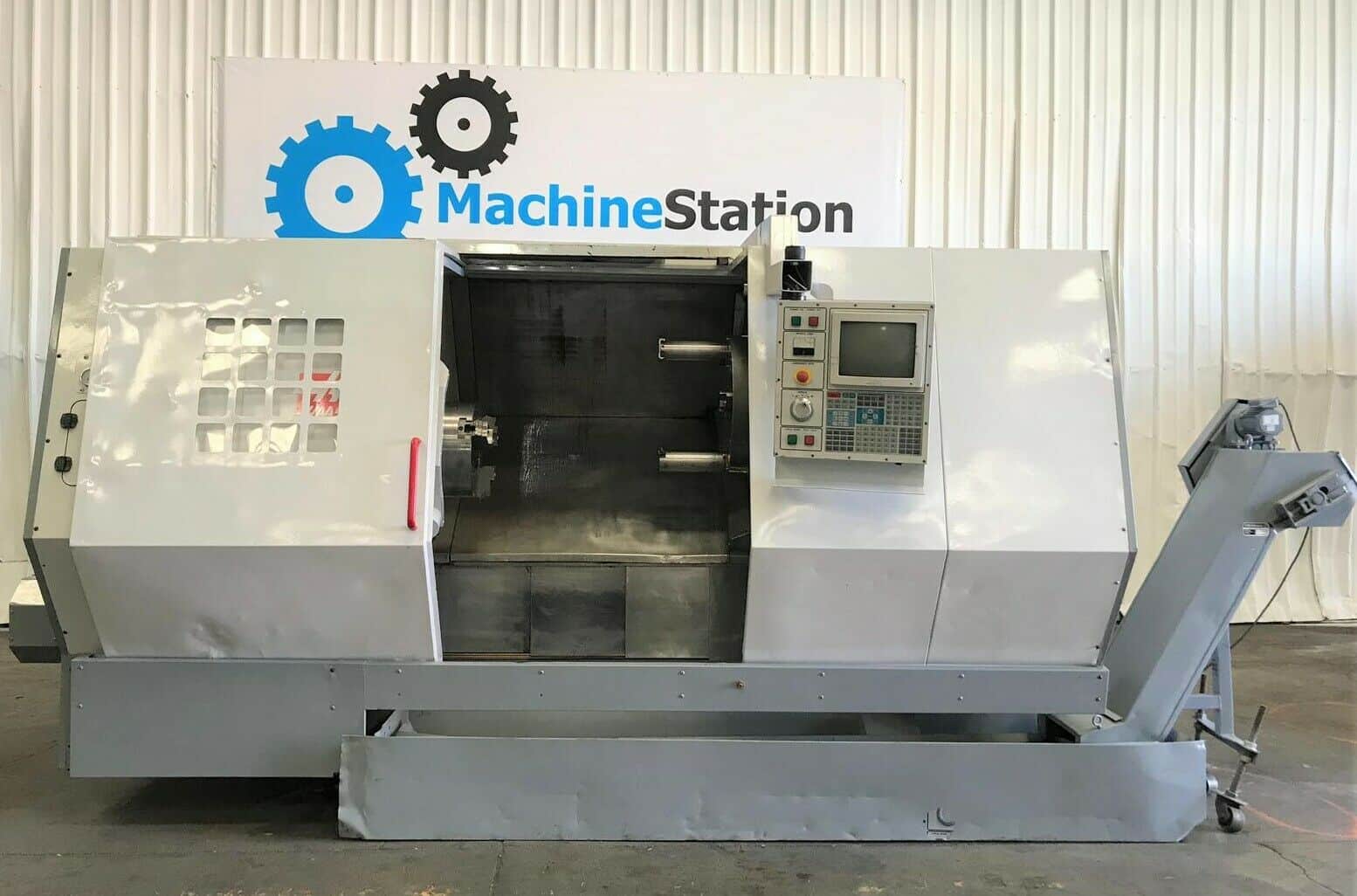

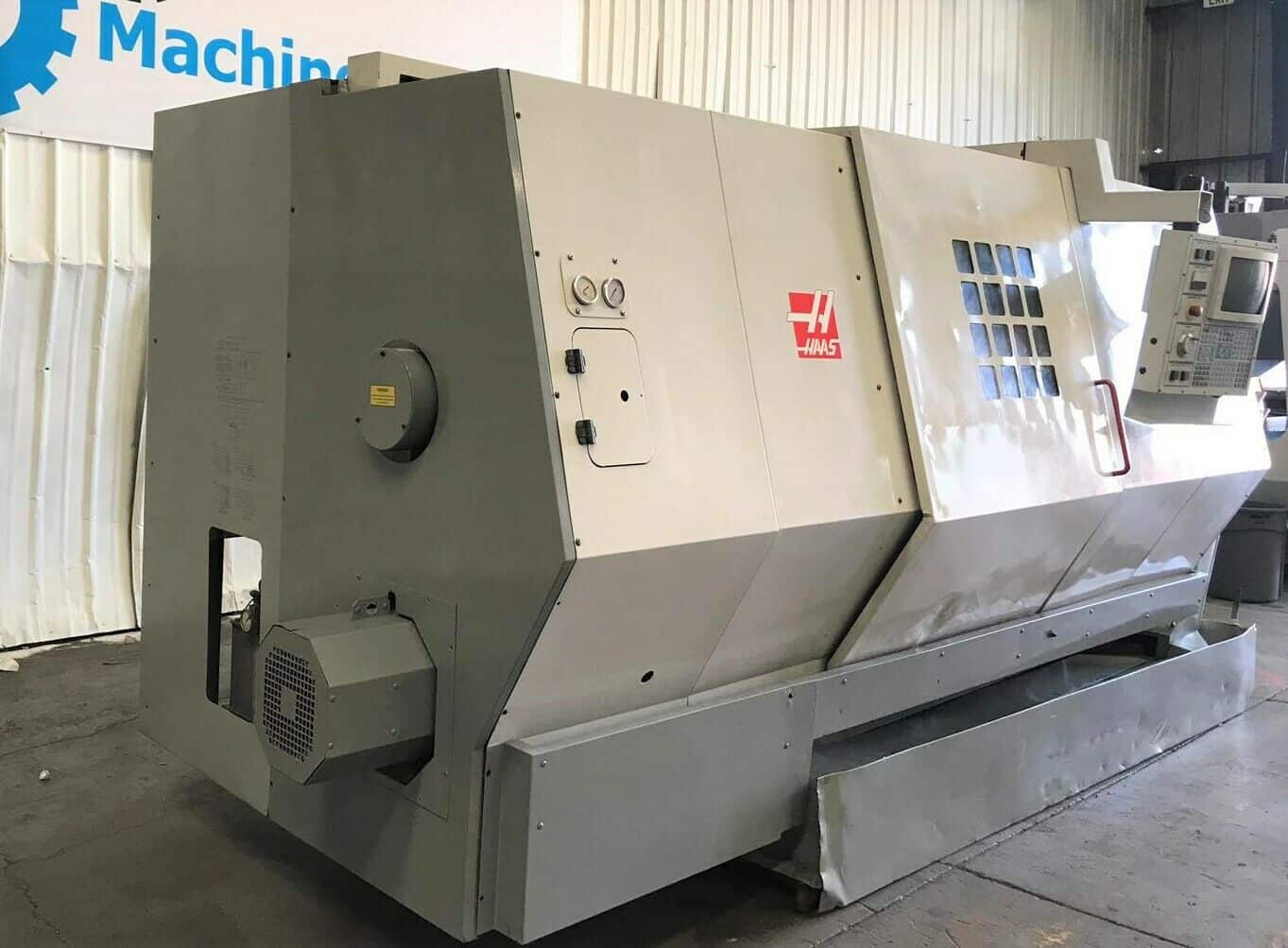

HAAS HL-6 CNC LONG BED TURNING CENTER
MakeHaas
Model No.HL-6
Year06/1998

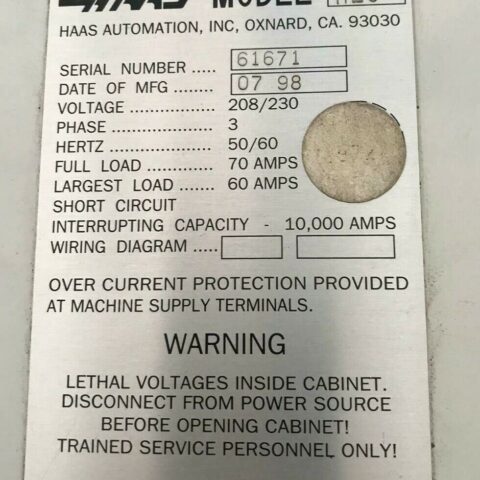

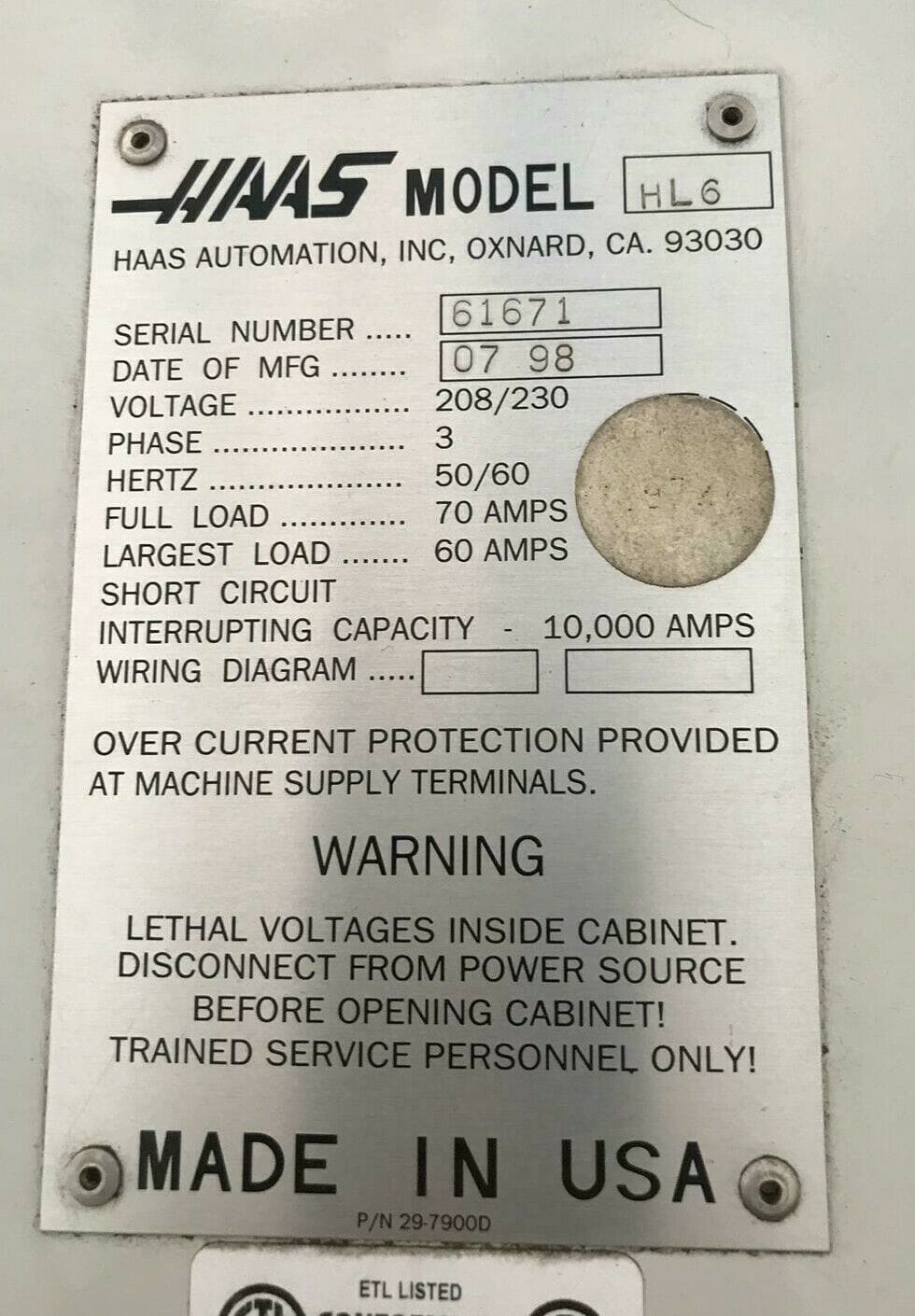

Serial #61671
ConditionVery Good
Comes with 15″ Chuck, Tailstock & Chip Conveyor
  • Haas HL-6 CNC Equipped With:

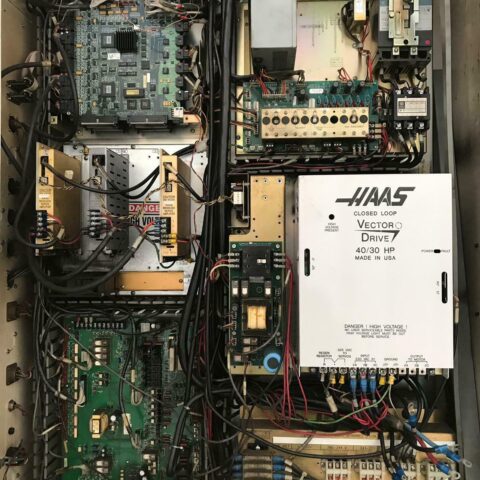

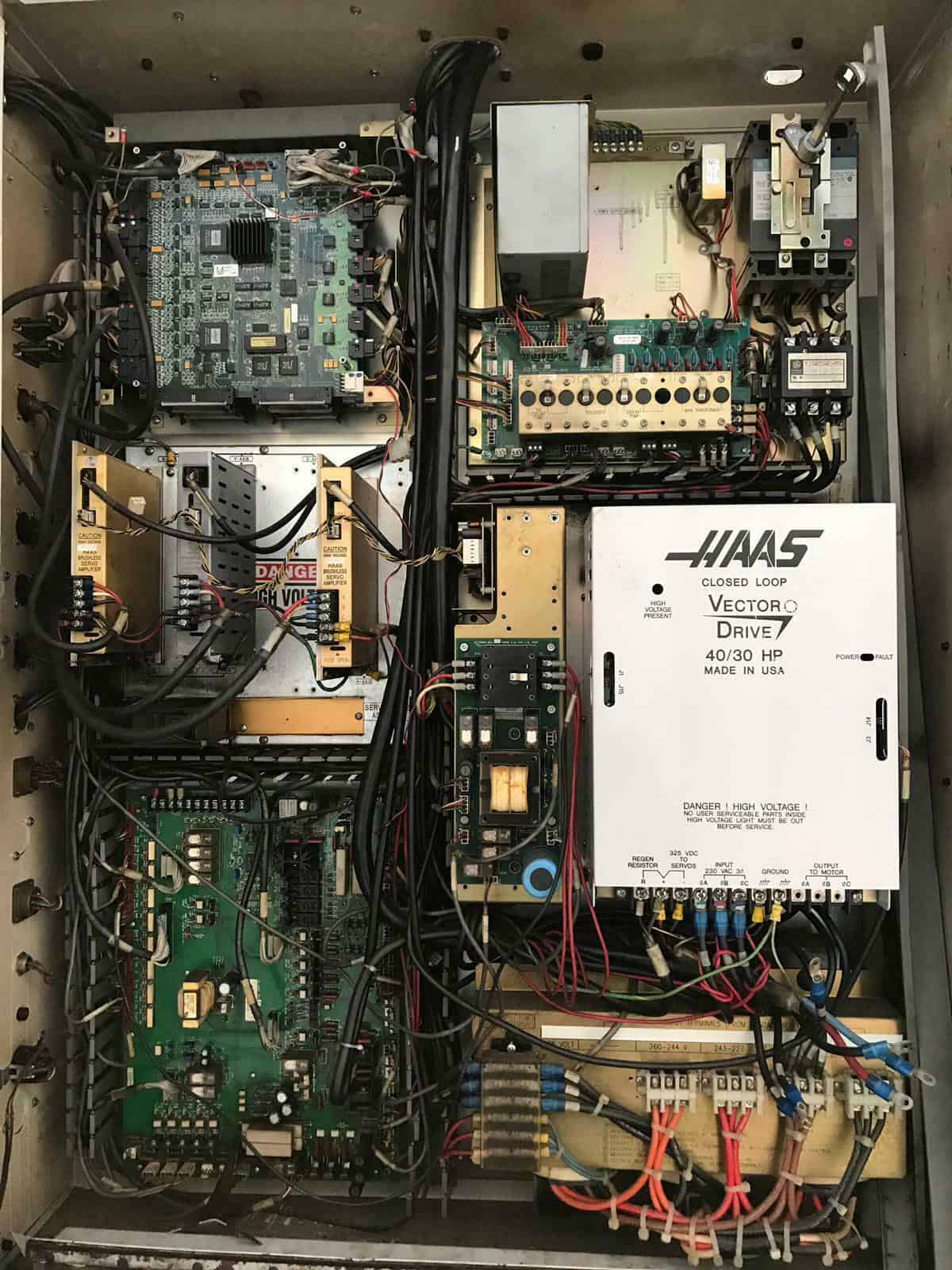

  • Haas 32Bit CNC Control

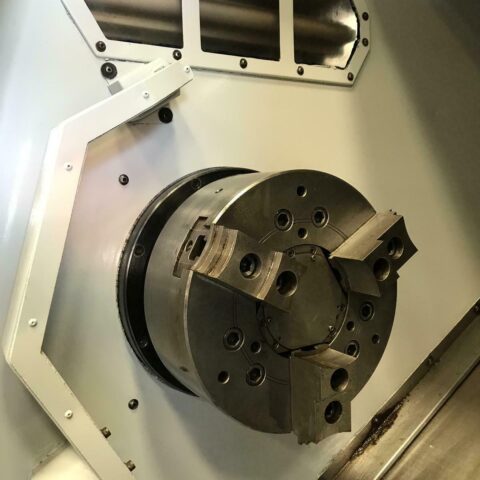

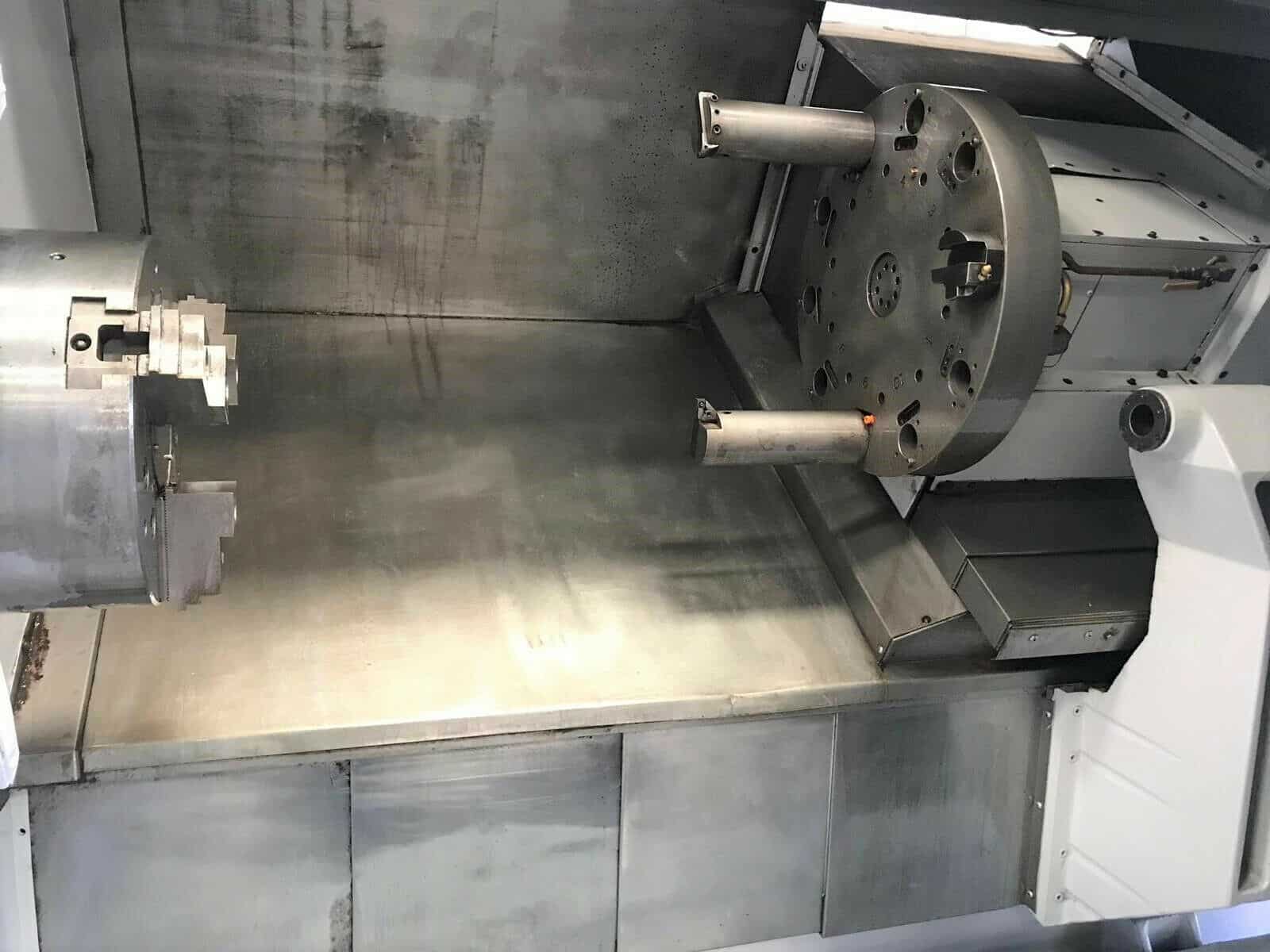

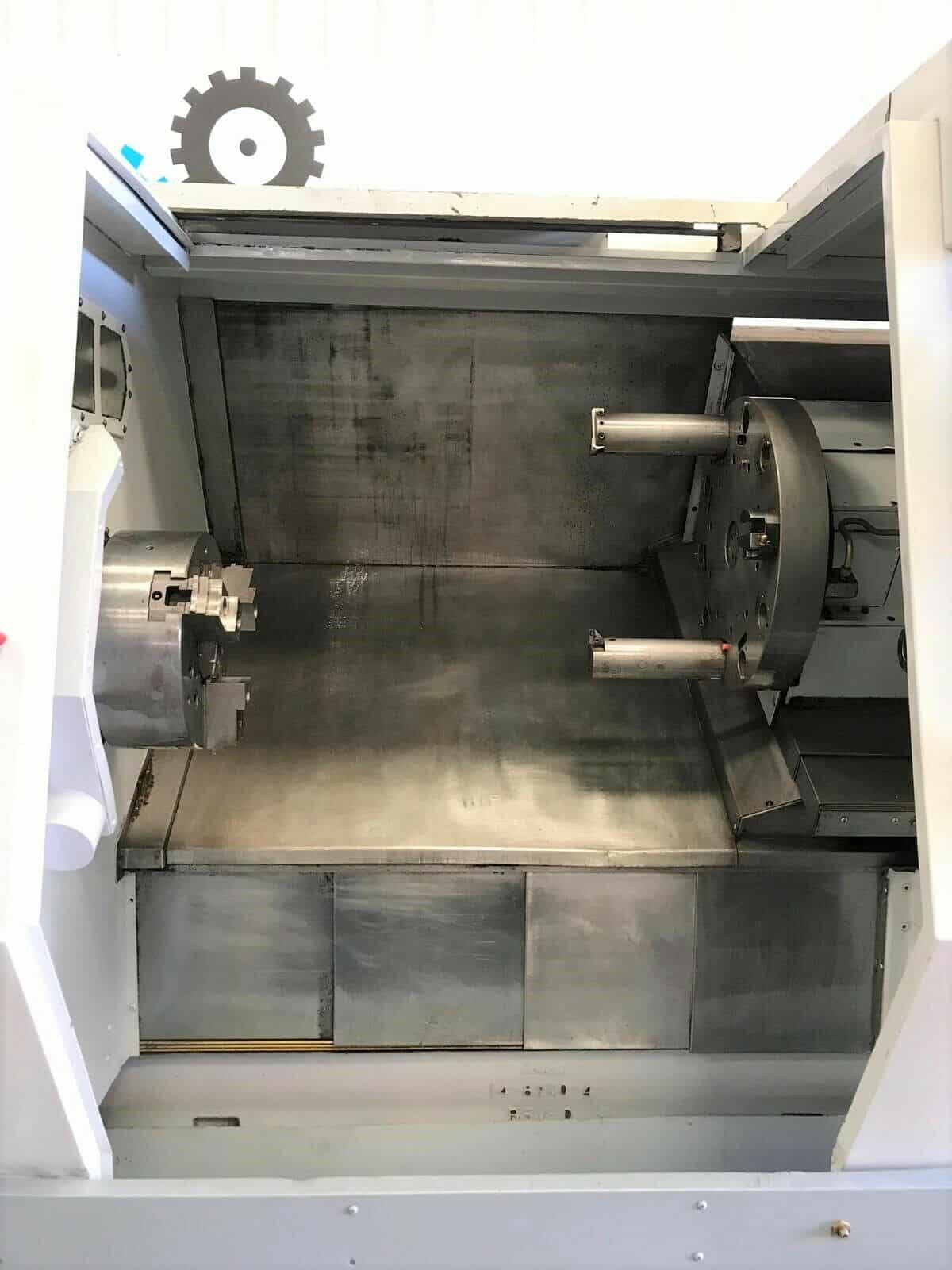

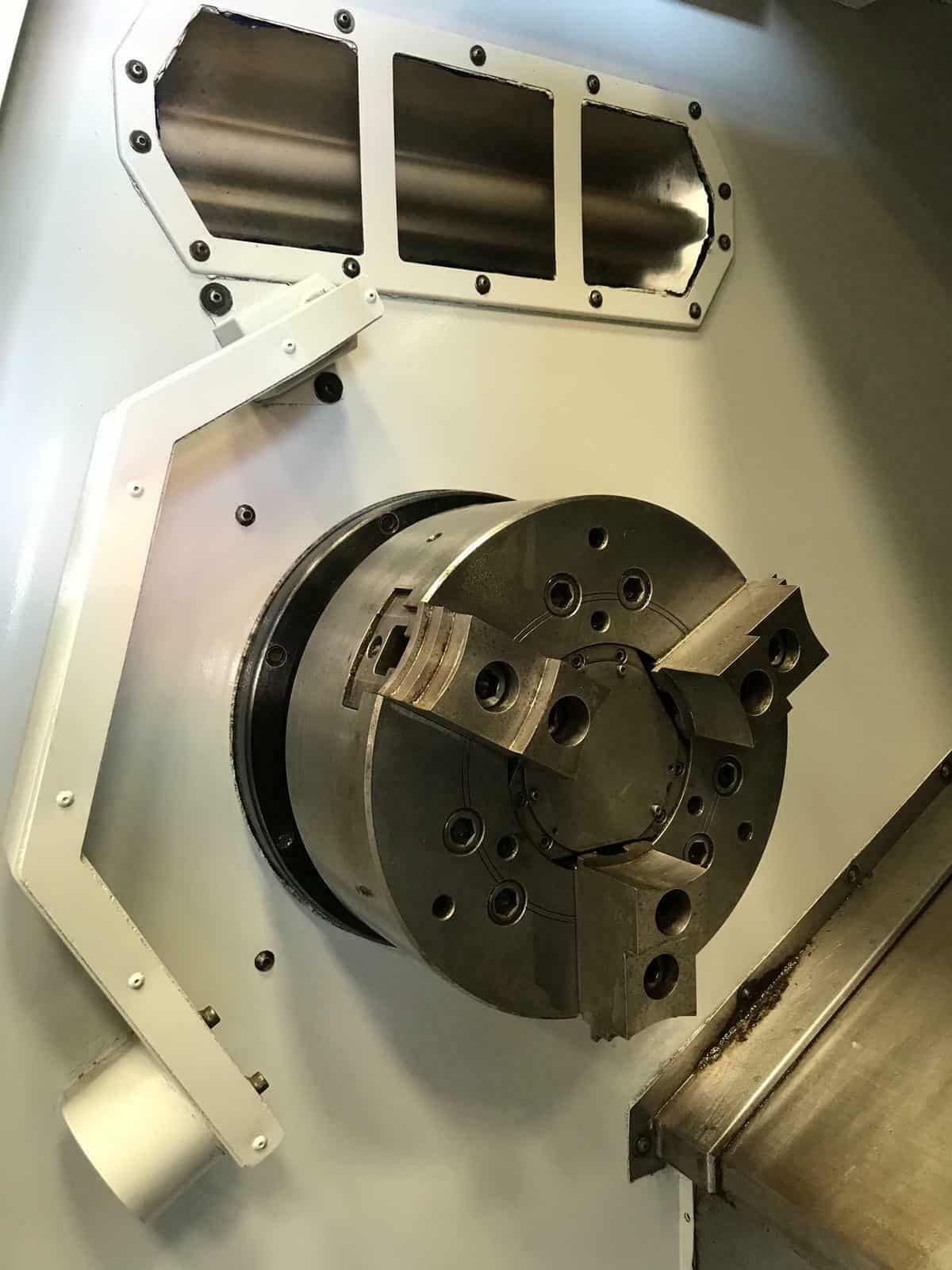

  • 15″ 3 Jaw Hydraulic Chuck
  • A2-8 Spindle
  • Programmable Tailstock
  • Coolant System
  • Barfeed Interface
  • RS-232 ports

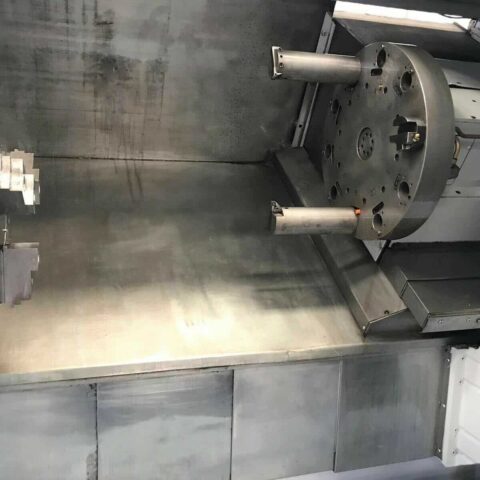

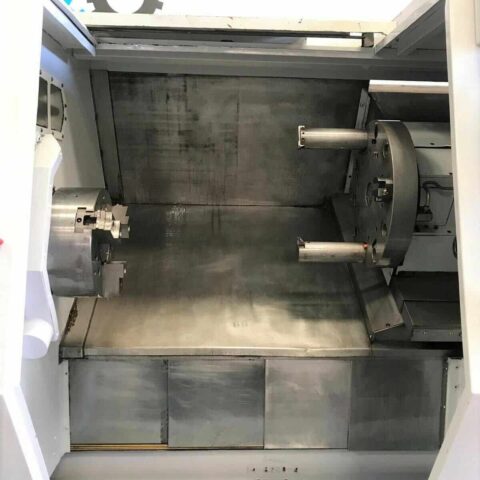

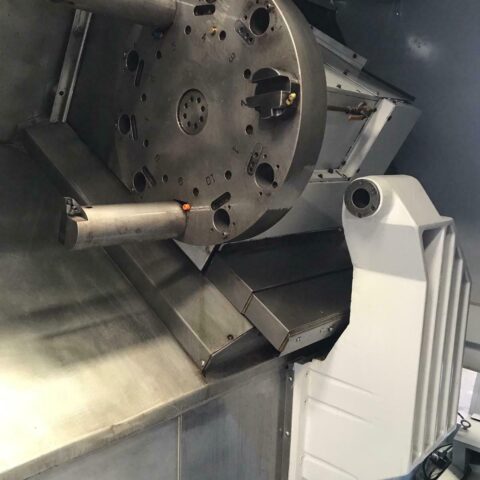

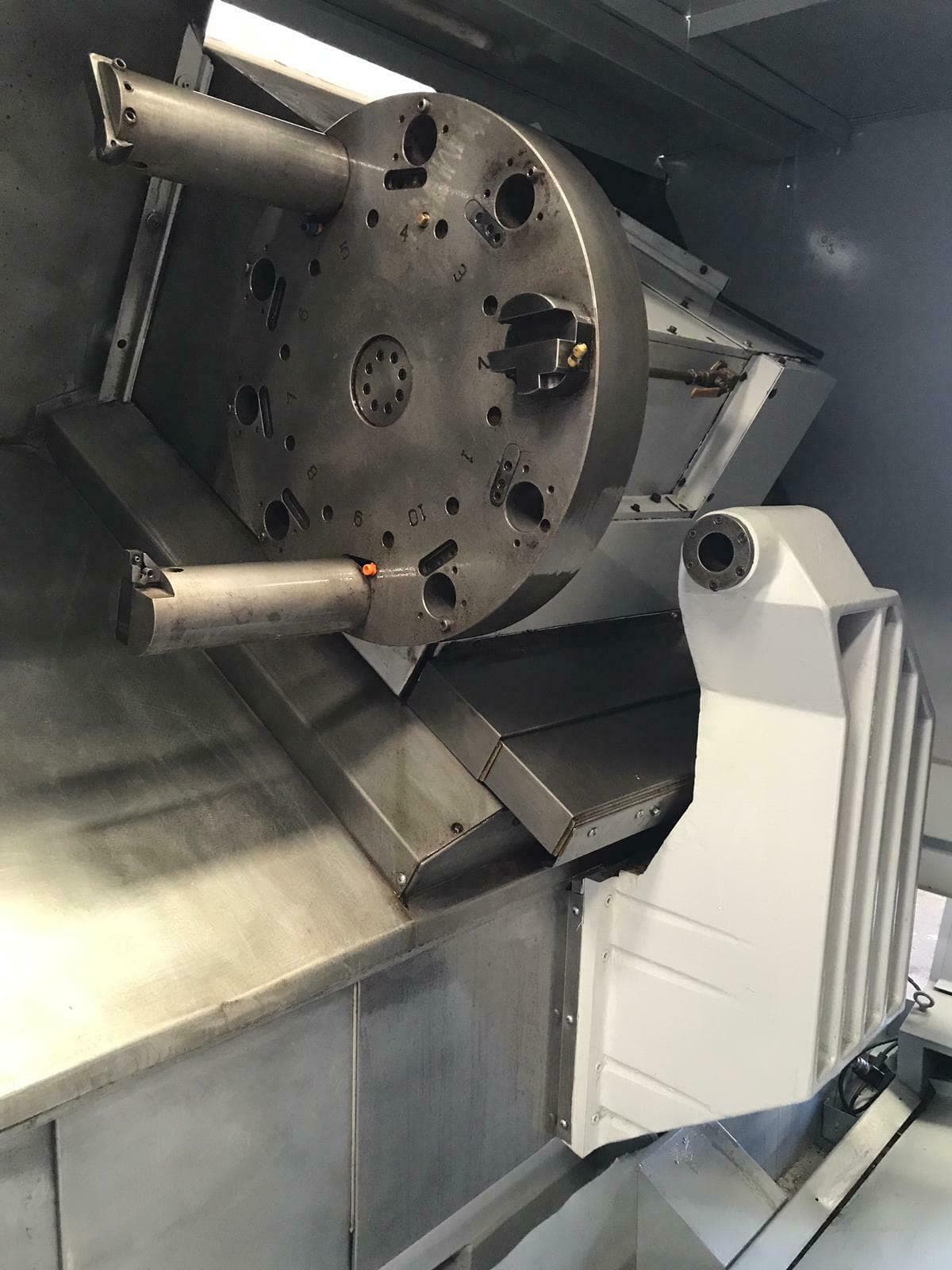

  • 10 Station Automatic Turret

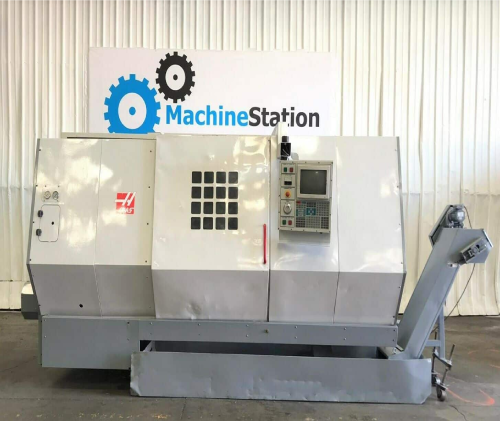

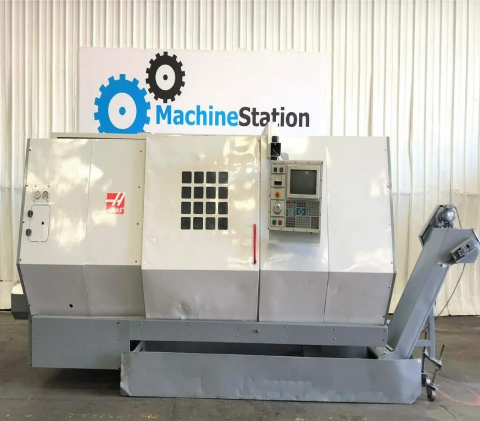

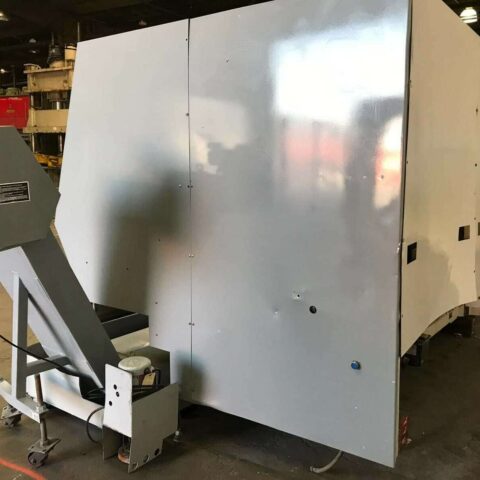

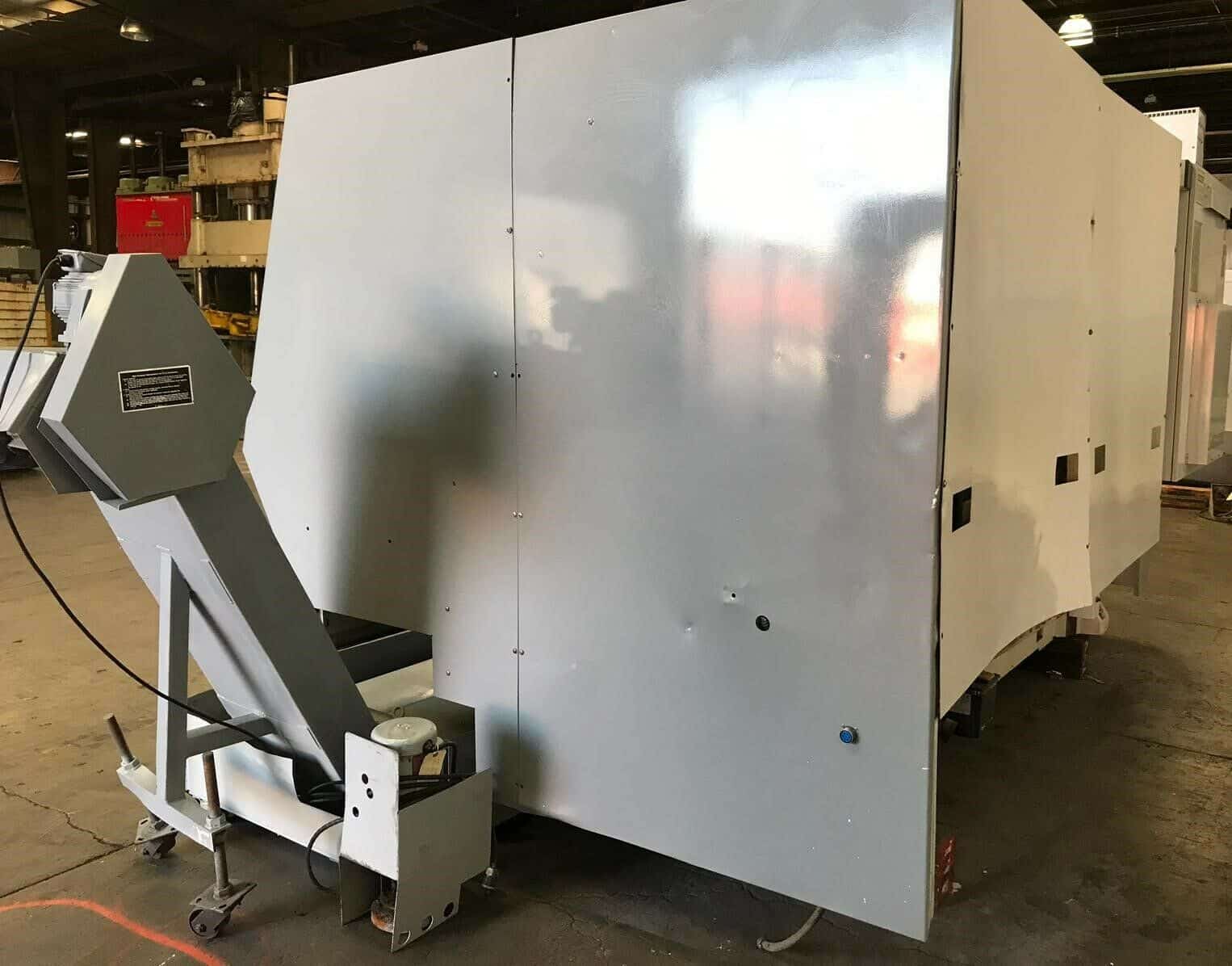

  • Chip Conveyor
  • Haas HL-6 CNC Specifications:
  • Capacity:
  • Max Turning Diameter: 25.0″
  • Max Turning Length: 44.0″
  • Max Bar Capacity: 4.0″
  • Swing Over Bed: 40.0″
  • Distance Between Centers: 51.0″
  • Travels:
  • X Axis Travel: 17.0″
  • Z Axis Travel: 44.0 ”
  • Rapid Traverse X Axis: 710 IPM
  • Rapid Traverse Z Axis: 710 IPM
  • Spindle:
  • Spindle Nose: A2-8
  • Spindle Bore: 4.62″
  • Spindle Speed: 24 – 2400 RPM
  • Spindle Motor: 30 HP
  • Turret:
  • Turret Capacity: 10 Stations
  • Turret Index Time: 1 Second
  • Tailstock:
  • Tailstock Taper: MT-5
  • Tailstock BodyTravel: 44.0″
  • General:
  • Power: 45 kva, 220v / 3-Phase
  • Overall Dimensions: 150″ X 90″ X 90 ” High
  • Overall Dimensions: 190″ X  90″ X 90″ High with Chip Conveyor
  • Weight: 23000 lbs
