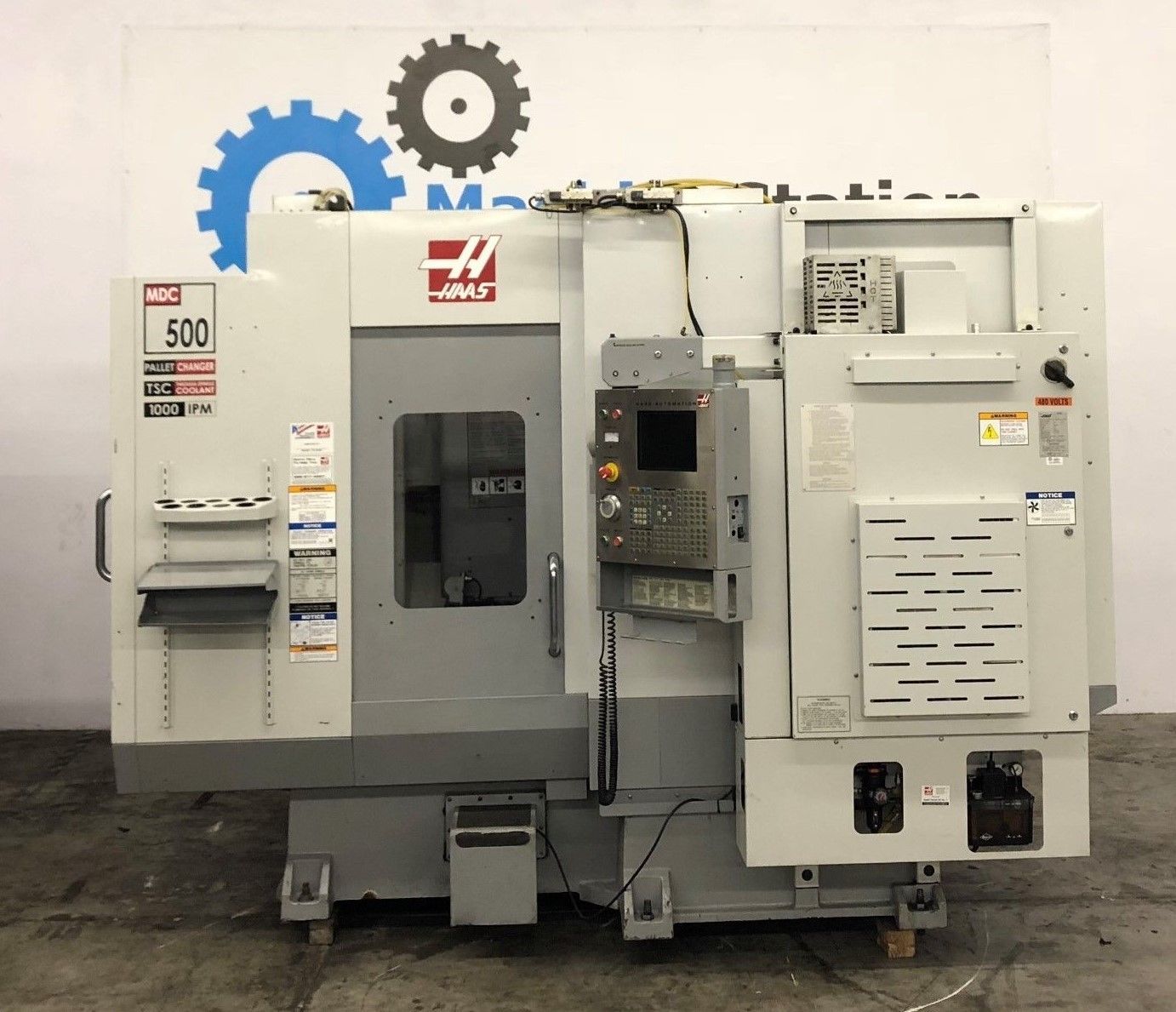

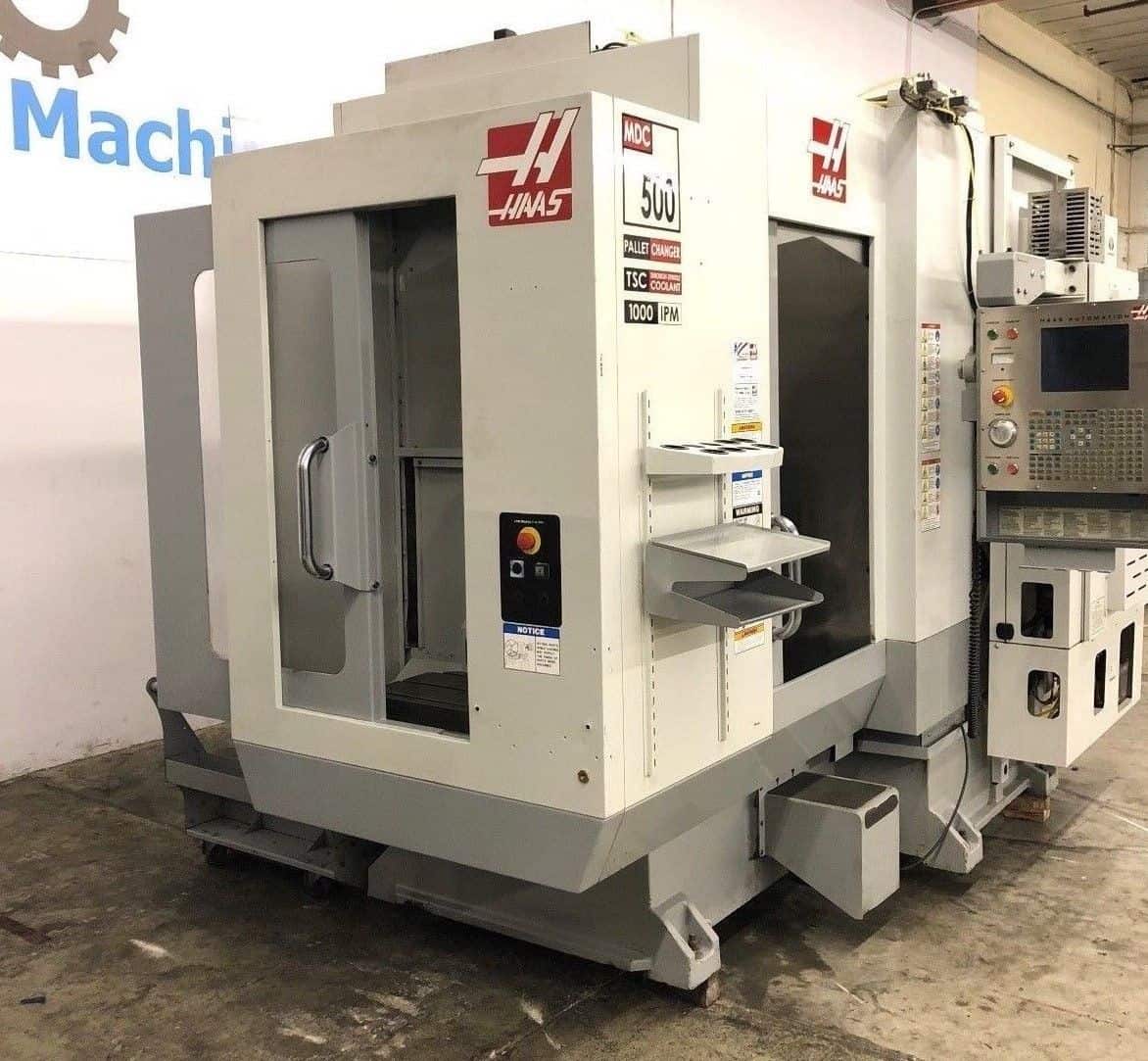

HAAS MDC-500 Mill Drill Tap Vertical Machining Center

This One Owner Machine has 7500 rpm Spindle, 24 tool side mount tool changer, Probing System, TSC, Dual Pallets. Only Spindle hours on this machine, On our Floor now, fully powered / tested & is in Great working condition. Please feel free to ask For *VIDEO* and more Pictures.

Share

Description

HAAS MDC-500 MILL DRILL TAP VERTICAL MACHINING CENTER
Make Haas
Model No. MDC-500
Year of Manufacture: 10/05
Serial # 44215
Condition Very Good

“This One Owner Machine has 7500 rpm Spindle, 24 tool side mount tool changer, Probing System, TSC, Dual Pallets. Only Spindle hours on this machine, On our Floor now, fully powered / tested & is in Great working condition. Please feel free to ask For *VIDEO* and more Pictures.”

  • HAAS MDC-500 Features:
  • 7500 RPM Inline Direct Drive Spindle
  • 300 PSI TSC
  • Probing System
  • 180° Dual Pallet Changer
  • 24 Tools Side Mount Tool Changer
  • Expanded Program Memory
  • Remote Jog Handle
  • Rigid Tapping
  • Power Failure Detection Module
  • User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
  • Brushless-type servo drive motors on all axis
  • Programmable coolant
  • Telescopic way covers
  • Chip Conveyor
  • Floppy Drive
  • Tool Shelves
  • High Pressure Coolant system
  • HAAS MDC-500 Specifications:
  • Travels:
  • X-Axis: 20″
  • Y-Axis: 14″
  • Z-Axis: 20″
  • Rapid Traverse Rates: 1000 Inch Per Minute
  • Cutting Feed Rates: 710 Inch Per Minute
  • Pallet:
  • 180° Dual Pallet Changer
  • Pallet Size: 20.0″ X 12.75″
  • Pallet Change Time: 8 Seconds
  • Weight on Table: 700 lbs
  • Spindle:
  • Taper Size: CAT 40
  • Speed Range: 0 – 7500 RPM
  • Spindle Power: 20 HP
  • Max Torque: 70ft-lb @ 1400RPM
  • Automatic Tool Changer:
  • Capacity: 24 + 1
  • Max Tool Weight: 12 lbs
  • Max Tool Dia: 3.6″
  • Max Tool Length: 16″
  • Tool Changing Time: 2.1 – 4.7 Seconds
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 480v / 66FLA / 3-Phase
  • Overall Shipping Dimensions: 130″ x 102″ x 110″ High ( Machine )
  • Chip Conveyor, Coolant Tanks, Coolant systems Dimensions extra
  • Weight: 16,000 lbs

HAAS MDC-500 Comes as shown in pictures..
