*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

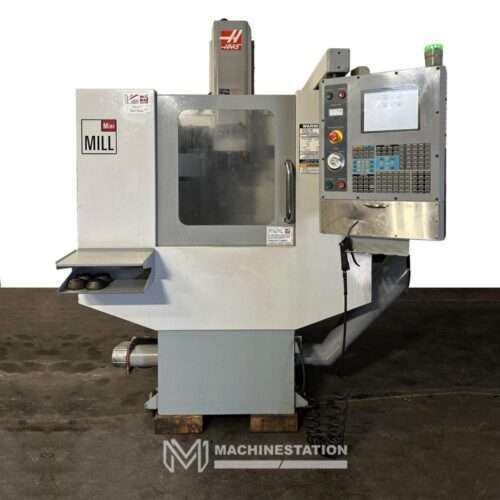

| Make: | HAAS |
| Model: | MINI MILL |
| Year: | 2006 |
| Condition: | Used – Good |
Specifications:
MachineStation I California
SKU # 2452
Make: Haas
Model No.: VMINI MILL
Year: 2006
Condition: Good

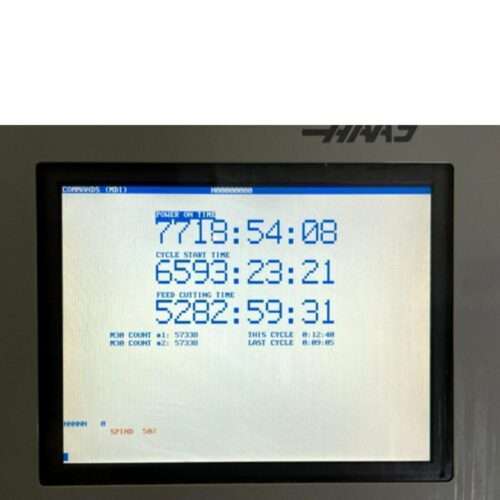

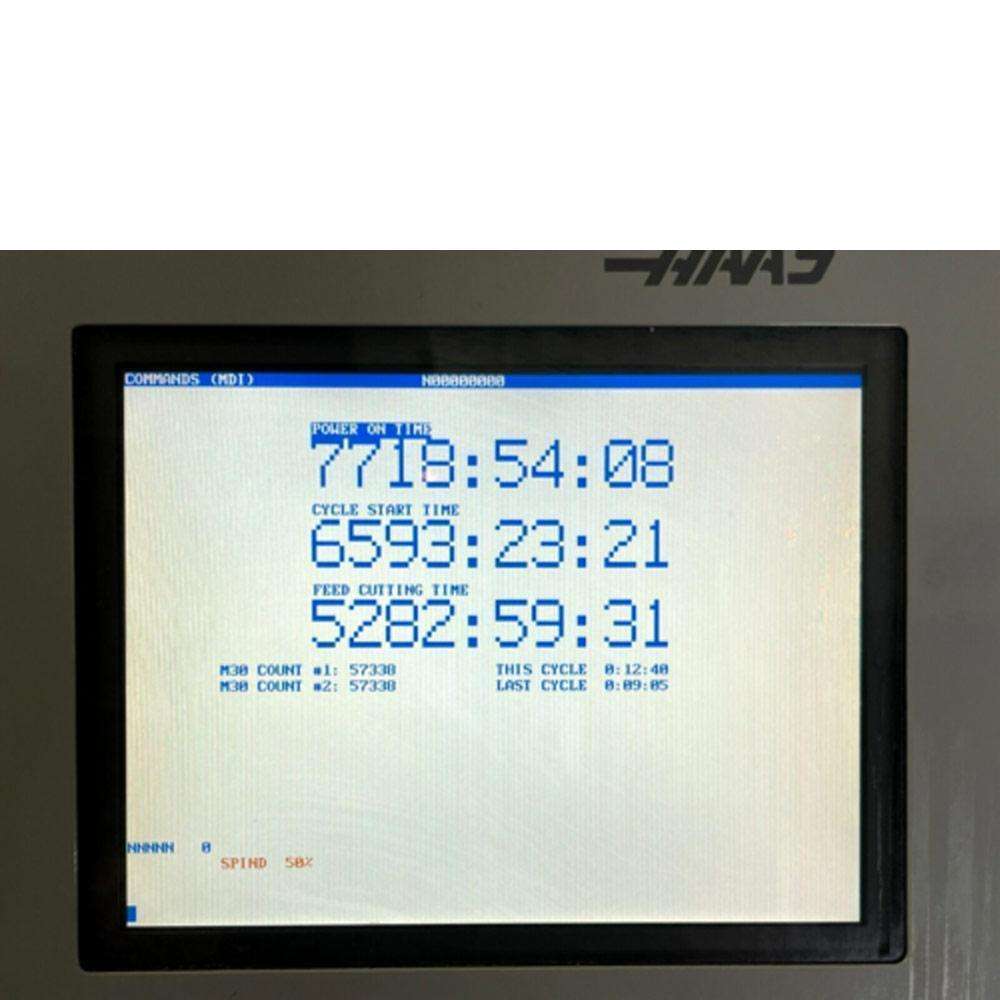

Cutting Time : Only
*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*
HAAS Mini Mill Features:

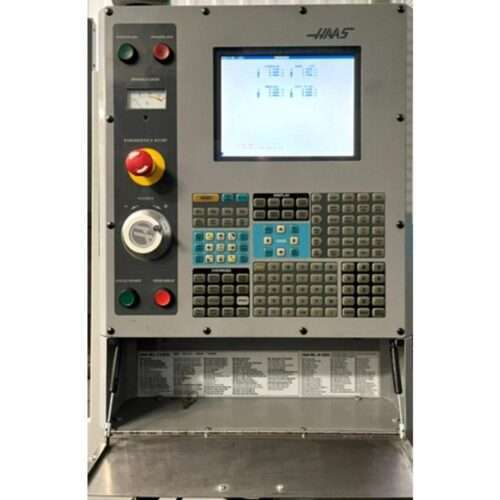

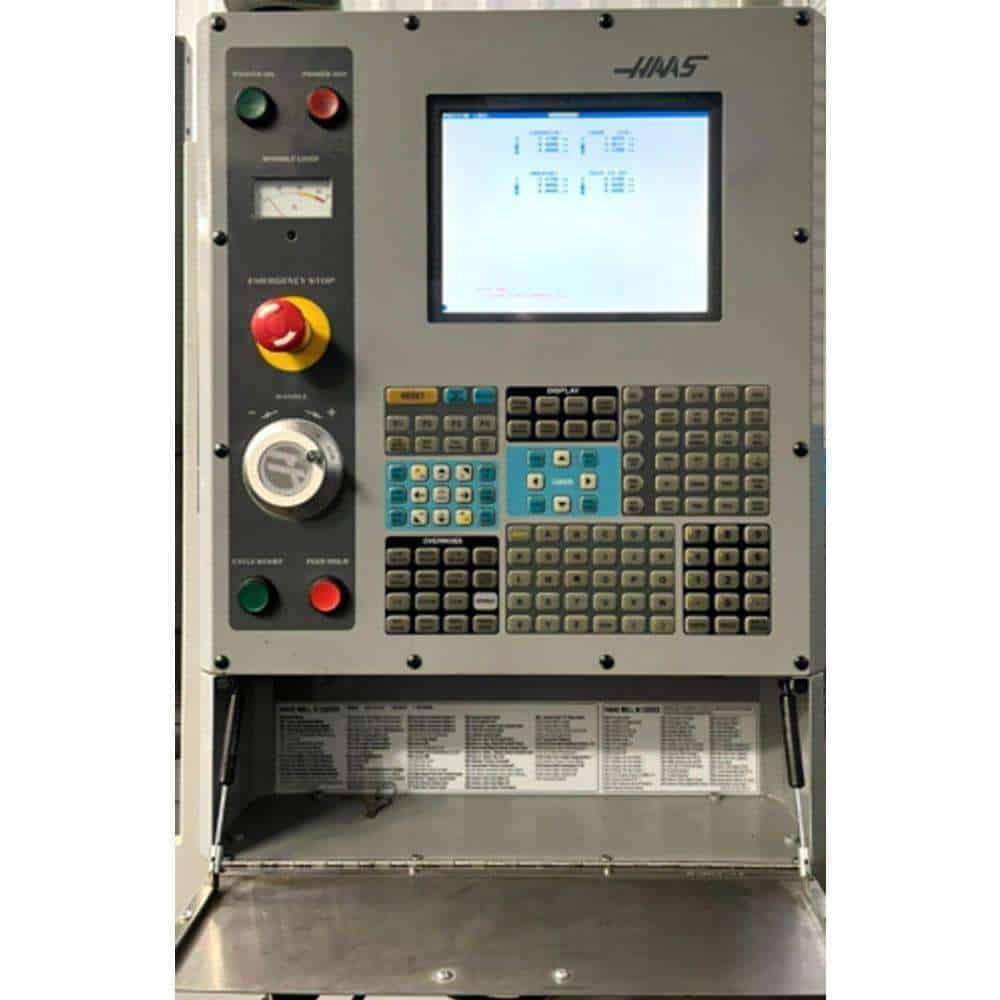

Haas CNC Control
4th Axis Ready
6000 RPM Spindle
10 Station Automatic Tool Changer
Rigid Tapping
USB Drive
Advanced Tool Management
Power Failure Detection Module
Programmable coolant
Telescopic way covers
Chip Auger
Leveling Pads
HAAS Mini Mill Specifications:
Travels:
X-Axis: 16″
Y-Axis: 12″
Z-Axis: 10″
Rapid Traverse Rates: 600 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 14″

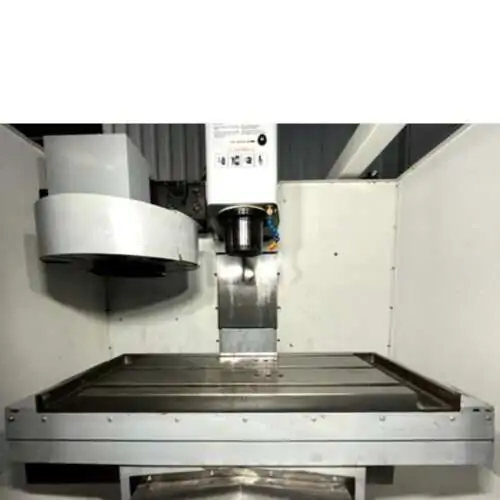

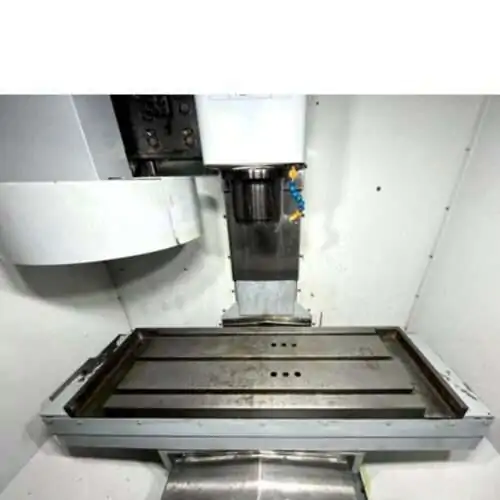

Table:
Length: 36.0″
Width: 12.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 500 lbs

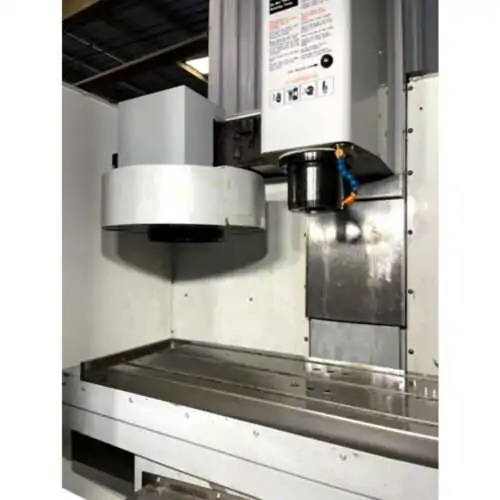

Spindle:
Taper Size: 40
Speed Range: 0 – 6000 RPM
Spindle Power: 15 HP
Max Torque: 33.0 ft-lbf @ 1200 rpm

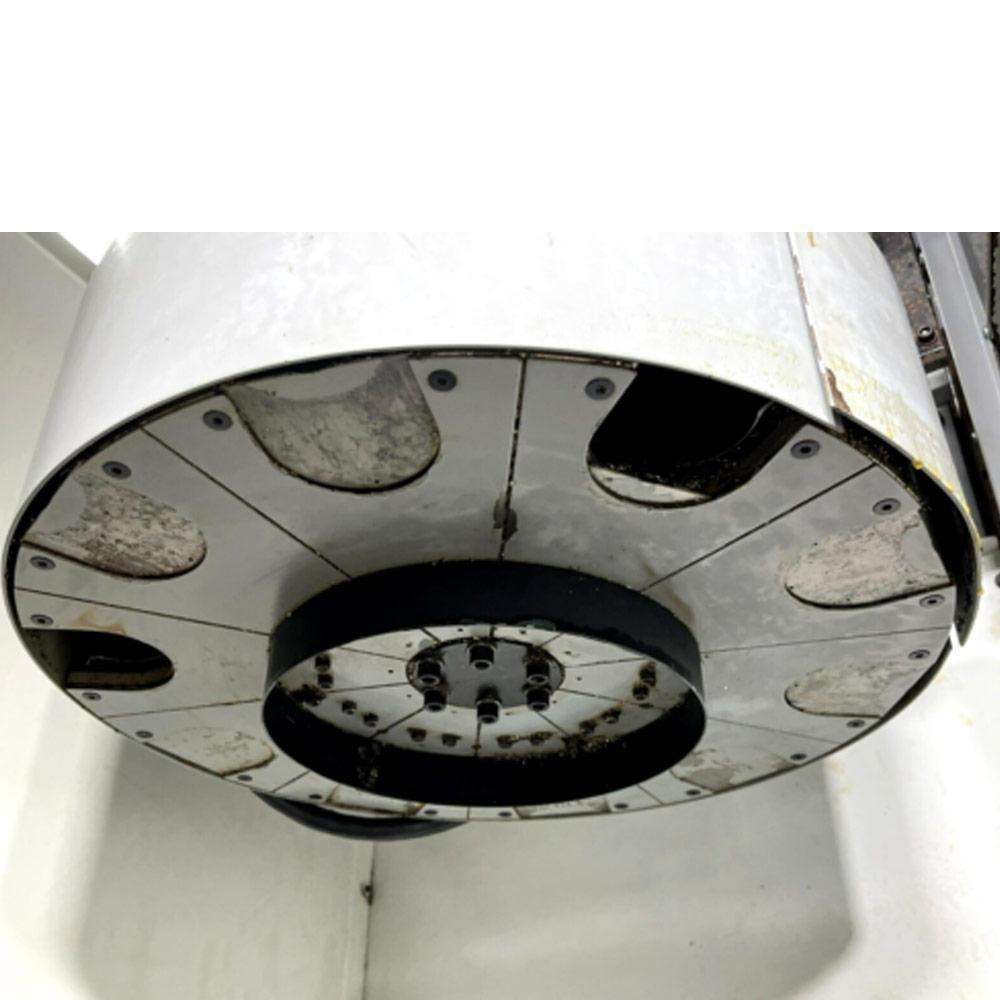

Automatic Tool Changer:
Capacity: 10 Station
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″
General:
Air Required: 100 psi, 4 scfm

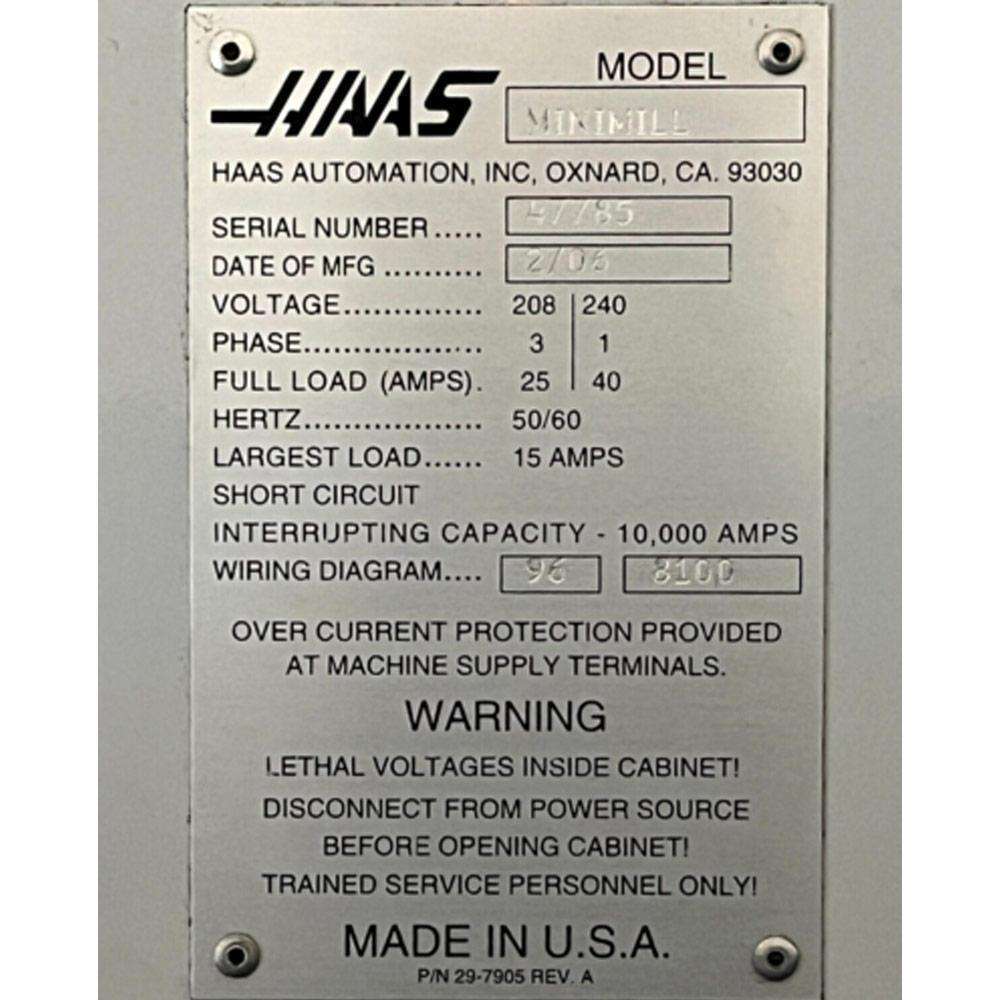

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 90″ x 64″ x 100″ High
Weight: 4000 lbs″
“No Charges for loading at list Price”

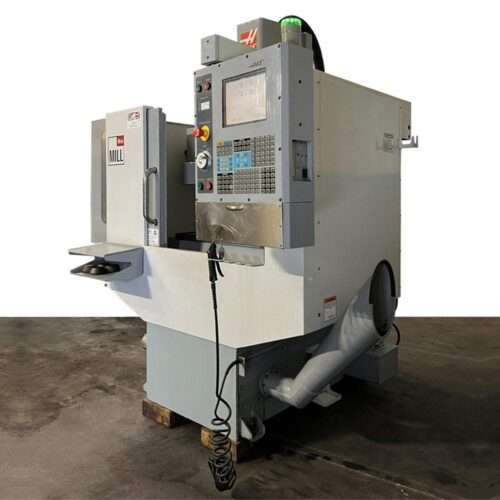

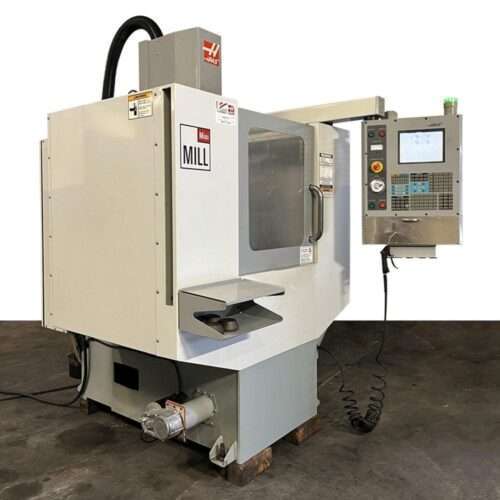

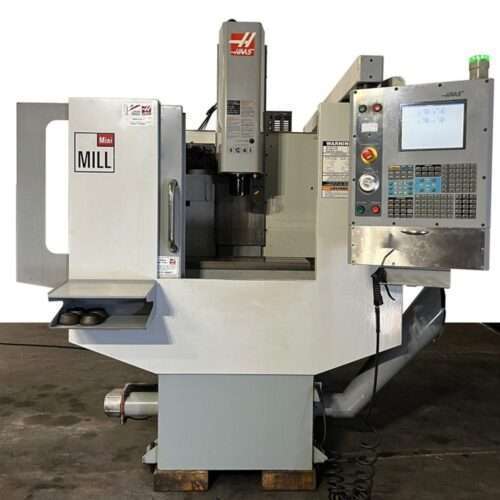

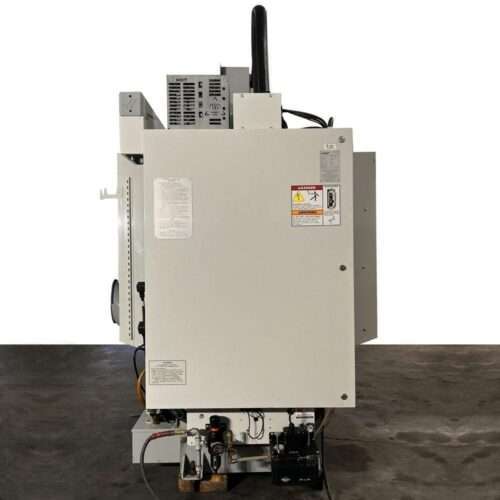

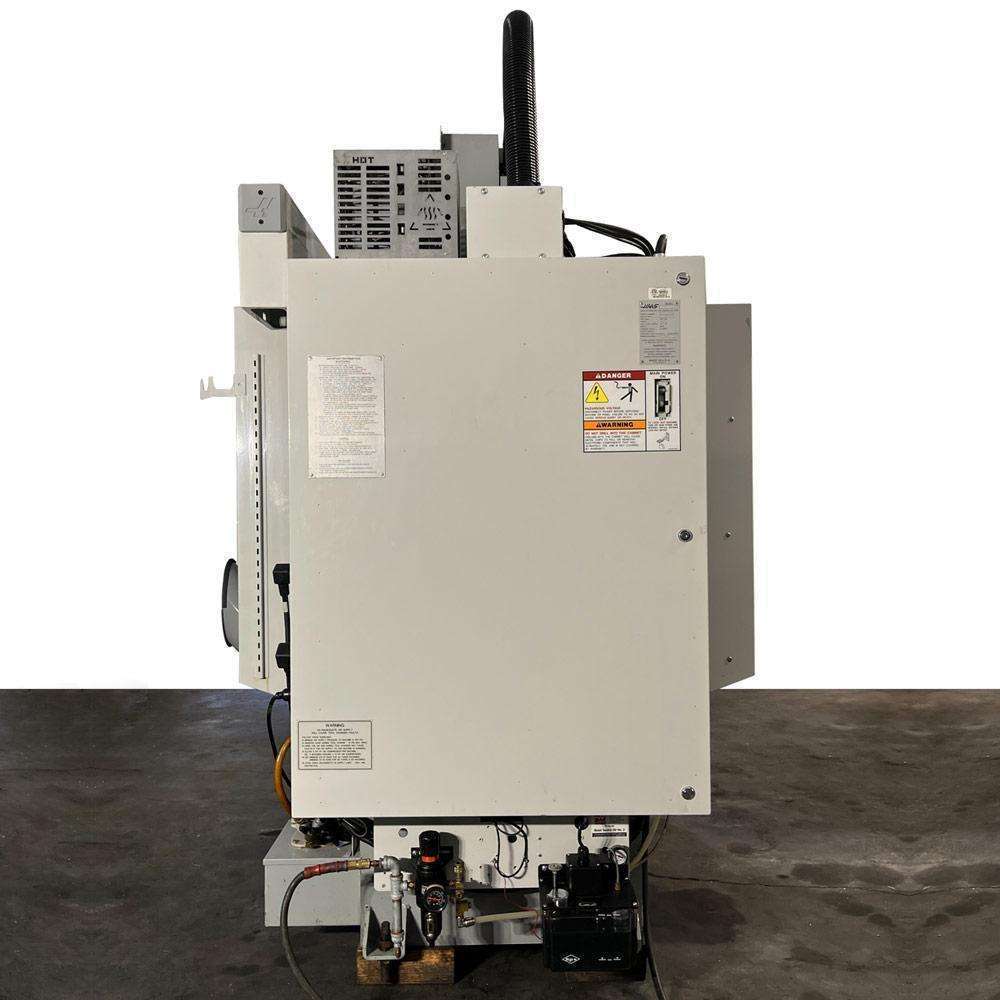

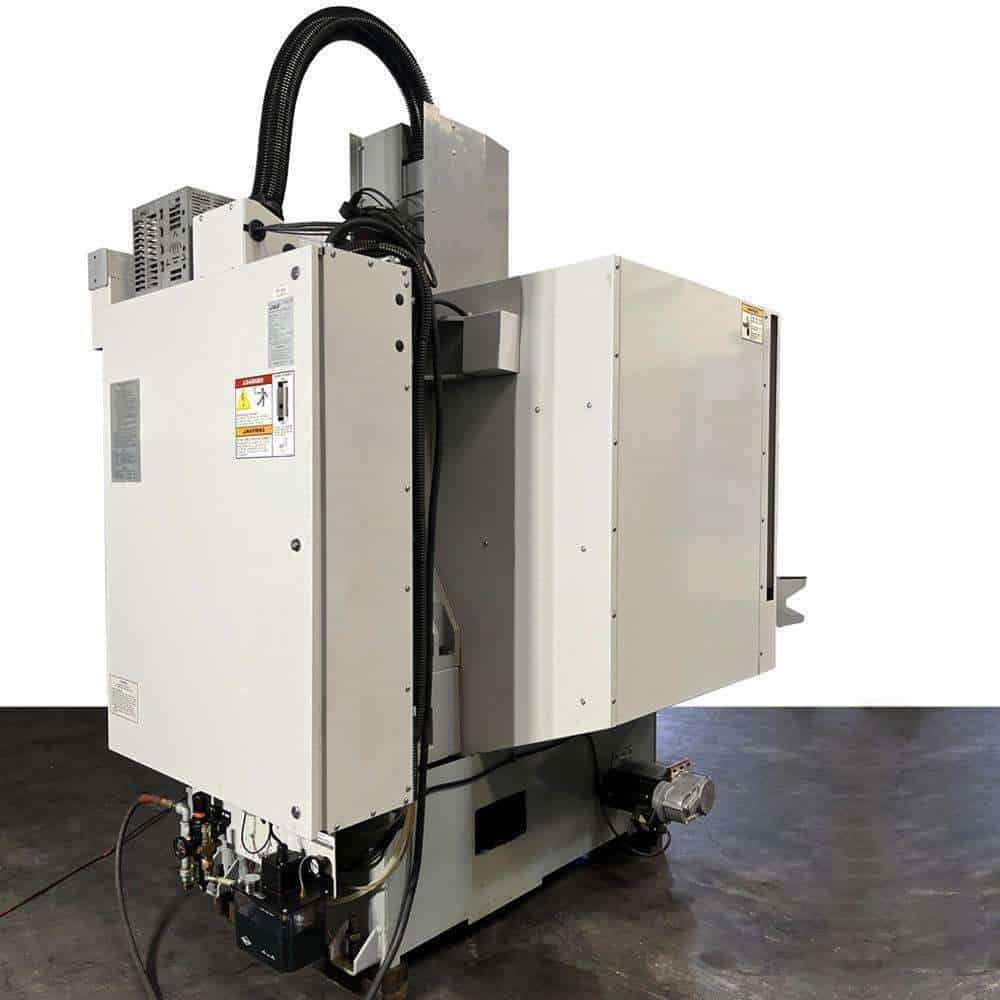

Comes as shown in pictures..
