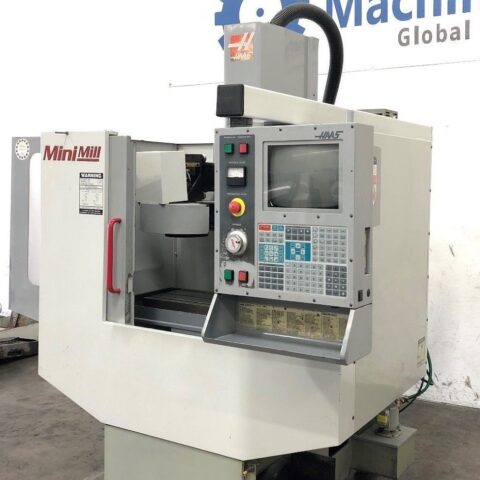

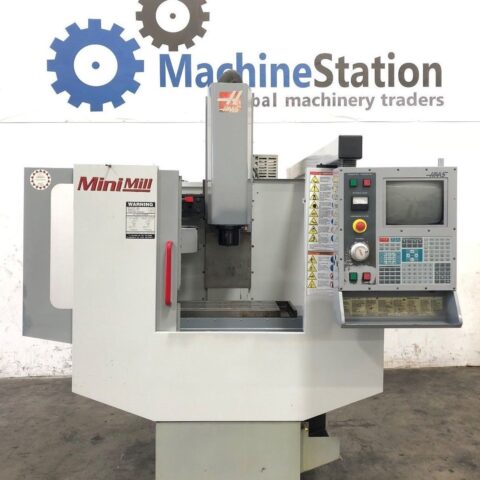

HAAS MINI MILL VERTICAL MACHINING CENTER | |
---|---|
Make | Haas |
Model No. | Mini Mill |
Year of Manufacture: | 03/01 |

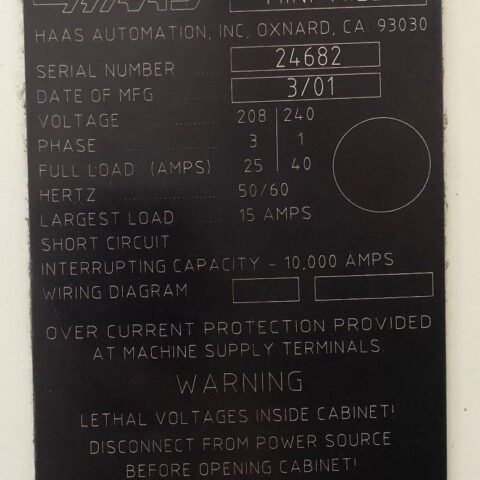

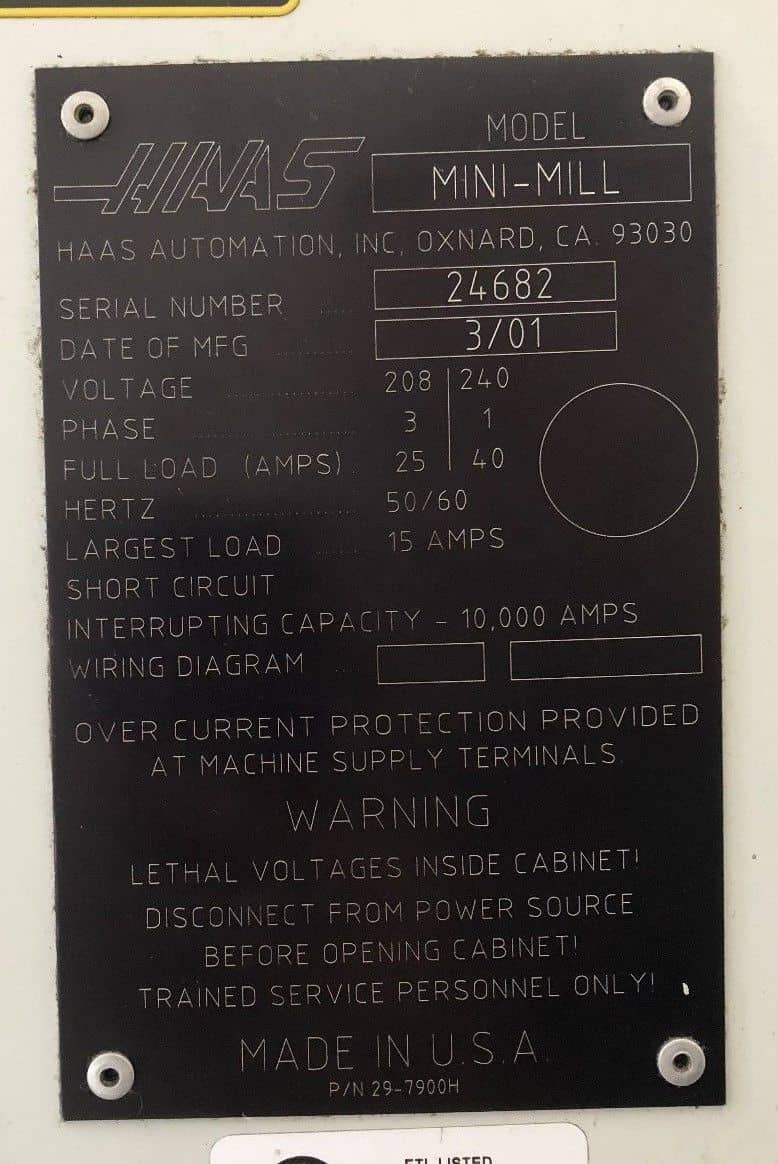

Serial # | 24682 |
Condition | Very Good |
All specifications are approximations and are subject to verification.
“This One Owner Machine has only Spindle Hours, was cutting Aluminium mostly. Original Paint Machine Equipped with 6000rpm, 10 tool changer, 4th Axis and many more features. On our Floor now, fully powered / tested & is in Great working condition.”
- HAAS MINI MILL Equipped With:
- 7500 RPM Spindle
- 4th Axis Ready ( drives and wiring installed )
- Rigid Tapping
- Advanced Tool Management
- Power Failure Detection Module
- 10 Station automatic tool changer
- Programmable coolant
- Telescopic way covers
- Floppy Drive
- Coolant system
- HAAS MINI MILL Specifications:
- Travels:
- X-Axis: 16″
- Y-Axis: 12″
- Z-Axis: 10″
- Rapid Traverse Rates: 600 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 14″

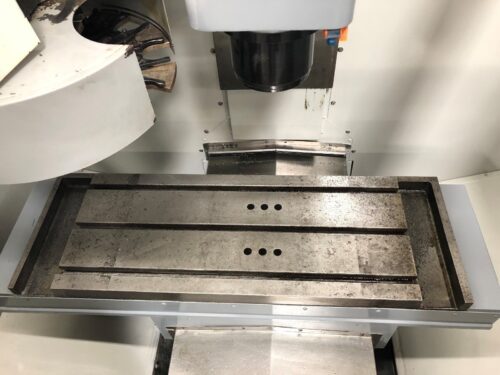

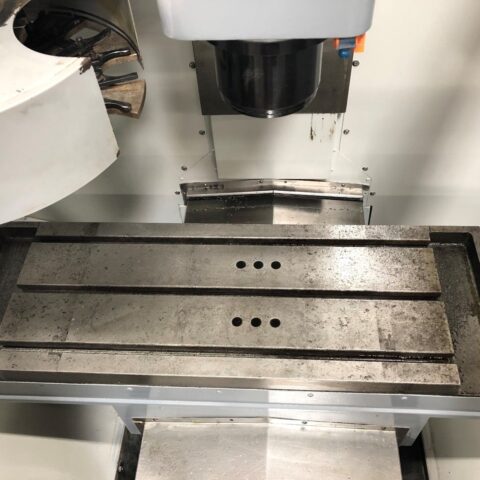

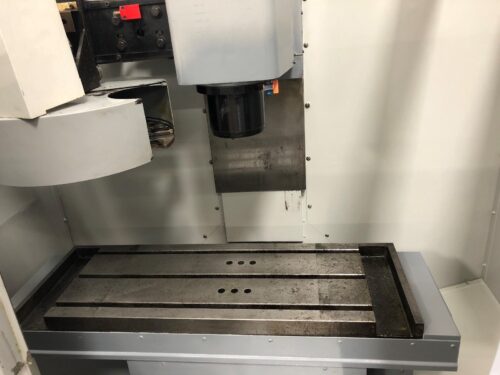

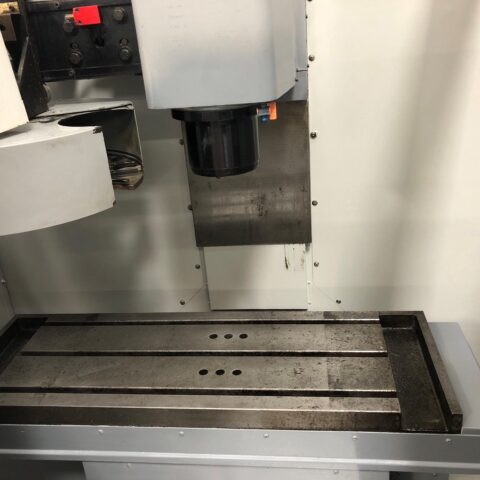

- Table:
- Length: 36″
- Width: 12″
- Number of Std T-Slots: 3
- T-Slot Width: 5/8″
- Max Weight on Table: 500 lbs
- Spindle:
- Taper Size: CAT 40
- Speed Range: 0 – 6000 RPM
- Spindle Power: 7.5 HP Vector Dual Drive
- Automatic Tool Changer:
- Capacity: 10
- Max Tool Weight: 12 lbs
- Max Tool Dia: 3.5″
- Tool Changing Time: 3.6 Seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 84″ x 74″ x 100″ High
- Weight: 3400 lbs

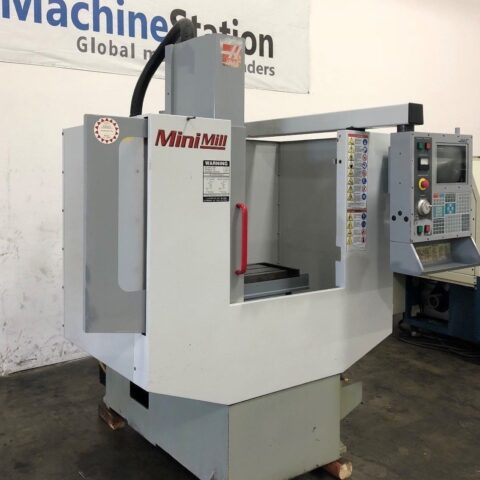

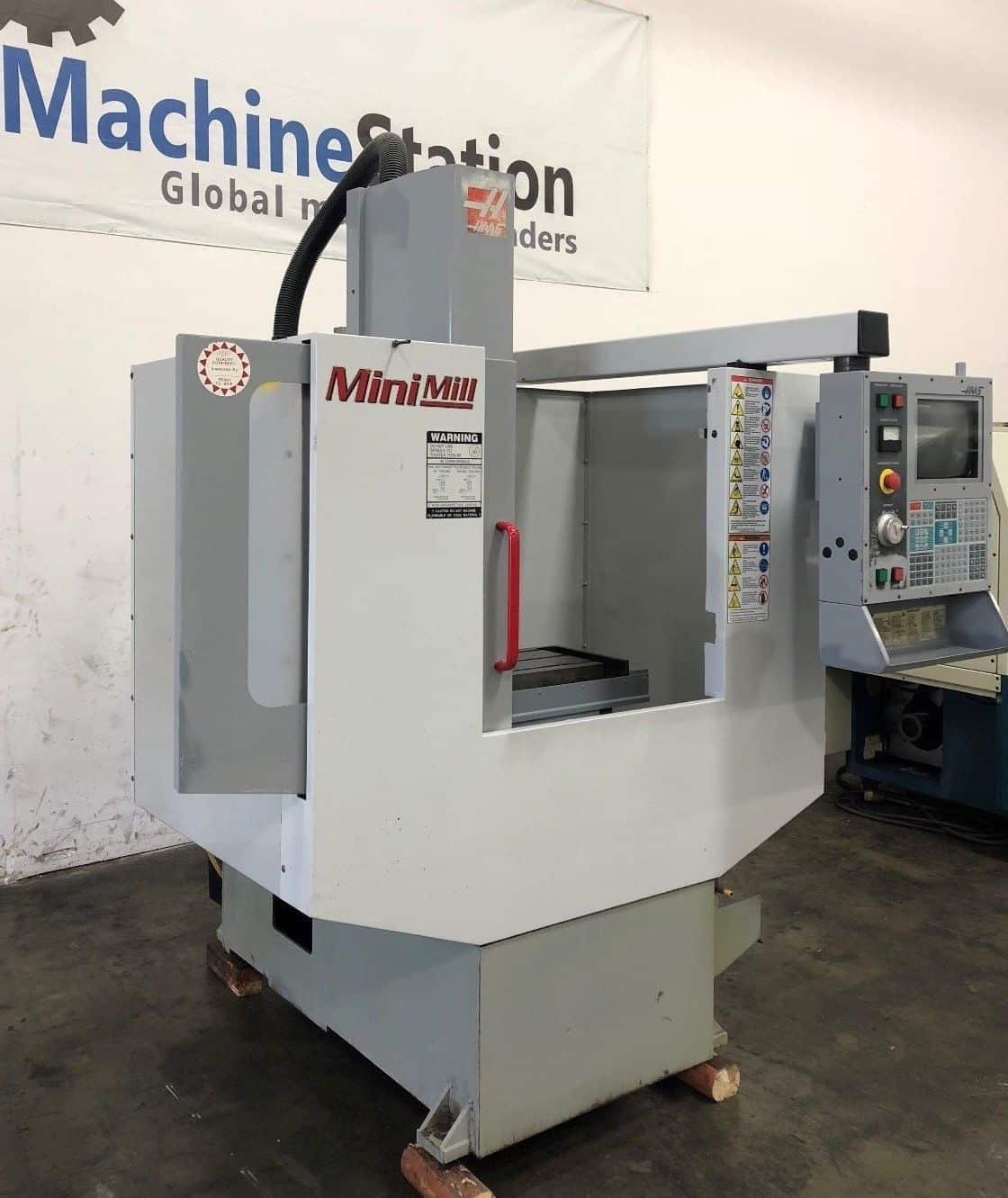

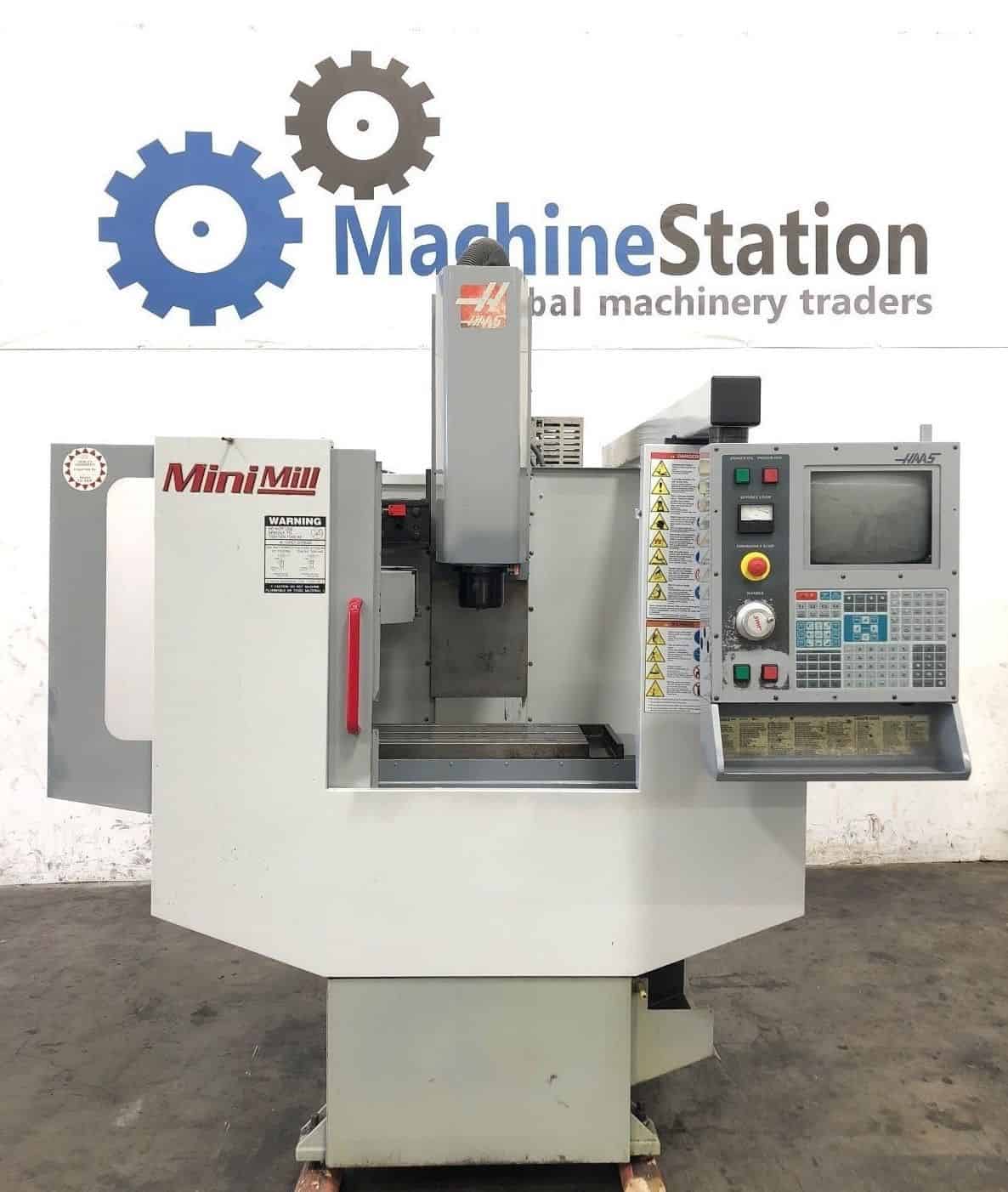

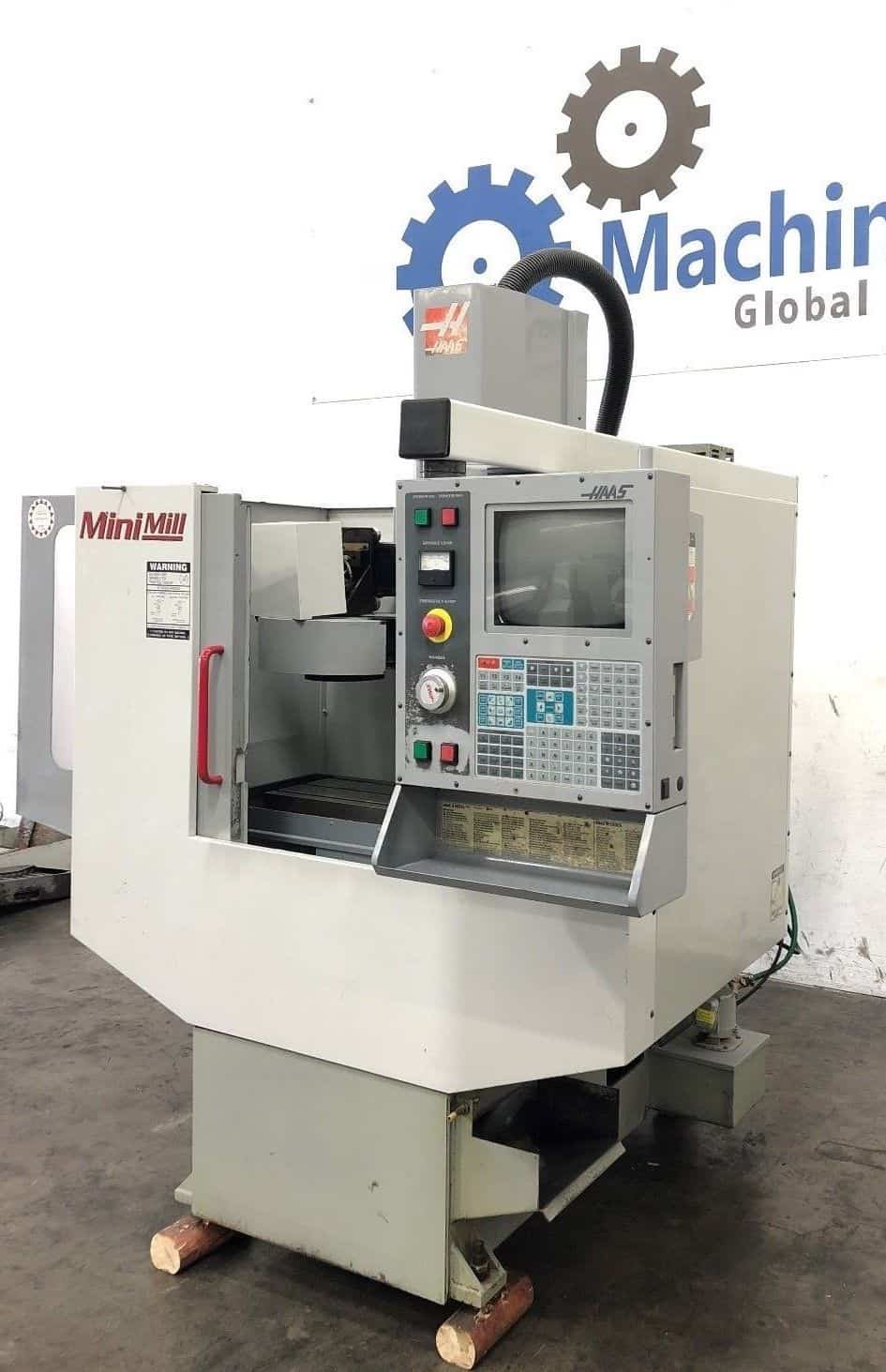

HAAS MINI MILL Comes as shown in pictures..
