SOLD OUT!

HAAS Mini Mill Vertical Machining Center

This One Owner Machine has only 4350 Cutting Hours, was cutting Aluminium mostly. Original Paint Machine Equipped with 6000rpm, 10 tool changer, USB and many more features. On our Floor now, fully powered / tested & is in Great working condition.

Share

Description

HAAS MINI MILL VERTICAL MACHINING CENTER
Make Haas
Model No. Mini Mill
Year of Manufacture: 02/01

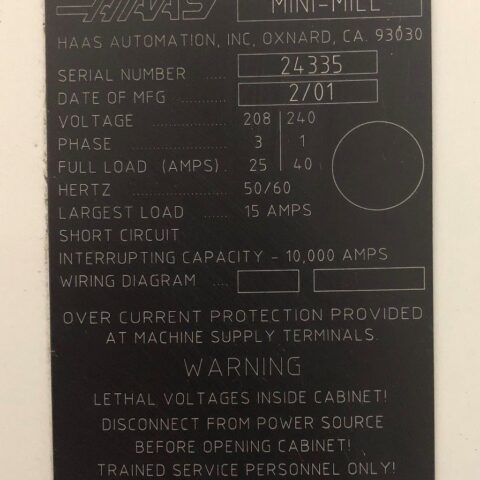

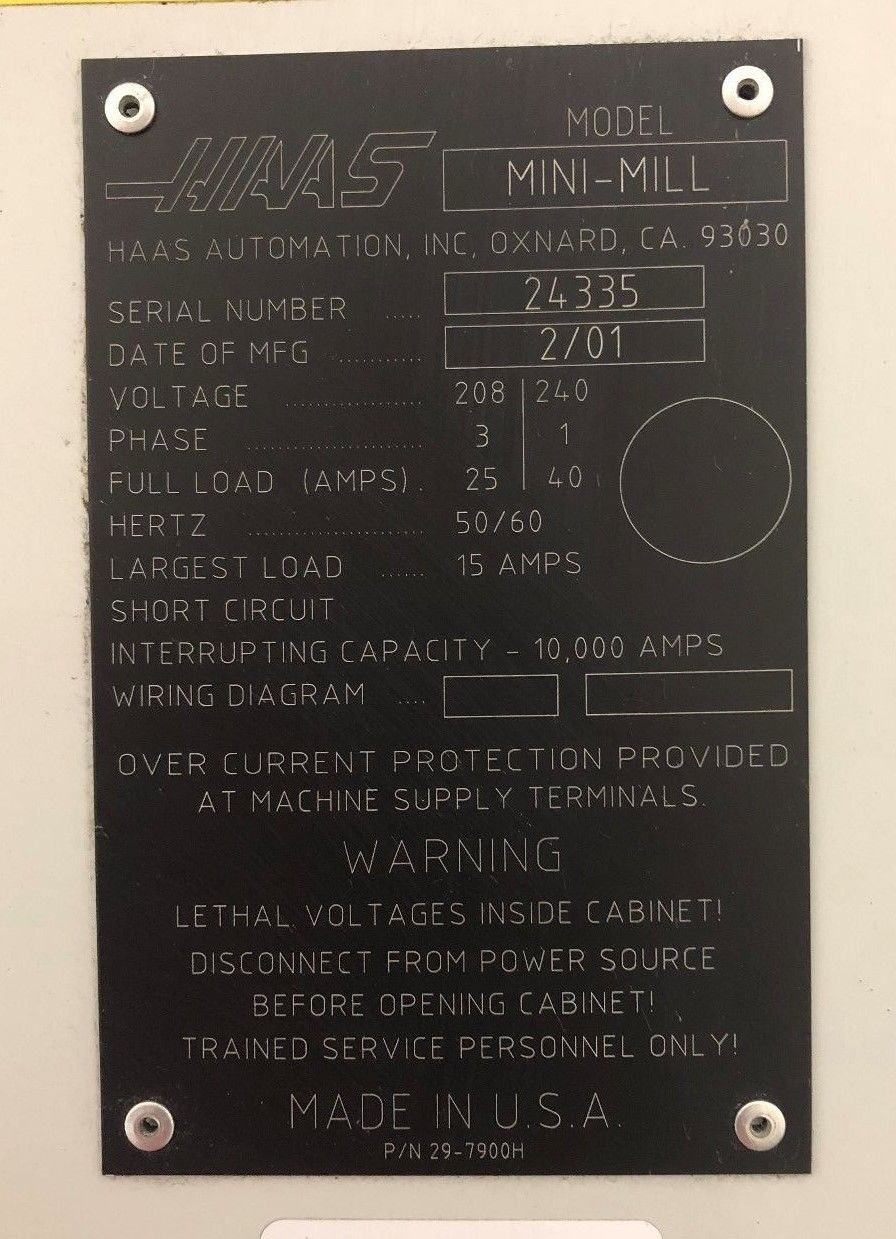

Serial # 24335
Condition Very Good

“This One Owner Machine has only 4350 Cutting Hours, was cutting Aluminium mostly. Original Paint Machine Equipped with 6000rpm, 10 tool changer, USB and many more features. On our Floor now, fully powered / tested & is in Great working condition.”

  • HAAS MINI MILL Equipped With:
  • 6000 RPM Spindle
  • Rigid Tapping
  • USB Drive
  • Advanced Tool Management
  • Power Failure Detection Module
  • 10 Station automatic tool changer
  • Programmable coolant
  • Telescopic way covers
  • Original Manuals
  • Coolant system
  • HAAS MINI MILL Specifications:
  • Travels:
  • X-Axis: 16″
  • Y-Axis: 12″
  • Z-Axis: 10″
  • Rapid Traverse Rates: 600 Inch Per Minute
  • Cutting Feed Rates: 500 Inch Per Minute
  • Spindle Nose to Table (Min.- Max.): 4″ – 14″
  • Table:
  • Length: 36″
  • Width: 12″
  • Number of Std T-Slots: 3
  • T-Slot Width: 5/8″
  • Max Weight on Table: 500 lbs
  • Spindle:
  • Taper Size: CAT 40
  • Speed Range: 0 – 6000 RPM
  • Spindle Power: 7.5 HP Vector Dual Drive
  • Automatic Tool Changer:
  • Capacity: 10
  • Max Tool Weight: 12 lbs
  • Max Tool Dia: 3.5″
  • Tool Changing Time: 3.6 Seconds
  • General:
  • Air Required: 100 psi, 4 scfm
  • Power: 220v / 66FLA / 3-Phase
  • Overall Dimensions: 84″ x 74″ x 100″ High
  • Weight: 3400 lbs

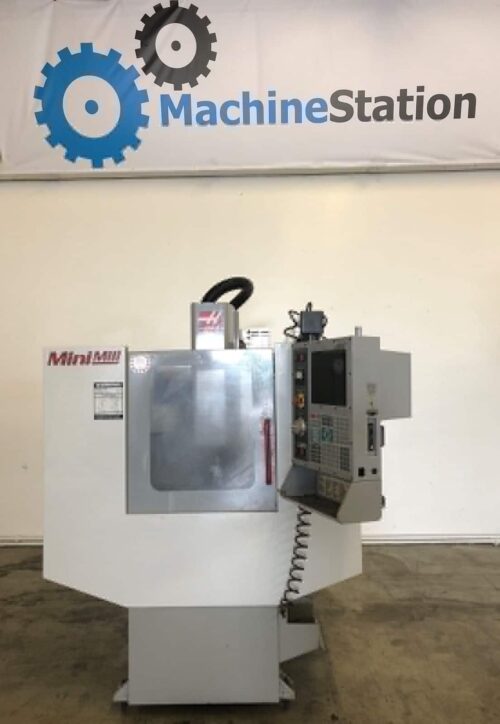

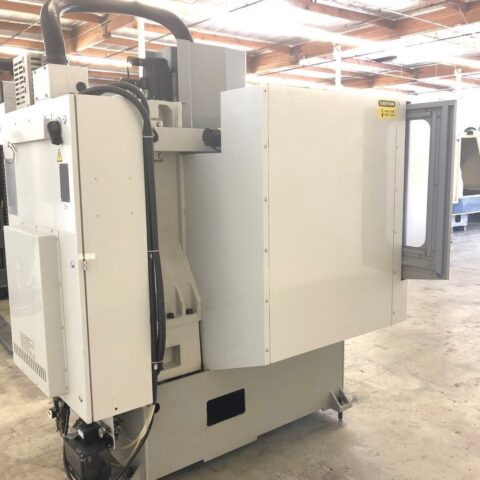

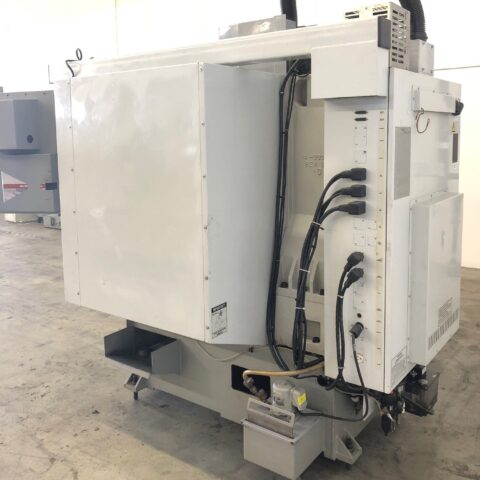

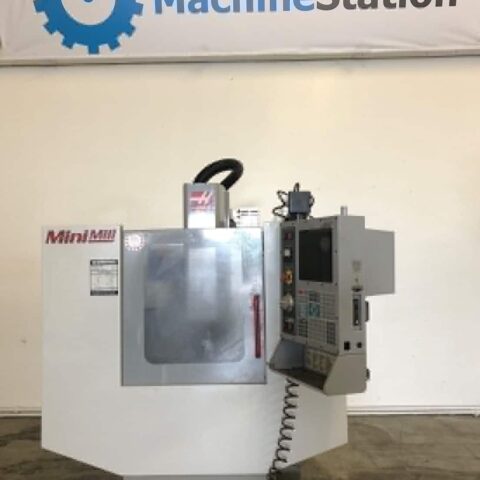

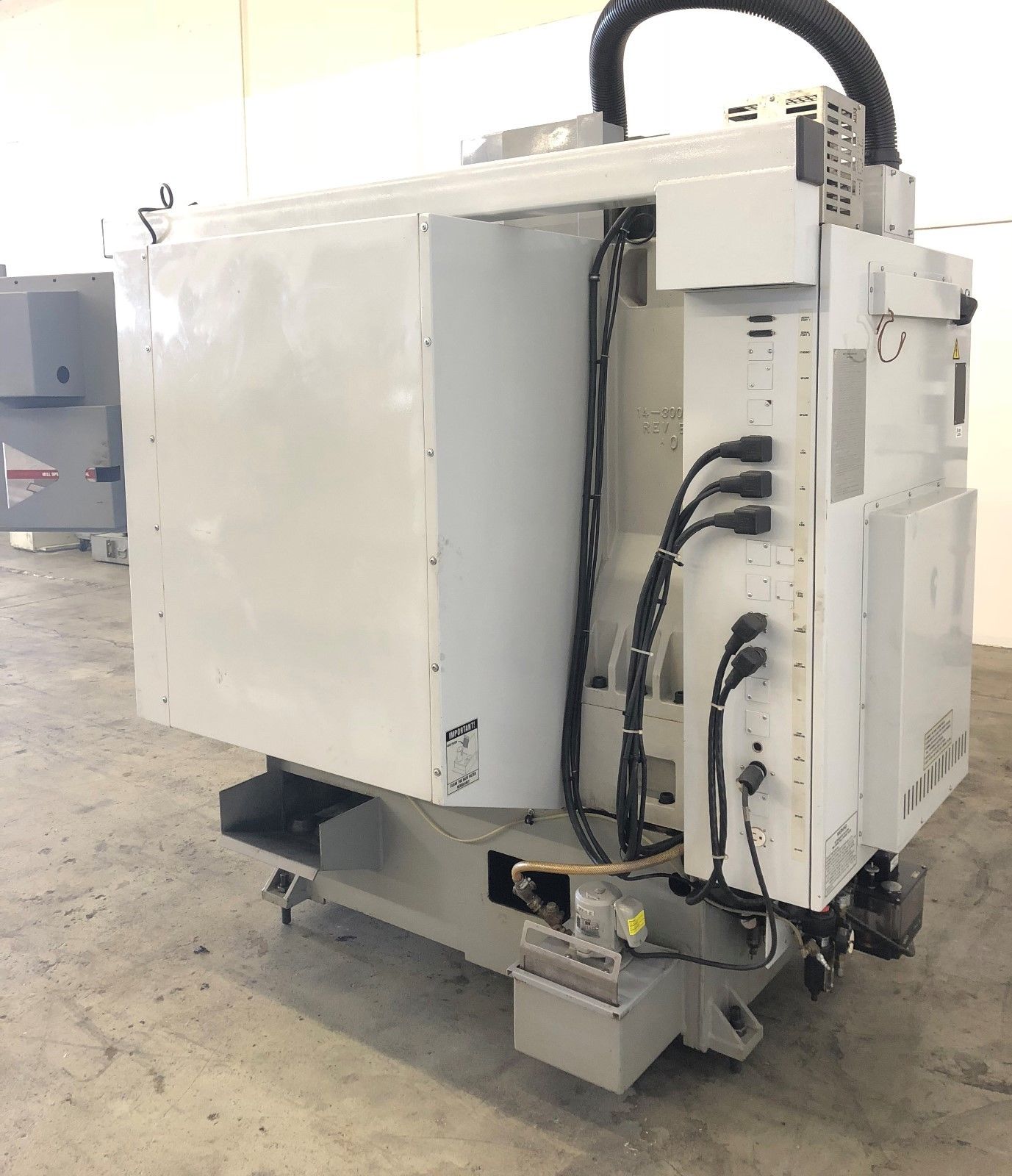

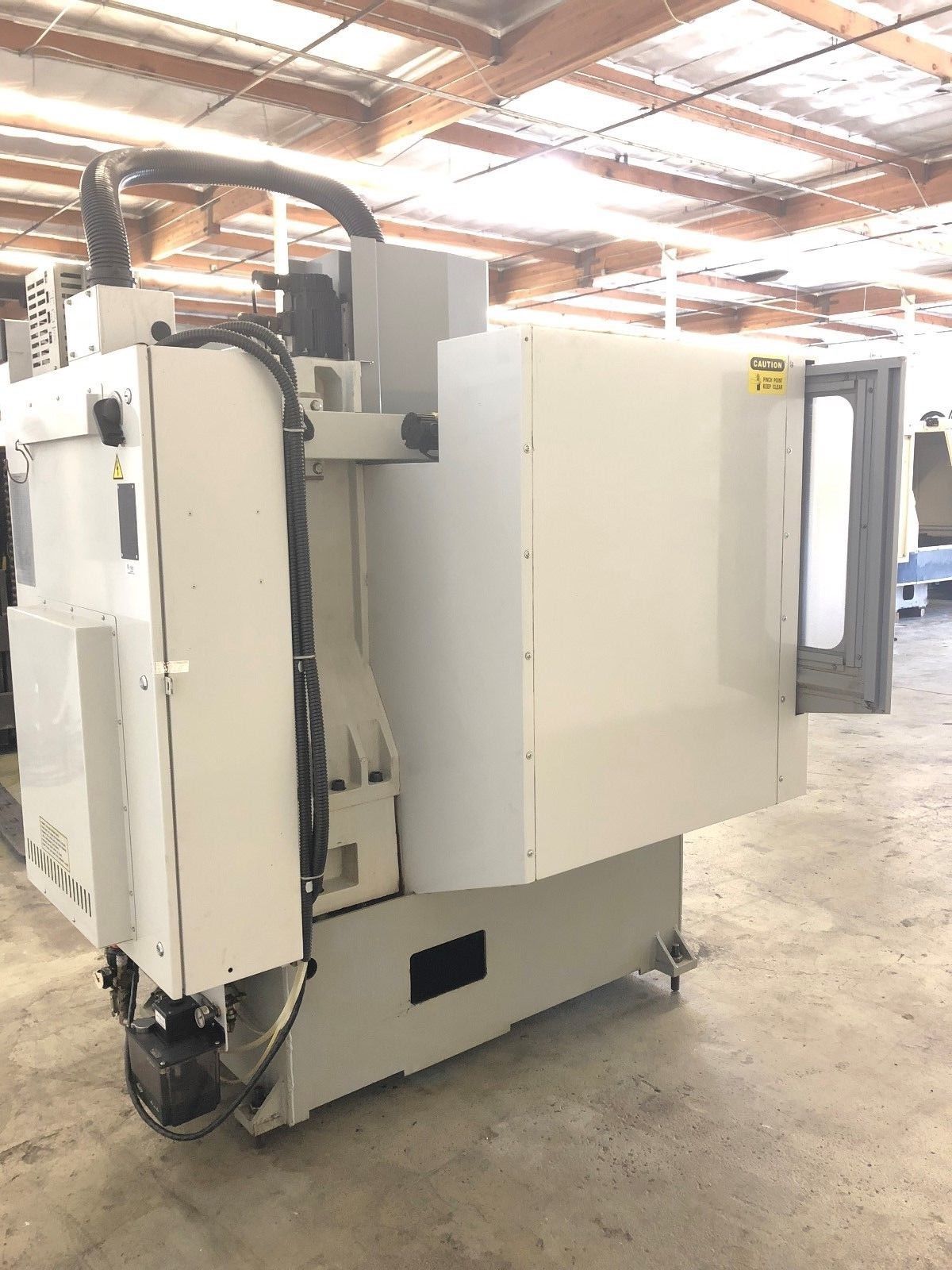

HAAS MINI MILL Comes as shown in pictures..
