Haas SL-10 CNC Turning Center

Out of stock

On Our Floor now, Fully powered / tested, Original Paint Machine in Great working condition. Low Cutting Hours. Equipped with jaw and collet Chuck, Tool holders, Manuals & Bar feeder.”

SKU: 1740
Make/Model: HAAS SL-10
Video: [fusion_button link=”https://www.youtube.com/watch?v=o9VHaIOqTZs” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1740
HAAS SL-10 CNC TURNING CENTER LATHE W/ SERVO BAR FEEDER
Make HAAS
Model No. SL-10
Year 2002
Serial # 64810
Condition Very Good
Country of Origin: USA

“On Our Floor now, Fully powered / tested, Original Paint Machine in Great working condition. Low Cutting Hours. Equipped with jaw and collet Chuck, Tool holders, Manuals & Bar feeder.”

  • Haas SL-10 CNC Turning Equipped With:
  • 6000 RPM Spindle
  • MMK 6.5″ 3 Jaw Hydraulic Chuck
  • 5c Collet Chuck
  • Tool Pre-setter
  • 1 MB Memory
  • Spindle Orientation
  • Barfeed Interface
  • Parts Catcher
  • 12″ Color TFT
  • RS-232 ports
  • USB
  • 12 Station Automatic Turret
  • Chip auger

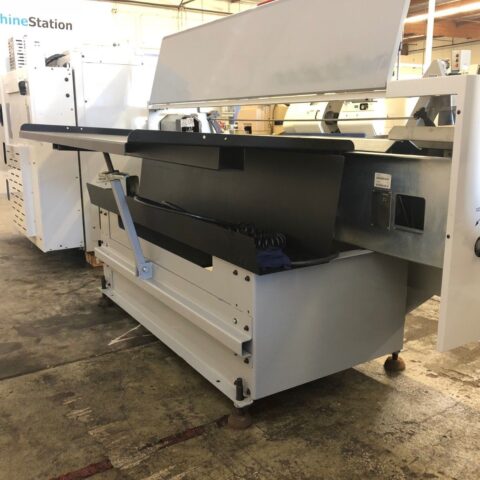

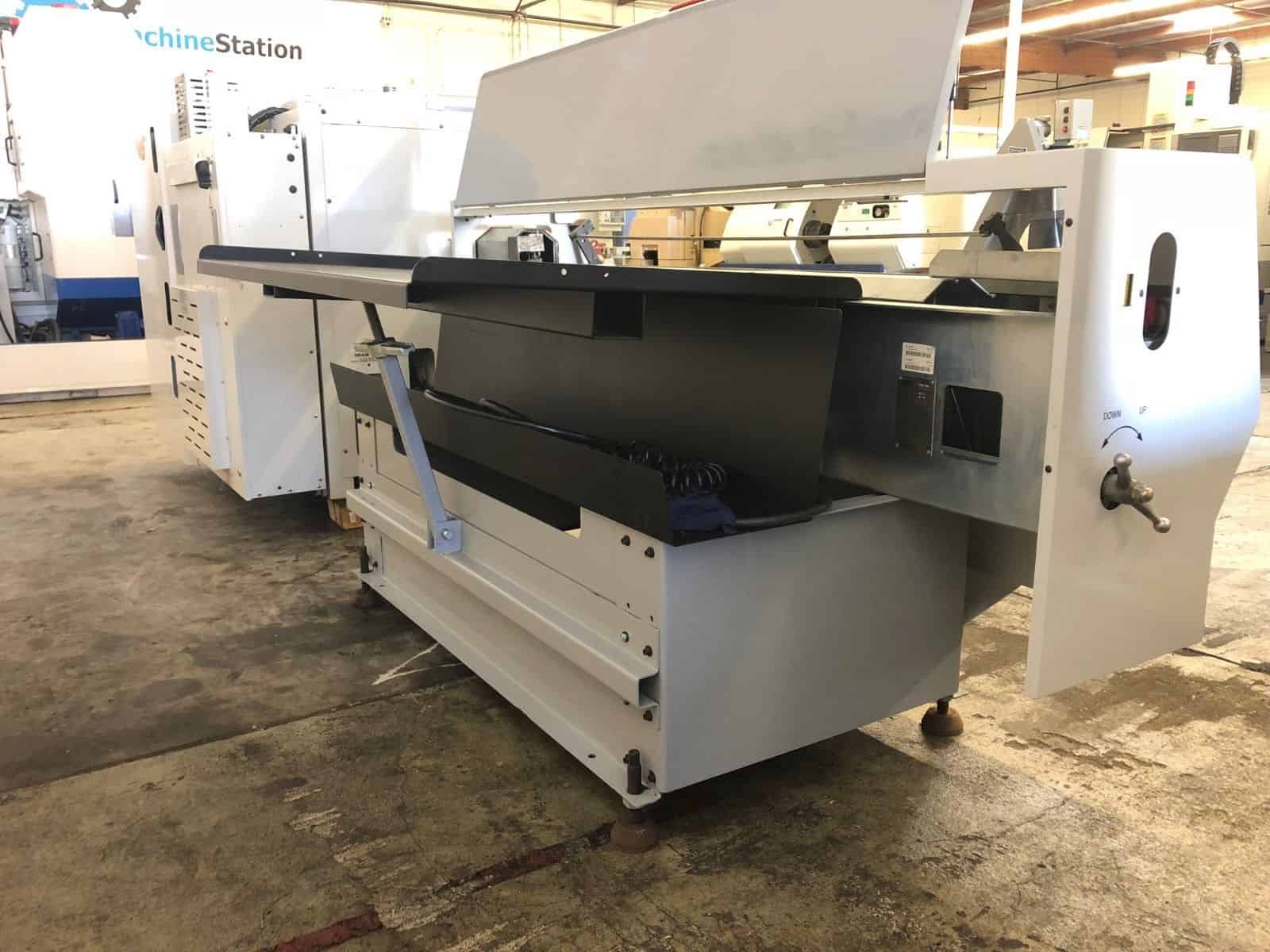

  • Comes with Servo 300 Bar Feeder, foot switch, jaw & Collet Chuck.
  • General:
  • Power: 220v / 3-Phase
  • Overall Dimensions: 92″ x 64″ x 72″ High w/o barfeed
  • Weight: 6,000 lbs
  • Haas SL-10 CNC Turning Specifications:
  • Capacity:
  • Max Turning Diameter: 11″
  • Max Turning Length: 14″
  • Max Bar Capacity: 1.75″
  • Swing Over Bed: .65″
  • Swing Over Cross Slide: .75″
  • X Axis Travel: 6.28″
  • Z Axis Travel: 14.47″
  • Rapid Traverse X Axis: 710 IPM
  • Rapid Traverse Z Axis: 710 IPM
  • Spindle Nose: A2-5
  • Spindle Bore: 2.31″
  • Spindle Speed: 60 – 6000 RPM
  • Spindle Motor: 15 HP
  • Turret Capacity: 12 Stations
  • Turret Index Time: 0.15 Second

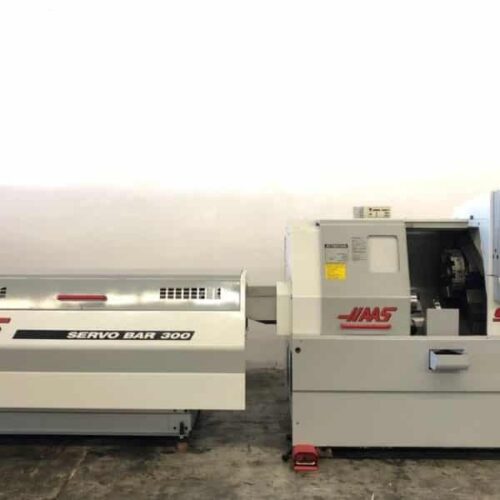

Haas SL-10 CNC Turning Comes as shown in pictures.
