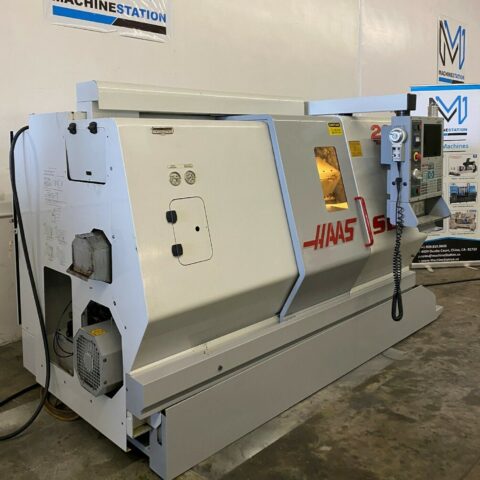

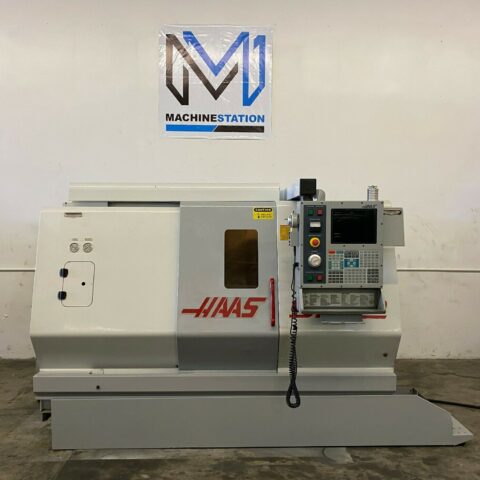

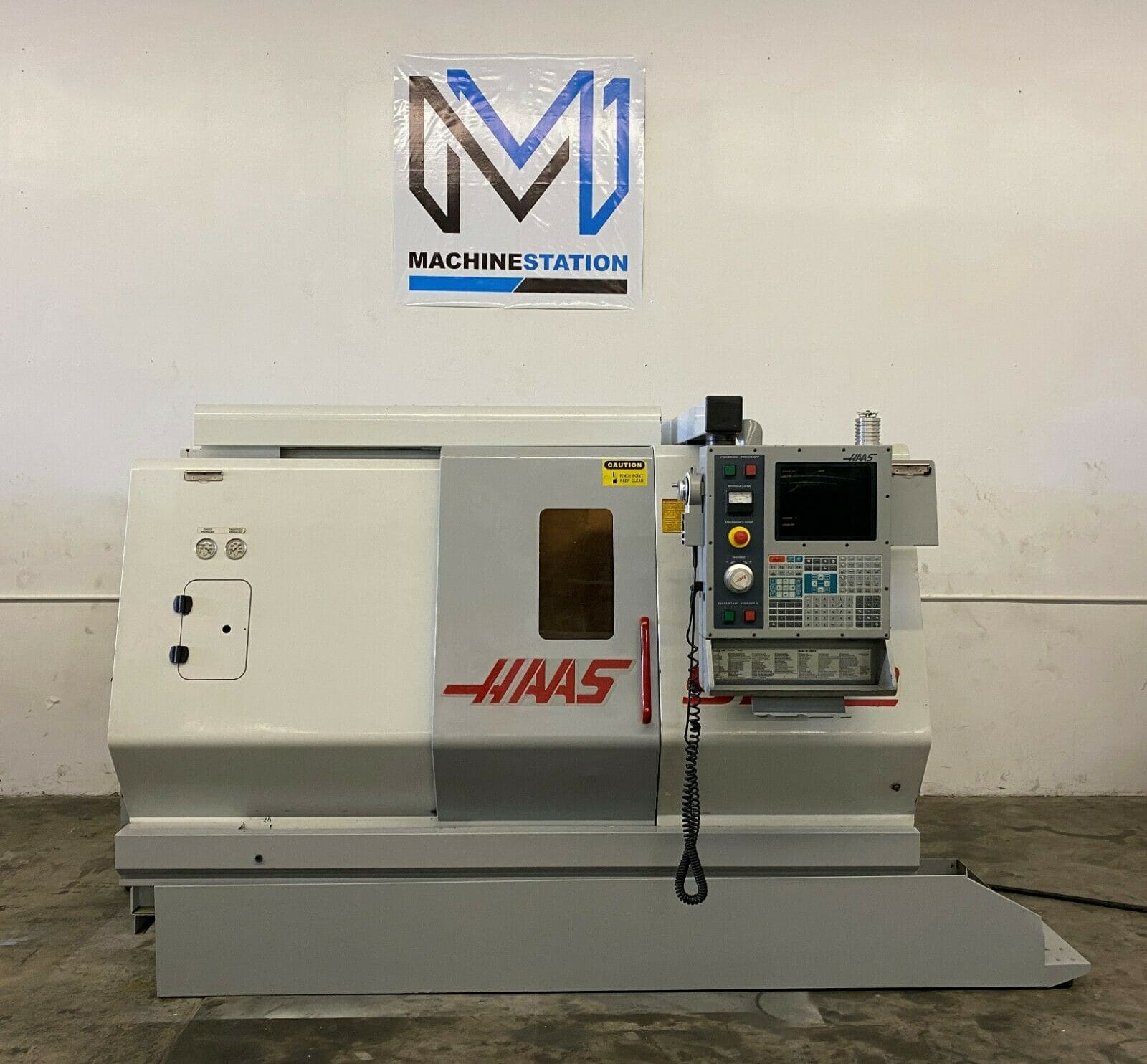

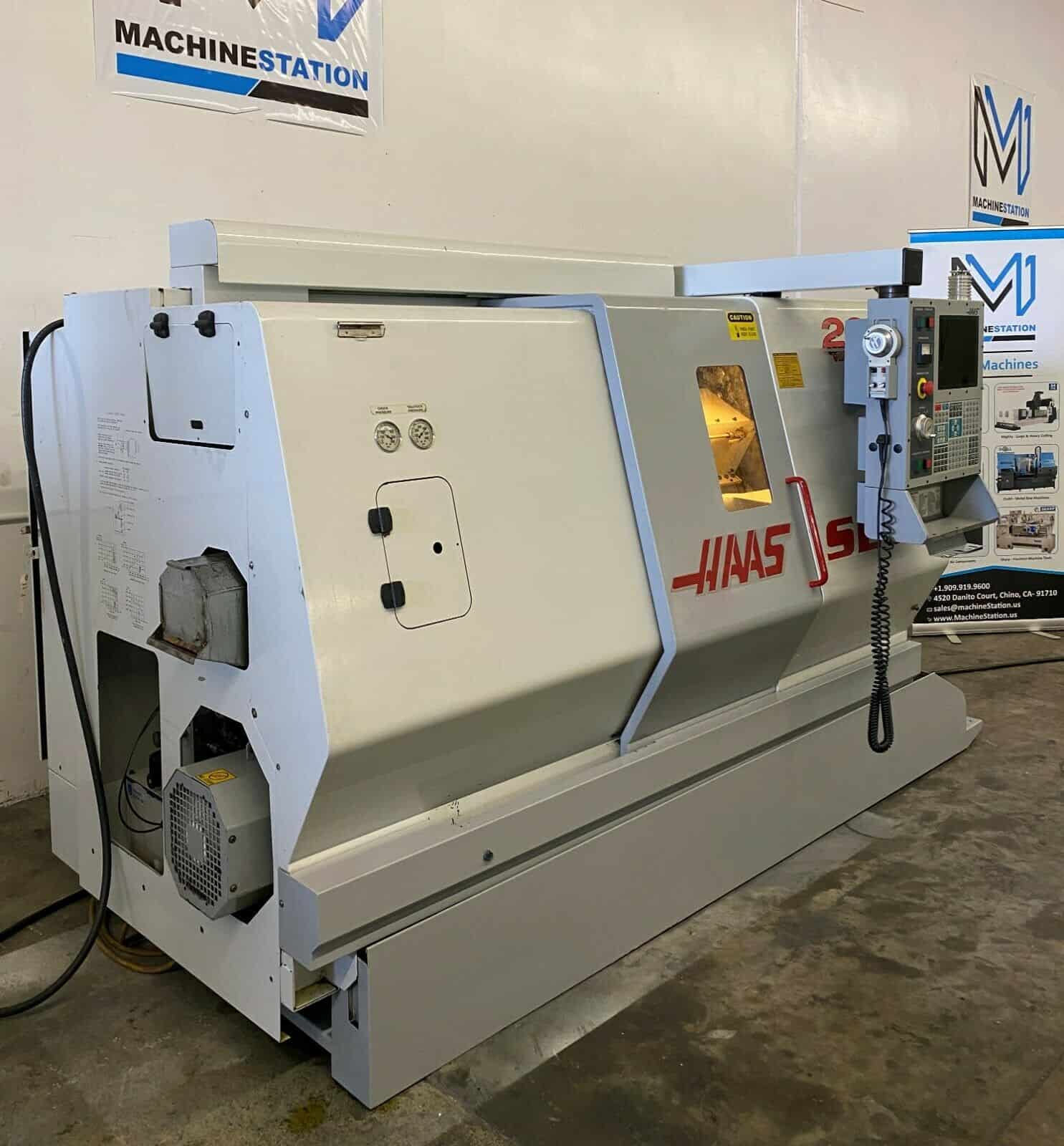

Haas SL-20T CNC Turning Center

All specifications are approximations and are subject to verification.

• Haas SL-20T CNC Lathe Equipped With:

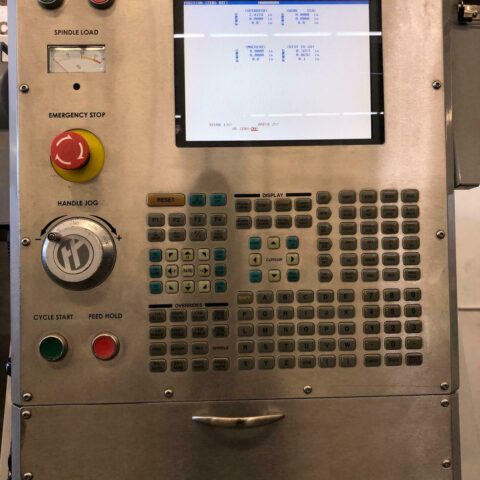

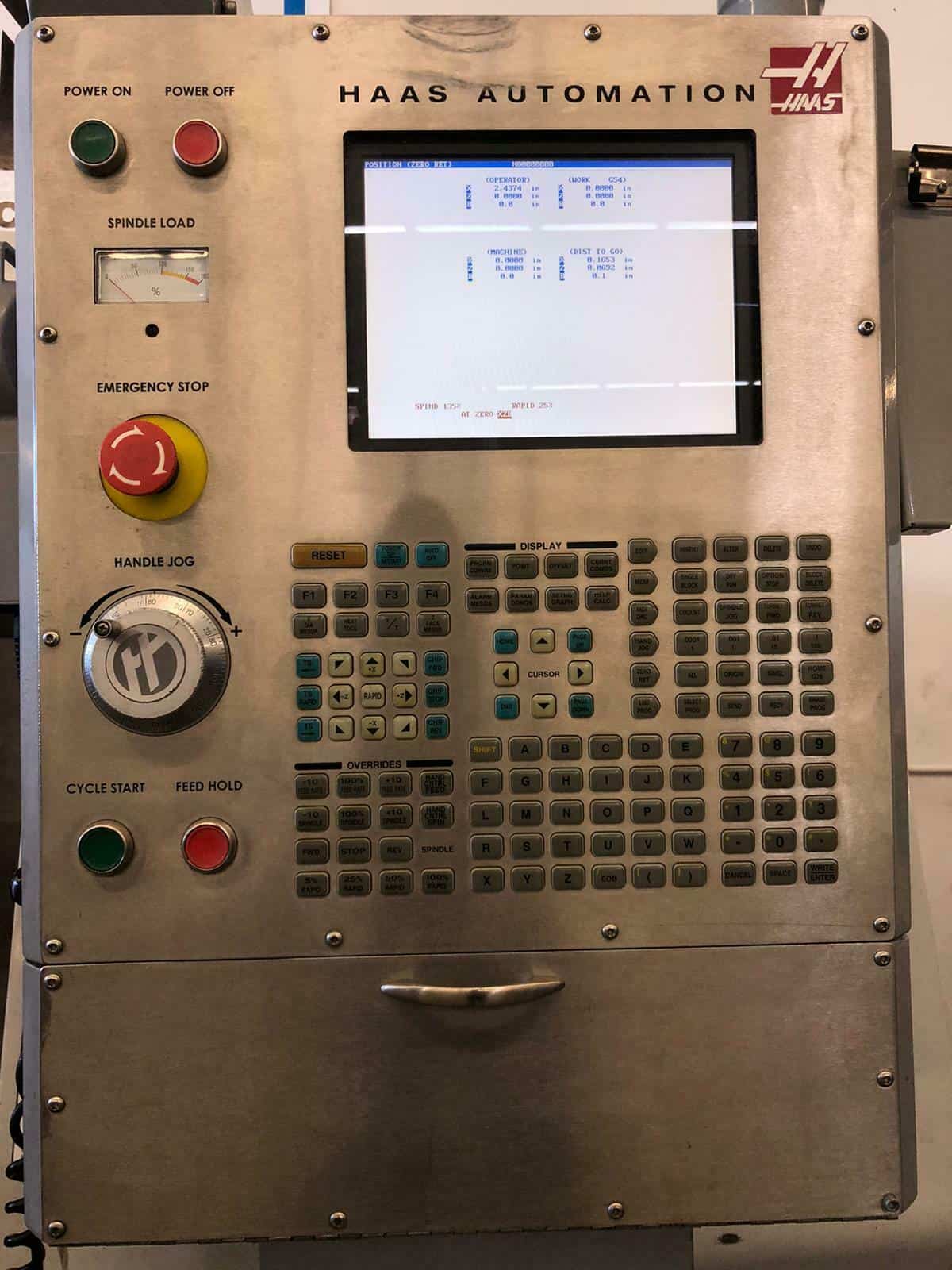

• Haas 32Bit CNC Control
• MPG control
• AutoDoor

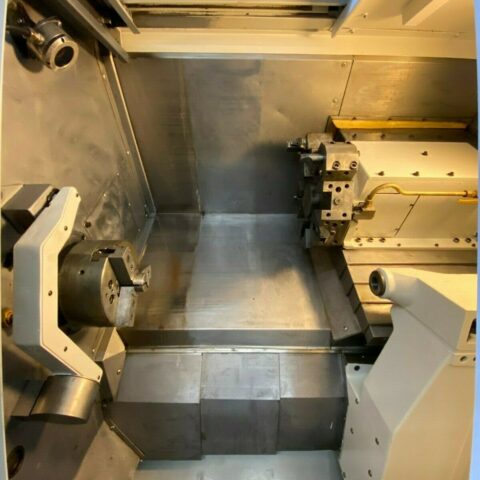

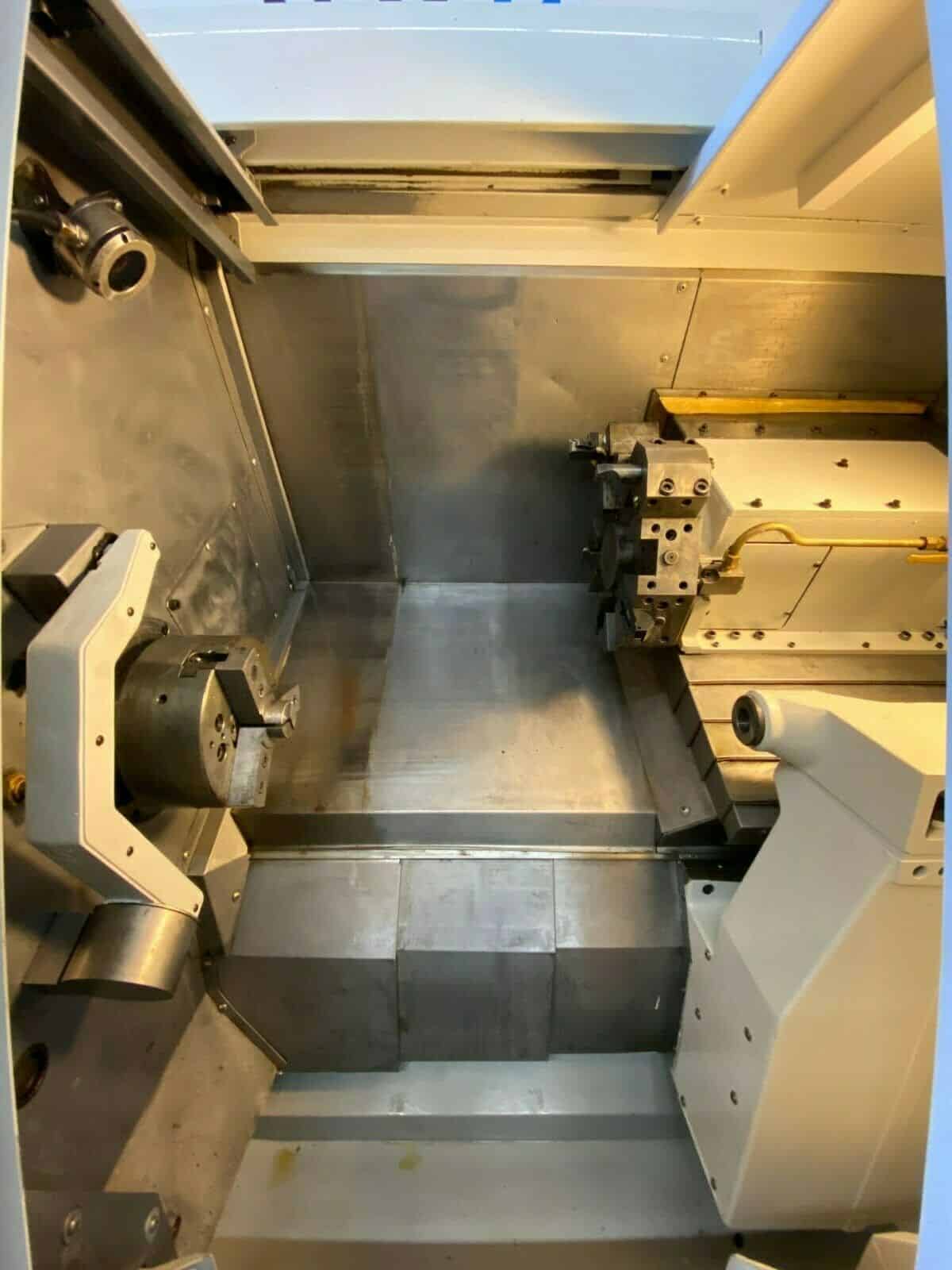

• 8″ 4 Jaw Hydraulic Chuck
• Tool Setter
• Tailstock
• Coolant System
• Foot Switch

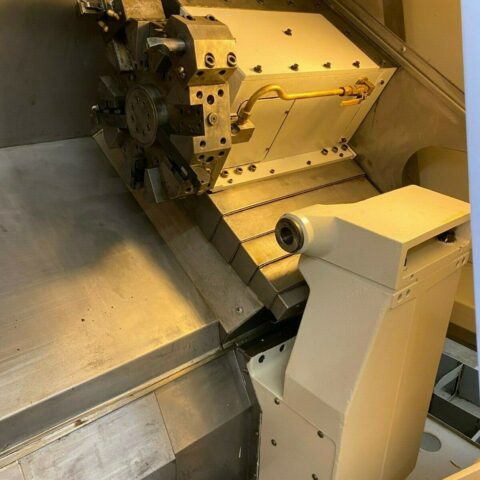

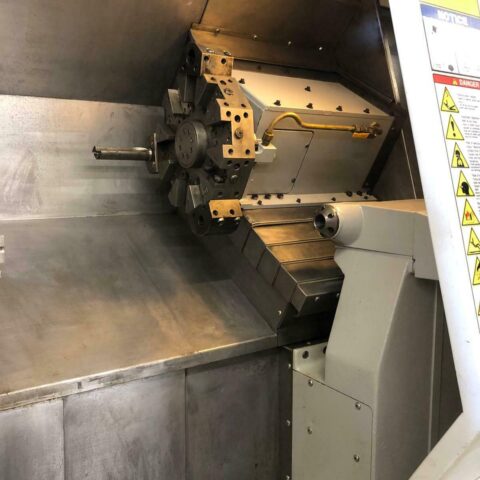

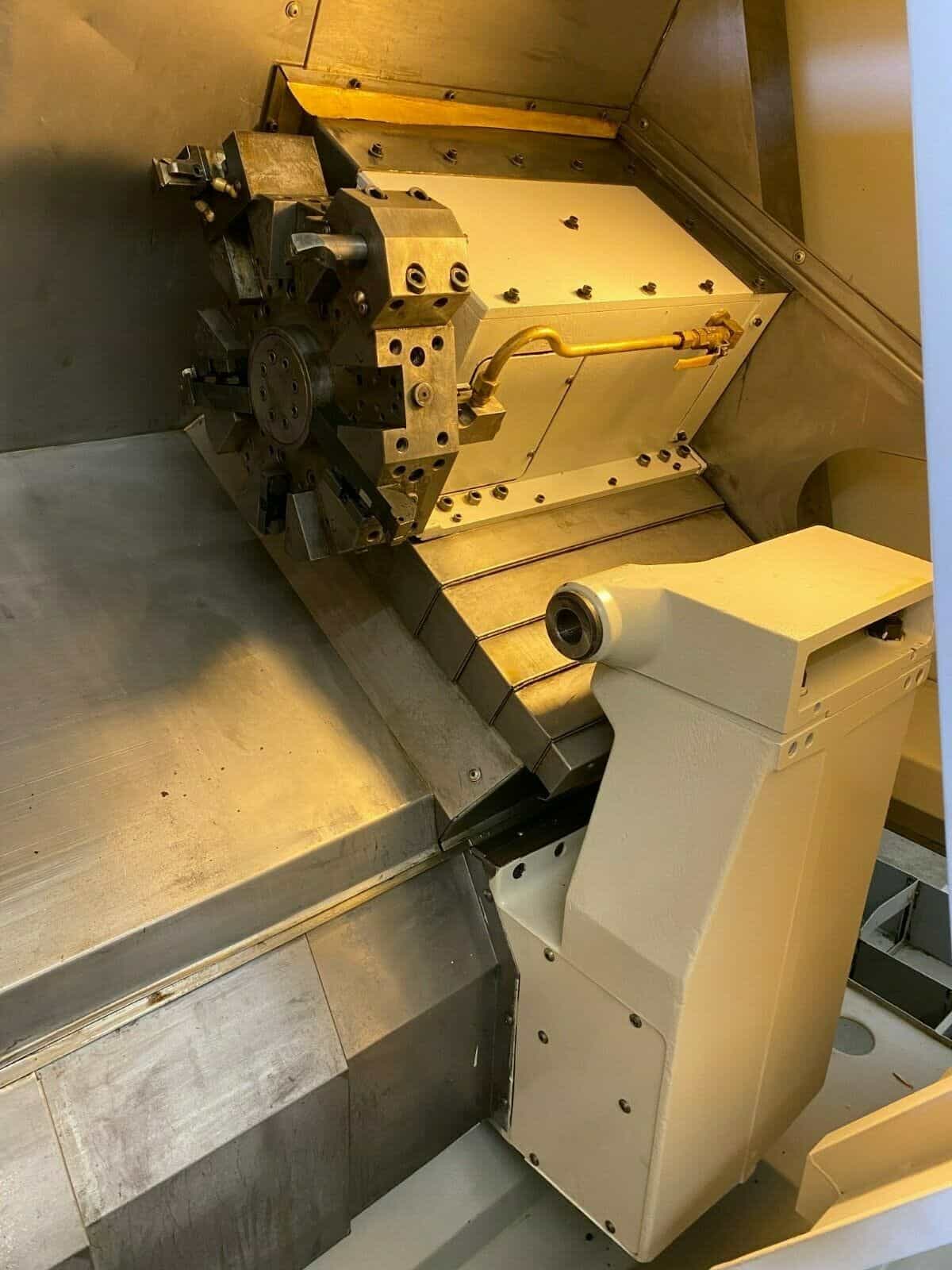

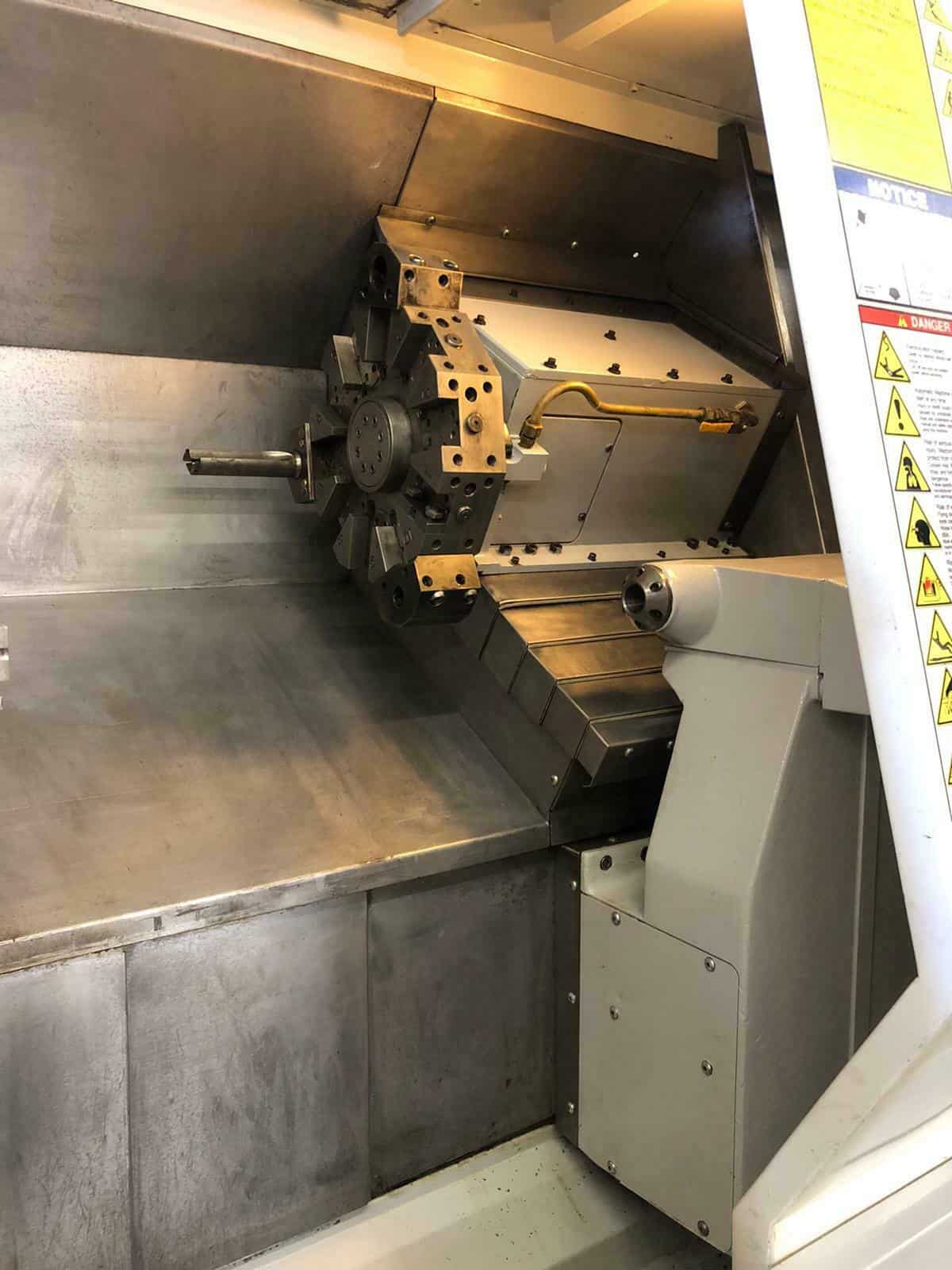

• 10 Station Automatic Turret

• Haas SL-20T CNC Lathe Specifications:

• Capacity:
• Max Turning Diameter: 10.0″
• Max Turning Length: 20.0″
• Max Bar Capacity: 2.0″
• Swing Over Bed: 23.0″

• Travels:

• X Axis Travel: 8.45″
• Z Axis Travel: 20.0 “
• Rapid Traverse X Axis: 710 IPM
• Rapid Traverse Z Axis: 710 IPM

• Spindle:

• Spindle Nose: A2-6
• Spindle Bore: 3.02″
• Spindle Speed: 50 – 3400 RPM
• Spindle Motor: 20 HP

• Turret:

• Turret Capacity: 10 Stations
• Turret Index Time: 1 Second

• General:

• Power: 45 kva, 220v / 3-Phase
• Overall Dimensions: 135″ X 90″ X 90 ” High
• Weight: 9,000 lbs
