*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

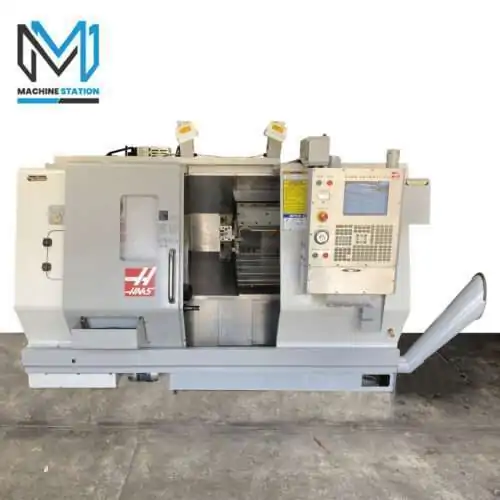

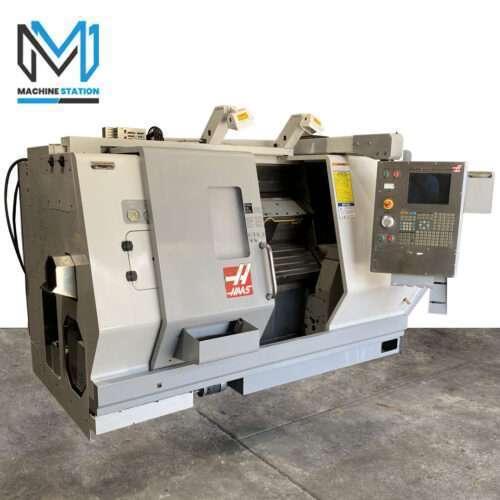

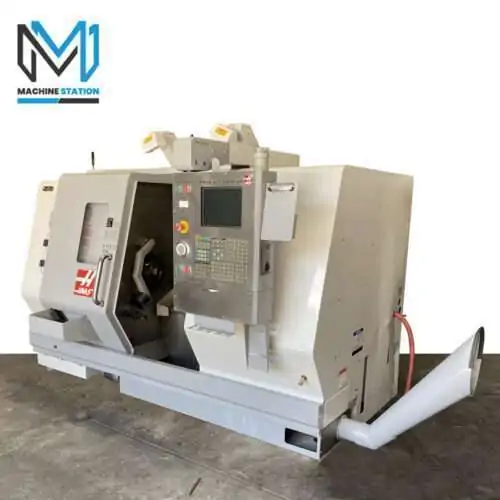

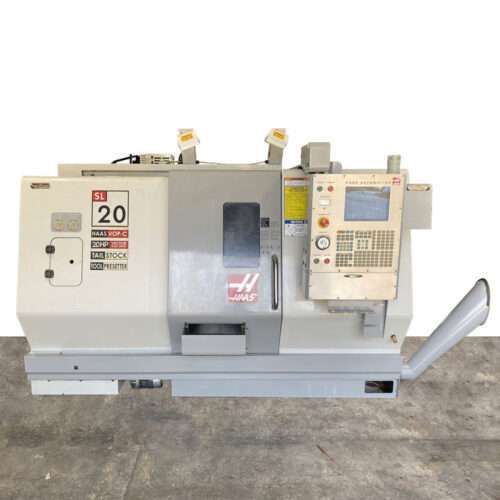

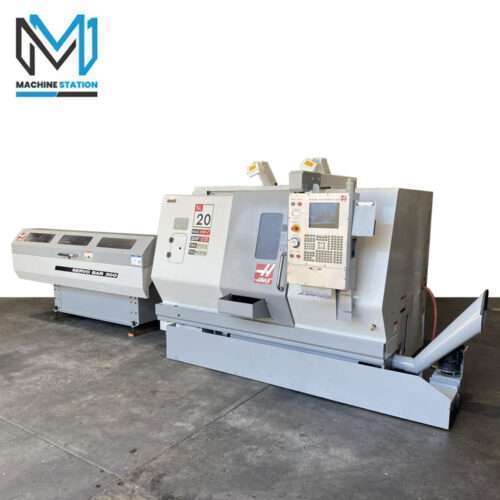

| Make: | Haas |
| Model: | SL-20T |
| Year: | 2005 |
| Spindle Time: | 13,971 Hours |
| Equipped With: |
|---|

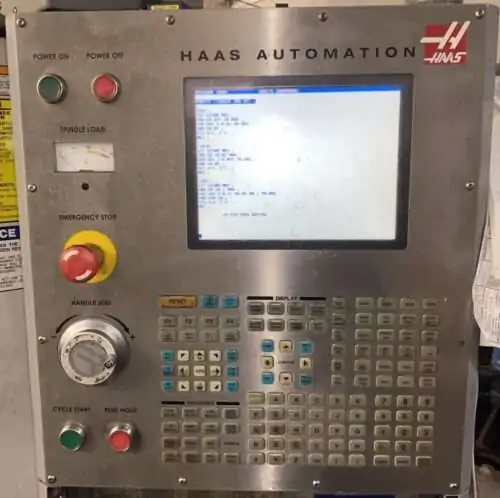

| Haas CNC Control |
| Haas VOP-C Package |

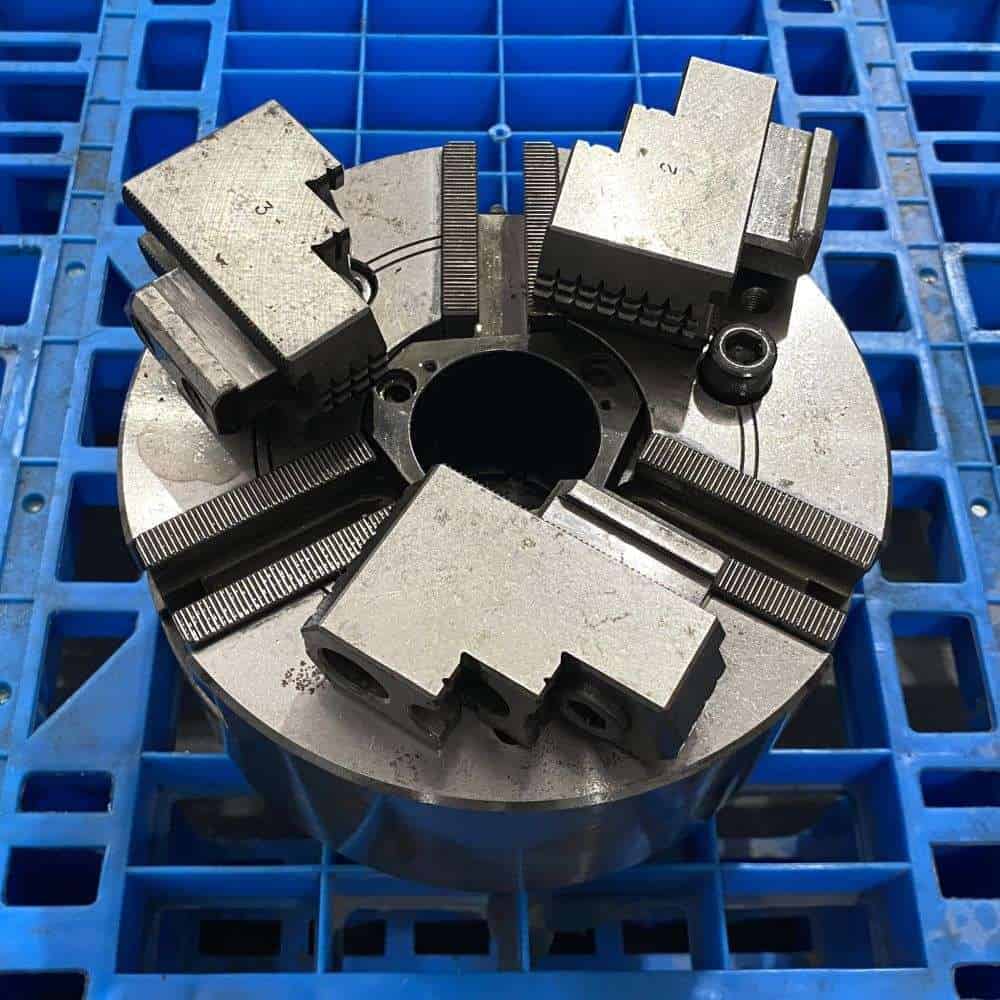

| 8″ 3-Jaw Hydraulic Chuck |
| A2-6 Spindle with 3.0″ Bore |

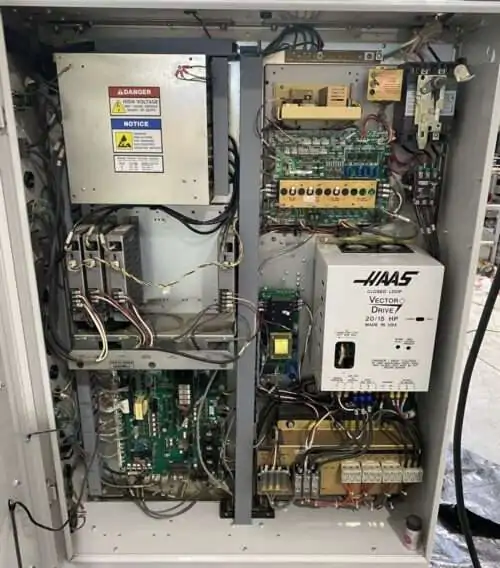

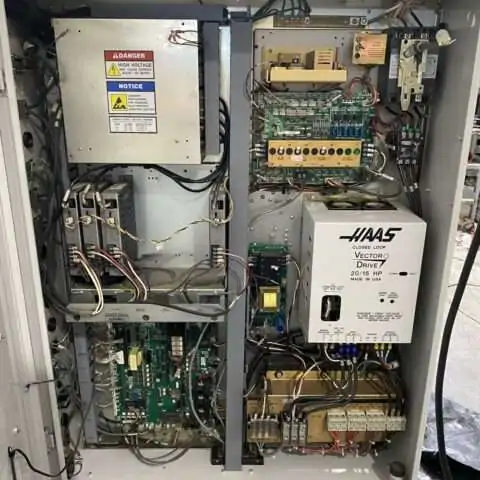

| 20 HP Vector Dual Drive |

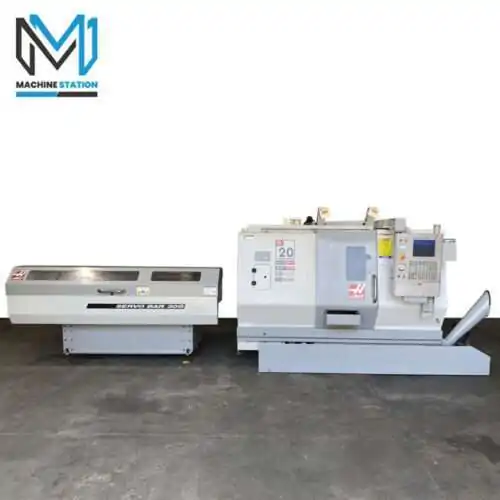

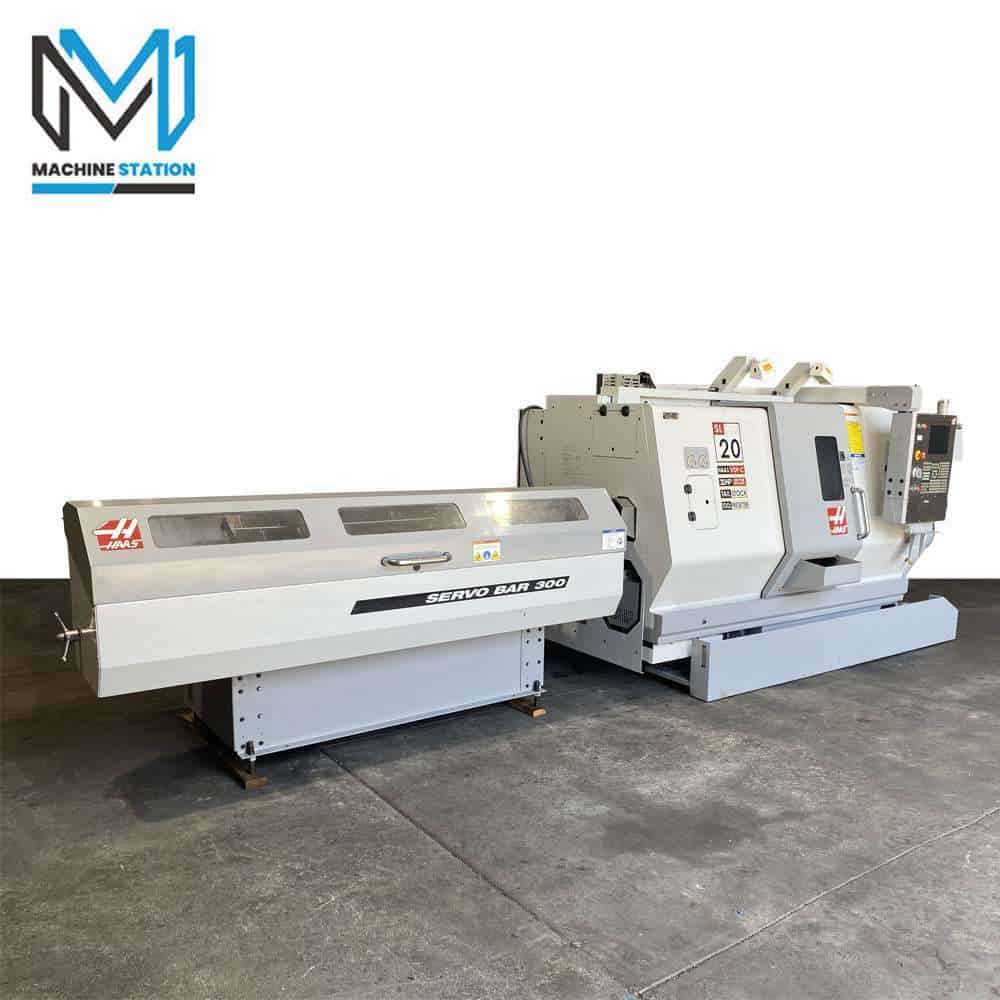

| Haas Servo Bar 300 Bar Feeder |

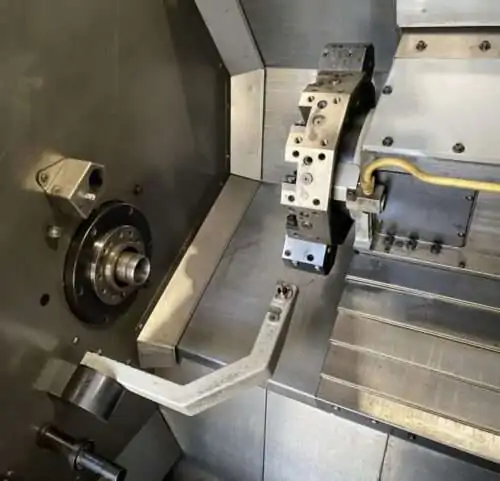

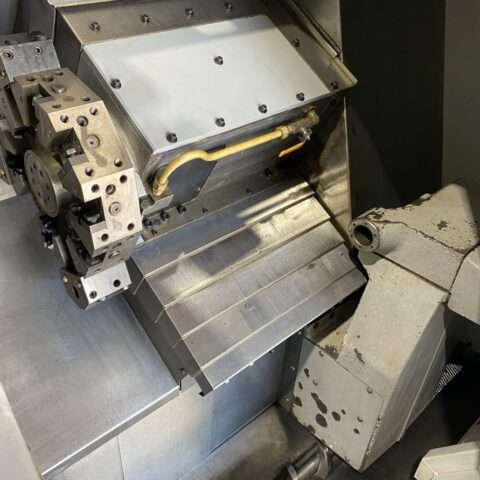

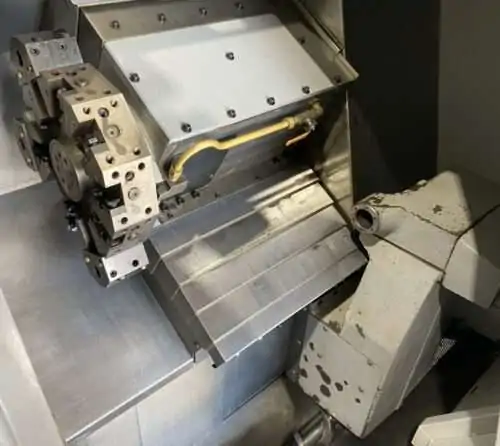

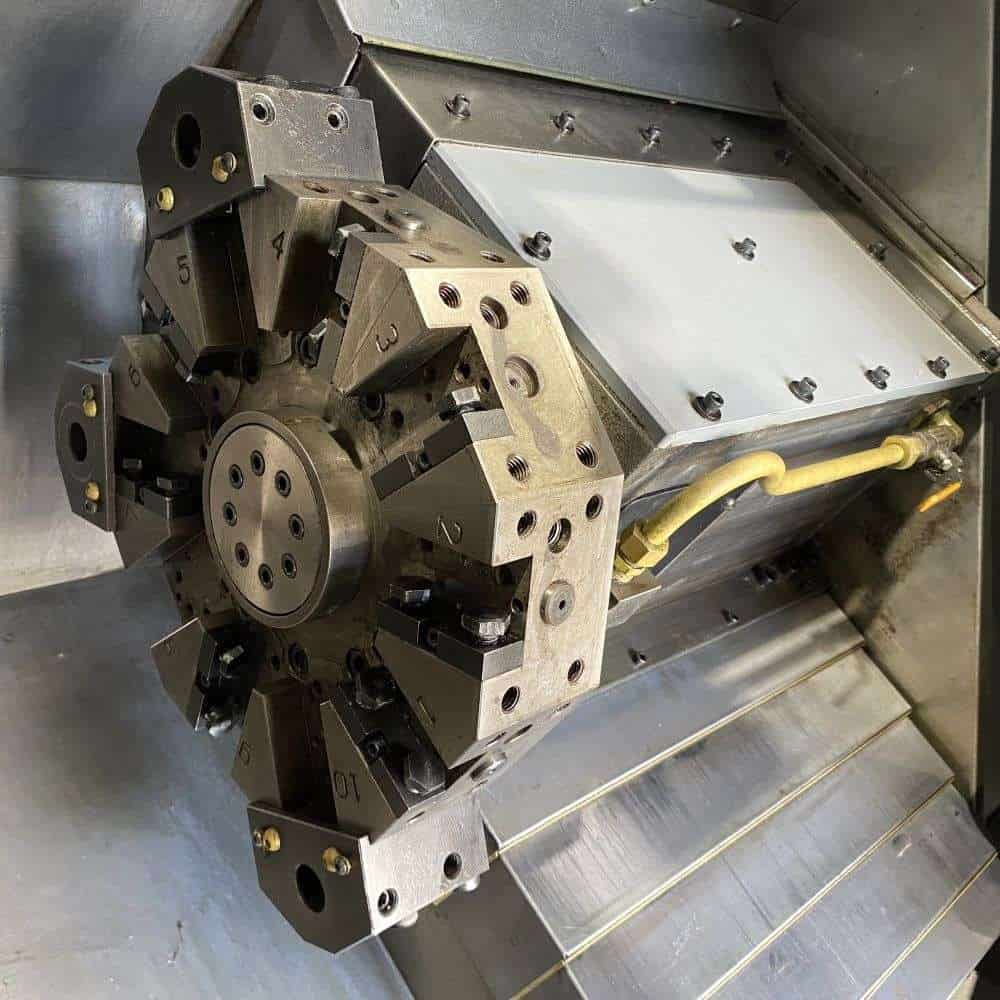

| 10 Station Automatic Turret |

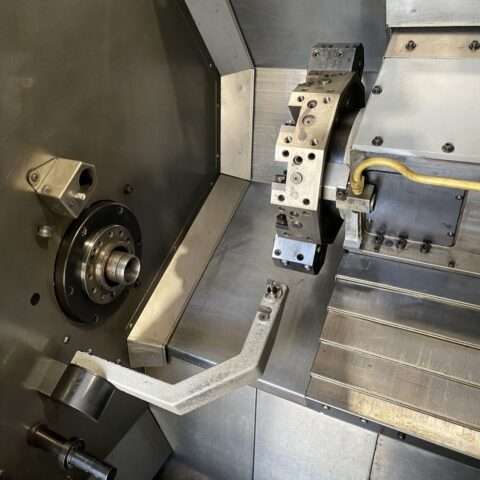

| Tool Presetter |
| Coolant System |

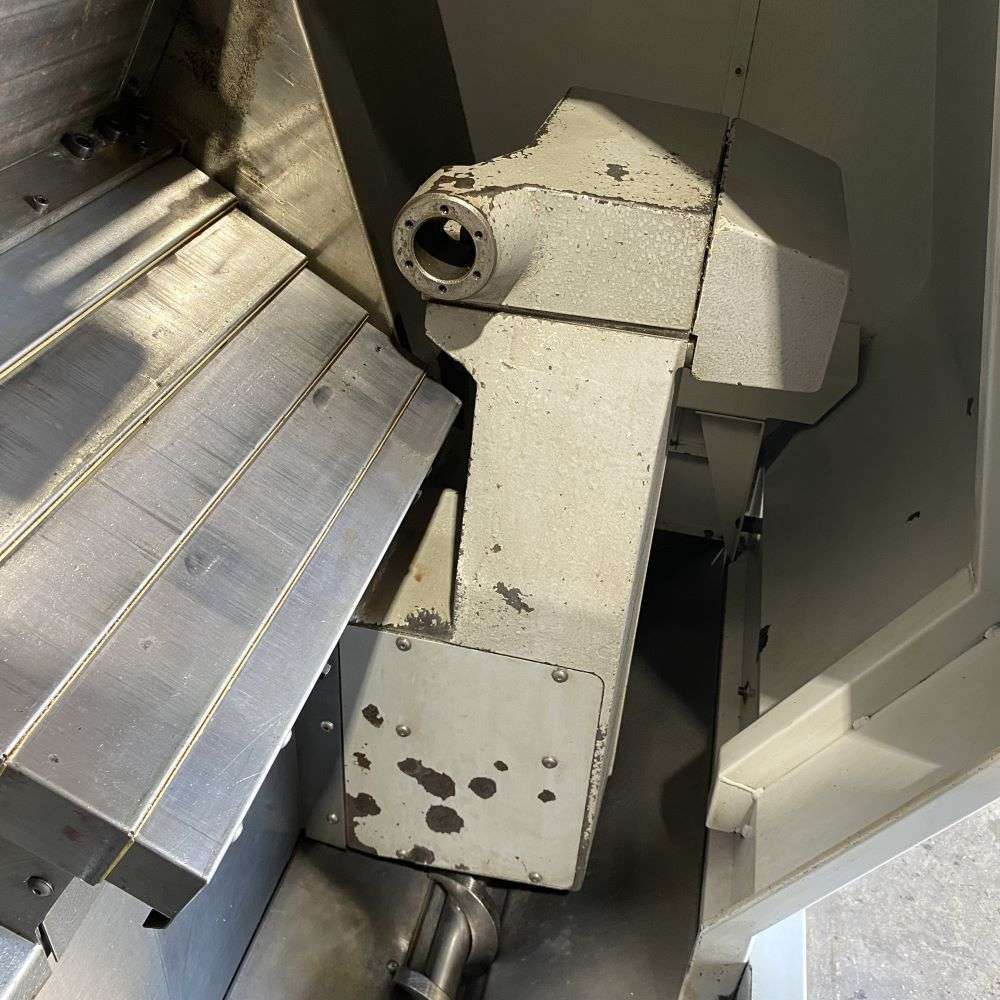

| Programmable Tailstock |
| Automatic Lubrication system |
| Chip Auger |
| Foot Switch |
| Capacity: |
|---|
| Max Turning Diameter : 10.3″ |
| Max Swing Over Bed : 23.0″ |
| Max Turning Length: 20.0″ |
| Max Bar Capacity : 2.0″ |
| Distance Between Centers : 20″ |
| Travels: |
|---|
| X Axis Travel : 7.10″ |
| Z1 Axis Travel : 21.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 710 IPM |
| Rapid Traverse Z Axis: 710 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.0″ |
| Spindle Speed: 4000 RPM |
| Spindle Motor: 20 HP |
| Turret: |
|---|
| Turret Capacity: 10 Stations |
| Turret Index Time: 1 Second |

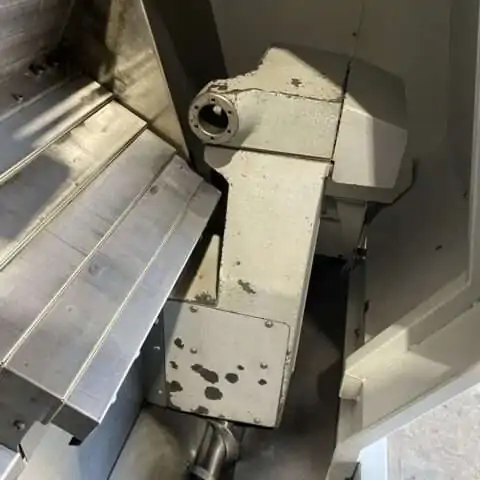

| Tailstock: |
|---|
| Tailstock Body Travel: 20″ |
| Taper: MT-4 |
| General: |
|---|

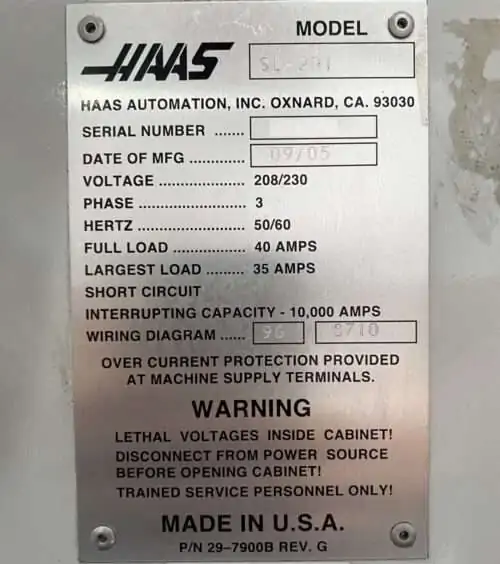

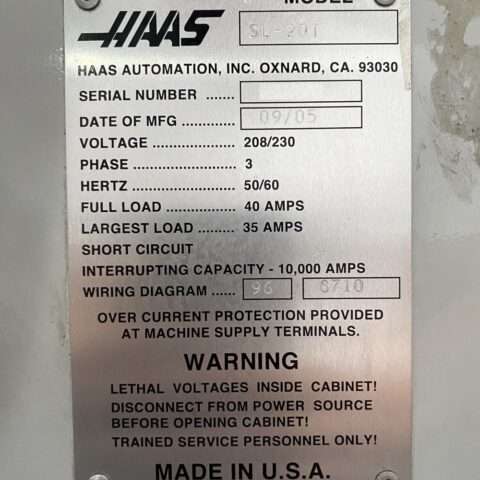

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 124″ x 74″ x 70″ High |
| Machine Weight: 9,000 lbs Approx. |
