HAAS SL-20TB CNC BIG BORE TURNING CENTER | |
---|---|
Make | HAAS |
Model No. | SL-20TB |
Year Of Manufacture: | 2008 |
Serial # | 3082261 |
Condition | Very Good |
Country of Origin: | USA |
All specifications are approximations and are subject to verification.
“One Owner Machine on Our Floor now, Fully powered / tested & is in Great working condition. Only Hours. Equipped with 10″ Hydraulic Chuck, Tool Presetter, Tailstock, Big Bore Lathe. Comes with chip conveyor, Tool holders. Replacement Cost over 70k.”
- HAAS SL-20TB Equipped With:
- Haas CNC Control with USB Port
- 15″ Color Display
- 10″ 3-Jaw Kitagawa Hydraulic Chuck
- 10-Station Turret
- Tool Presetter
- Programmable Hydraulic Tailstock
- Intuitive Programming System (IPS)
- Parts Catcher
- Rigid Tapping
- Coolant System with Tank
- Automatic Lubrication system
- Foot Operated Control for Chuck
- Chip Conveyor
- High Intense Lights
- Comes with Chip Conveyor, Levelling Pads, Manuals.
- Replacement Cost as Equipped over $70,000.00
- General:
- Power Source: AC 220 V, Three Phase, 60 Hz
- Overall Dimensions: 135″ x 70″ x 80″ High
- Weight : 9,000 lbs Approx.
- HAAS SL-20TB Specifications:
- Max Turning Diameter: 10.3″
- Max Turning Length: 20.0″
- Max Bar Capacity: 2.50″
- Swing Over Bed: 23″
- Distance Between Centers: 24″
- X Axis Travel: 8.45″
- Z Axis Travel: 20.0″
- Rapid Traverse X Axis: 710 IPM
- Rapid Traverse Z Axis: 710 IPM
- Spindle Nose: A2-6
- Spindle Bore: 3.0″
- Spindle Speed: 3400 RPM
- Spindle Motor: 30HP
- Turret Capacity: 10 Stations
- Turret Index Time: 1 Second
- Tailstock Travel: 20.0″
- Tailstock Quill Dia.: 3.0″
- Tailstock Quill Stroke: 5.1″
- Tailstock Taper: MT-4

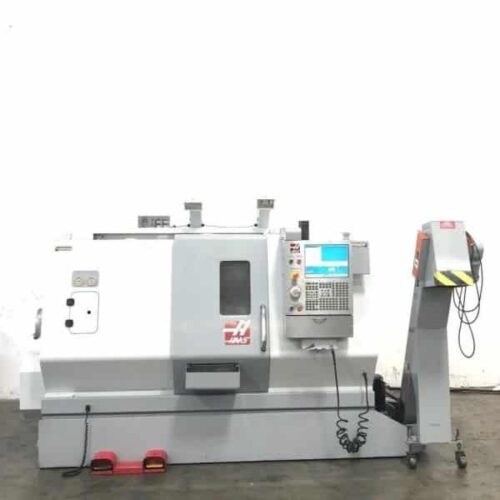

HAAS SL-20TB Comes as shown in pictures.
