*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

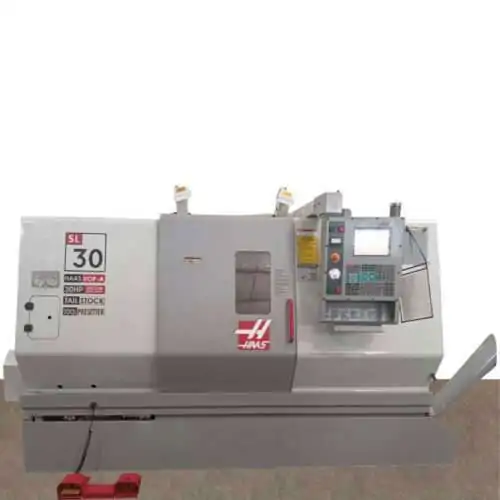

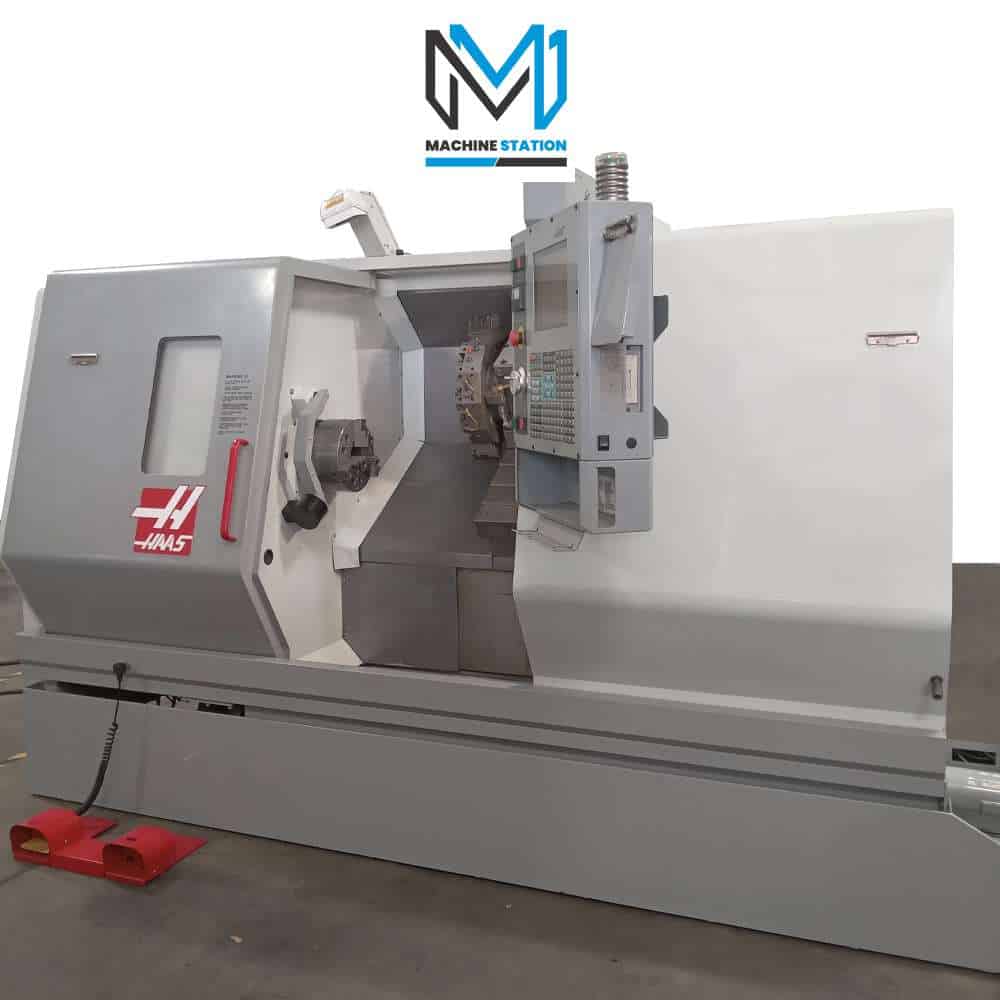

| Make: | Haas |
| Model: | SL-30T |
| Year: | 2003 |
| Spindle Time: | 20,091 Hours |

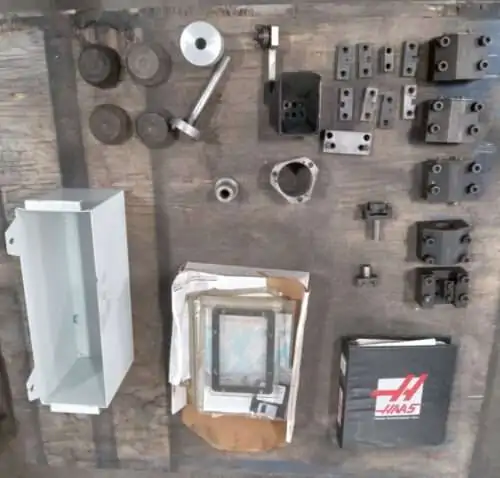

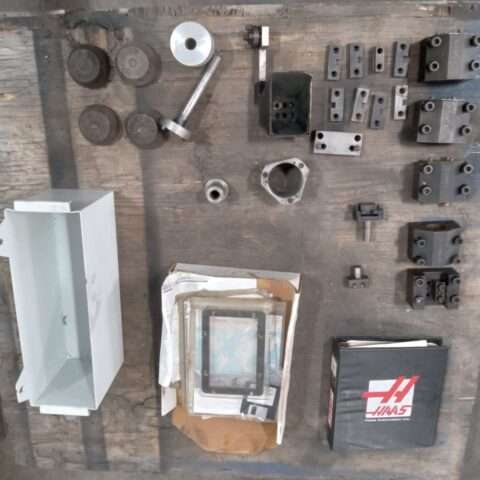

| Equipped With: |
|---|

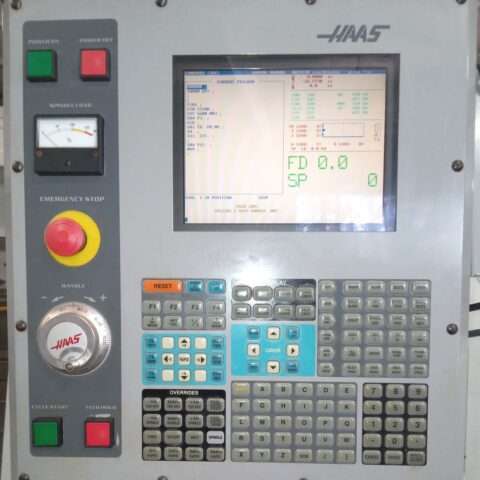

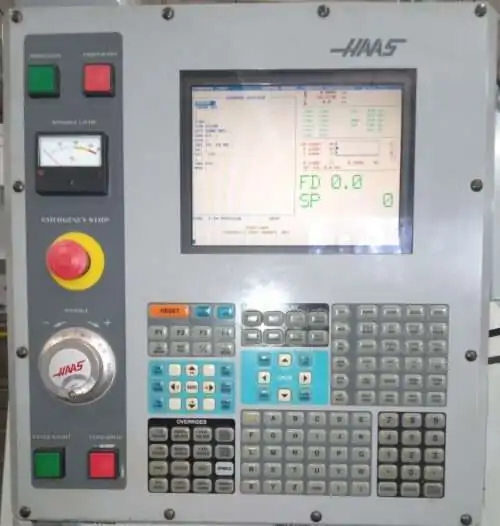

| Haas CNC Control |
| Haas VOP-A Package |

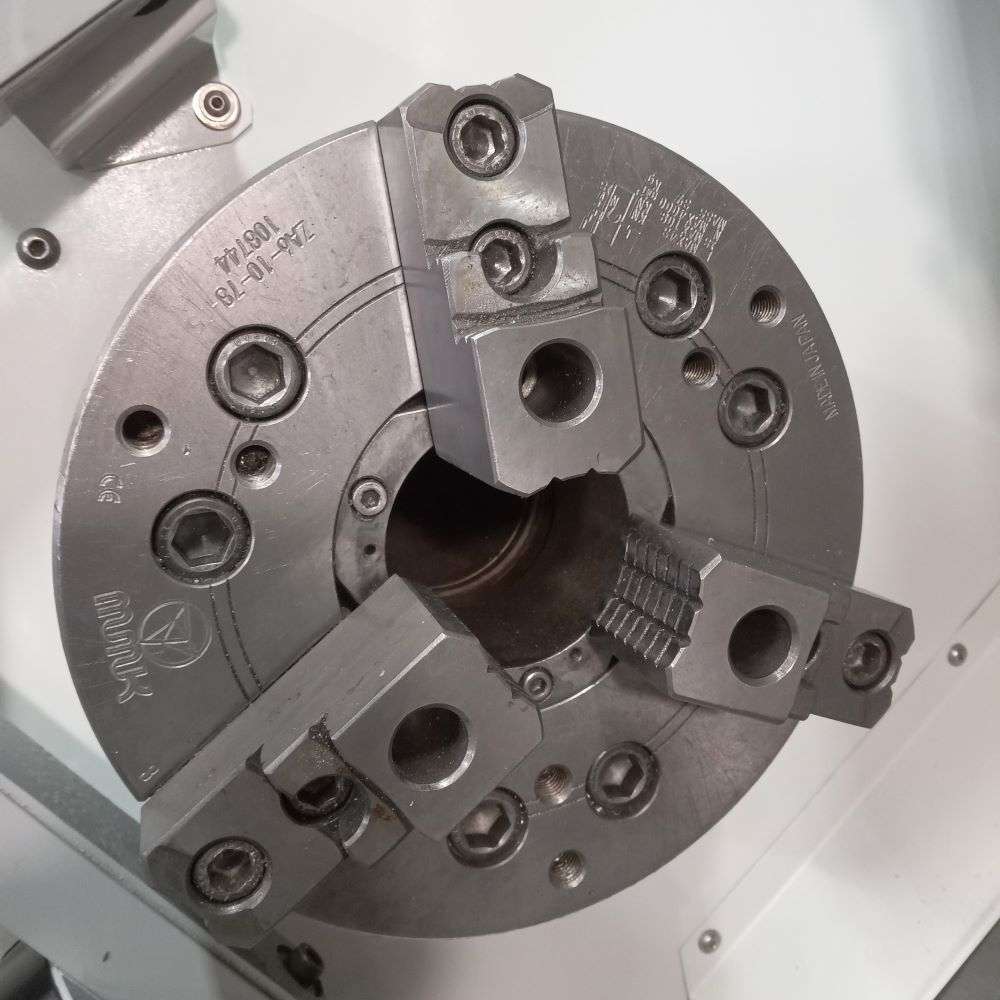

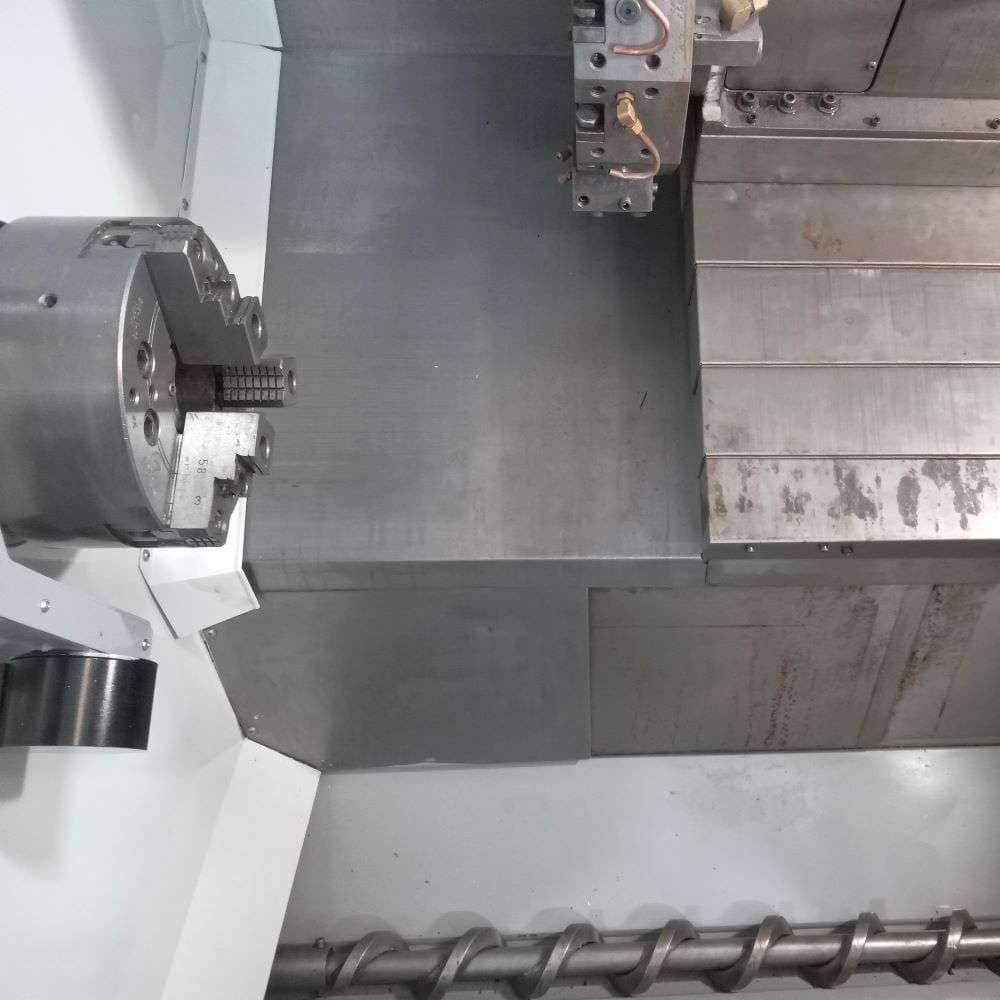

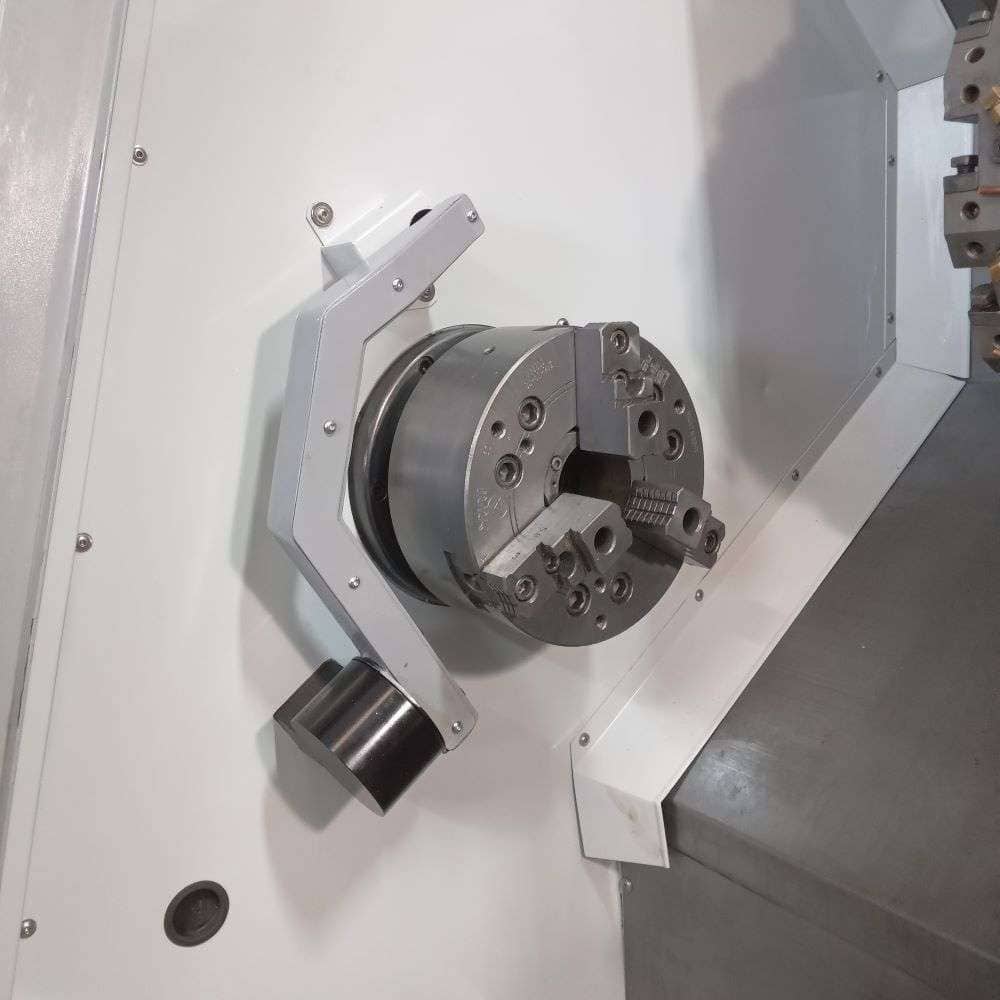

| 10″ 3-Jaw Hydraulic Chuck |
| 30 HP Vector Dual Drive |
| A2-6 Spindle |
| 3.5″ Big Bore Long Bed Lathe |

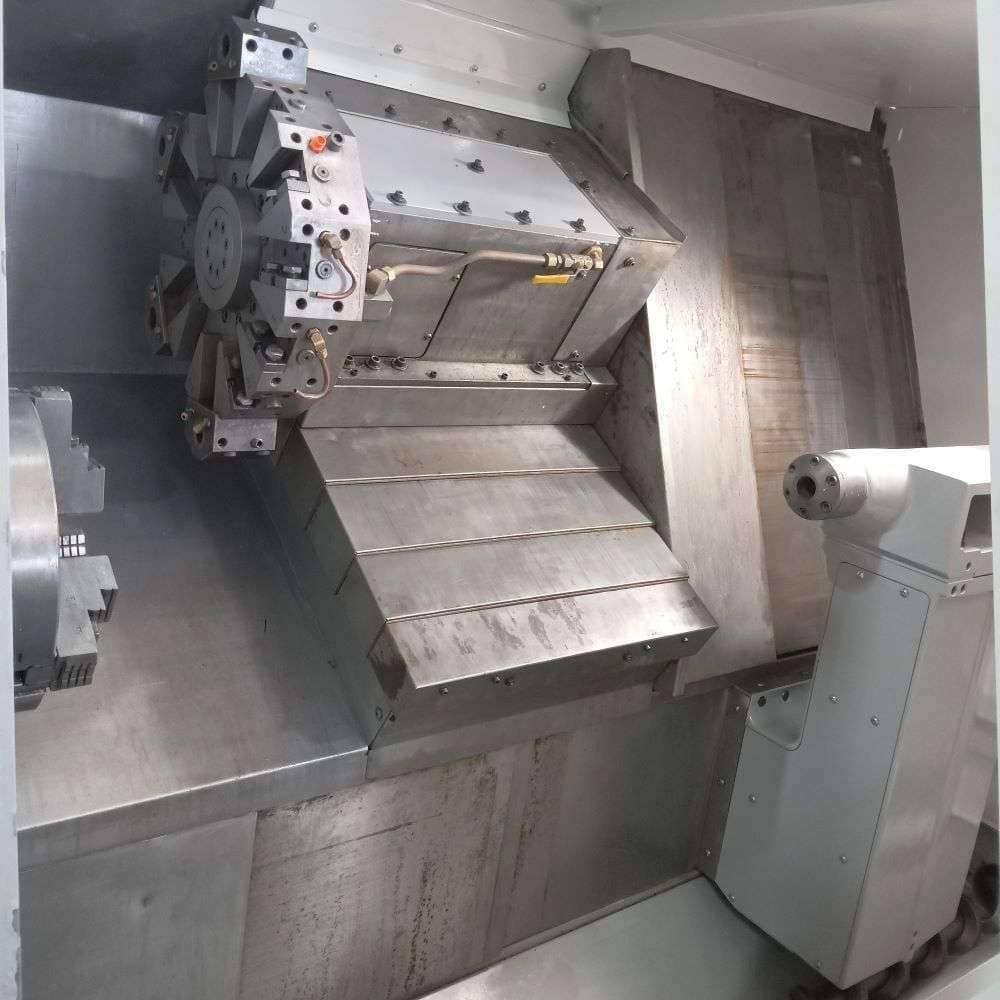

| 12 Station Automatic Turret |
| Tool Presetter |
| Tailstock |
| Coolant System |

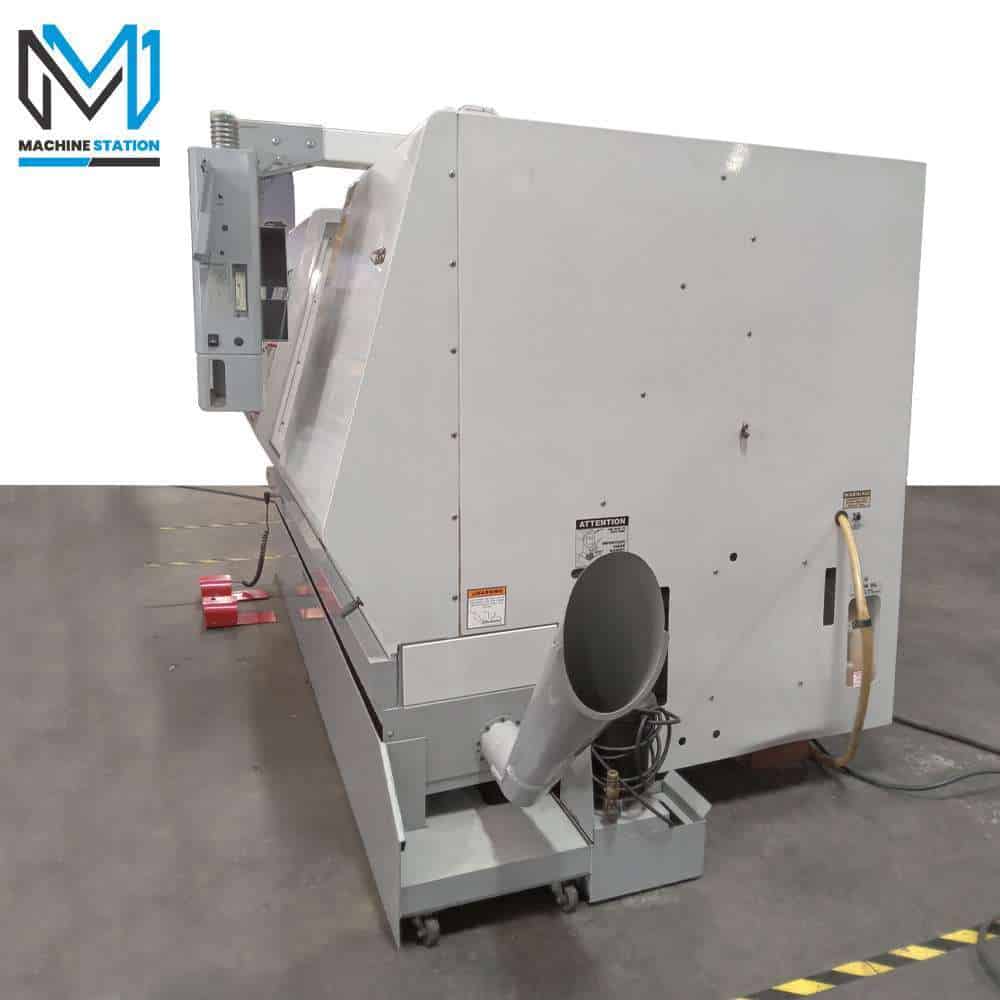

| Chip Auger |
| Automatic Lubrication system |

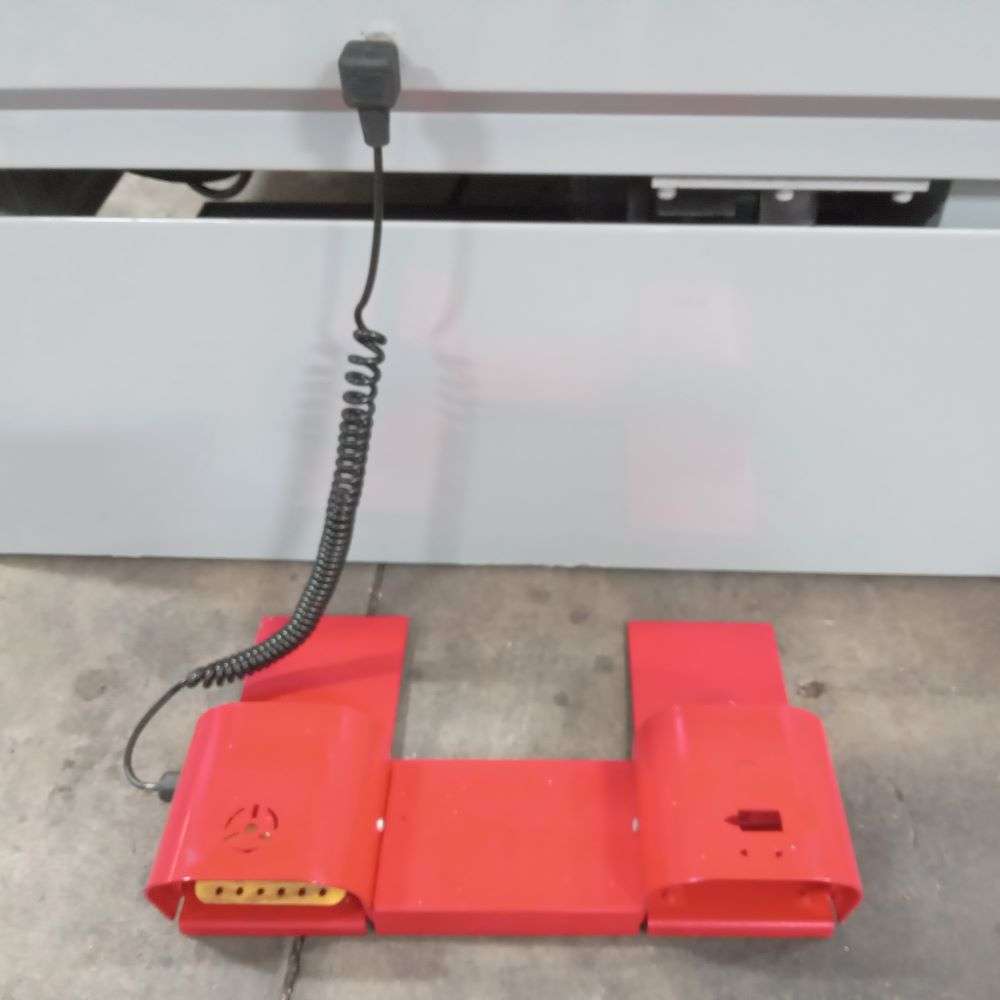

| Foot Switches |
| Capacity: |
|---|
| Max Turning Diameter : 17.0″ |
| Max Swing Over Bed : 30.0″ |
| Max Swing Over Cross Slide : 14.5″ |
| Max Turning Length: 34.0″ |
| Max Bar Capacity : 3.0″ |
| Distance Between Centers : 39.0″ |
| Travels: |
|---|
| X Axis Travel : 11.3″ |
| Z1 Axis Travel : 34.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 710 IPM |
| Rapid Traverse Z Axis: 710 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.5″ |
| Spindle Speed: 3400 RPM |
| Spindle Motor: 30 HP |

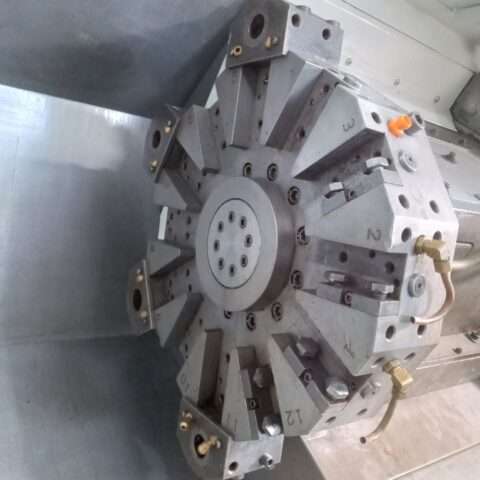

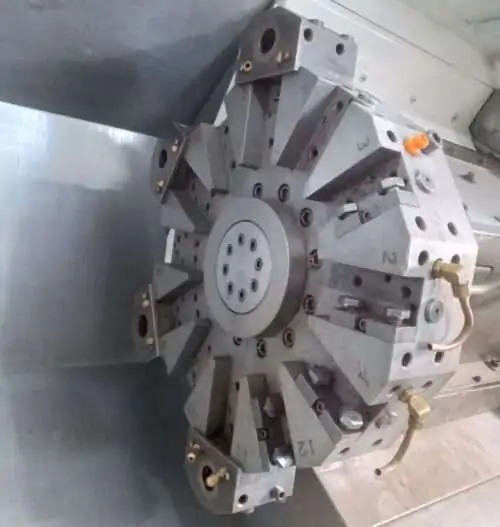

| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |

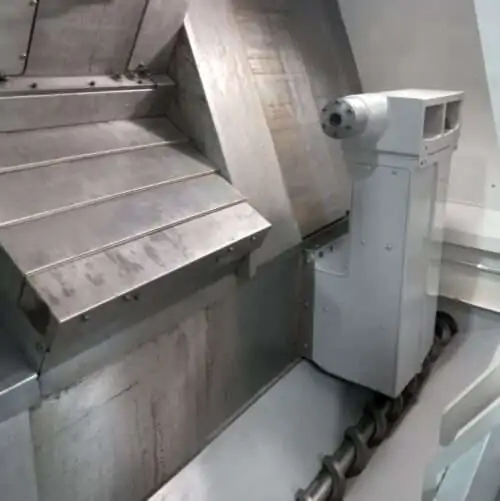

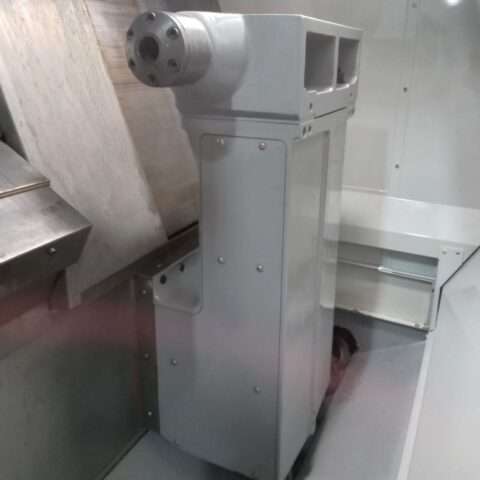

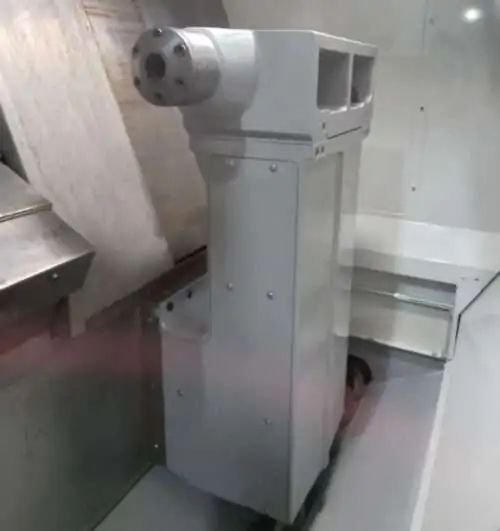

| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Quill Dia.: 2.6″ |
| Tailstock Quill Travel: 3.1″ |
| Tailstock Body Travel: 33.5″ |
| General: |
|---|

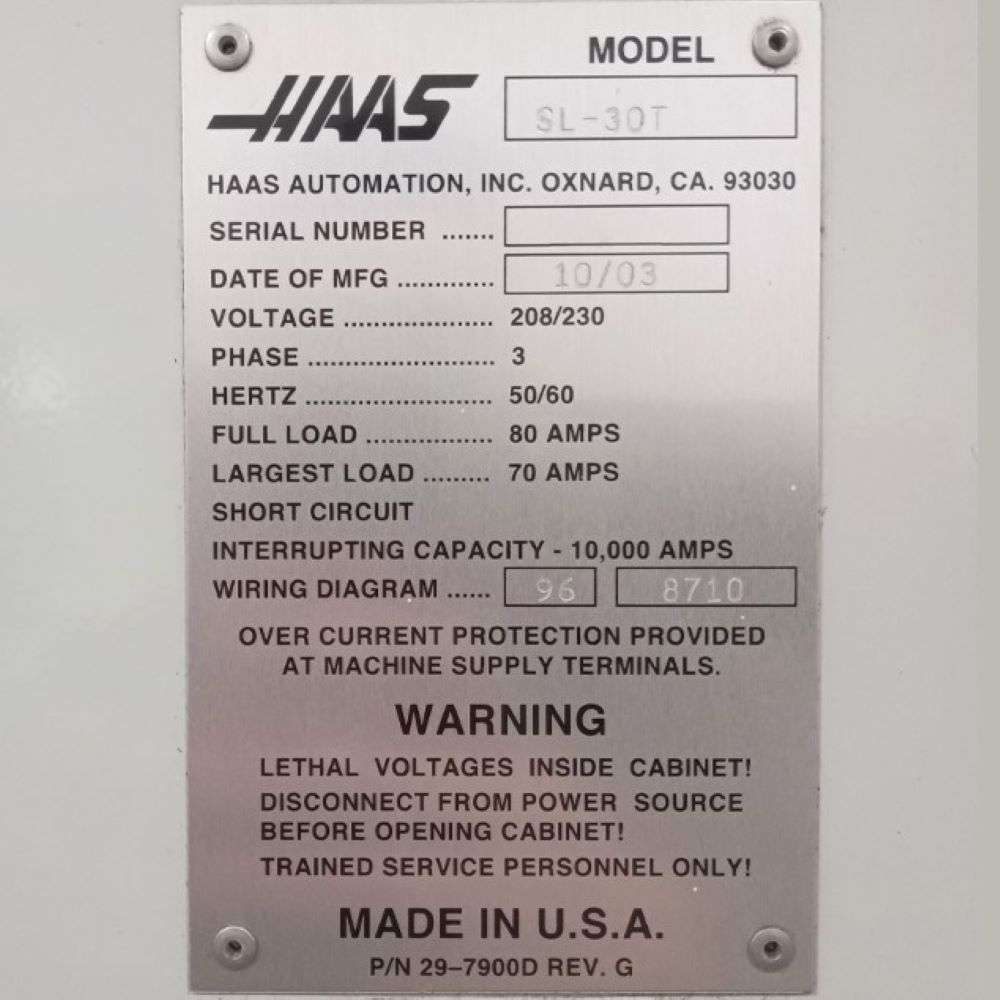

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 161″ x 77″ x 74″ High |
| Machine Weight: 16,000 lbs Approx. |
