All specifications are approximations and are subject to verification.
“One Owner Machine is in good running condition. Low hours, It is equipped with 15″ Chuck, Tool Presetter, Tailstock ,Chip Conveyor. On Our Floor fully powered / tested & is in Great working condition. Please feel free to ask For *VIDEO* and more Pictures.”
-

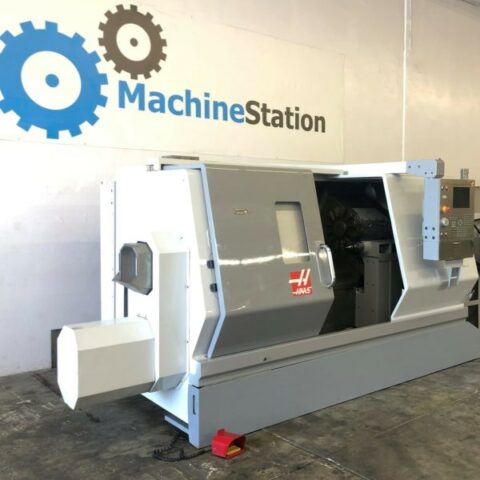

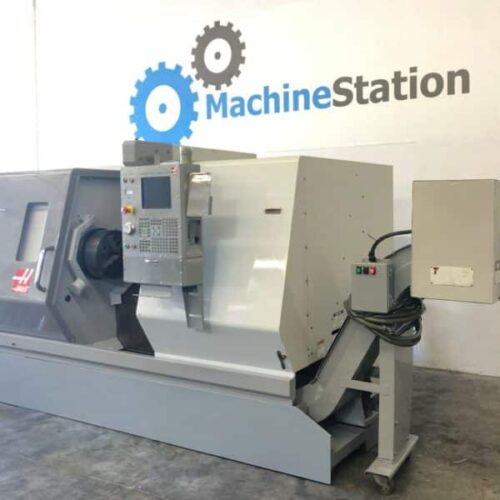

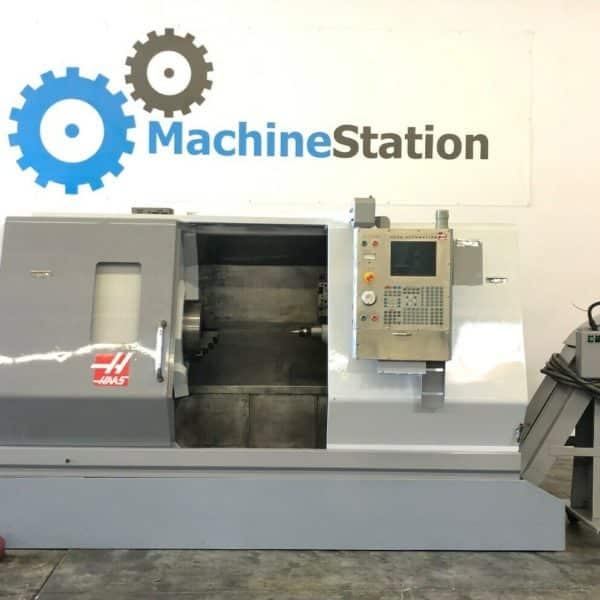

Haas SL-30TB Equipped With:

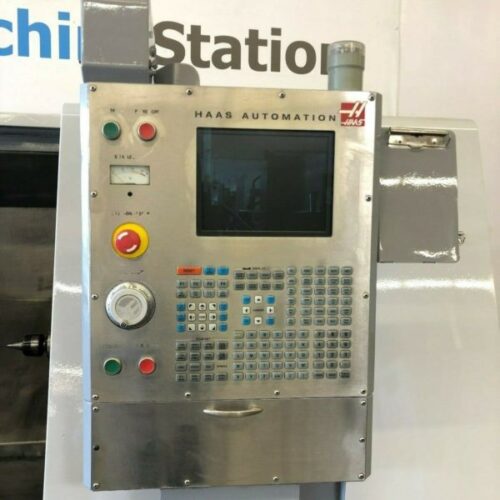

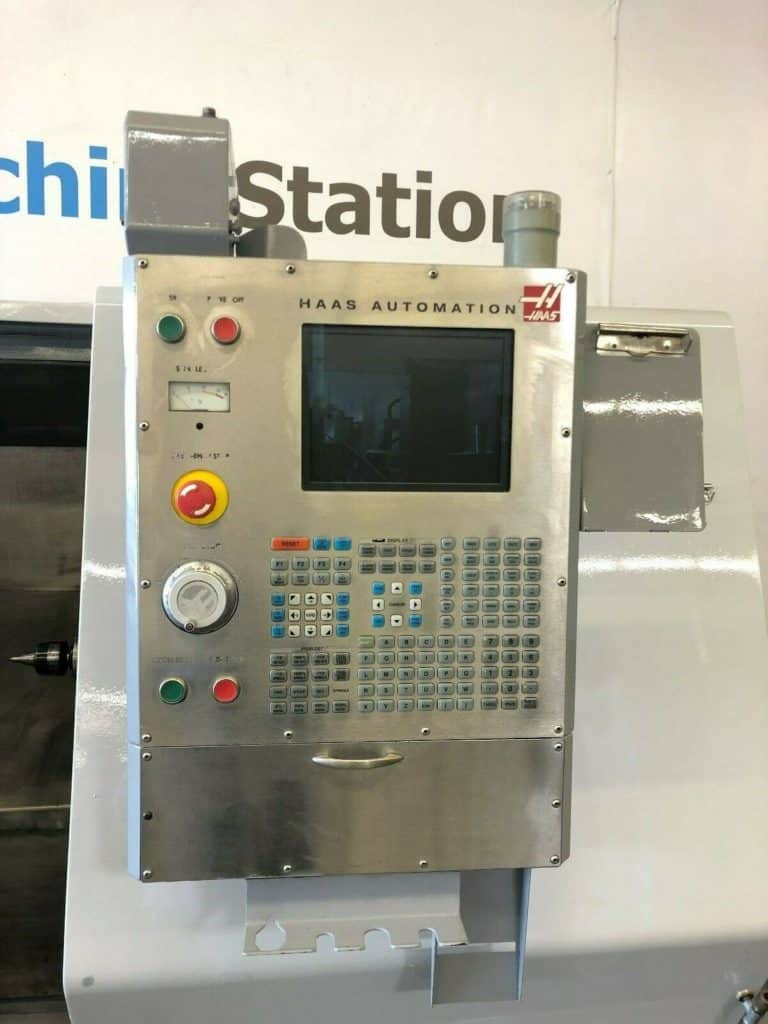

- Haas 32Bit CNC Control

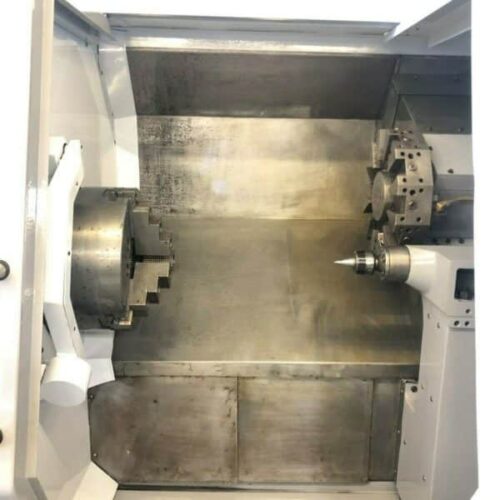

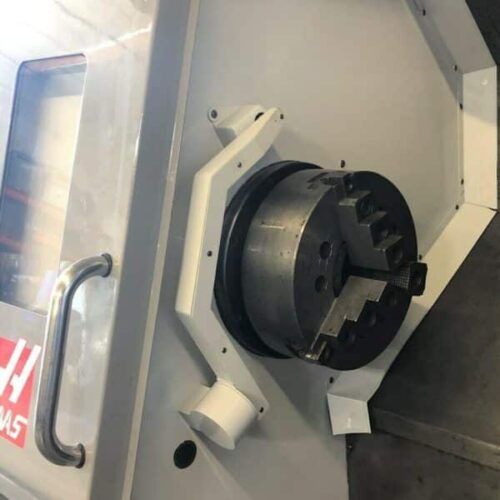

- 15″ 3 Jaw Hydraulic Chuck
- A2-8 Spindle with 4″ Bore
- Programmable Tailstock
- Coolant System
- Foot Switch
- USB Drive

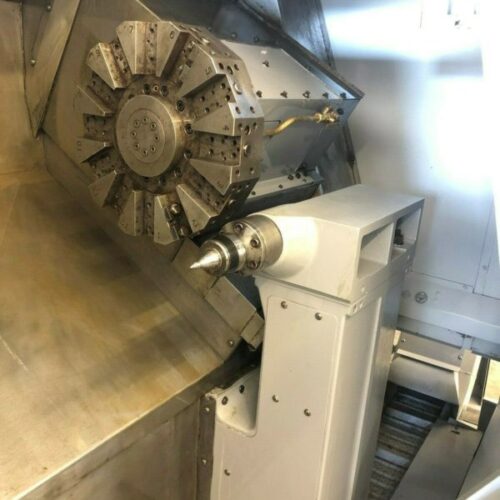

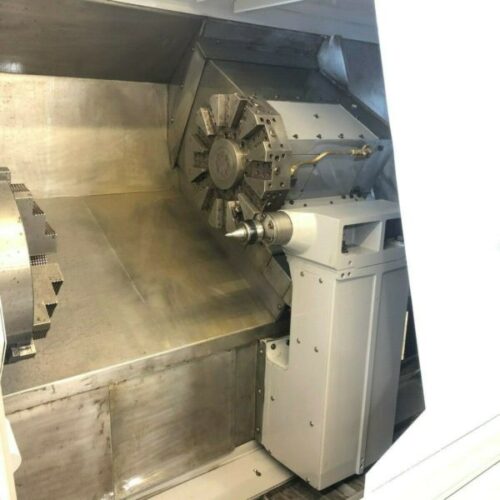

- 12 Station Automatic Turret

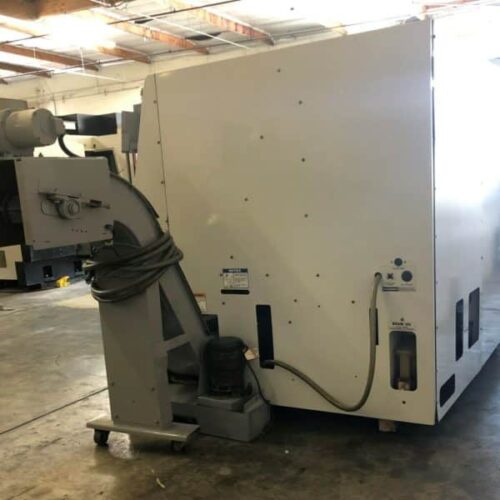

- Chip Conveyor
-
Haas SL-30TB Specifications:
- Capacity:
- Max Turning Diameter: 17.0″
- Max Turning Length: 34.0″
- Max Bar Capacity: 4.0″
- Swing Over Bed: 30.0″
- Distance Between Centers: 39.0″
-
Travels:
- X Axis Travel: 11.3″
- Z Axis Travel: 34.0 ”
- Rapid Traverse X Axis: 710 IPM
- Rapid Traverse Z Axis: 710 IPM
-
Spindle:
- Spindle Nose: A2-8
- Spindle Bore: 4.02″
- Spindle Speed: 24 – 2400 RPM
- Spindle Motor: 40 HP
-
Turret:
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
-
Tailstock:
- Tailstock Taper: MT-4
- Tailstock BodyTravel: 44.0″
-
General:

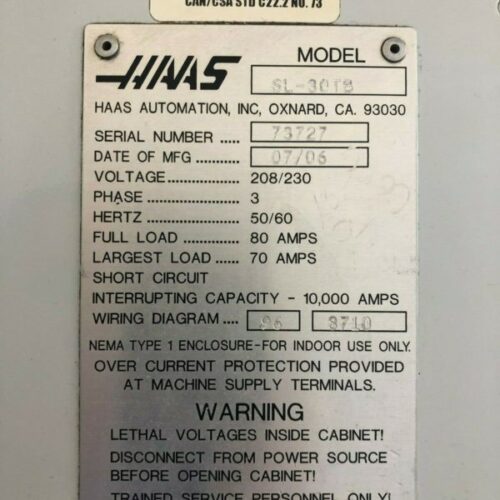

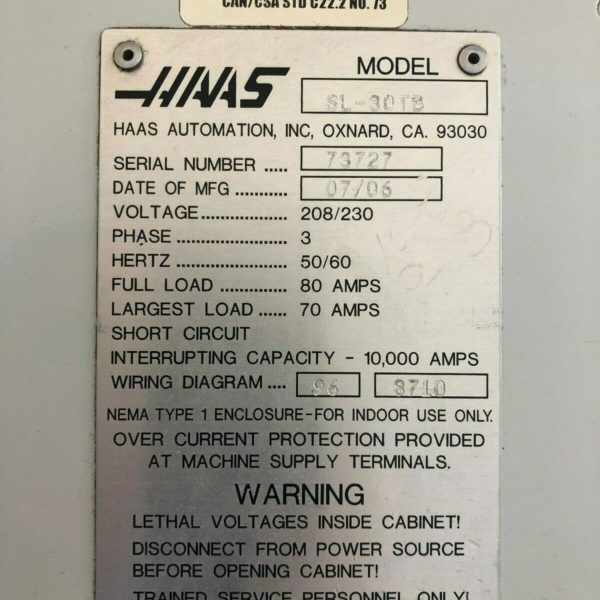

- Power: 45 kva, 220v / 3-Phase
- Overall Dimensions: 150″ X 90″ X 90 ” High
- Overall Dimensions: 190″ X 90″ X 90″ High with Chip Conveyor
- Weight: 16,000 lbs
