Haas SL-40T CNC Turn Mill

Out of stock

SKU:	1887
Make/Model:	Haas SL-40T
Video:	[fusion_button link=”https://www.youtube.com/watch?v=JkhlMst3N9s” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1887

HAAS SL-40T CNC TURN MILL
Make	Haas
Model No.	SL-40T
Year	2004
Condition	Very Good
Comes with 15″ Chuck, Tailstock & Tool Presetter.

All specifications are approximations and are subject to verification.

Haas SL-40T CNC Turn Mill Equipped With:
Haas 32 Bit CNC Control
C Axis Live Tool Capability
15″ 3 Jaw Hydraulic Chuck
50HP Gearbox Spindle
Tool Presetter
10 Station Live Tool Turret
Programmable Tailstock
Rigid Tapping
Coolant System
Foot Switch

Haas SL-40T CNC Turn Mill Specifications:
Capacity:
Max Turning Diameter: 25.5″
Max Turning Length: 40.0″
Max Bar Capacity: 4.75″
Swing Over Bed: 40.0″
Distance Between Centers: 44.0″

Travels:
X Axis Travel: 11.3″
Z Axis Travel: 42.0 ”
Rapid Traverse X Axis: 710 IPM
Rapid Traverse Z Axis: 710 IPM

Spindle:
Spindle Nose: A2-11
Spindle Bore: 5.02″
Spindle Speed: 24 – 2400 RPM
Spindle Motor: 30 HP

Turret:
Turret Capacity: 10 Stations Turret
Index Time: 1 Second

Tailstock:
Tailstock Taper: MT-4
Tailstock Body Travel: 34.0″

General:
Power: 45 kva, 220v / 3-Phase Overall
Dimensions: 180″ X 102″ X 104 ” High
Weight: 20,000 lbs

“No Charges for loading at list Price”

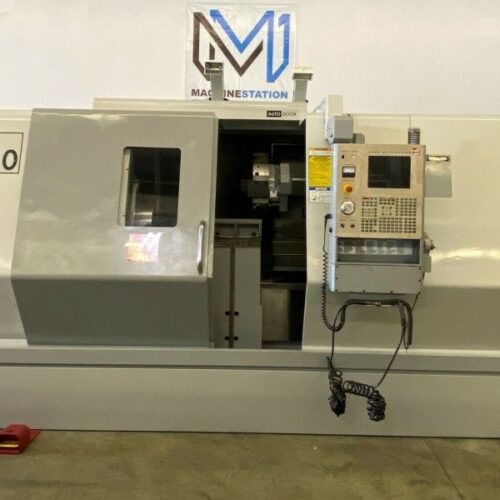

Haas SL-40T CNC Turn Mill Comes as shown in pictures..
