*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

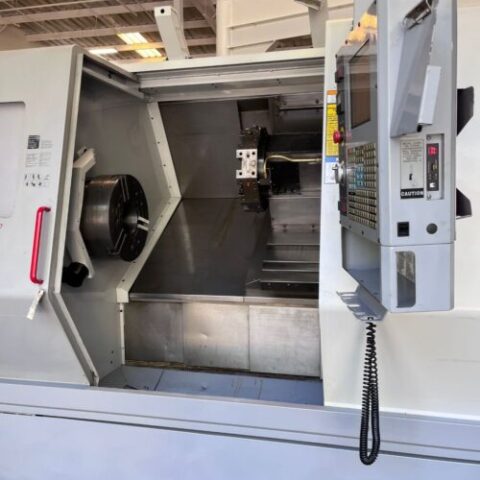

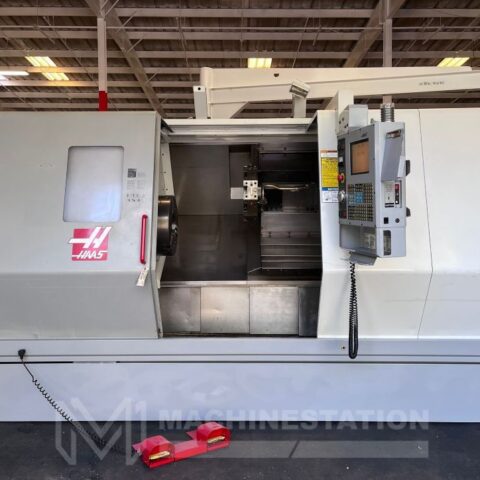

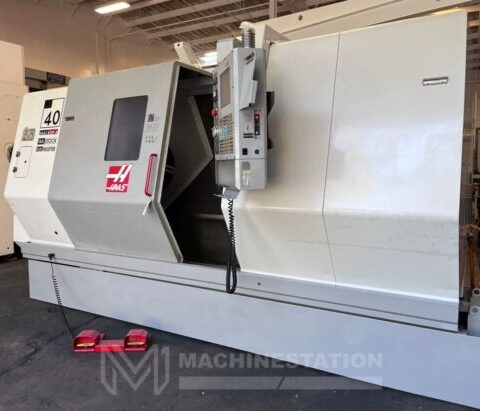

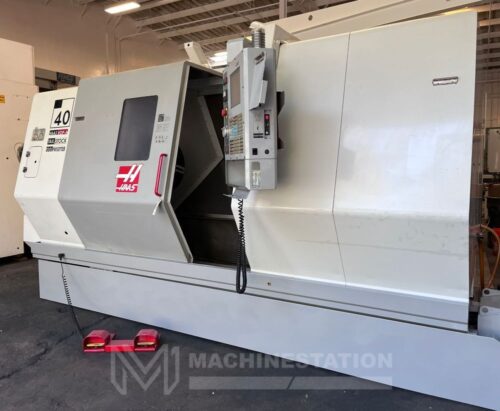

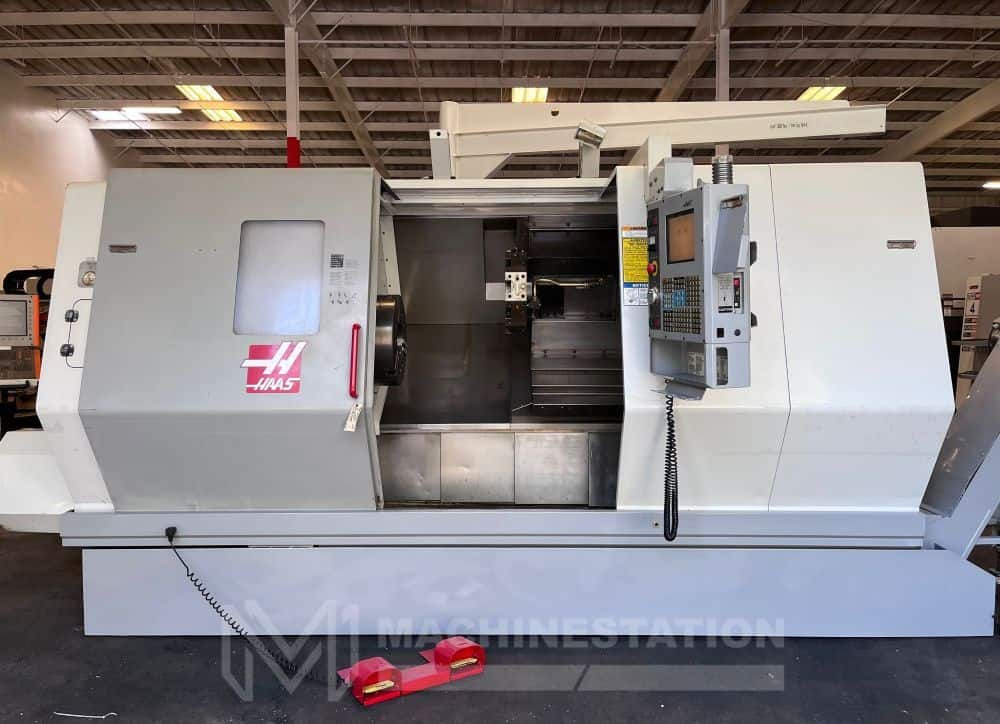

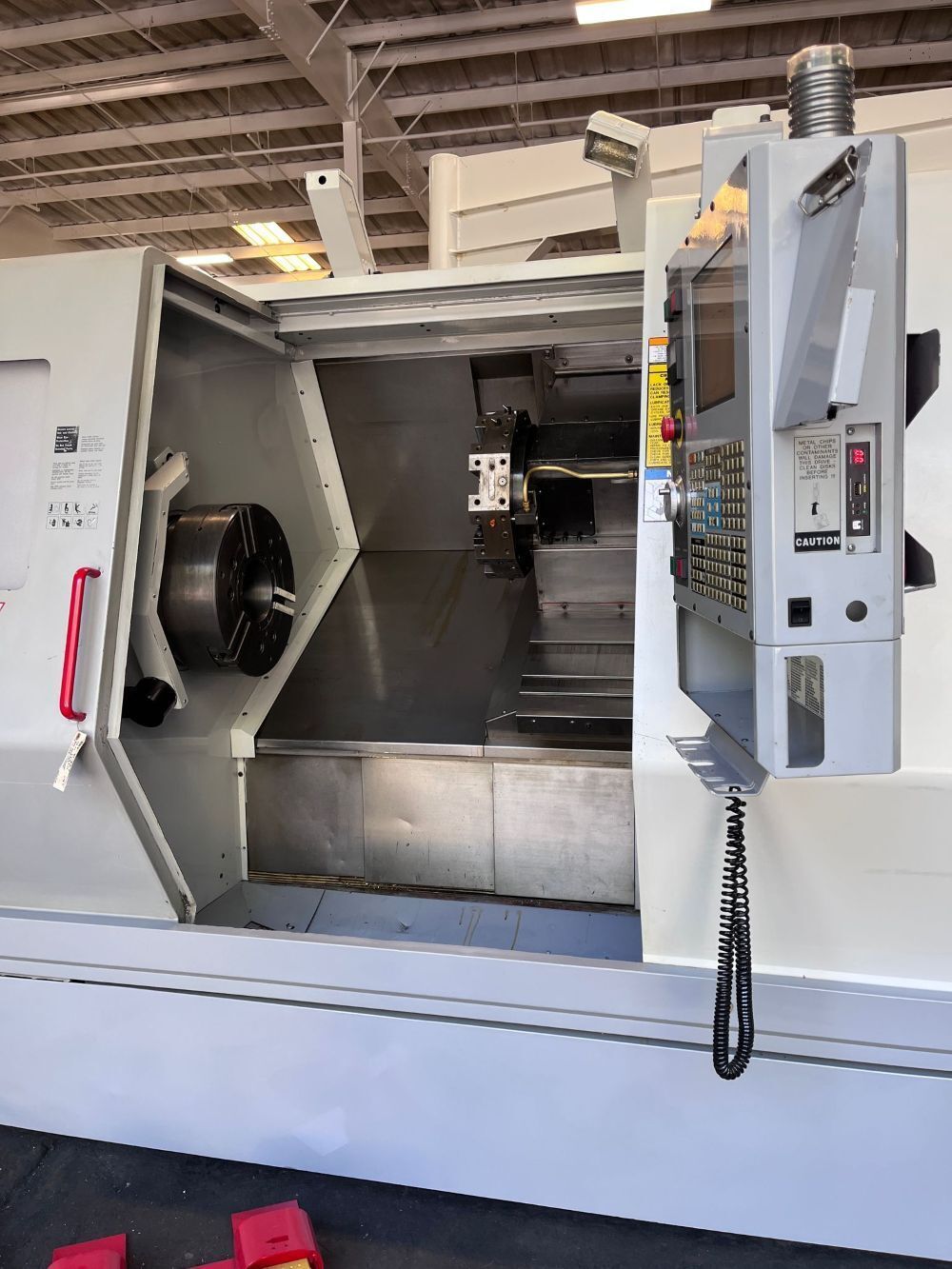

| Make: | Haas |
| Model: | SL-40T |
| Year: | 2004 |
| Condition: | Used – Good |
| Equipped With: |
|---|
| Haas CNC Control |

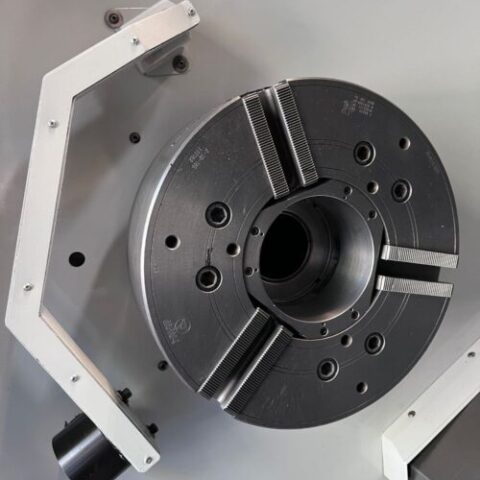

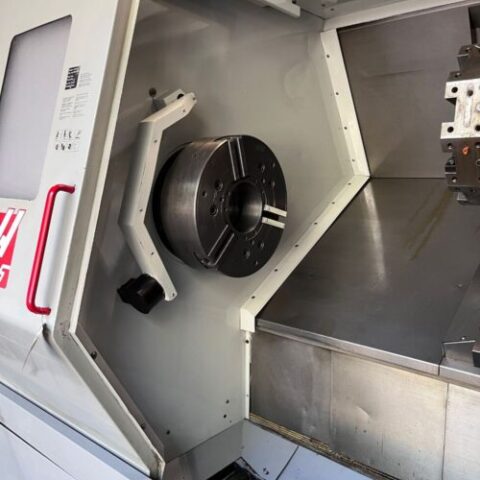

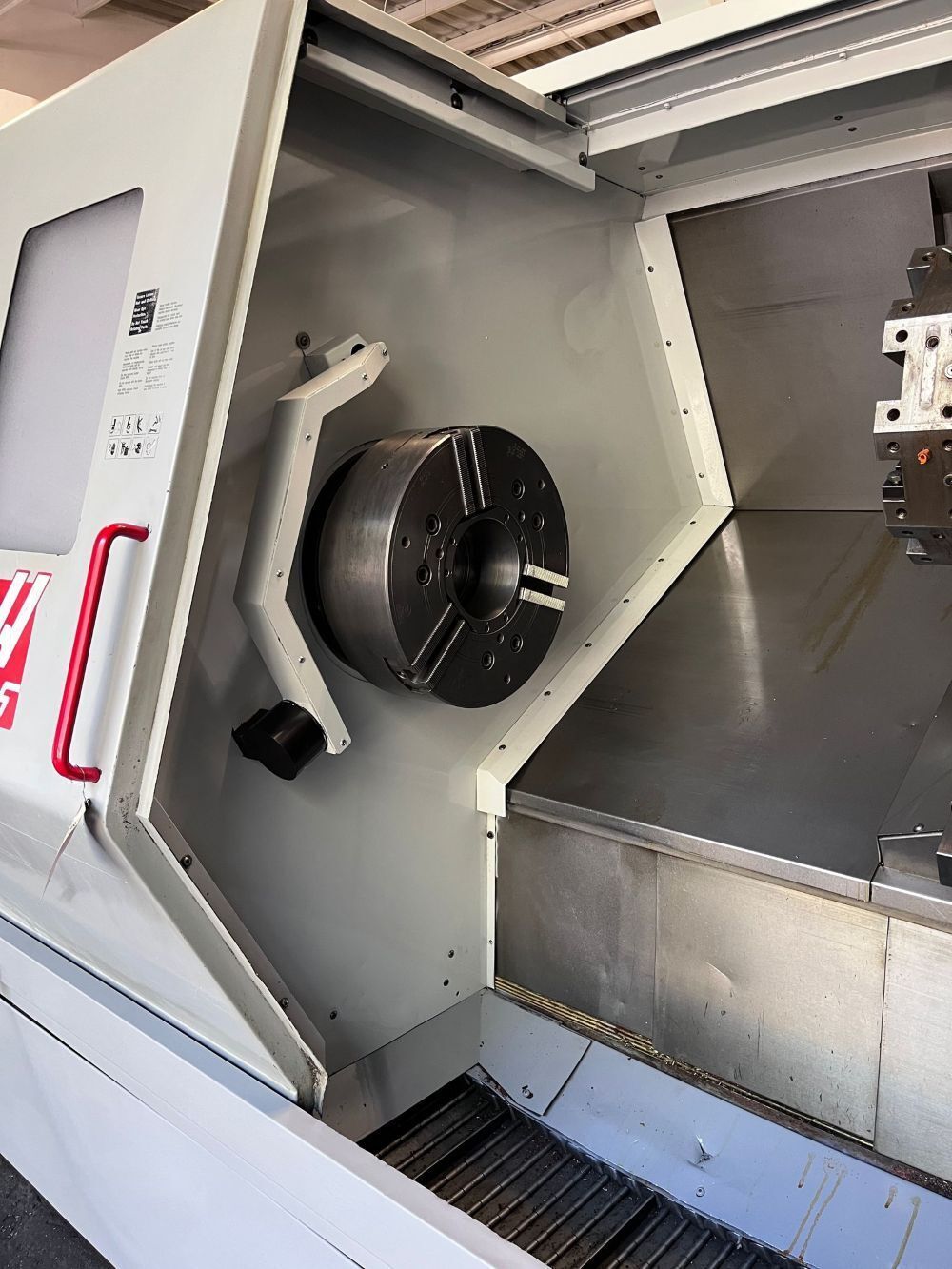

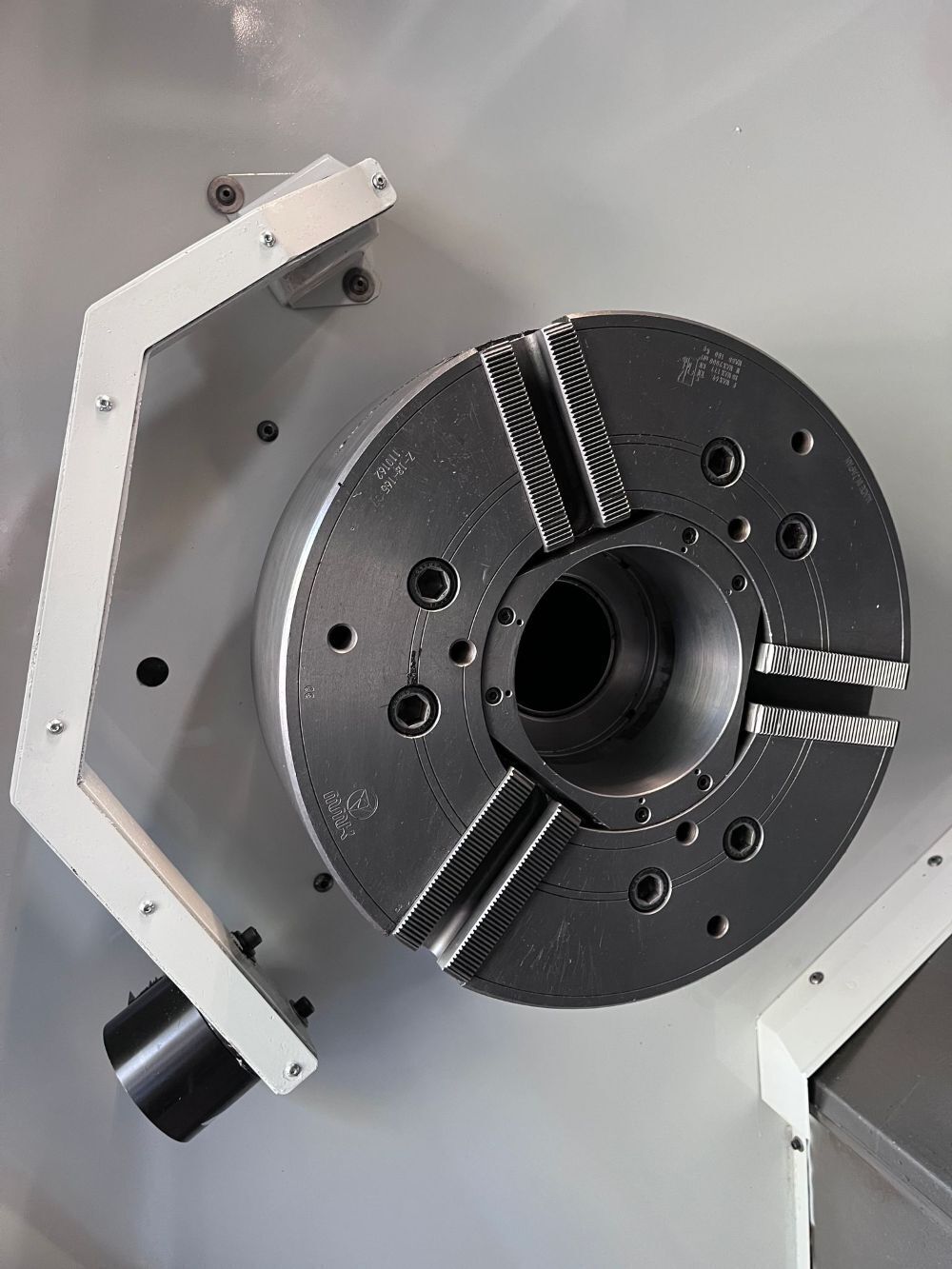

| 18″ 3-Jaw Hydraulic Chuck with 6.5″ Big Bore |
| Haas VOP-A Package |
| A2-8 Spindle |

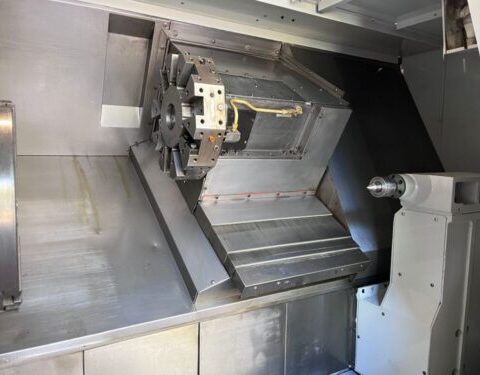

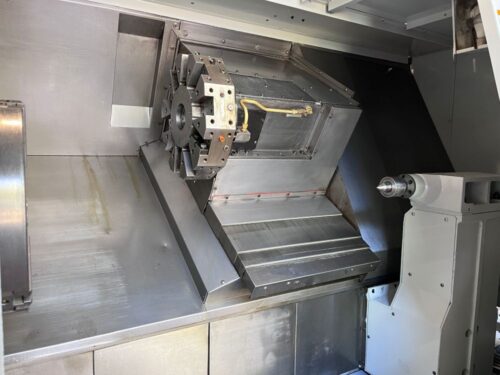

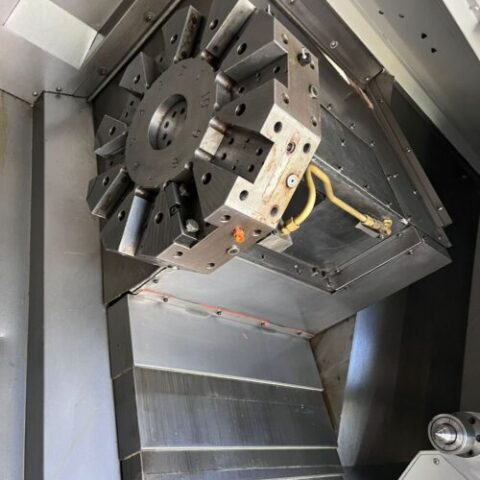

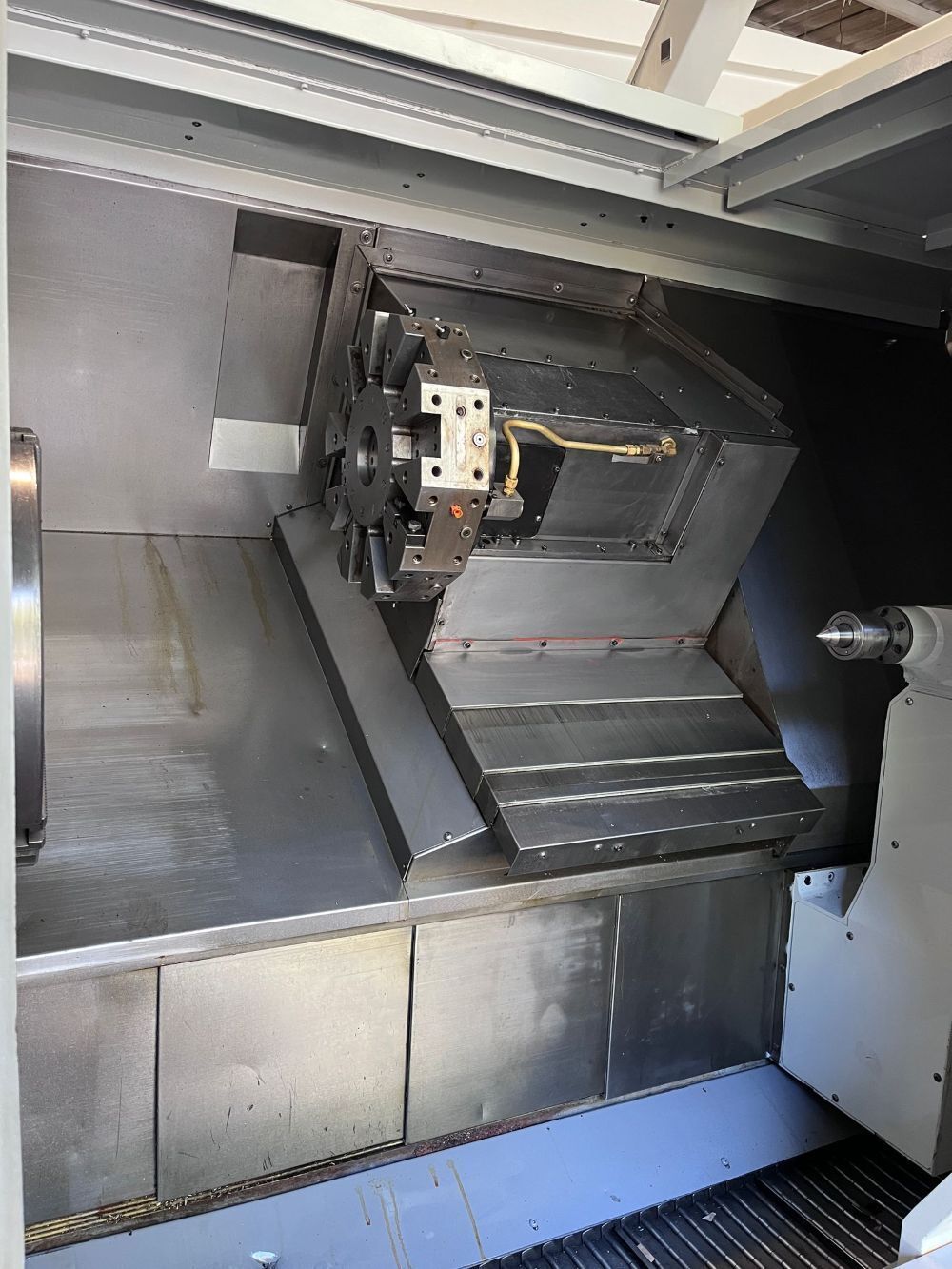

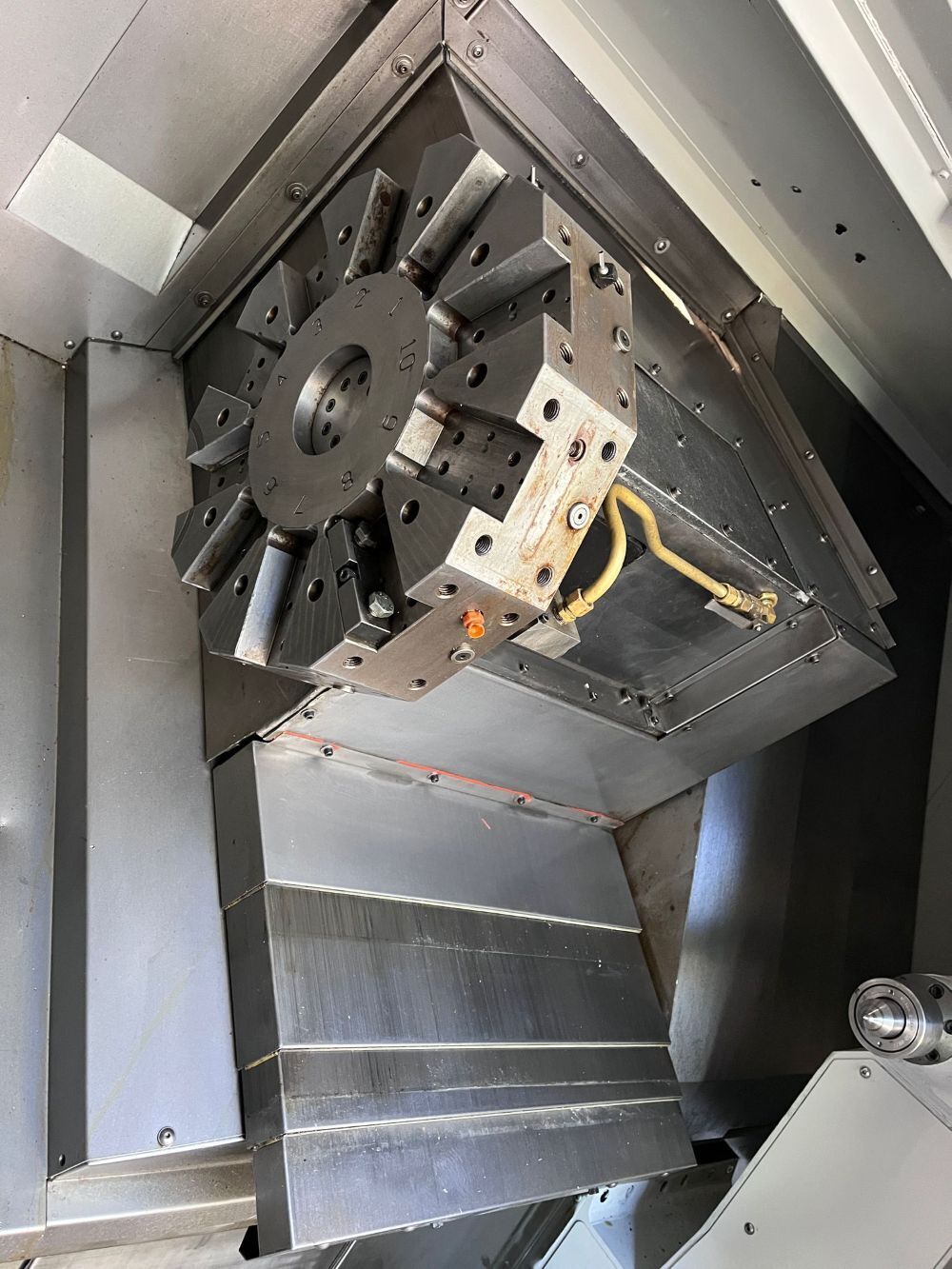

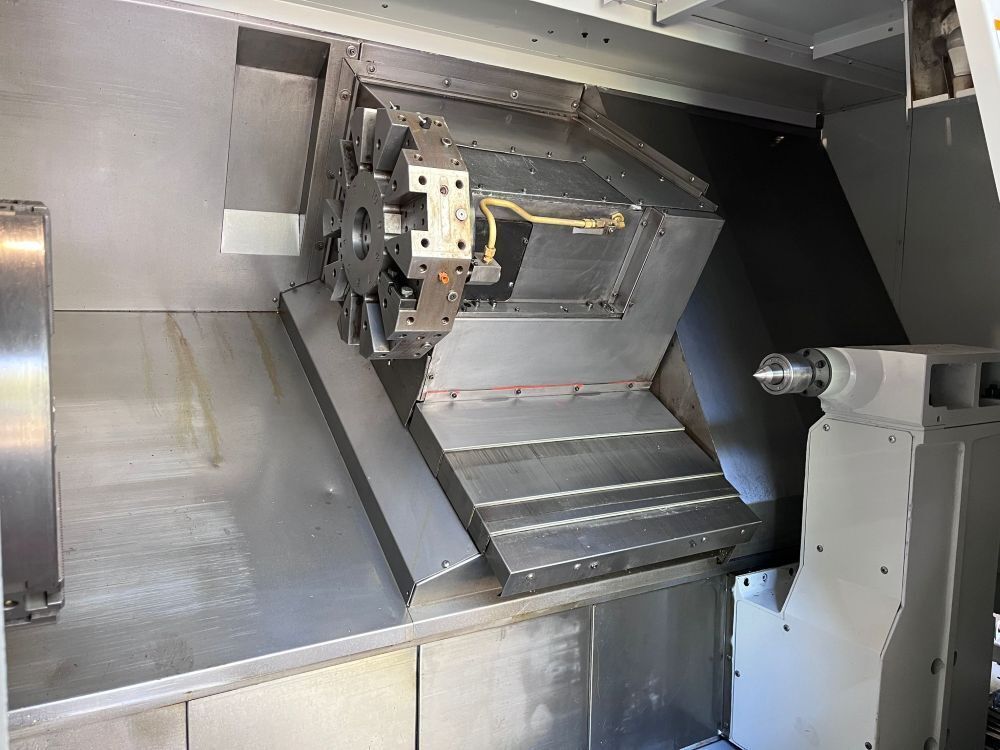

| 10 Station Automatic Turret |

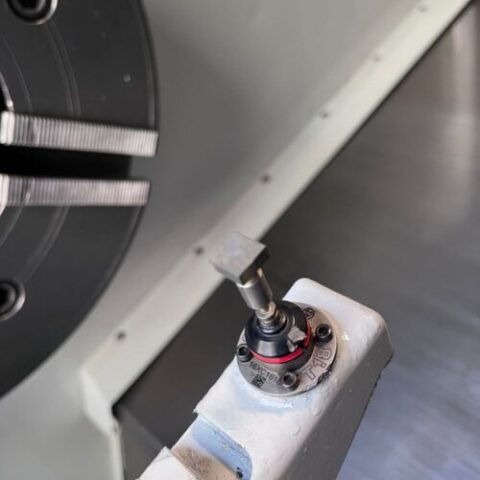

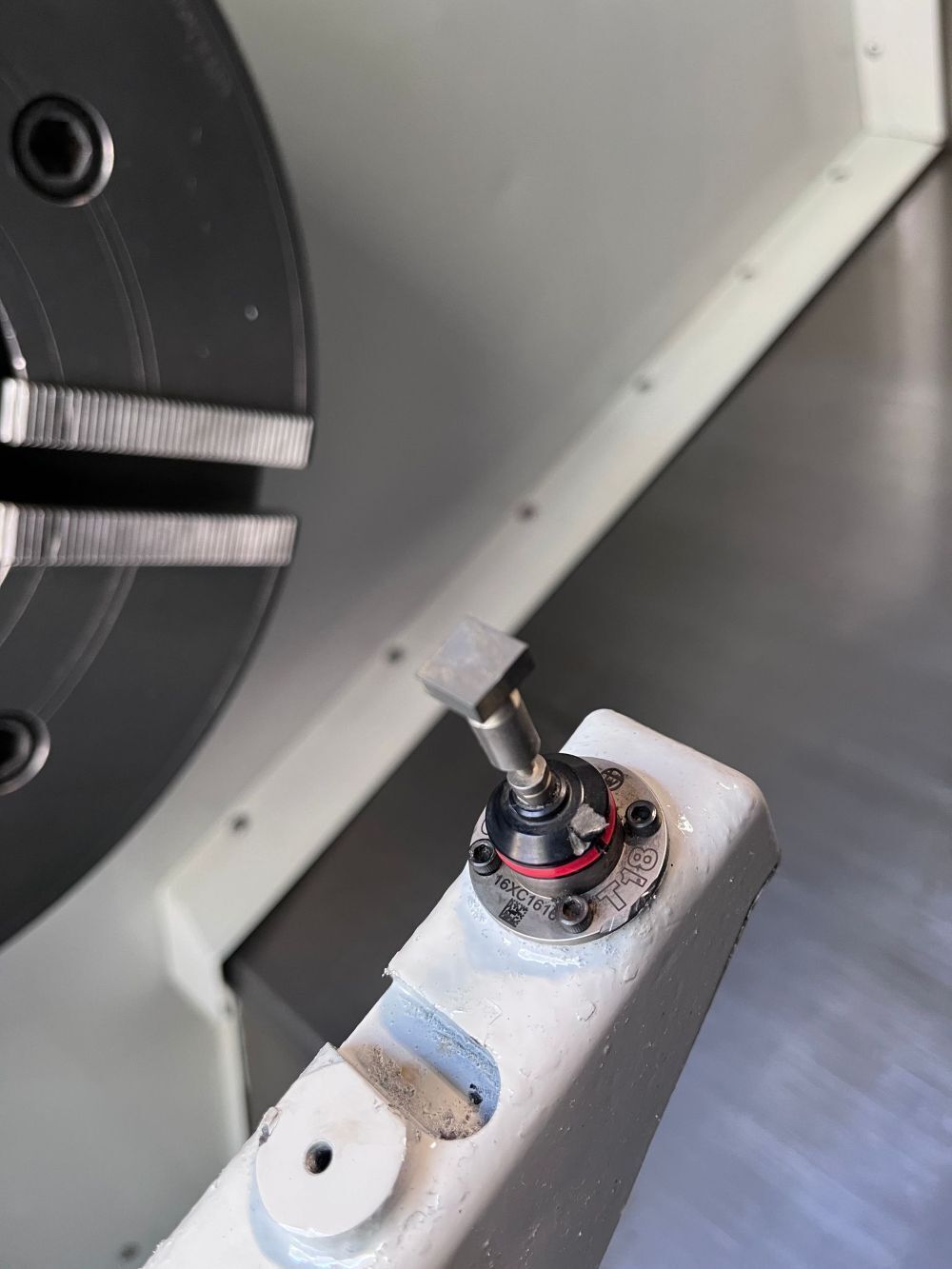

| Tool Presetter |
| Tailstock |
| MPG Handwheel Control |

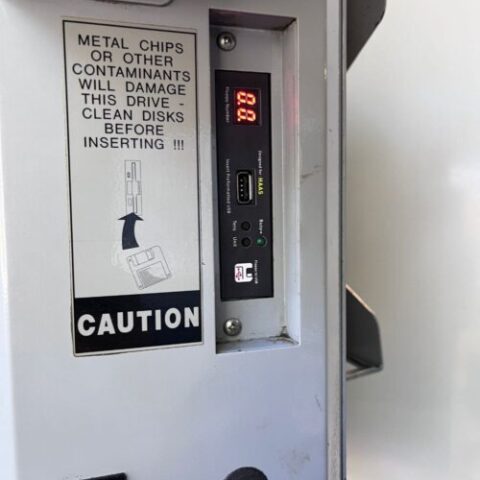

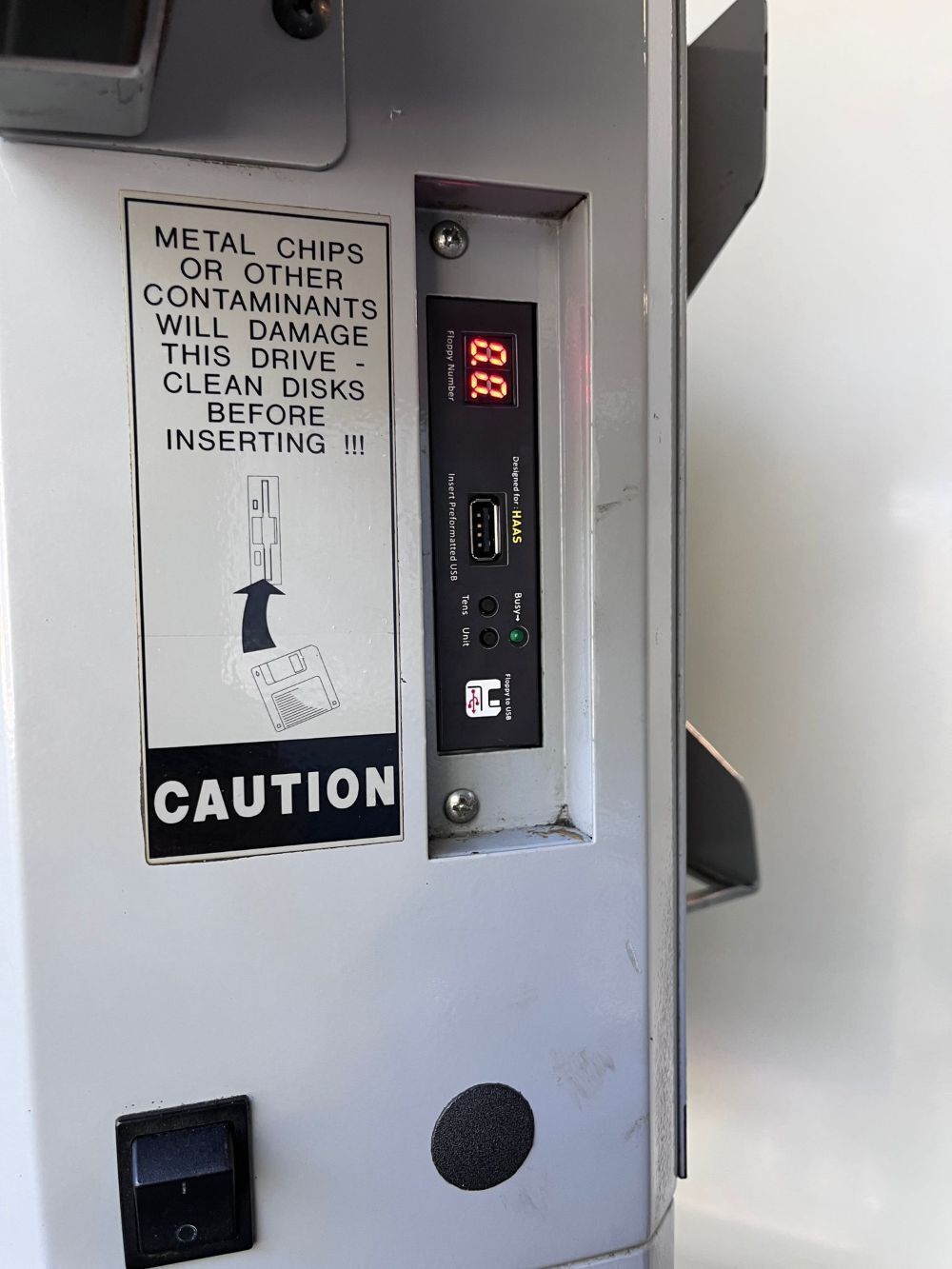

| USB Port |
| Rigid Tapping |

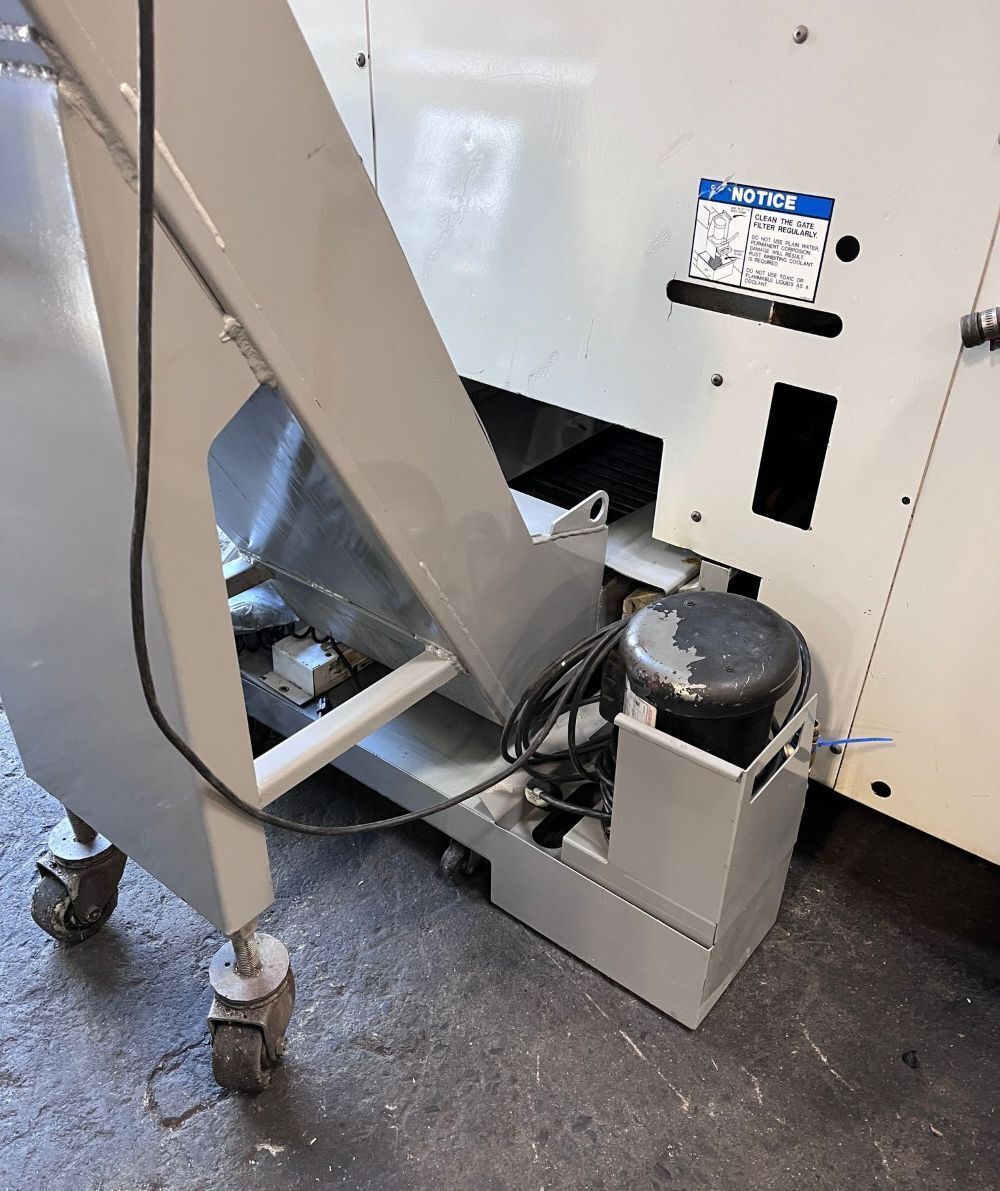

| Coolant System |

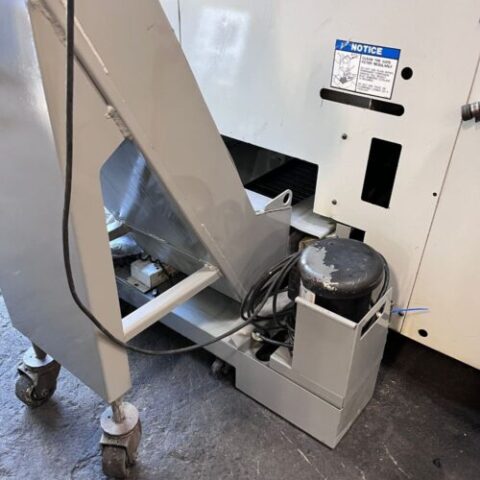

| Chip Conveyor |

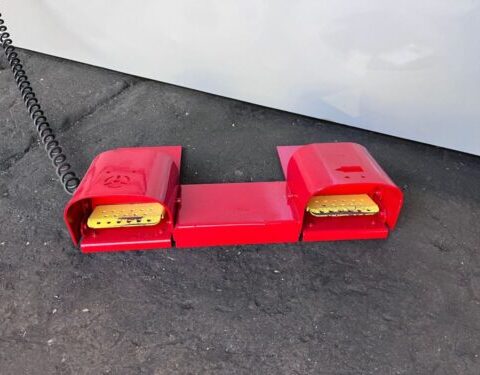

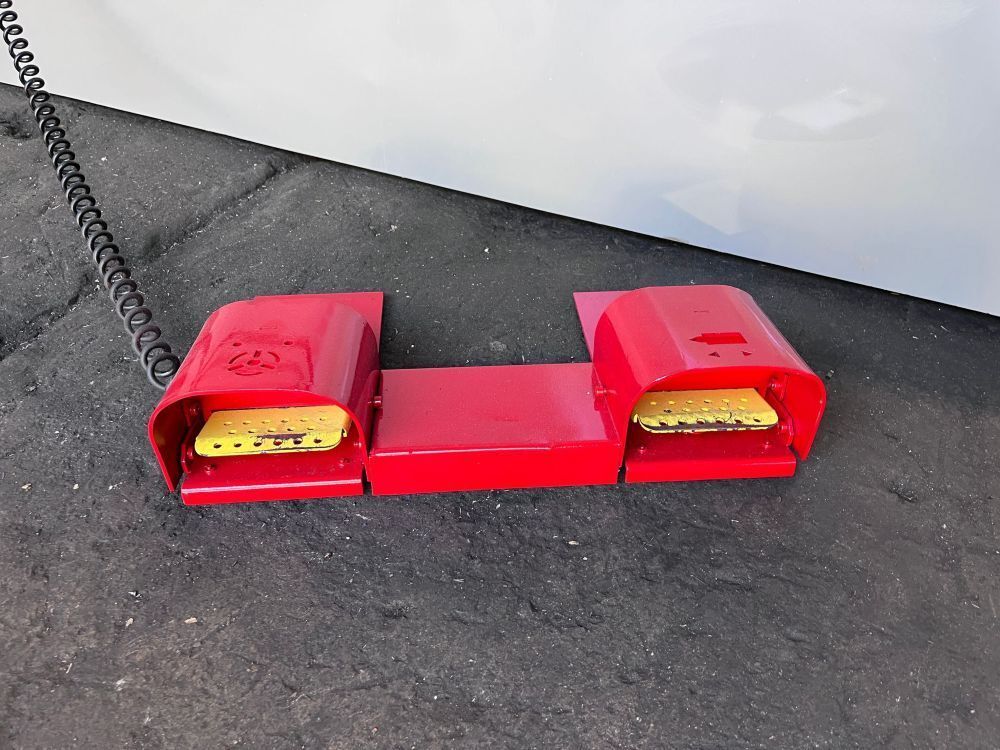

| Foot Switches |
| Capacity: |
|---|
| Max Turning Diameter : 25.5″ |
| Max Swing Over Bed : 40.0″ |
| Max Turning Length: 44.0″ |
| Max Bar Capacity : 4.0″ |
| Travels: |
|---|
| X Axis Travel : 17.0″ |
| Z1 Axis Travel : 44.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 710 IPM |
| Rapid Traverse Z Axis: 325 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 4.62″ |
| Spindle Speed: 2400 RPM |
| Spindle Motor: 40 HP |

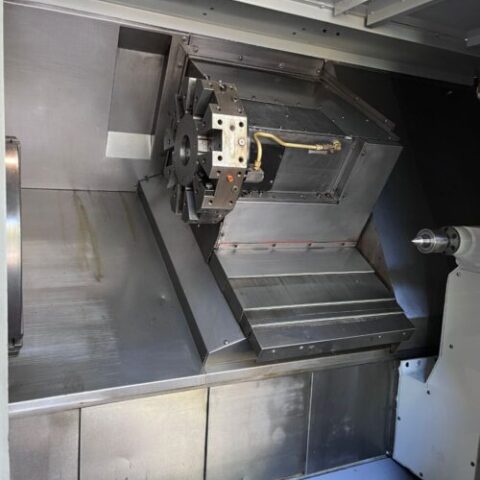

| Turret: |
|---|
| Turret Capacity: 10 Stations |
| Turret Index Time: 1 Second |
| Tool Holders Type: BMT |
| Tailstock: |
|---|
| Tailstock Type: Programmable |
| Tailstock Taper: MT-5 |
| Tailstock Travel: 42″ |
| General: |
|---|

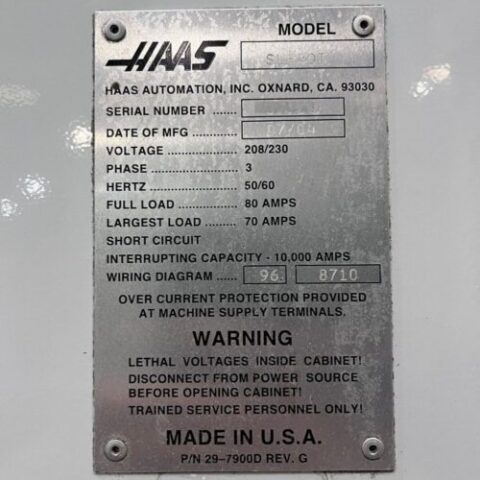

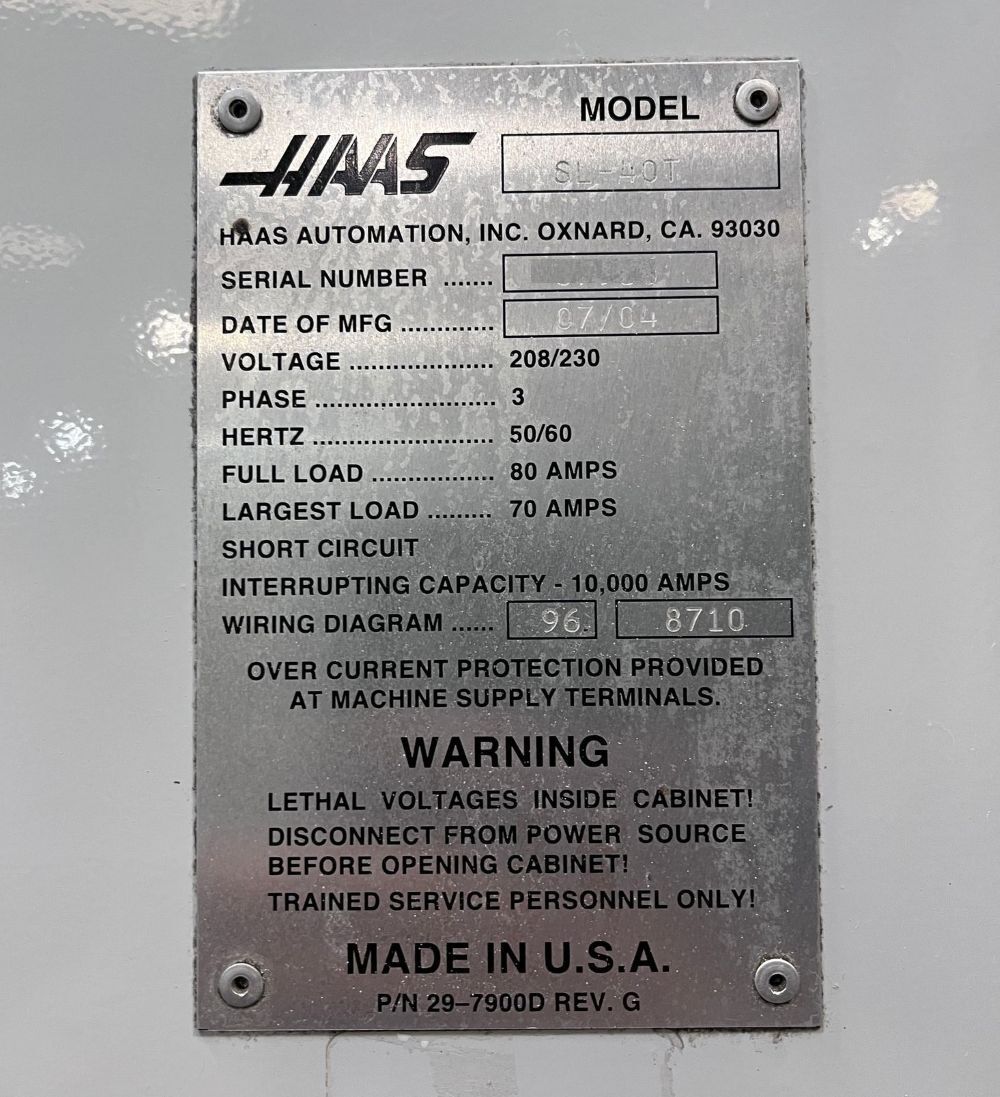

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 150″ x 102″ x 104″ High Approx. |
| Machine Weight: 25,000 lbs Approx. |
