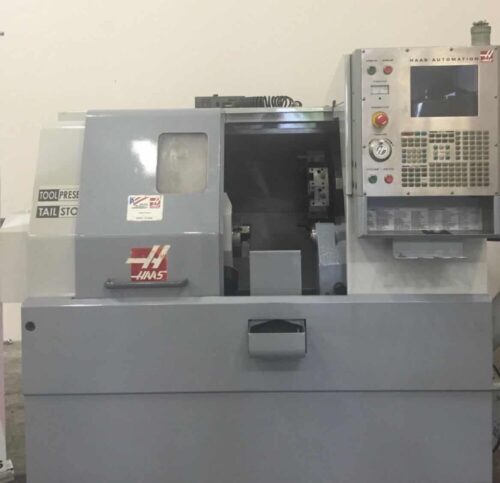

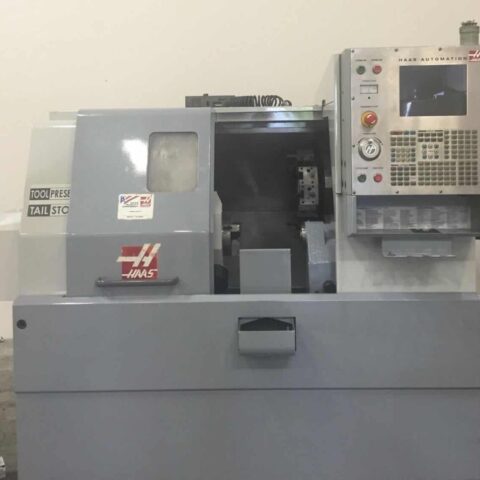

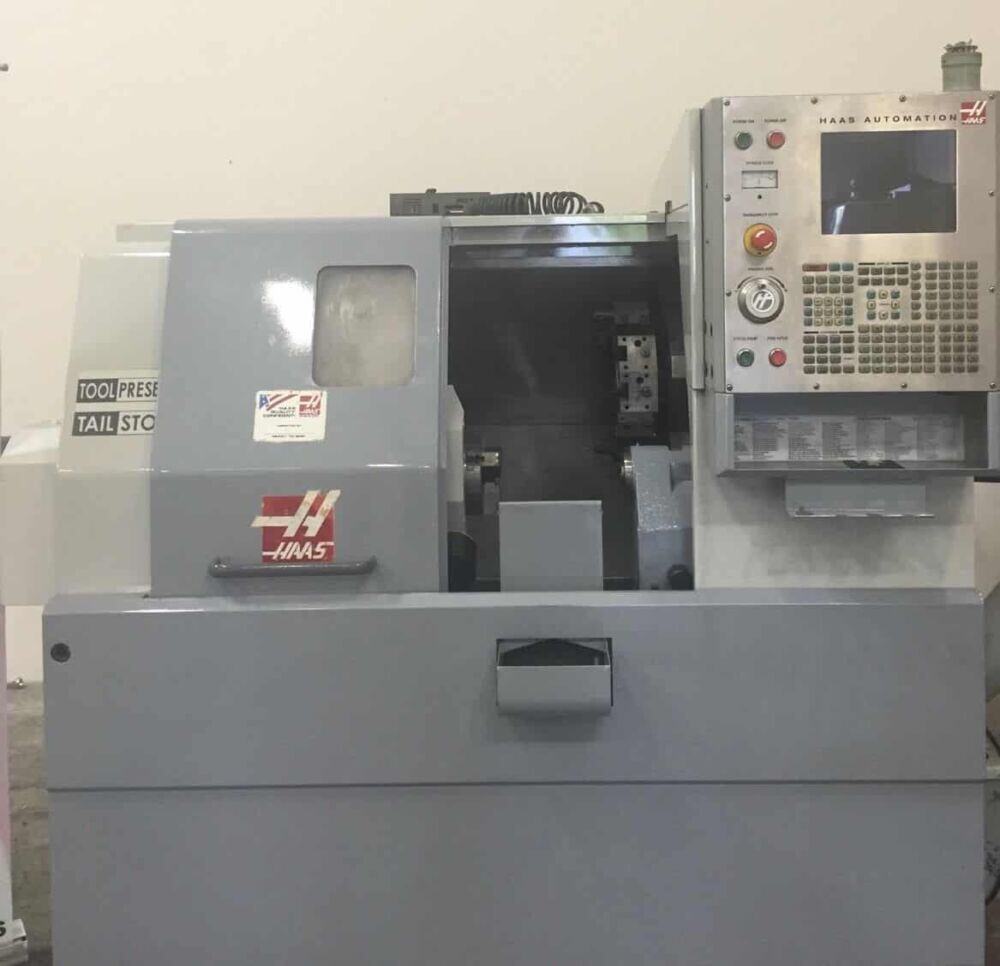

HAAS SL10T CNC TURNING CENTER | |
---|---|
Make | Haas |
Model No. | SL-10T |
Year of Manufacture: | 2006 |
Serial # | 72356 |
Condition | Very Good |
Comes with All Available Manuals
All specifications are approximations and are subject to verification.
- HAAS SL10T Equipped with :
- Kitagawa 6.65″ B-206 Hydraulic Chuck
- Hydraulic Tailstock
- Tool Pre-setter
- 16 MB Memory
- Spindle Orientation
- Barfeed Interface
- Parts Catcher
- 12″ Color TFT
- RS-232 ports
- Floppy disc drive,
- 12 Station Automatic Turret
- Chip auger
- General:
- Power: 220v / 3-Phase
- Overall Dimensions: 92″ x 55″ x 70″ High
- Weight: 6000 lbs
- HAAS SL10T Specifications:
- MAXIMUM TURNING DIAMETER 11″
- MAXIMUM TURNING LENGTH 14″
- SWING OVER CROSS SLIDE 8″
- X AXIS TRAVEL 6.25″
- Z AXIS TRAVEL 14.00″
- RAPID TRAVERSE RATE X AXIS 710 IPM
- RAPID TRAVERSE RATE Z AXIS 710 IPM
- SPINDLE NOSE A2-5
- SPINDLE BORE 2.31″
- MAXIMUM BAR CAPACITY 1.75″
- SPINDLE SPEEDS: 100 – 6,000 RPM
- SPINDLE MOTOR: 15 HP
- TURRET CAPACITY 12 STATIONS
- TURRET INDEX (Single Step) 1 Second
- TAILSTOCK QUILL TAPER MT #3
- TAILSTOCK QUILL TRAVEL 4.0″
- TAILSTOCK QUILL THRUST 225 – 900 LB

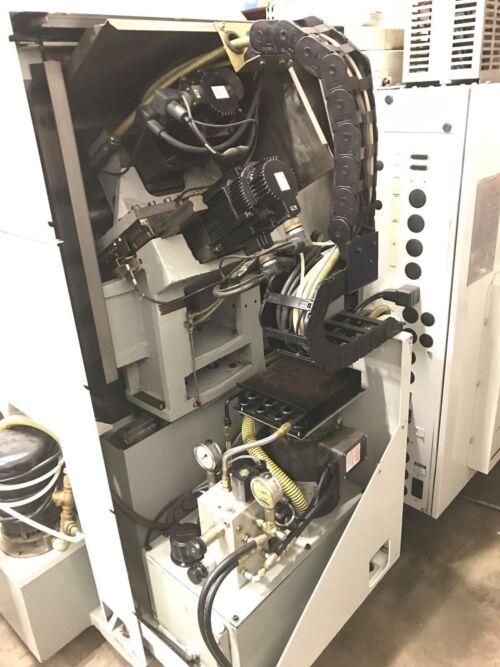

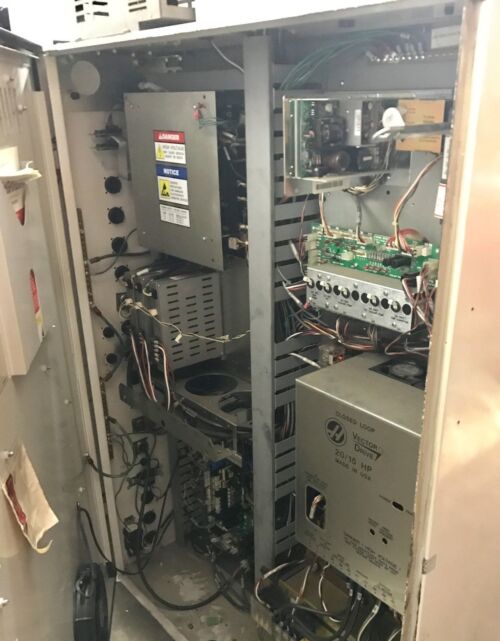

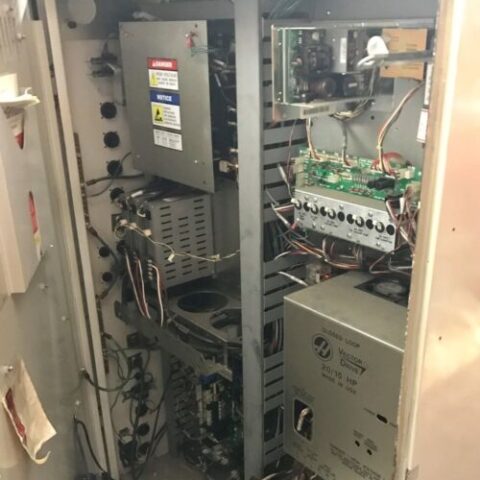

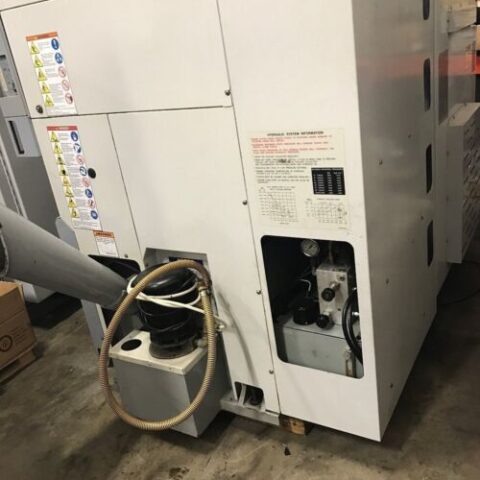

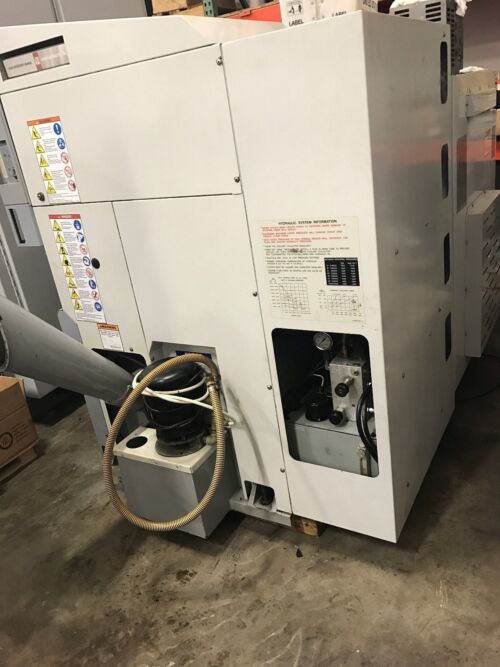

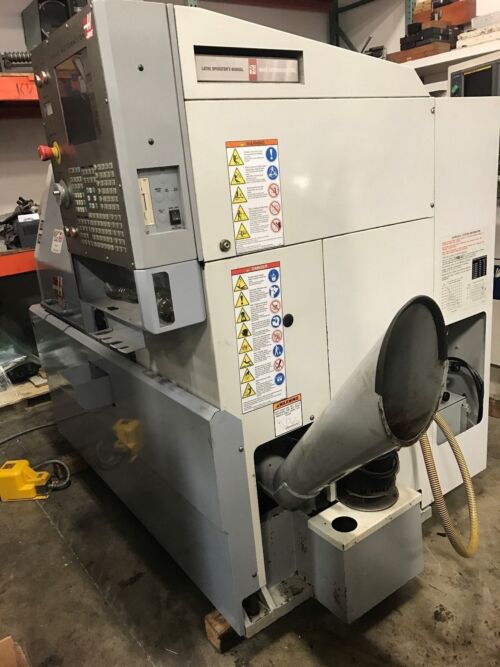

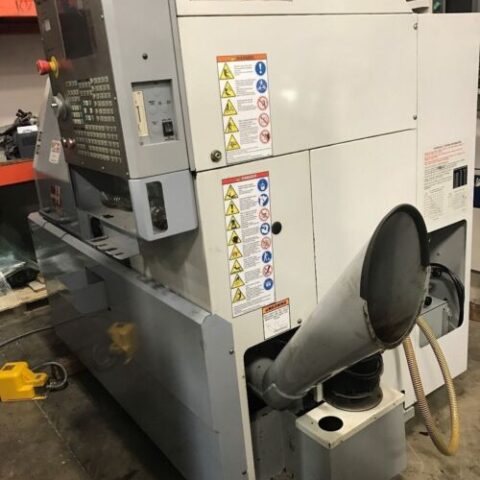

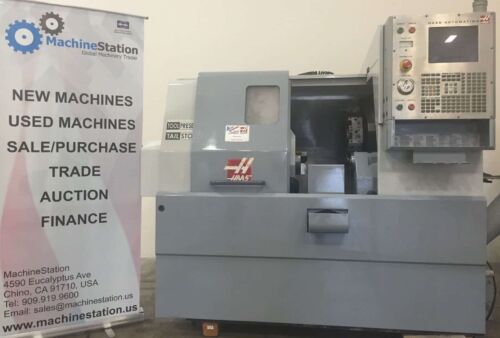

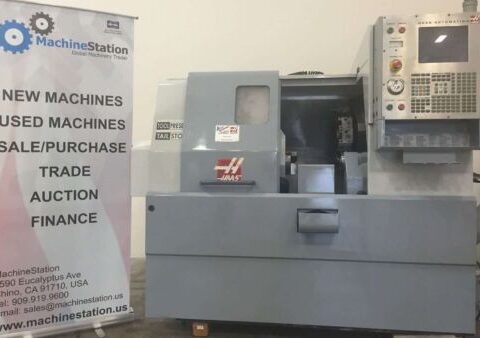

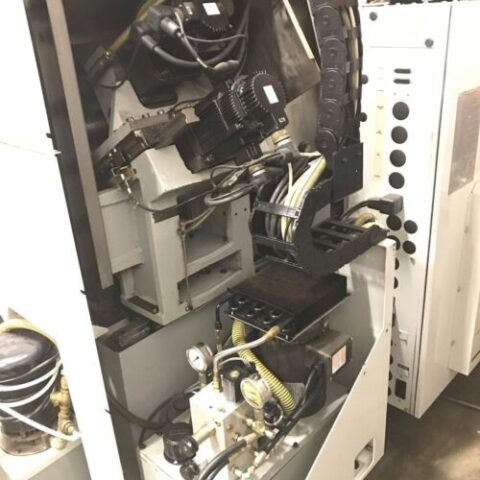

HAAS SL10T Comes as shown in pictures.
