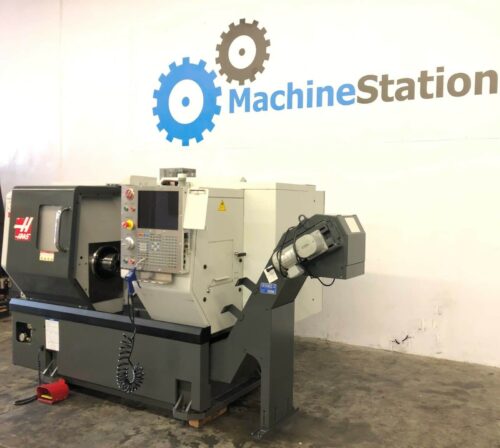

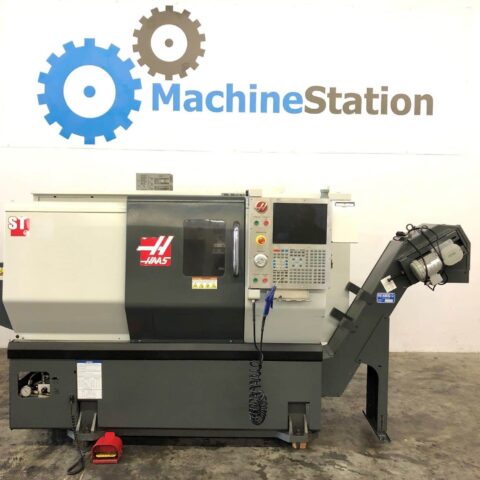

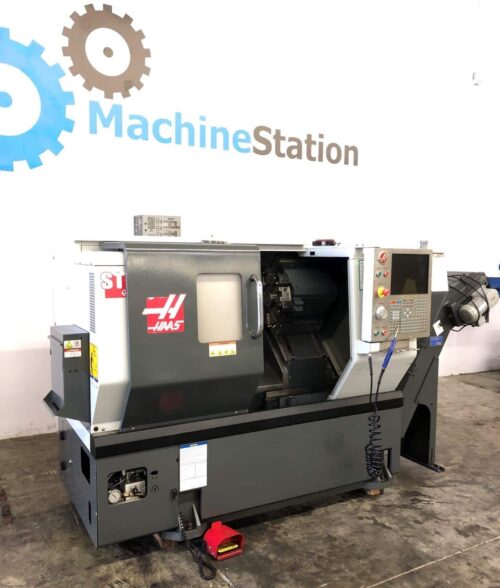

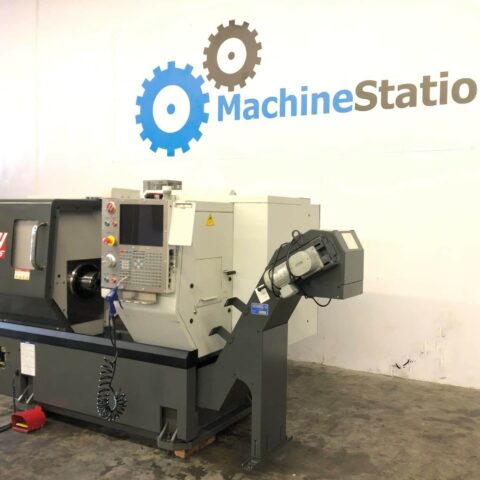

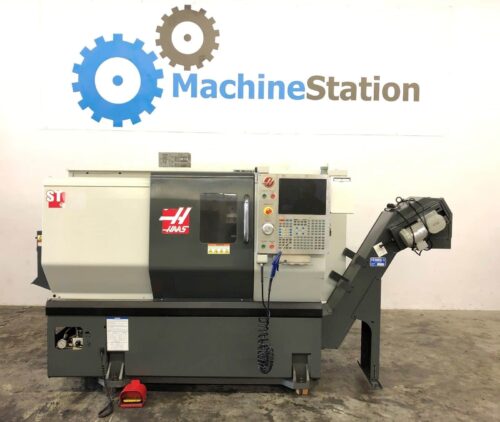

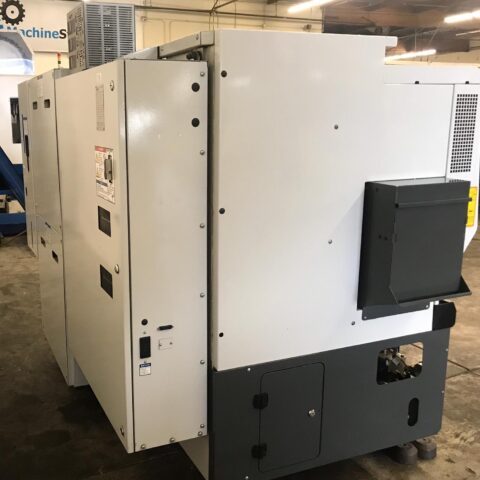

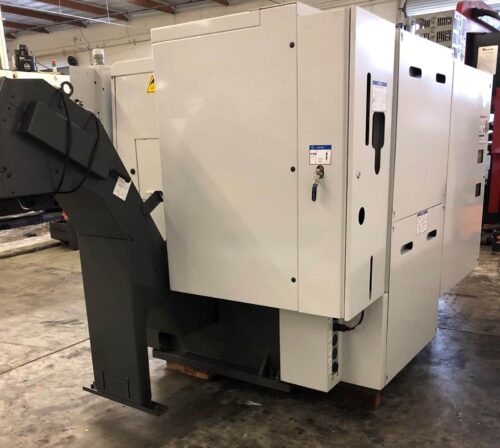

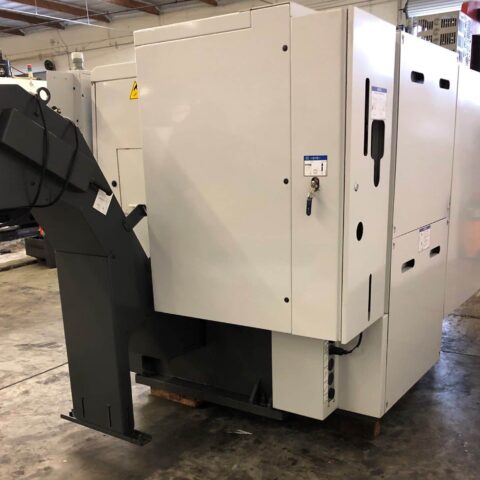

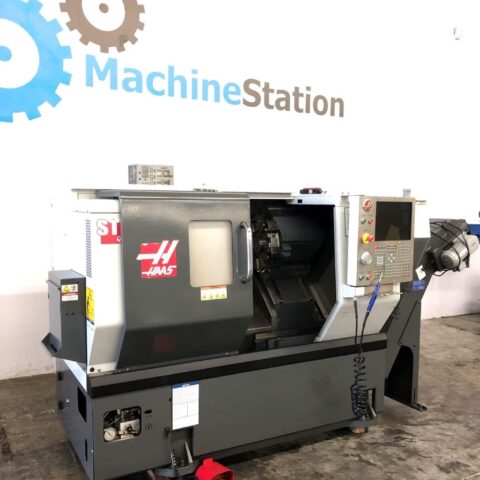

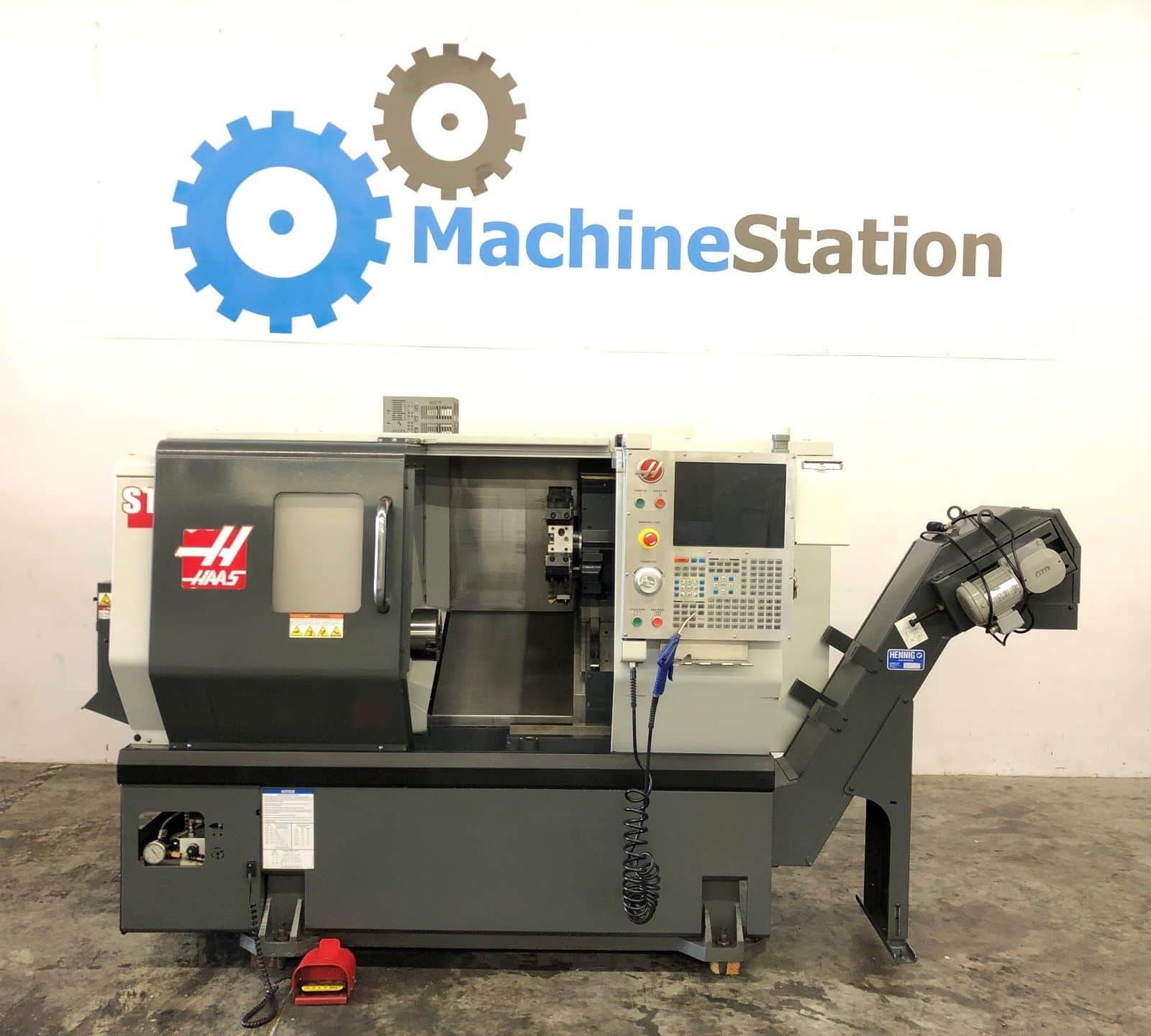

Haas ST-10 CNC Turning Center
Out of stock
| HAAS ST-10 CNC TURNING CENTER |
| Make |
HAAS |
| Model No. |
ST-10 |
| Year Installed: |
2012 |

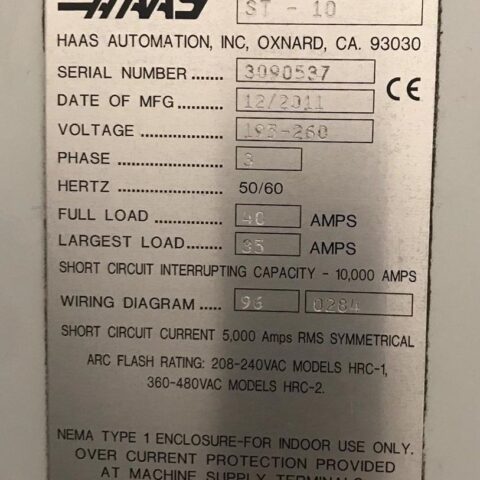

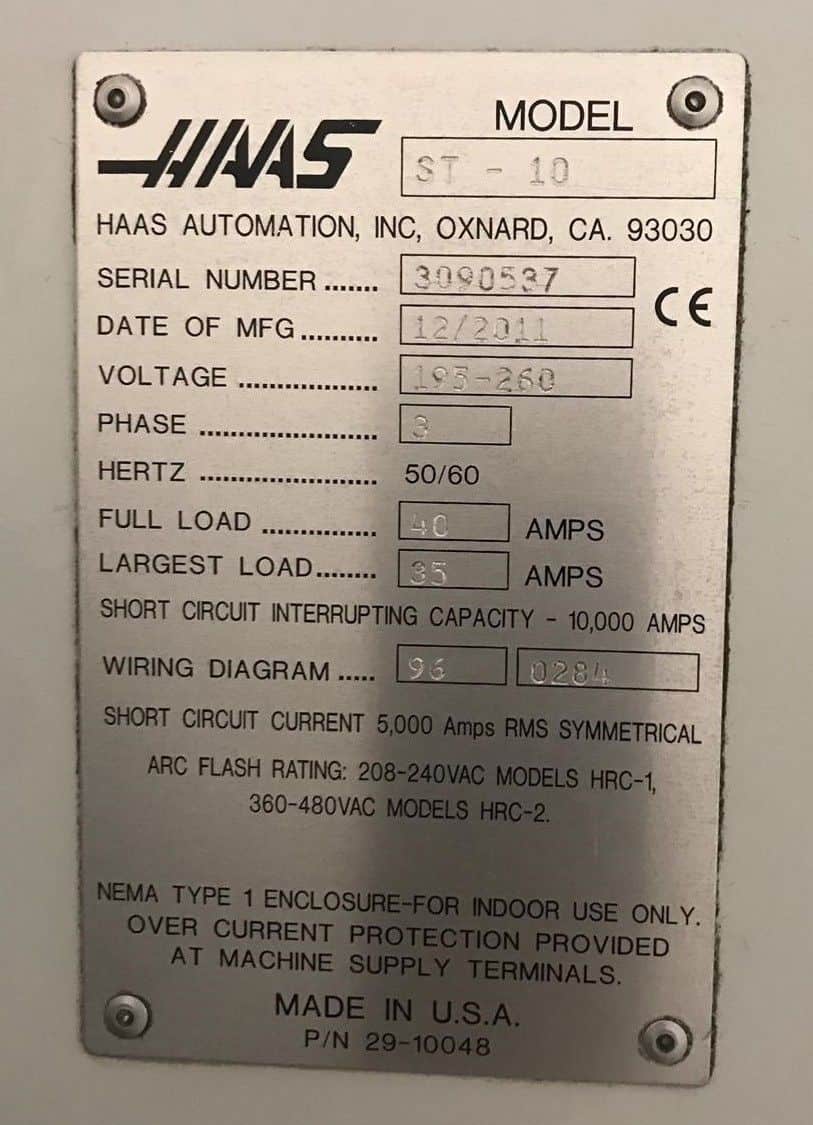

| Serial # |
3090537 |
| Condition |
Very Good |
| Country of Origin: |
USA |
- HAAS ST-10 Equipped With:
- 6000 RPM Spindle

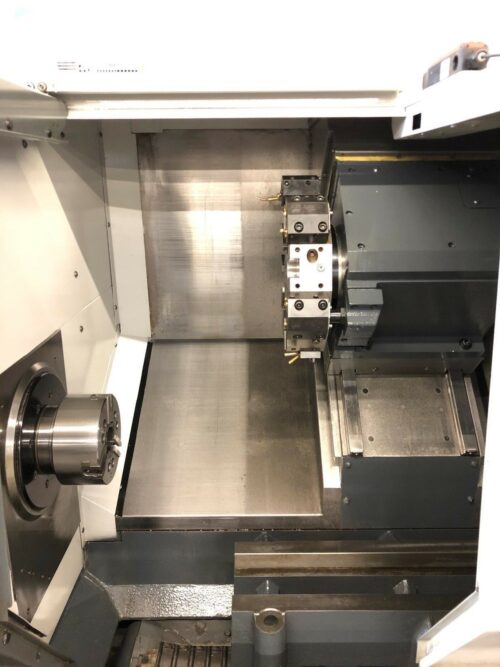

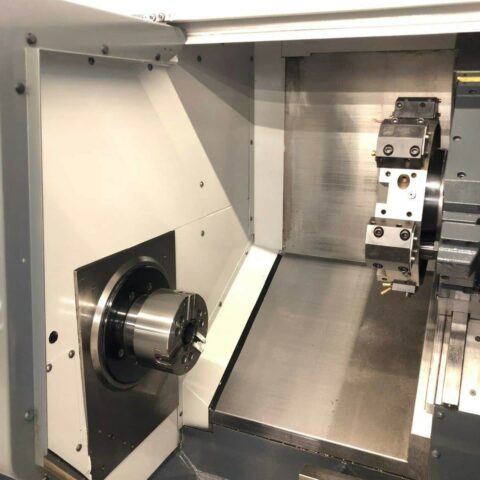

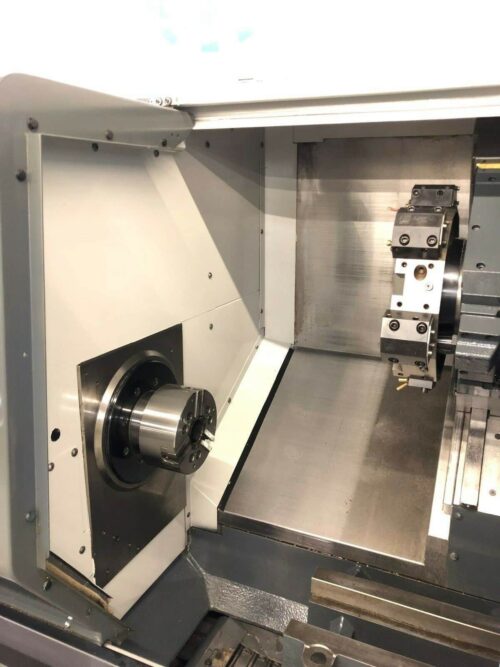

- 6.5″ 3 Jaw Hydraulic Chuck
- 1 GB Memory
- Rigid Tapping
- Barfeed Interface

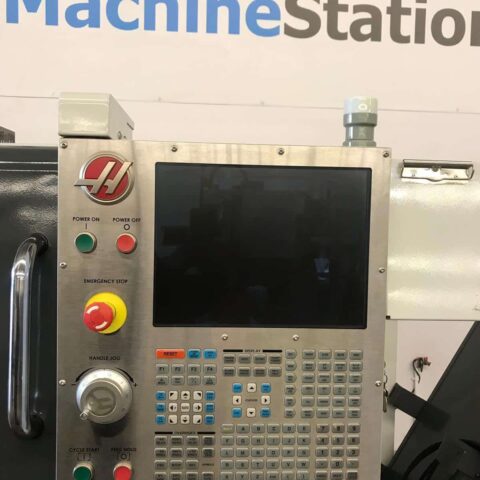

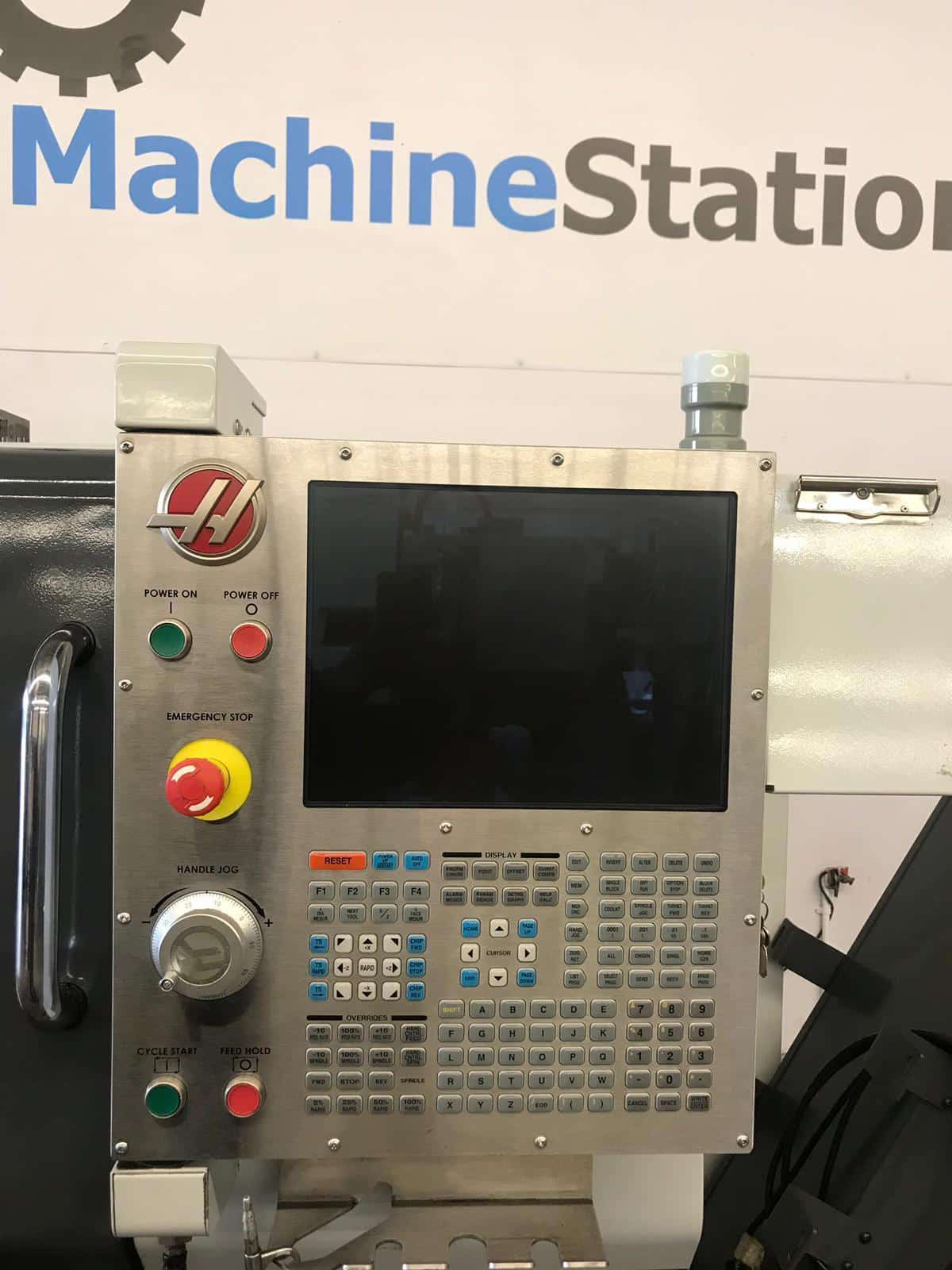

- 12″ Color TFT
- RS-232 ports
- USB

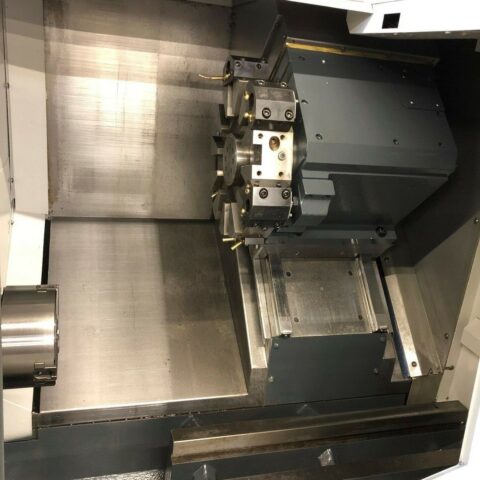

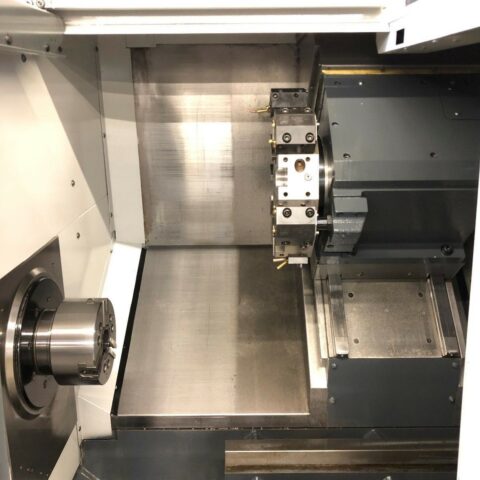

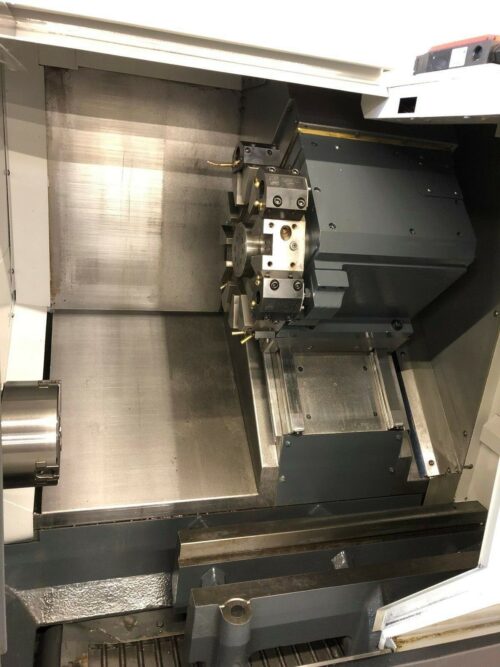

- 12 Station Automatic Turret
- Chip Conveyor
- Comes with 3 Jaw Chuck, foot switch , levelling pads & Chip Conveyor.
- General:
- Power: 220v / 3-Phase
- Overall Dimensions: 92″ x 64″ x 72″ High
- Weight: 6,000 lbs
- HAAS ST-10 Specifications:
- Capacity:
- Max Turning Diameter: 14″
- Max Turning Length: 16″
- Max Bar Capacity: 1.75″
- Swing Over Bed: 16.5″
- Swing Over Cross Slide: 16.5″
- X Axis Travel: 7.9″
- Z Axis Travel: 16.0″
- Rapid Traverse X Axis: 1200 IPM
- Rapid Traverse Z Axis: 1200 IPM
- Spindle Nose: A2-5
- Spindle Bore: 2.31″
- Spindle Speed: 60 – 6000 RPM
- Spindle Motor: 15 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 0.15 Second
