*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

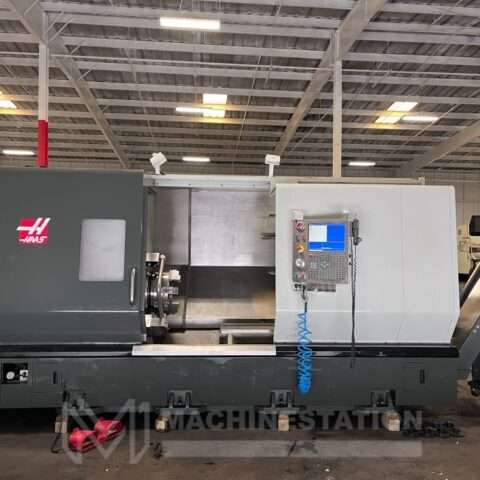

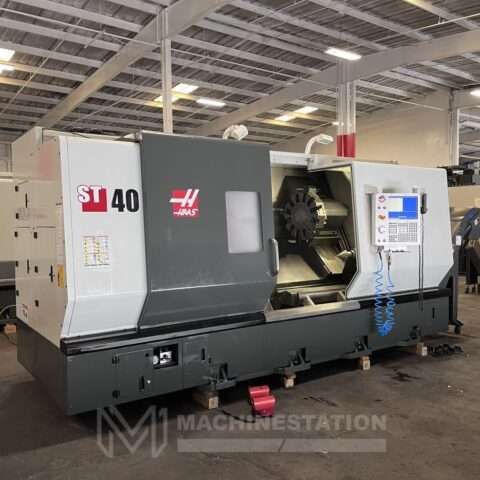

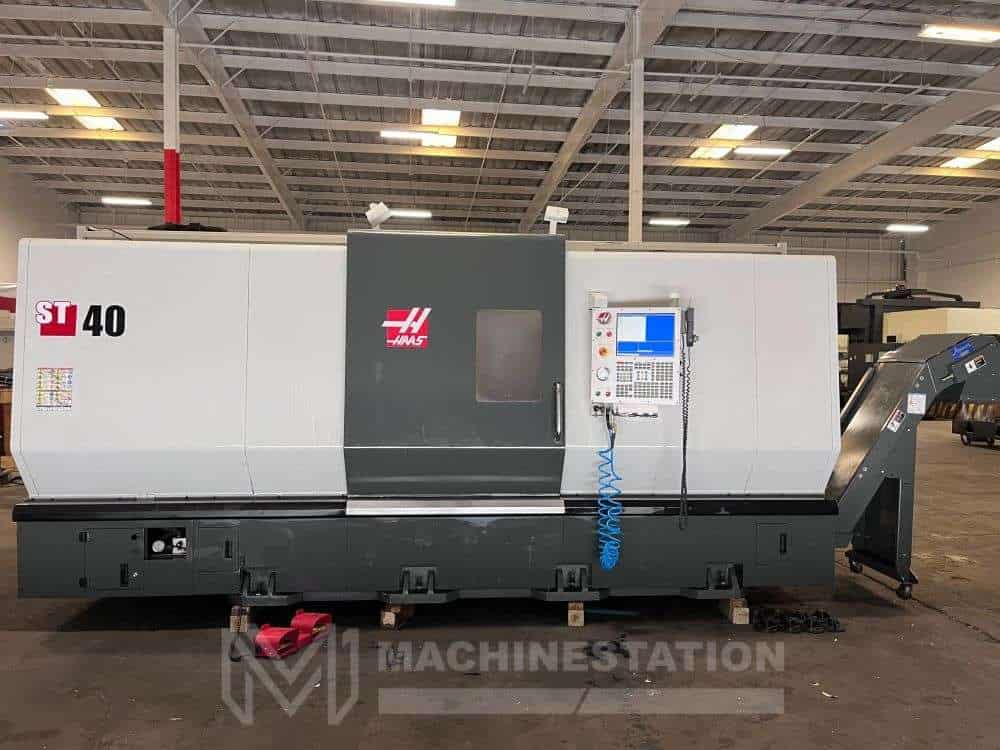

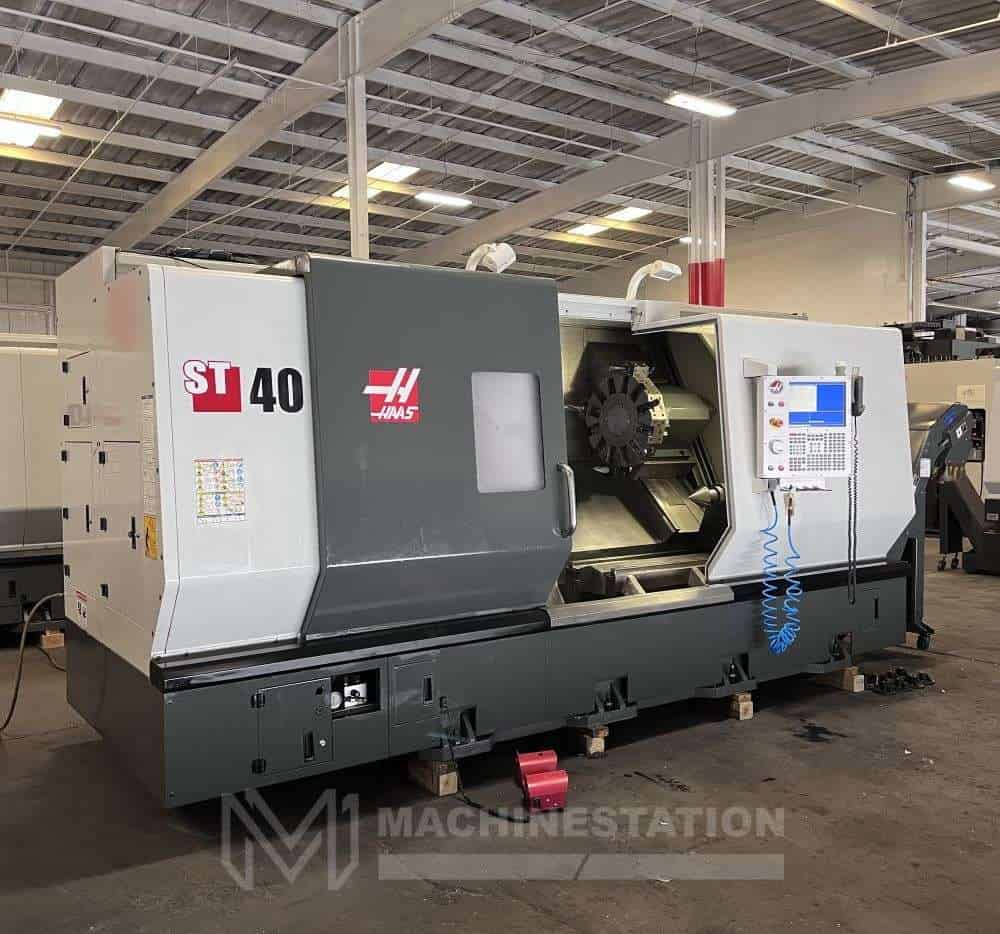

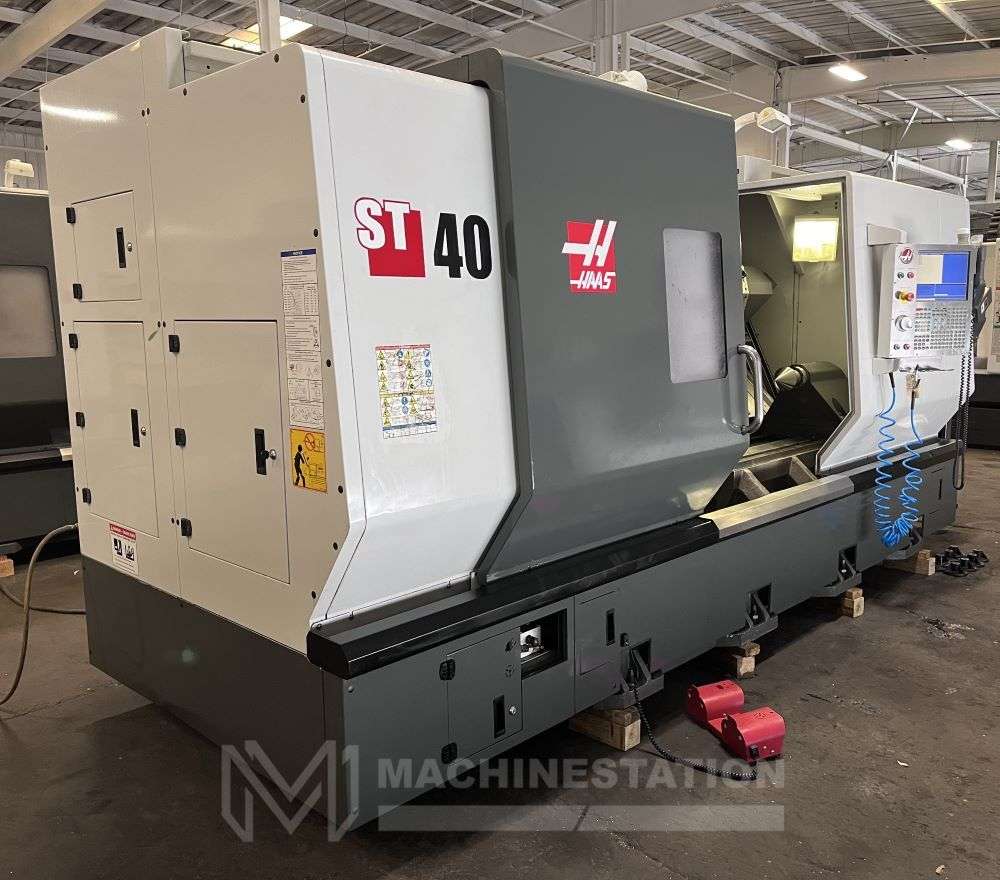

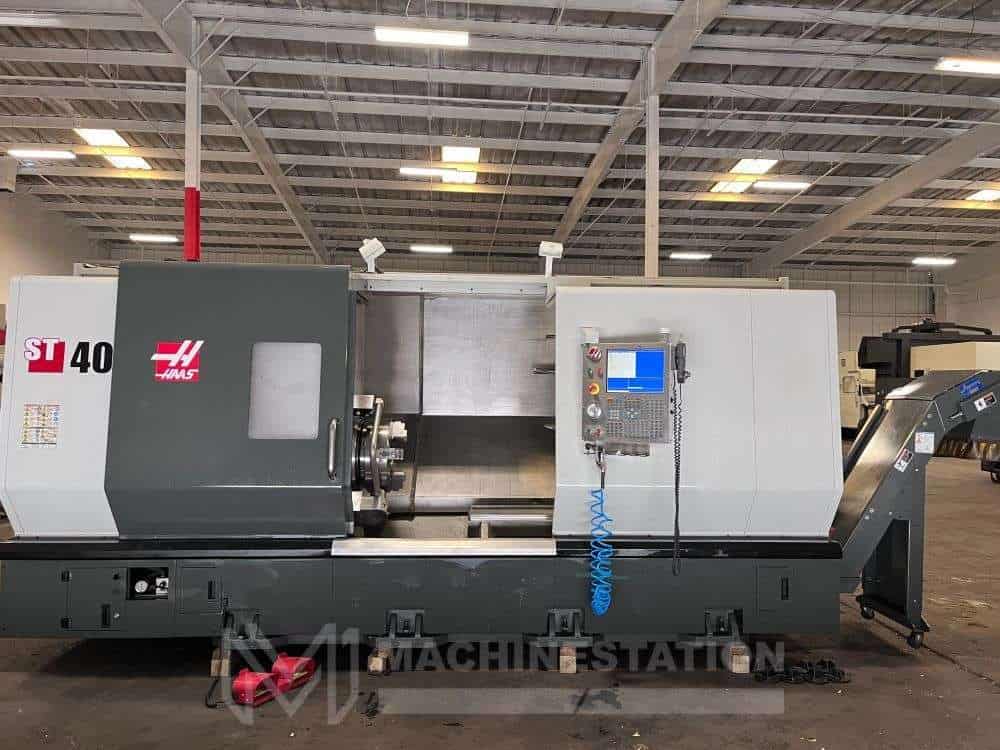

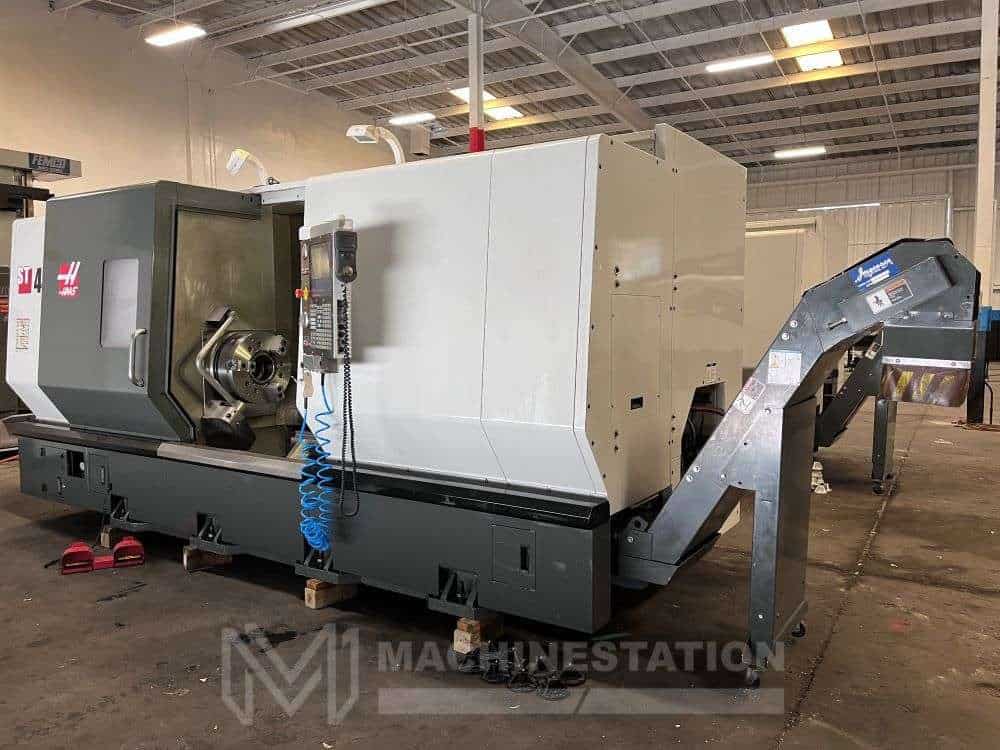

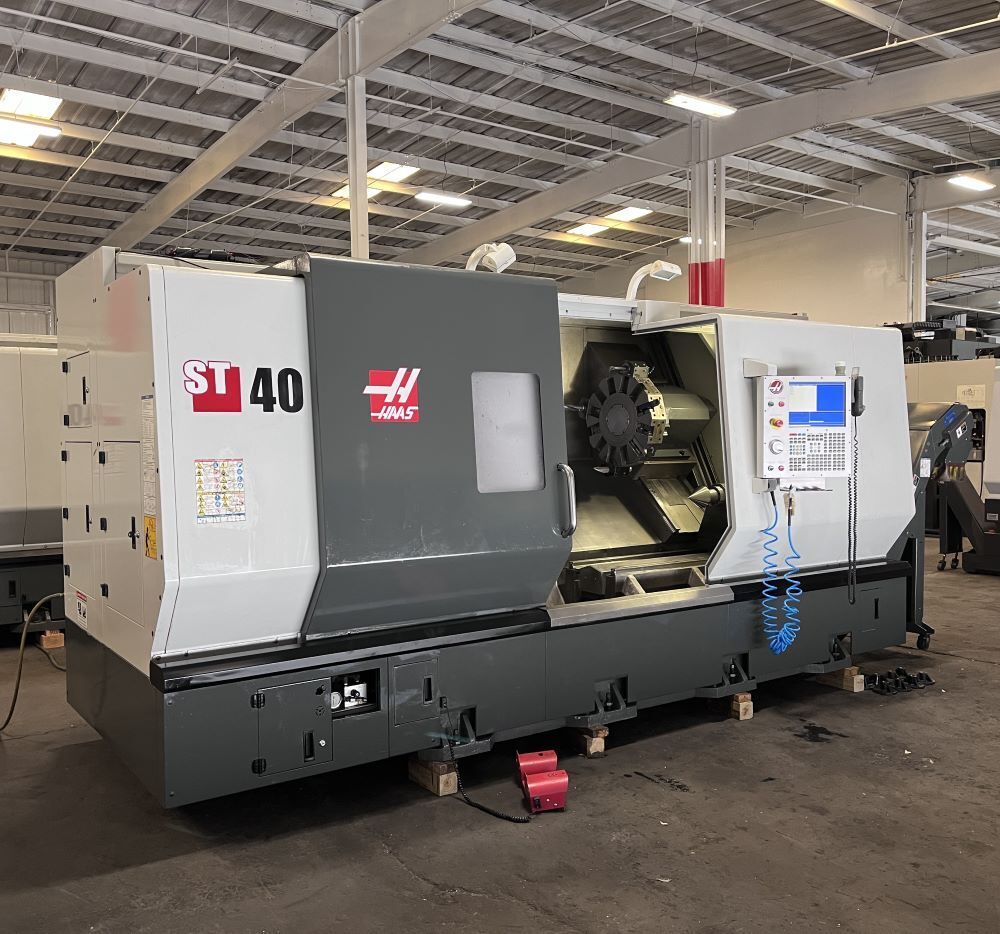

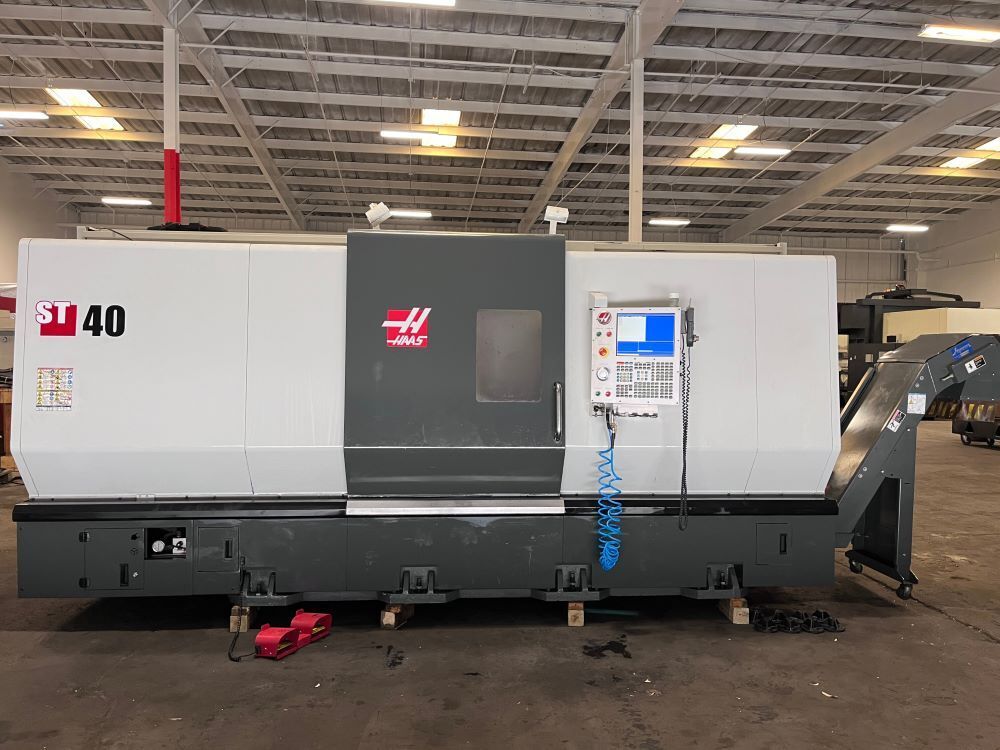

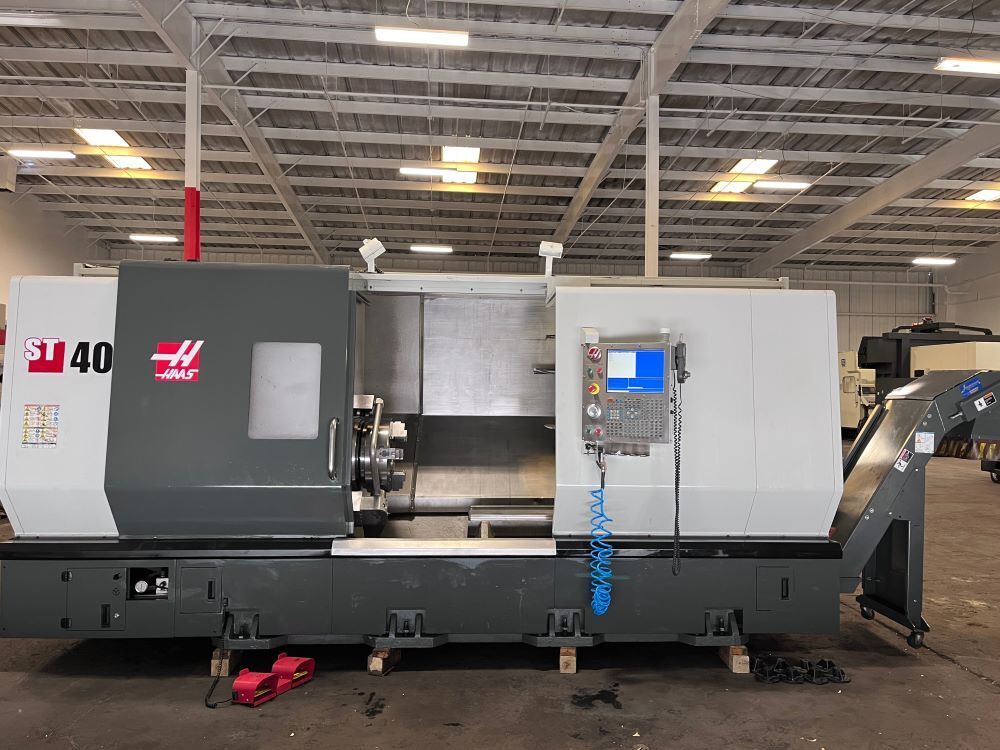

| Make: | Haas |
| Model: | ST-40 |
| Year: | 2013 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

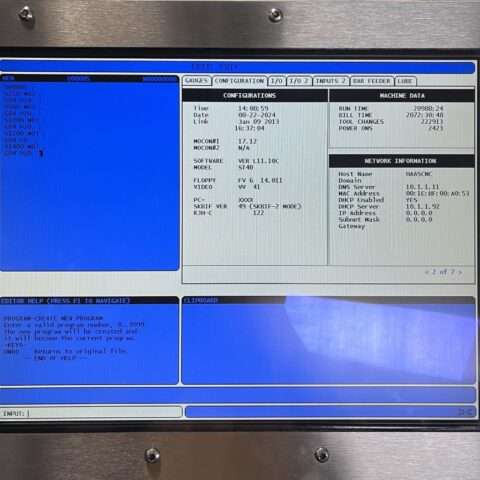

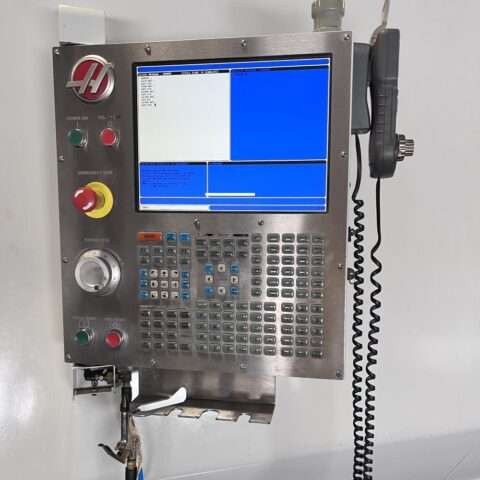

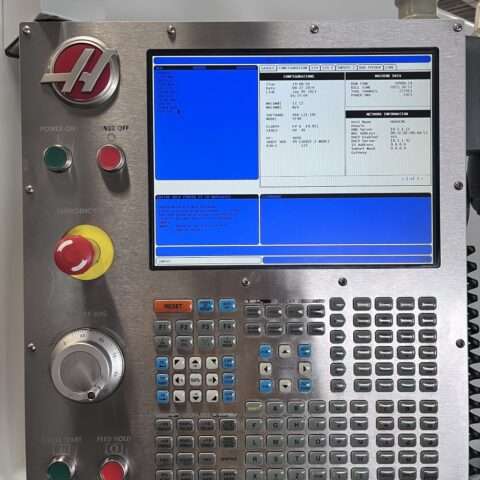

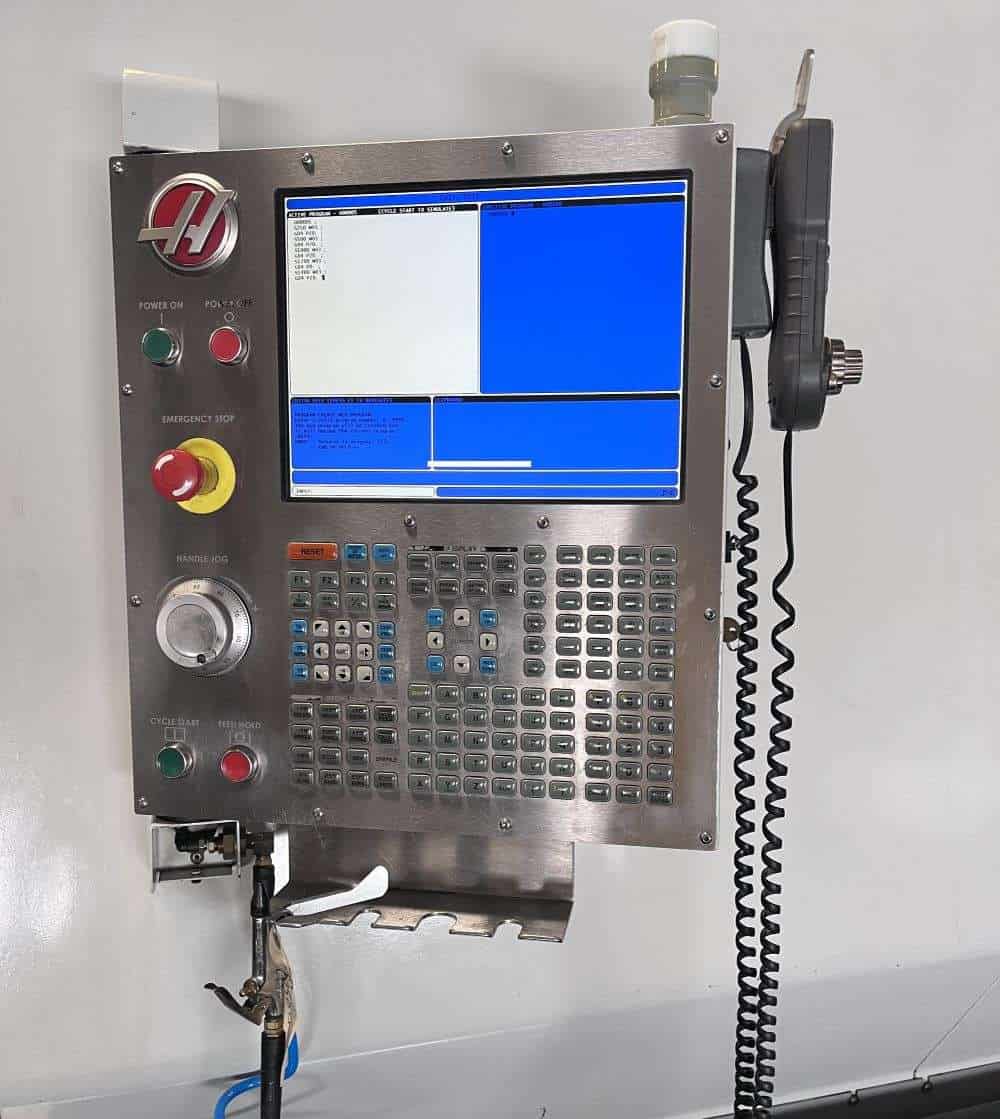

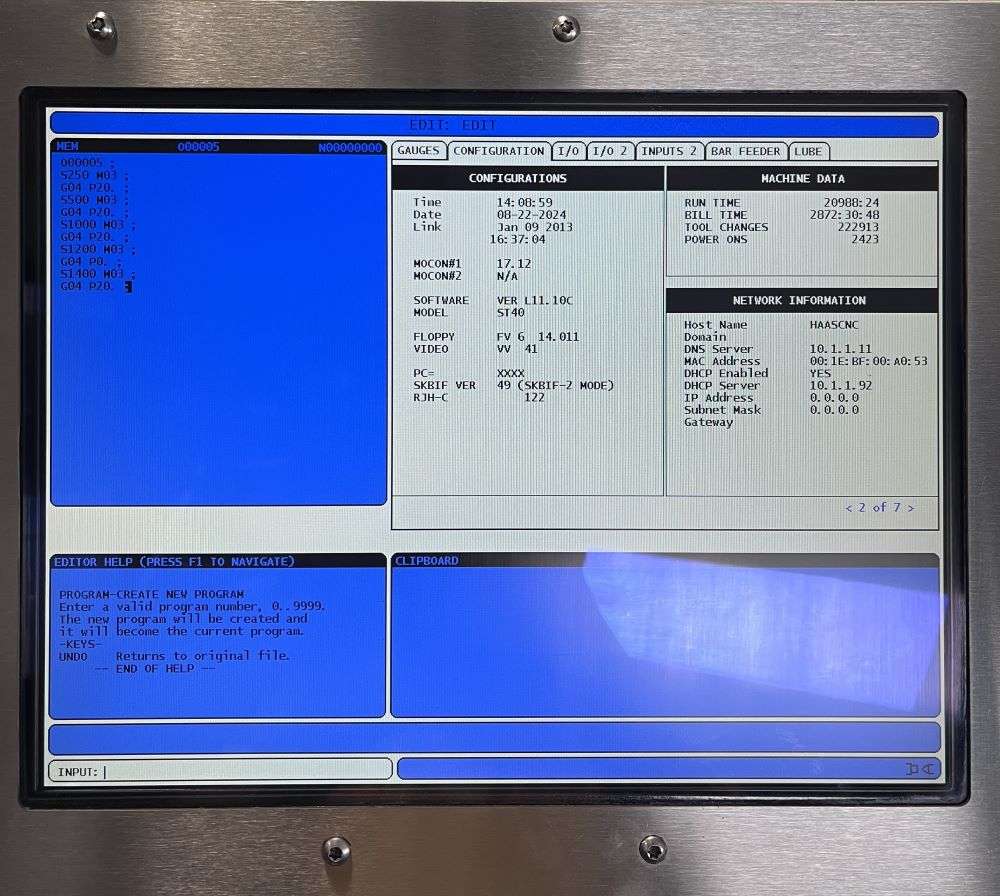

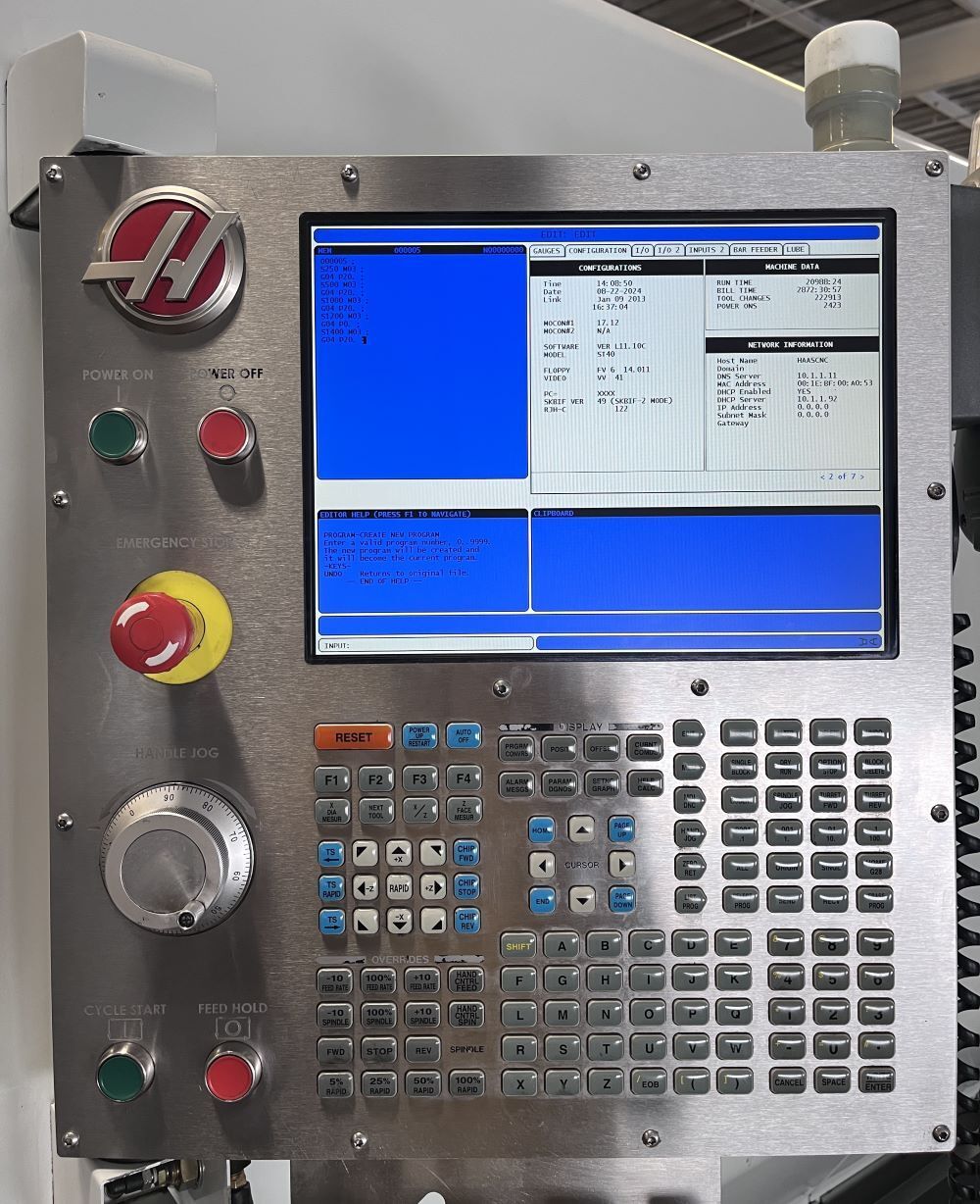

| Haas CNC Control |

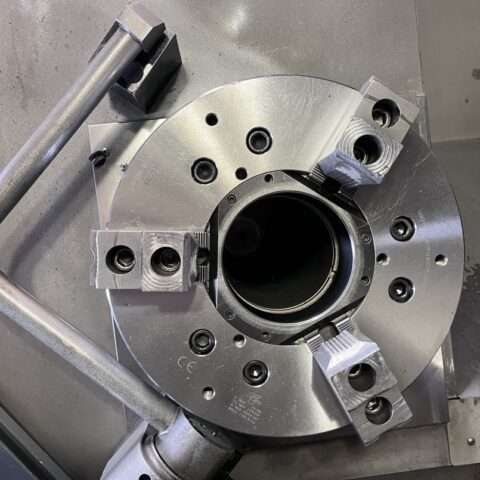

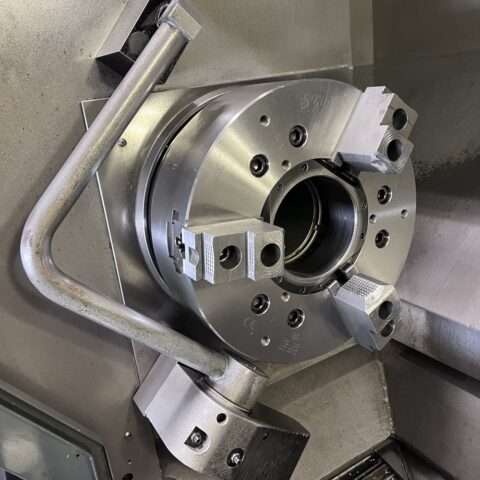

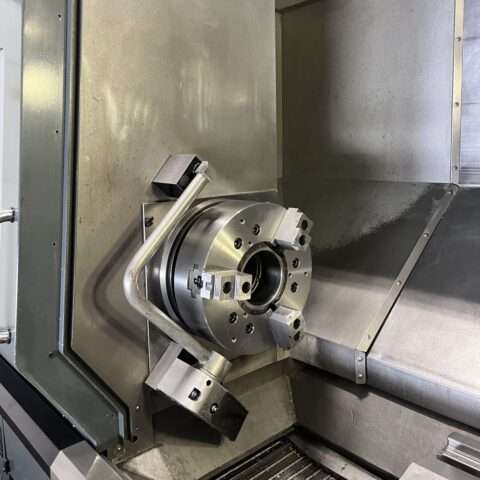

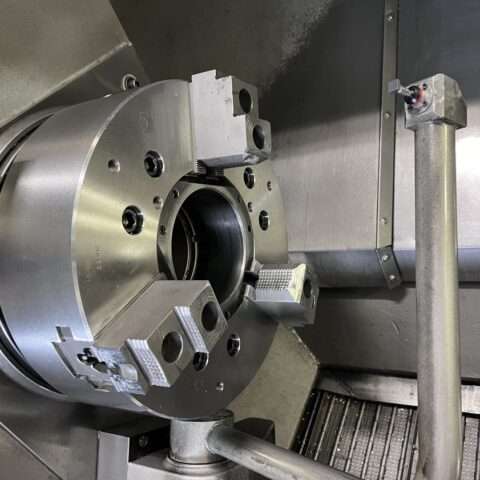

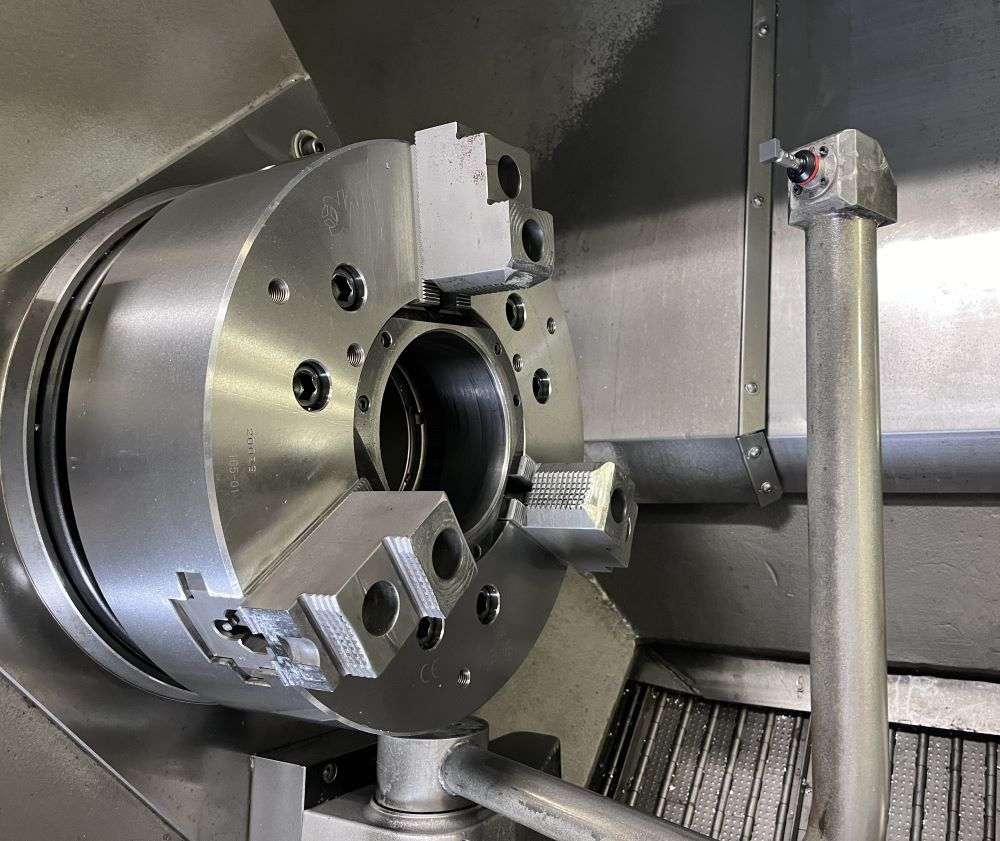

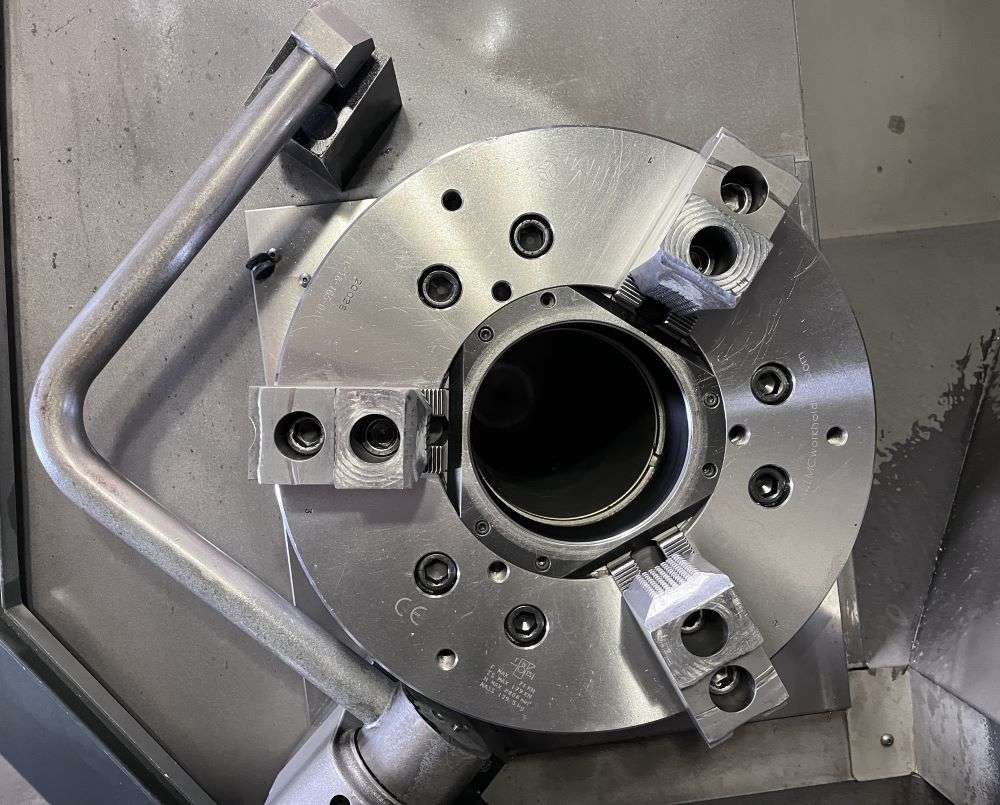

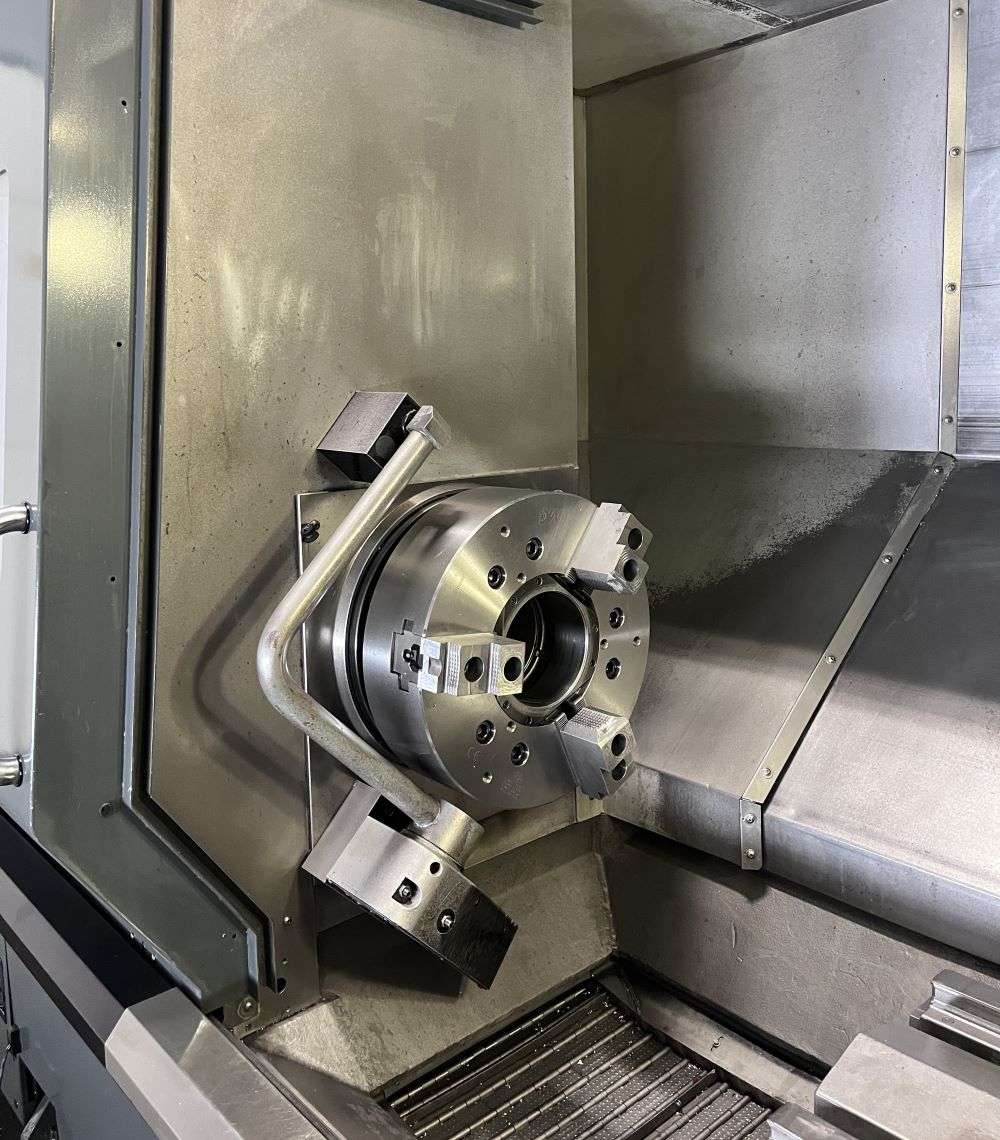

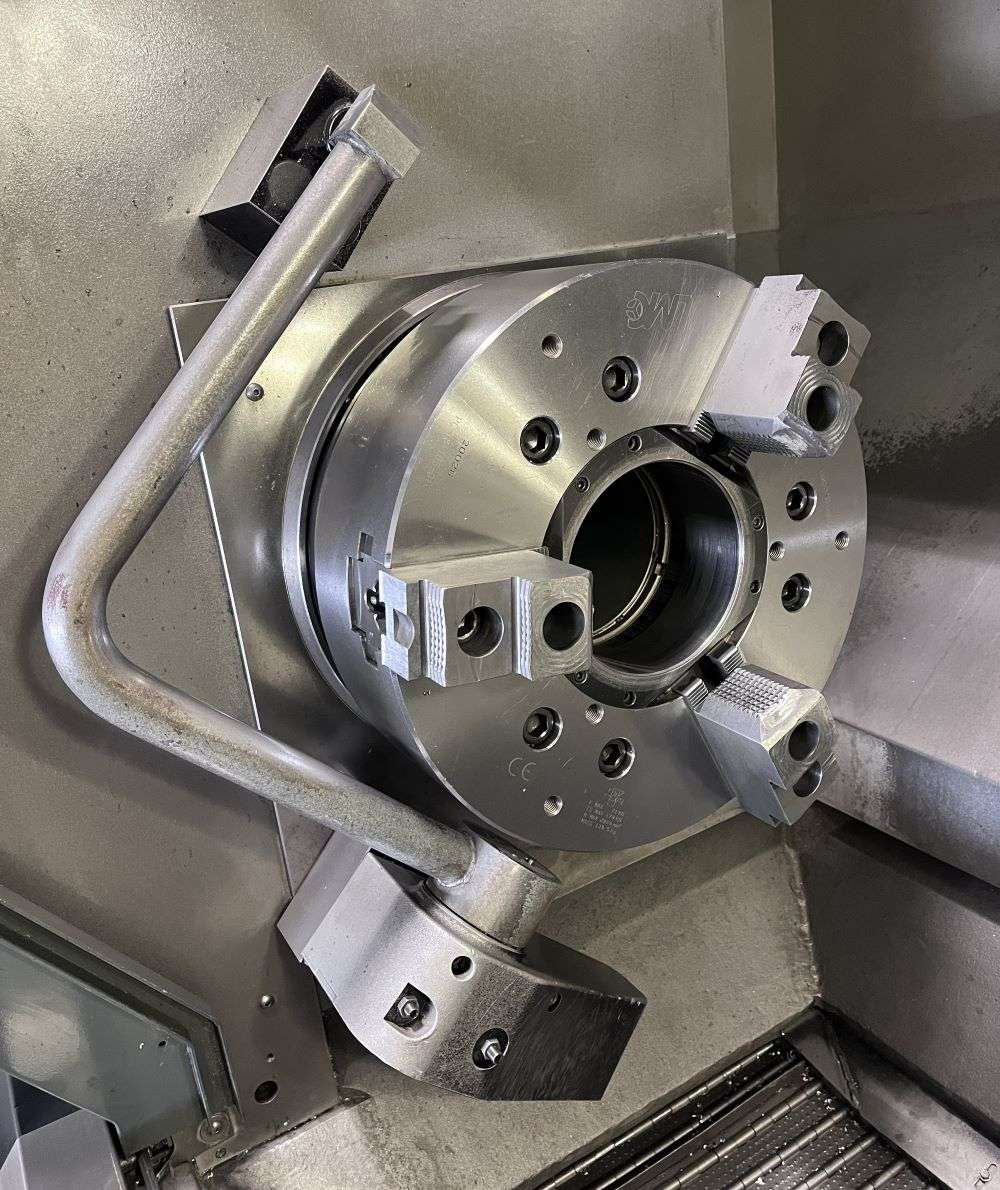

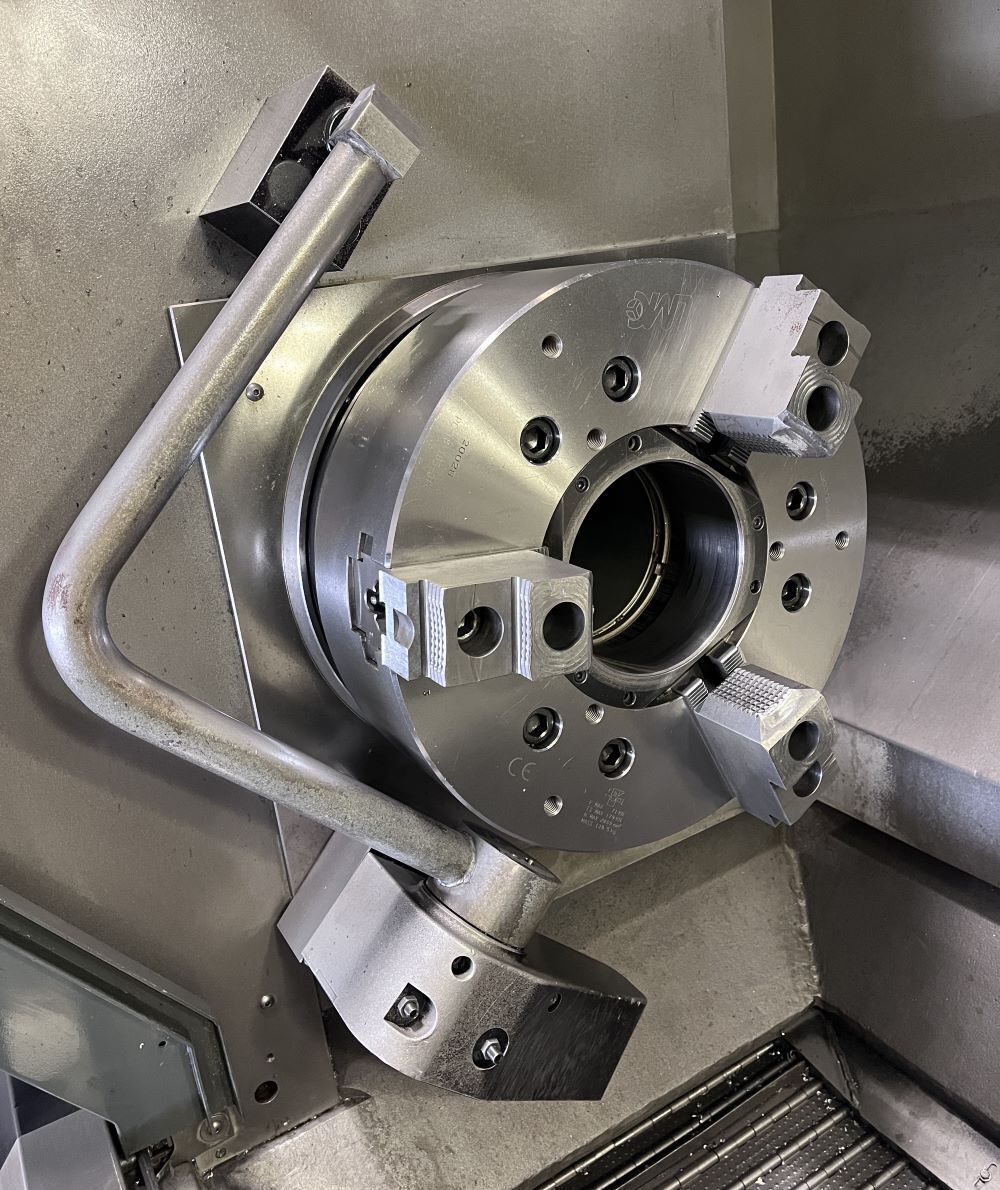

| 18″ 3-Jaw Hydraulic Chuck |
| 6.5″ Big Bore Spindle |
| A2-8 Gear Head Spindle |

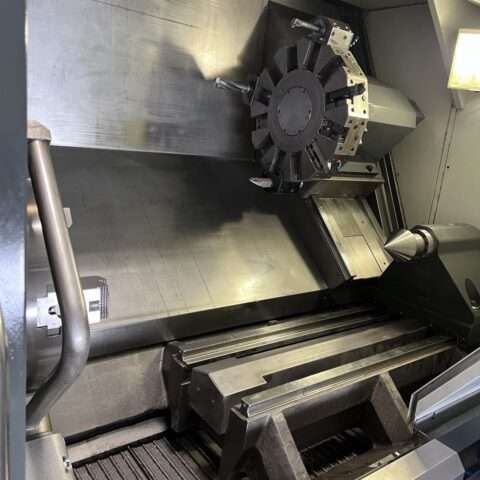

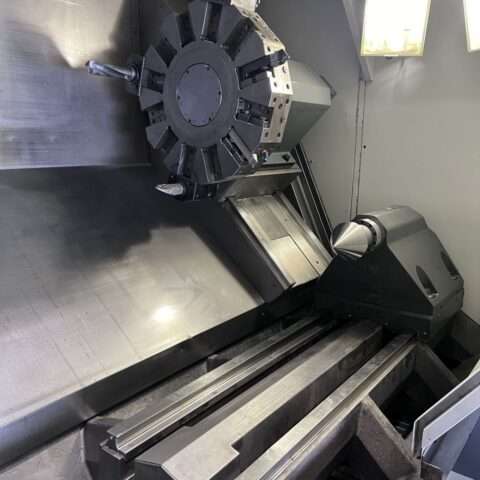

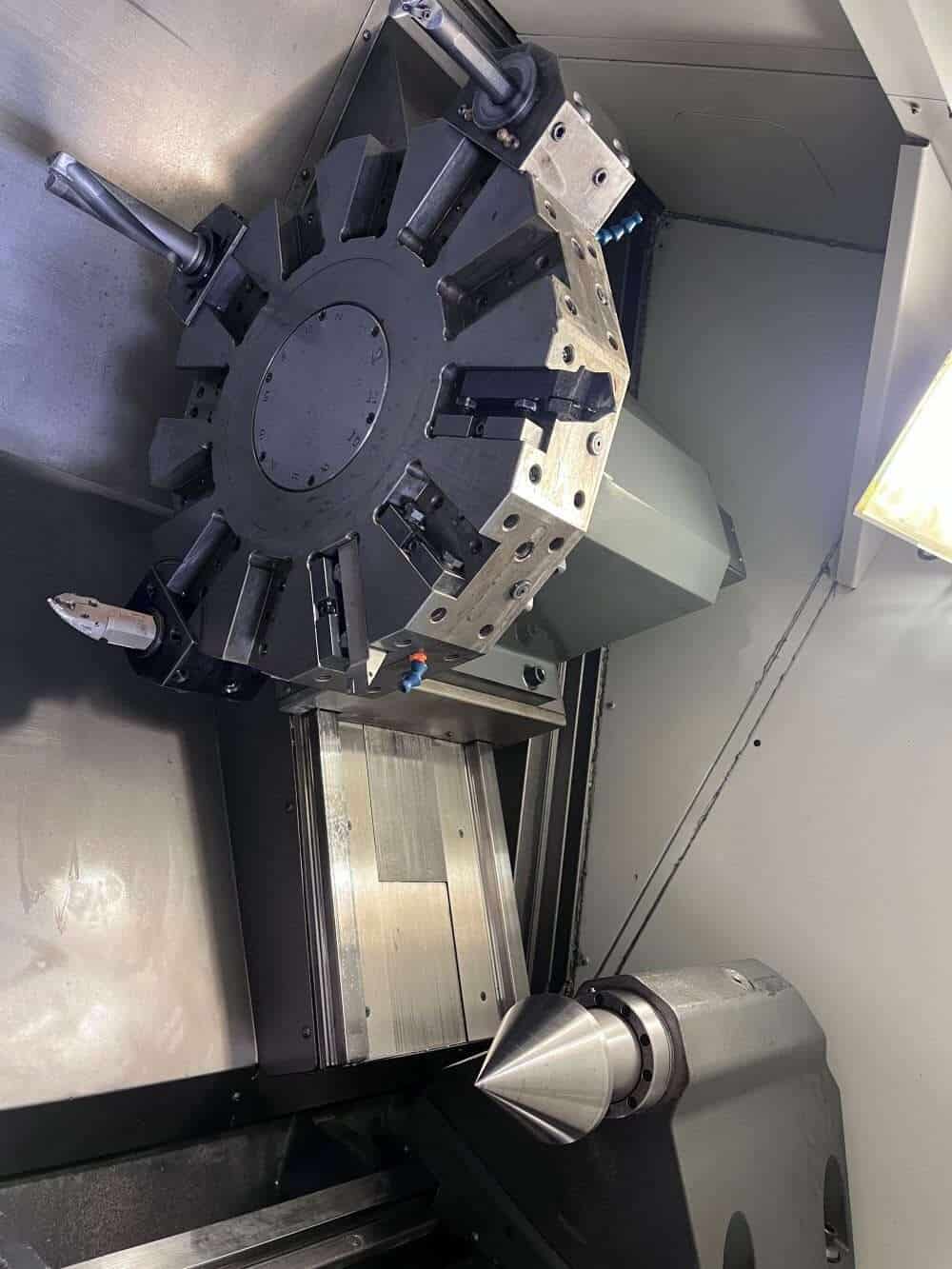

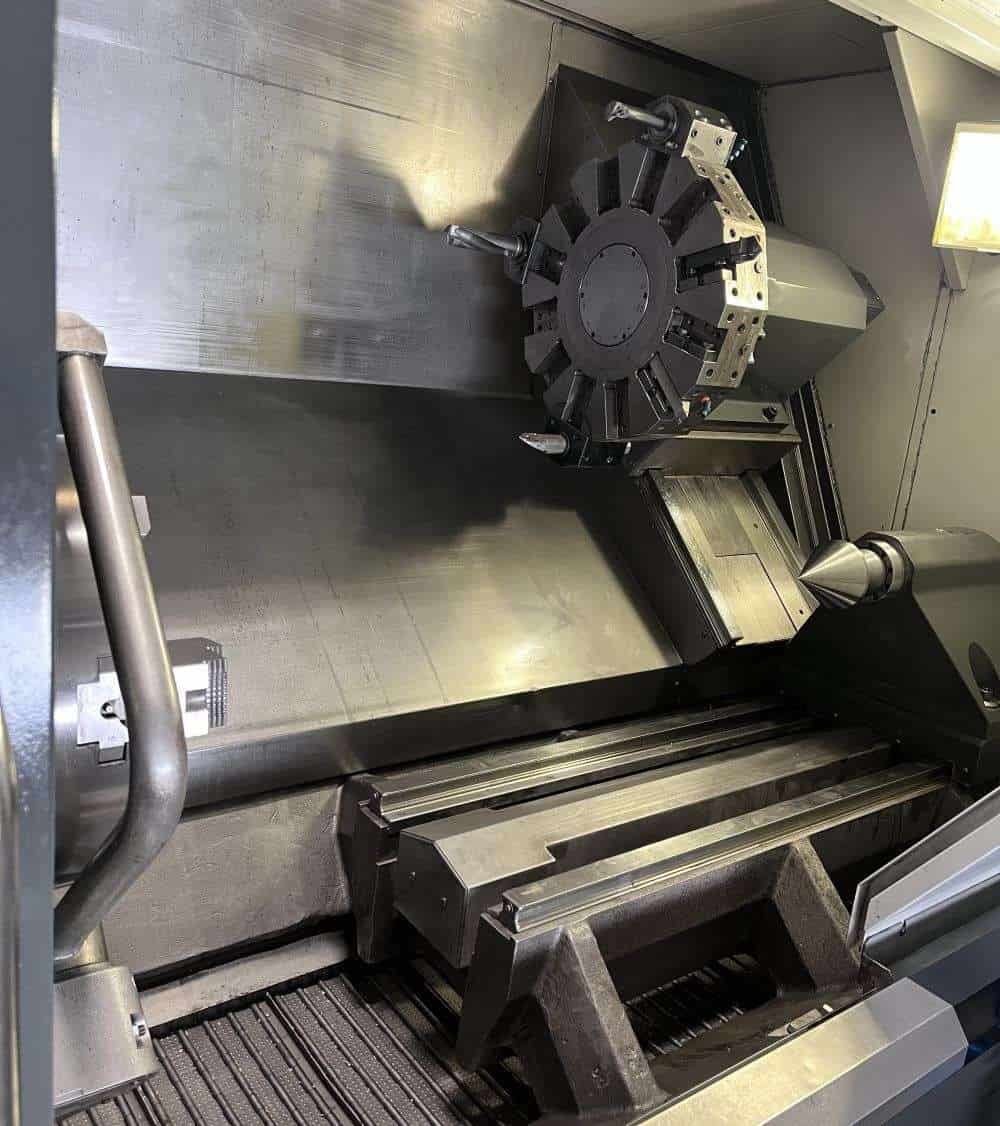

| 12 Station Automatic Turret |

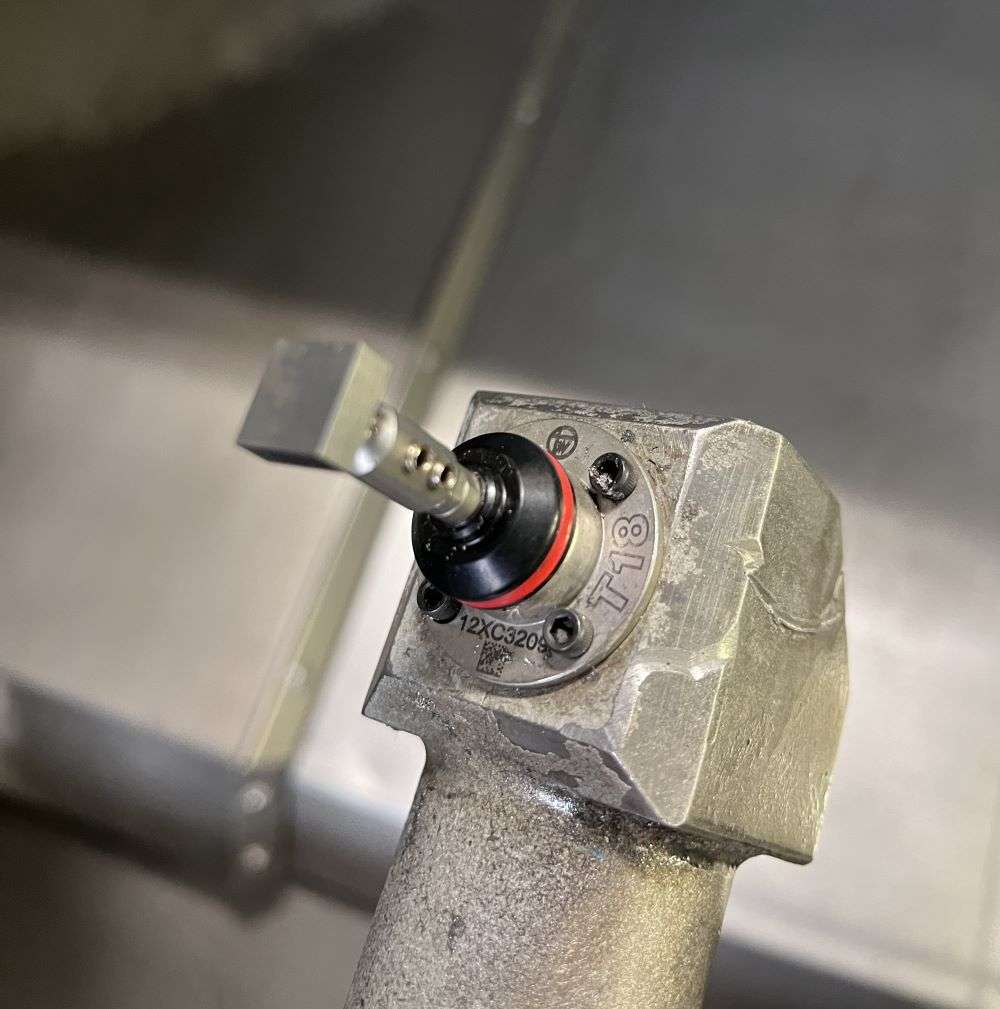

| Automatic Tool Presetter (Upgraded $5295 value Included) |
| High Pressure Coolant System 1000-psi (Upgraded $9995 value Included) |

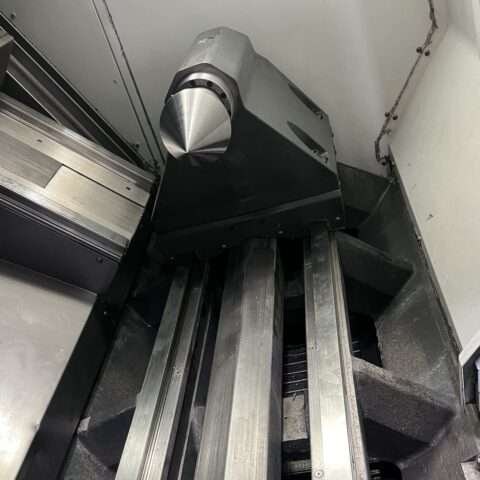

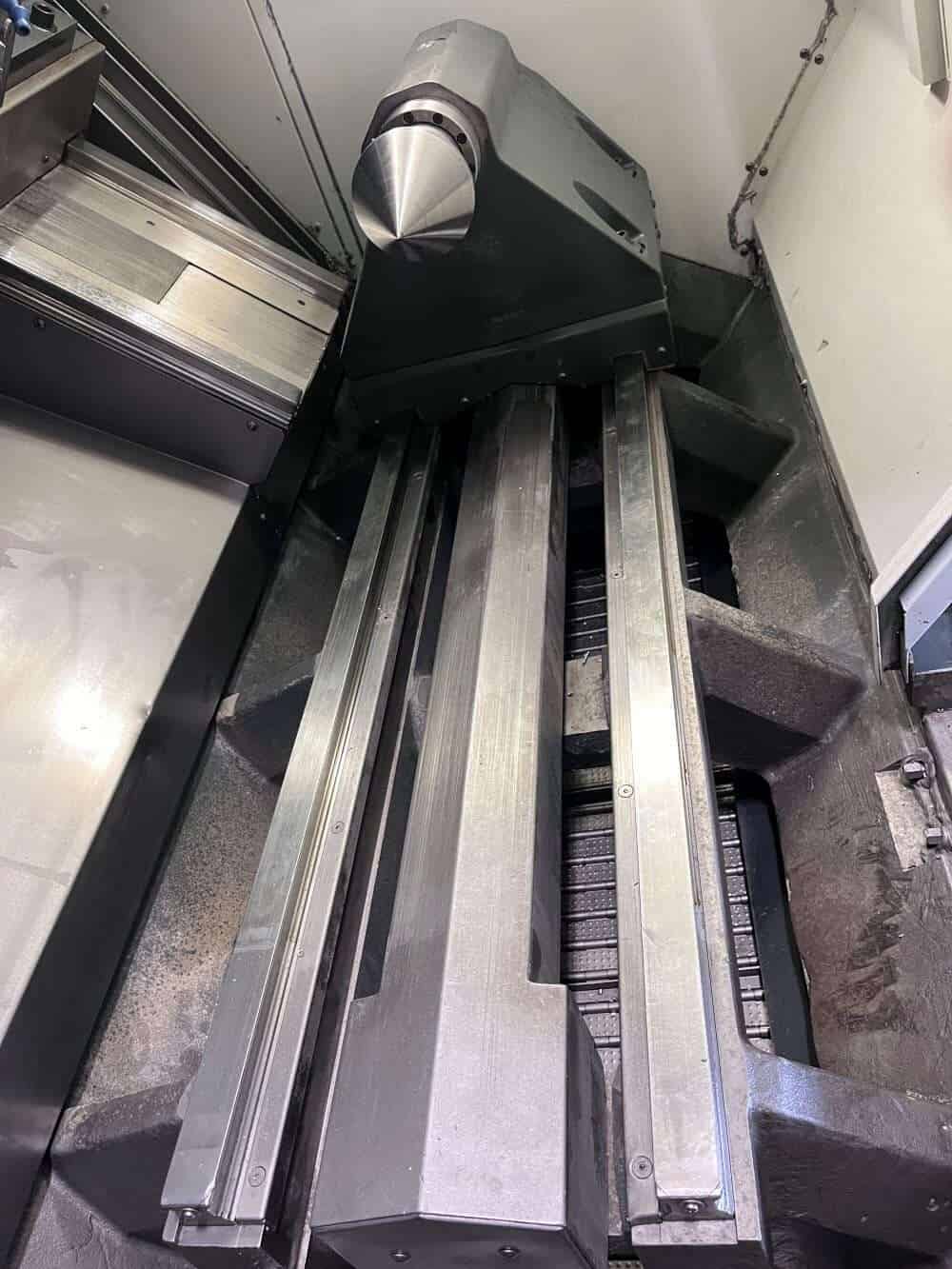

| Programmable Servo Tailstock |
| Remote Jog Handle |
| Rigid Tapping |
| User-Definable Macros |
| Visual Part Programming System |
| 1 GB Program Memory |
| Coolant System |

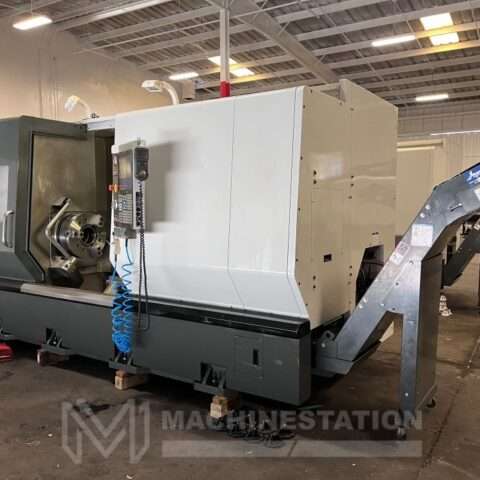

| Chip Conveyor (Upgraded $6295 value Included) |
| Automatic Lubrication system |
| Work Light |

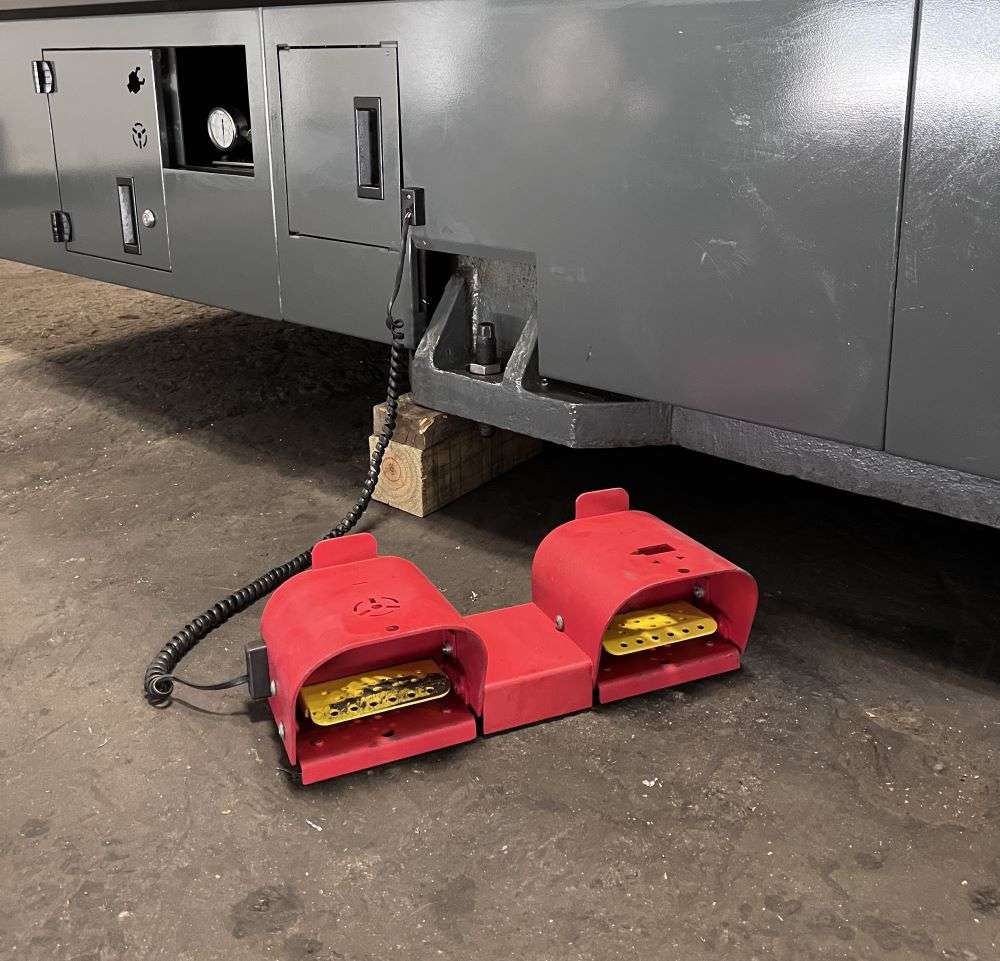

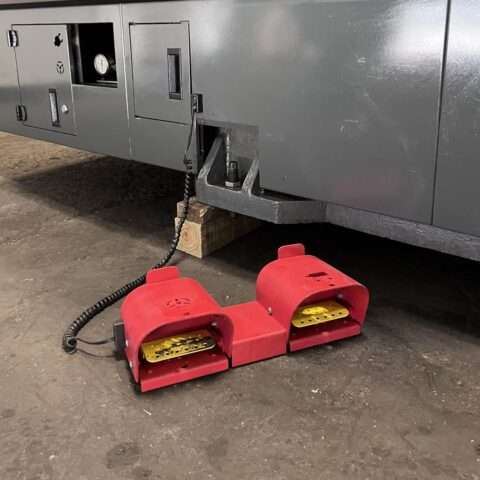

| Foot Switches |

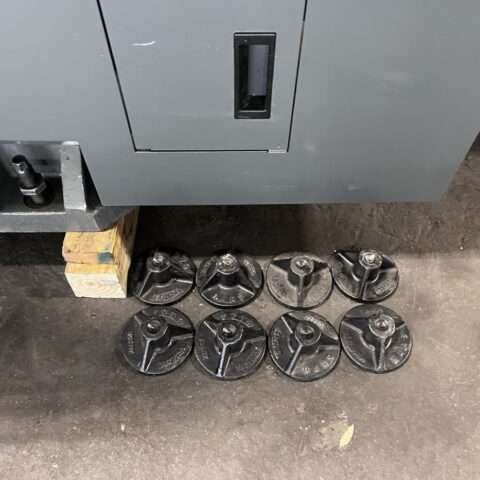

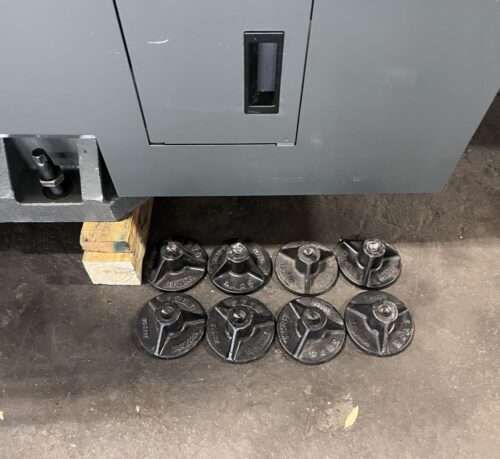

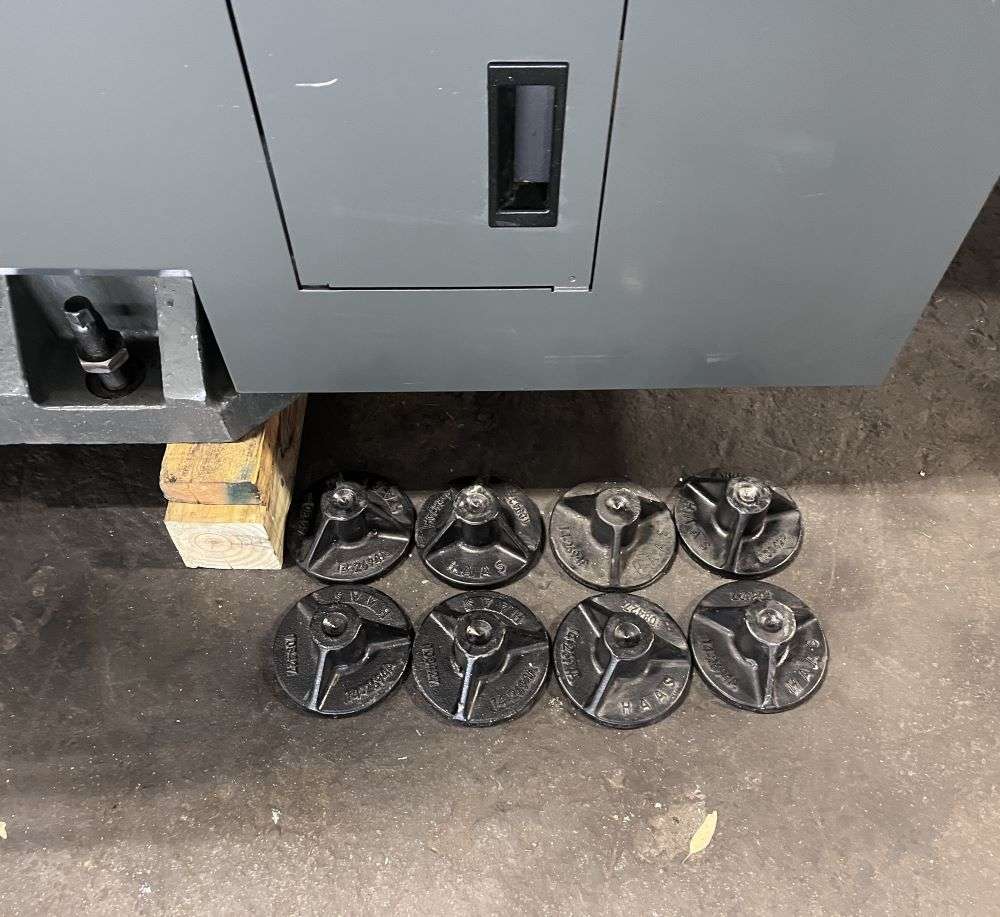

| Levelling Pads |
| Capacity: |
|---|
| Max Turning Diameter : 30.0″ |
| Max Swing Over Bed : 34.5″ |
| Max Swing Over Cross Slide : 25.5″ |
| Max Swing Over Tailstock : 25.5″ |
| Max Turning Length: 44.0″ |
| Max Bar Capacity : 6.0″ |
| Travels: |
|---|
| X Axis Travel : 20″ |
| Z1 Axis Travel : 44.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 710 IPM |
| Rapid Traverse Z Axis: 710 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-8 |
| Spindle Bore: 6.5″ |
| Spindle Speed: 2400 RPM |
| Spindle Motor: 40 HP |

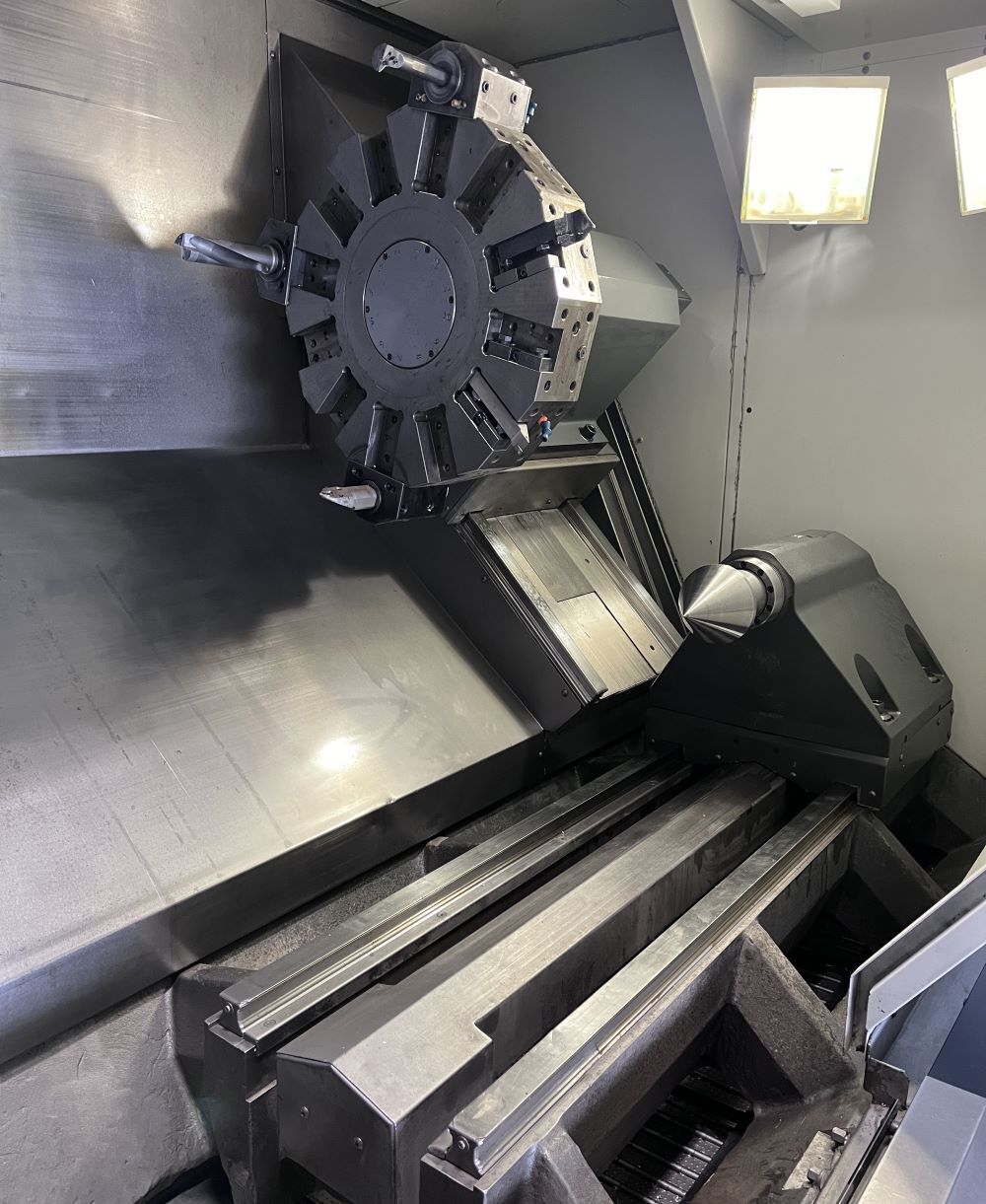

| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |

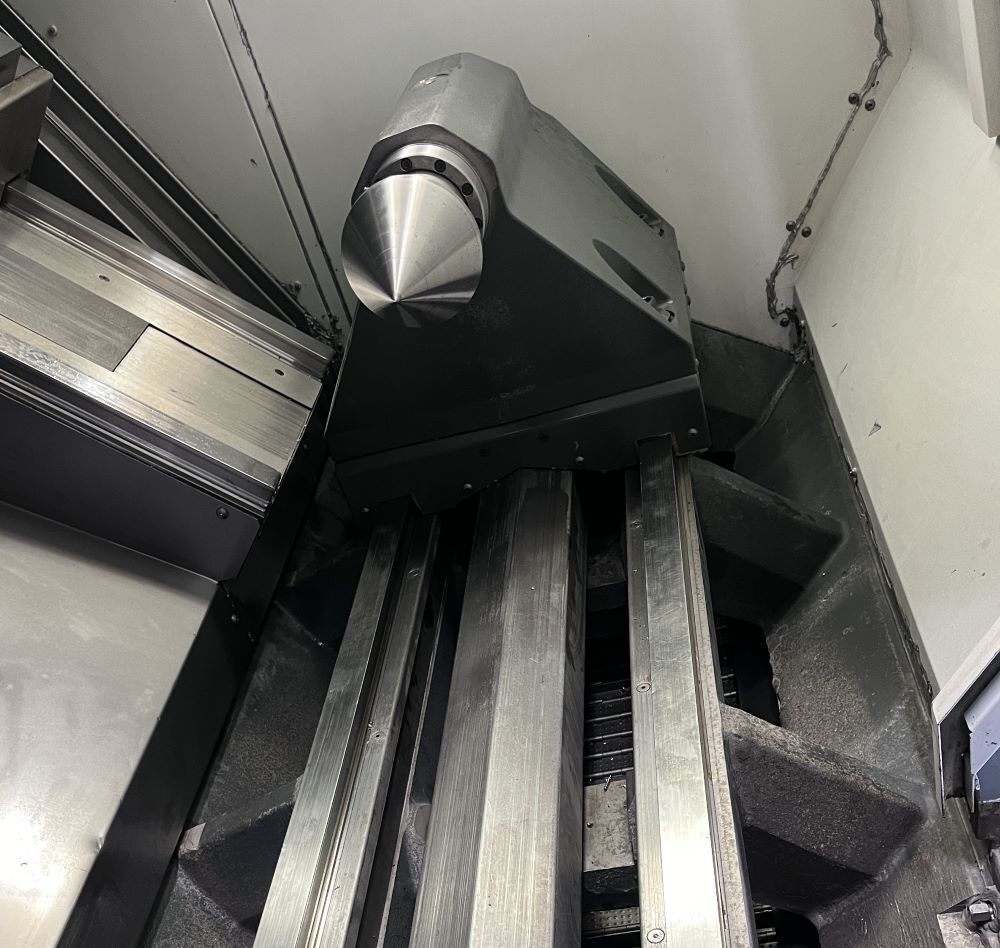

| Tailstock: |
|---|
| Tailstock Type: Programmable |
| Tailstock Taper: MT-5 |
| Tailstock Travel: 42″ |
| General: |
|---|

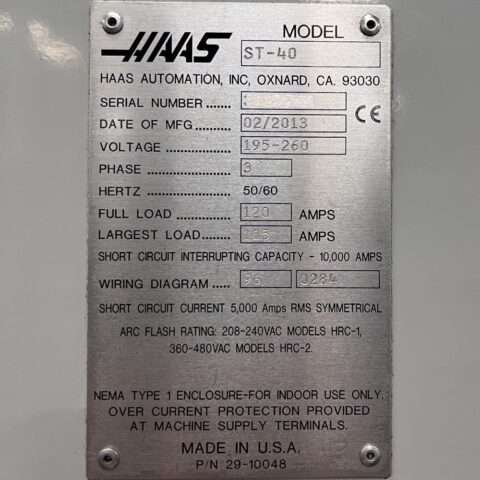

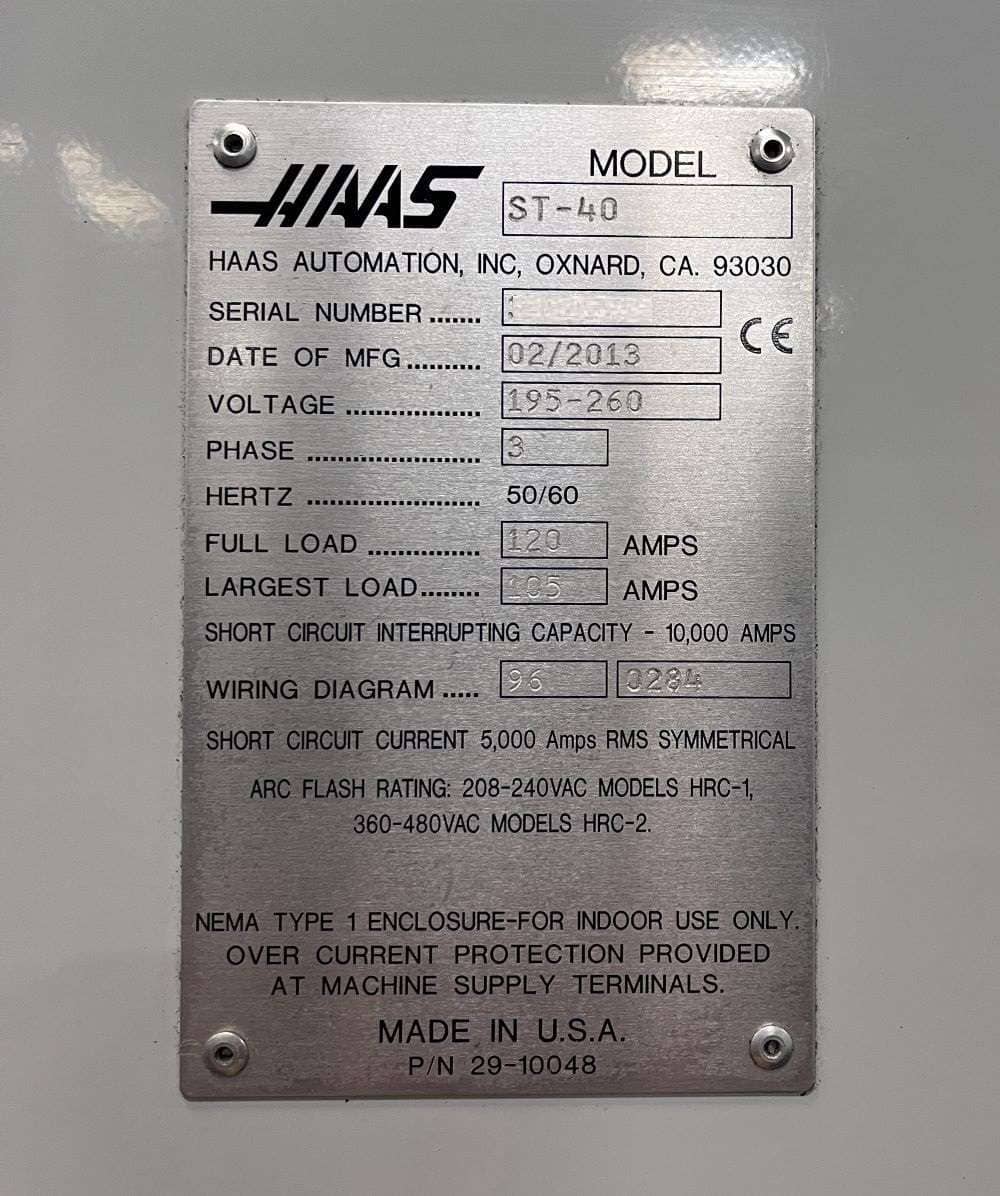

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 216″ x 95″ x 110″ High |
| Machine Weight: 21,740 lbs Approx. |
