*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

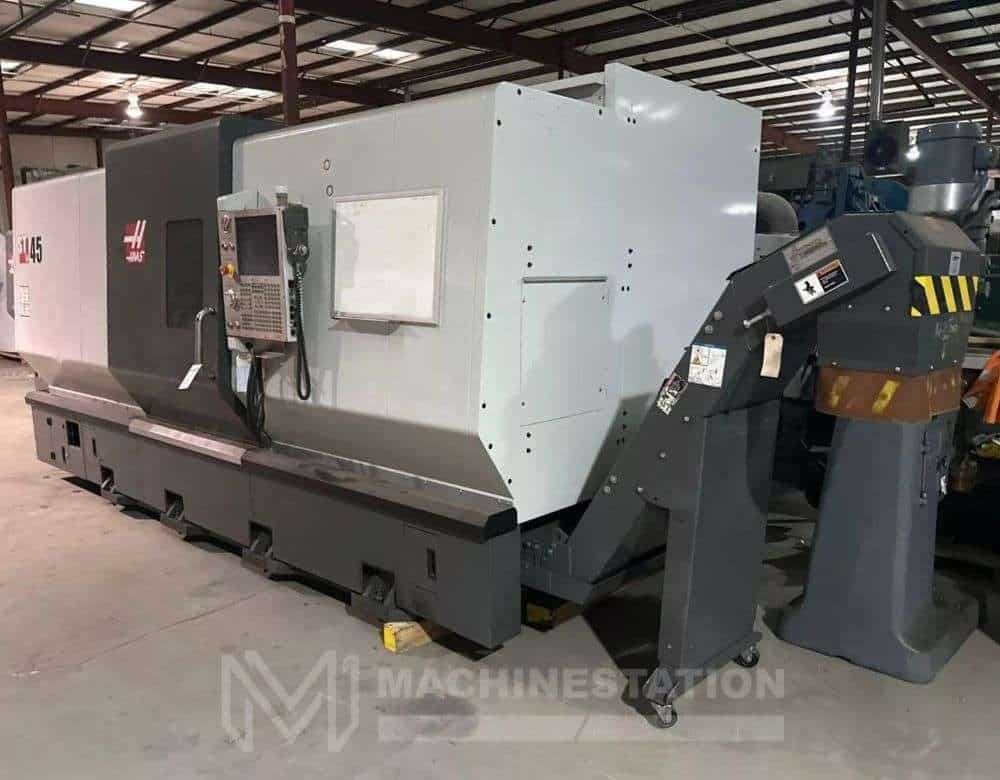

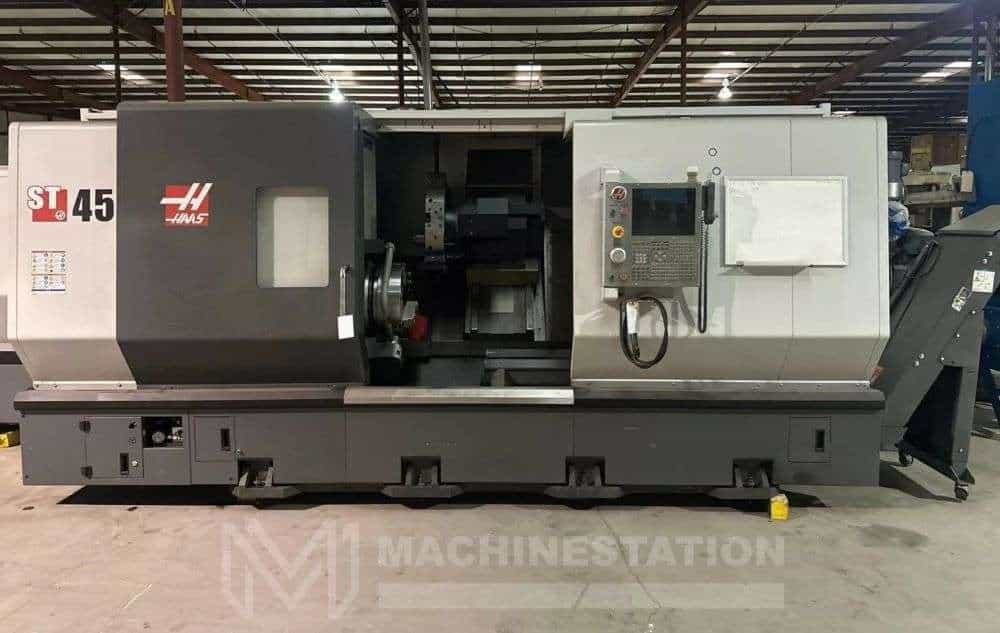

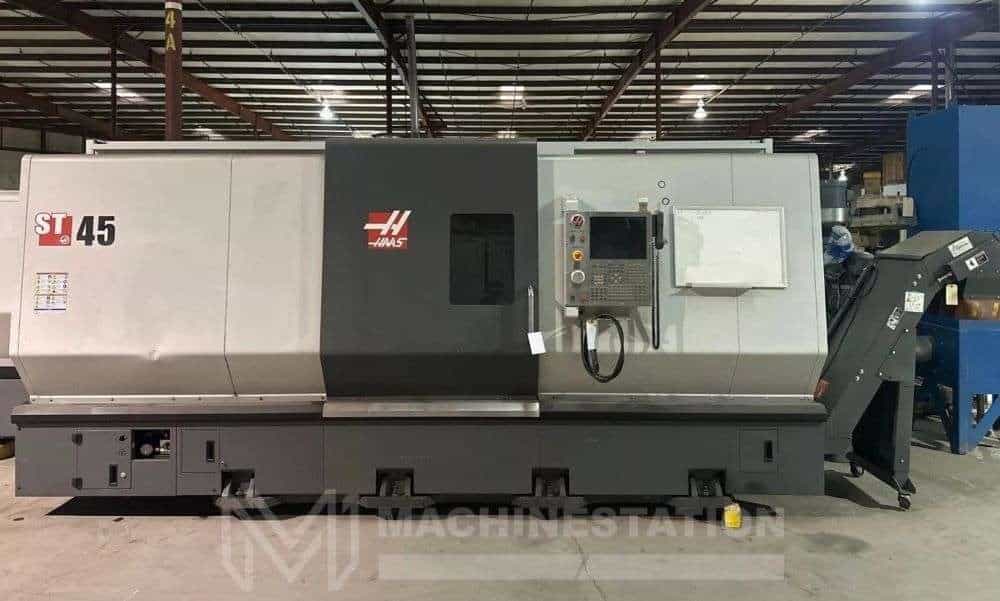

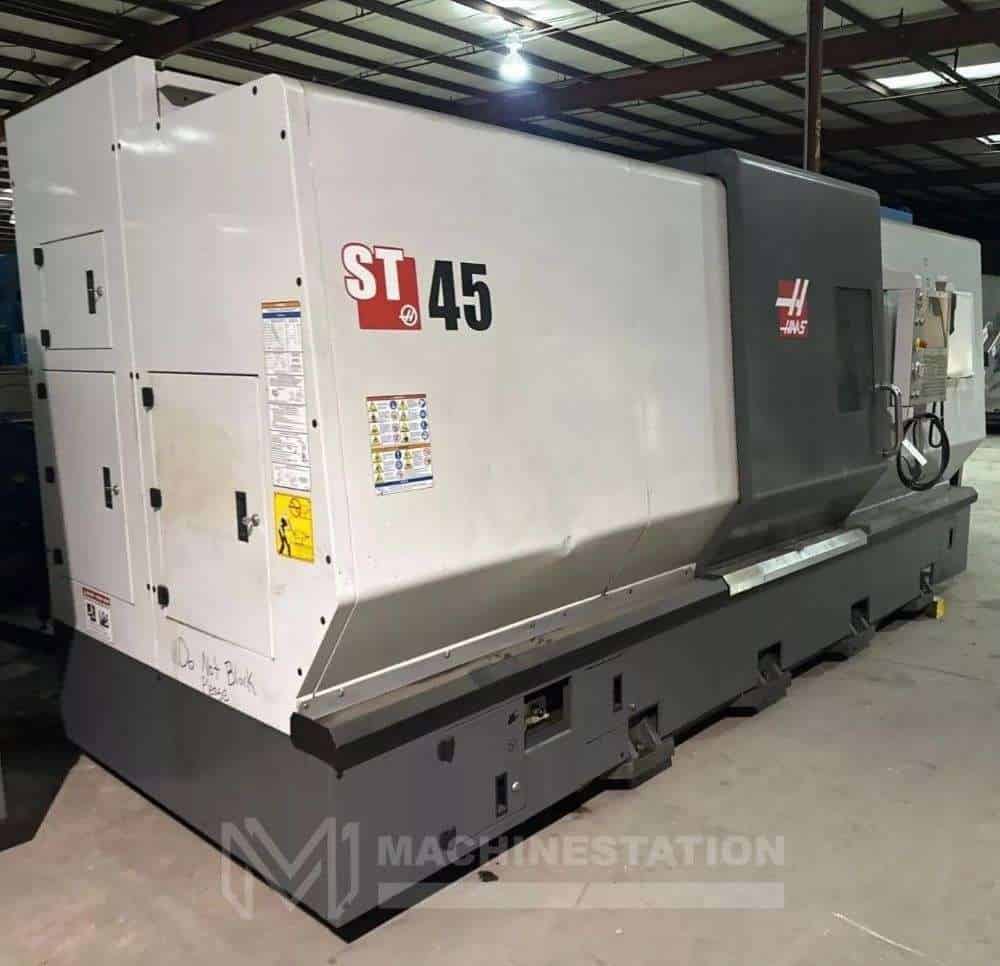

| Make: | Haas |
| Model: | ST-45 |
| Year: | 2015 |
| Condition: | Used – Excellent |
| Equipped With: |
|---|

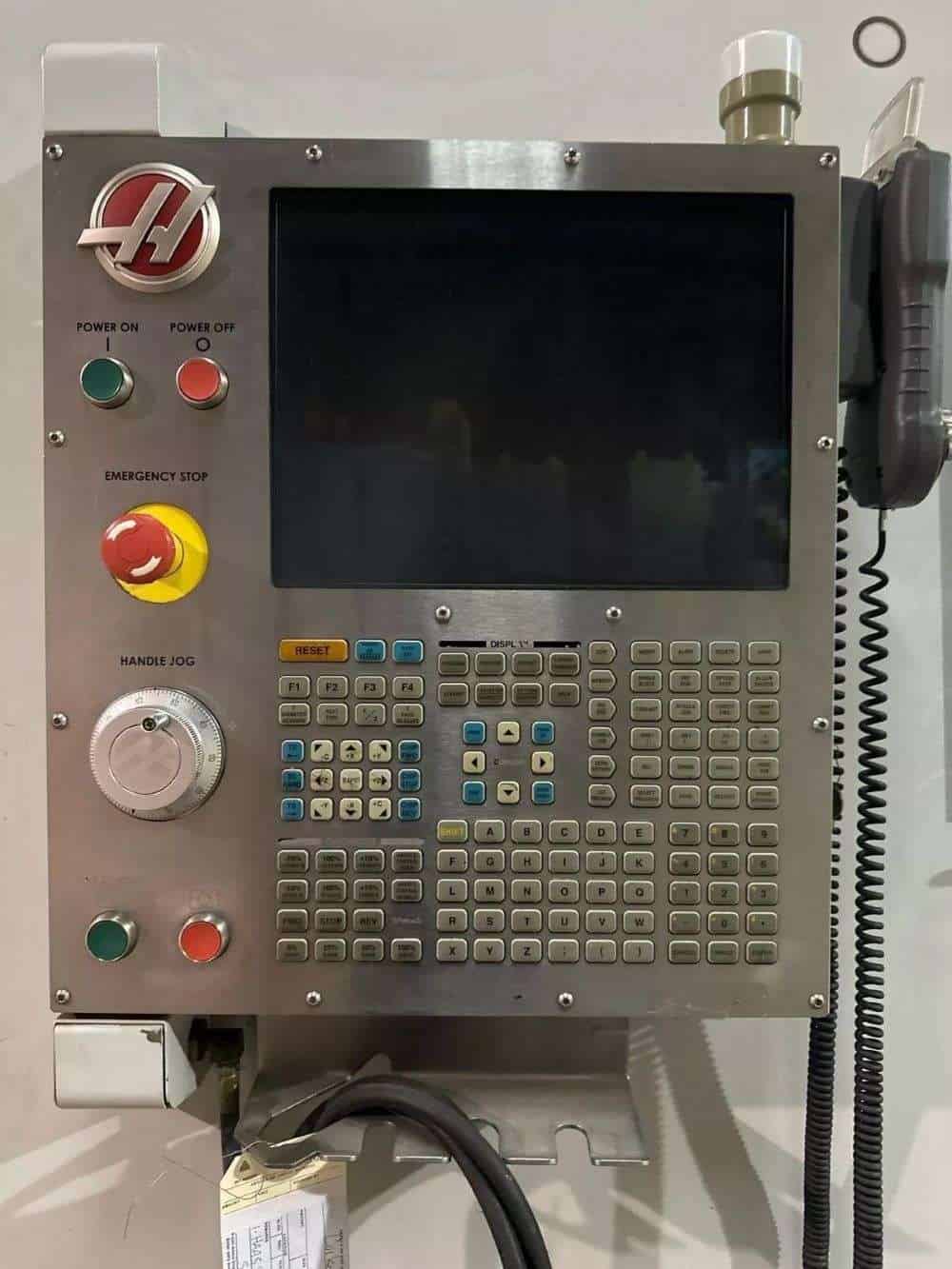

| Haas CNC Control |

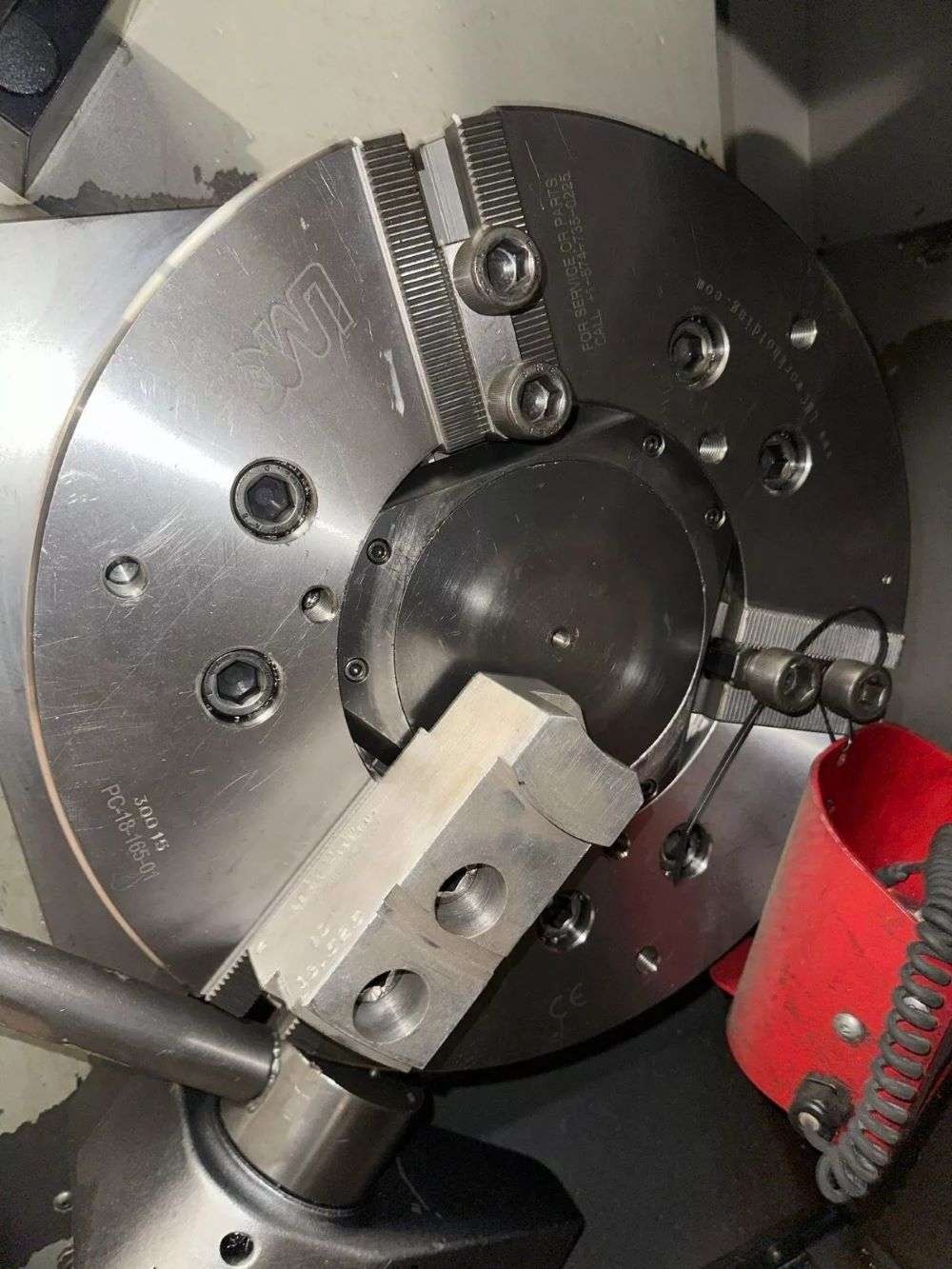

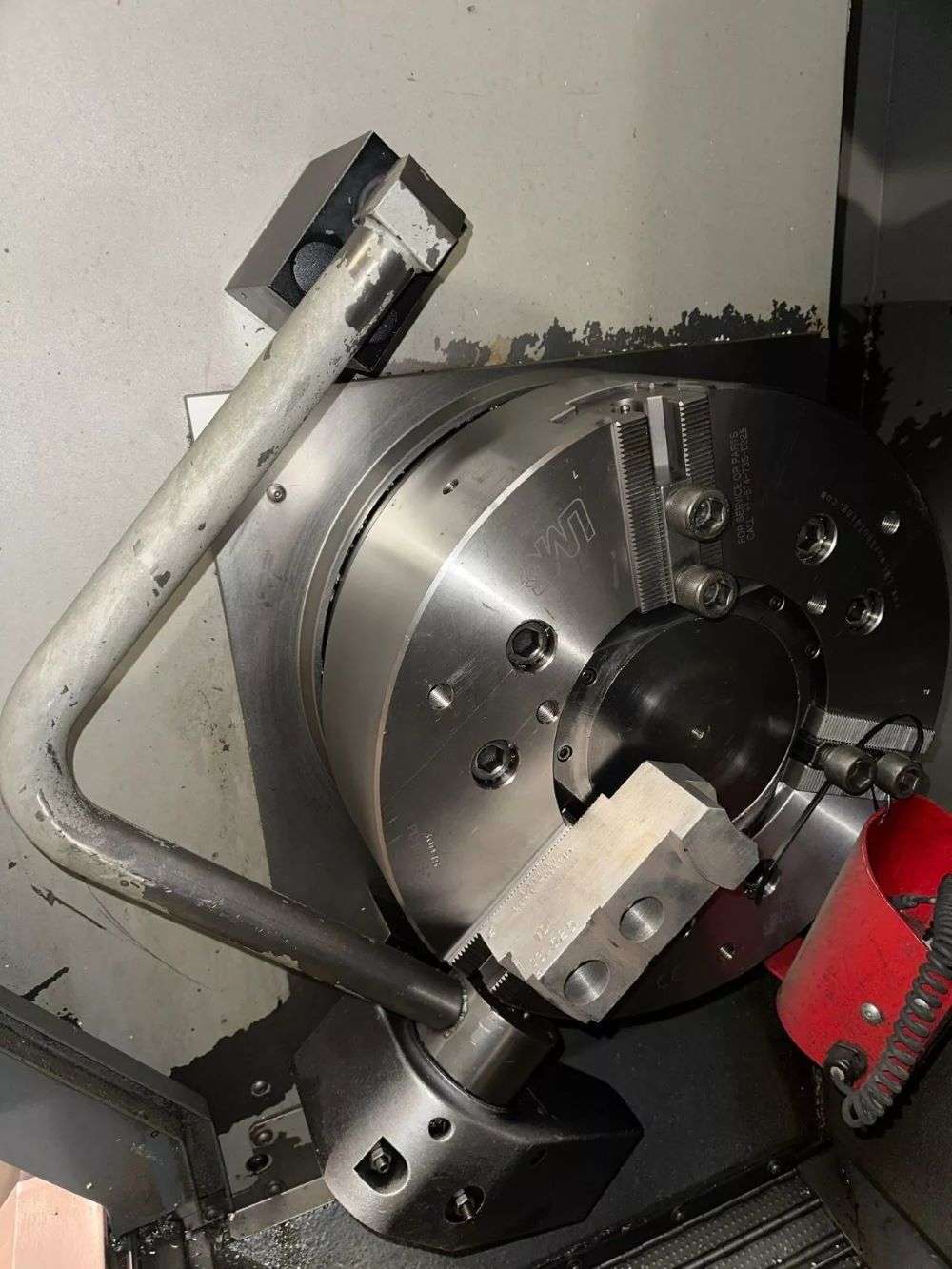

| 16″ 3-Jaw Hydraulic Chuck |
| 7.0″ Bore Spindle |
| A2-11 Spindle |

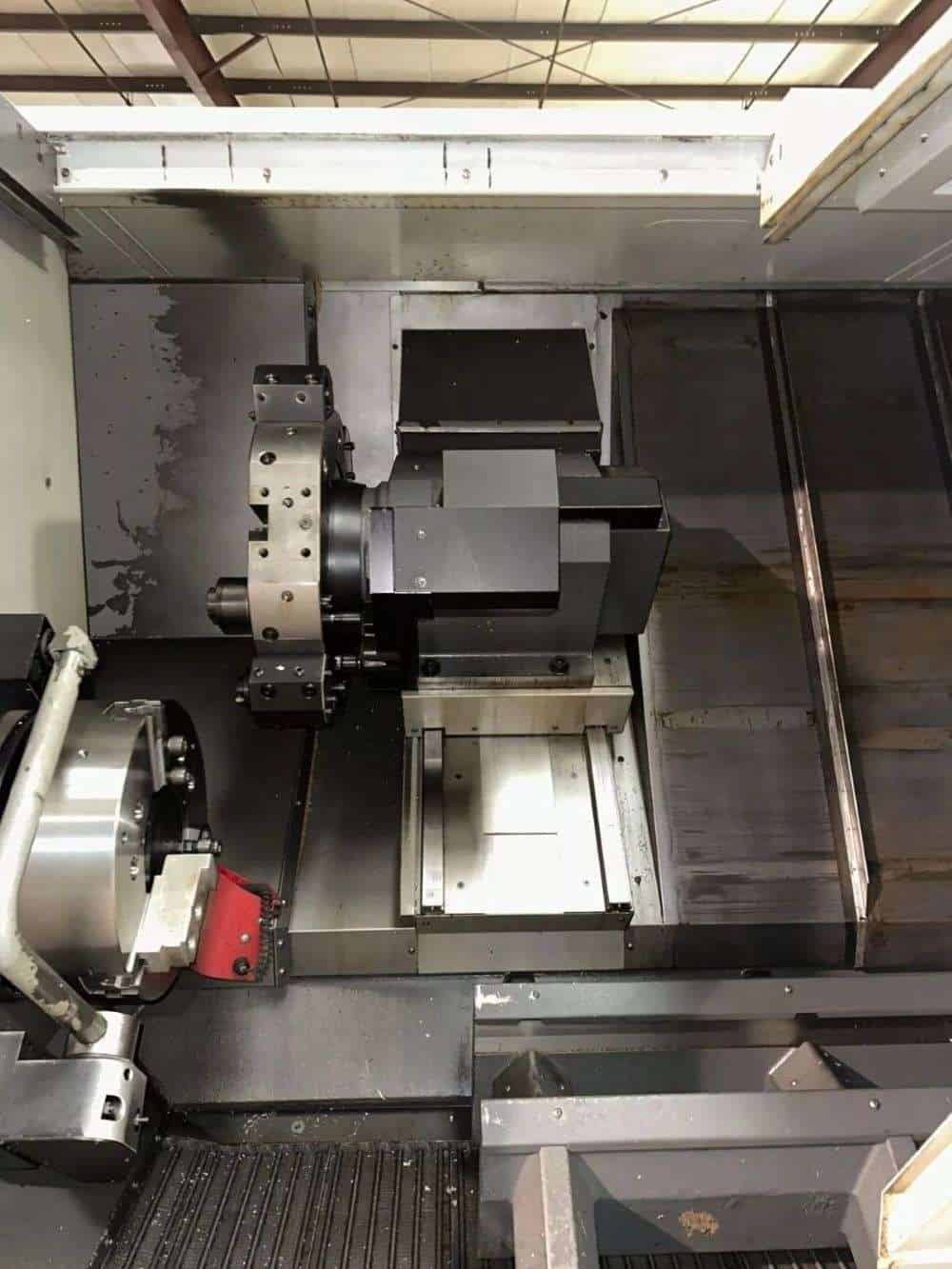

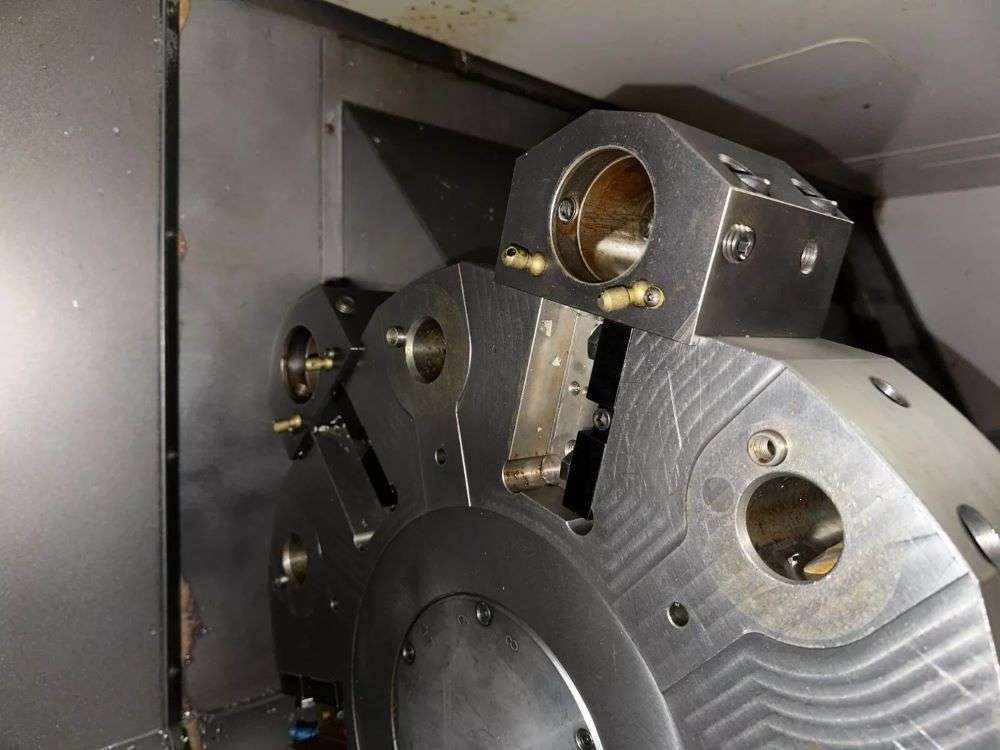

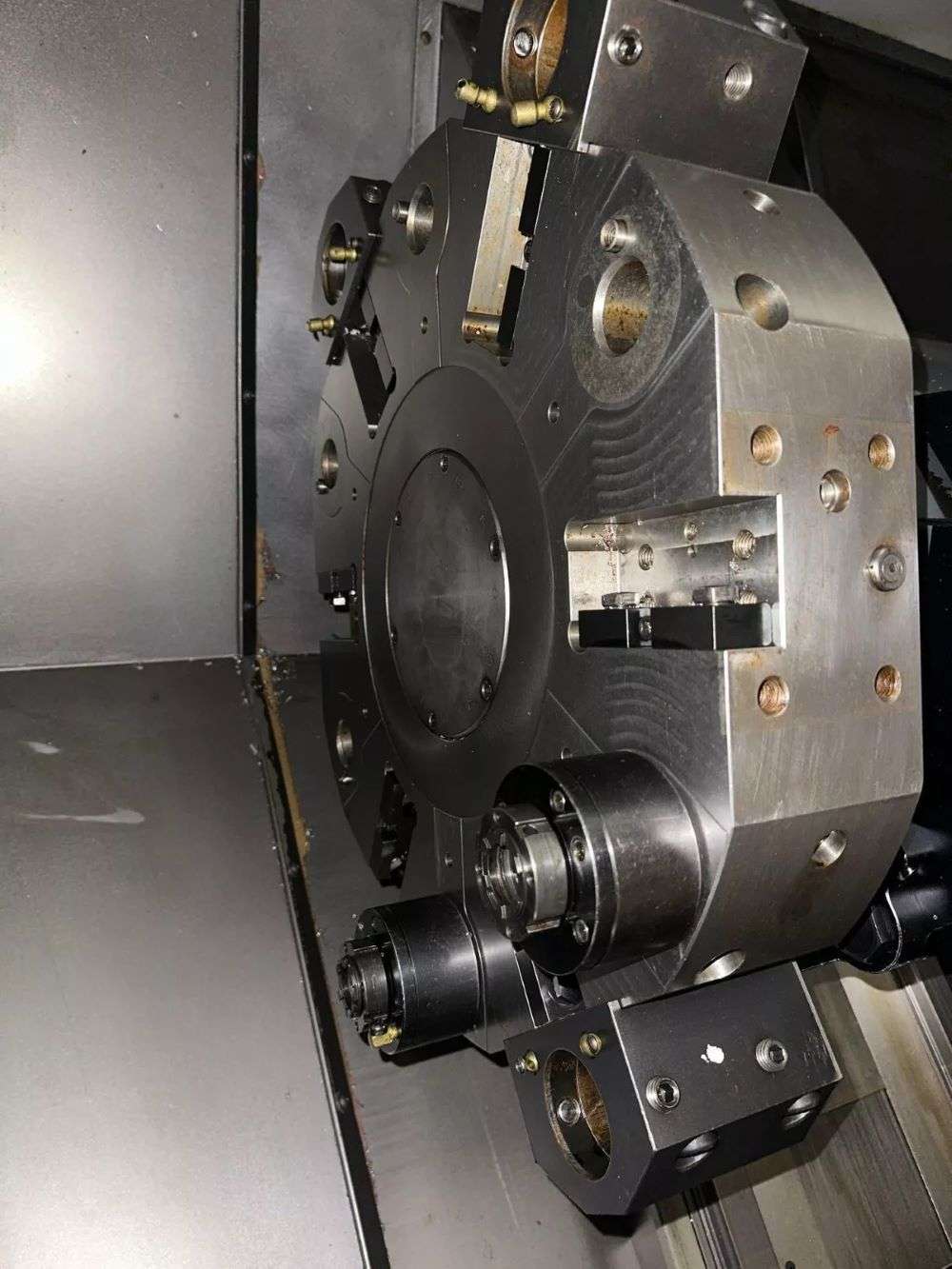

| 12 Station Automatic Tool Turret |
| C Axis Live Tool |
| High Pressure Coolant System – 300 psi |
| Automatic Tool Presetter |
| Remote Jog Handle |
| Rigid Tapping |
| Spindle Orientation |
| Coolant System |
| Chip Conveyor |
| Automatic Lubrication system |
| 750 MB Memory |
| Capacity: |
|---|
| Max Turning Diameter : 27.5″ |
| Max Swing Over Bed : 35.5″ |
| Max Turning Length: 44.0″ |
| Max Bar Capacity : 6.5″ |
| Travels: |
|---|
| X Axis Travel : 20″ |
| Z1 Axis Travel : 44.0″ |
| Feedrate: |
|---|
| Rapid Traverse X Axis: 710 IPM |
| Rapid Traverse Z Axis: 710 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 7.0″ |
| Spindle Speed: 1400 RPM |
| Spindle Motor: 40 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 1 Second |
| Live Tool Speed: 4000 RPM |
| General: |
|---|
| Air Required: 4 scfm @ 100 psi |

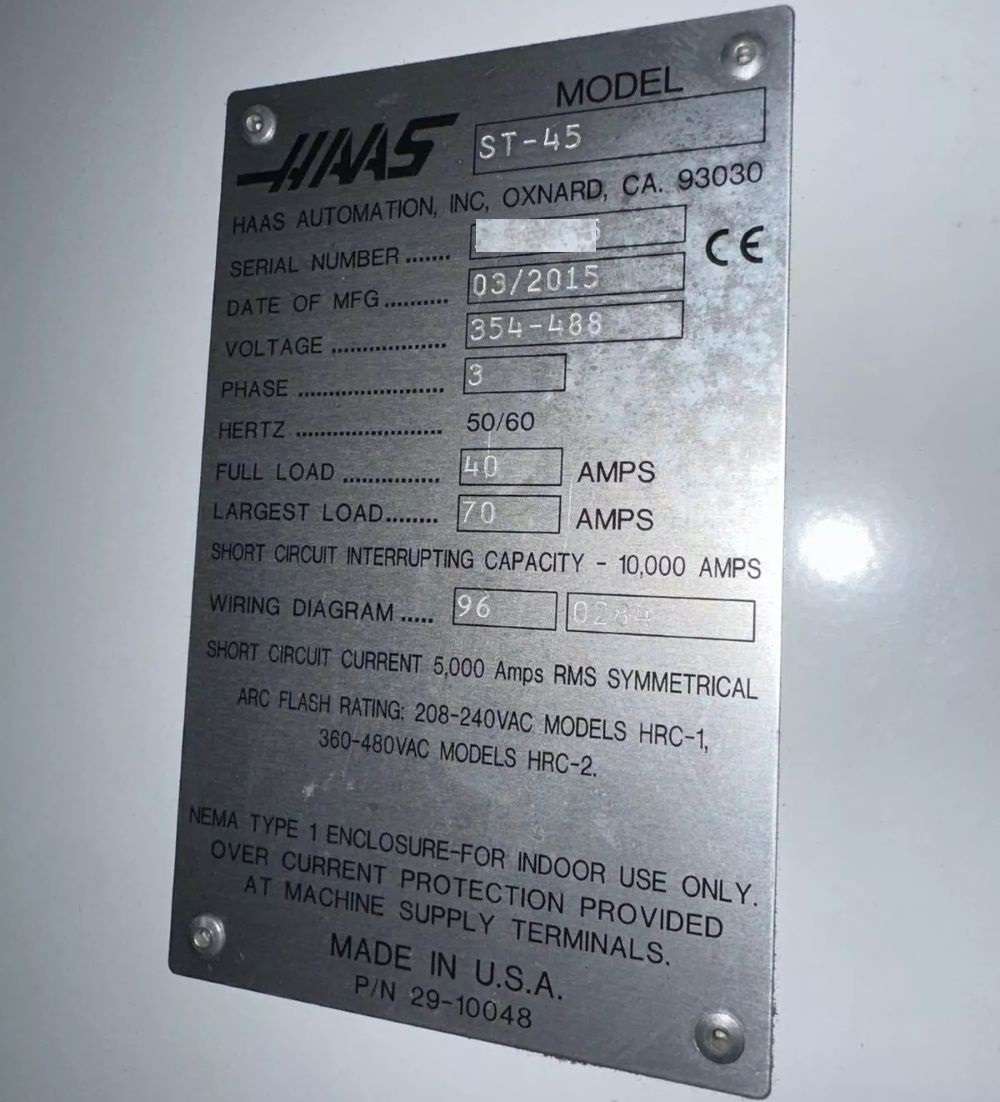

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Machine Dimensions: 217″ x 96″ x 116″ High |
| Machine Weight: 20,800 lbs Approx. |
