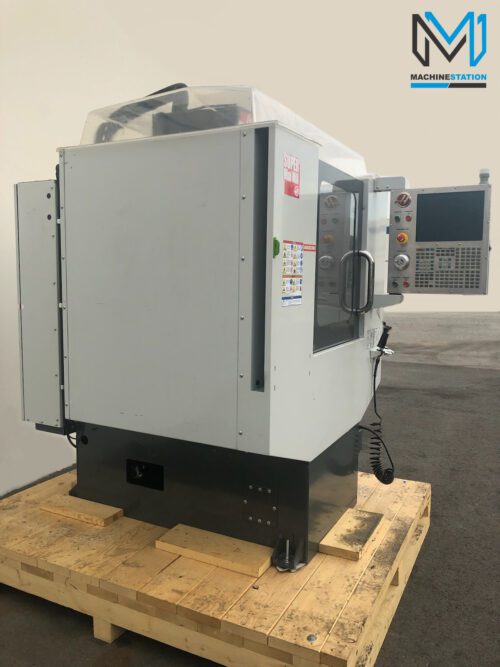

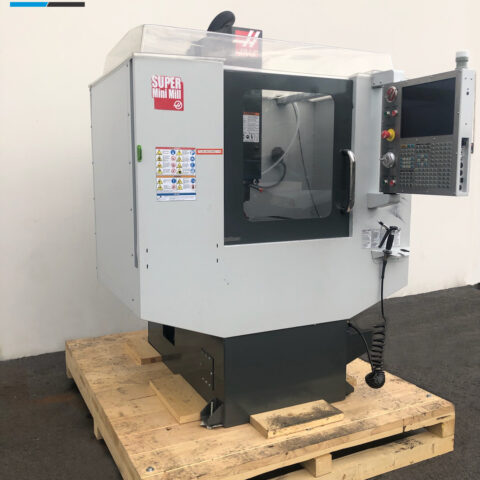

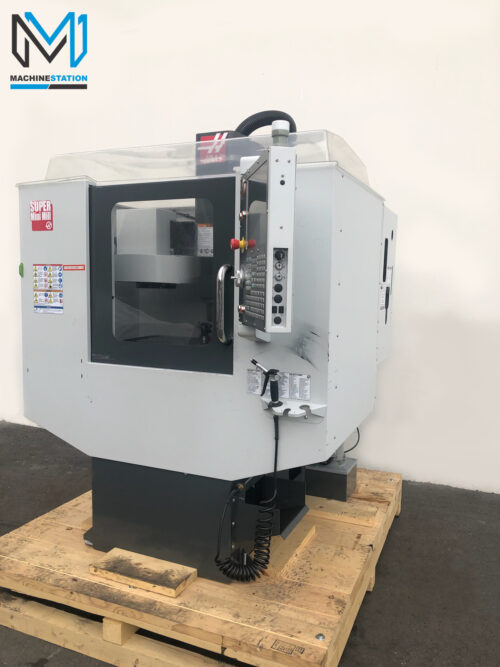

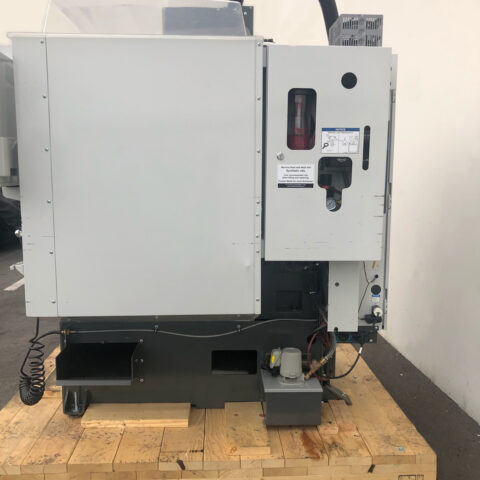

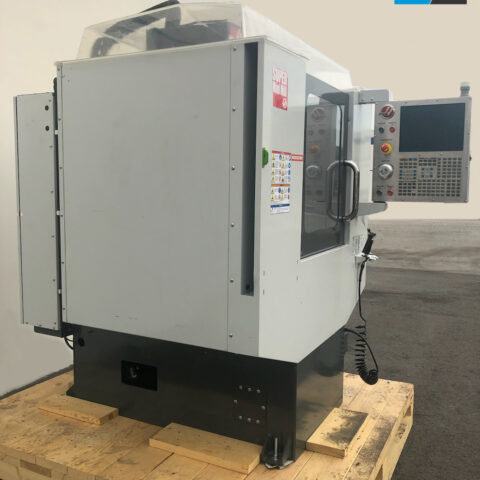

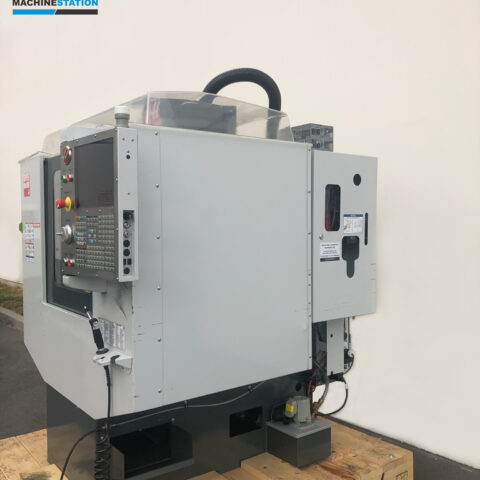

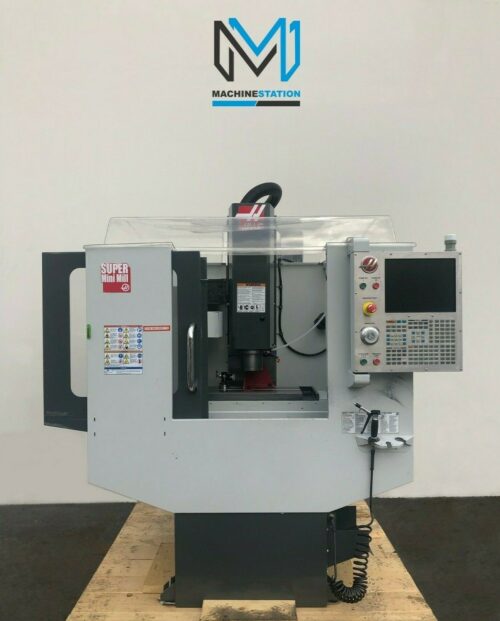

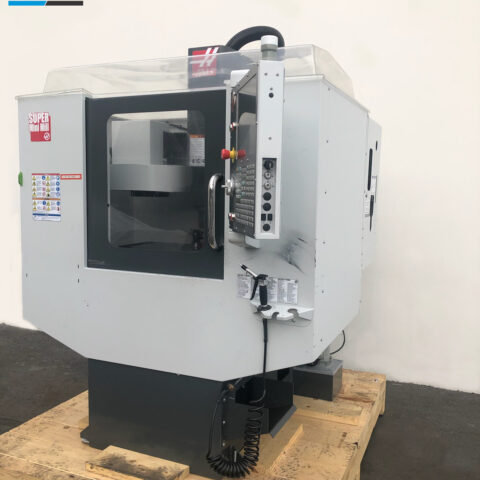

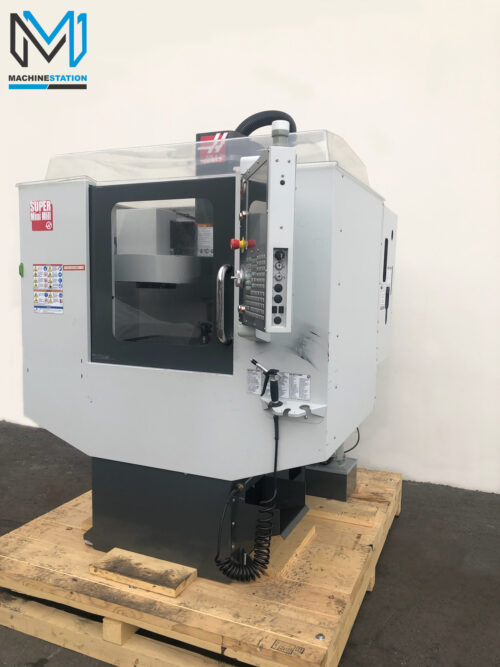

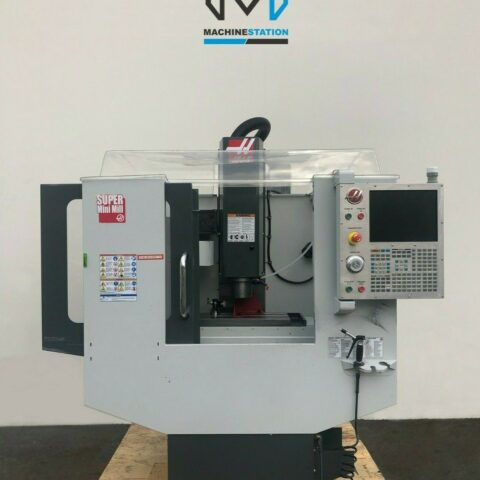

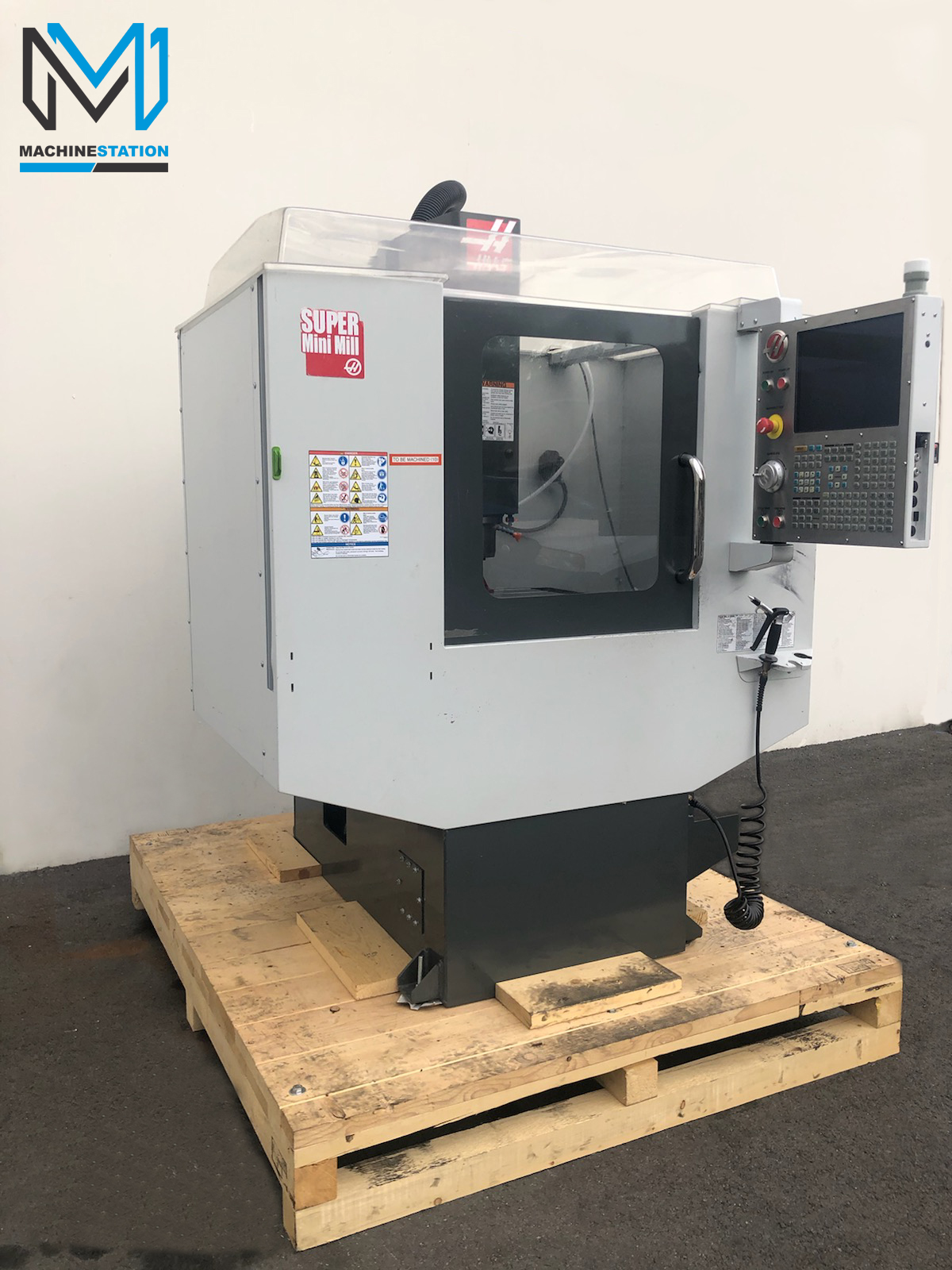

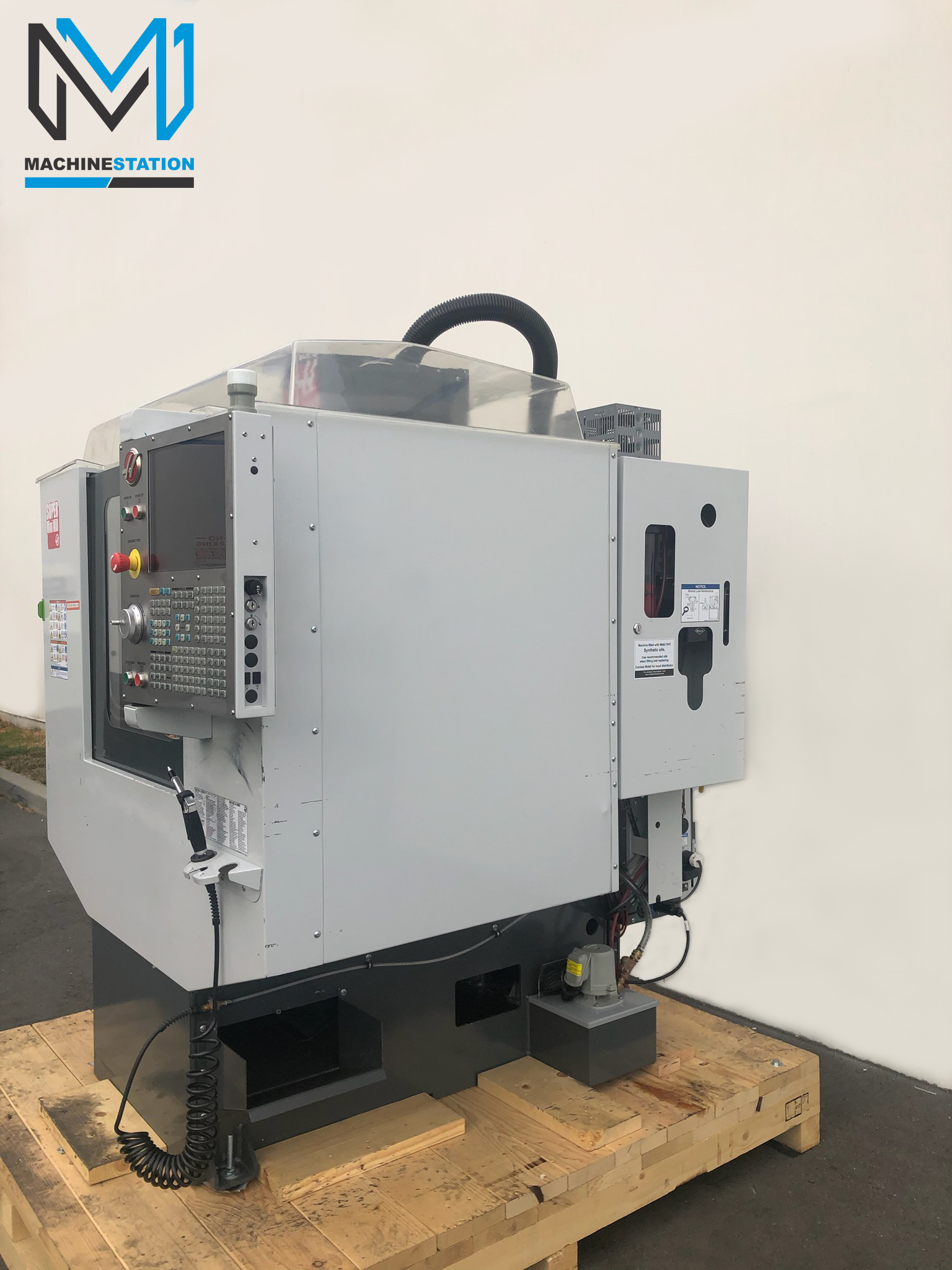

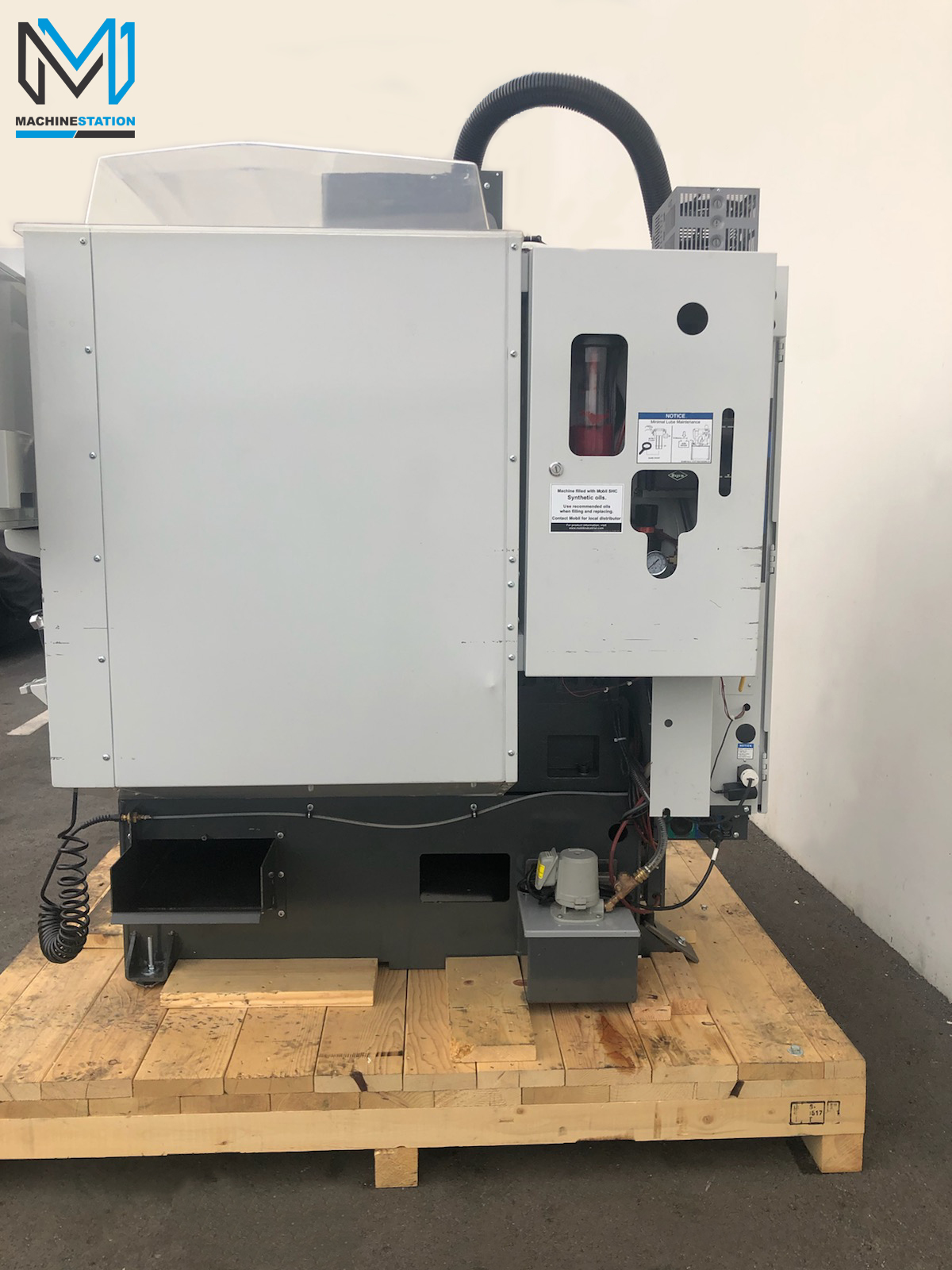

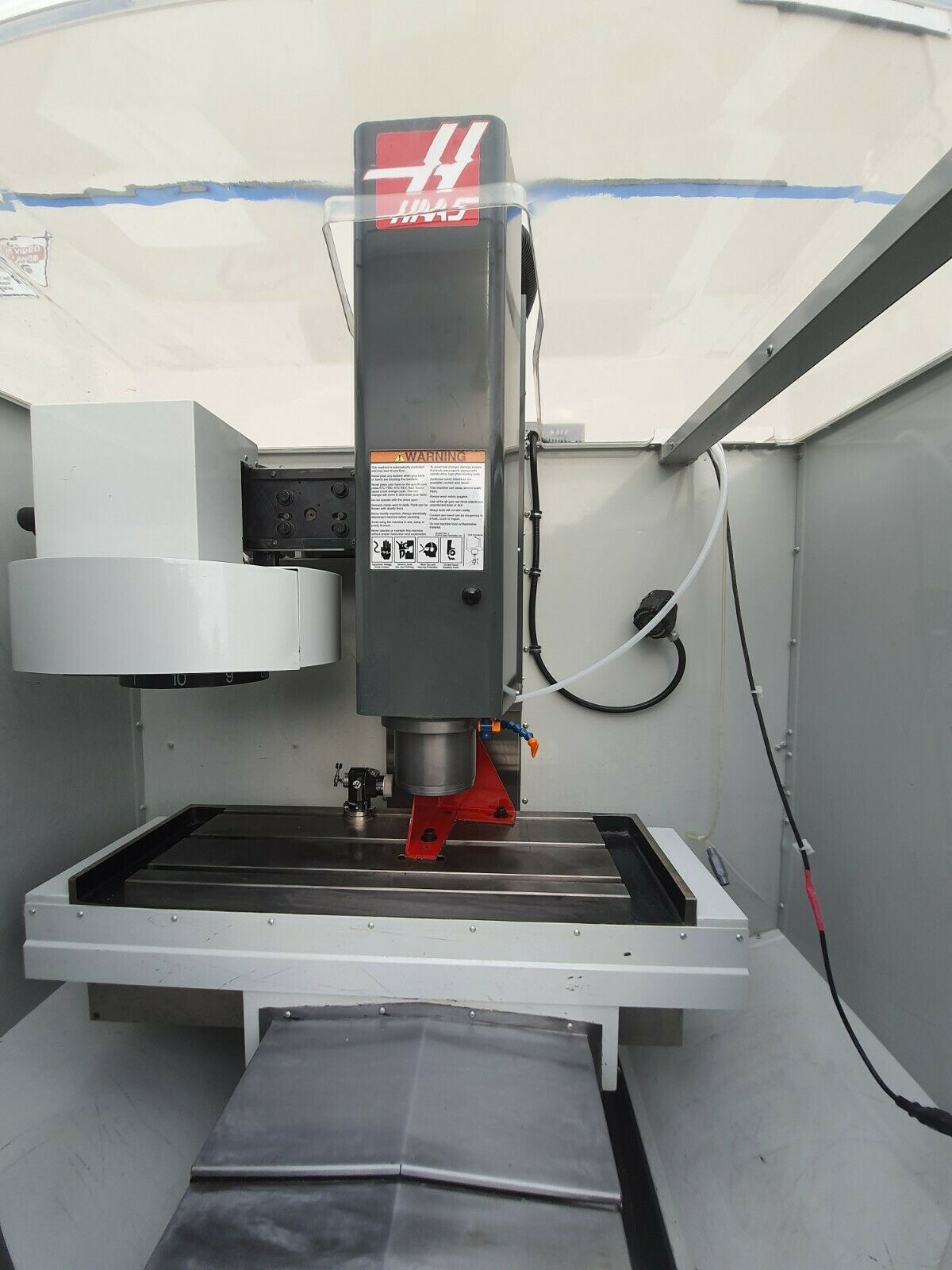

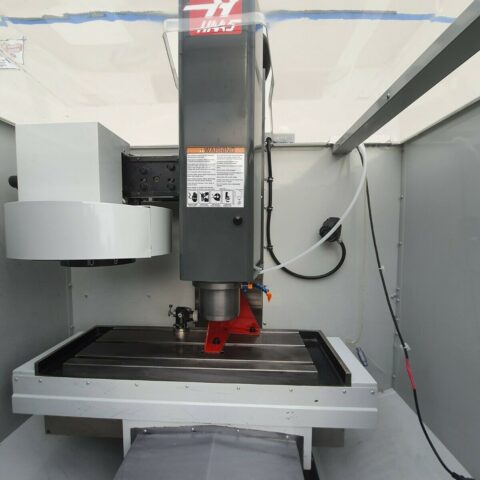

Haas Super Mini Mill CNC Vertical Machining Center
Out of stock
SKU: |
1997 |
Make/Model: |
Haas/SUPER MINI MILL |
Video: |
[fusion_button link=”https://www.youtube.com/watch?v=jM2kEeGSTX0″ title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button] |
HAAS SUPER MINI MILL CNC VERTICAL MACHINING CENTER 40 TAPER 10000 RPM- VF 2014 |
Make |
Haas |
Model No. |
SUPER MINI MILL |
Year |
2014 |
Serial # |
1110499 |
Condition |
Very Good |
- HAAS SUPER MINI MILL Features:

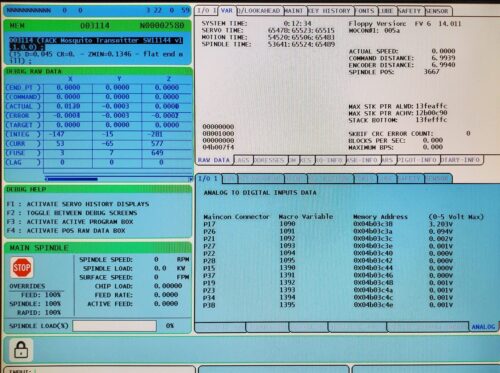

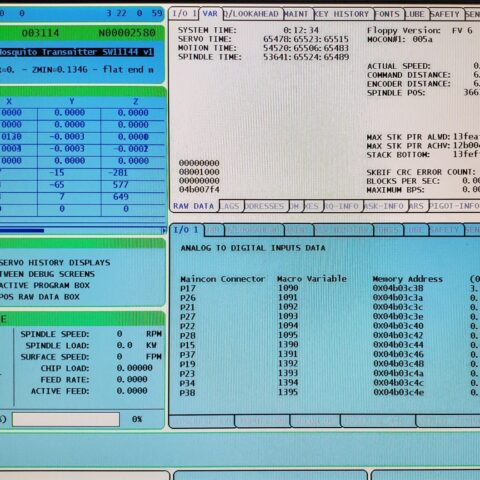

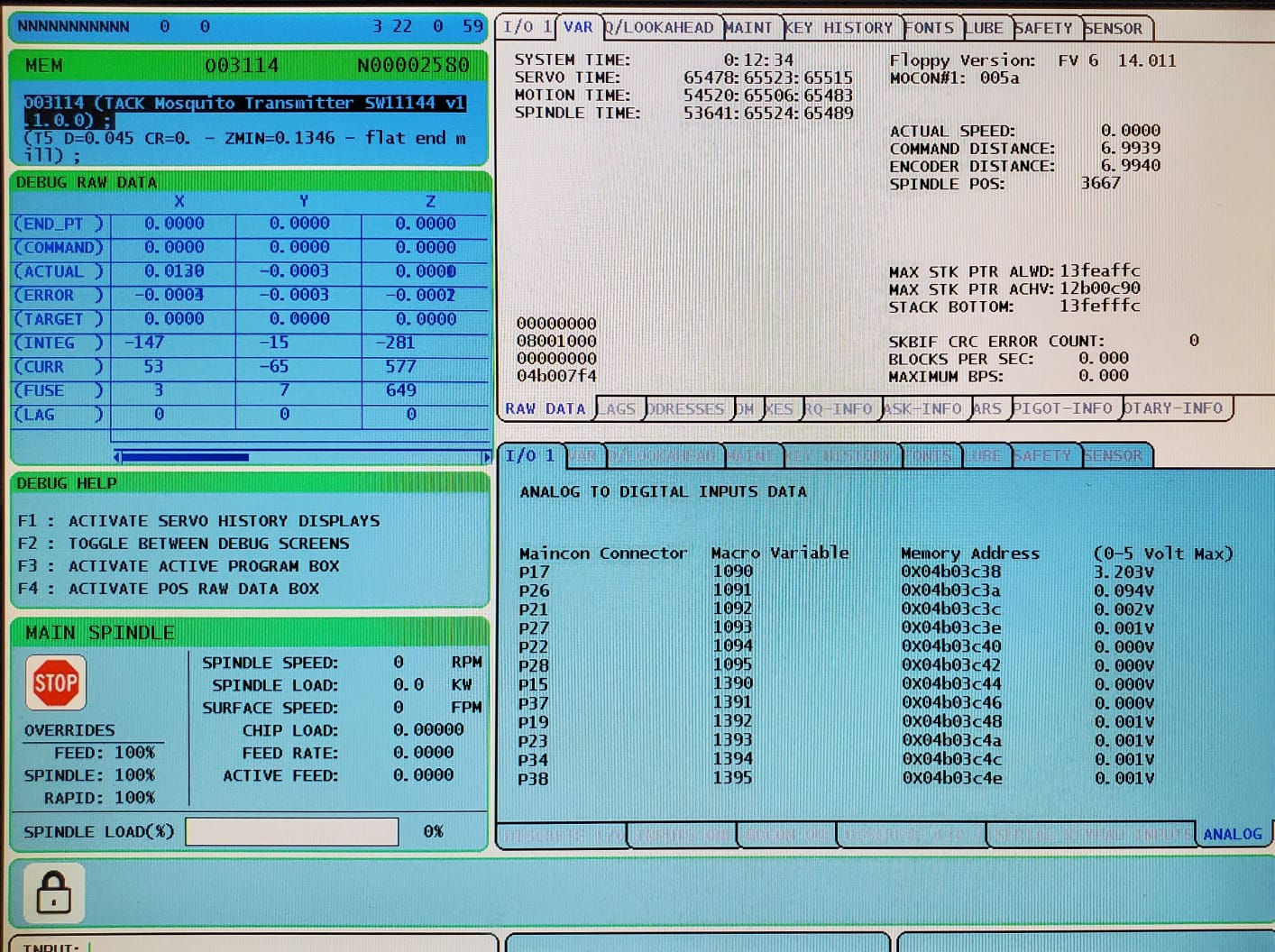

- Haas CNC Control with 15″ Color LCD
- 10000 RPM Spindle
- 10 + 1 Automatic tool changer
- Wireless Probing system Ready
- USB Drive
- Expanded Memory
- Rigid Tapping
- Advanced Tool Management
- Power Failure Detection Module
- Spindle Orientation
- Programmable coolant
- Telescopic way covers
- Top Glass Cover
- Specifications:
- Travels:
- X-Axis: 16″
- Y-Axis: 12″
- Z-Axis: 10″
- Rapid Traverse Rates: 1200 Inch Per Minute
- Cutting Feed Rates: 833 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 14″
- Table:
- Length: 36″
- Width: 12″
- Max Weight on Table: 500 lbs
- T-Slots: 3 X 0.6″
- Spindle:
- Taper Size: 40
- Speed Range: 10,000 RPM
- Spindle Power: 15 HP
- Automatic Tool Changer:
- Capacity: 10 Side Mount
- Max Tool Weight: 12 lbs
- Max Tool Dia: 3.5″
- Max Tool Length: 13″
- Tool Changing Time: 2.8 Seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 80″ x 63″ x 100″ High
- Weight: 4000 lbs
