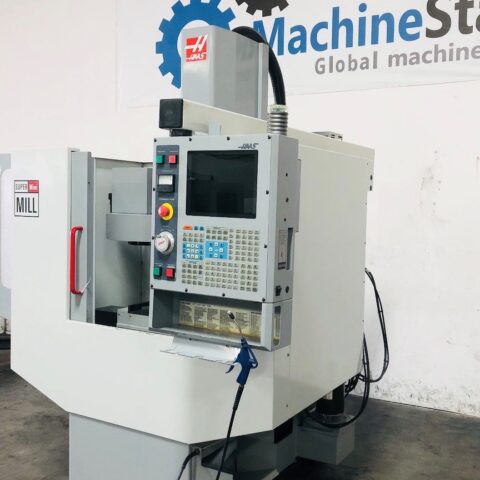

| HAAS SUPER MINI MILL VERTICAL MACHINING CENTER | |
|---|---|
| Make | Haas |
| Model No. | Super Mini Mill |
| Year of Manufacture: | 12/2002 |

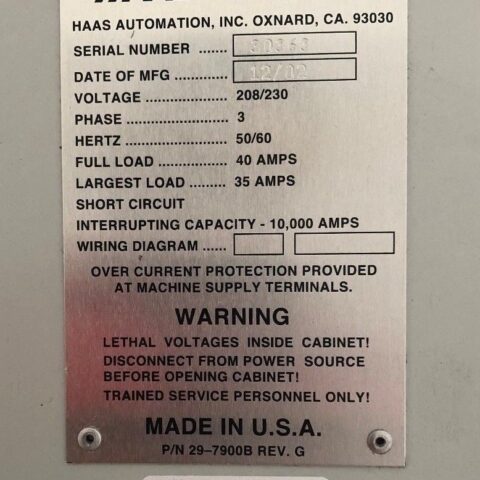

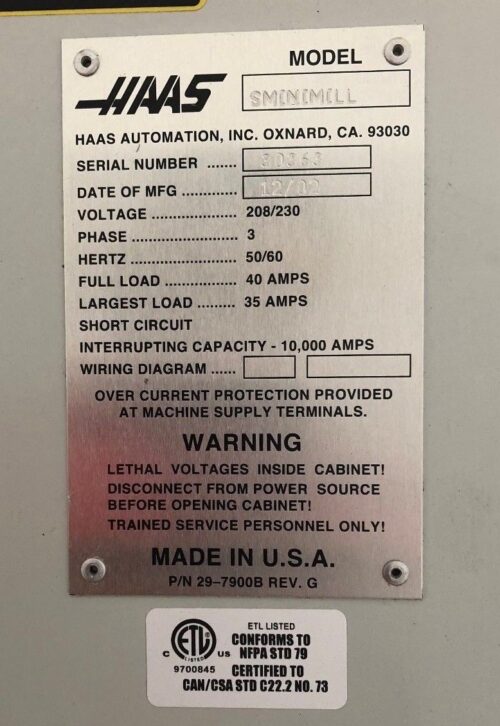

| Serial # | 30363 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
“This One Owner Machine was cutting Aluminium mostly. Original Paint Machine Equipped with 10,000rpm, 10 tool changer, USB, 4th Axis ready and many more features. On our Floor now, fully powered / tested & is in Great working condition.”
- HAAS Super Mini Mill Equipped With:
- 10,000 RPM Spindle
- Rigid Tapping
- USB Drive
- Expanded Memory
- Advanced Tool Management
- Power Failure Detection Module
- 10 Station automatic tool changer
- Programmable coolant
- Telescopic way covers
- Clear Top Cover
- Coolant system
- HAAS Super Mini Mill Specifications:
- Travels:
- X-Axis: 16″
- Y-Axis: 12″
- Z-Axis: 10″
- Rapid Traverse Rates: 1200 Inch Per Minute
- Cutting Feed Rates: 720 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 14″
- Table:
- Length: 36″
- Width: 12″
- Number of Std T-Slots: 3
- T-Slot Width: 5/8″
- Max Weight on Table: 500 lbs
- Spindle:
- Taper Size: CAT 40
- Speed Range: 0 – 10,000 RPM
- Spindle Power: 15 HP Vector Dual Drive
- Automatic Tool Changer:
- Capacity: 10
- Max Tool Weight: 12 lbs
- Max Tool Dia: 3.5″
- Tool Changing Time: 3.6 Seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 84″ x 74″ x 100″ High
- Weight: 3400 lbs

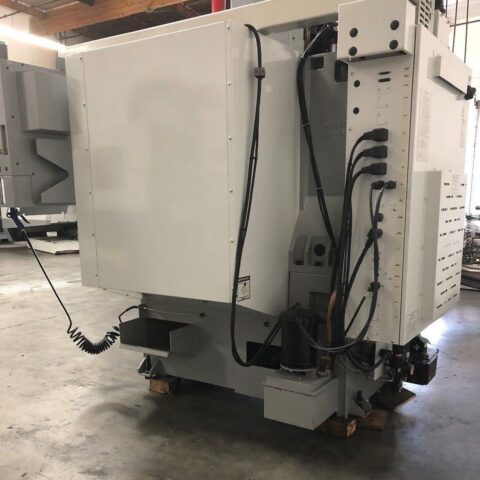

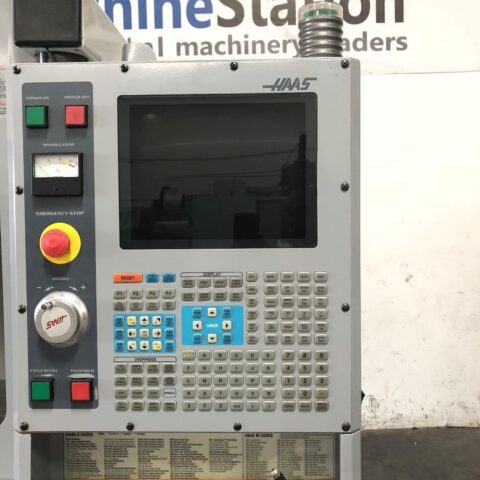

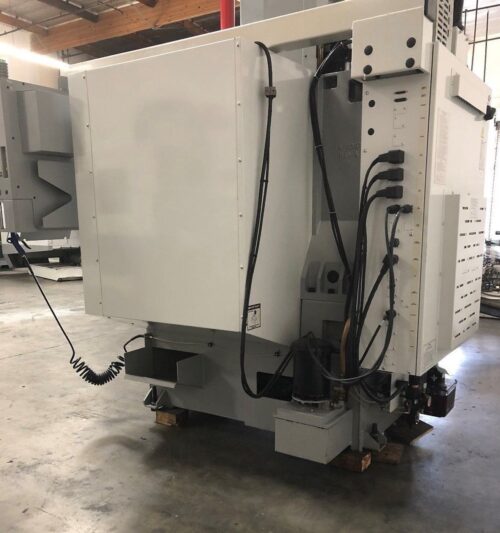

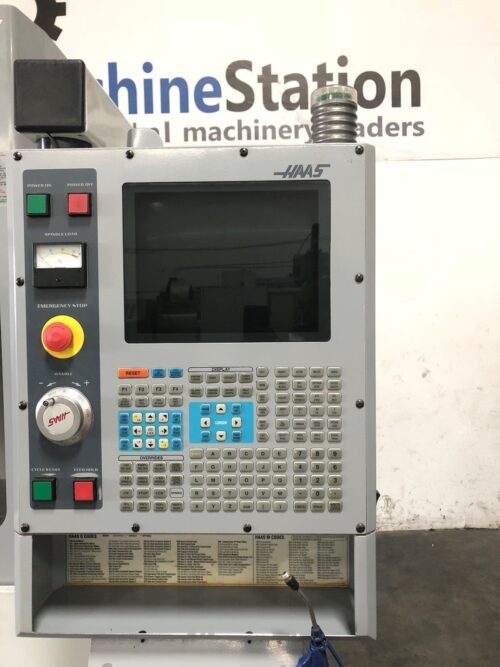

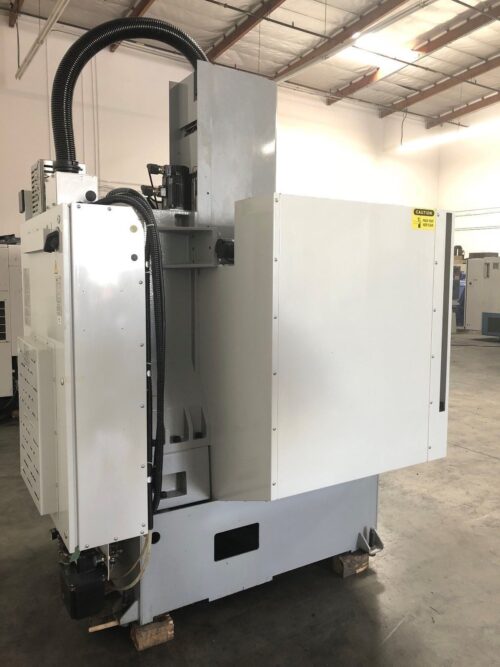

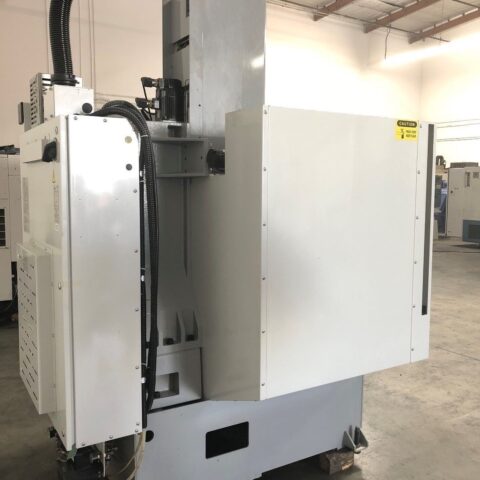

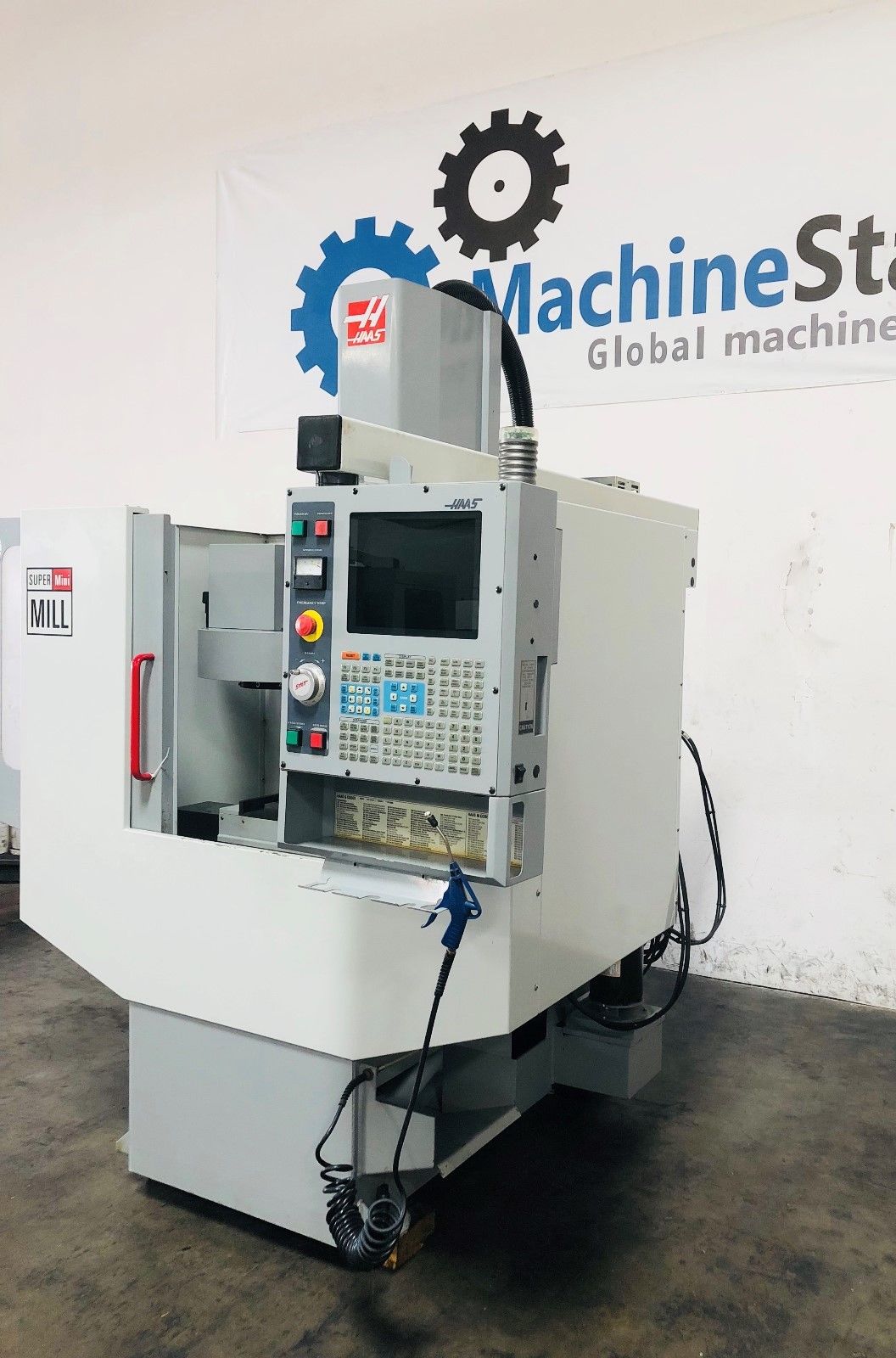

HAAS Super Mini Mill Comes as shown in pictures..
