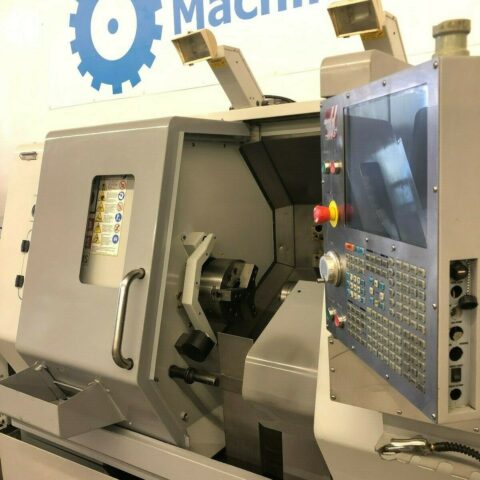

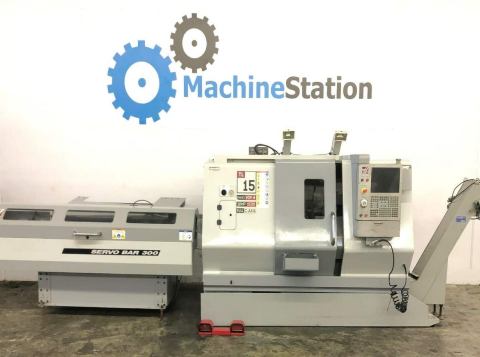

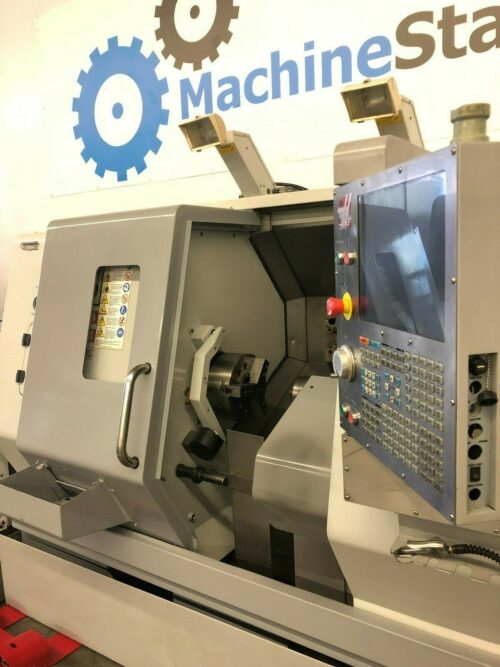

Haas TL-15 CNC SUB Spindle Live Tool Turning Center

Out of stock

“One Owner Machine, Fully powered / tested & in Good working condition. Equipped with Chucks, Full C Axis, Milling, Sub Spindle. Comes with Bar Feeder, chip conveyor, manuals.”

SKU:	1750
Make/Model:	HAAS TL-15
Video:	[fusion_button link=”https://www.youtube.com/watch?v=RxqAcN3uFBs” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1750

Description

HAAS TL-15 CNC SUB SPINDLE LIVE TOOL TURNING CENTER LATHE
Make	HAAS
Model No.	TL-15
Year	03/2008

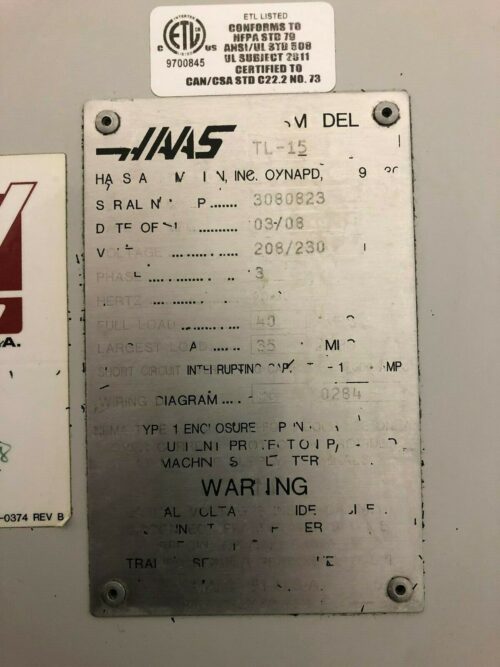

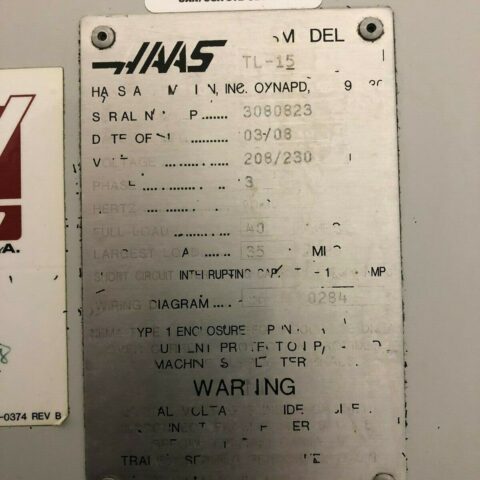

Serial #	3080823
Condition	Very Good
Comes with Bar Feeder, 8″ Chuck, Sub Spindle & Chip Conveyor.

All specifications are approximations and are subject to verification.

Haas TL-15 Equipped With:

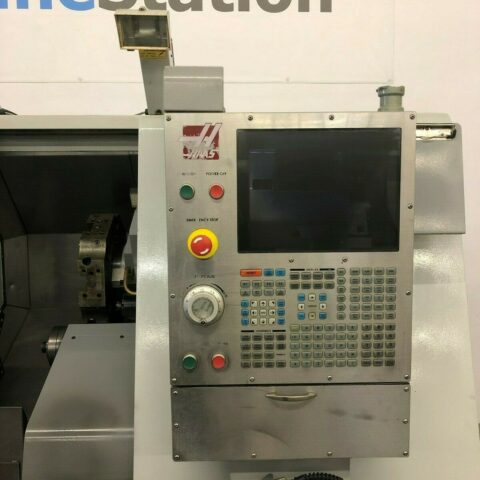

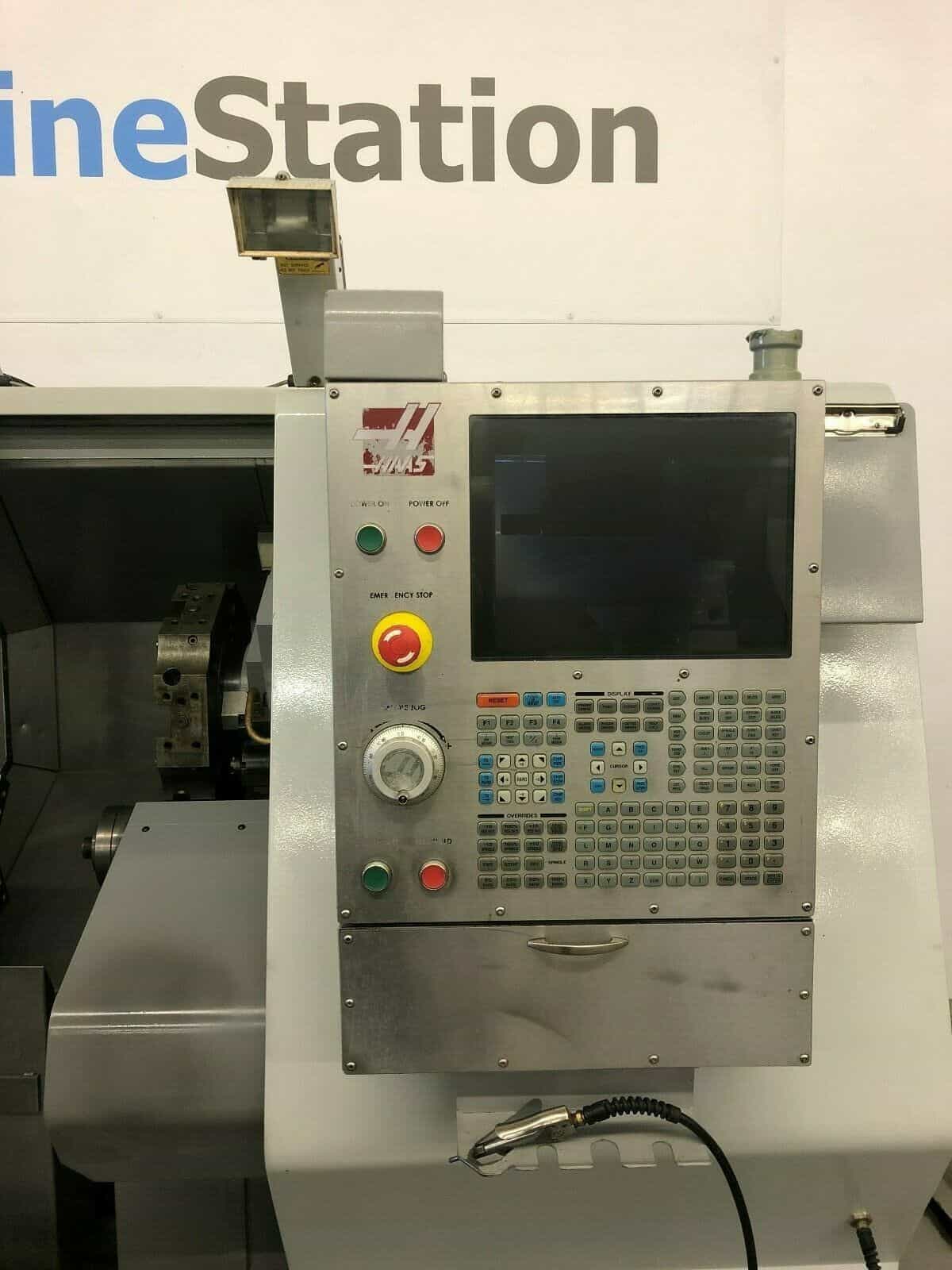

Haas 32-Bit CNC Control

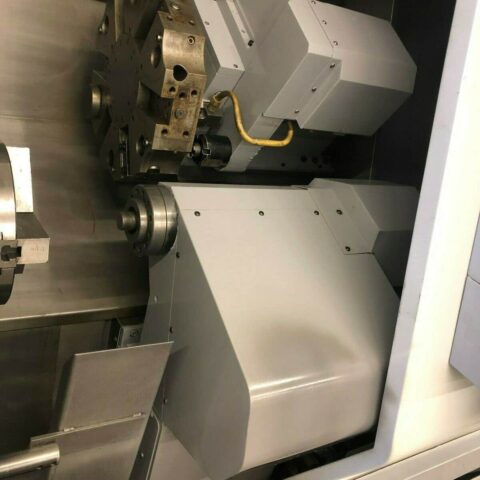

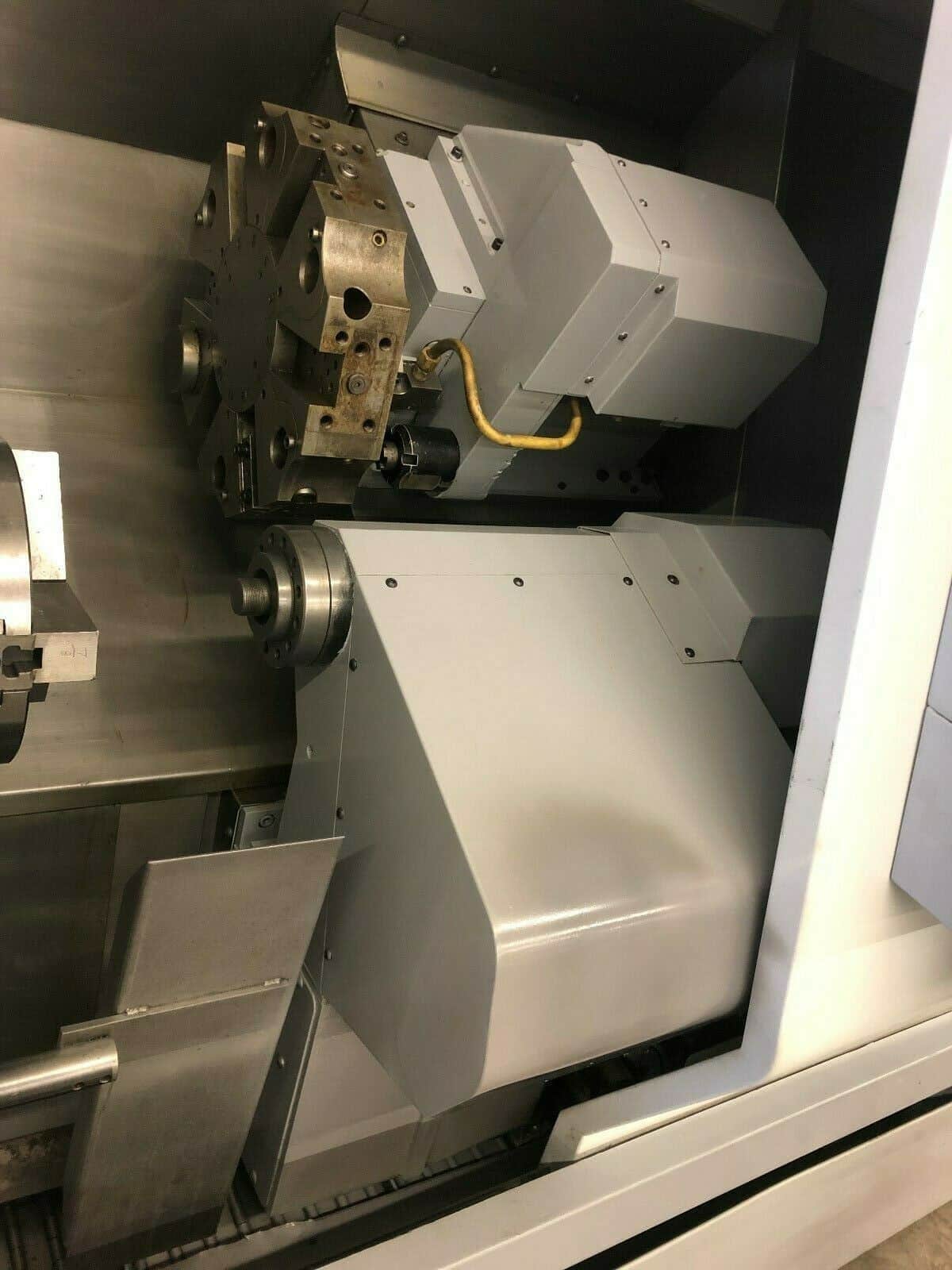

12-Station Turret – Live / Rotary Tools
Full C-Axis on Both Spindles
Tool Presetter
Parts Catcher
USB Drive
3 Jaw Chuck on Main Spindle
Collet Nose on Sub Spindle
Rigid Tapping on Both Spindles
Foot Operated Control for Chuck
Work Lights
Coolant Tank & Pump

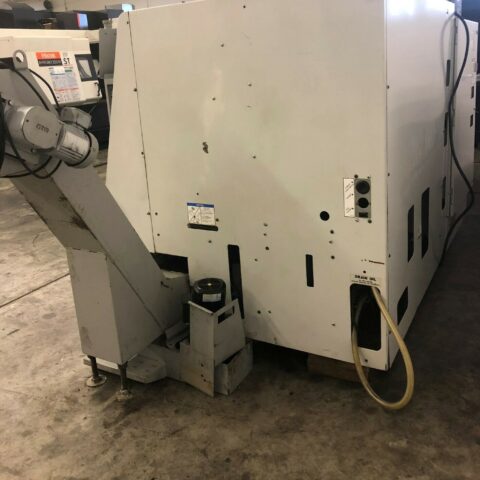

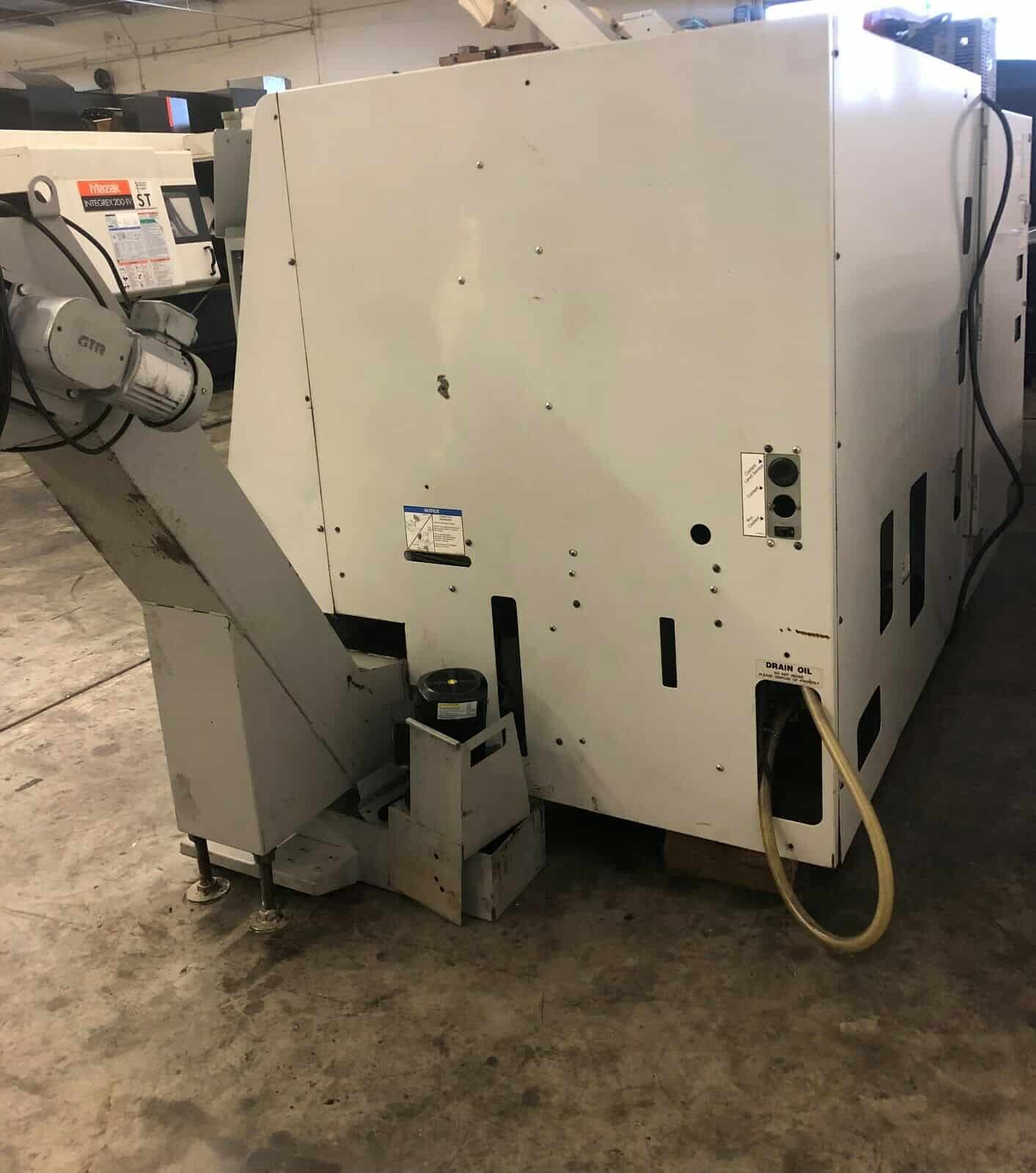

Chip Conveyor

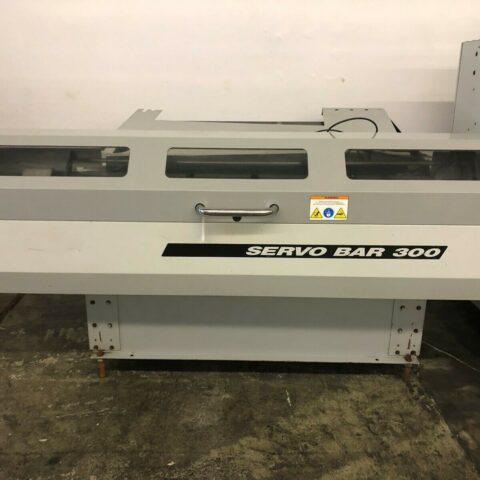

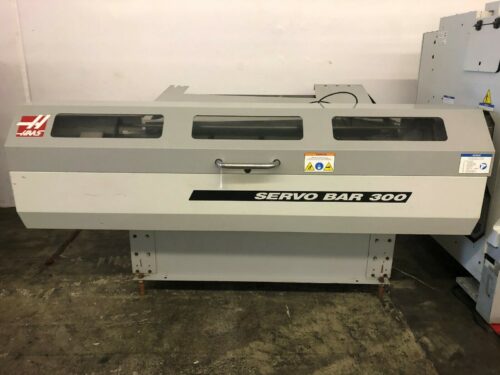

Comes with Haas 300 Bar Feeder.

Haas TL-15 Specifications:
Capacity:
Max Turning Diameter: 8.2″
Max Turning Length: 17.5″
Max Bar Capacity: 2.0″
Max Swing: 21.65″

Travels:
X Axis Travel: 7.5″
Z Axis Travel: 17.5″
B Axis Sub Spindle Travel: 17.90″
C Axis: 360° (0.001°) Both Spindle
Rapid Traverse X Axis: 787 IPM
Rapid Traverse Z Axis: 945 IPM

Spindle:
Main Spindle Bore: 2.0″
Sub Spindle Bore: 1.18″
Main Spindle Nose: A2-6
Sub Spindle Nose: A2-5
Main Spindle Speed: 45-4000 RPM
Sub Spindle Speed: 40-4000 RPM
Main Spindle Power: 20 HP
Sub Spindle Power: 8 HP

Turret:
Turret Capacity: 12 Live Stations
Turret Index Time: 0.2 Second
Live Tool Speed: 30-3,000 RPM

General:
Power: 35 kva, 220v / 3-Phase
Overall Dimensions: 138″ x 77″ x 72″ High
Overall Dimensions: 158″ x 62″ x 72″ High with Chip Conveyor
Weight: 10,500 lbs

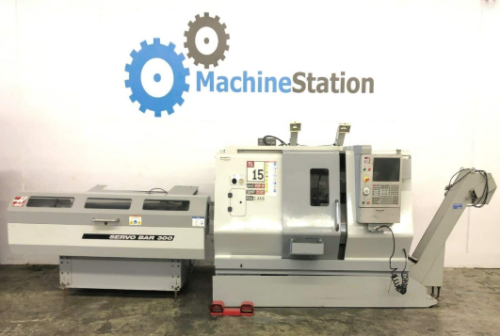

Haas TL-15 Comes as shown in pictures..
