Haas TL-25 CNC Turn Mill Center

Out of stock
SKU: 1882
Make/Model: Haas TL-25
Video: [fusion_button link=”https://www.youtube.com/watch?v=m3X6NPGPVxQ” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1882
HAAS TL-25 CNC TURN MILL CENTER
Make Haas
Model No. TL-25
Year 06/2007

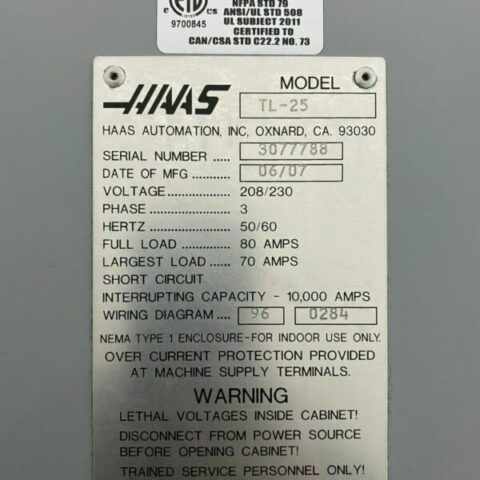

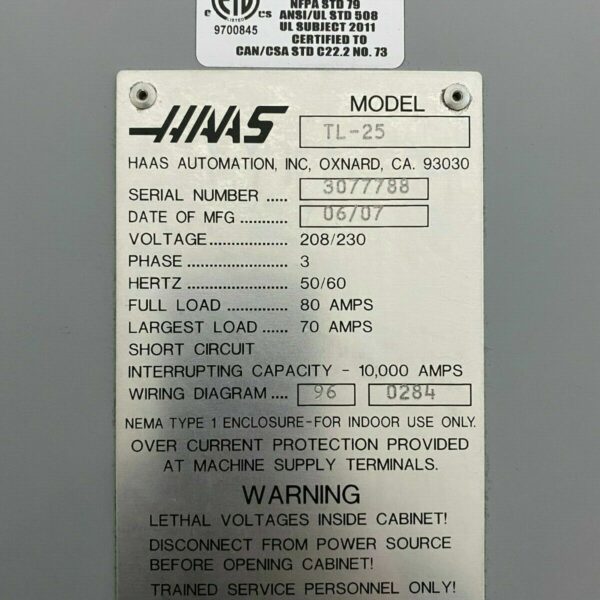

Serial # 3077788
Condition Very Good
Comes with Collet Chuck, jaw chuck on sub, live tool, static tools & Chip Conveyor.
Spindle Time:  Hours
  • Haas TL-25 Equipped With:

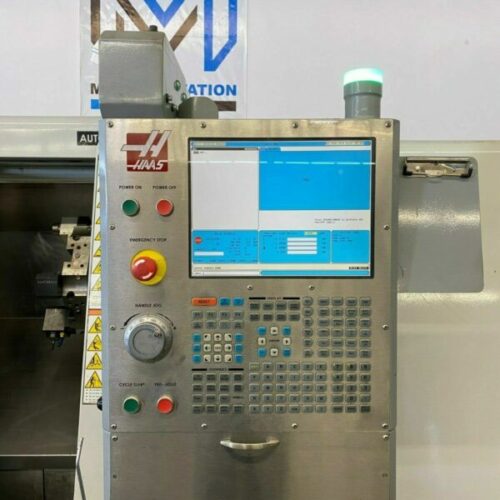

  • Haas 32-Bit 15″ LCD CNC Control
  • 12-Station Turret –  Live / Rotary Tools
  • Full C-Axis on Both Spindles
  • Tool Presetter
  • Parts Catcher
  • USB Drive
  • 1 MB Memory
  • 6″ 3 Jaw Chuck on Sub Spindle
  • Big Bore Collet Nose on Main Spindle

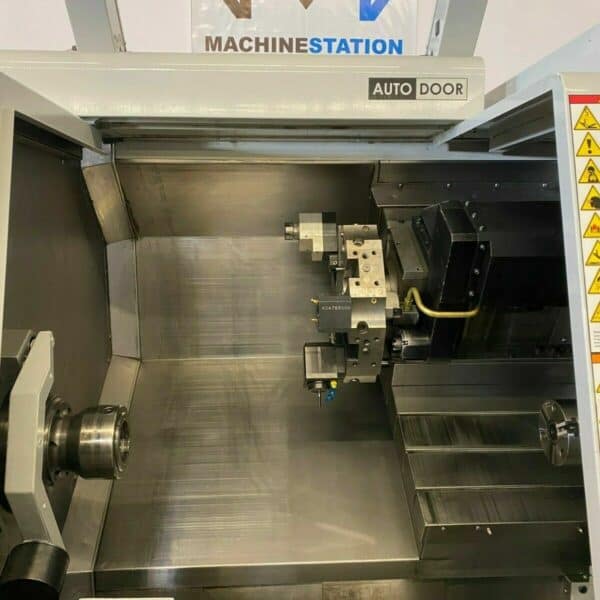

  • Auto Door
  • Rigid Tapping on Both Spindles
  • Foot Operated Control for Chuck
  • High Intensity Work Lights
  • Coolant Tank & Pump

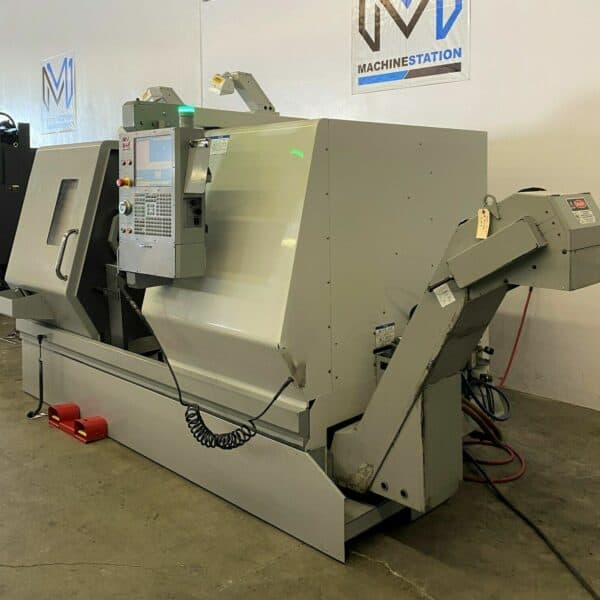

  • Chip Conveyor
  • Haas TL-25 Specifications:
  • Capacity:
  • Max Turning Diameter: 16″
  • Max Turning Length: 34″
  • Max Bar Capacity: 3.0″
  • Max Swing: 30.65″
  • Distance between Spindles:39″
  • Travels:
  • X Axis Travel: 11.3″
  • Z Axis Travel: 34.5″
  • B Axis Sub Spindle Travel: 33.50″
  • C Axis: 360° (0.001°) Both Spindle
  • Rapid Traverse X Axis: 787 IPM
  • Rapid Traverse Z Axis: 945 IPM
  • Spindle:
  • Main Spindle Bore: 3.5″
  • Sub Spindle Bore: 1.18″
  • Main Spindle Nose: A2-6
  • Sub Spindle Nose: A2-6
  • Main Spindle Speed: 35-3400 RPM
  • Sub Spindle Speed: 40-4000 RPM
  • Main Spindle Power: 30 HP
  • Sub Spindle Power: 8 HP

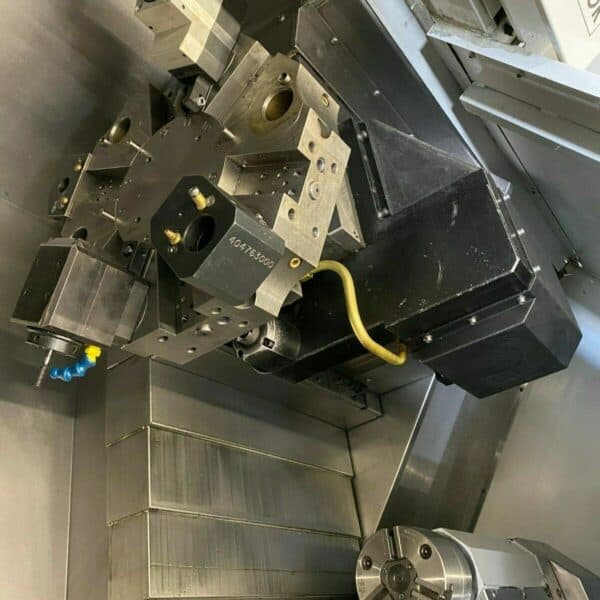

  • Turret:
  • Turret Capacity: 12 Live Stations
  • Turret Index Time: 0.2 Second
  • Live Tool Speed: 30-3,000 RPM
  • General:
  • Power: 45 kva, 220v / 3-Phase
  • Overall Dimensions: 150″ X 90″ X 90 ” High
  • Overall Dimensions: 190″ X  90″ X 90″ High with Chip Conveyor
  • Weight: 16,800 lbs

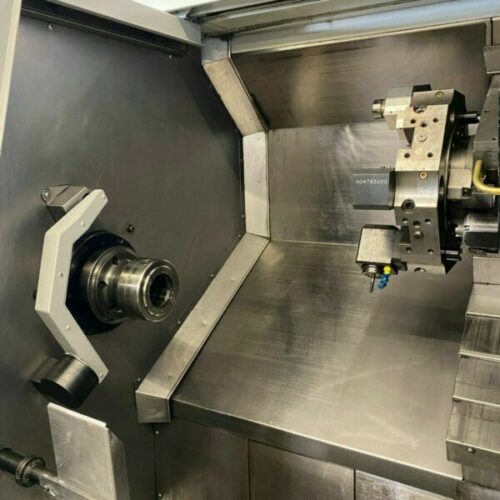

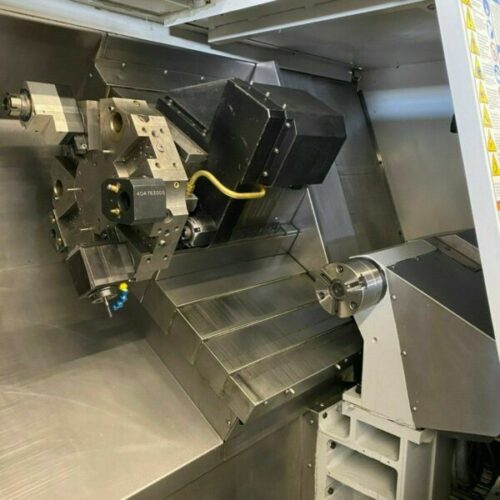

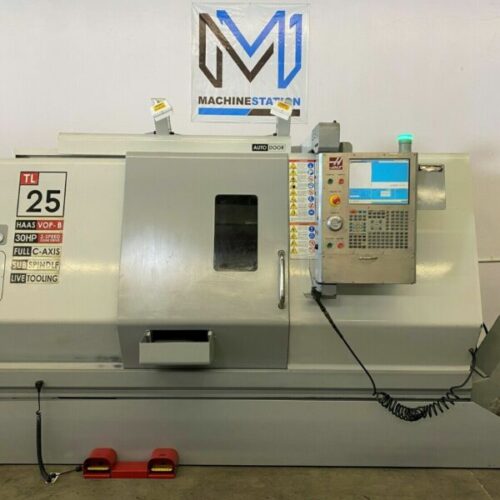

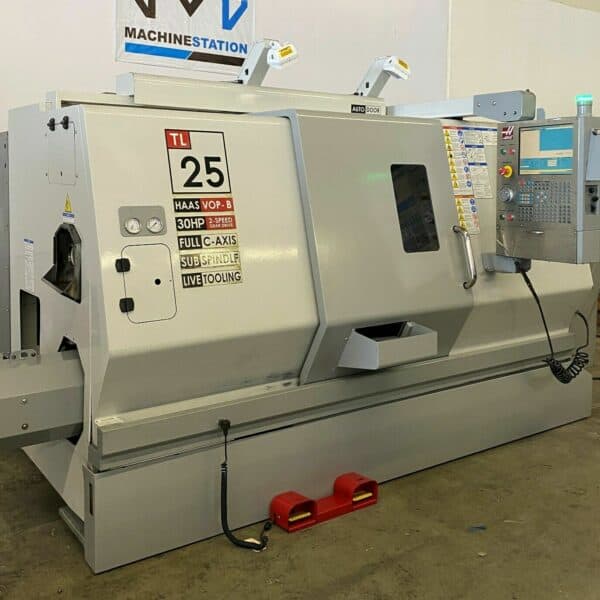

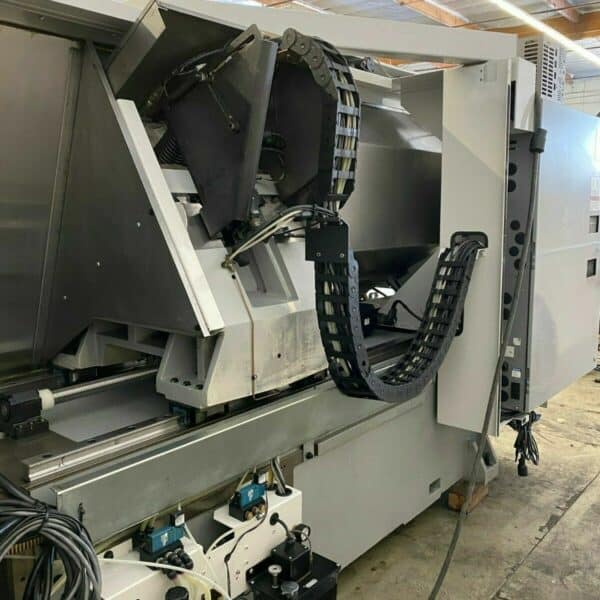

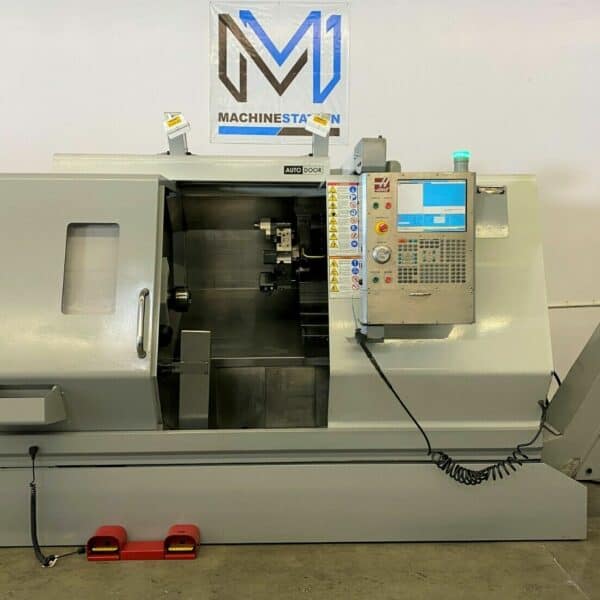

Haas TL-25 Comes as Shown in Pictures….
