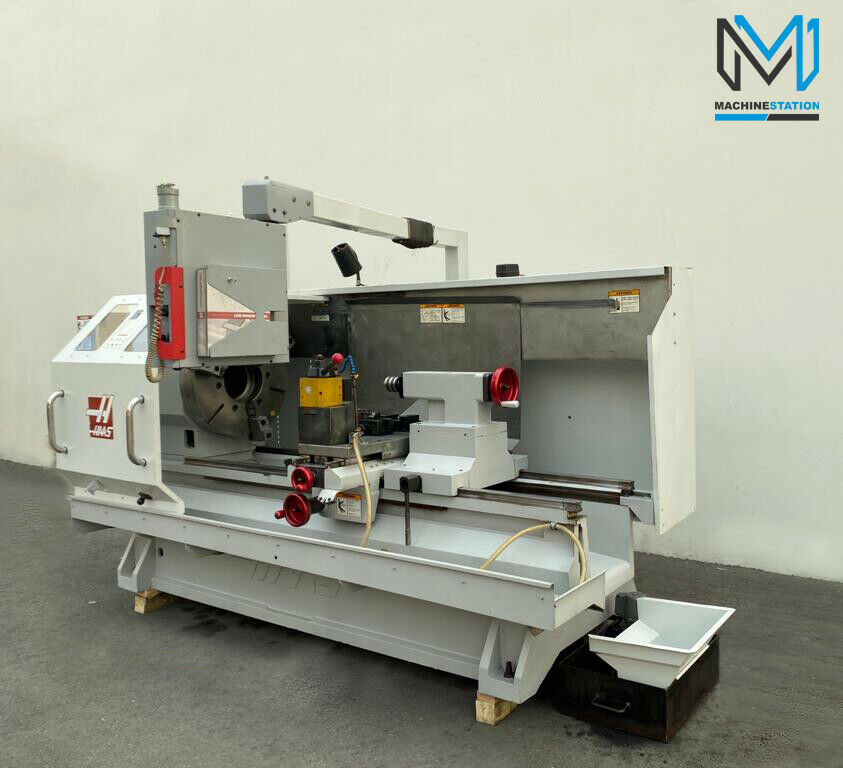

HAAS TL-3B CNC Toolroom Lathe

Out of stock

SKU:	2016
Make/Model:	Haas/TL-3B
Video:	[fusion_button link=”https://www.youtube.com/watch?v=XgdKLRtUMtU” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 2016

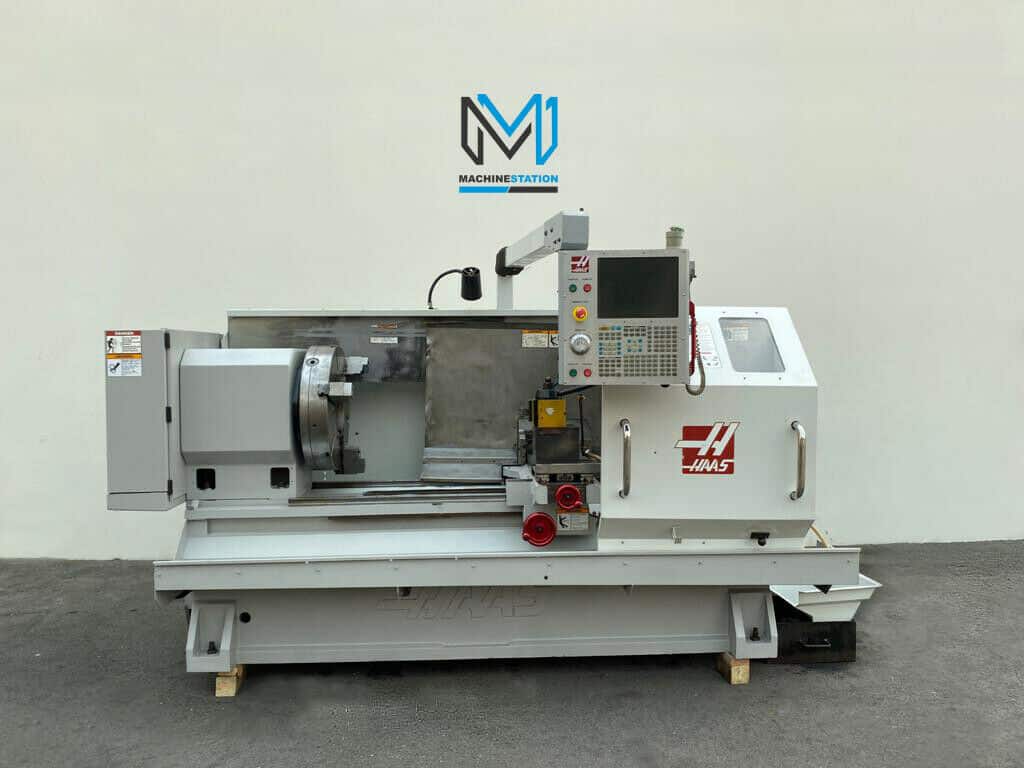

HAAS TL-3B CNC TOOLROOM LATHE
Make	Haas
Model No.	TL-3B
Year	11/2006
Serial #	3074834
Condition	Very Good

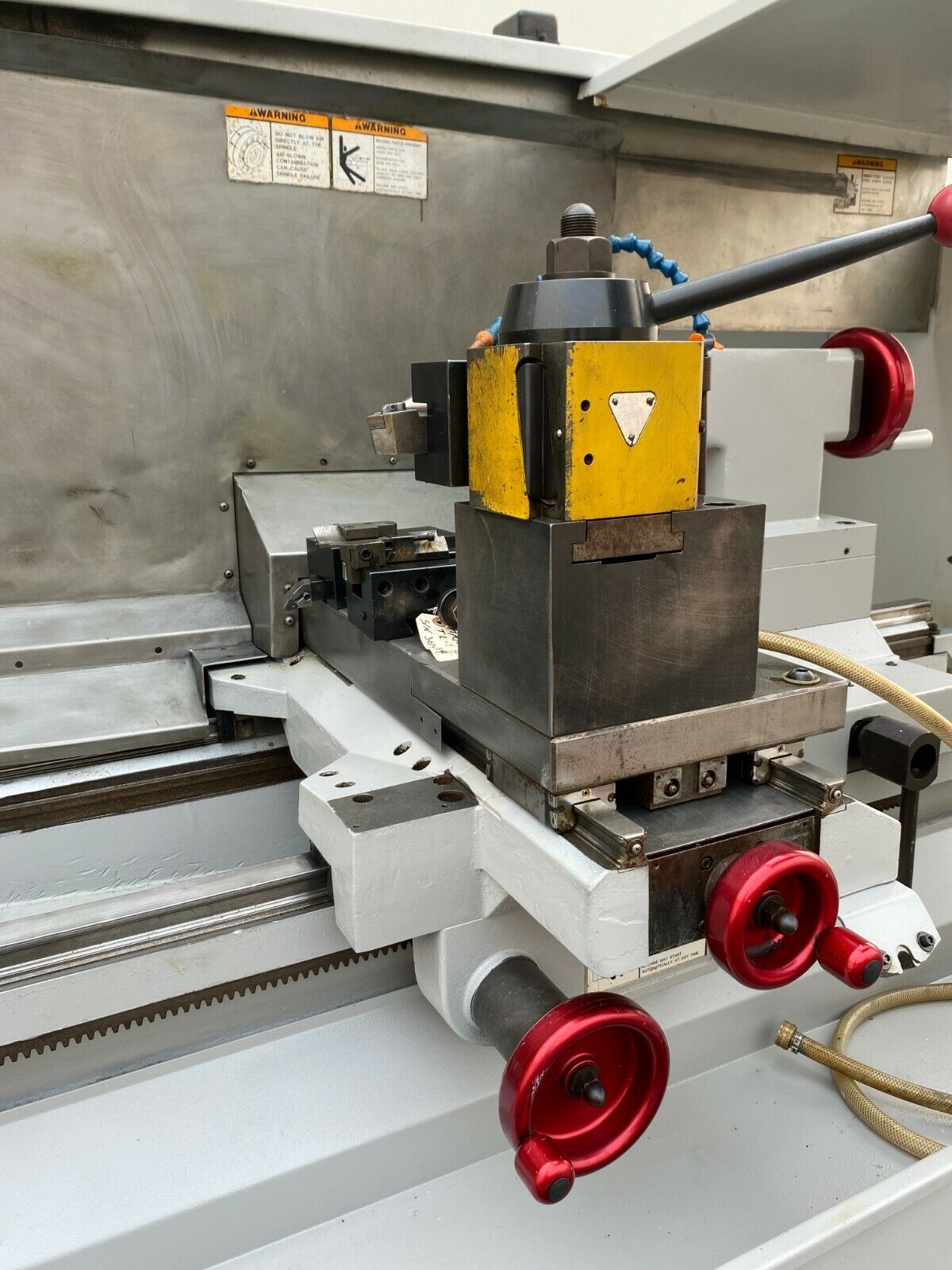

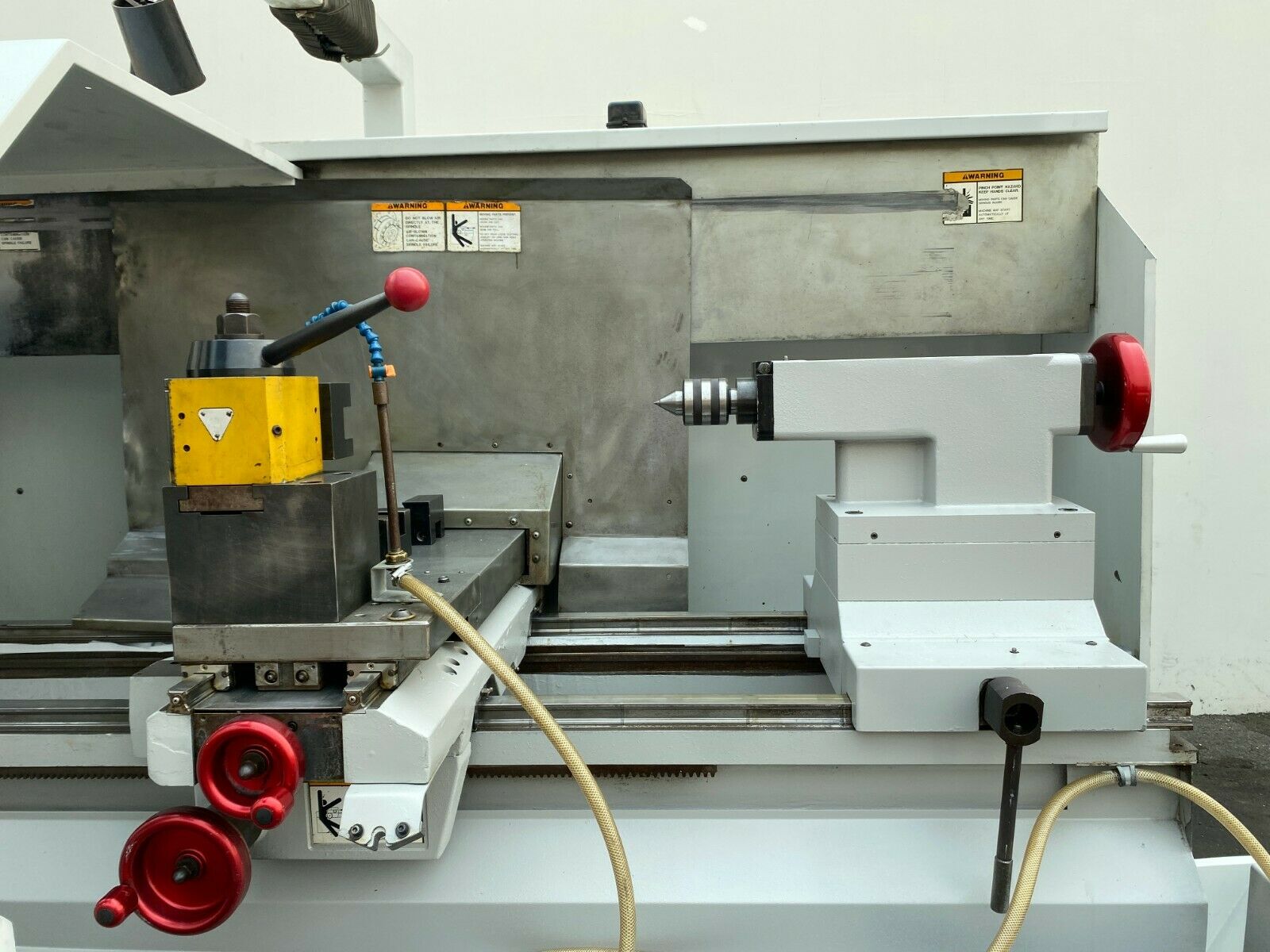

Comes with 2 X 25″ Chucks, Quick Change Tool Post, Tool Holders, Open Steady Rest, Closed Steady Rest, Tailstock.

All specifications are approximations and are subject to verification.

HAAS TL-3B Equipped With:

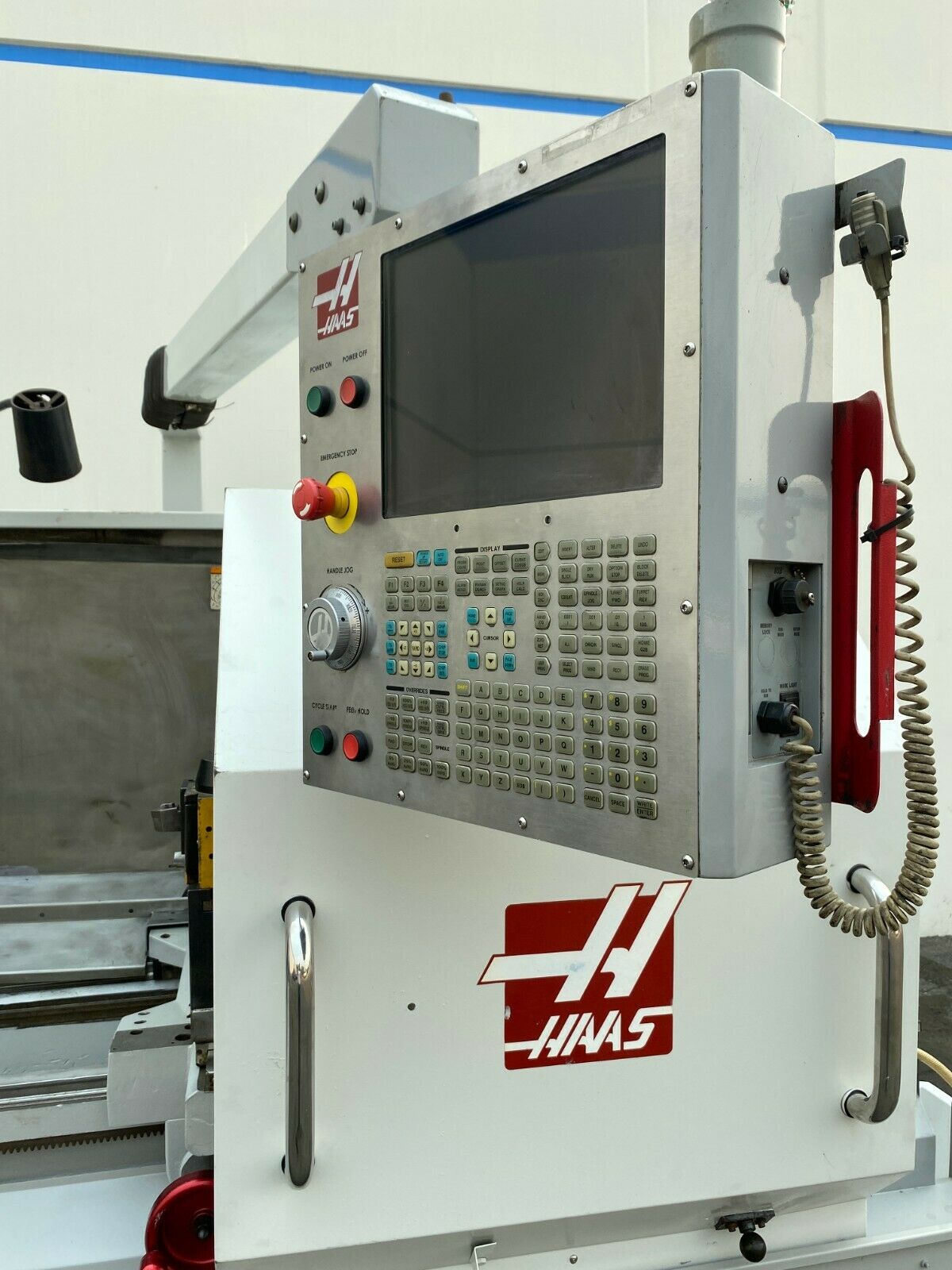

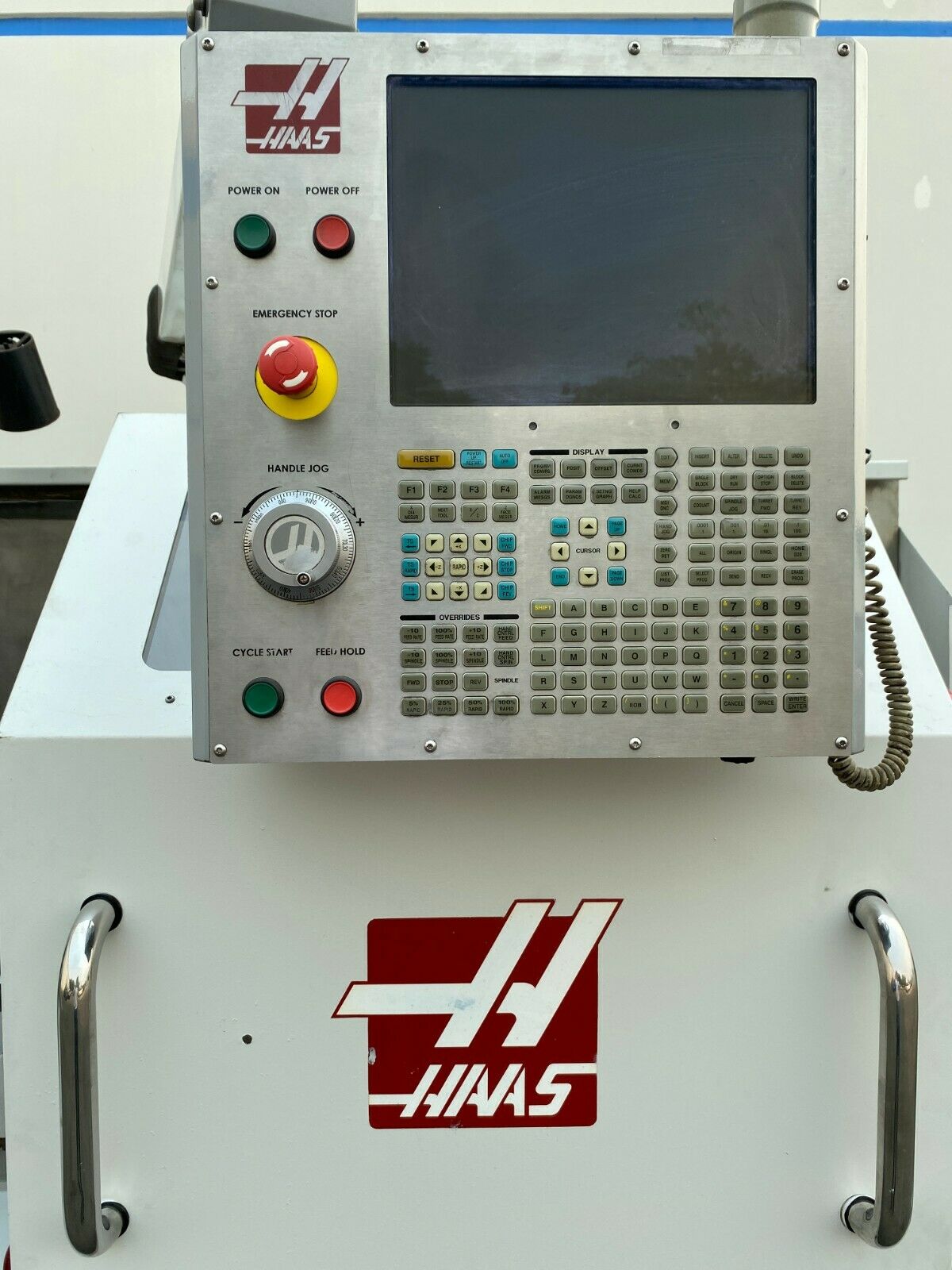

Haas CNC Control with 15″ LCD

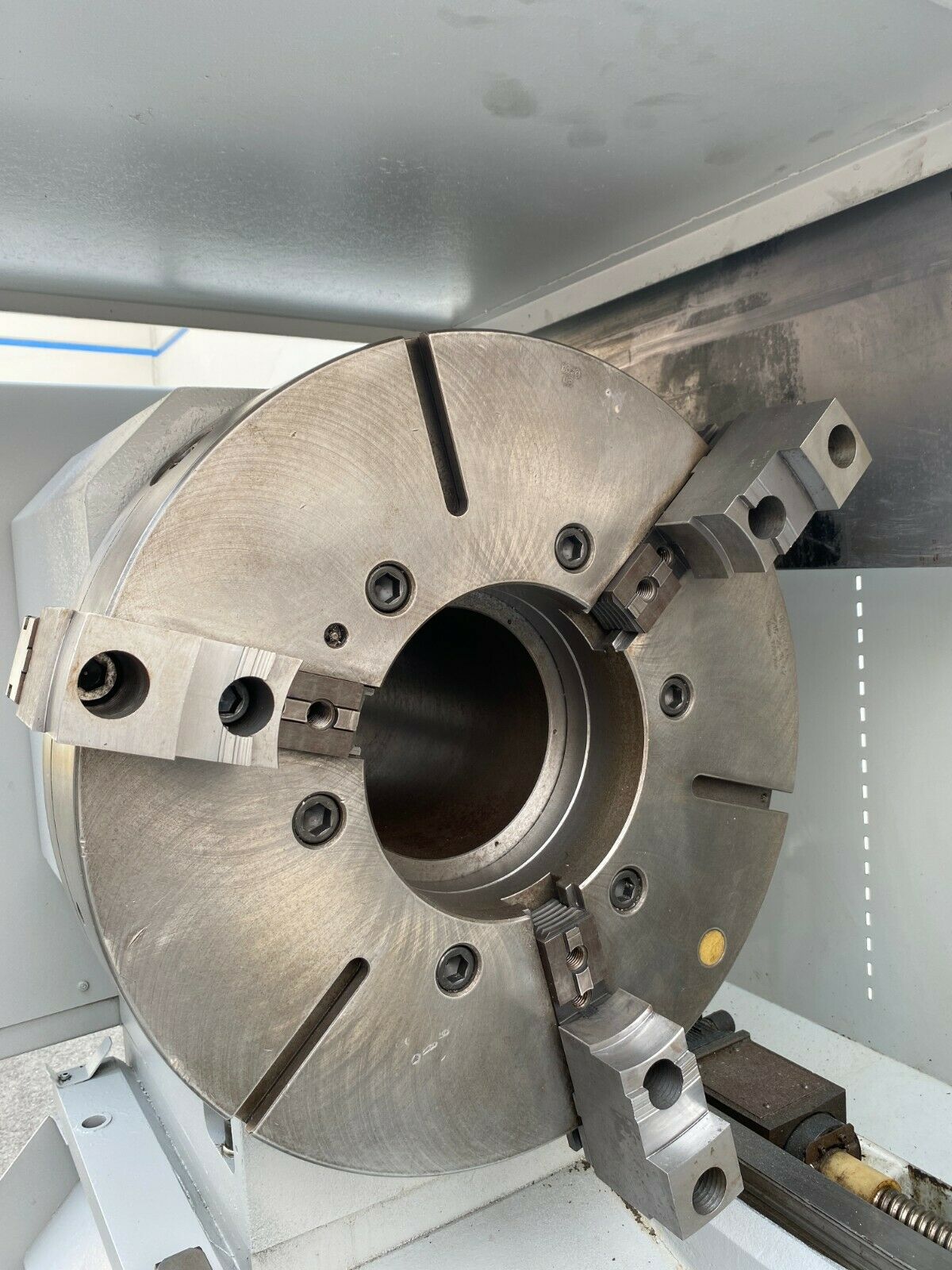

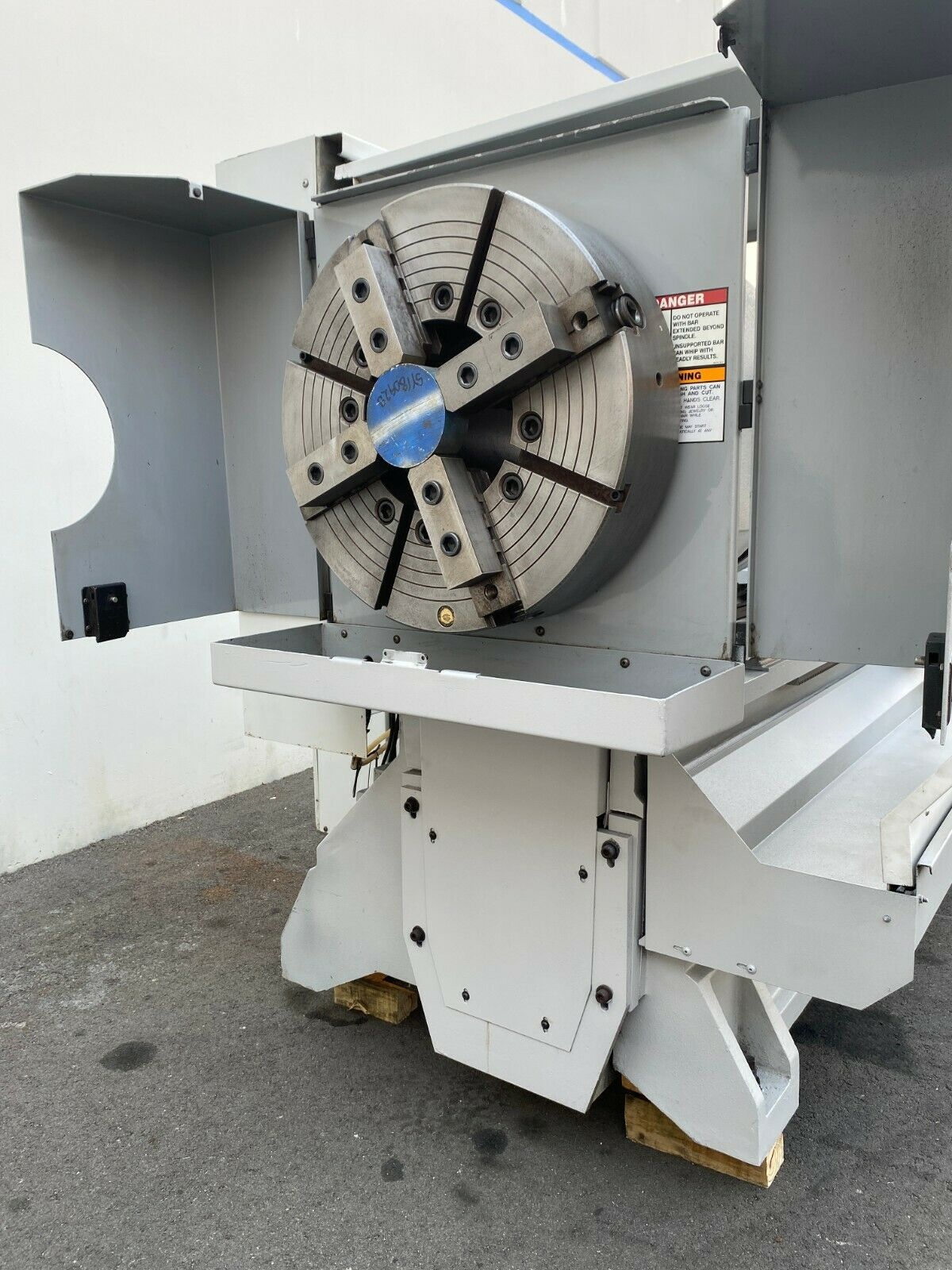

25″ Front & Back 4 Jaw Chucks
8.5″ Big Spindle Bore
A2-15 Gear Head Spindle
30 HP Spindle Motor
Rigid Tapping
Built in Thread Repair Cycles
Manual Handwheels

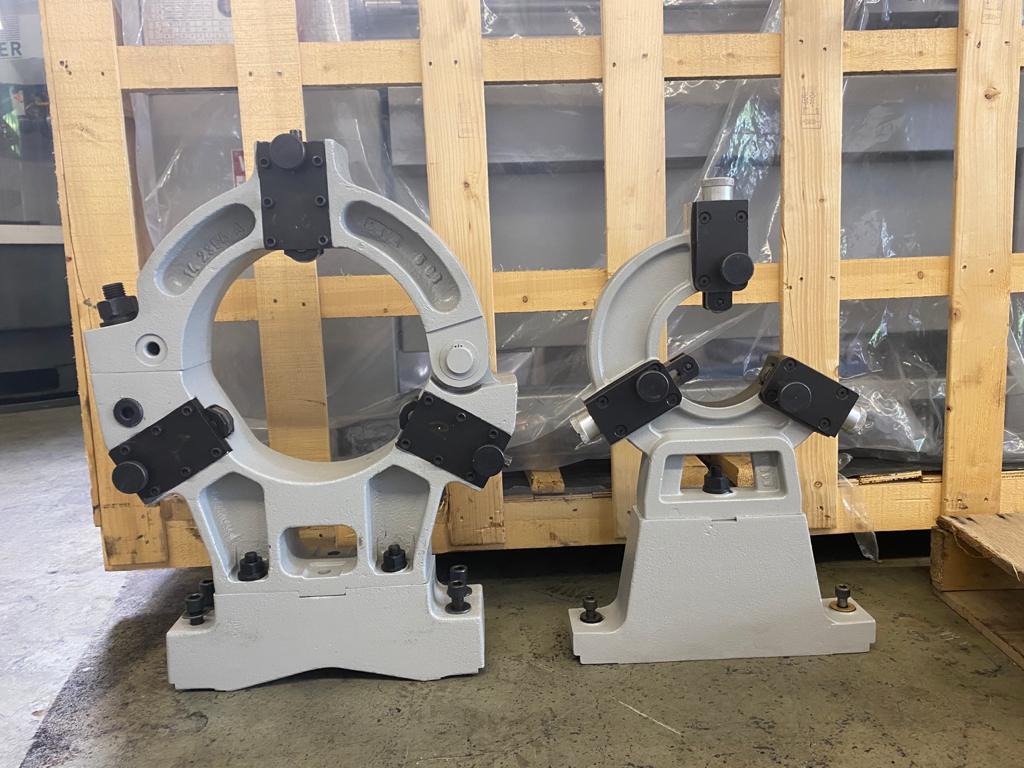

16″ Steady Rest
11″ Steady Rest
1 MB Expanded Memory

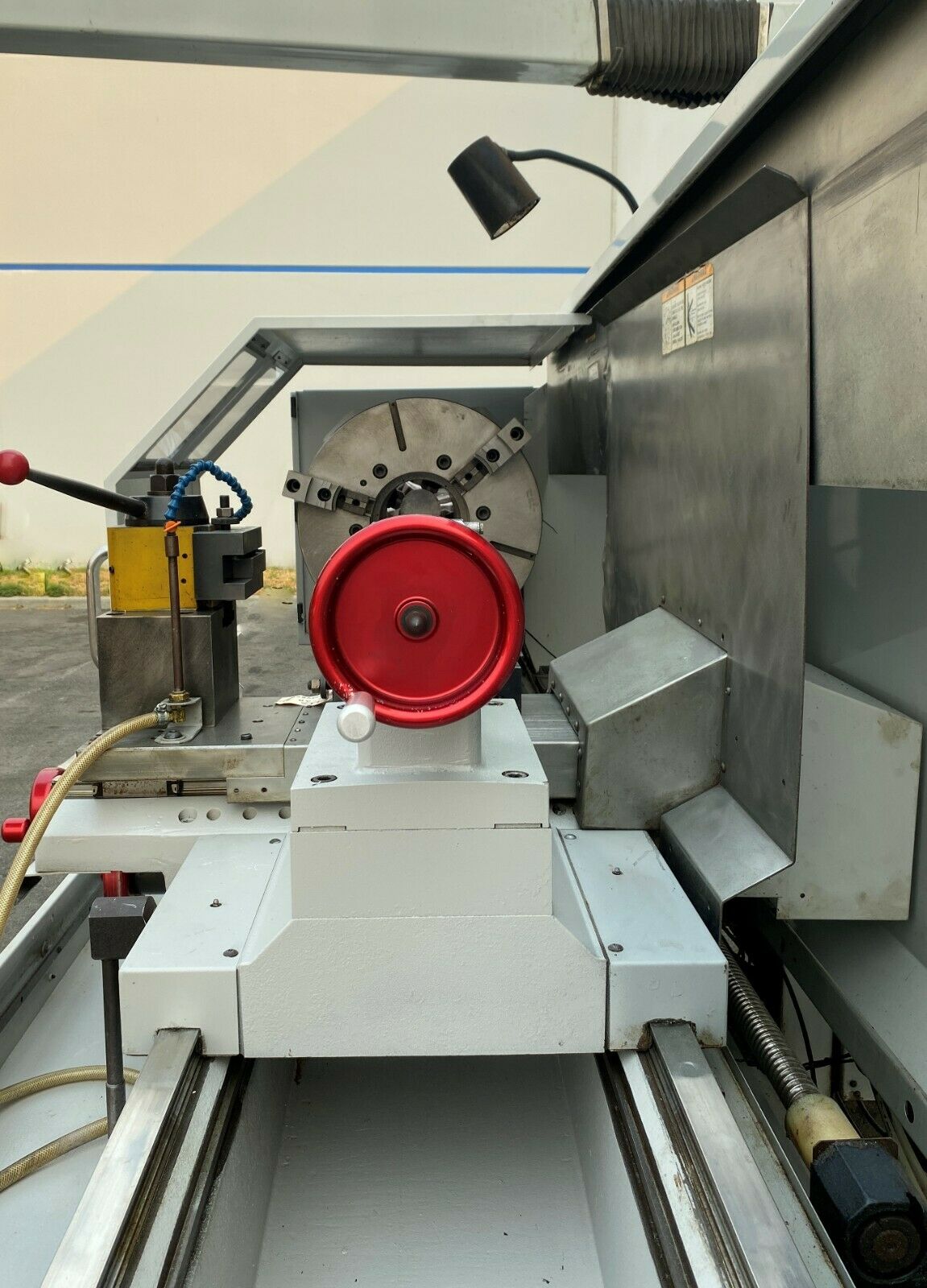

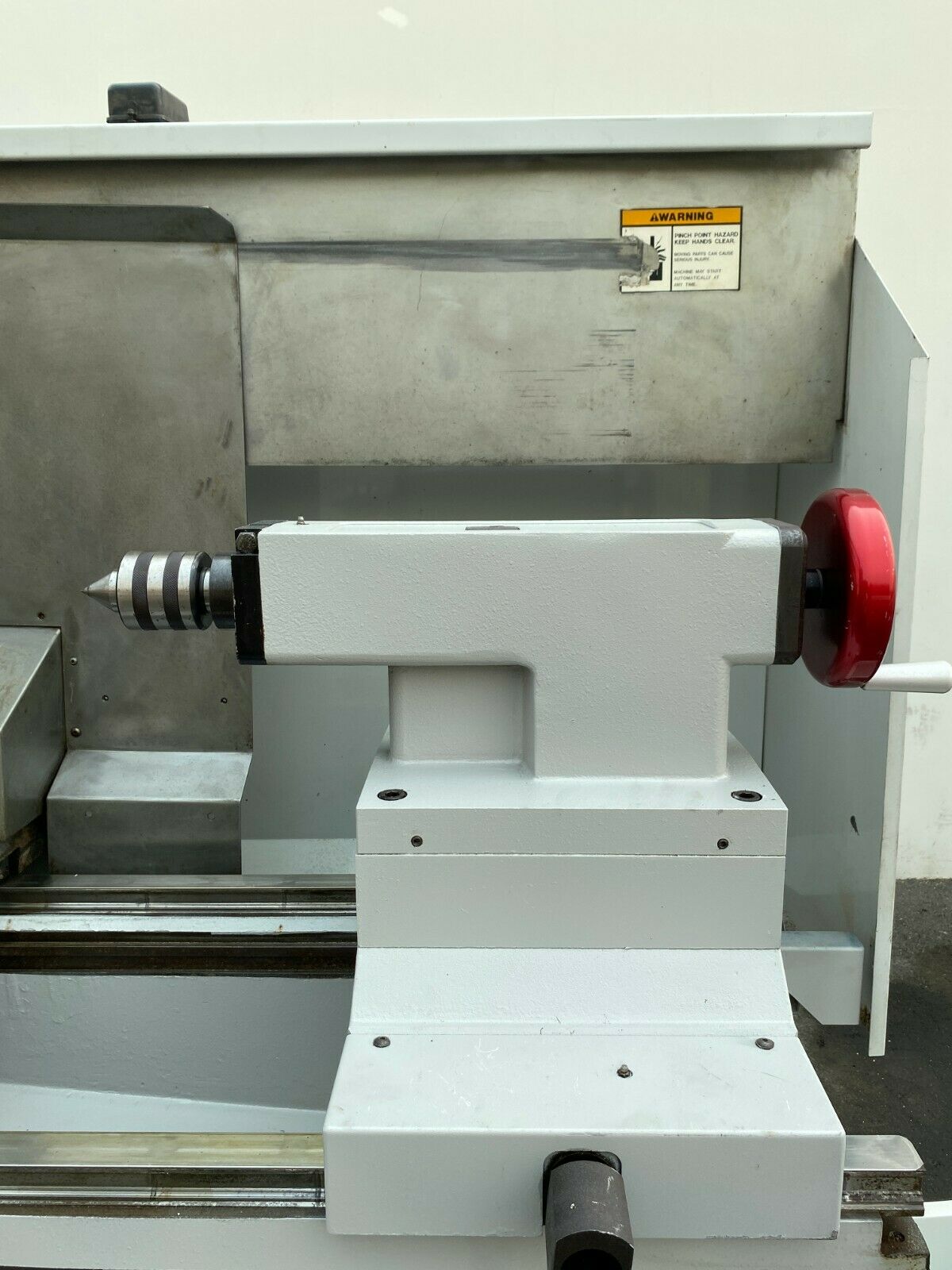

Heavy Duty Tailstock and Quill
USB Port

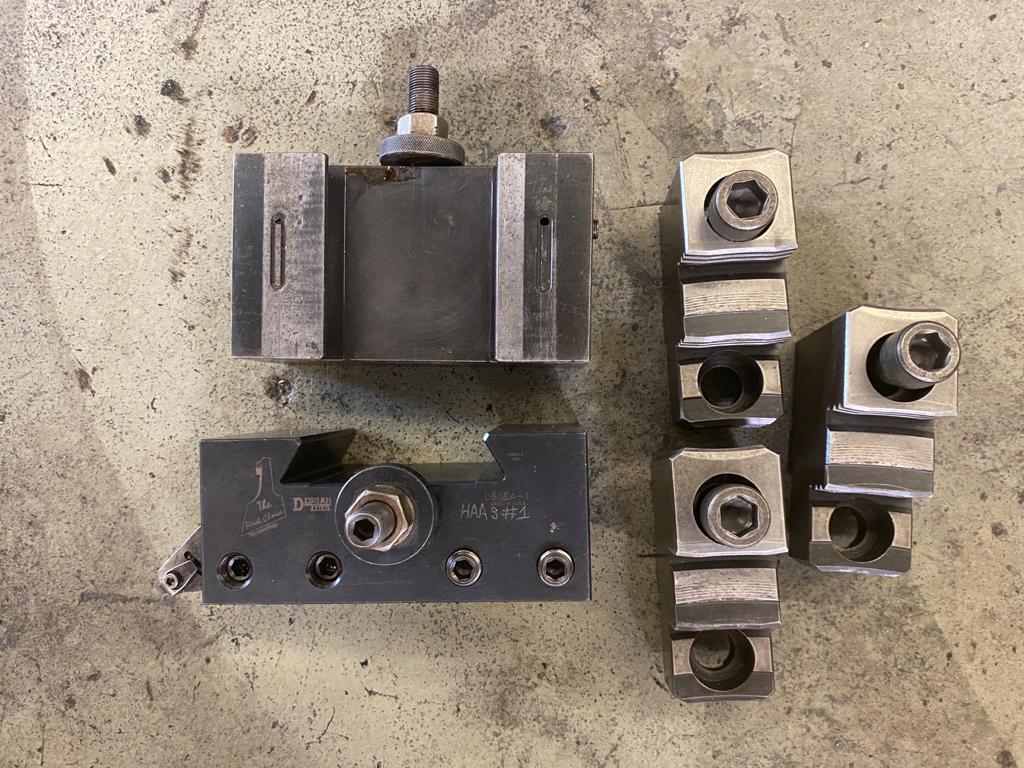

Tool Block Holders
Coolant System
Integral Chip Flow Channel
Travelling Chip Guard

Capacity:
Max Turning Diameter: 30.0″
Max Turning Length: 60.0″
Max Bar Capacity: 8.5″
Swing Over Apron: 30.0″
Swing Over Cross Slide: 30.0″
Distance Between Centers: 63.0″

Travels:
X Axis Travel: 16.0″
Z Axis Travel: 60.0″
Rapid Traverse X Axis: 150 IPM
Rapid Traverse Z Axis: 320 IPM

Spindle:
Spindle Nose: A2.15
Spindle Bore: 8.5″
Spindle Speed: 0-650RPM
Spindle Motor: 30 HP
Spindle Torque: 2169NM @ 60RPM

Tailstock:
Tailstock Taper: MT-3
Tailstock Quill Dia.: 3.97″
Tailstock Quill Travel: 5.9″

General:

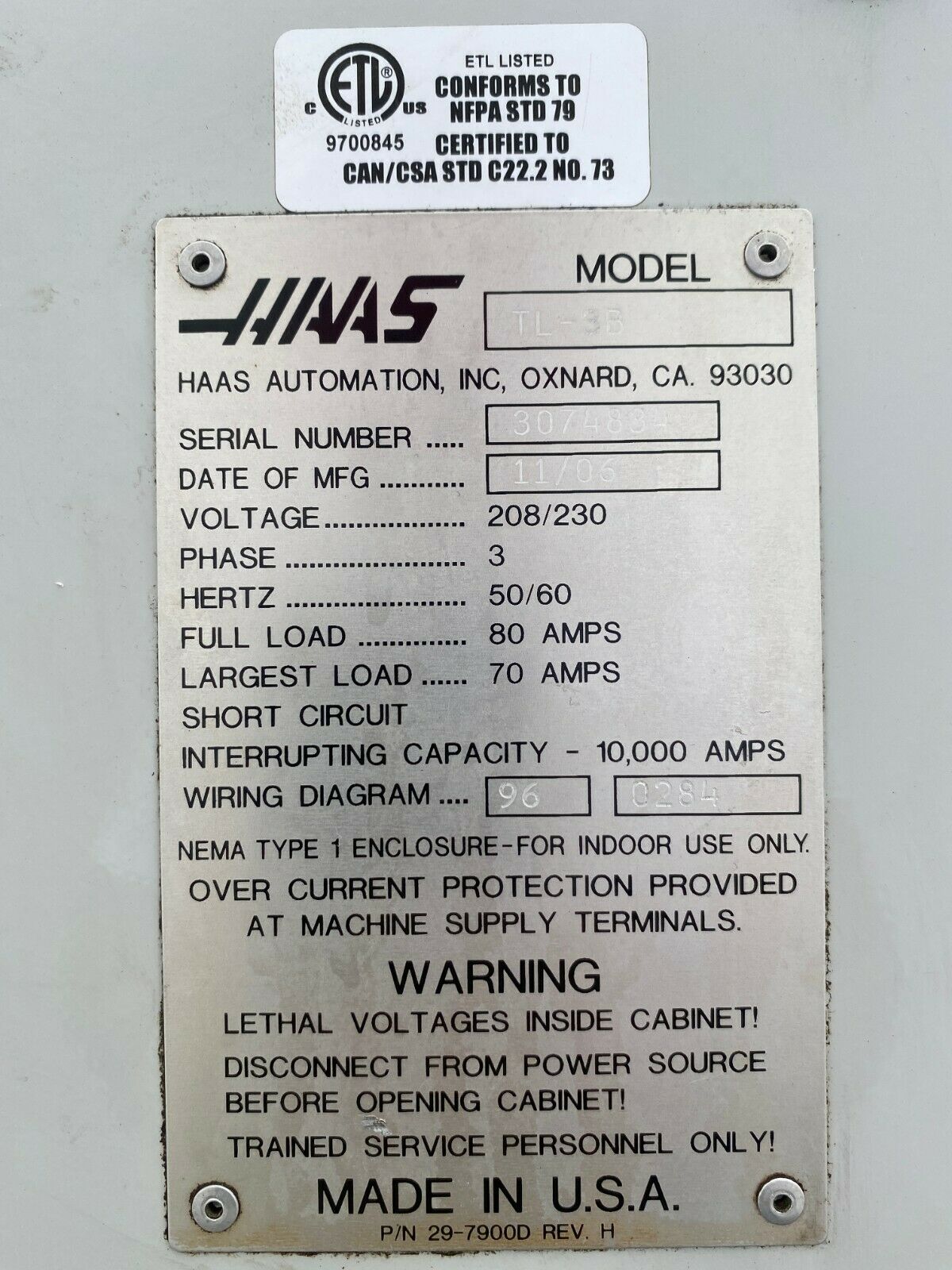

Power: 45 kva, 220v / 3-Phase Overall
Dimensions: 130″ X 97″ X 79″ High
Weight: 9600 lbs.
