*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2325 |

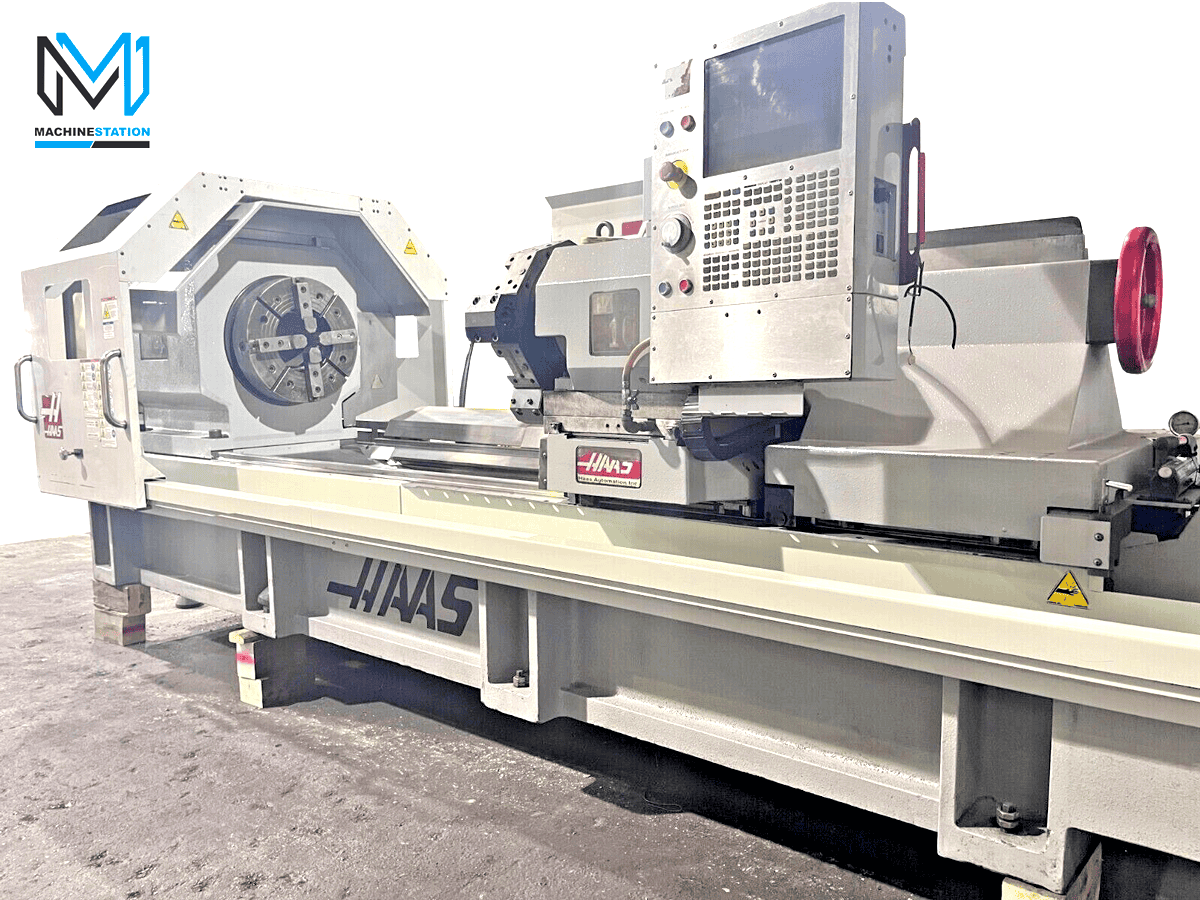

| Make: | Haas |
| Model: | TL-4 |
| Serial: | 3081939 |
| Year: | 2009 |
| Cutting Hours: | 1366 |
| Condition: | Very Good |
| Features: |
|---|

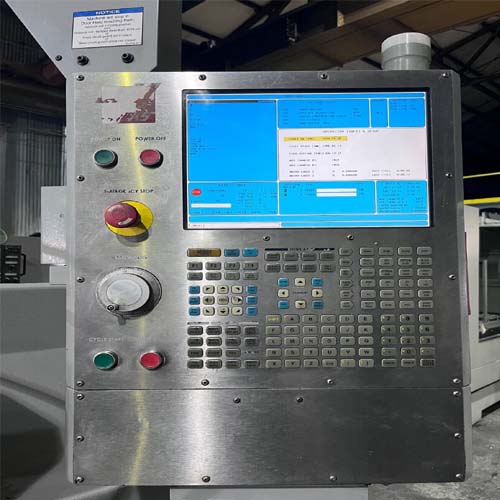

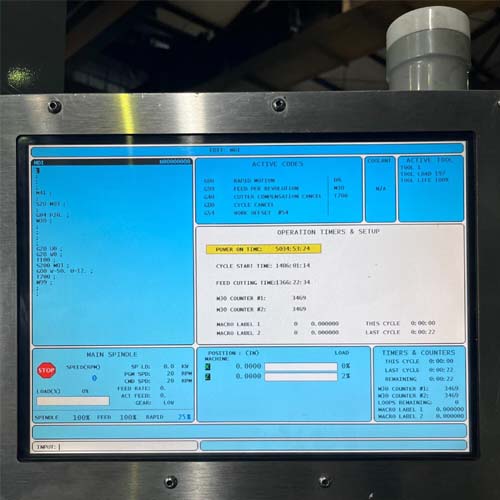

| Haas CNC Control with 15″ LCD |
| 10.8″ Big Bore |
| A1-20 Gear Head Spindle |
| 55 HP Spindle Motor |

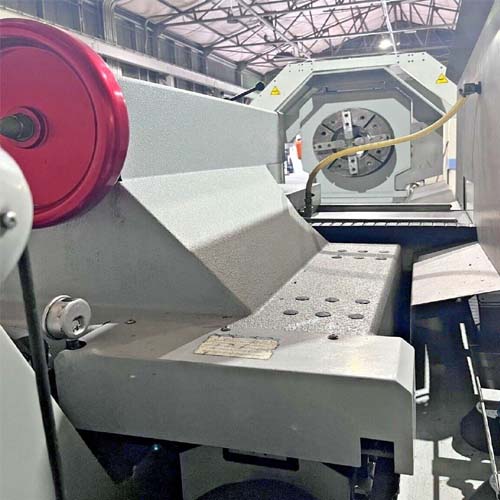

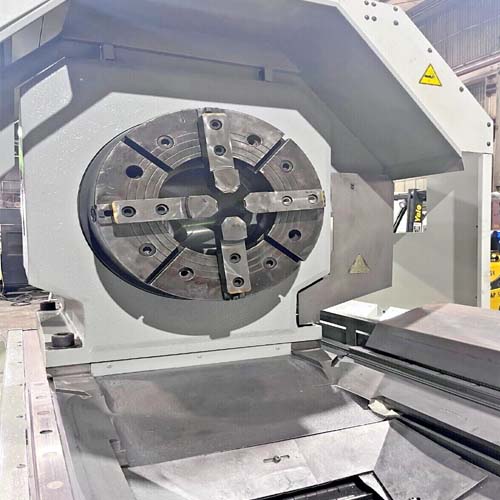

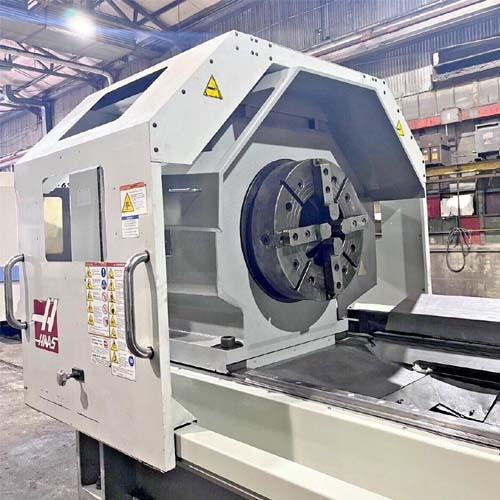

| 25″ Front & Back 4 Jaw Chucks |

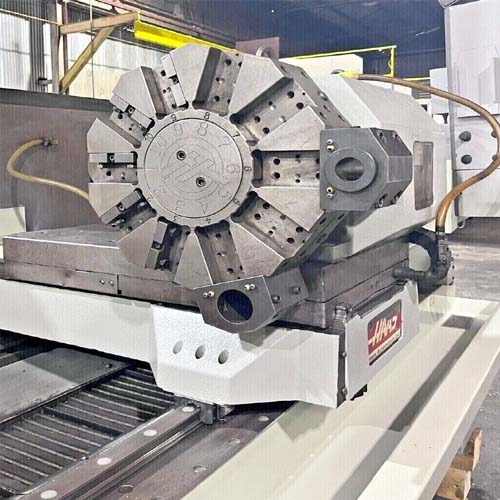

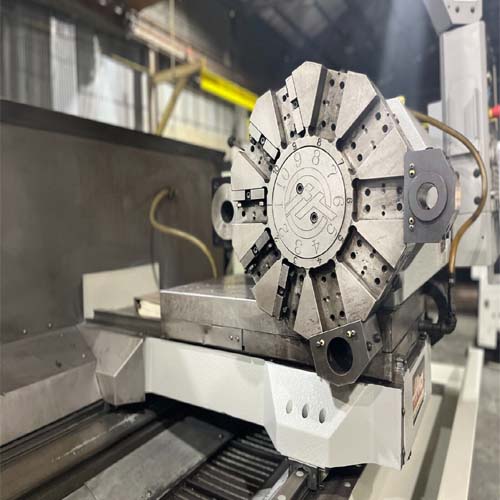

| 10 Station Turret |
| Rigid Tapping |

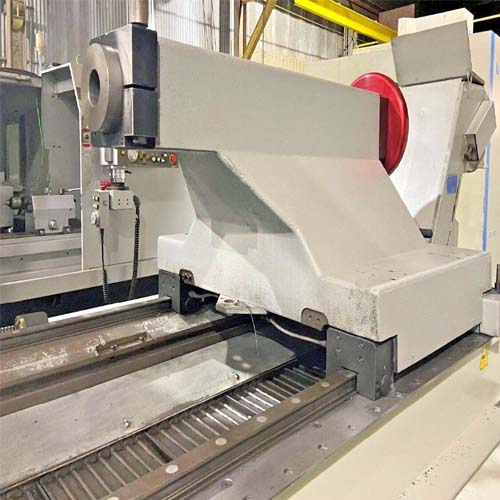

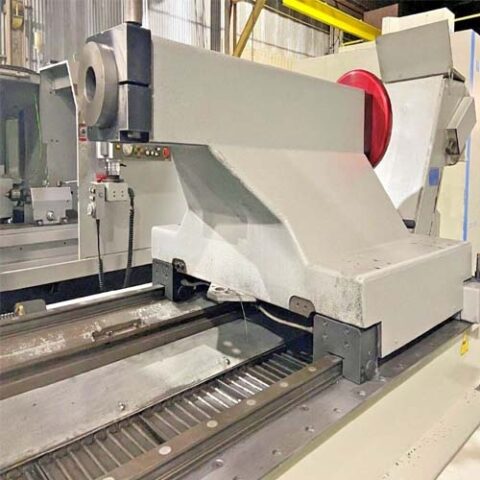

| Heavy Duty Tailstock & Quill |
| USB Port |
| Tool Block Holders |
| Coolant System |
| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter: 35.0″ |
| Max Turning Length: 80.0″ |
| Max Bar Capacity: 10.8″ |
| Swing Over Apron: 35.0″ |
| Distance Between Centers: 91.0″ |
| Turret: |
|---|
| Turret Capacity: 10 Stations |
| Turret Index Time: Second |
| Spindle: |
|---|
| Spindle Nose: A1-20 |
| Spindle Bore: 10.8″ |
| Spindle Speed: 0-500 RPM |

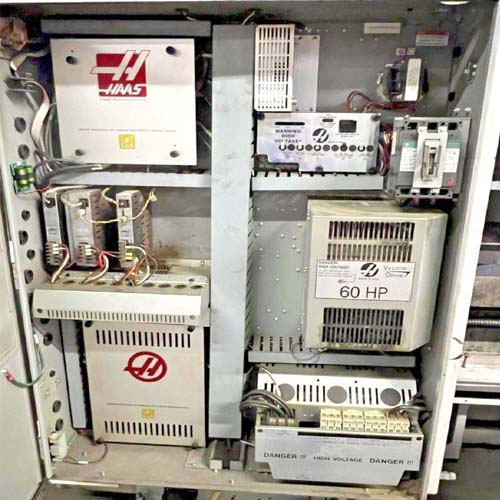

| Spindle Motor: 60 HP |
| Spindle Torque: 4000ft-lbs |
| Travels: |
|---|
| X Axis Travel: 18.0″ |
| Z Axis Travel: 80.0 “ |
| Rapid Traverse X Axis: 150 IPM |
| Rapid Traverse Z Axis: 320 IPM |
| Tailstock: |
|---|
| Tailstock Taper: MT-5 |
| Quill Diameter: 8.97″ |
| Quill Travel: 5.9″ |
| General: |
|---|

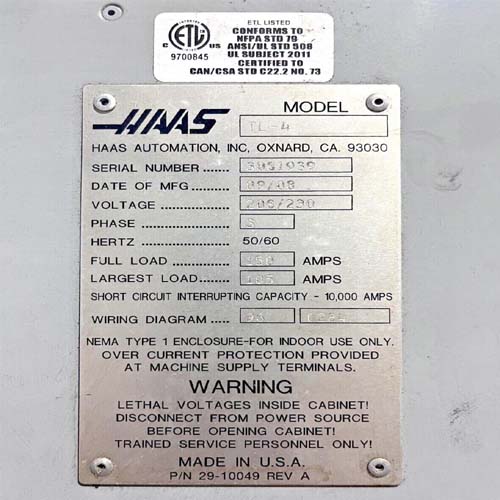

| Power: 60kva, 220v / 3-Phase |
| Overall Dimensions: 234″ X 100″ X 88″ High |
| Overall Dimensions: 288″ X 100″ X 88″ High with Chip Conveyor |
| Weight: 27000 lbs |
