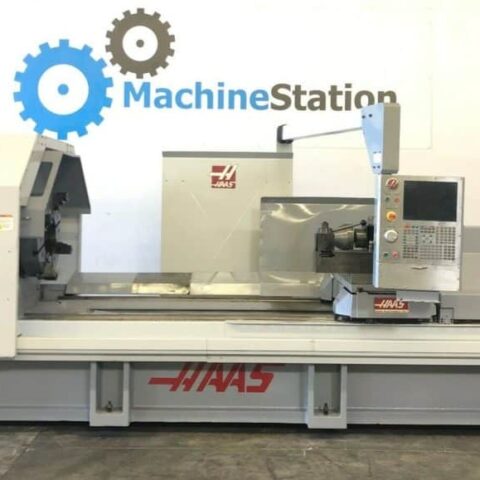

Haas TL-4 CNC Oil Long Bed Lathe

Out of stock

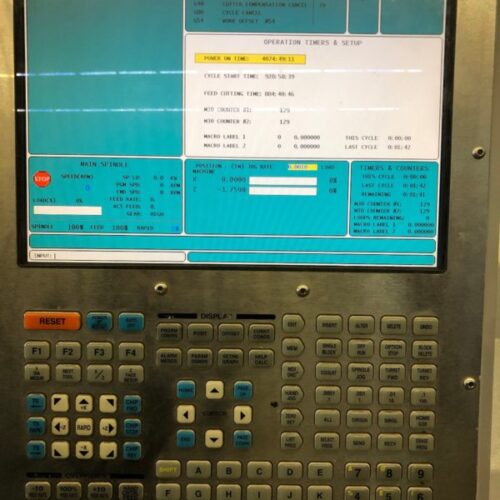

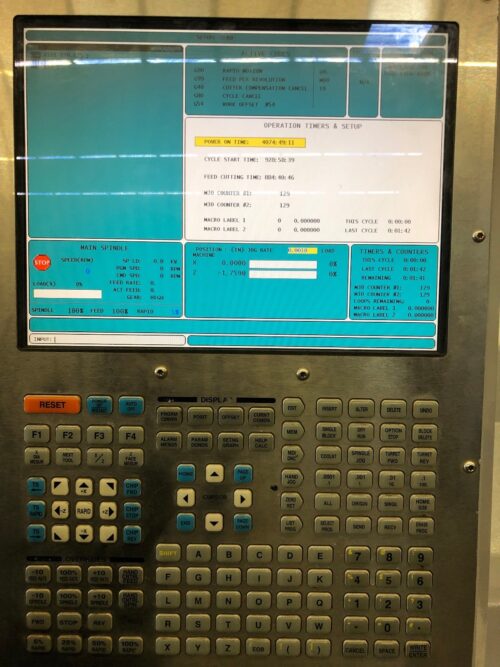

One Owner Machine is equipped with 2 X 25″ 4 jaw Chuck, 2 X 3 Point Steady Rest, Tailstock ,Chip Conveyor. Only 884 cutting hours, 4074 power on time. On Our Floor fully powered / tested & is in working condition. Please feel free to ask For more Pictures.”

SKU: 1777
Make/Model: Haas TL-4
Video: [fusion_button link=”https://www.youtube.com/watch?v=58ZXrLd3IEA” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]



SKU: 1777

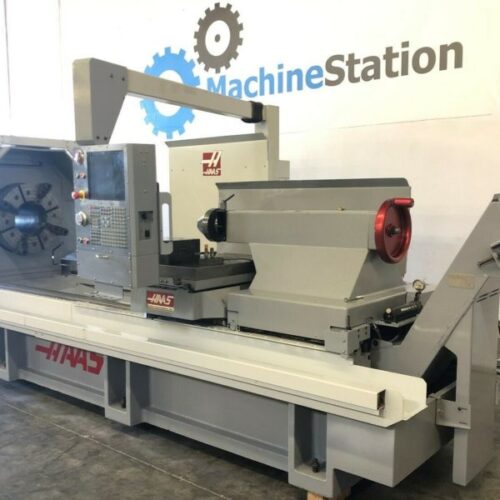

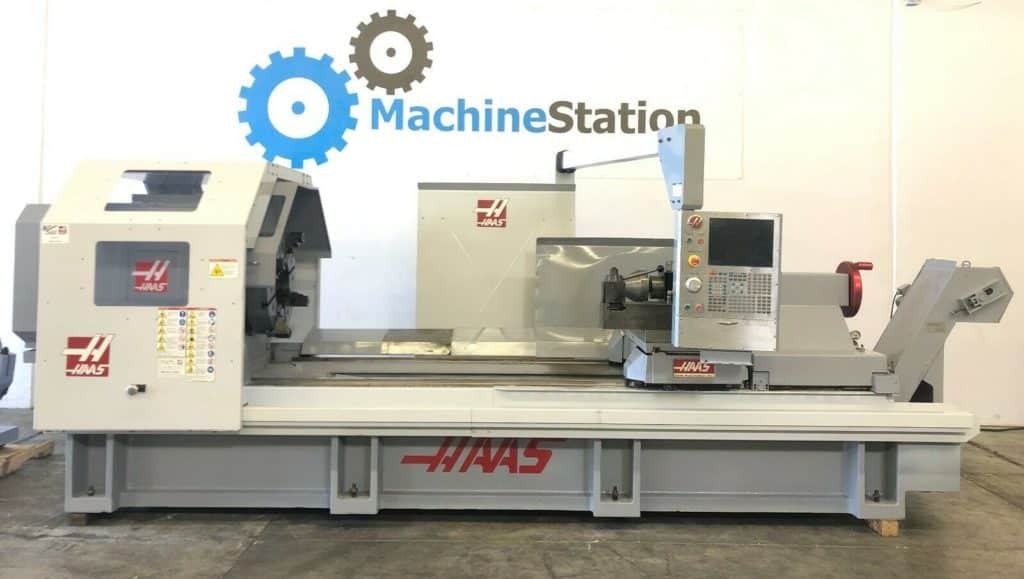

HAAS TL-4 CNC OIL LONG BED LATHE
Make Haas
Model No. TL-4
Year 2008
Condition Very Good
Comes with 2 x 25″ Chuck, 2 x 3 point Steady Rest, Tailstock & Chip Conveyor.

“One Owner Machine is equipped with 2 X 25″ 4 jaw Chuck, 2 X 3 Point Steady Rest, Tailstock ,Chip Conveyor. Only 884 cutting hours, 4074 power on time. On Our Floor fully powered / tested & is in working condition. Please feel free to ask For more Pictures.”

  • Haas TL-4 Equipped With:

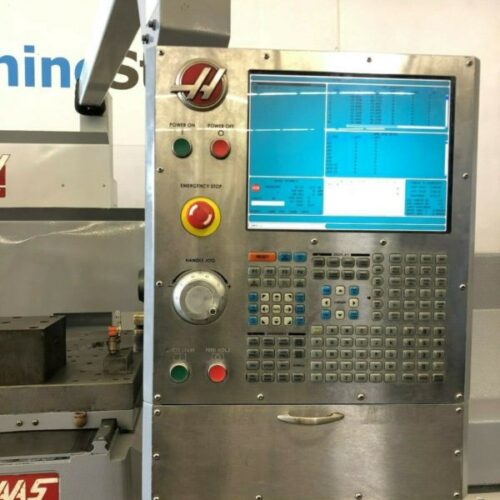

  • Haas CNC Control with 15″ LCD
  • 10.8″ Big Bore
  • A1-20 Gear Head Spindle
  • 55 HP Spindle Motor

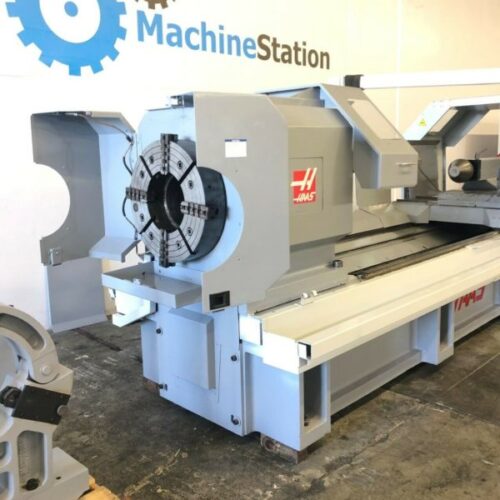

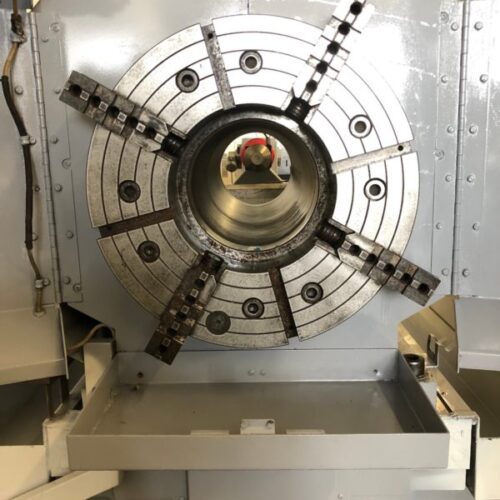

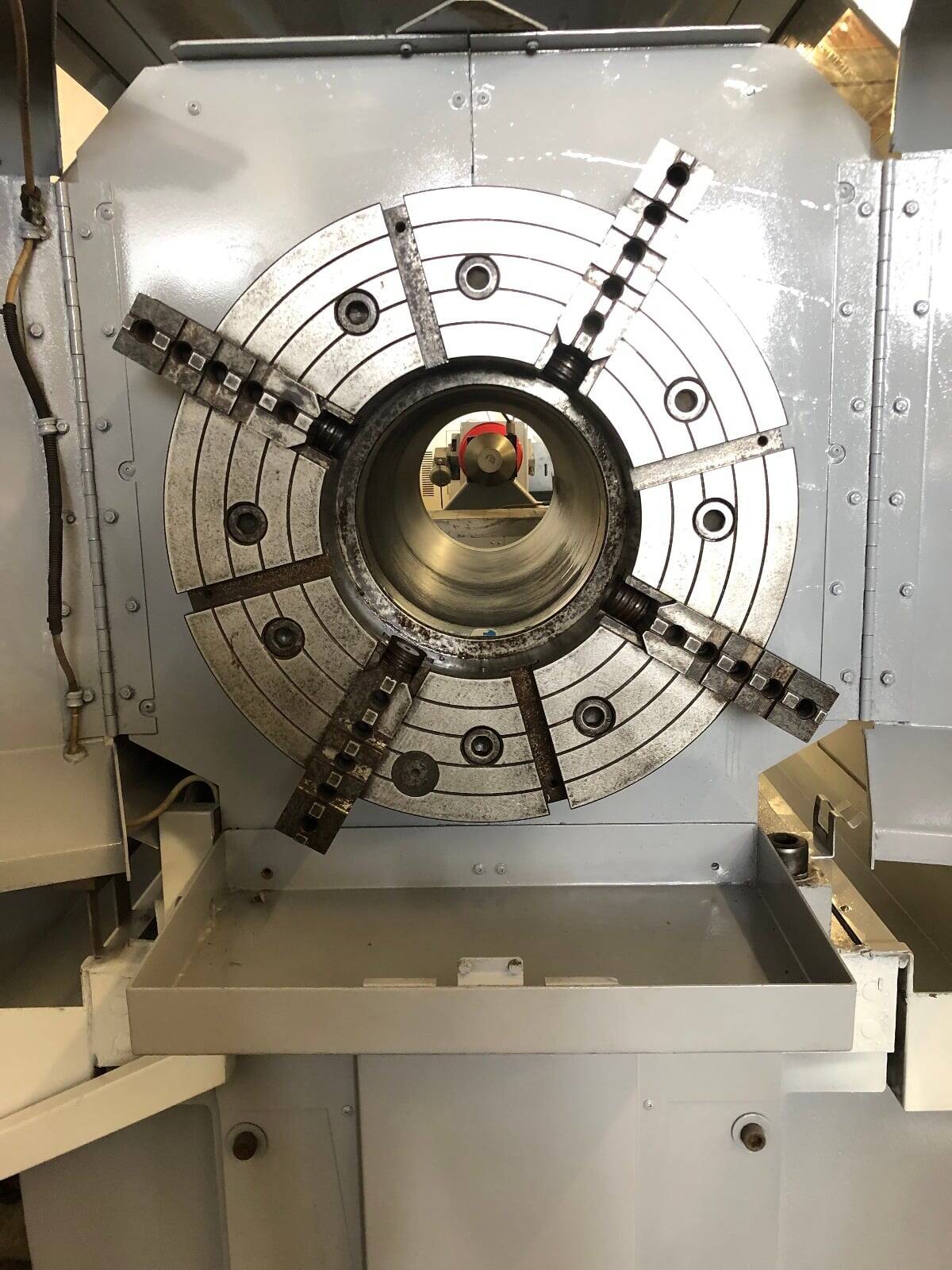

  • 25″ Front & Back 4 Jaw Chucks 12.5″ Bore
  • Rigid Tapping

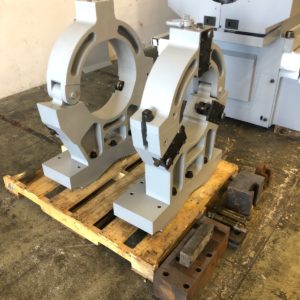

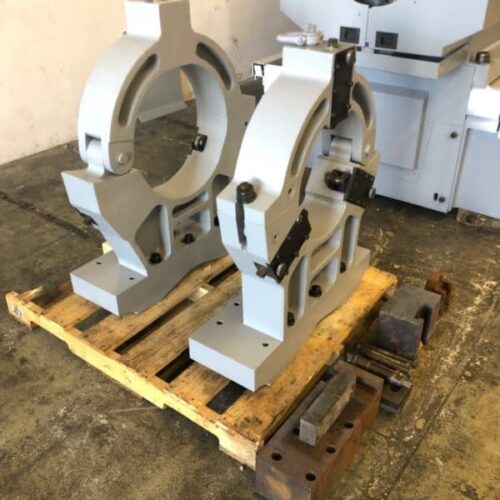

  • 16″ Steady Rest
  • 11″ Steady Rest

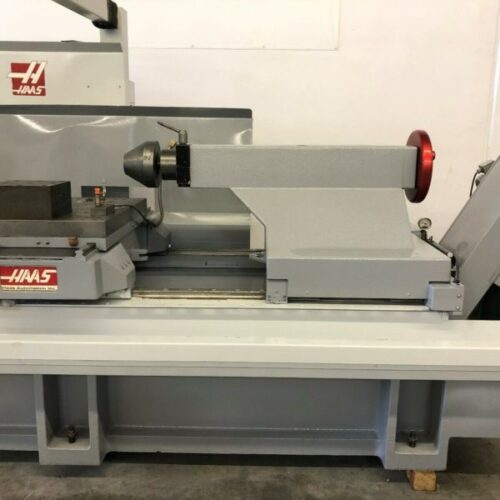

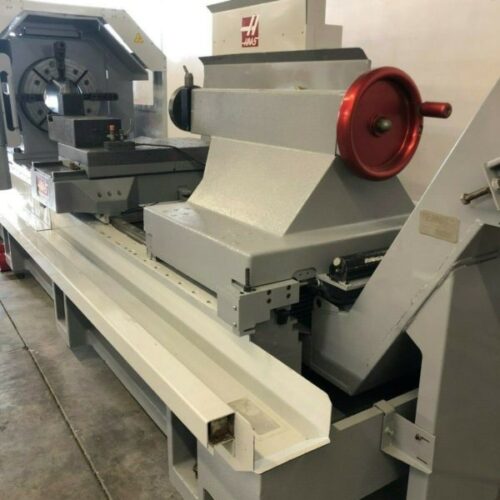

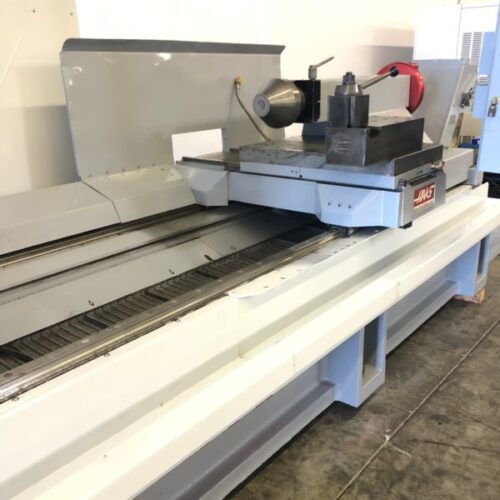

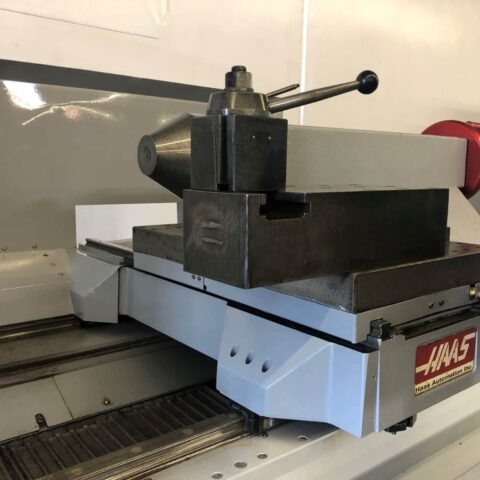

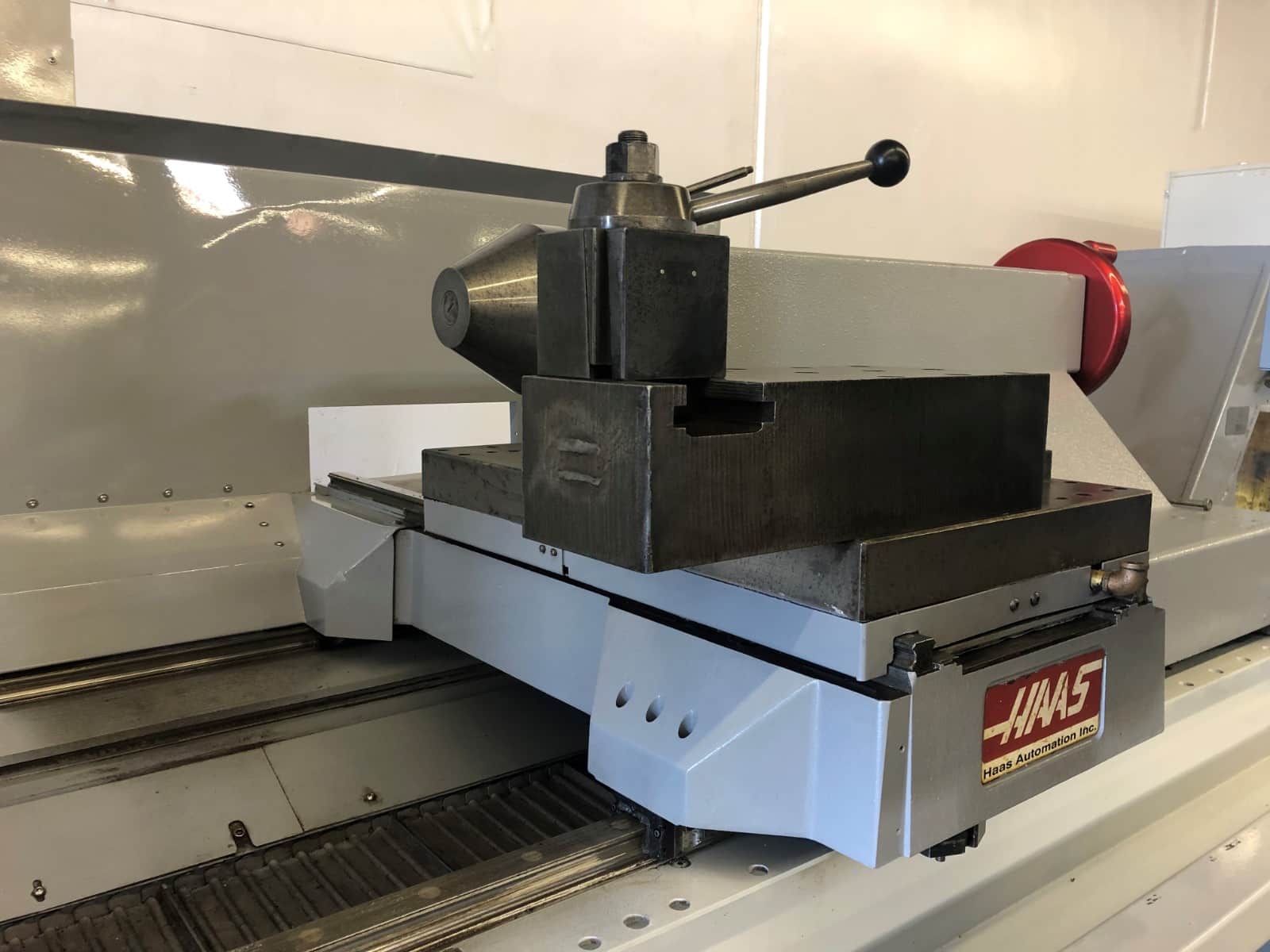

  • Heavy Duty Tailstock and Quill
  • USB Port
  • Tool Block Holders
  • Coolant System
  • Chip Conveyor
  • General:

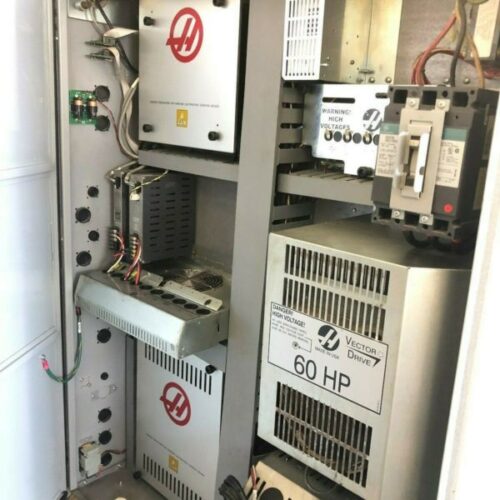

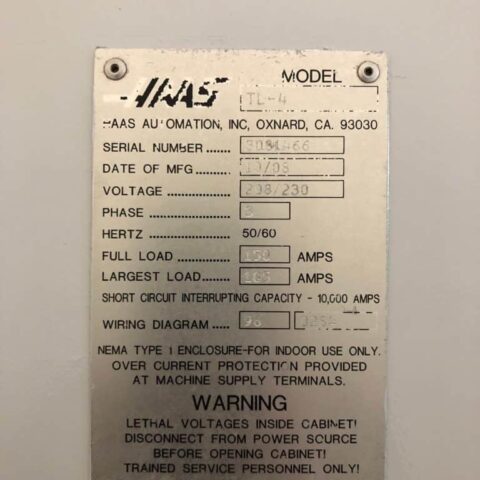

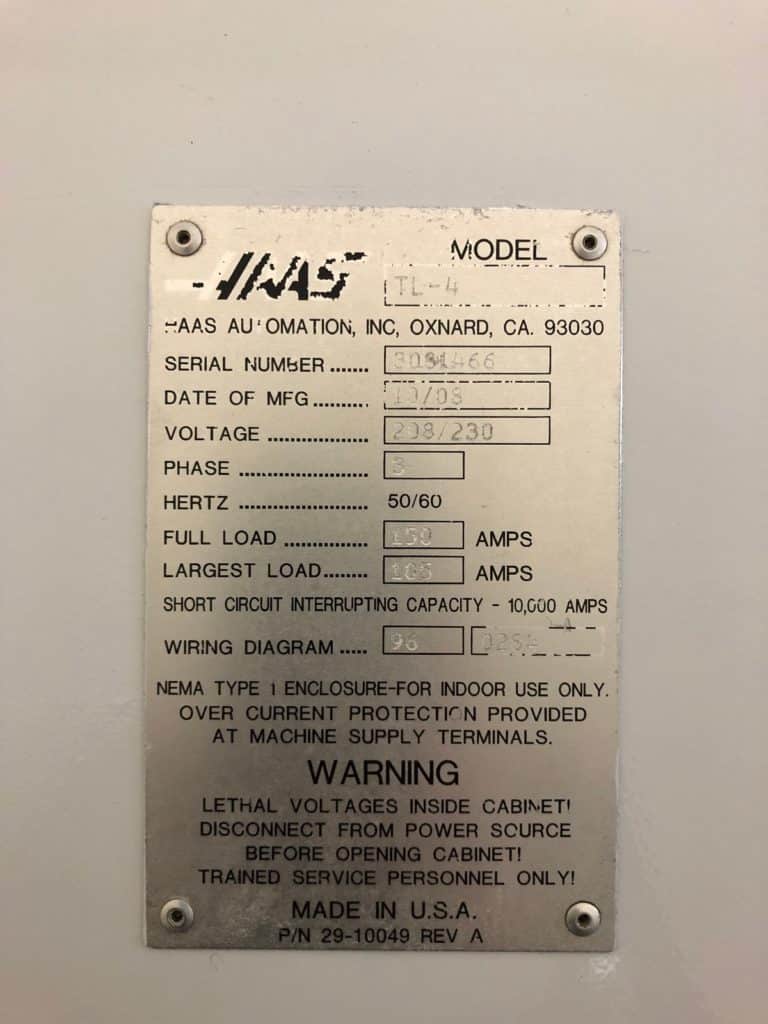

  • Power: 60 kva, 220v / 3-Phase
  • Overall Dimensions: 234″ X 100″ X 88″ High
  • Overall Dimensions: 288″ X 100″ X 88″High with Chip Conveyor
  • Weight: 27000 lbs
  • Haas TL-4 Specifications:
  • Capacity:
  • Max Turning Diameter: 35.0″
  • Max Turning Length: 80.0″
  • Max Bar Capacity: 10.8″
  • Swing Over Apron: 35.0″
  • Distance Between Centers: 91.0″
  • X Axis Travel: 18.0″
  • Z Axis Travel: 80.0″
  • Rapid Traverse X Axis: 150 IPM
  • Rapid Traverse Z Axis: 320 IPM
  • Spindle Nose: A1-20
  • Spindle Bore: 10.8″
  • Spindle Speed: 0-500RPM
  • Spindle Motor: 55 HP
  • Spindle Torque: 4000ft-lbs
  • Tailstock Taper: MT-5
  • Tailstock  Quill Dia.: 8.97″
  • Tailstock Quill Travel: 5.9″

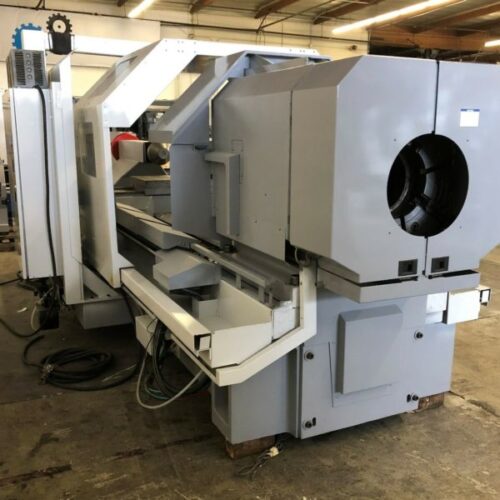

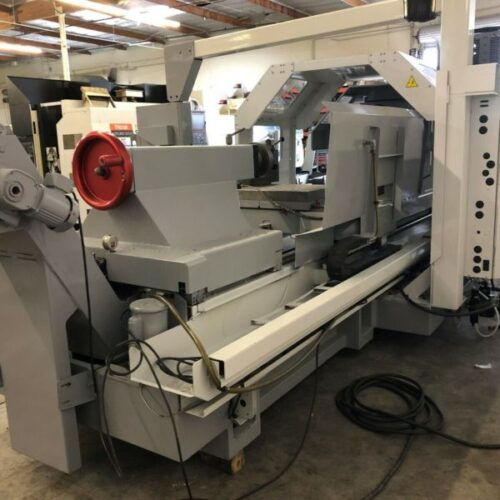

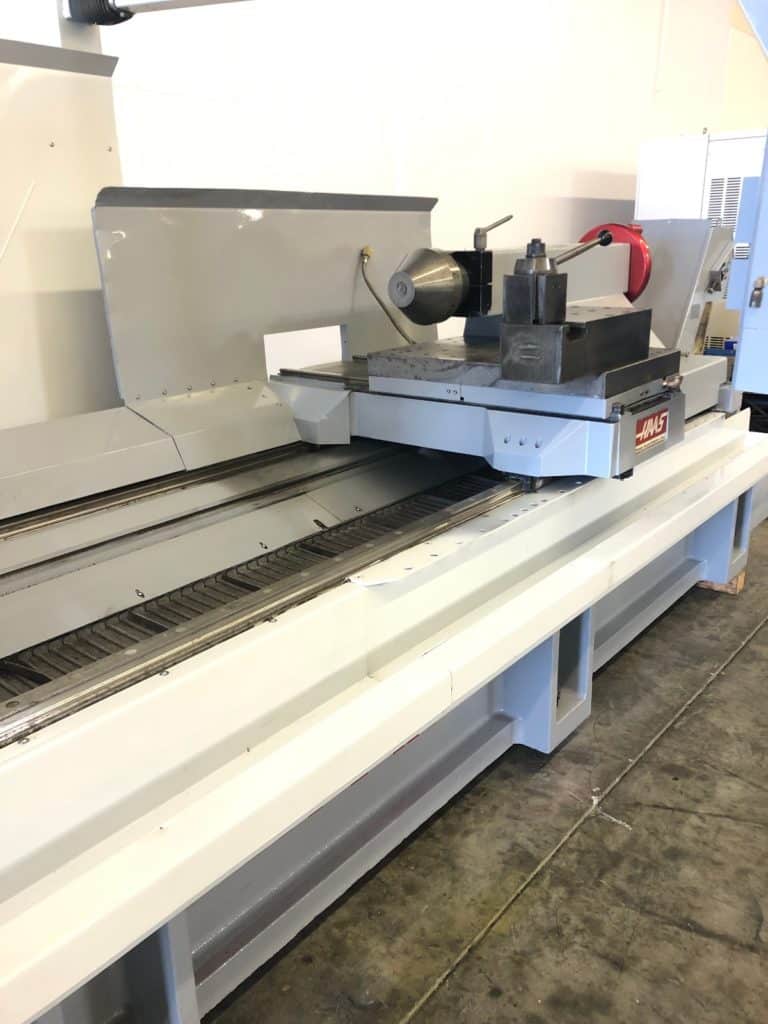

Haas TL-4 Comes as shown in pictures..
