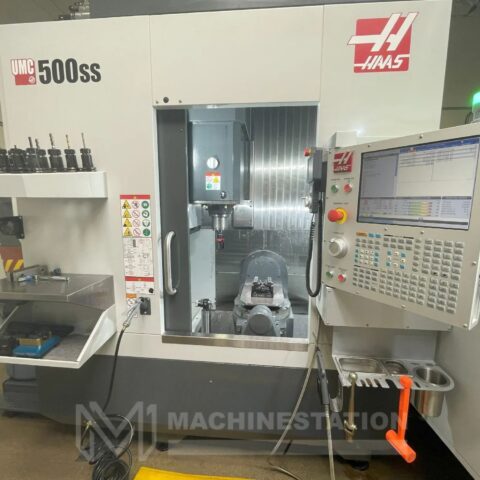

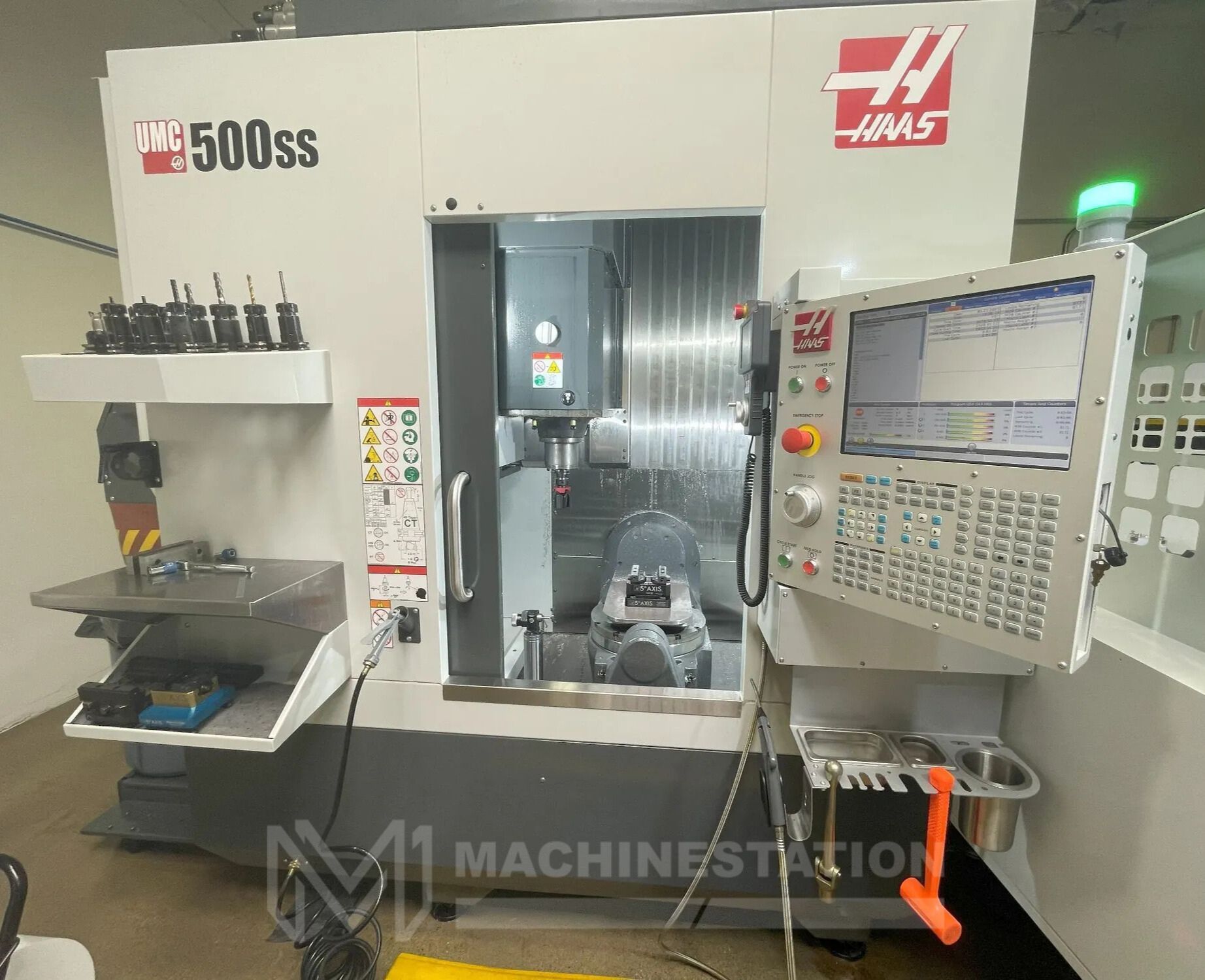

Used Haas UMC-500SS 5-Axis CNC Universal Machining Center For Sale

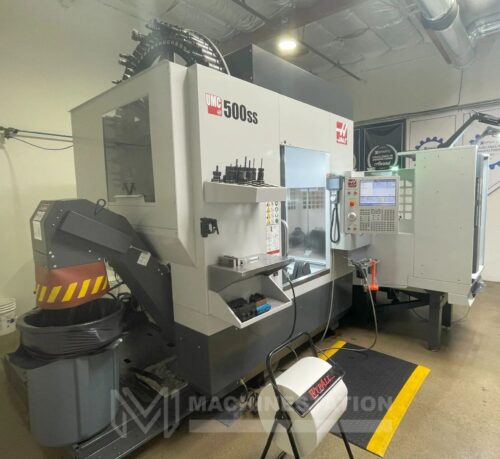

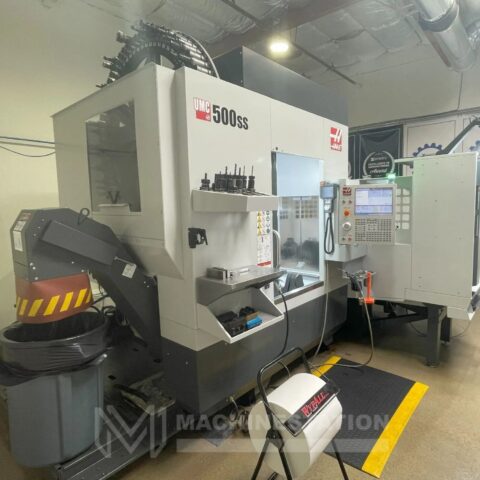

Haas UMC-500SS 5-Axis CNC Universal Machining Center – 10 Pallet Pool Mill 2022

SKU 115083

Make/Model Haas UMC-500SS

Year 2022

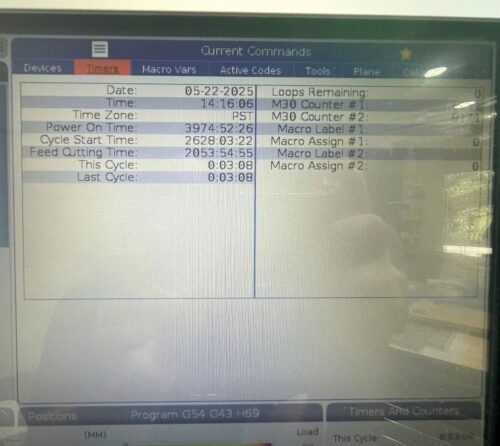

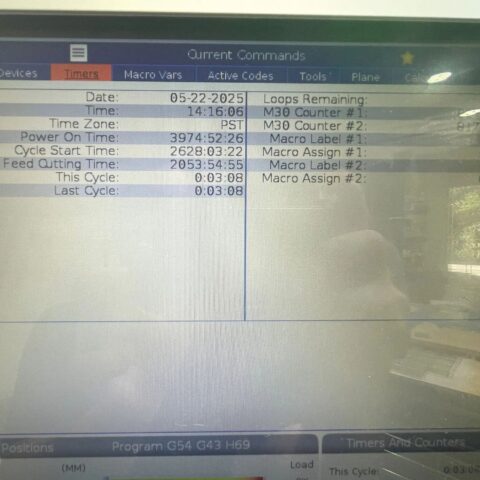

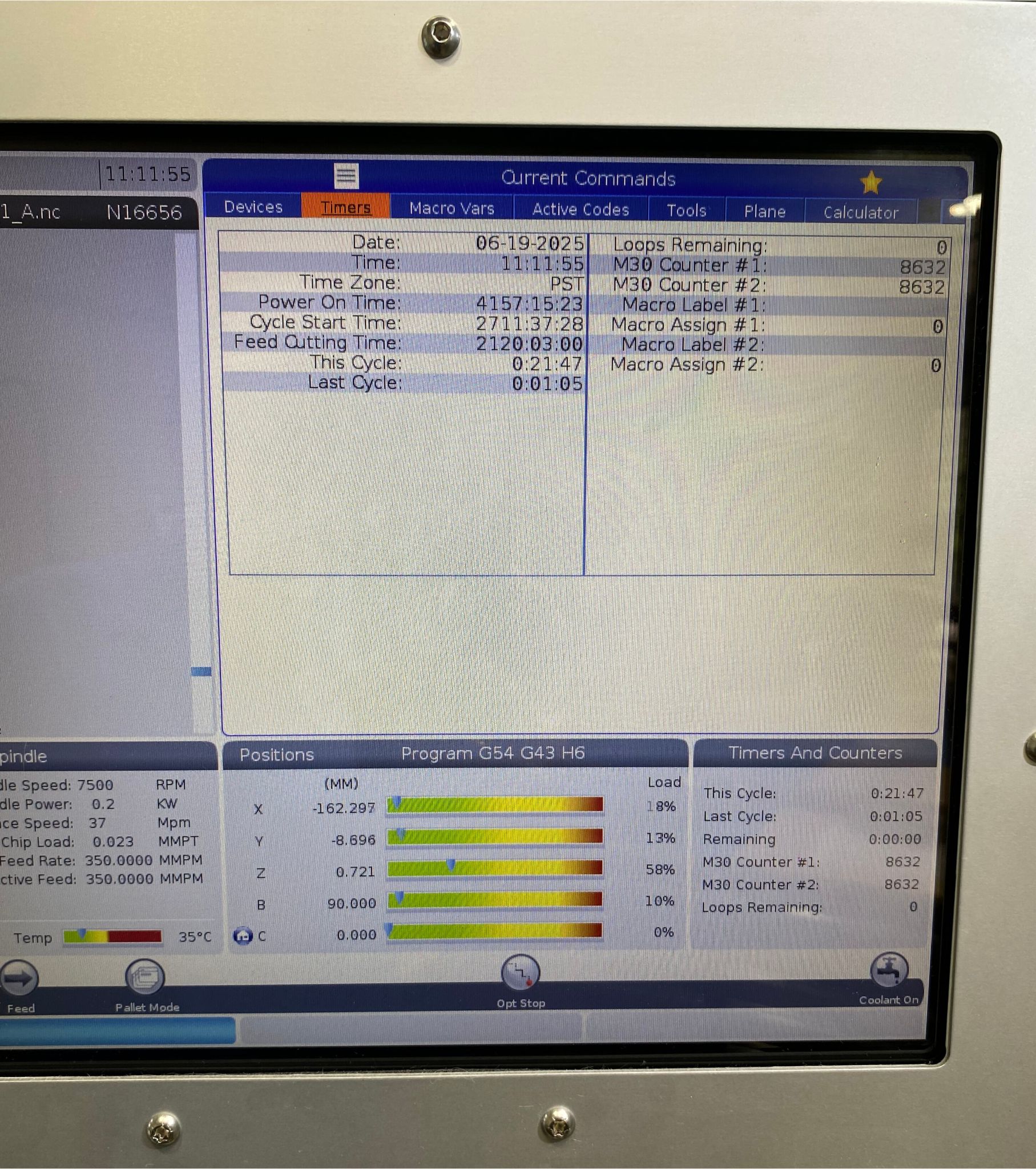

Cutting Time 2,120 Hours

Video On Request

Out of stock

Avoid Paying More! New Haas prices just went up 5% as of May 1st — plus, long lead times on new machines mean delays and higher costs. This 2022 Haas UMC-500SS is fully equipped with 10 Pallet Pool, 70 Station Super Speed Automatic Tool Changer, High Speed Machining, 32 GB Expanded Memory and Belt-Type Chip Conveyor.
“Replacement Cost Over $337,000 with Similar Options”

SKU:	115083
Make/Model:	Haas UMC-500SS
Year:	2022
Cutting Time:	2,120 Hours
Video:	On Request

SKU: 115083

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Haas
Model:	UMC500SS
Year:	2022

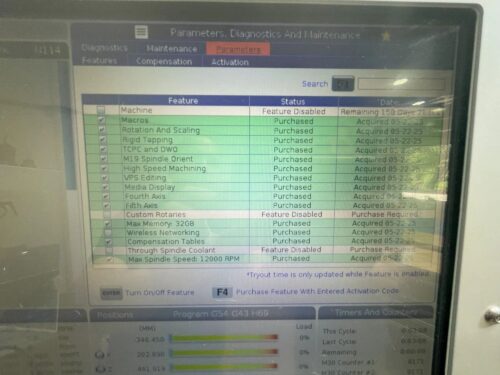

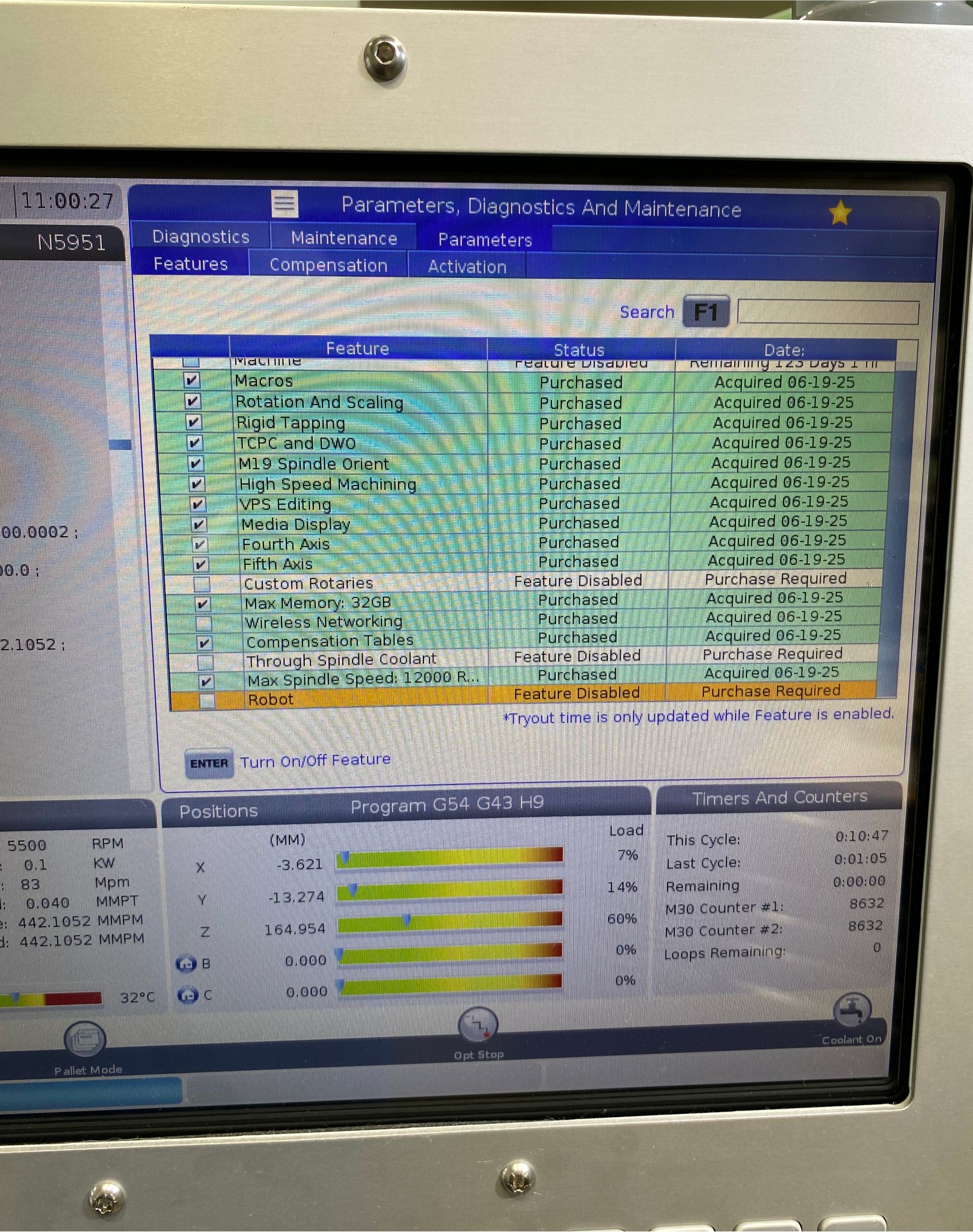

Features:
Haas CNC Control
Haas Trunnion Table

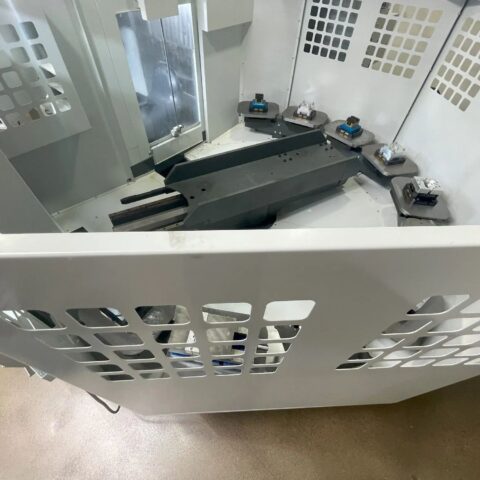

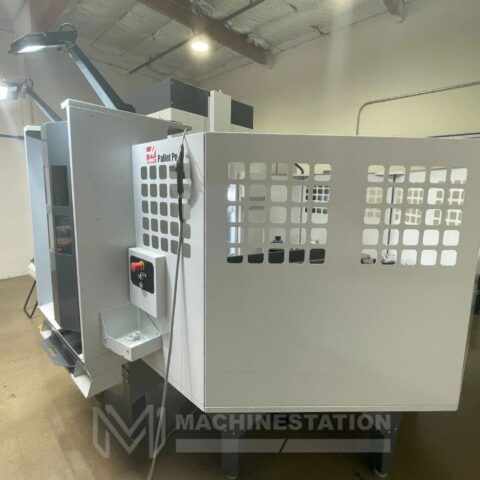

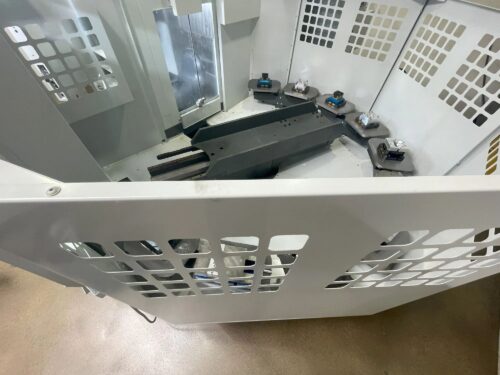

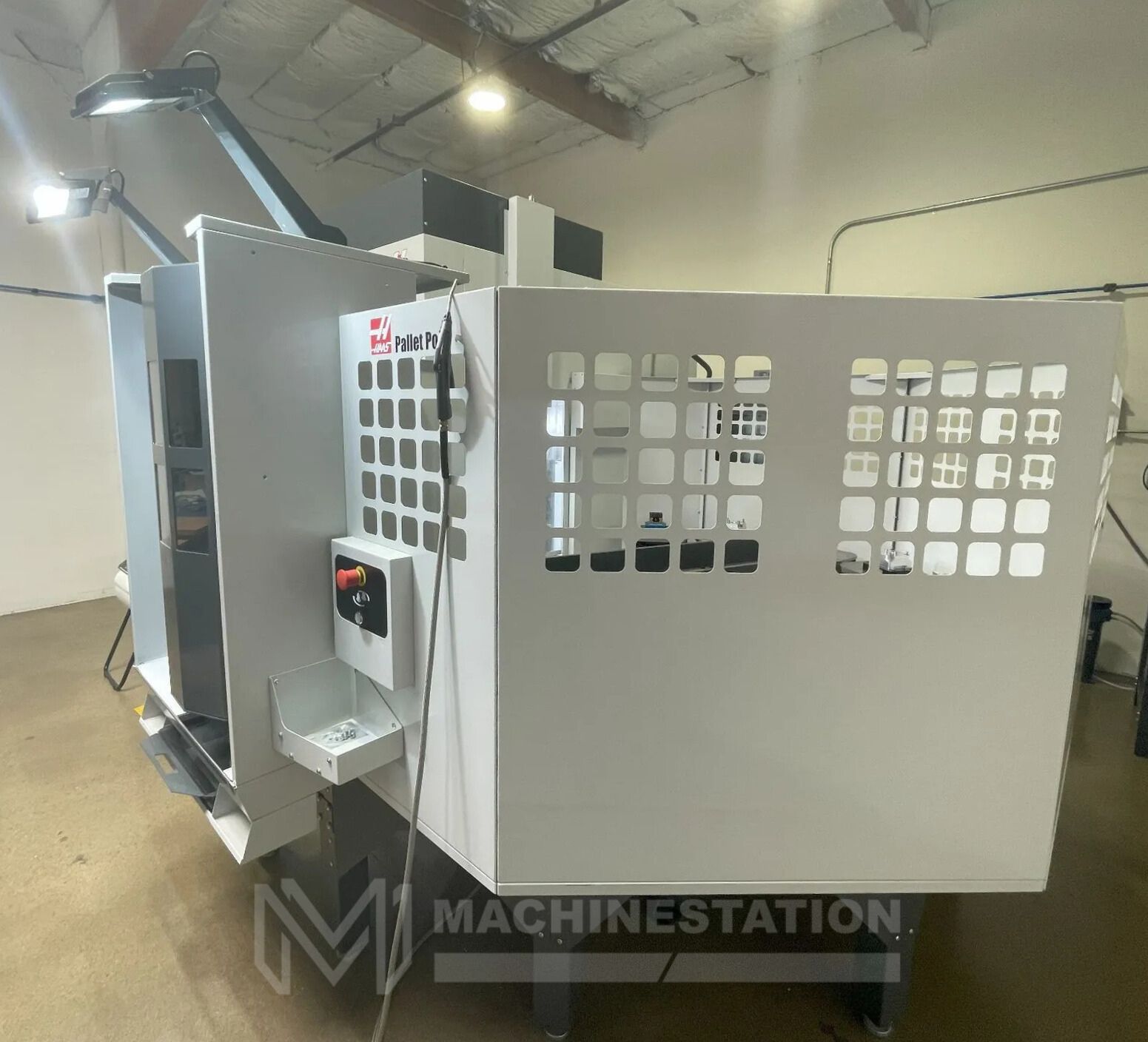

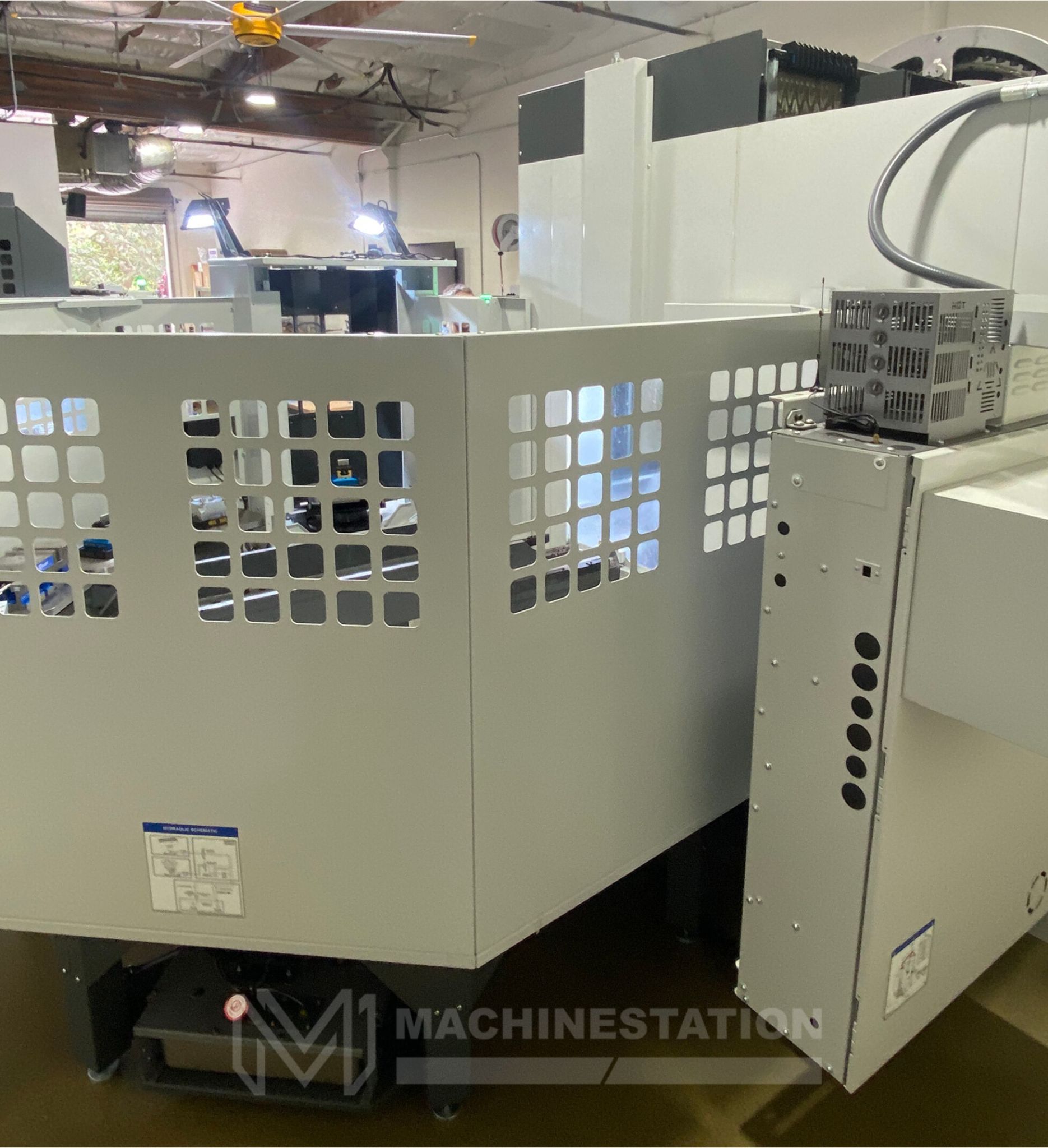

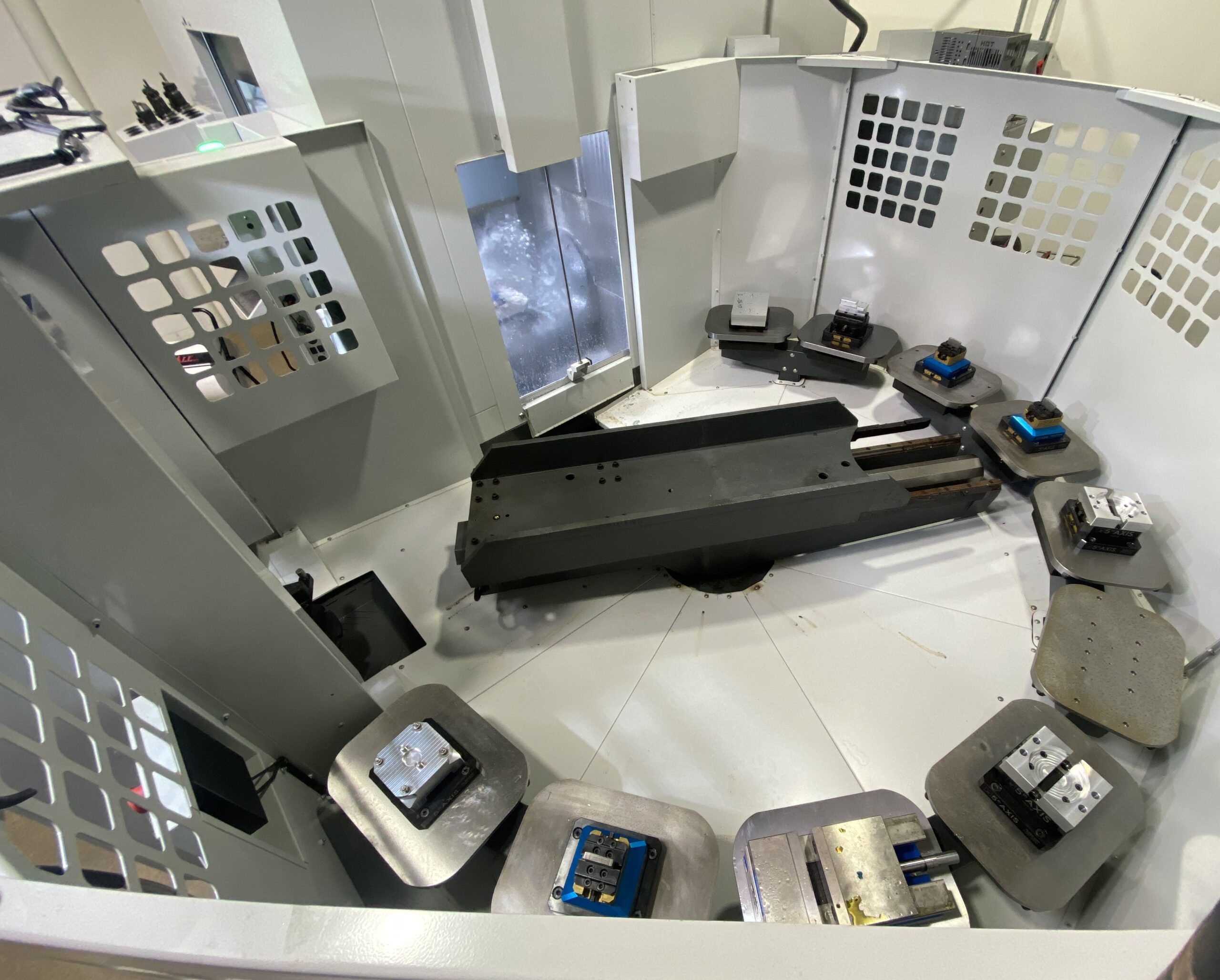

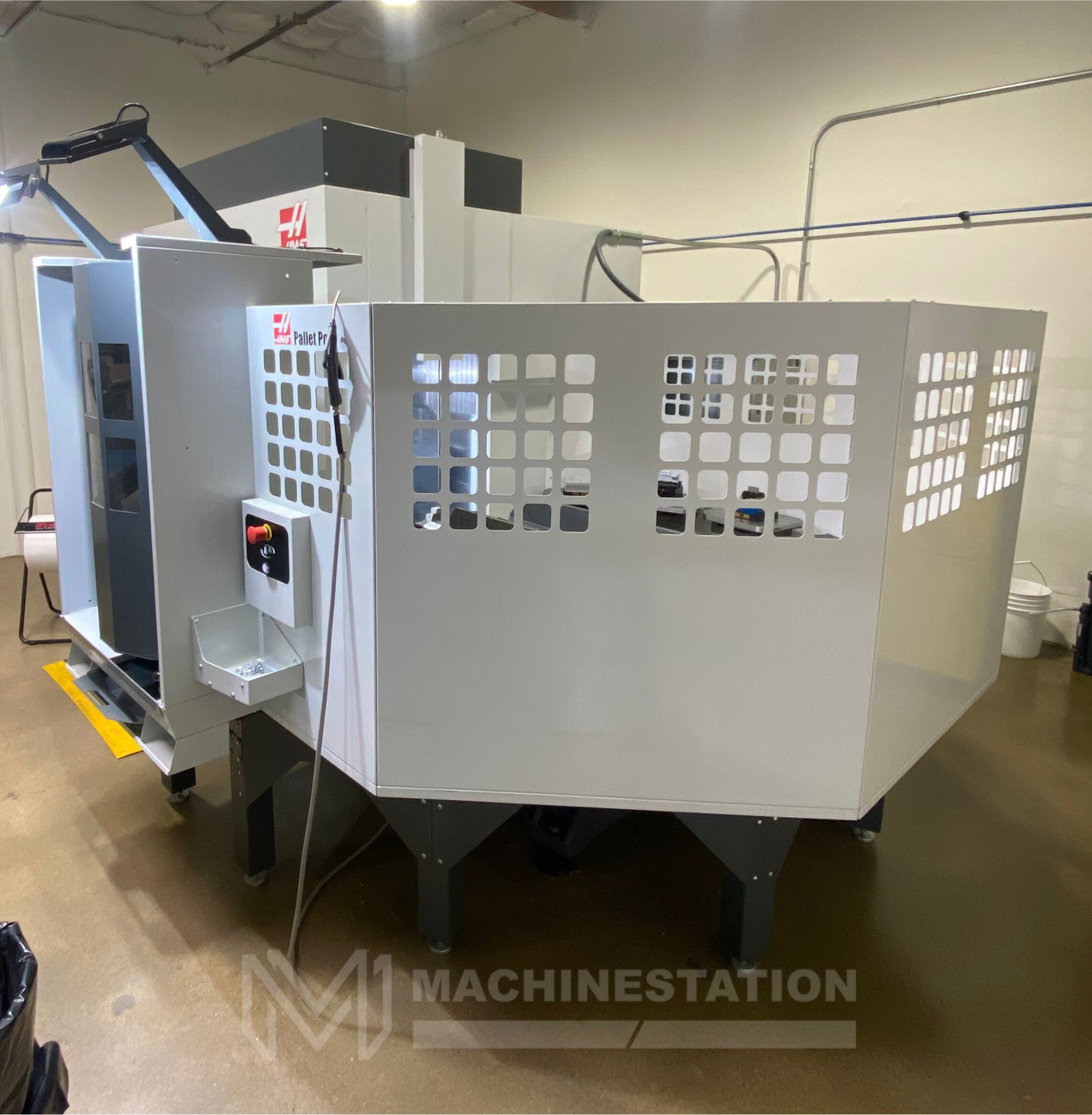

10 Pallet Pool (Upgraded $115,895 value Included)
12,000 RPM High Speed Spindle
70 Station Super Speed Automatic Tool Changer (Upgraded $34,795 value Included)
Through Spindle Coolant Ready (Pump Needed) (Upgraded $1,395 value Included)
High Speed Machining
Tool Presetter
30 HP High Torque Spindle
Large Remote Jog Handle
Spindle Orientation
Rigid Tapping
Macros
Rotation and Scaling

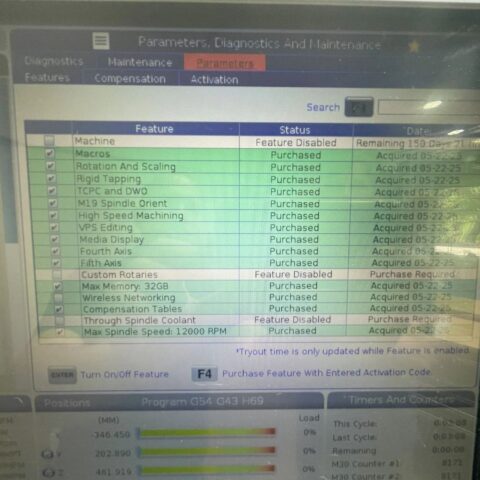

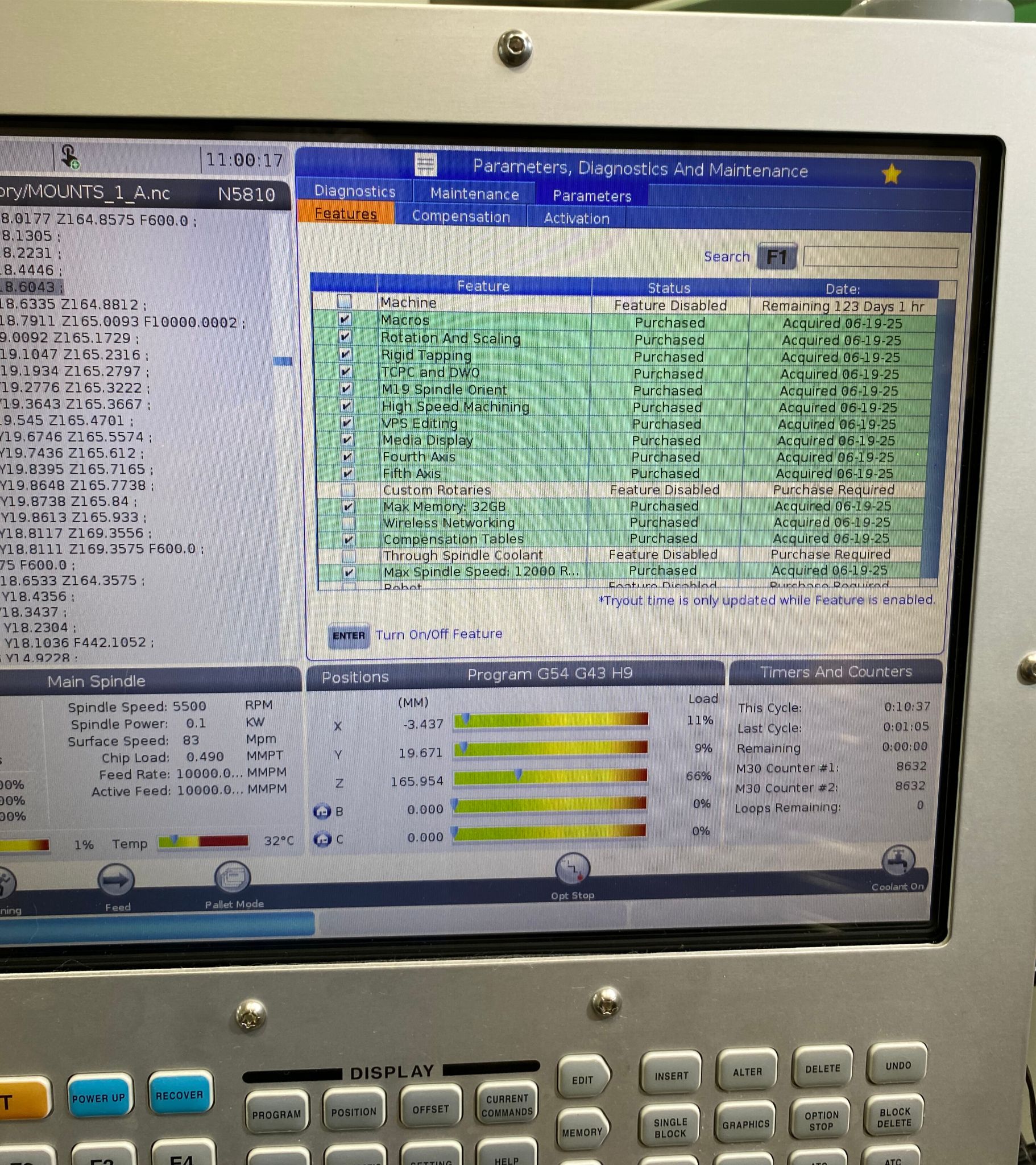

VPS Editing
Media Display
32 GB Expanded Memory (Upgraded $1,695 value Included)
95 Gallon Coolant Tank

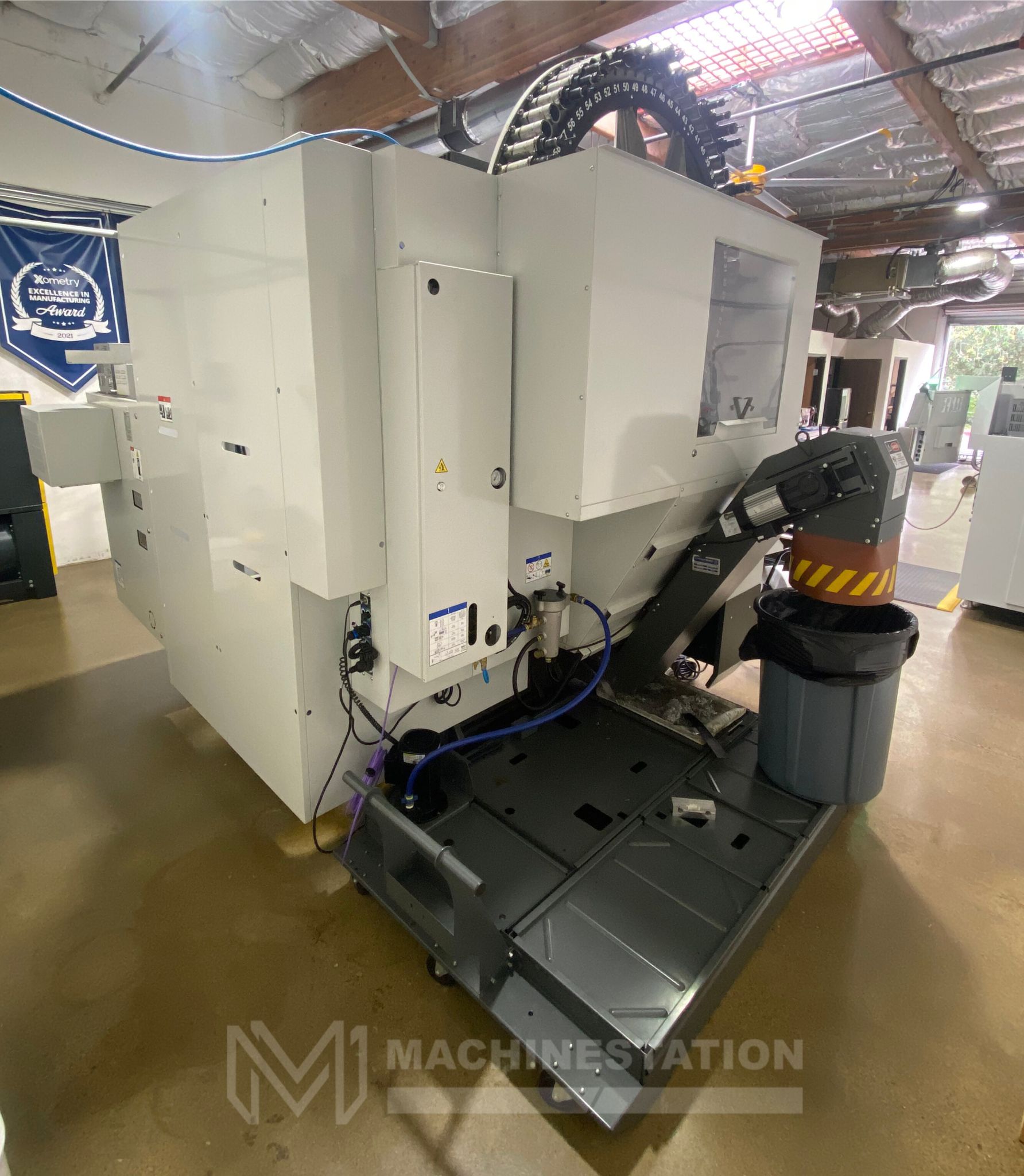

Belt-Type Chip Conveyor (Upgraded $7,995 value Included)

Travels:
X-Axis: 24″
Y Axis: 16″
Z Axis: 16″
B-Axis (Table Tilt): + 120° – 35°
C Axis: 360° ( Table Rotate )
Rapid Traverse Rates: 1200 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 20″

Trunnion Table:
Platter Diameter: 15.70″
Max Weight on Platter: 500 lbs
T-Slot Width: 0.625″ to 0.630″
Number of Std T-Slots: 5

Spindle:
Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 30 HP
Vector Drive Max Torque: 90ft-lb @ 2000 RPM

Automatic Tool Changer:
Capacity: 70 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 12″
Tool-to-Tool Changing Time: 1.8 Seconds

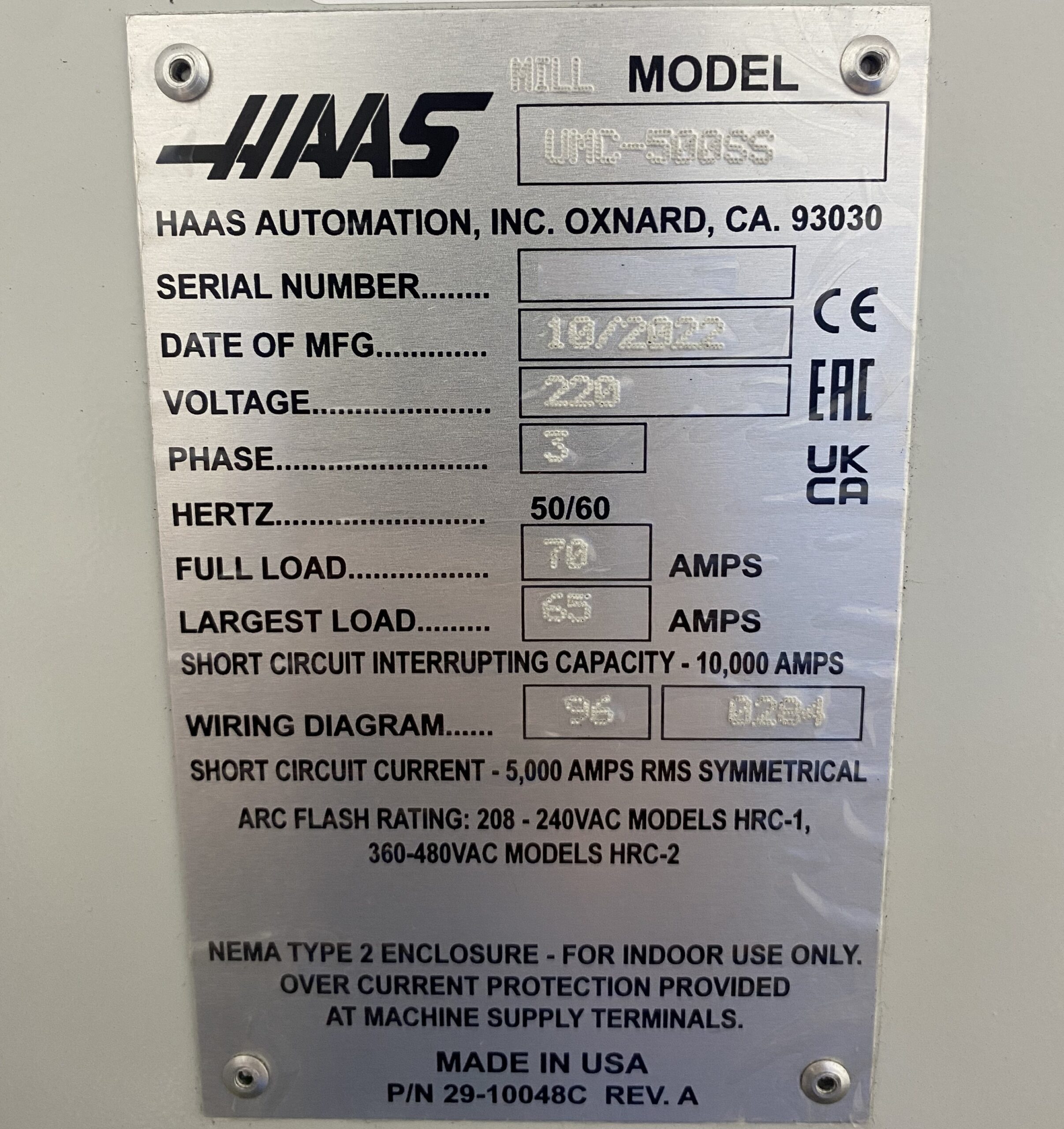

General:
Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 128″ x 101″ x 120″ High (Only Machine)
Weight: 13,320 lbs. (Only Machine)

Travels:
X-Axis: 610 mm
Y Axis: 406 mm
Z Axis: 406 mm
B-Axis (Table Tilt): + 120° – 35°
C Axis: 360° ( Table Rotate )
Rapid Traverse Rates: 1200 Inch Per Minute
Cutting Feed Rates: 650 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 102 mm – 508 mm

Trunnion Table:
Platter Diameter: 399 mm
Max Weight on Platter: 500 lbs
T-Slot Width: 16 mm to 16 mm
Number of Std T-Slots: 5

Spindle:
Taper Size: 40
Speed Range: 12,000 RPM
Spindle Power: 30 HP
Vector Drive Max Torque: 90ft-lb @ 2000 RPM

Automatic Tool Changer:
Capacity: 70 Station Side Mounted
Max Tool Weight: 12 lbs
Max Tool Diameter (Full): 64 mm
Max Tool Diameter (adjacent empty): 127 mm
Max Tool Length: 305 mm
Tool-to-Tool Changing Time: 1.8 Seconds

General:
Air Required: 100 psi 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 3,251 mm x 2,565 mm x 3,048 mm High (Only Machine)
Weight: 13,320 lbs. (Only Machine)

Make	Haas
Model	UMC-500SS
Categories	CNC Multi Axis Machining Center

Haas CNC Control
Haas Trunnion Table
10 Pallet Pool (Upgraded $115,895 value Included)
12,000 RPM High Speed Spindle
70 Station Super Speed Automatic Tool Changer (Upgraded $34,795 value Included)
Through Spindle Coolant Ready (Pump Needed) (Upgraded $1,395 value Included)
High Speed Machining
Tool Presetter
30 HP High Torque Spindle
Large Remote Jog Handle
Spindle Orientation
Rigid Tapping
Macros
Rotation and Scaling
VPS Editing
Media Display
32 GB Expanded Memory (Upgraded $1,695 value Included)
95 Gallon Coolant Tank
Belt-Type Chip Conveyor (Upgraded $7,995 value Included)

Payment Terms

A booking deposit secures the machine, with the remaining balance due prior to loading or shipment. We accept bank transfer, wire transfer, and approved payment methods.
