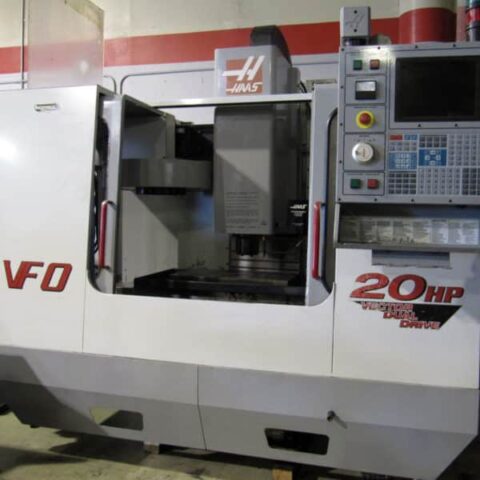

Haas VF-0 Vertical Machining Center
Out of stock
- HAAS VF-0 Features:
- Made entirely in The U.S.A.
- 4th Axis Ready
- Rigid Tap
- 50 to 7,500-RPM Spindle Driven by a 20 HP Motor

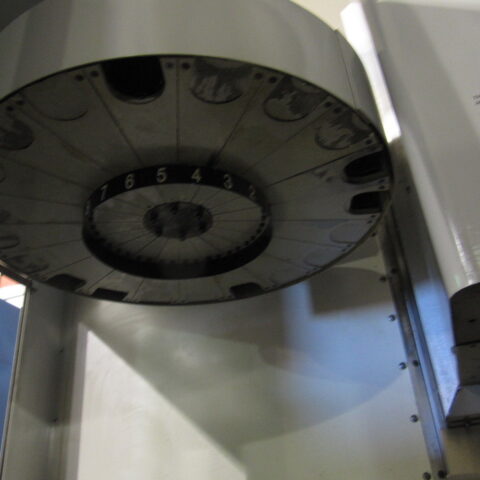

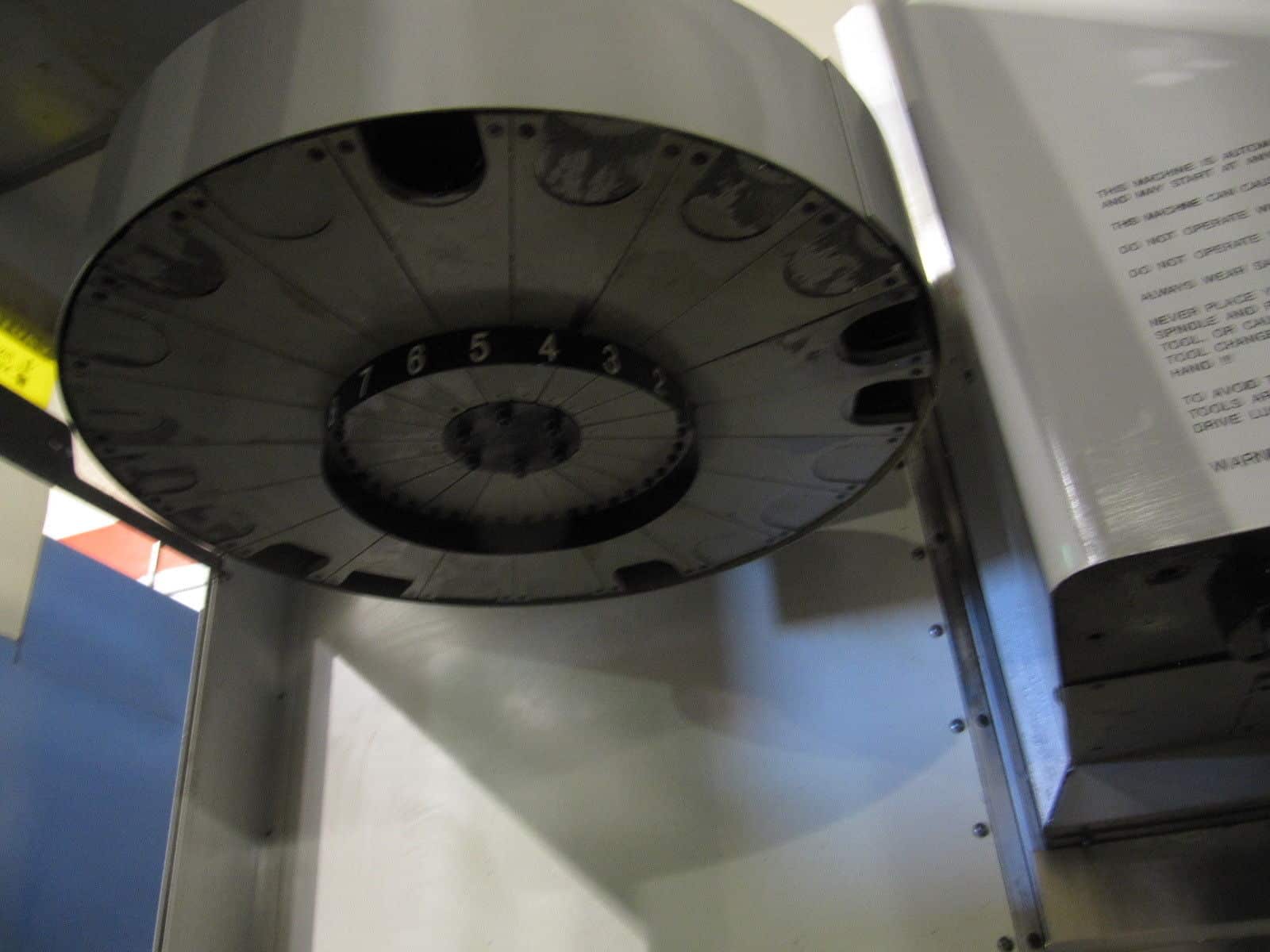

- 20-Station CT-40 Carousel Automatic Tool Changer
- Heavy-Duty Sheet metal Enclosure (with new windows installed)
- Coolant System

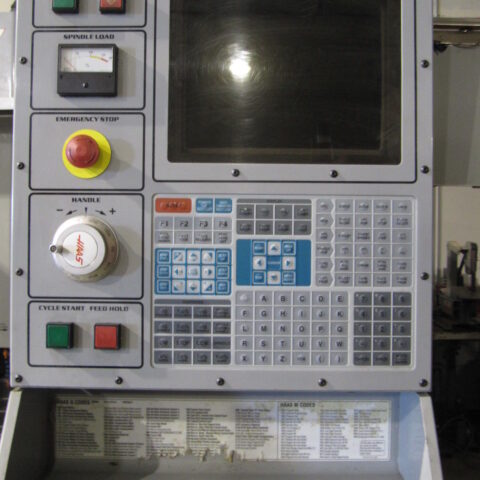

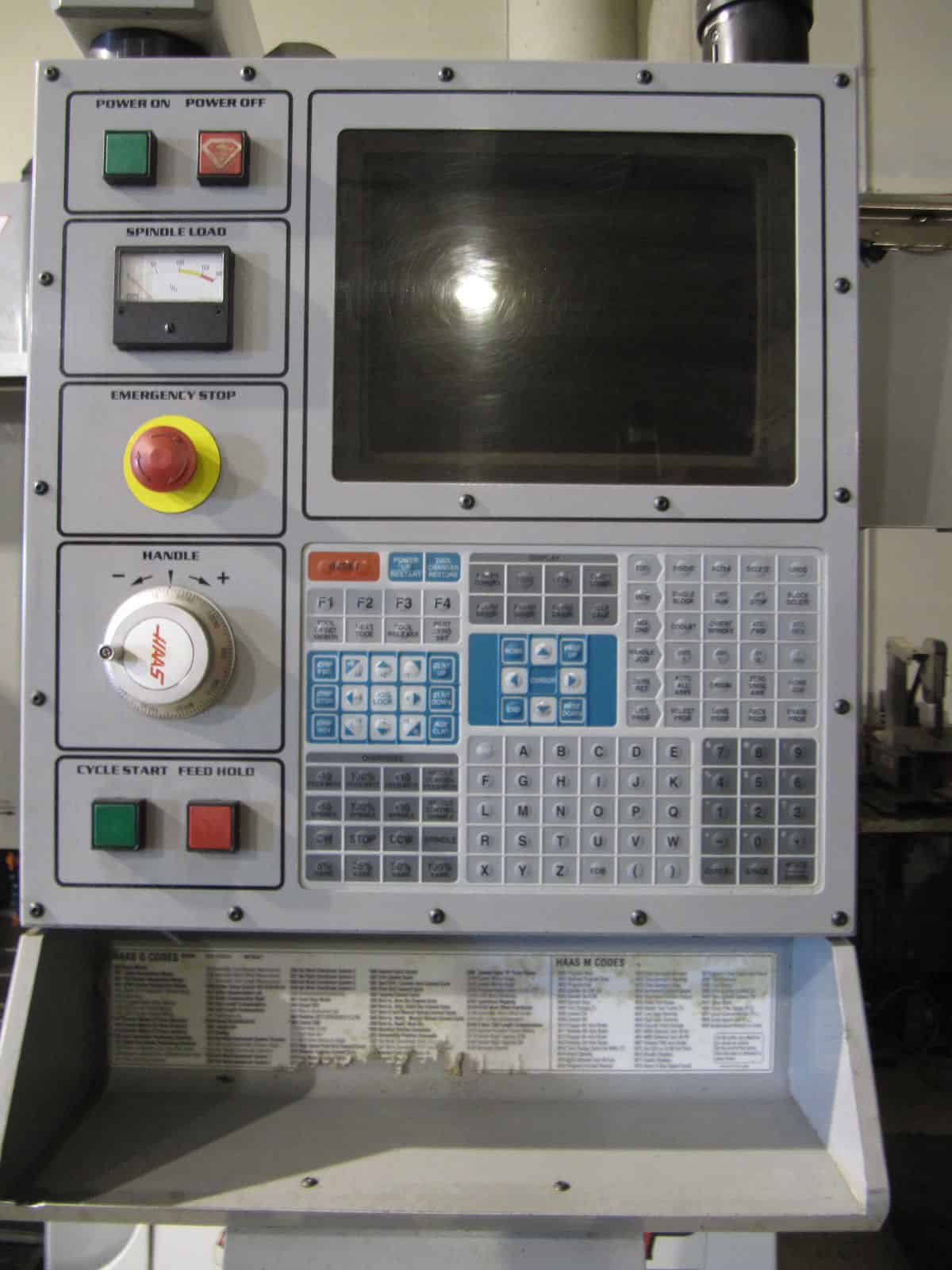

- 32-Bit CNC Control
- 3.5″ Floppy Drive
- Dual RS232 Ports
- Chip Auger System
- Delta / WYE
- One Button Power-up
- Standard 256K Memory
- Recirculating Ball Guideways
- 208/230 VAC 3-Phase Power
- Automatic Lubrication System
- HAAS VF-0 Specifications:
- Travels:
- X-Axis: 20″
- Y-Axis: 16″
- Z-Axis: 20″
- Rapid Traverse Rates: 710 Inch Per Minute
- Cutting Feed Rates: 300 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 24″

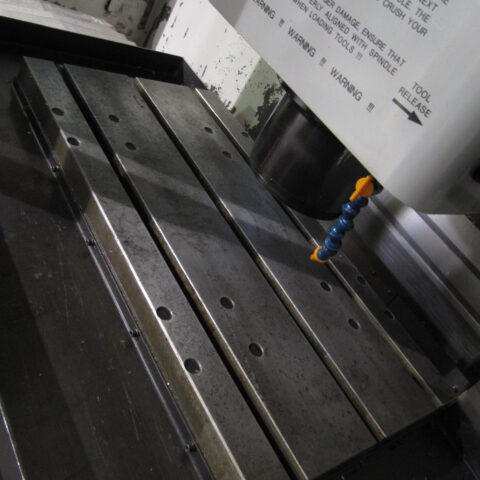

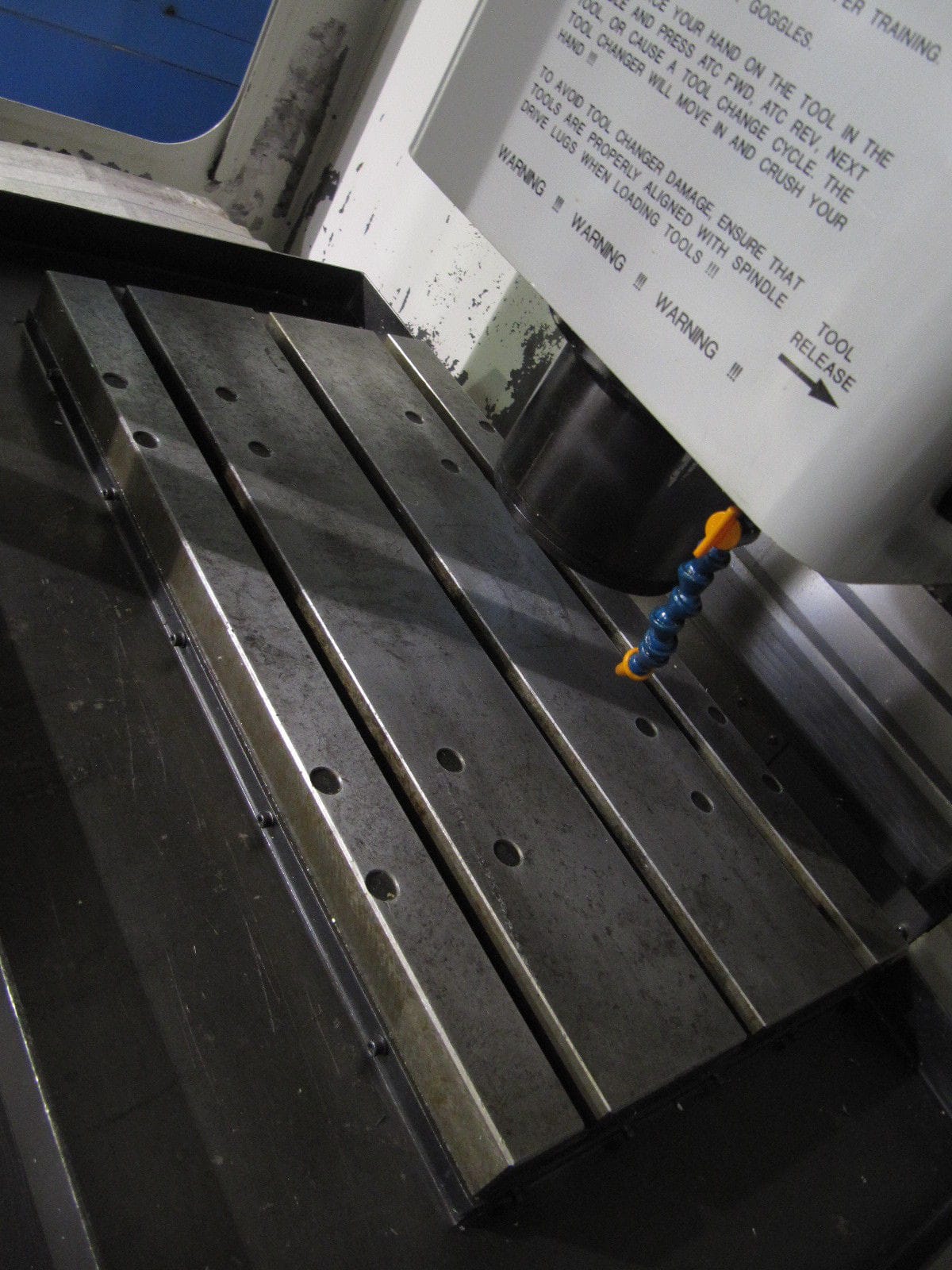

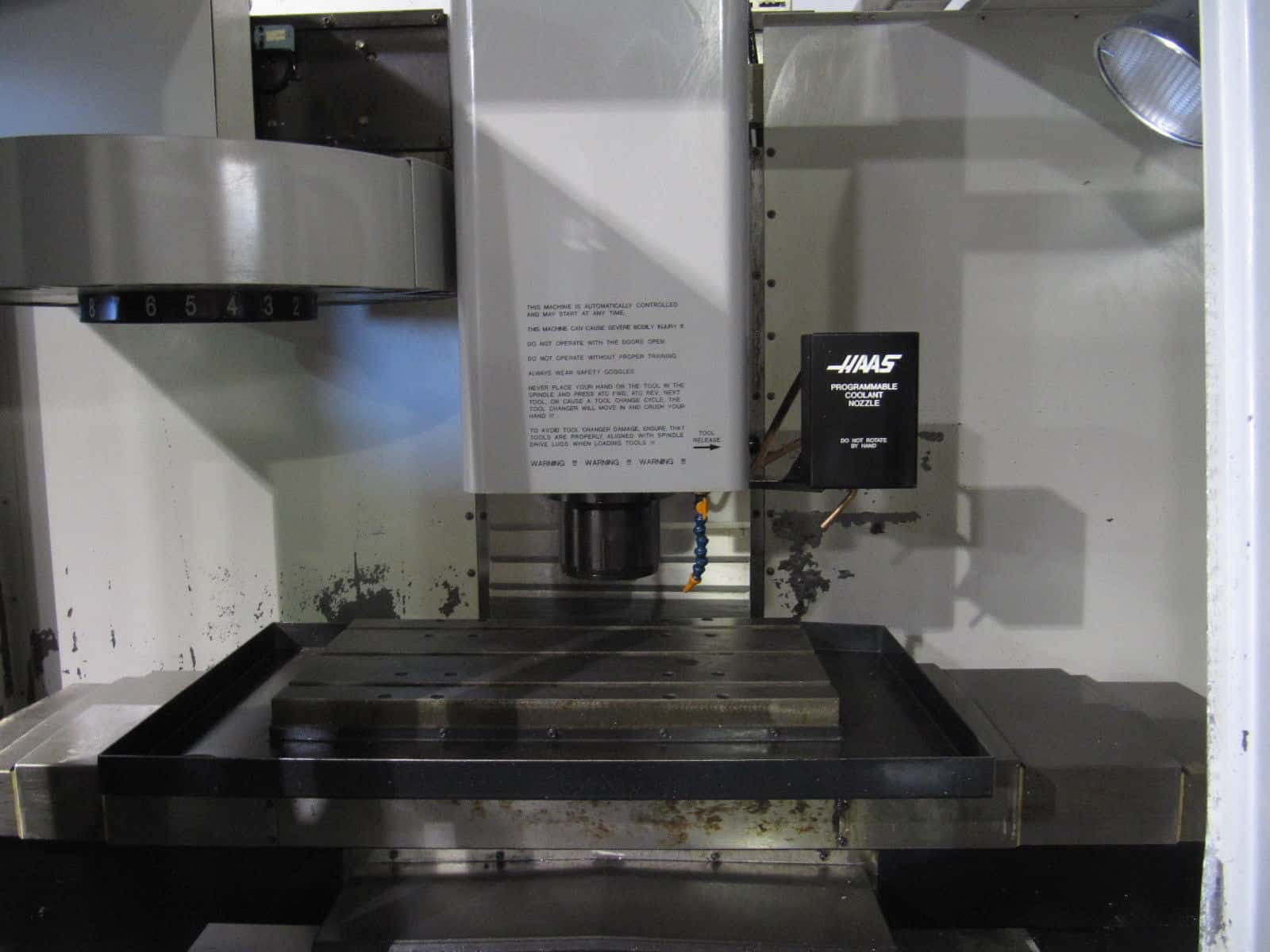

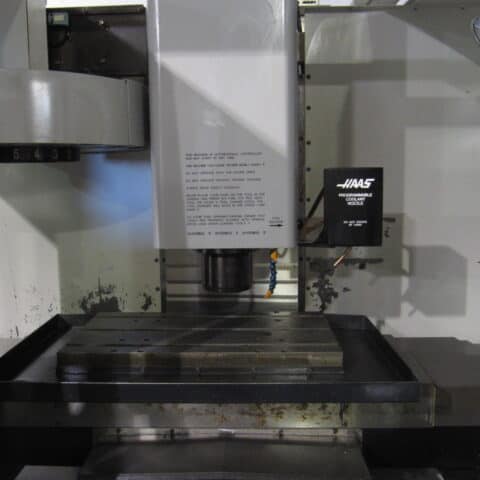

- Table:
- Length: 26″
- Width: 14″
- Number of Std T-Slots: 3
- T-Slot Width: 5/8″
- Max Weight on Table: 3000 lbs
- Spindle:
- Taper Size: CAT 40
- Speed Range: 0 – 7500 RPM
- Spindle Power: 10 HP
- Max Torque: 50ft-lb @ 1200 RPM
- Drive System: Direct Speed Belt Drive
- Bearing Lubrication: Air/Oil Injection
- Cooling: Liquid Cooled
- Automatic Tool Changer:
- Capacity: 20
- Max Tool Weight: 12 lbs
- Max Tool Dia: 3.5″
- General:
- Air Required: 100 psi, 4 scfm

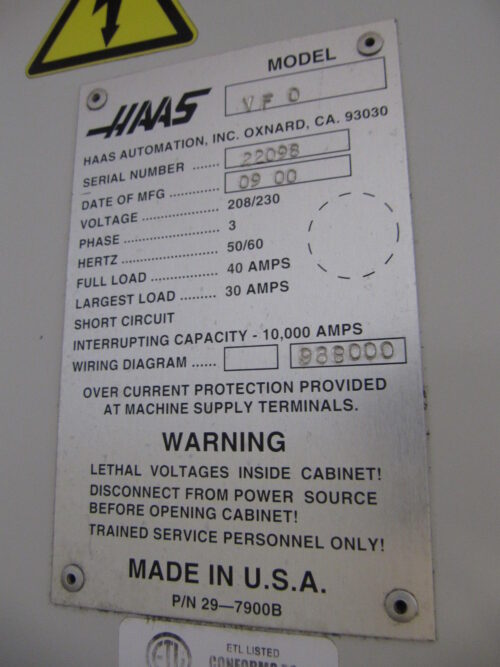

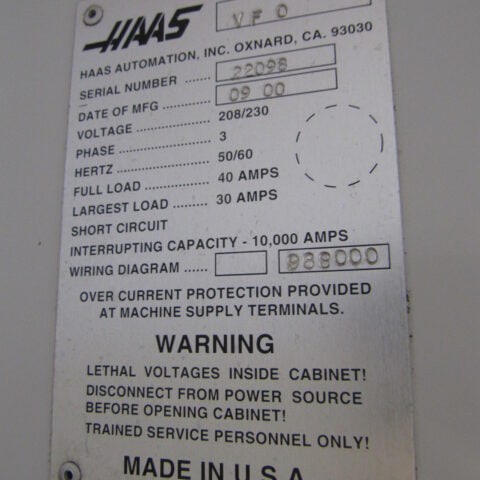

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 90″ x 92″ x 104″ High
- Weight: 7200 lbs
