*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

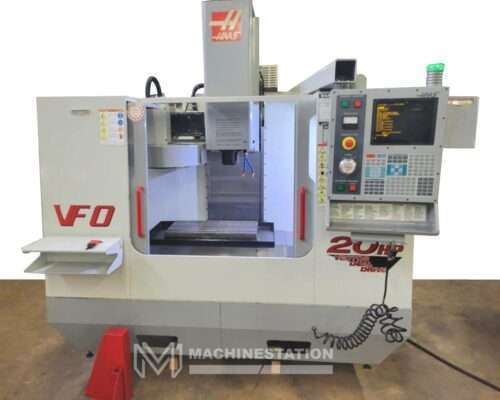

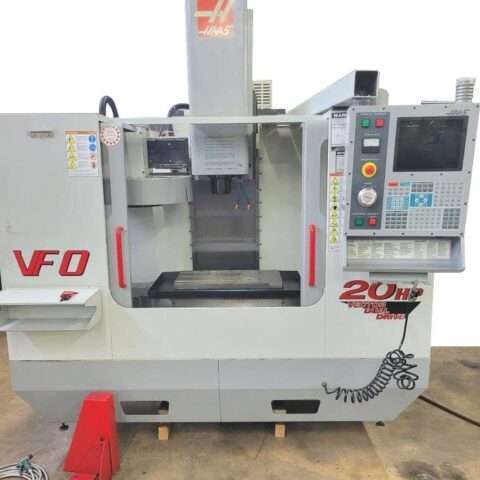

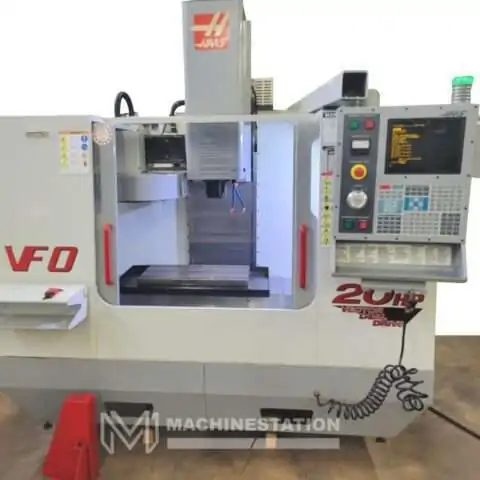

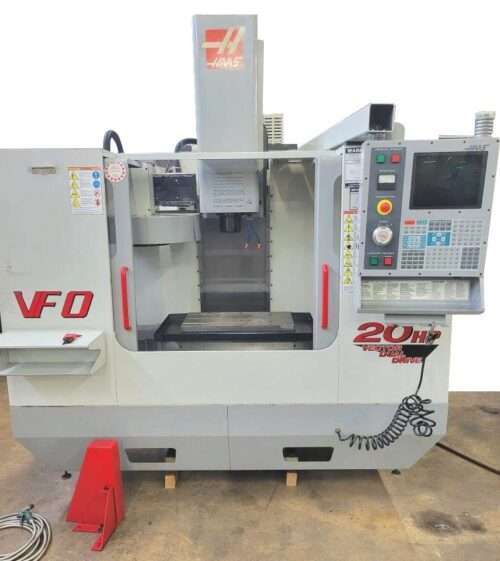

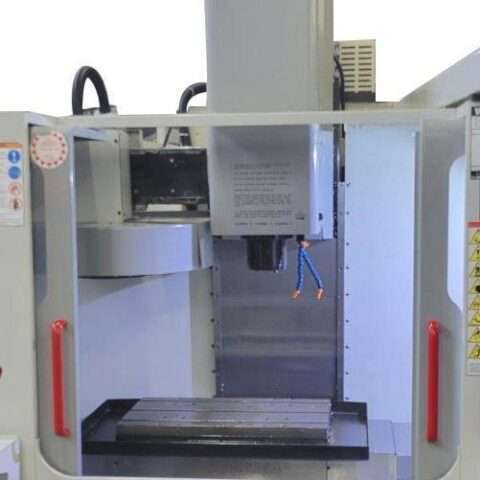

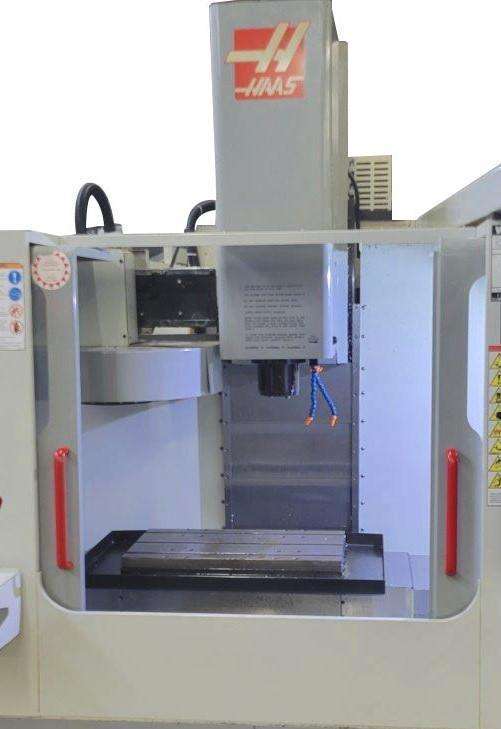

| Make: | HAAS |
| Model: | VF-0B |
| Year: | 2001 |
| Condition: | Used – Good |
| Features: |
|---|

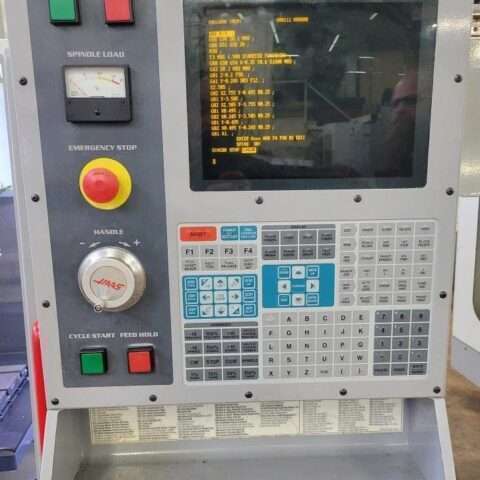

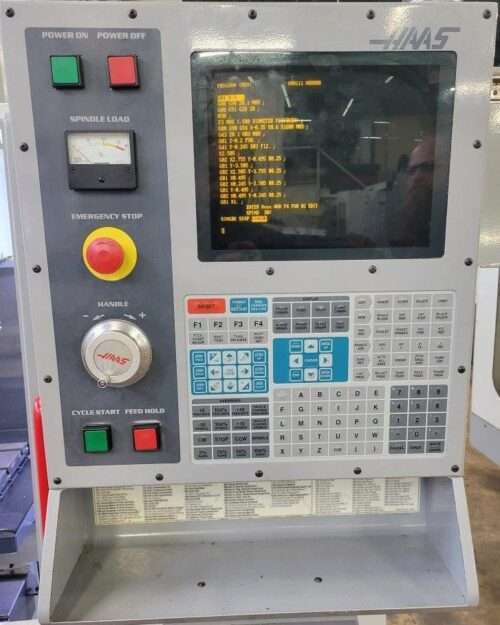

| Haas CNC Control |
| 7500 RPM Spindle |
| 20 HP High Torque Spindle |
| 20 Station Umbrella Type Tool Changer |
| Rigid Tapping |
| Spindle Orientation |
| Quick Code Programming |
| Extended Memory 1 MB |
| Coolant System |
| Machine Comes From Local College Never Used in Production |
| Travels: |
|---|
| X-Axis: 20″ |
| Y-Axis: 16″ |
| Z-Axis: 20″ |
| Rapid Traverse Rates: 710 Inch Per Minute |
| Cutting Feed Rates: 500 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 24″ |

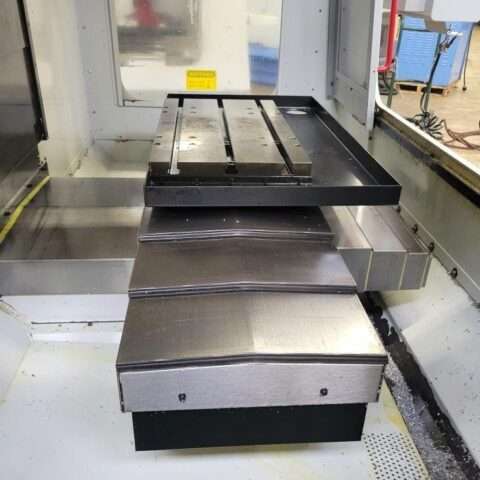

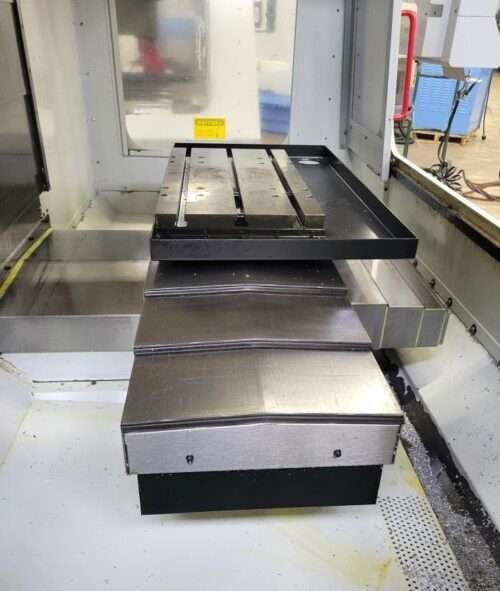

| Table: |
|---|
| Length: 26.0″ |
| Width: 14.0″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1500 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 7500 RPM |
| Spindle Power: 20 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 20 Station Umbrella Type |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 3.5″ |
| Max Tool Length: 11″ |
| Tool Changing Time: 4.2 Seconds |
| General: |
|---|

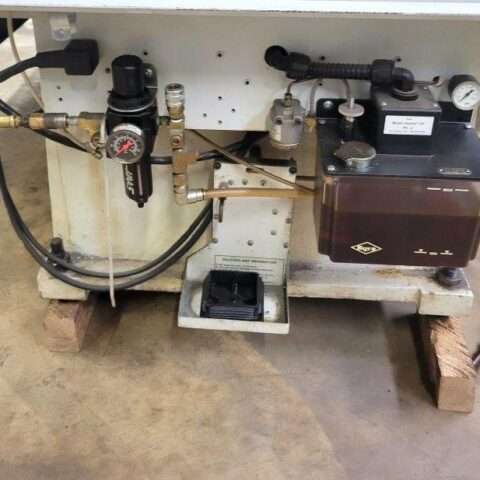

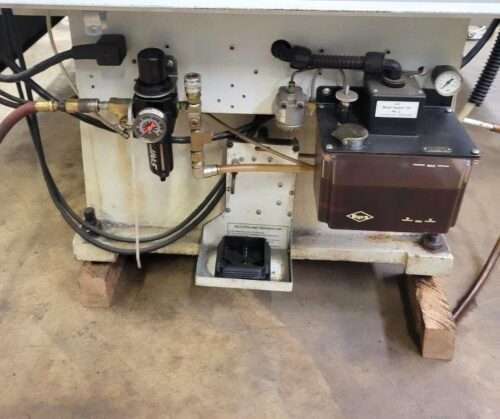

| Air Required: 100 psi 4 scfm |

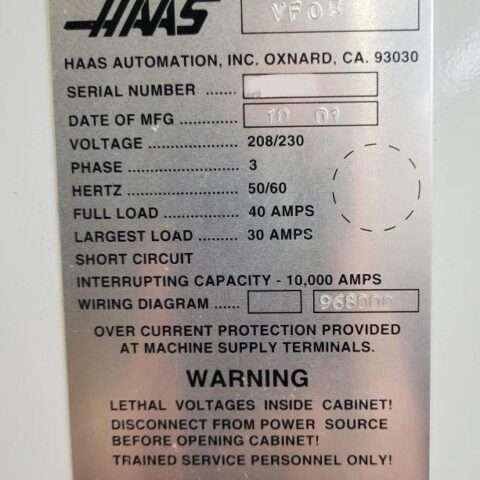

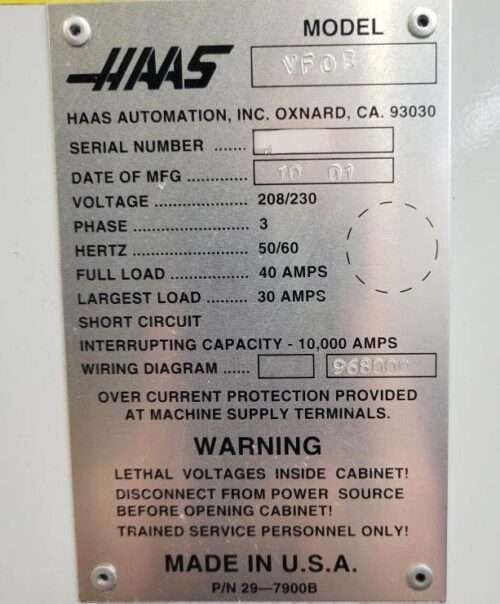

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 90″ x 88″ x 90″ High |
| Weight: 7500 lbs |
| “No Charges for loading at list Price” |
