| HAAS VF-0B VERTICAL MACHINING CENTER | |
|---|---|
| Make | Haas |
| Model No. | VF-0 |
| Year of Manufacture: | 05/01 |

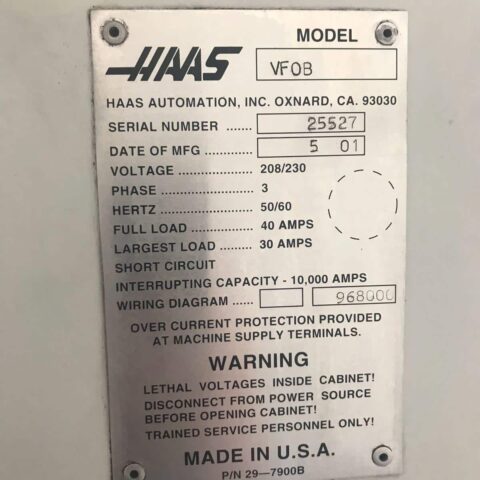

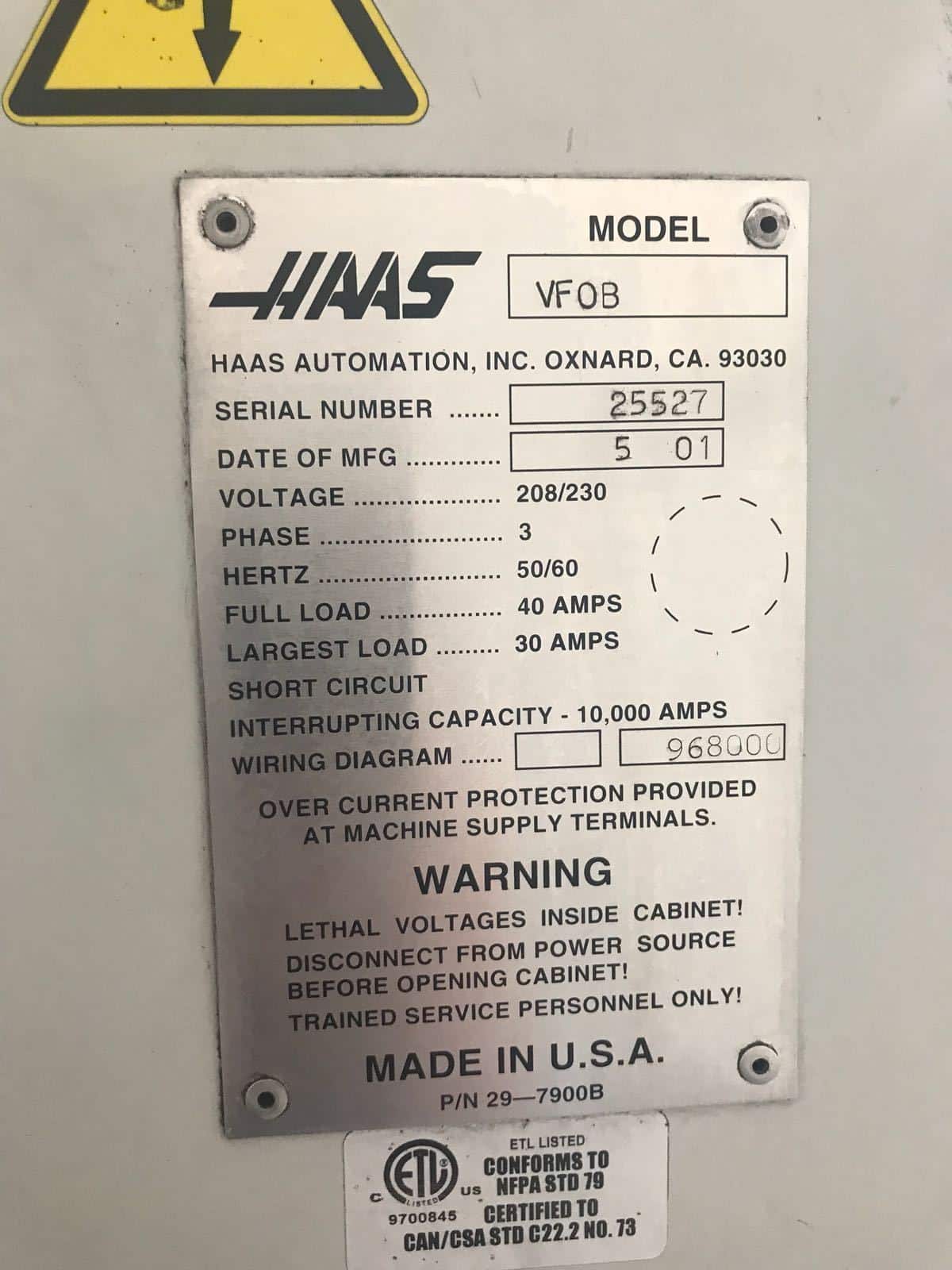

| Serial # | 25527 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
“Equipped with 15000 rpm Spindle, 20 Tool Changer, USB, Air Gun. Unique Machine On our Floor now, fully powered / tested & is in Great working condition.”
- HAAS VF-0B Features:
- 20HP High Torque 15,000RPM Spindle
- High Speed Machining
- Quick Code Programming
- 1MB Expanded Memory
- Rigid Tapping
- 20 + 1 automatic tool changer
- Programmable coolant
- Automatic Air Gun
- Telescopic way covers
- Chip auger
- USB Drive
- Flood Coolant system
- HAAS VF-0B Specifications:
- Travels:
- X-Axis: 20″
- Y-Axis: 16″
- Z-Axis: 20″
- Rapid Traverse Rates: 710 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 24″

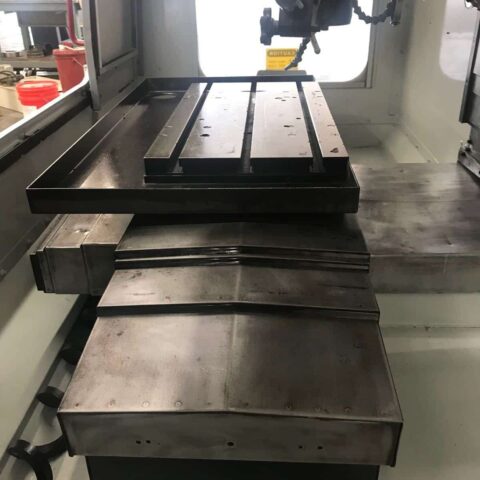

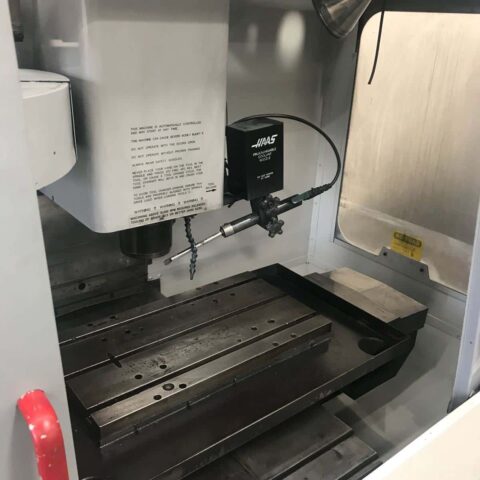

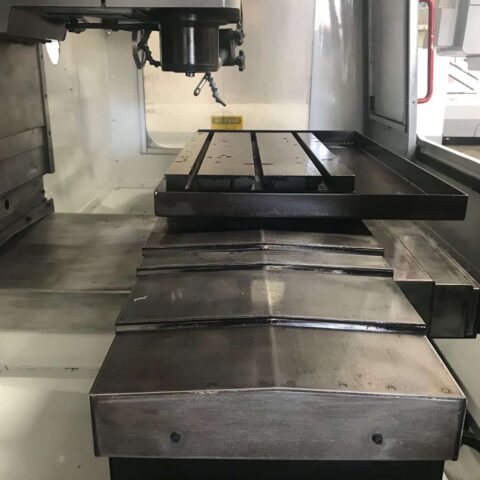

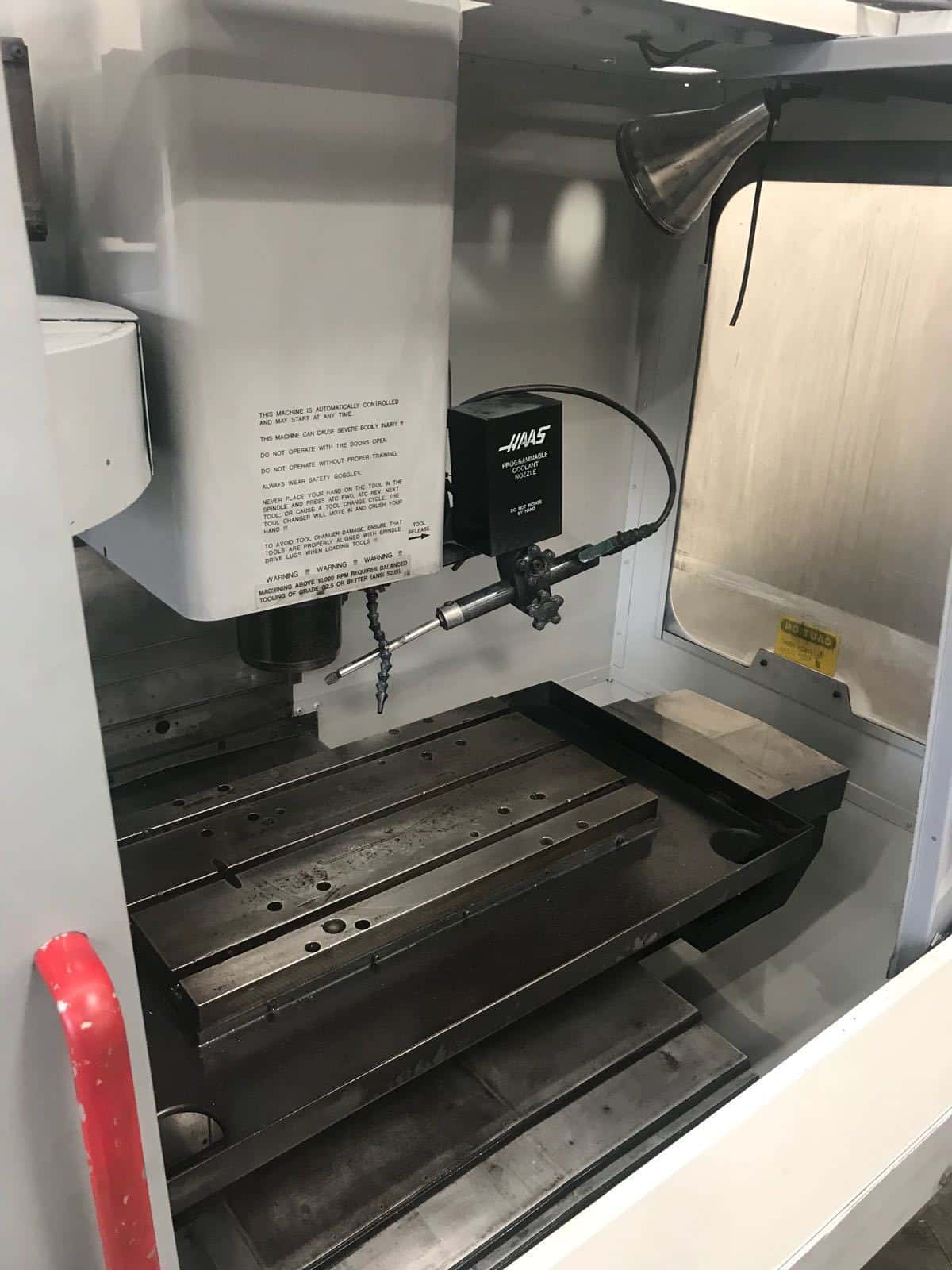

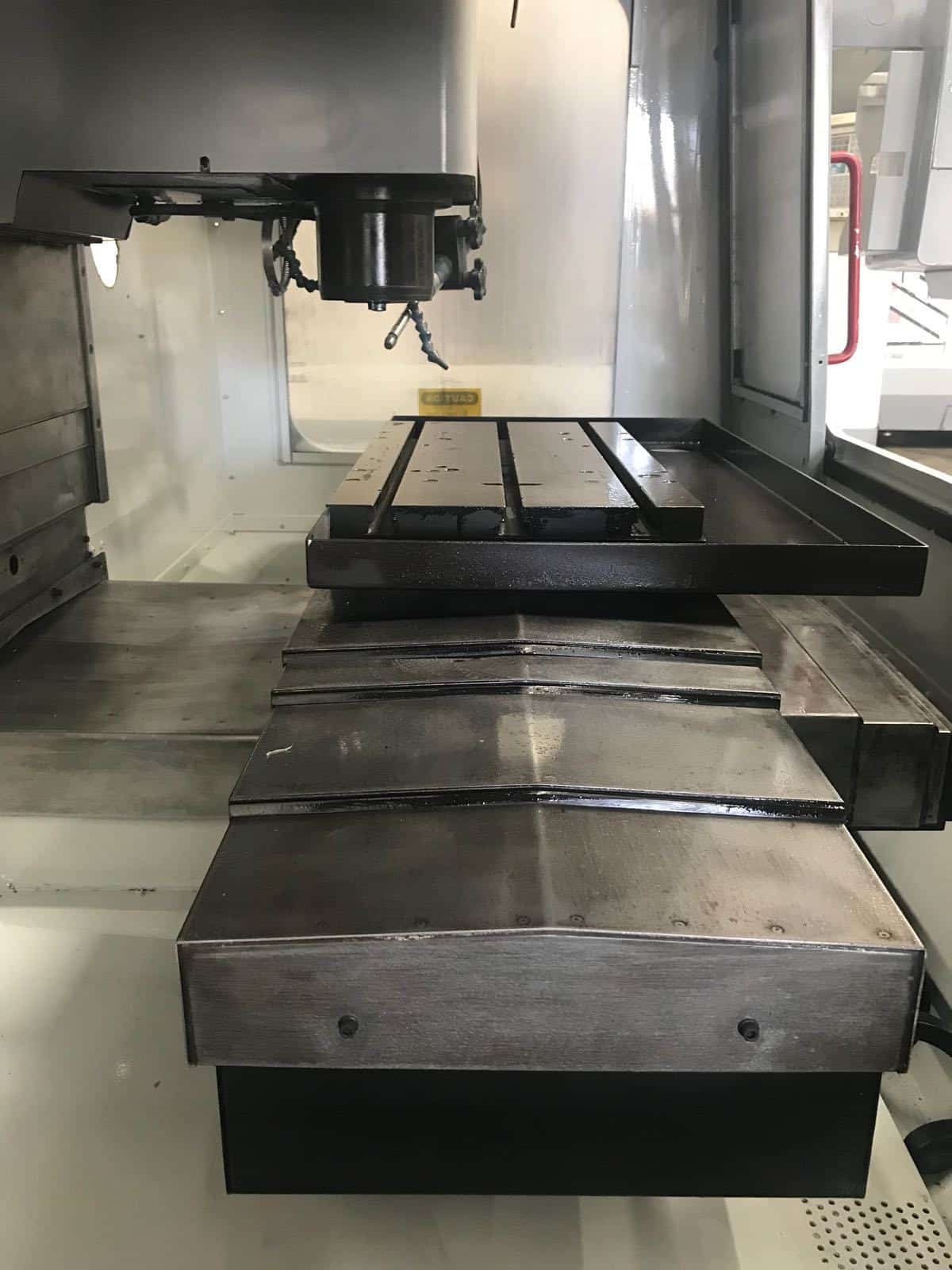

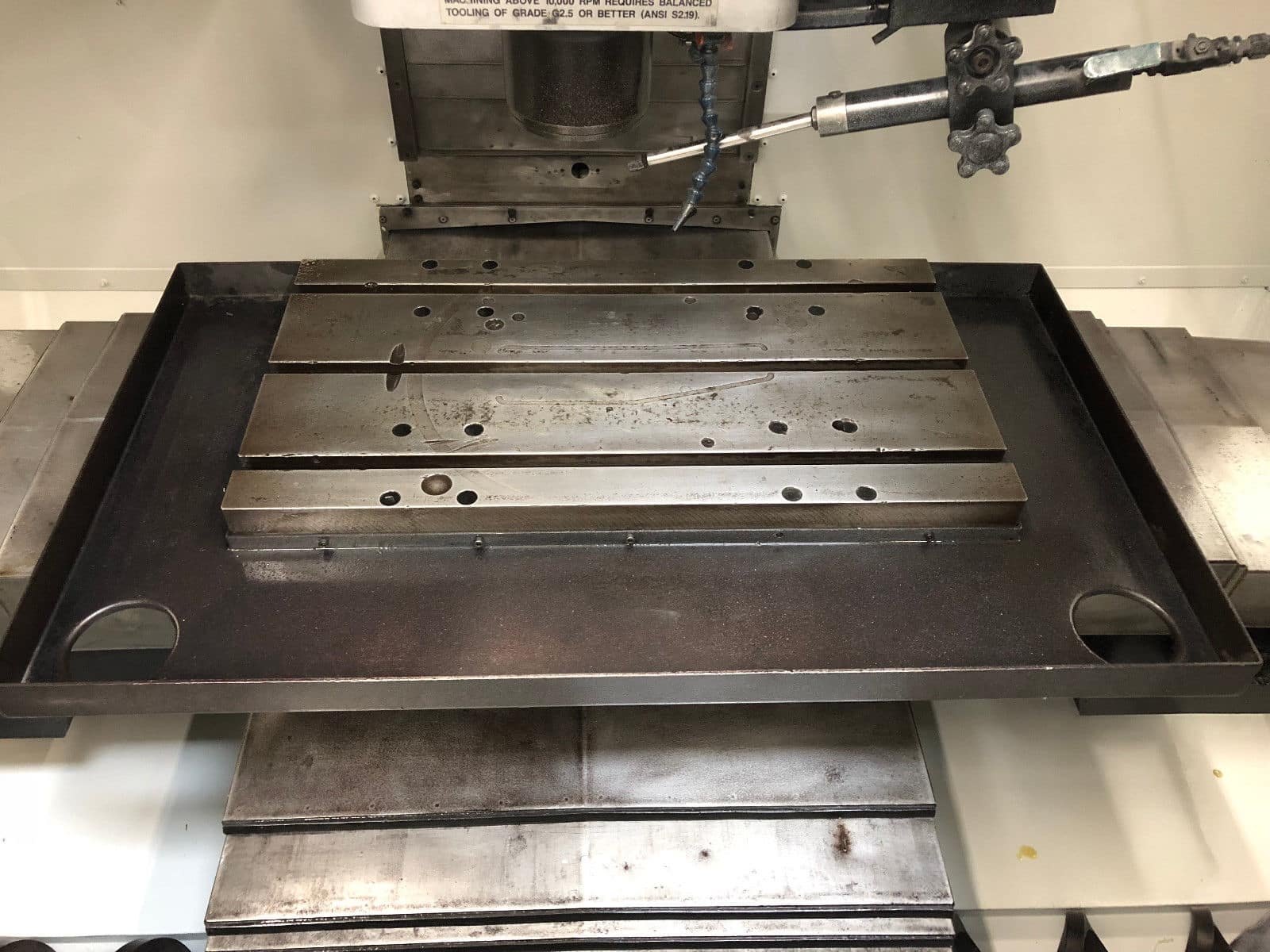

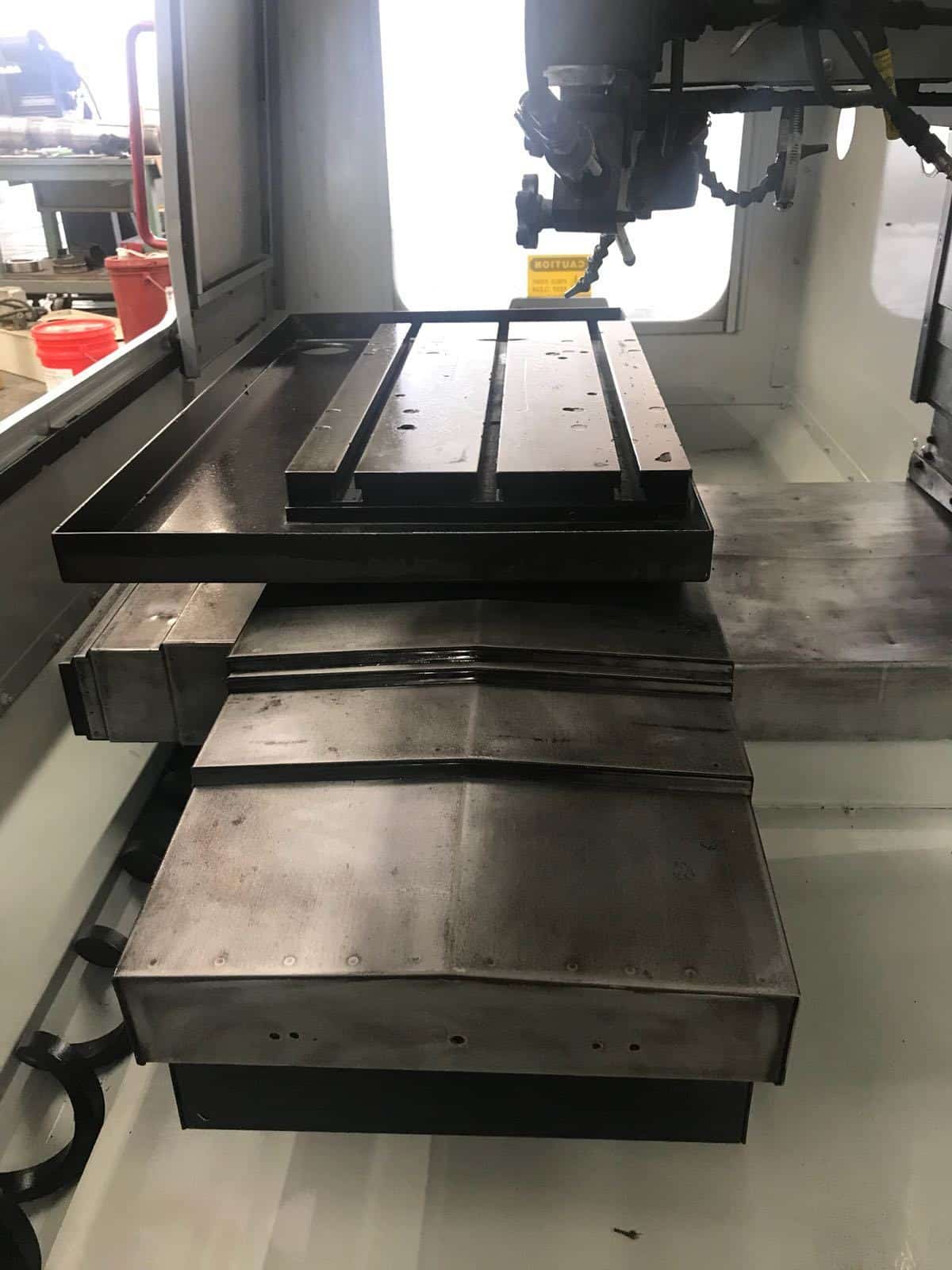

- Table:
- Length: 26″
- Width: 14″
- Number of Std T-Slots: 3
- T-Slot Width: 5/8″
- Max Weight on Table: 1500 lbs
- Spindle:
- Taper Size: 40
- Speed Range: 0 – 15000 RPM
- Spindle Power: 20 HP
- Max Torque: 90ft-lb @ 2000 RPM
- Automatic Tool Changer:
- Capacity: 20 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 3.6″
- Max Tool Length: 13″
- Tool Changing Time: 3.2 Seconds
- General:
- Air Required: 100 psi, 4 scfm
- Power: 360-480v / 66FLA / 3-Phase
- Overall Dimensions: 90″ x 88″ x 100″ High
- Weight: 7500 lbs

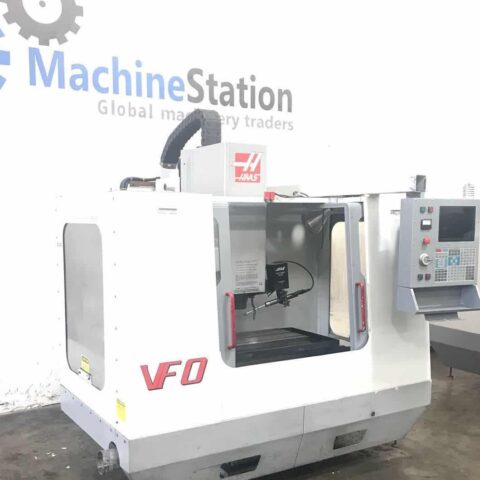

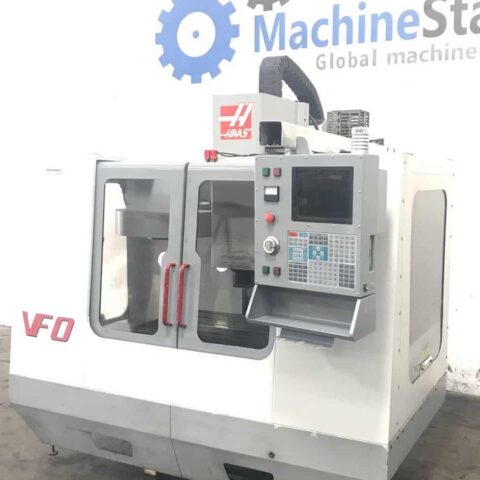

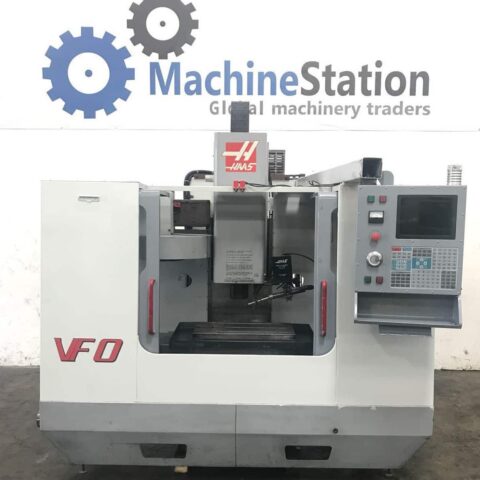

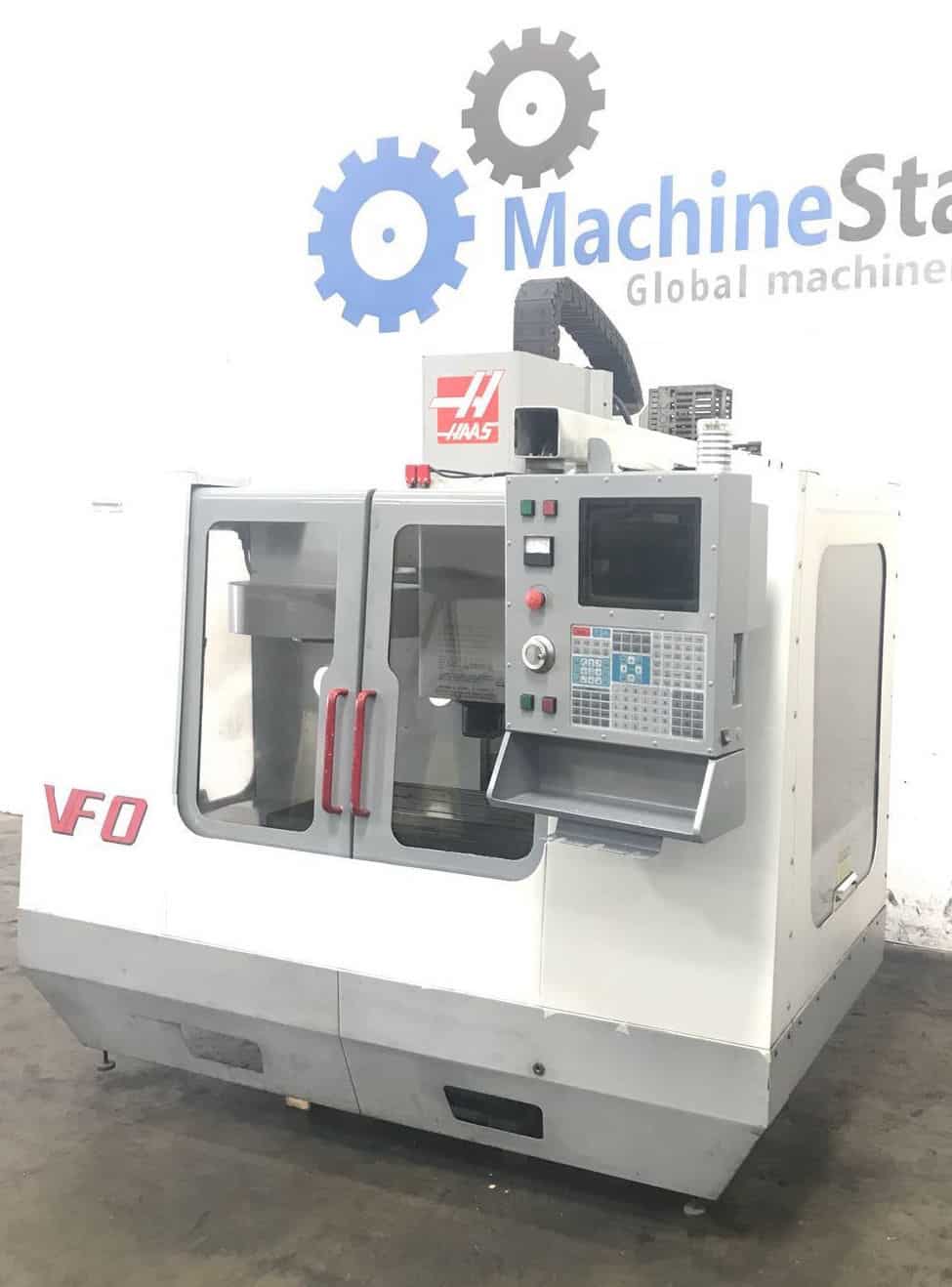

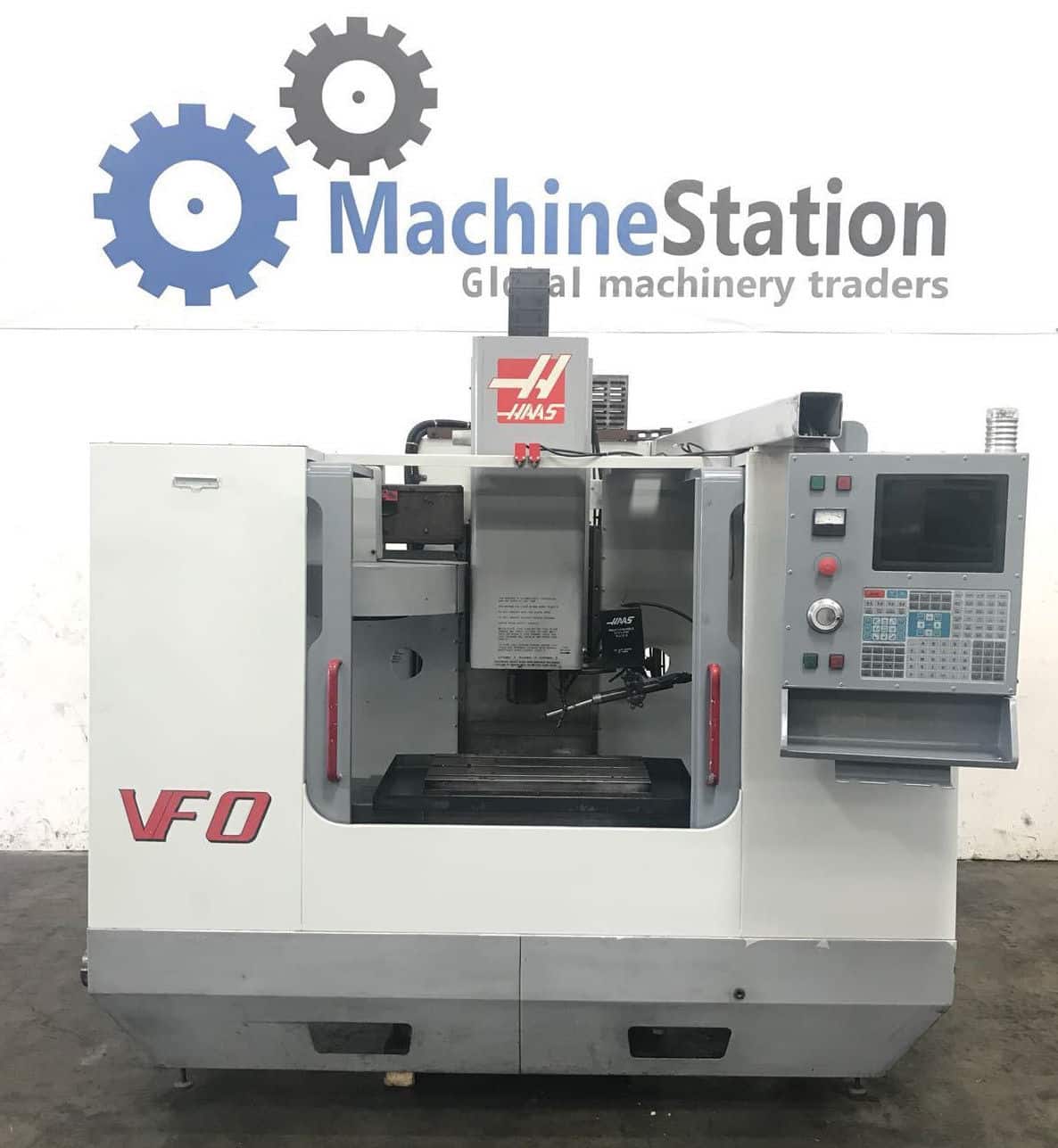

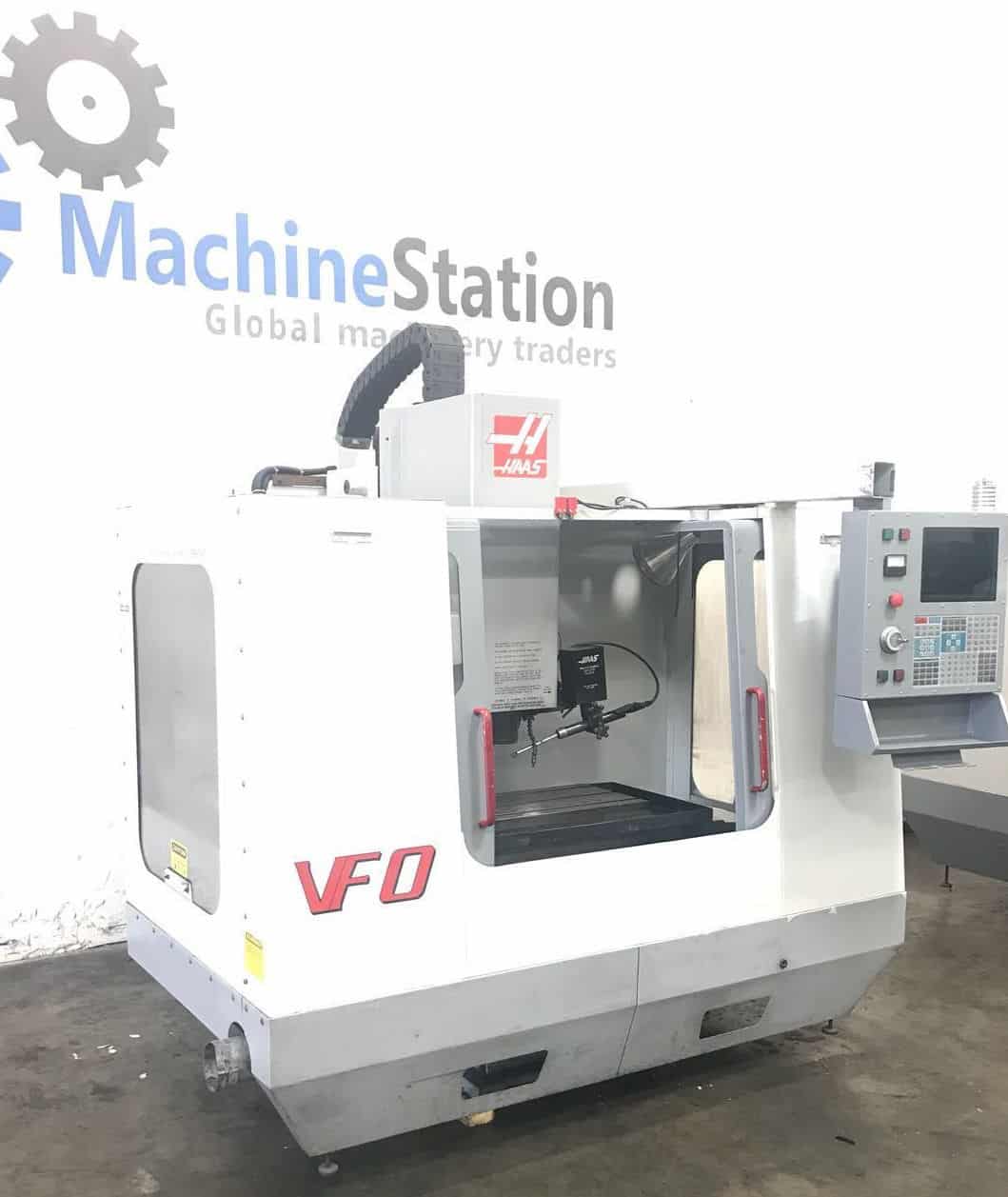

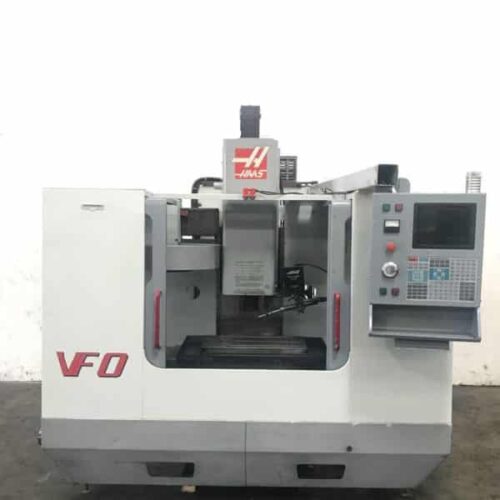

HAAS VF-0B Comes as shown in pictures..
