*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

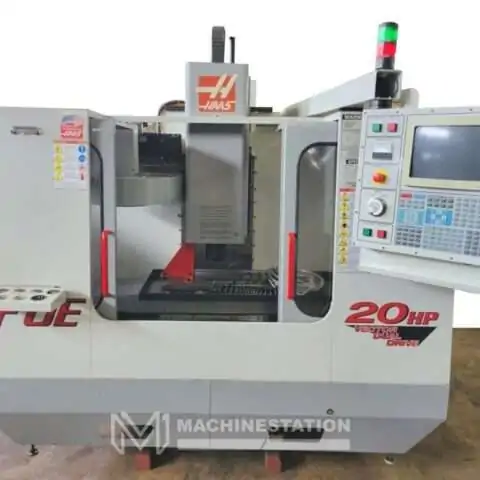

| Make: | HAAS |
| Model: | VF-0E |
| Year: | 1999 |
| Condition: | Used – Good |
Specifications:
MachineStation I Illinois
SKU # 2439

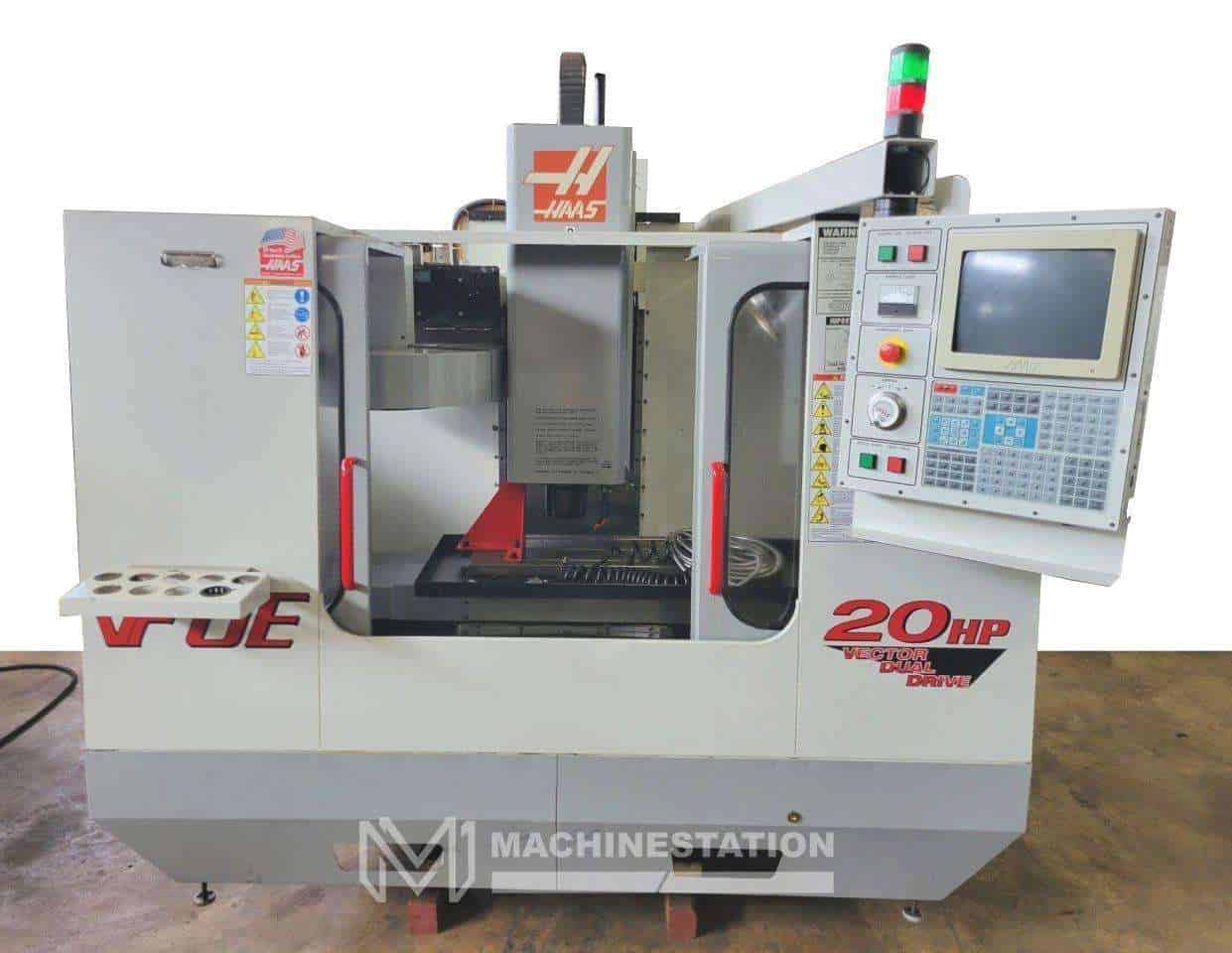

Make: Haas
Model No.: VF-0E
Year: 1999/2000
Condition: Good
*All specifications are approximations and are subject to verification. Comes as shown in images. Please give us a call if you have any questions before purchasing. All sales are final.*
Features:
Haas CNC Control
4th Axis Ready
7500 RPM Spindle
20 HP High Torque Spindle

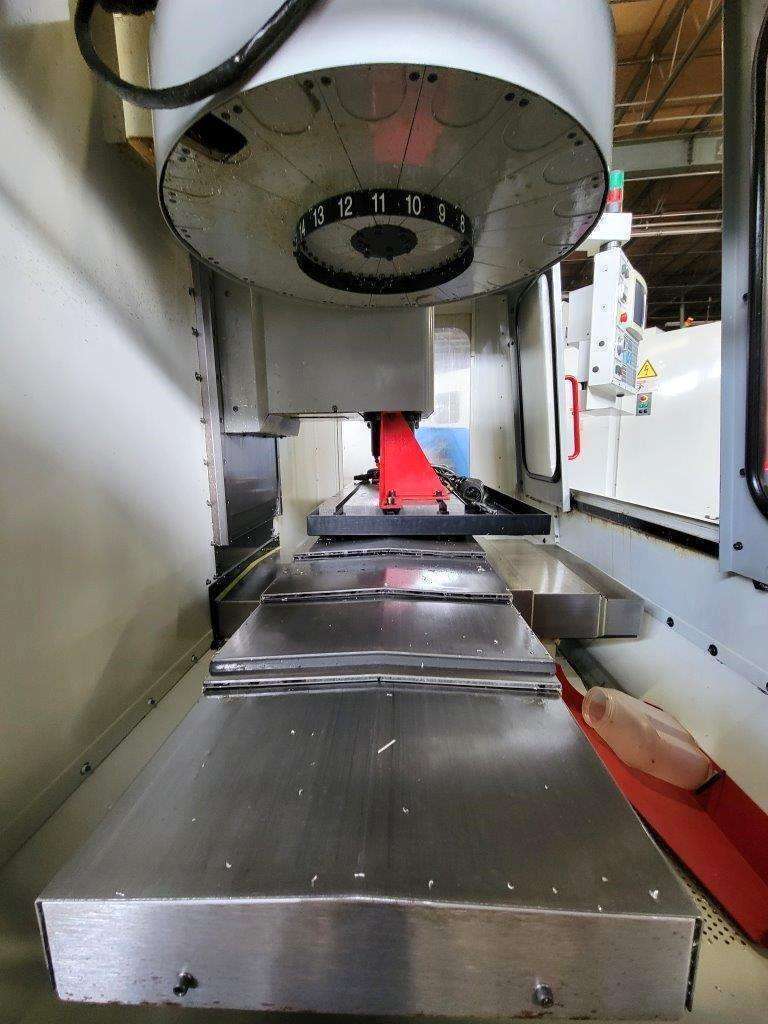

20 Station Umbrella Type Tool Changer
Rigid Tapping
Spindle Orientation
Extended Memory 1 MB

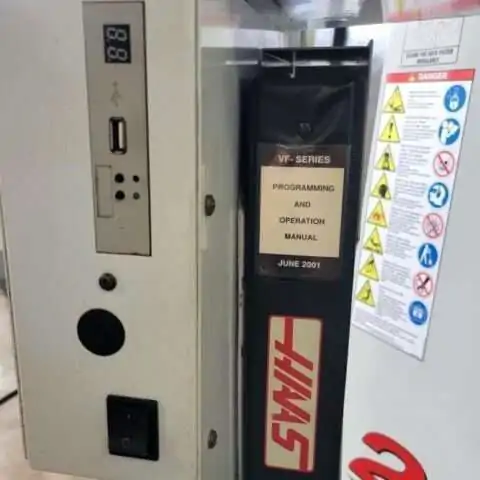

USB Port

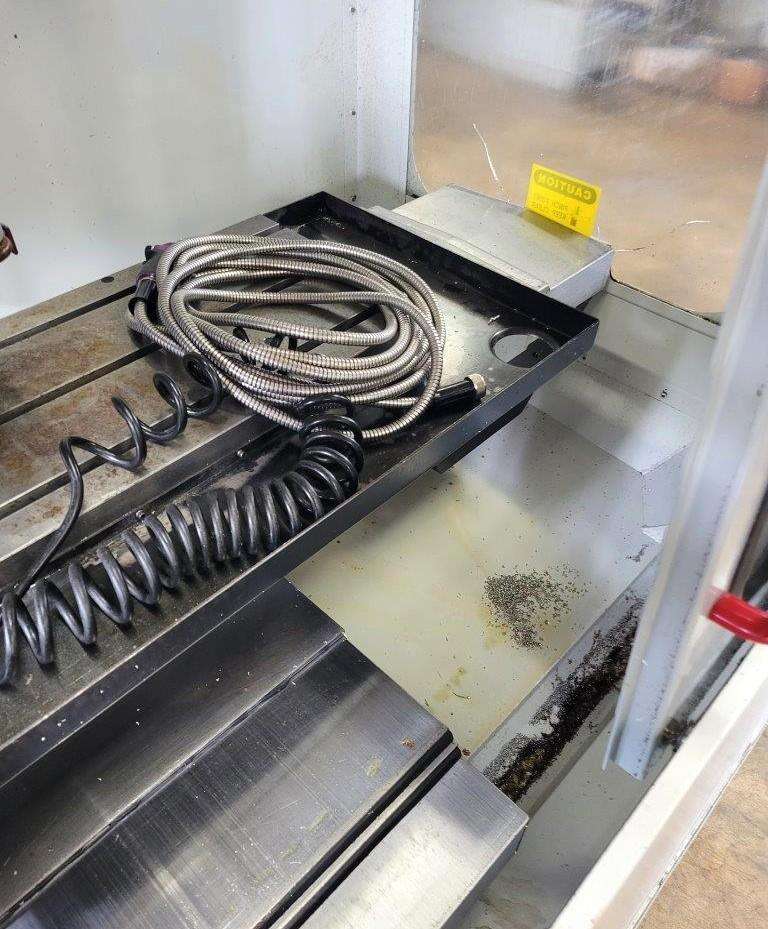

Coolant System

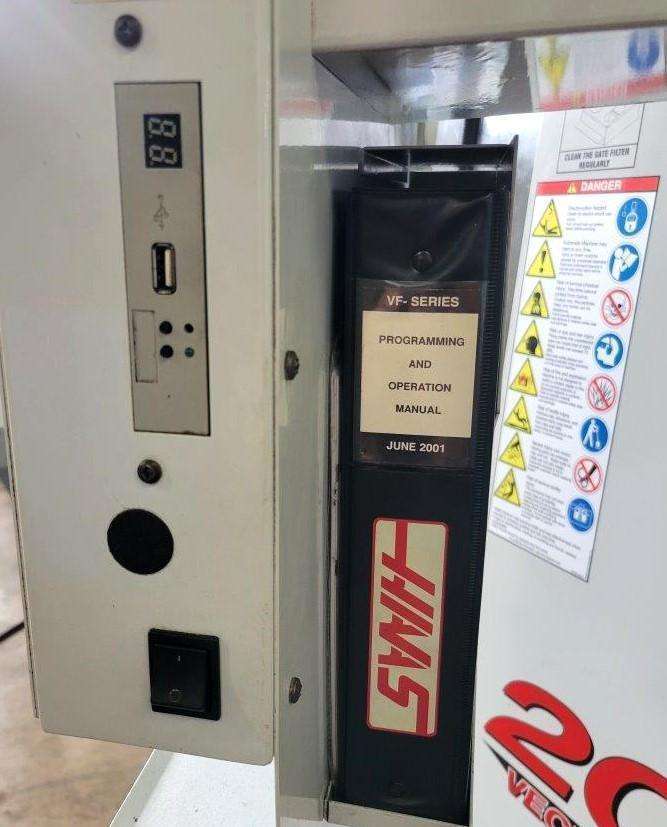

Books and Manuals
Machine Comes From Local College Never Used in Production
Specifications:
Travels:
X-Axis: 30″
Y-Axis: 16″
Z-Axis: 20″
Rapid Traverse Rates: 710 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

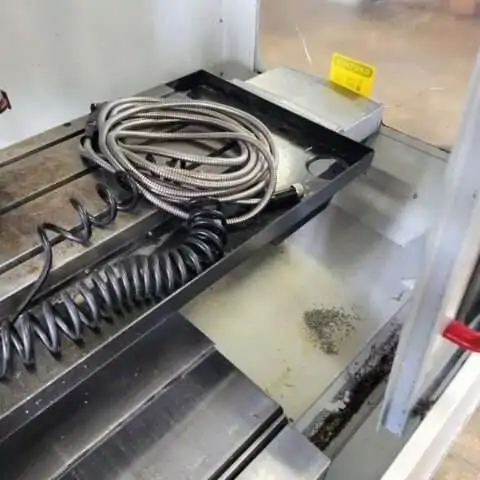

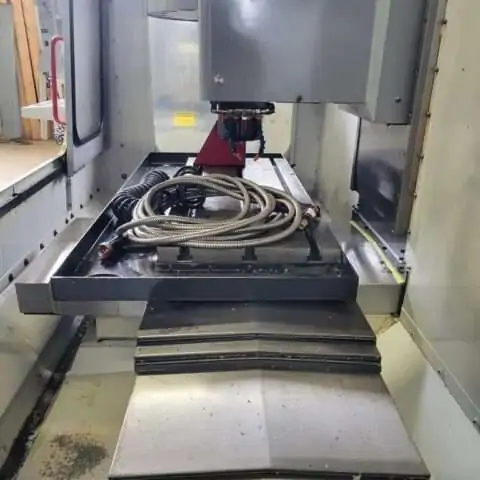

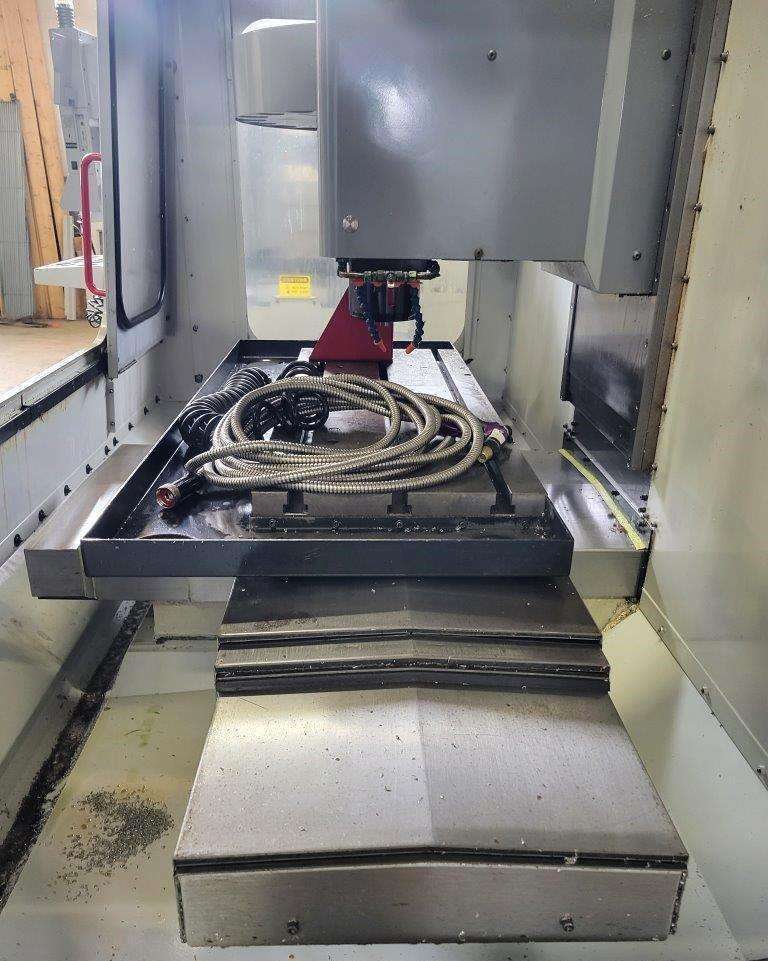

Table:
Length: 36.0″
Width: 14.0″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 3000 lbs
Spindle:
Taper Size: CAT-40
Speed Range: 7500 RPM
Spindle Power: 20 HP
Automatic Tool Changer:

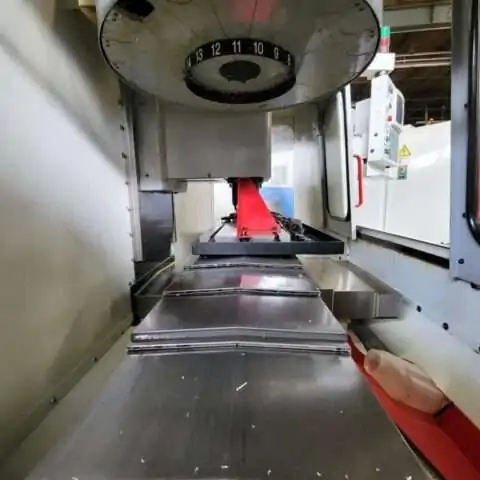

Capacity: 20 Station Umbrella Type
Max Tool Weight: 12 lbs
Max Tool Dia: 3.5″
Max Tool Length: 11″
Tool Changing Time: 4.2 Seconds
General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 110″ x 93″ x 104″ High
Weight: 8000 lbs
“No Charges for loading at list Price”
Comes as shown in pictures..
