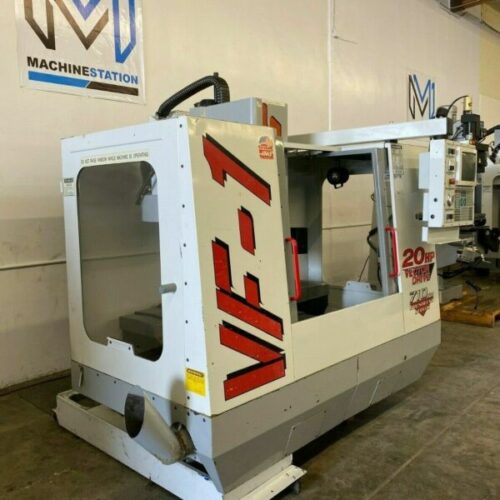

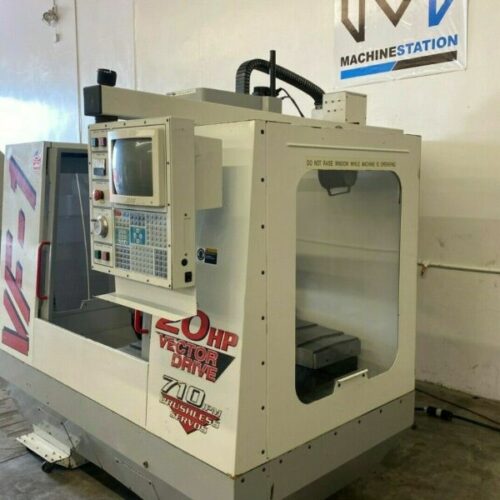

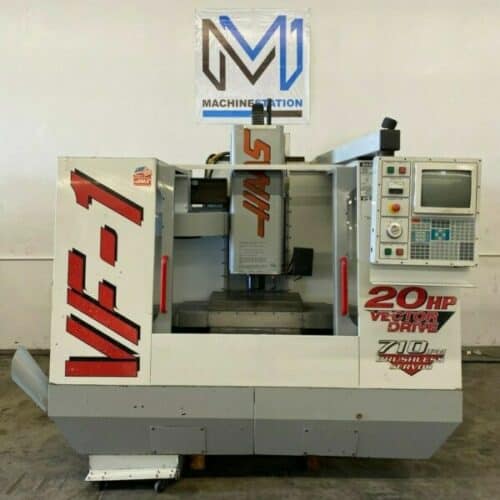

Haas VF-1 Vertical Machining Center

Out of stock

SKU:	1830
Make/Model:	Haas VF-1B
Video:	[fusion_button link=”https://www.youtube.com/watch?v=kFeBDn8rpRI” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]

SKU: 1830

HAAS VF-1 VERTICAL MACHINING CENTER
Make	Haas
Model No.	VF-1B
Year	04/9 Installed: 2000

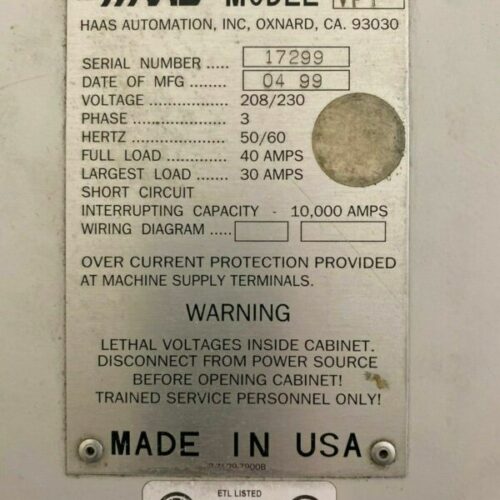

Serial #	17299
Condition	Very Good

All specifications are approximations and are subject to verification.

Haas VF-1 Features:

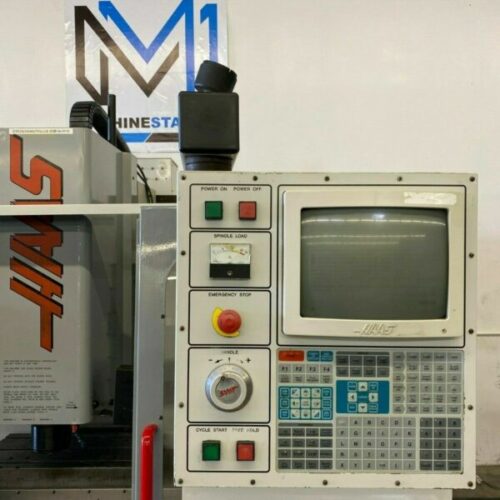

Haas CNC Control
4th Axis Ready
1MB Memory
7500 RPM Spindle
Quick Code Programming
Rigid Tapping
Automatic tool changer
Brushless-type servo drive motors on all axis
Programmable coolant
Telescopic way covers
Chip auger
Coolant Tank

Haas VF-1 Specifications:
Travels:
X-Axis: 20″
Y-Axis: 16″
Z-Axis: 20″
Rapid Traverse Rates: 710 Inch Per Minute
Cutting Feed Rates: 630 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 24″

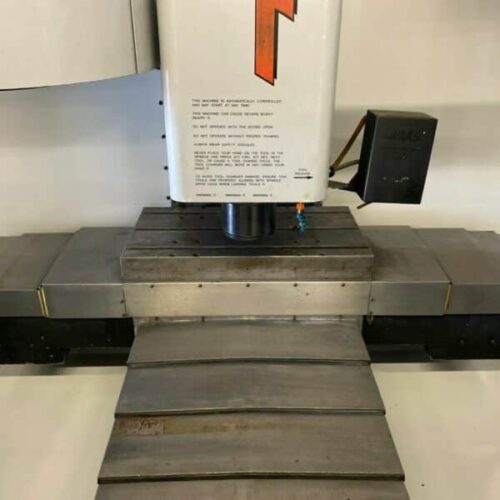

Table:
Length: 26″
Width: 14″
Number of Std T-Slots: 3
T-Slot Width: 5/8″
Max Weight on Table: 1800 lbs

Spindle:
Taper Size: CAT-40
Speed Range: 7500 RPM
Spindle Power: 20 HP

Automatic Tool Changer:
Capacity: 20+1
Max Tool Weight: 12 lbs
Max Tool Dia: 3.6″
Max Tool Length: 11″

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 90″ x 80″ x 100″ High
Weight: 8000 lbs

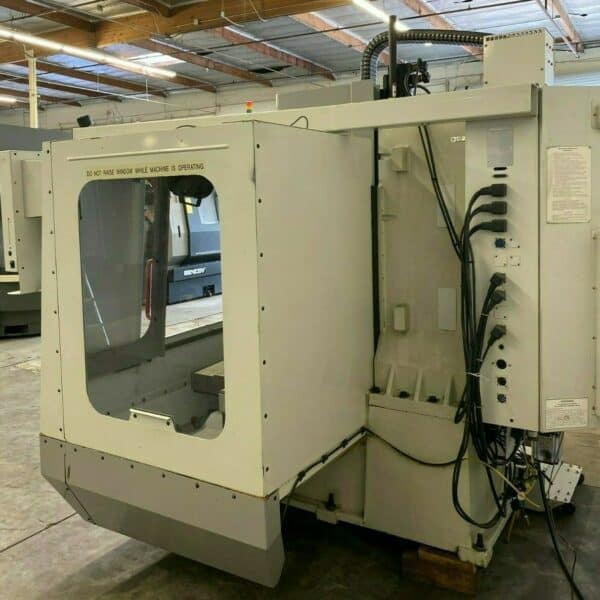

Comes as shown in pictures….
