HAAS VF-1D VERTICAL MACHINING CENTER | |
---|---|
Make | Haas |
Model No. | VF-1D |
Year of Manufacture: | 08/07 |

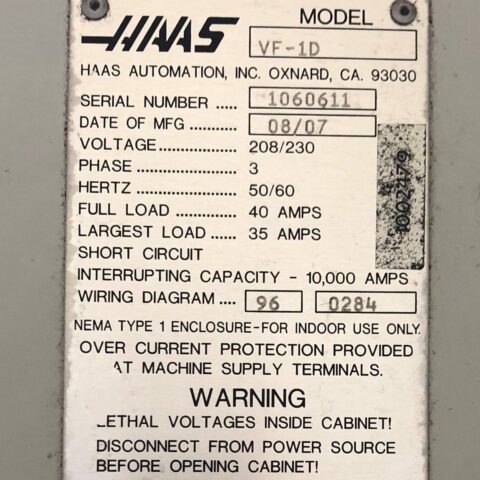

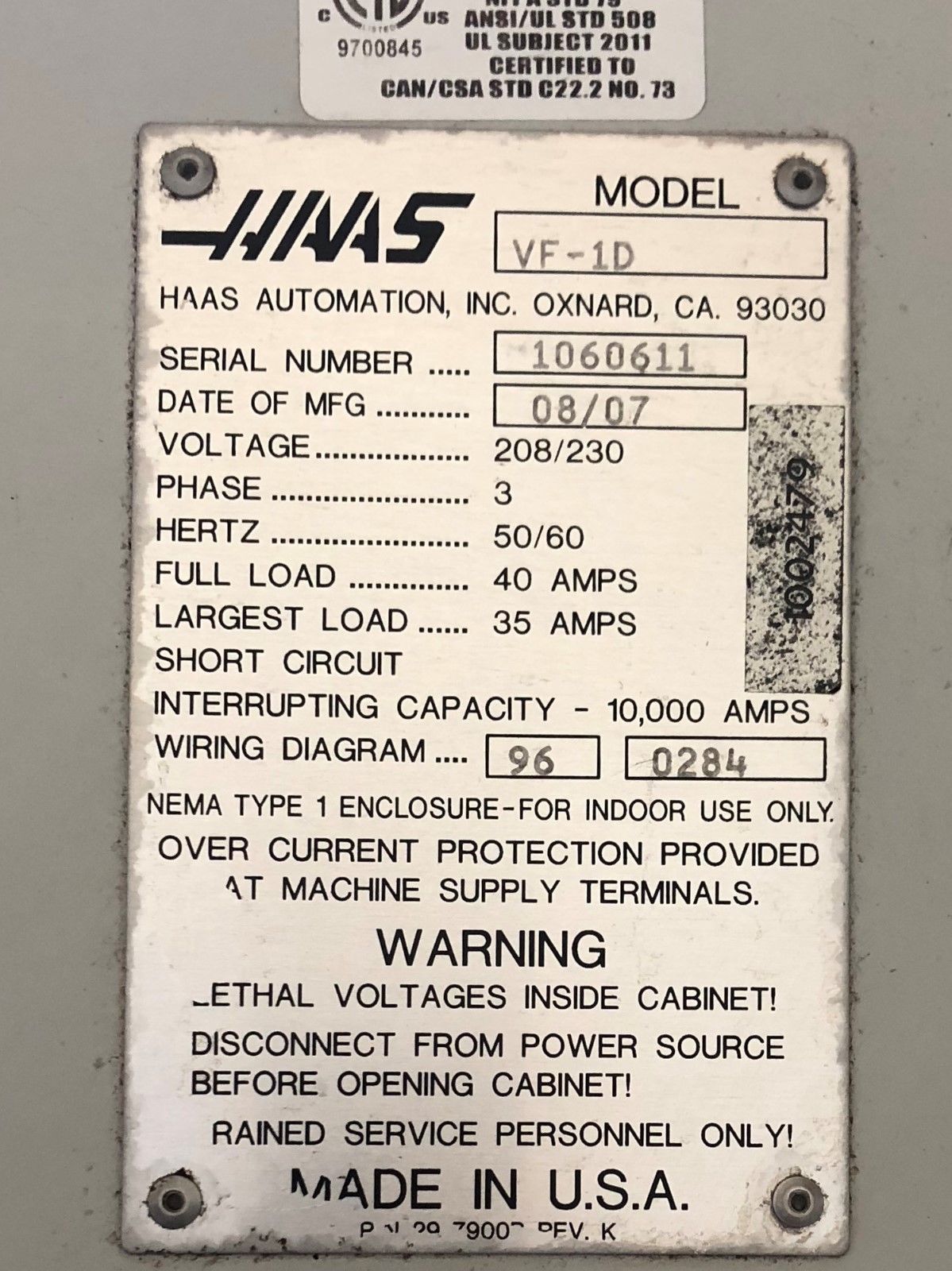

Serial # | 1060611 |
Condition | Very Good |
All specifications are approximations and are subject to verification.

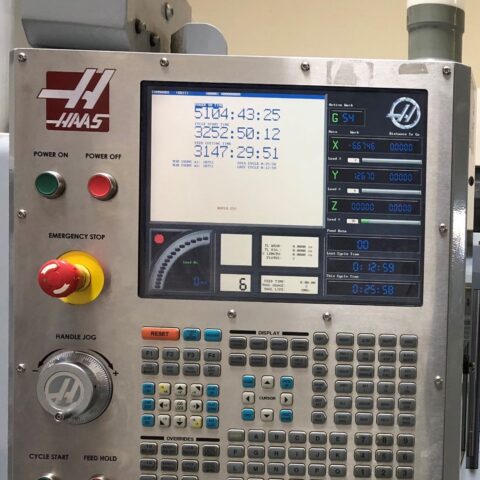

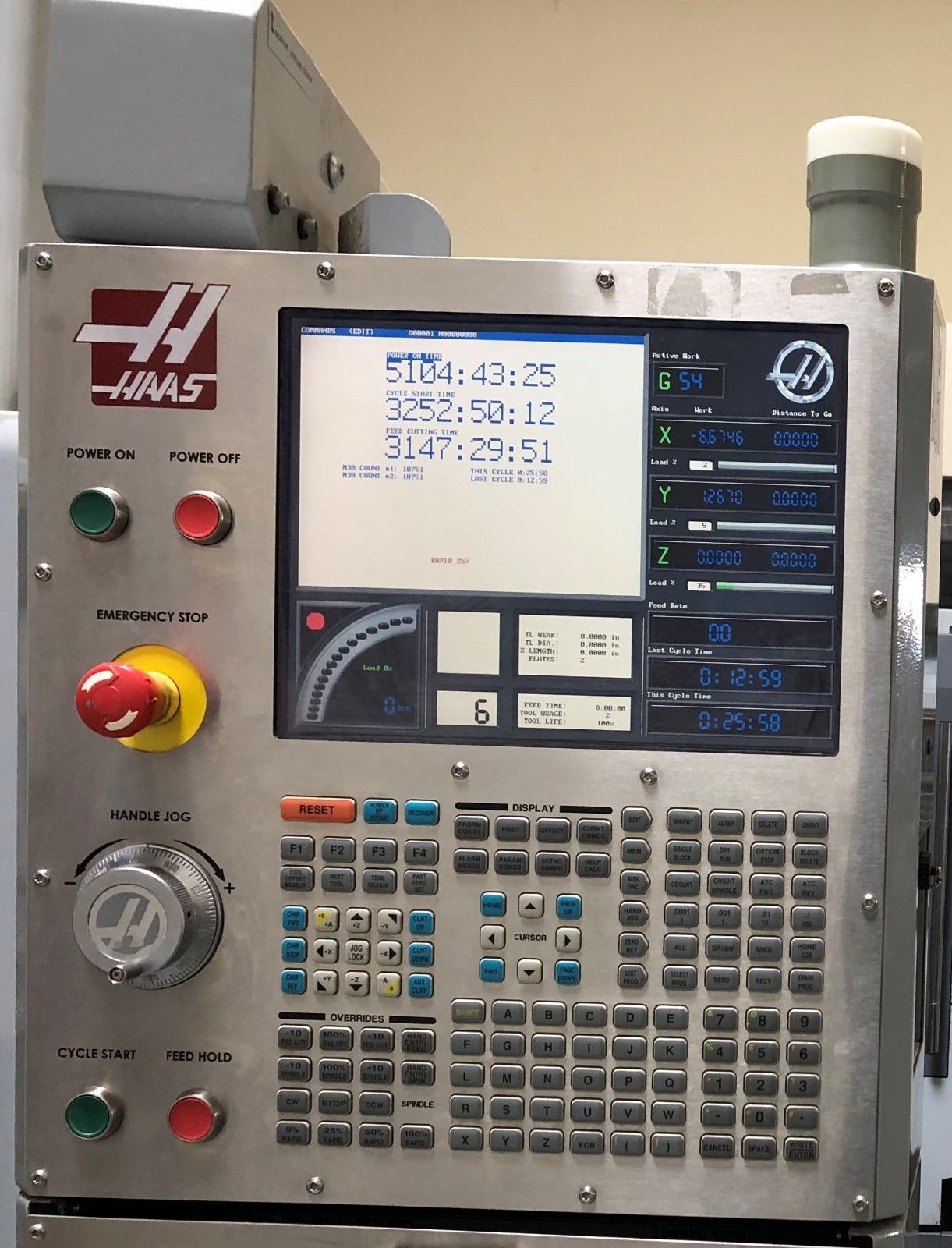

“One Owner Machine on our Floor now, fully powered / tested & is in Great working condition. cutting hours: 3147 only.”
- Haas VF-1D Features:
- 10,000 RPM Direct Drive Spindle
- 4th Axis Ready
- 1000 Inch Per Min. Rapid
- Rigid Tapping
- USB Drive
- User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
- Brushless servo drive motors on all axis
- 20 + 1 automatic tool changer
- Programmable coolant
- Telescopic way covers
- Chip auger
- Flood Coolant system
- Haas VF-1D Specifications:
- Travels:
- X-Axis: 20″
- Y-Axis: 16″
- Z-Axis: 20″
- Rapid Traverse Rates: 1000 Inch Per Minute
- Cutting Feed Rates: 650 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 24″

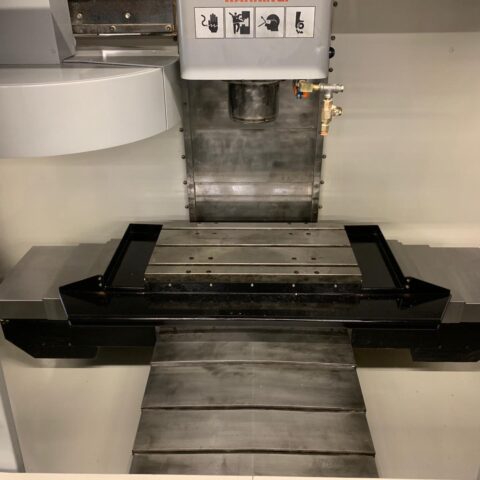

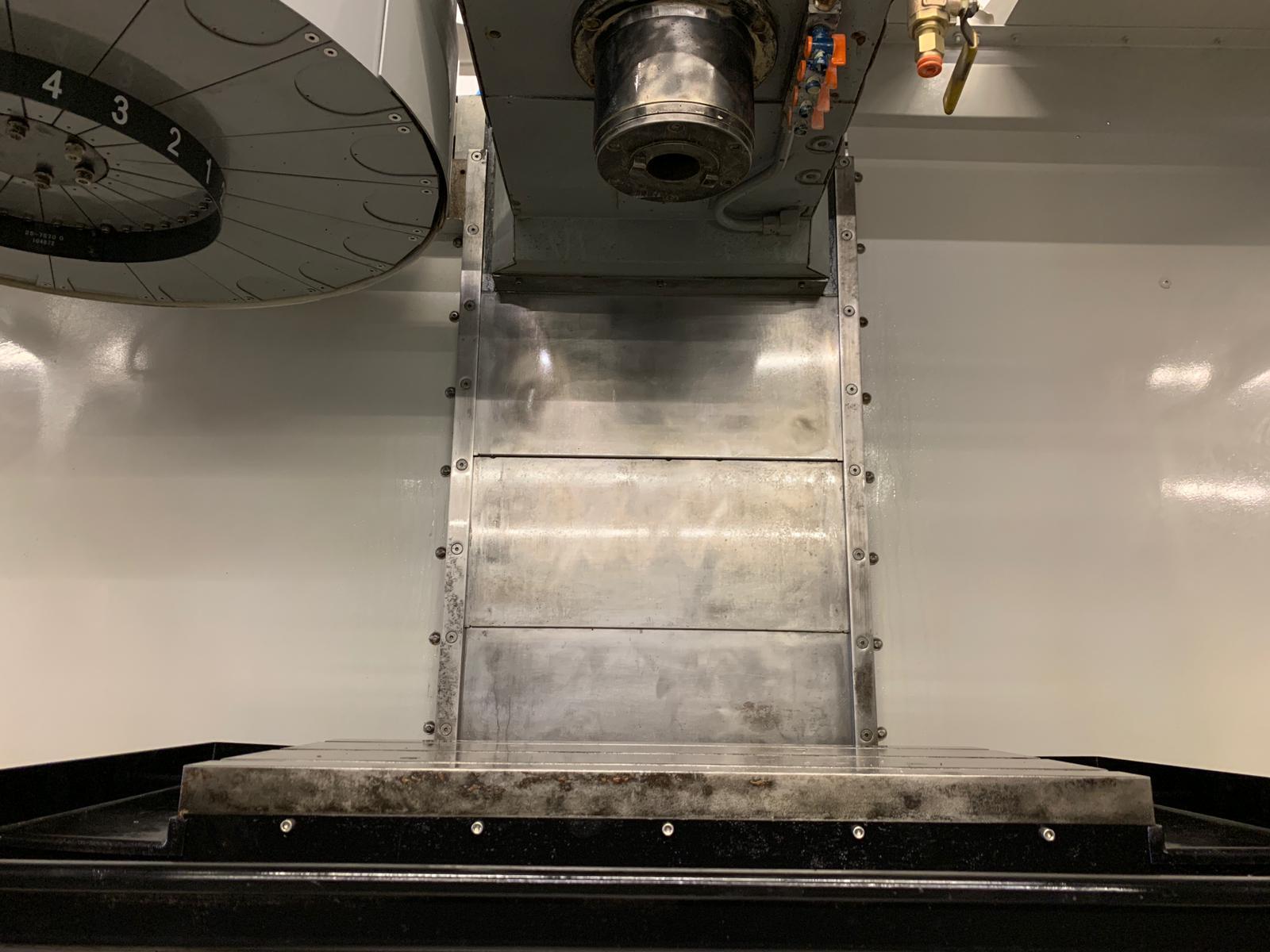

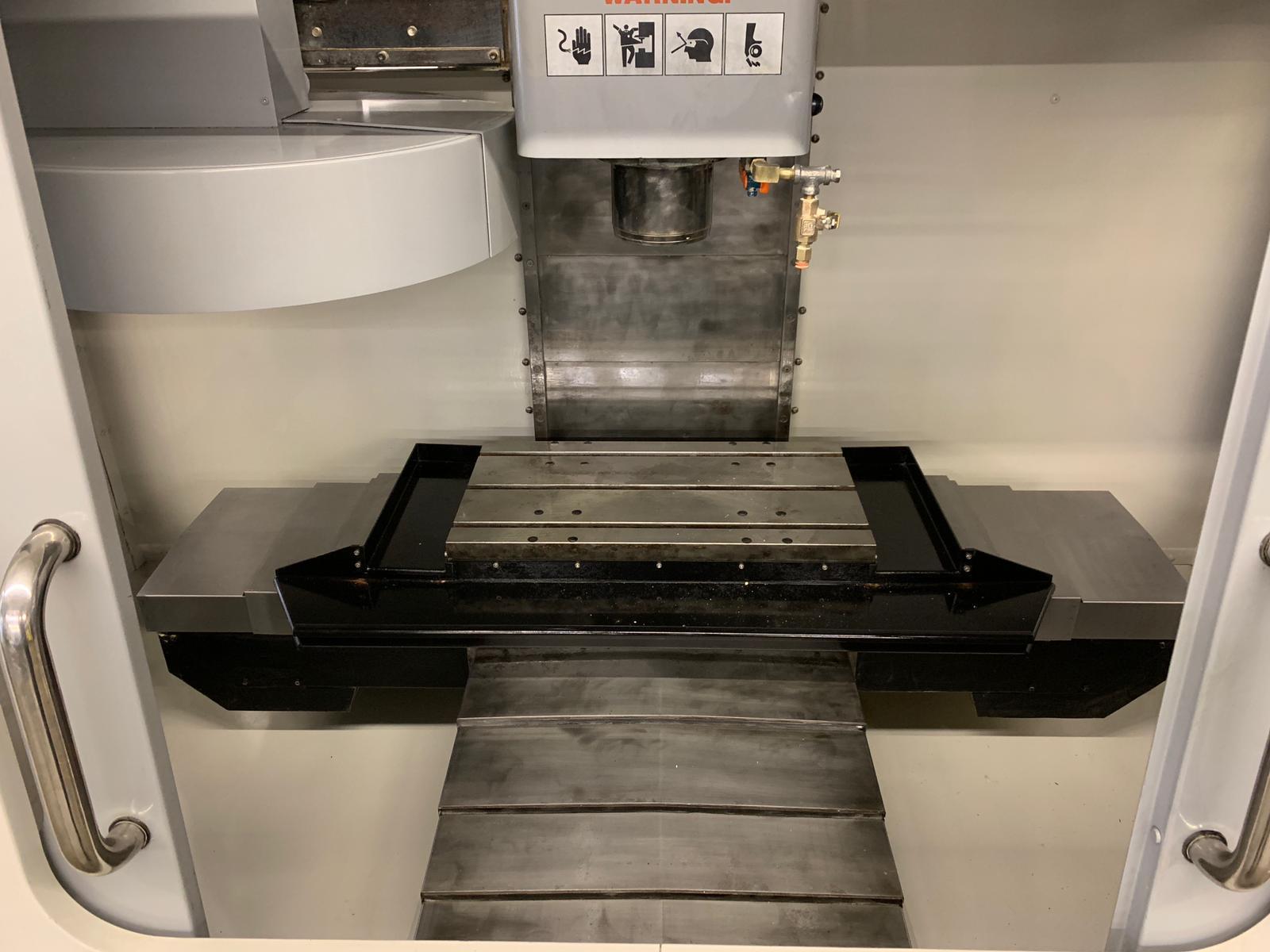

- Table:
- Length: 26″
- Width: 14″
- Number of Std T-Slots: 3
- T-Slot Width: 5/8″
- Max Weight on Table: 1800 lbs

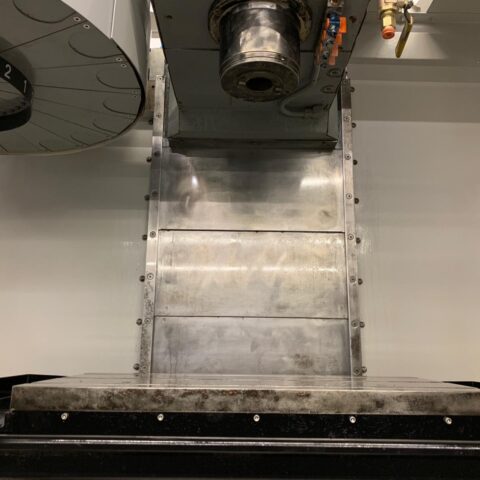

- Spindle:
- Taper Size: 40
- Speed Range: 0 – 10000 RPM
- Spindle Type: Inline Direct Drive
- Spindle Power: 20 HP Vector Dual Drive
- Max Torque: 90ft-lb @ 2000 RPM

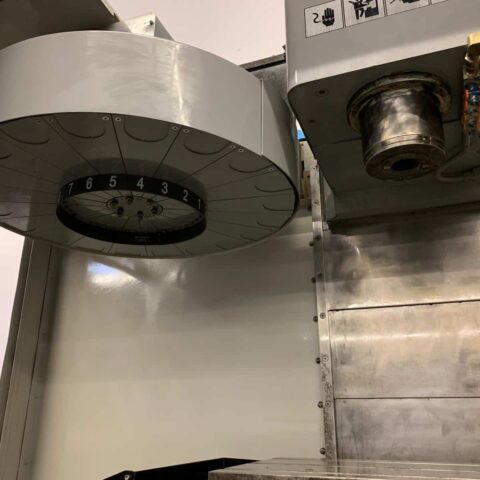

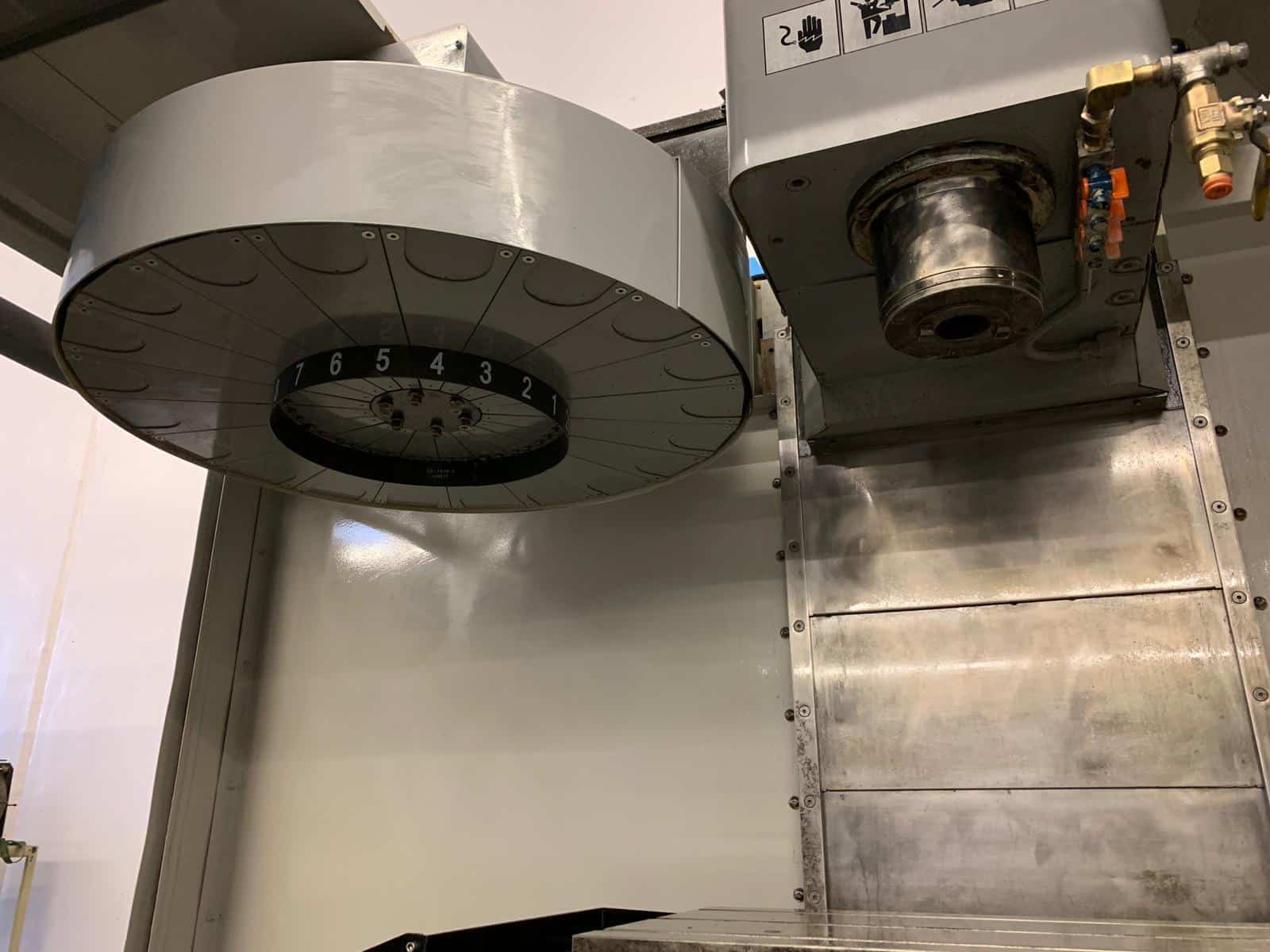

- Automatic Tool Changer:
- Capacity: 20 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 3.5″
- Max Tool Length: 11″
- General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 90″ x 82 x 100″ High
- Weight: 8000 lbs

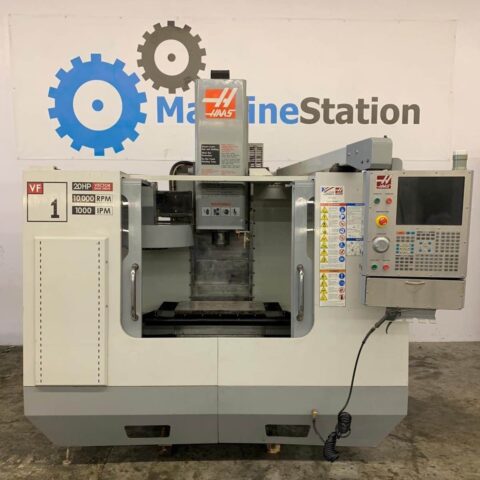

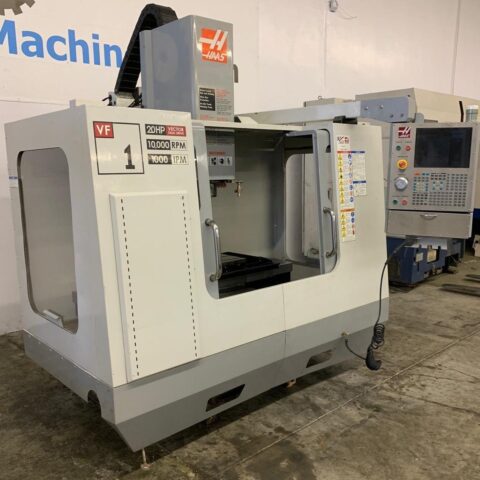

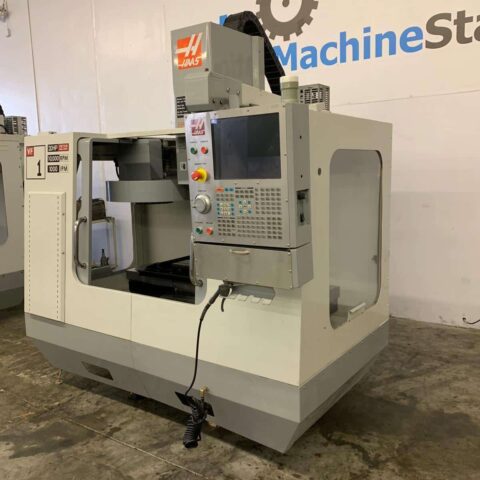

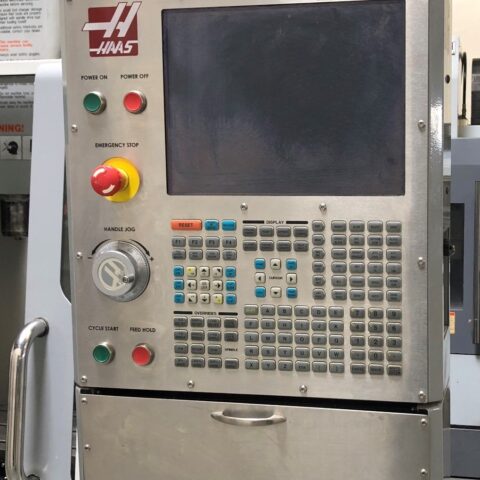

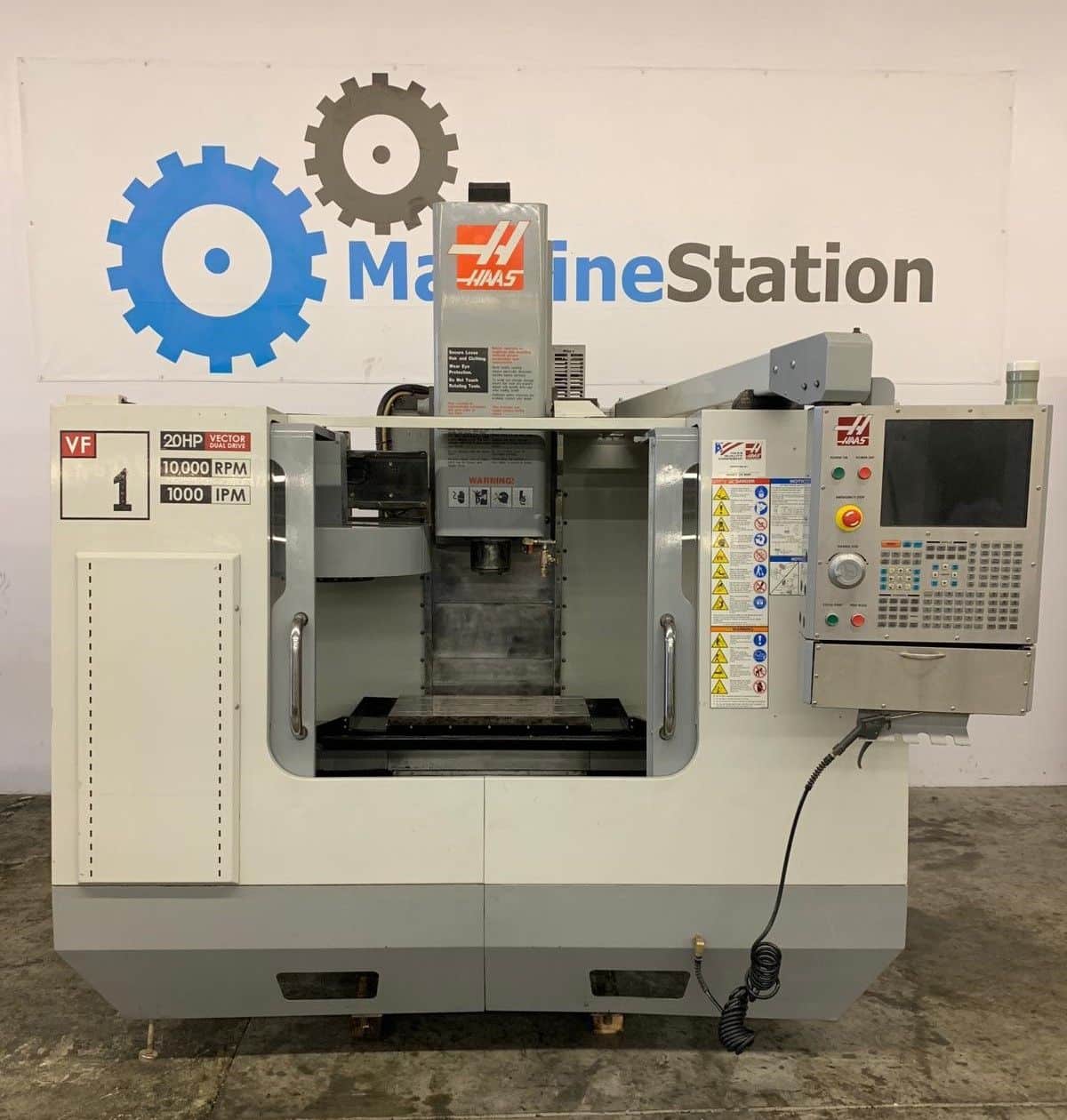

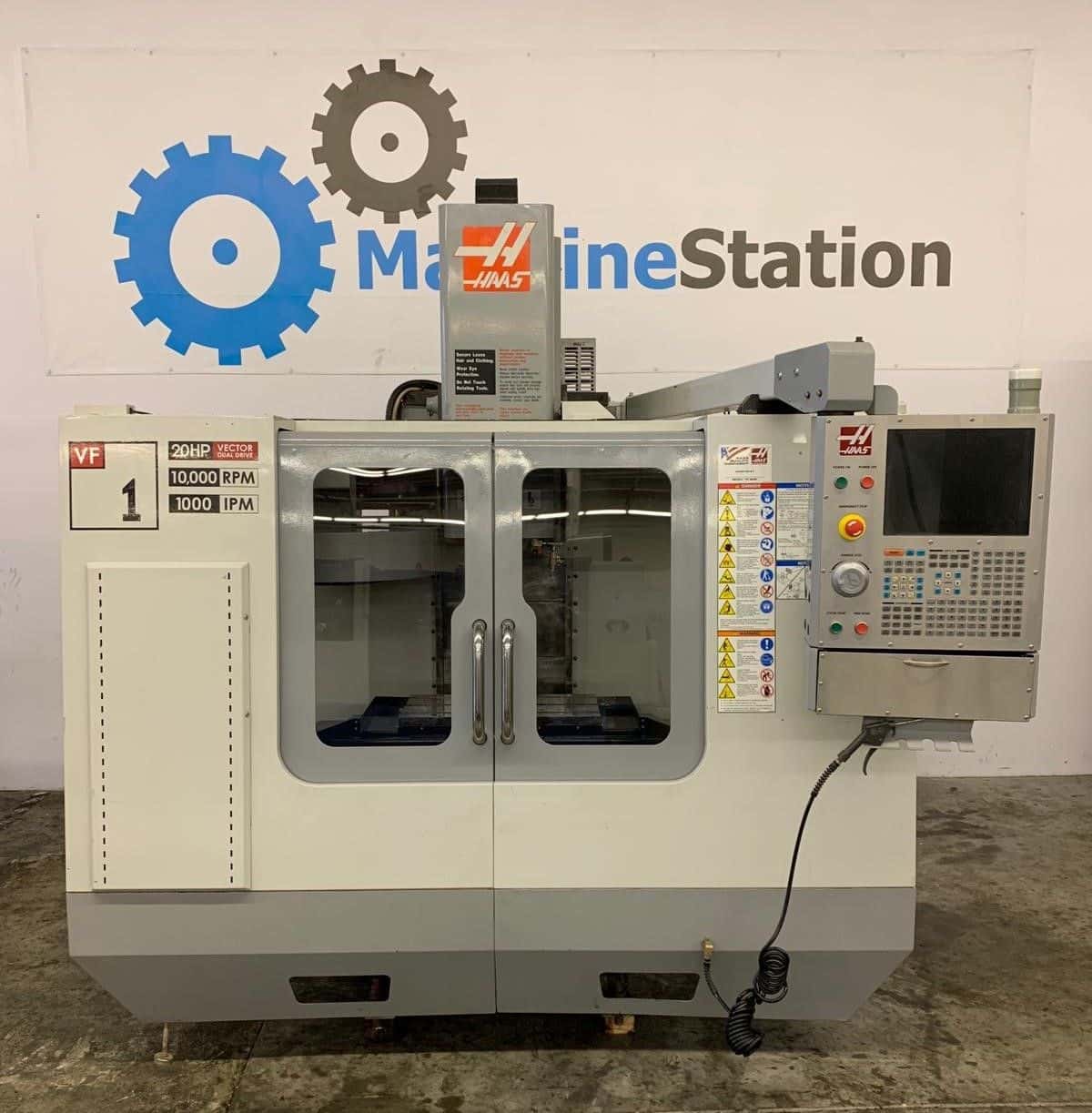

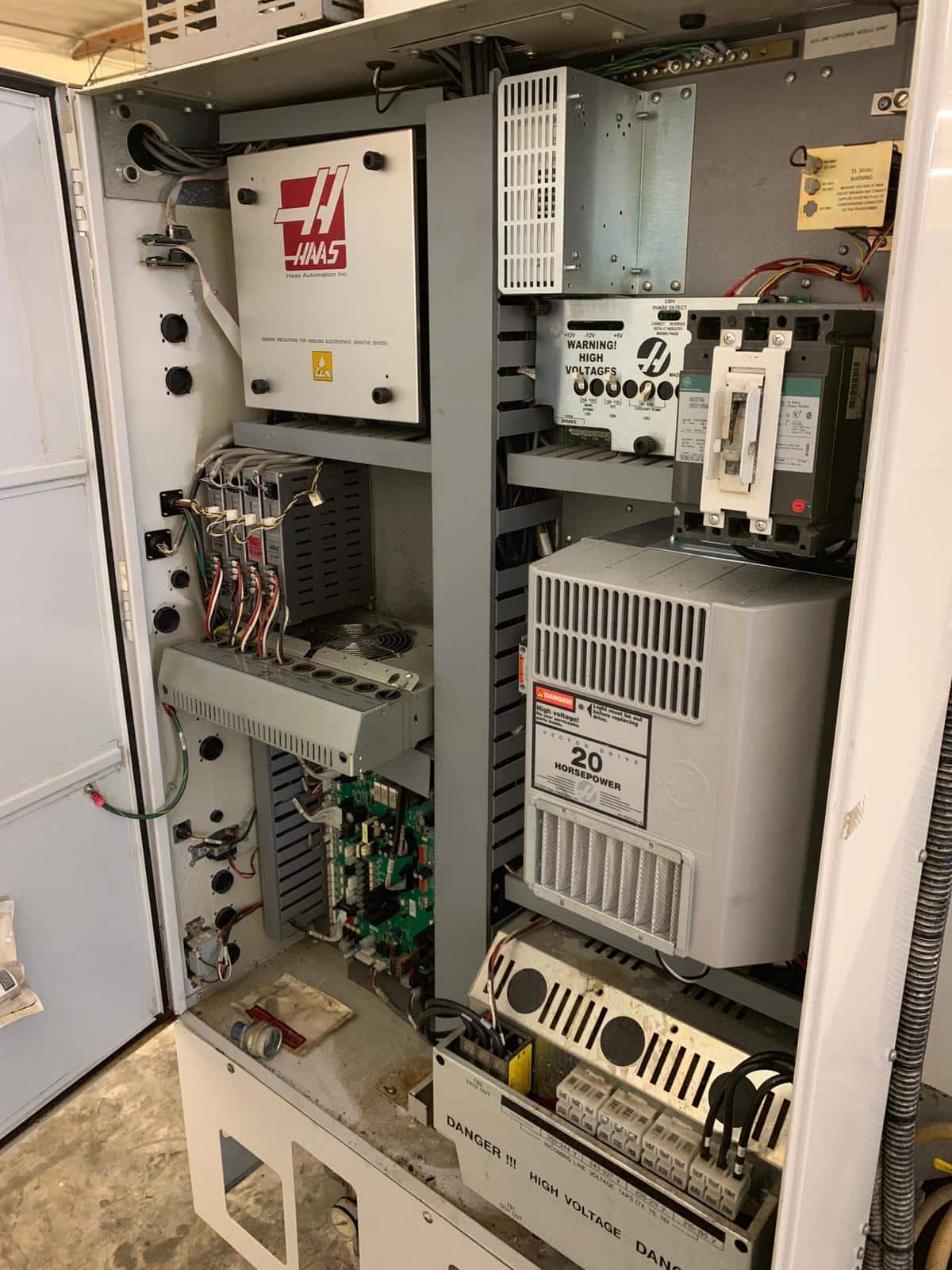

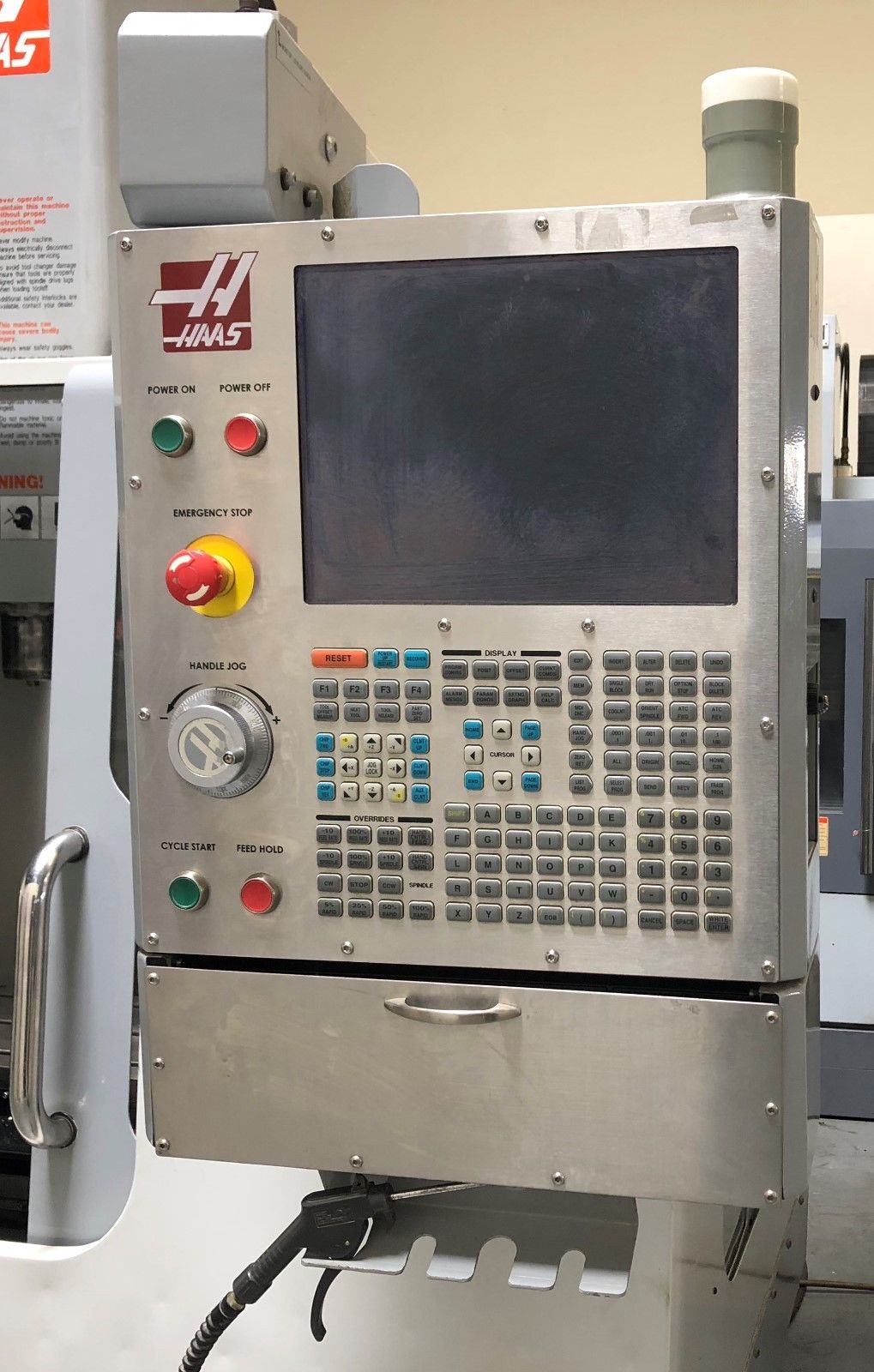

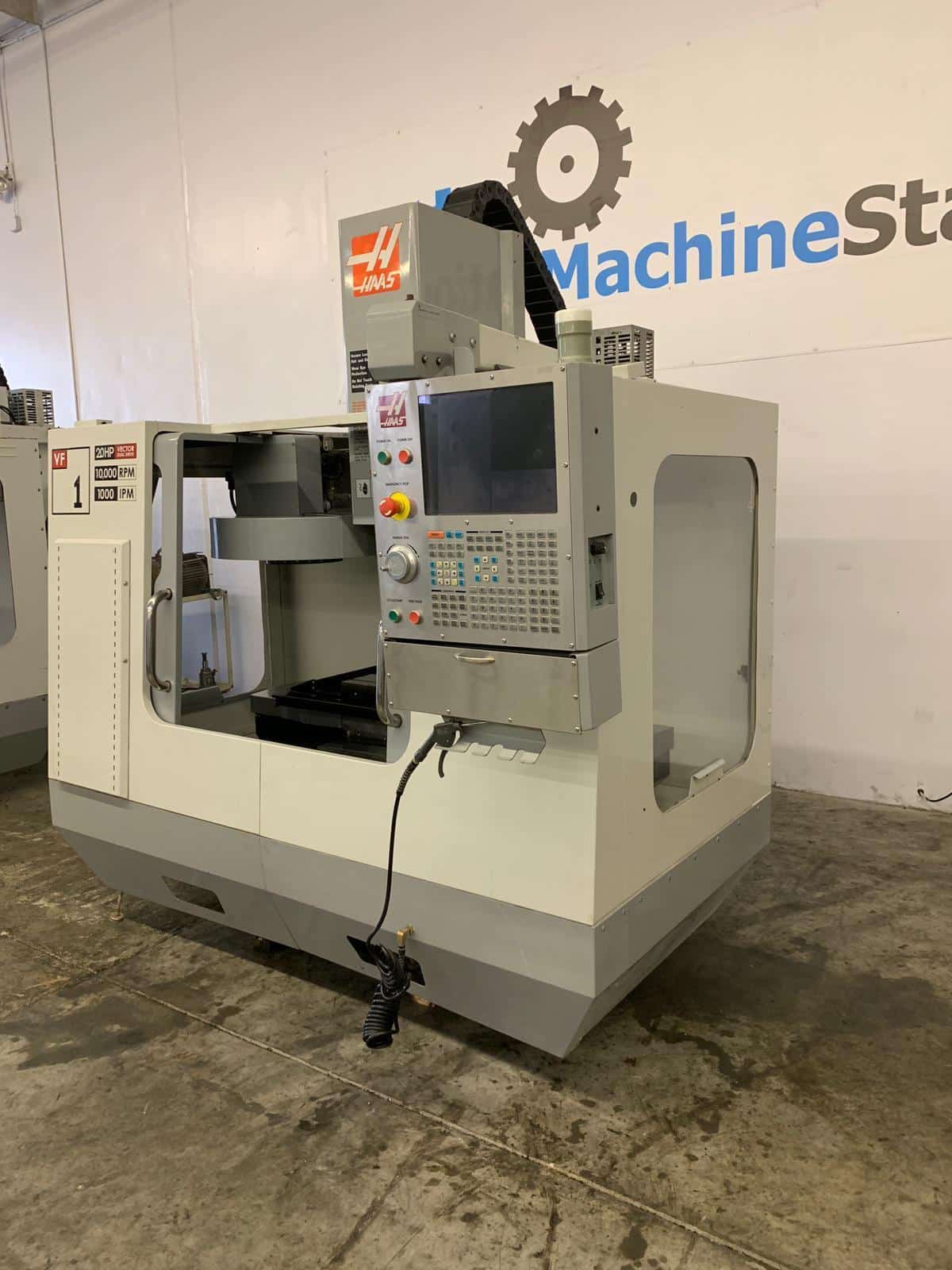

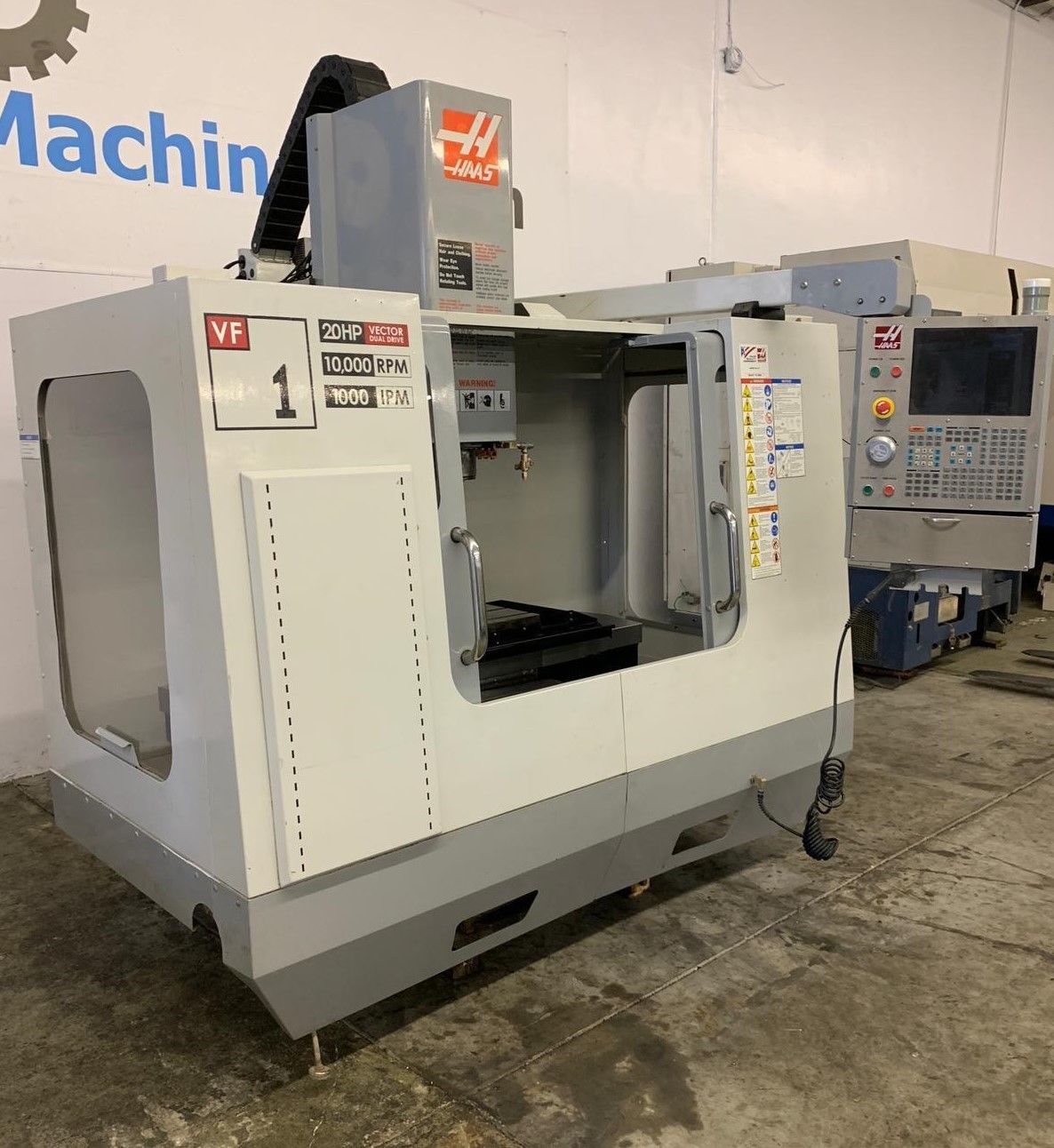

Haas VF-1D Comes as shown in pictures..
